Rheumatic fever

Rheumatic fever

DR : Gehan Mohammed


Learning objectives
Learning objectives

  • Understand the pathogenesis of rheumatic fever.

  • Discuss the Effects of Rheumatic Fever on the three layers of Heart(endocardium,myocardium,pericardium).

  • Identify the organs other than the heart that are affected by

    rheumatic fever.

  • List the major and minor criteria needed for diagnosis of

    rheumatic fever.

    Differentiate rheumatic endocarditis from other causes of endocarditis(Nonbacterial Thrombotic EndocarditisNBTE,Infective Endocarditis)


Acute rheumatic fever arf
ACUTE Rheumatic Fever (ARF)

  • Definition: is an acute, immunologically mediated, multi-system inflammatory disease that follows, after a few weeks of an episode of group A-beta hemolytic streptococcal infection with cardiac and extra cardiac manifestations.

  • It is characterized by inflammatory reaction involving heart 60% of patients affected by RF, joints in 75% , central nervous system in 10 % and skin in 2%.



Acute rheumatic fever clinical
Acute Rheumatic Fever: Clinical

  • Occurs 10 days to 6 weeks after pharyngitis caused by strept infection so anti streptolysin O (ASO) titer will be high.

  • Peak incidence: in children 5-15 years.

  • Acute carditis: pericardial friction rubs, weak heart sounds, tachycardia and arrhythmias.

  • Extracardiac: fever, migratory polyarthritis of large joints, arthralgia, skin lesions, chorea


Pathogenesis
Pathogenesis

  • The causative organisms result in the formation of antibodies. Then These antibodies cross react with joints and the heart which may be due to antigenic similarity between streptococcus and heart tissue.

  • Immunologic mechanism is the most likely method of damage to the heart .


For diagnosis of rheumatic fever need 2 major or 1 major and 2 minor criteria
For diagnosis of rheumatic fever need 2 major or 1 major and 2 minor criteria

Johnes Major criteria of rheumatic fever

  • 1- Carditis

  • 2- Migrating Polyarthritis affect large joints as knee,ankle which show redness, swollen,hot.

    Inflamed joints , self limited, become normal within 1-3 days even without treatments so no chronic deformities.

  • 3- Sydenhem’s chorea : a characteristic series of rapid movements of the face and arms. This occurs late in the disease


For diagnosis of rheumatic fever need 2 major or 1 major and 2 minor criteria1
For diagnosis of rheumatic fever need 2 major or 1 major and 2 minor criteria

Major criteria of rheumatic fever

  • 4- Erythema margination:common on trunk ,limbs ,not pruritic.

  • 5- Subcutaneous nodules : appear on the extensor surface of tendons near bony prominences.


Criteria of rheumatic fever
Criteria of and 2 minor criteriarheumatic fever

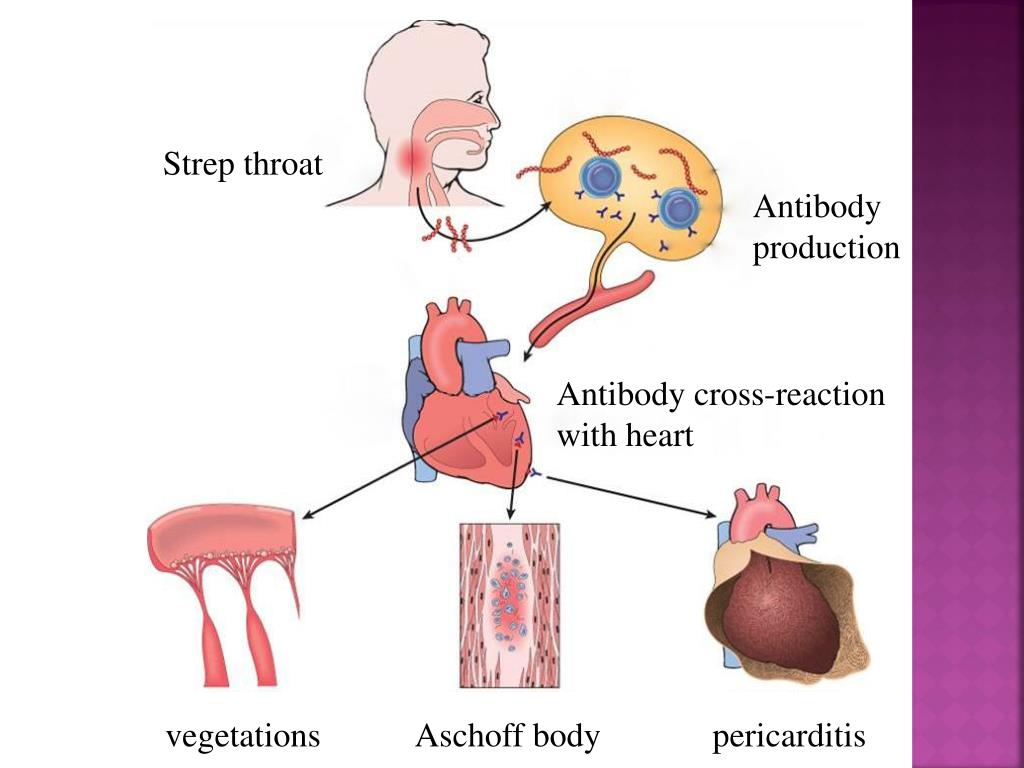

Strep throat and 2 minor criteria

Antibody

production

Antibody cross-reaction

with heart

vegetations

Aschoff body

pericarditis


Erthyma marginatum
Erthyma and 2 minor criteriamarginatum


Subcutaneous nodules
Subcutaneous nodules and 2 minor criteria


Minor criteria of rheumatic fever
Minor criteria and 2 minor criteria of rheumatic fever

  • Previous history of rheumatic fever

  • Arthralgia

  • Fever

  • Lab tests indicative of inflammation : increase ESR (erythrocyte sedimentation rate), CRP (C-Reactive protein), leukocytosis

  • Echocardiogram (ECG) changes

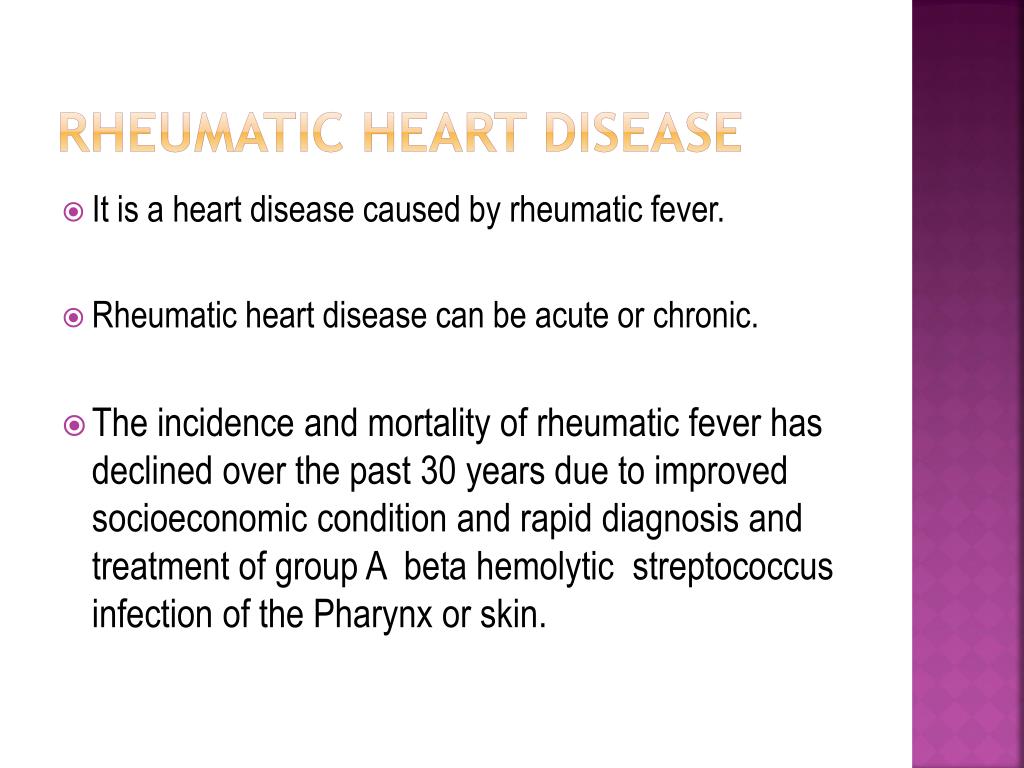

Rheumatic heart disease
RHEUMATIC HEART DISEASE and 2 minor criteria

  • It is a heart disease caused by rheumatic fever.

  • Rheumatic heart disease can be acute or chronic.

  • The incidence and mortality of rheumatic fever has declined over the past 30 years due to improved socioeconomic condition and rapid diagnosis and treatment of group A beta hemolytic streptococcus infection of the Pharynx or skin.


Effects of rheumatic fever on the heart
Effects of Rheumatic Fever on the Heart and 2 minor criteria

It affects all the 3 layers of the heart;

  • Affect the heart during its acute phase  acute rheumatic carditis/ pancarditis(inflammation of endocardium, myocardium and pericardium)

    1- Endocarditis — vegetations due to edema, and fibrin deposits on valve leaflets along lines of closure. Mostly mitral and aortic valve.

  • 2 - Myocarditis- Aschoff body which consists of a focus of necrosis (representing the site of antibody-antigen reaction) surrounded by activated histiocytes and lymphocytes. The histiocytes may be mononuclear or multinuclear, and are referred to as Anitschkow's or Aschoff cells.

    .


  • Small and 2 minor criteriavegetations (verrucae) are visible along the line of closure of the mitral valve leaflet (arrowheads). Previous episodes of rheumatic valvulitis have caused fibrous thickening and fusion of the tendinous cords.


    Microscopic appearance of an and 2 minor criteriaAschoff body in a patient with acute rheumatic carditis. The myocardial interstitium has a circumscribed collection of mononuclear inflammatory cells, including some large histiocytes with prominent nucleoli, a prominent binuclear histiocyte, and central necrosis.


    Acute rheumatic carditis
    Acute rheumatic and 2 minor criteriacarditis

    3- Pericarditis — "bread and butter appearance", due to fibrinous inflammation and deposition of fibrin on surface of pericardium.

    • Acute changes may resolve completely or progress to scarring and development of chronic valvular deformities many years after the acute disease


    Chronic rheumatic heart disease
    CHRONIC RHEUMATIC HEART DISEASE and 2 minor criteria

    Manifests years or decades after the initial episode of rheumatic fever.

    The distribution of valve involvement is variable:

    • mitral alone: most common

    • combined mitral/aortic

    • pulmonary: very rare

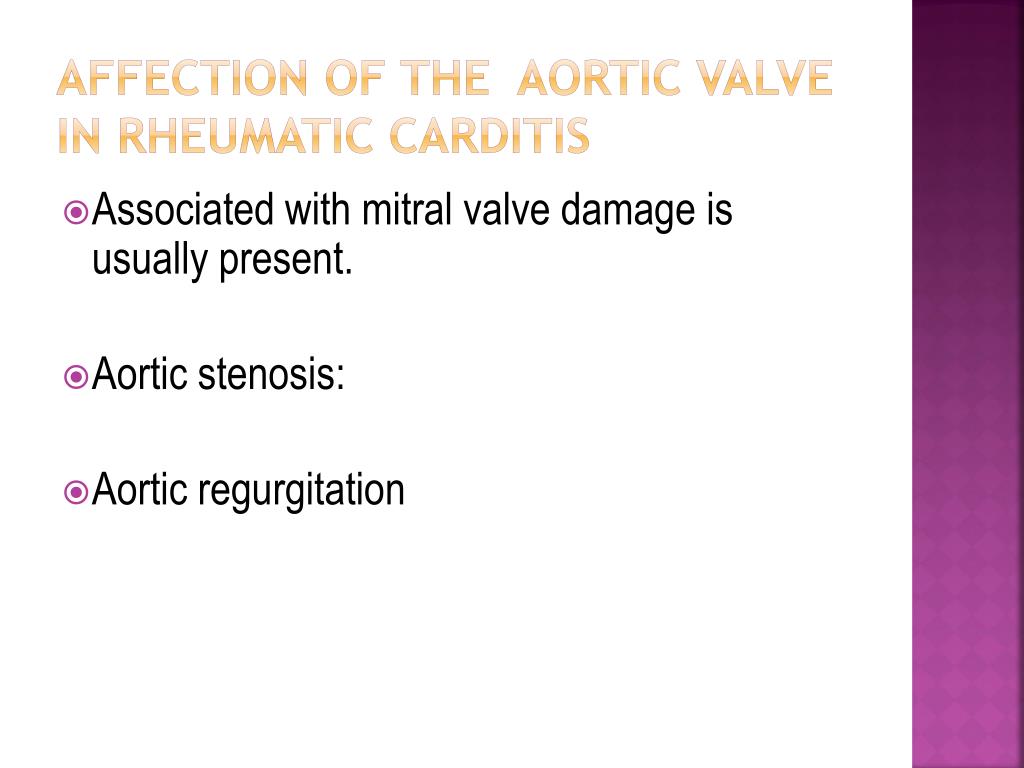

    Affection of the aortic valve in rheumatic carditis
    Affection of the Aortic Valve in rheumatic and 2 minor criteriacarditis

    • Associated with mitral valve damage is usually present.

    • Aortic stenosis:

    • Aortic regurgitation


    Complications of chronic rheumatic heart disease
    Complications of CHRONIC RHEUMATIC HEART DISEASE and 2 minor criteria

    • Valvular Endocarditis heals by progressive fibrosis leading to Irreversible deformity in the form of:

      a- stenosis (Reduction of diameter): fish mouth (button hole) stenosis

      b- regurgitation (improper closure) : if fibrosis occurred in chordae tendonae so leaflets are retracted.

    • affection of the cardiac valves can also lead to cardiac failure secondary to ventricular hypertrophy then dilatation, thromboembolism and infective endocarditis,pulmonary congestion and hypertension.



    surgically removed specimen of rheumatic aortic stenosis demonstrating thickening and distortion of the cusps with commissural fusion .


    Chronic rheumatic carditis
    Chronic Rheumatic demonstrating thickening and distortion of the cusps with commissural fusion .Carditis:

    • Signs and symptoms depend on the valve(s) involved: cardiac murmurs, ventricular hypertrophy then dilation ending into heart failure,

    • arrhythmia, thromboembolism and infective endocarditis.

    • Treatment may require valve surgery.


    Rheumatic fever summary
    Rheumatic Fever: summary demonstrating thickening and distortion of the cusps with commissural fusion .

    • Body makes antibody to strep. bacteria that cross-reacts with antigens in heart and joints

    • 2-3 weeks after strep throat, patient gets:

      • migratory polyarthritis

      • pericardial friction rub, arrhythmias

    • Chronic disease can reappear decades later

      • mitral stenosis, left atrial enlargement, thrombi

      • increased risk of infective endocarditis


    Diffferential diagnosis for rheumatic Endocarditis demonstrating thickening and distortion of the cusps with commissural fusion .

    • Inflammation of the endocardium can also be caused by:

    • (A)Non-infective causes:

      • 1-Non-infective thrombotic endocarditis

      • 2- Libmann sacks verrucous endocarditis

    • (B)Infective causes:

      • 1 -Acute Infective endocarditis

      • 2 -Sub-acute Infective endocarditis


    1 nonbacterial thrombotic endocarditis nbte
    1-Nonbacterial Thrombotic Endocarditis demonstrating thickening and distortion of the cusps with commissural fusion .NBTE

    • causes:

      • endothelial abnormalities ,Hypercoagulability.

      • Association with malignancy (50%).

    • Characterized by the deposition of small masses of fibrin, platelets, and other blood components on the leaflets of the cardiac valves (sterile thrombus). There is no infective organism. It is aseptic.

    • Aortic valve most common site.

    • Clinically asymptomatic, if large: may embolise, may become infected


    2 libman sacks verrucous endocarditis
    2- ( demonstrating thickening and distortion of the cusps with commissural fusion .Libman-Sacks) verrucousendocarditis

    Less common, occur in patients with systemic lupus erythematosus due to deposition of circulating immune complexes in the valves.


    B infective endocarditis
    B- Infective Endocarditis demonstrating thickening and distortion of the cusps with commissural fusion .

    • Definition: infection of the cardiac valves or mural surface of the endocardium, resulting in the formation of vegetations (adherent mass of thrombotic debris and organisms).

    • Divided into:

      • Acute infective endocarditis: caused by highly virulent organisms (staphylococcus aureus)as apart of septicemia, infect even normal valves, progress rapidly.

      • Subacute infective endocarditis : infection of previously abnormal valves by organisms of low virulence (-hemolytic streptococci) as apart of bacteremia complicating i.v. drug abusers, previous dental, surgical procedure (catheterization)., progress slowly.


    People at risk for subacute infective endocarditis
    people at Risk demonstrating thickening and distortion of the cusps with commissural fusion . for Subacute Infective Endocarditis:

    • Persons with cardiac abnormalities: e.g.chronic valvular diseases, septal defects etc.

    • Prosthetic heart valves.

    • Intravenous drug abusers.


    Infective endocarditis morphology
    Infective demonstrating thickening and distortion of the cusps with commissural fusion .Endocarditis: Morphology

    • Aortic and mitral valves are the most common sites affected while right side valves commonly affected in i.v.users.

    • Vegetations may be single or multiple, involve one or more valve(s), differ in appearance according to the causative agent.

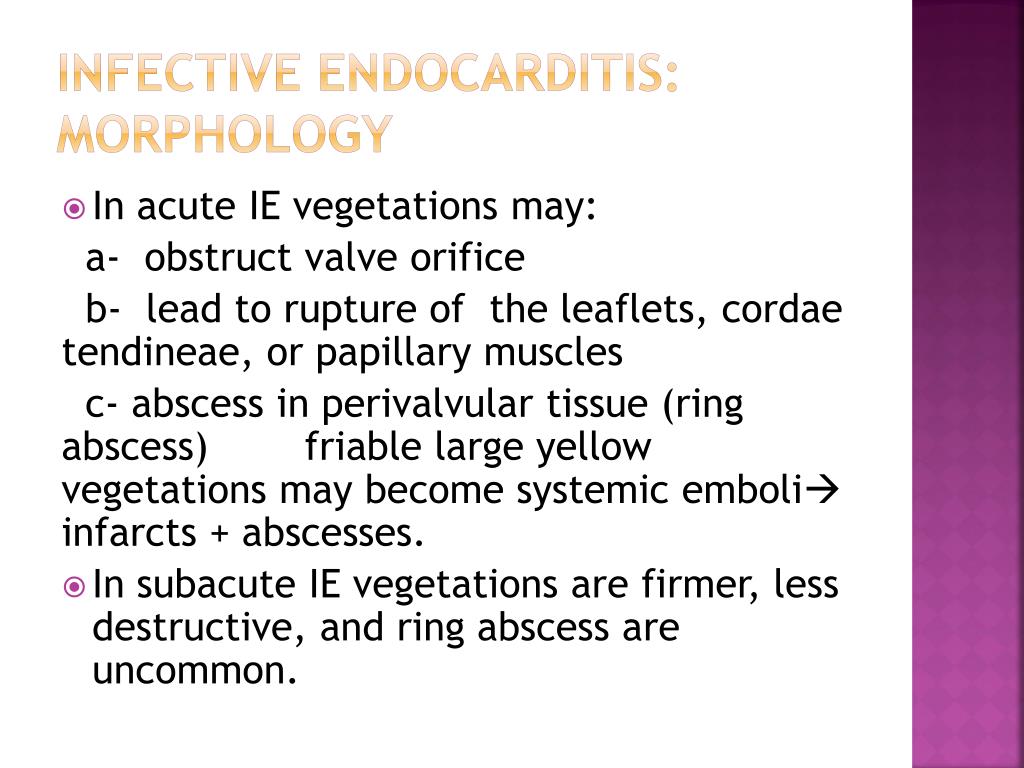

    Infective endocarditis morphology1
    Infective demonstrating thickening and distortion of the cusps with commissural fusion .Endocarditis: Morphology

    • In acute IE vegetations may:

      a- obstruct valve orifice

      b- lead to rupture of the leaflets, cordaetendineae, or papillary muscles

      c- abscess in perivalvular tissue (ring abscess) friable large yellow vegetations may become systemic emboli infarcts + abscesses.

    • In subacute IE vegetations are firmer, less destructive, and ring abscess are uncommon.


    Endocarditis of the mitral valve subacute caused by streptococcus viridens
    Endocarditis of the mitral valve ( demonstrating thickening and distortion of the cusps with commissural fusion .subacute, caused by Streptococcus viridens).


    Histologic appearance of vegetation of endocarditis with extensive acute inflammatory cells and fibrin. Bacterial organisms were demonstrated by tissue Gram stain.


    Gross photograph illustrating healed endocarditis with perforations on bicuspid aortic valve
    Gross photograph illustrating healed endocarditis with perforations on bicuspid aortic valve.


    Comparison of the lesions in the four major forms of vegetative endocarditis
    comparison of the lesions in the four major forms of vegetative endocarditis

    1- rheumatic heart disease: vegetations are marked by a row of warty, small vegetations along the lines of closure of the valve leaflets.

    2- IE (infective endocarditis): vegetations are characterized by large, irregular masses on the valve cusps that can extend onto the cords .


    3- NBTE (nonbacterial thrombotic endocarditis) typically exhibits medium sized bland vegetations, usually attached at the line of closure.

    4-LSE (Libman-Sacks endocarditis) has small or medium-sized vegetations on either or both sides of the valve leaflets.
