  1. Engineering Proteins EP2 Protein Synthesis

  2. Amino Acids

  3. Some of the 20 Naturally Occurring Amino Acids

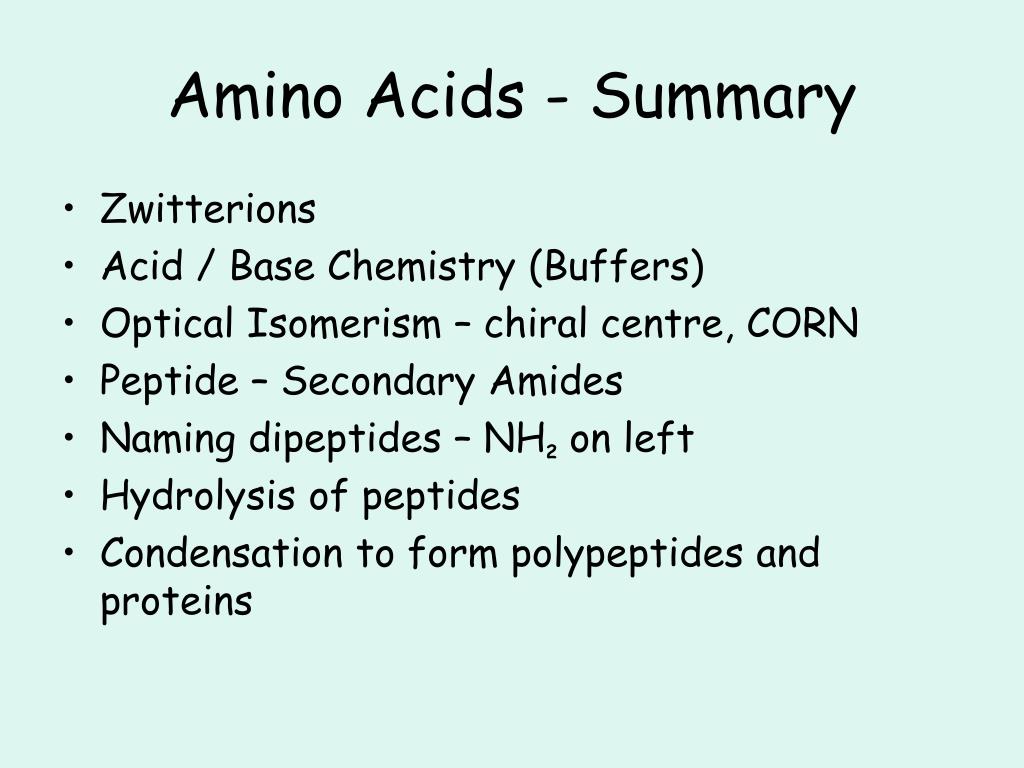

  4. Amino Acids - Summary • Zwitterions • Acid / Base Chemistry (Buffers) • Optical Isomerism – chiral centre, CORN • Peptide – Secondary Amides • Naming dipeptides – NH2 on left • Hydrolysis of peptides • Condensation to form polypeptides and proteins

  5. Dipeptides

  6. Condensation

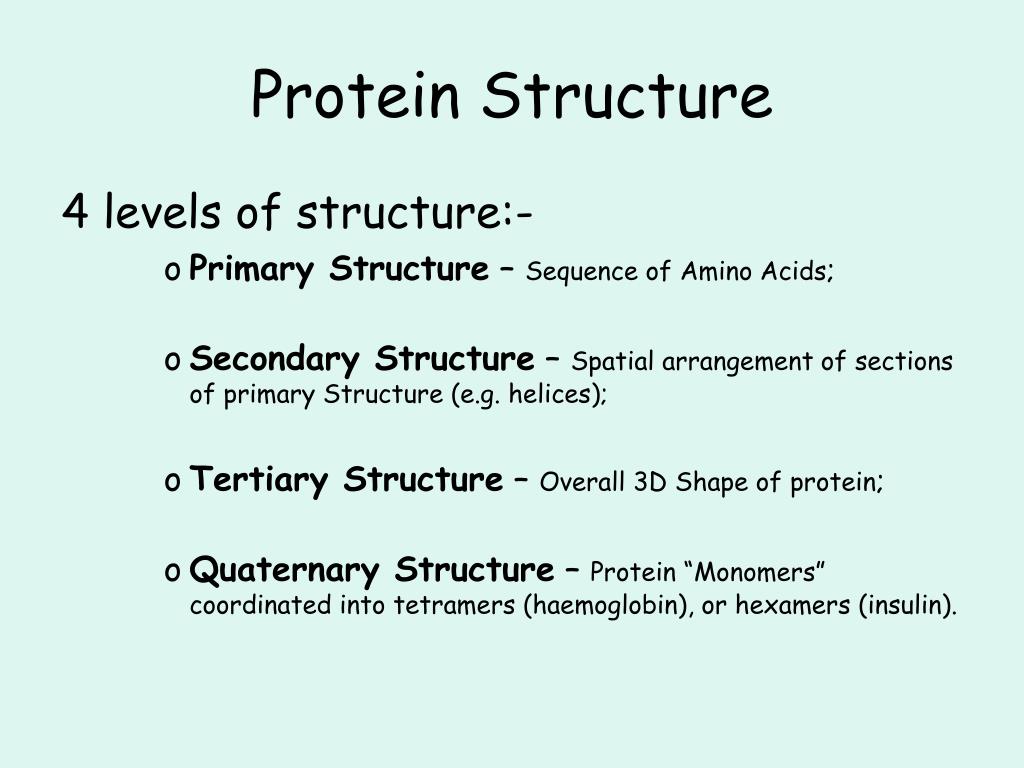

  7. Protein Structure 4 levels of structure:- • Primary Structure – Sequence of Amino Acids; • Secondary Structure – Spatial arrangement of sections of primary Structure (e.g. helices); • Tertiary Structure – Overall 3D Shape of protein; • Quaternary Structure – Protein “Monomers” coordinated into tetramers (haemoglobin), or hexamers (insulin).

  8. Primary Structure

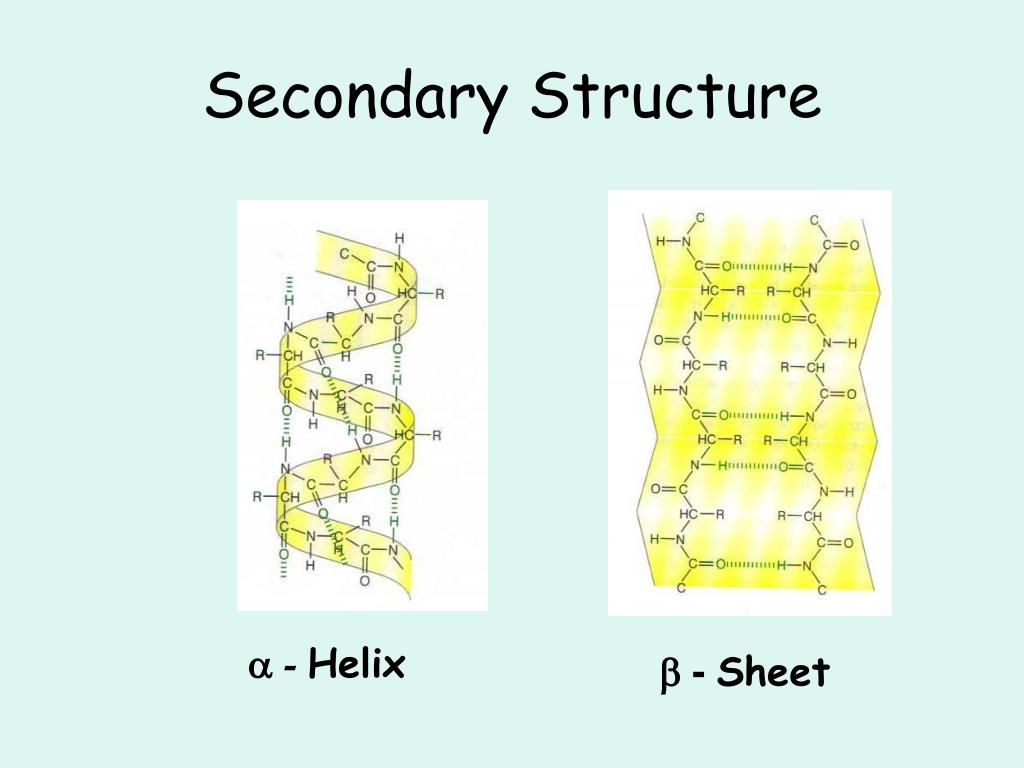

  9. Secondary Structure - Helix  - Sheet

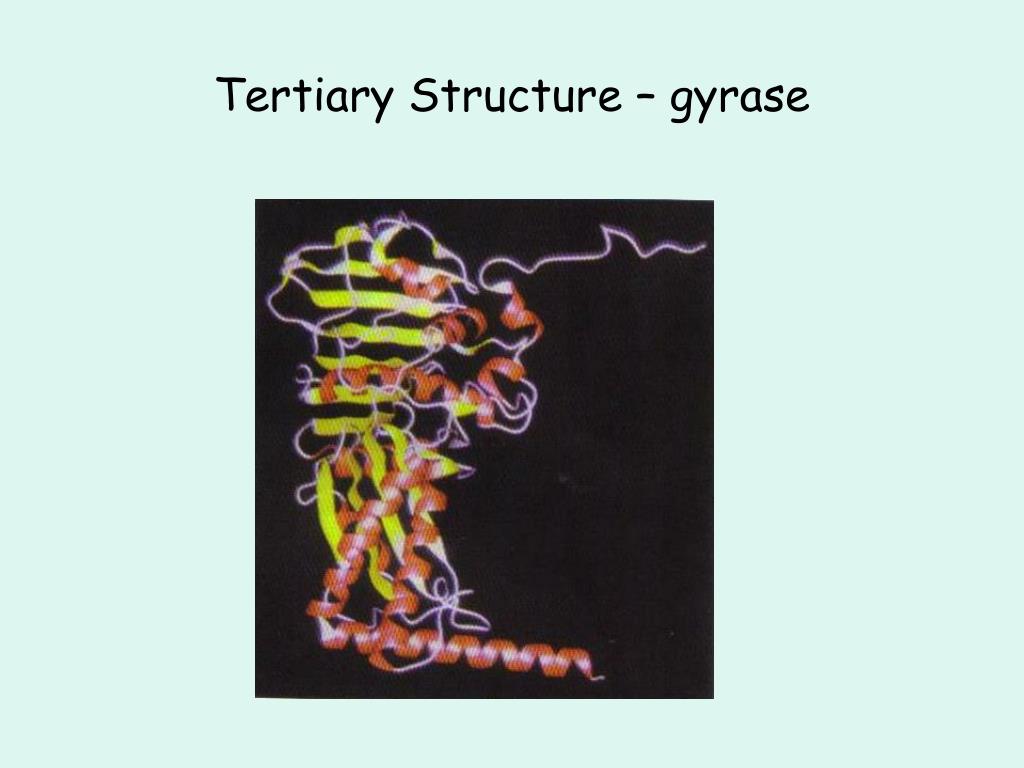

  10. Tertiary Structure – gyrase

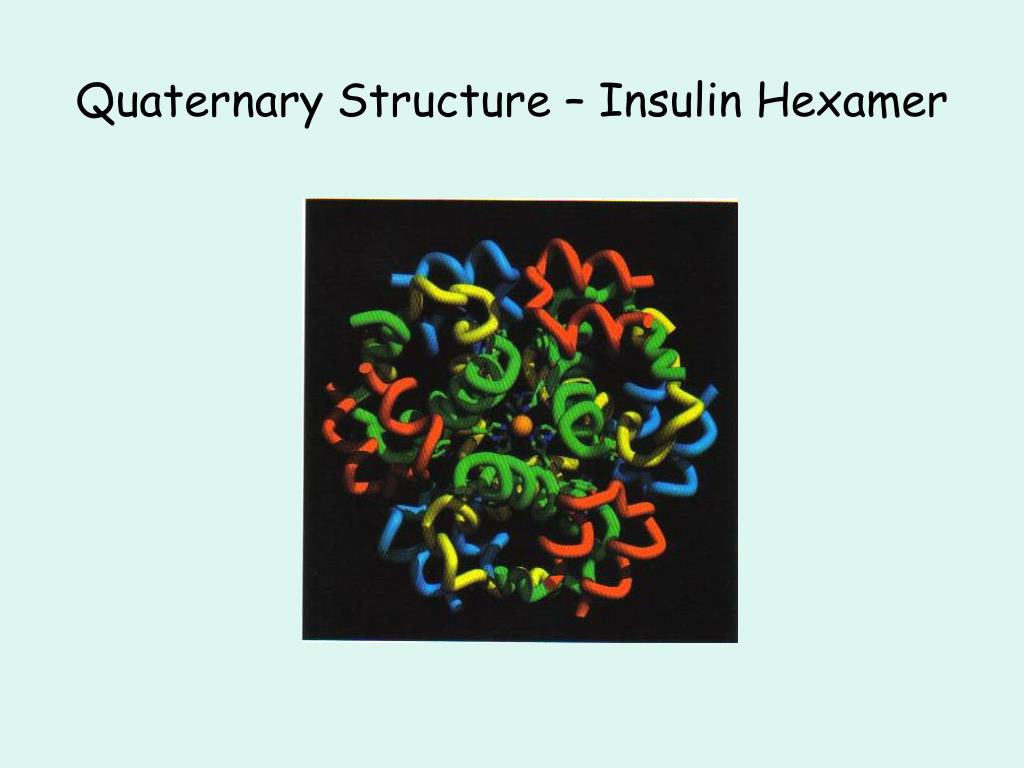

  11. Quaternary Structure – Insulin Hexamer

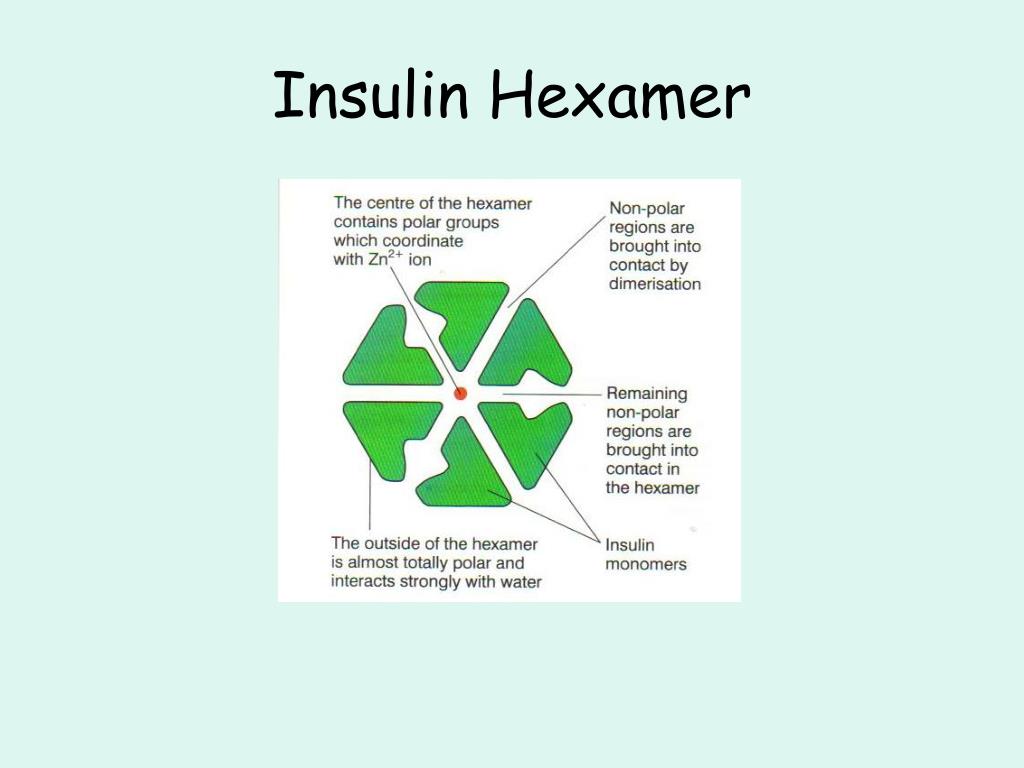

  12. Insulin Hexamer

  13. Building Proteins Cells build proteins directly from L-Amino Acids. To synthesise a protein, a Chemist would need:- • Instructions / knowledge of the primary structure; • Supplies of pure amino acids; • A method of forming peptide links. Cells adopt a similar approach – Protein Synthesis.

  14. Protein synthesis – The role of RNA • Messenger RNA - Temporary set of instructions for one protein molecule; 2) Transfer RNA – collects amino acids; 3) Ribosomal RNA – present in ribosomes, which catalyse the formation of peptide links between amino acids.

  15. 1) Messenger RNA (mRNA)

  16. 2) Transfer RNA (tRNA)

  17. 3) Ribosomal RNA (rRNA)

  18. What is RNA? – ribonucleic acid

  19. Nucleic Acids

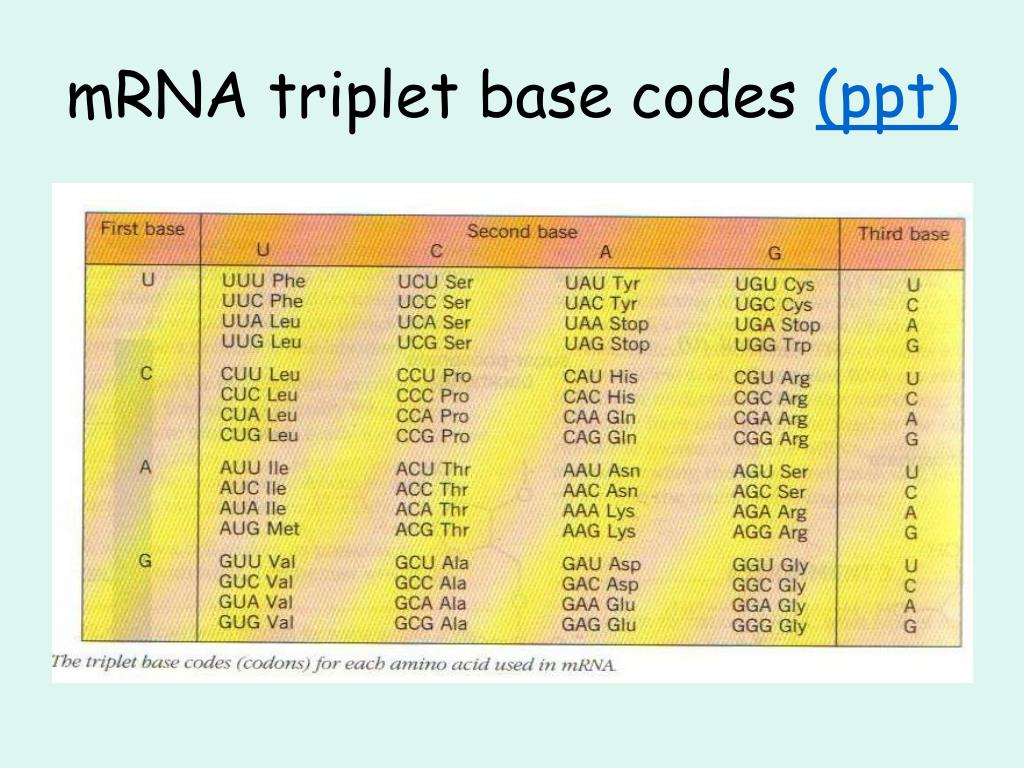

  20. mRNA triplet base codes (ppt)

  21. RNA Base Pairs

  22. A Permanent set of Instructions DNA

  23. DNA – deoxyribonucleic acid • Codes for many mRNA molecules. • The section of DNA coding for a particular protein is called a gene. • Full set of genes = genome (humans 3.5 x 109 bases)

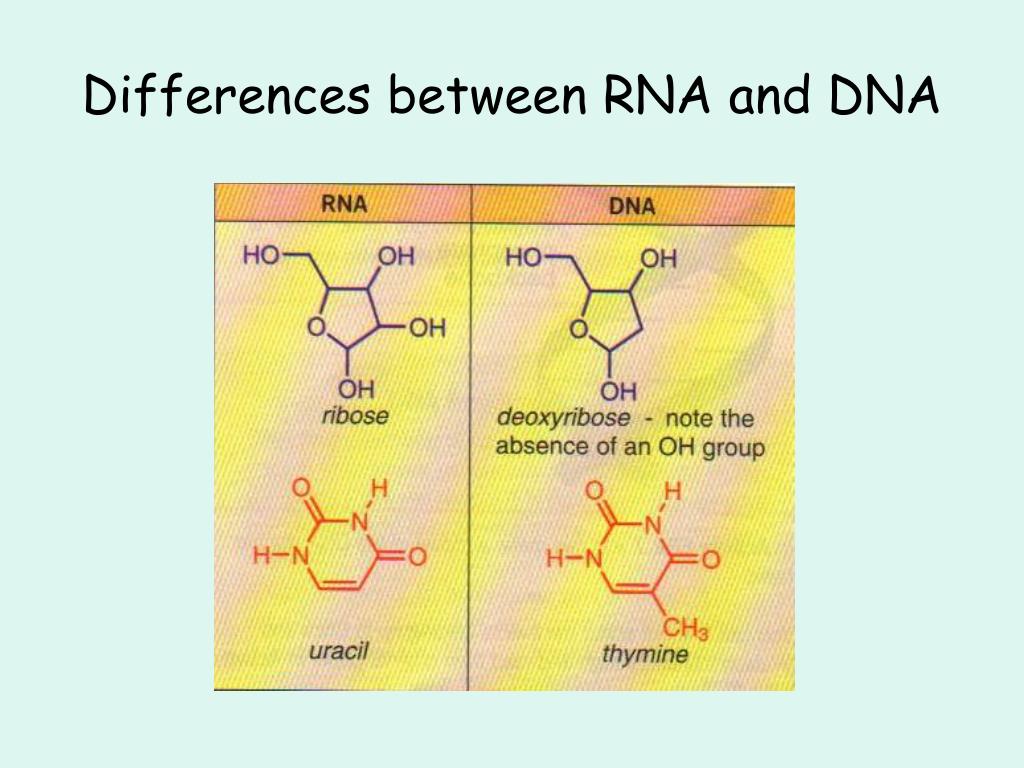

  24. Differences between RNA and DNA

  25. DNA Base Pairs

  26. DNA

  27. DNA

  28. How Cells Make Proteins DNA mRNA Transcription

  29. Transcription

  30. Transcription – in the nucleus 1) DNA double helix unwinds; 2) hydrogen bonds break; 3) free nucleotides hydrogen bond to the complementary exposed bases; 4) Enzyme (RNA polymerase) links the hydrogen bonded nucleotides to form a strand of mRNA; 5) mRNA is released and the DNA double helix is reformed.

  31. How Cells Make Proteins Protein Chain DNA mRNA Transcription Translation a.a. activation

  32. Amino Acid Activation

  33. Amino Acid Activation • tRNA molecule forms an ester link with a specific amino acid; • tRNA – amino acid complex moves to the Ribosome.

  34. Translation (ppt)

  35. Translation - in the cytoplasm • mRNA attaches to ribosome; • Hydrogen bonding between complementary bases binds the correct tRNA anticodon to the 1st codon (set of 3 bases on mRNA); • A 2nd tRNA – amino acid complex binds to the adjacent mRNA codon in the ribosome; • Ribosome catalyses the formation of the peptide bond between amino acids; • The tRNA is released once the amino acid is delivered; • Ribosome moves along the mRNA chain to the end.

  36. How Cells Make Proteins Protein Chain 3D Protein DNA mRNA Transcription Translation Folding a.a. activation

  37. Protein Synthesis

  38. How Cells Make Proteins Protein Chain 3D Protein DNA mRNA Transcription Translation Folding a.a. activation
