  1. Reid-Hillview Airport FAR Part 150 Noise and Land Use Compatibility Study Fourth Public Meeting June 20, 2002

  2. Meeting Agenda 7:00 PM Welcome & Introductions 7:05 PM Review Noise Exposure Map 7:25 PM Discuss Noise Mitigation and Abatement Measures 8:00 PM Open Floor for Discussion 8:55 PM What’s Next 9:00 PM Adjourn

  3. Meeting Agenda 7:00 PM Welcome & Introductions 7:05 PM Review Noise Exposure Map 7:25 PM Discuss Noise Mitigation and Abatement Measures 8:00 PM Open Floor for Discussion 8:55 PM What’s Next 9:00 PM Adjourn

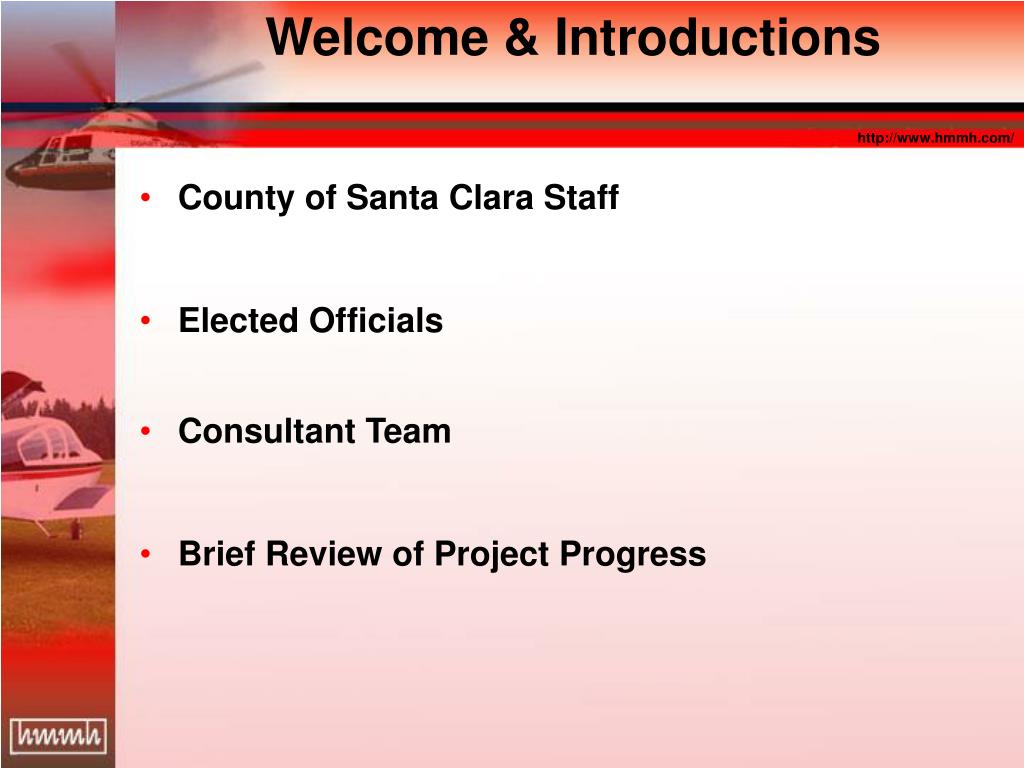

  4. Welcome & Introductions • County of Santa Clara Staff • Elected Officials • Consultant Team • Brief Review of Project Progress

  5. Meeting Agenda 7:00 PM Welcome & Introductions 7:05 PM Review Noise Exposure Map 7:25 PM Discuss Noise Mitigation and Abatement Measures 8:00 PM Open Floor for Discussion 8:55 PM What’s Next 9:00 PM Adjourn

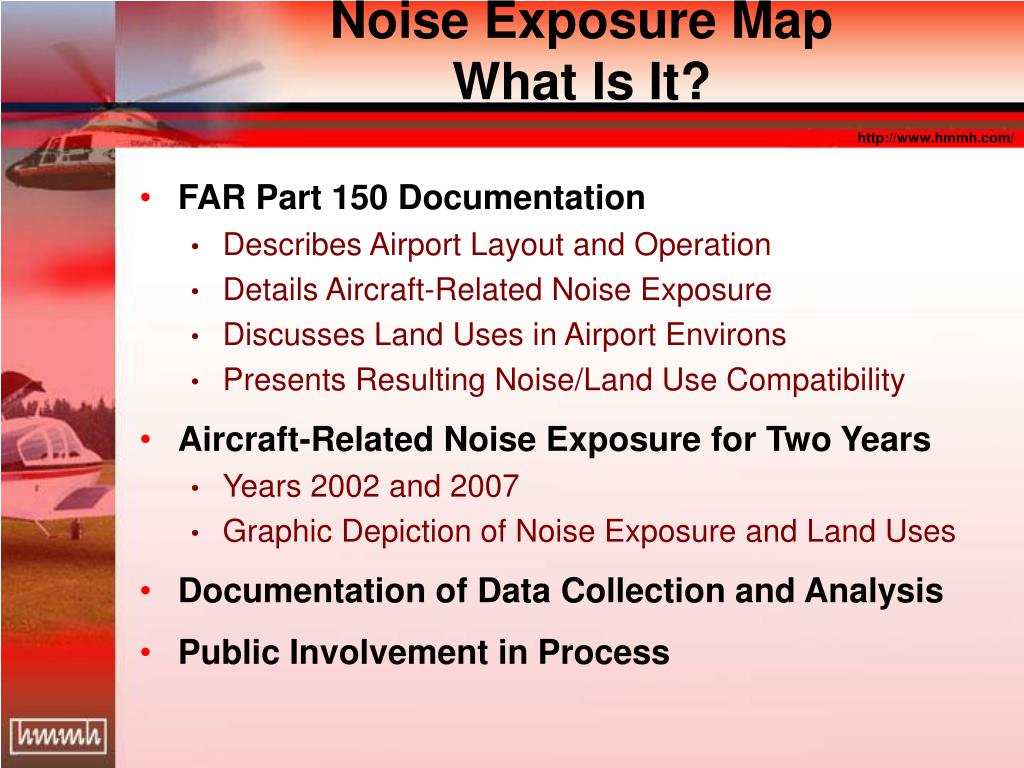

  6. Noise Exposure Map What Is It? • FAR Part 150 Documentation • Describes Airport Layout and Operation • Details Aircraft-Related Noise Exposure • Discusses Land Uses in Airport Environs • Presents Resulting Noise/Land Use Compatibility • Aircraft-Related Noise Exposure for Two Years • Years 2002 and 2007 • Graphic Depiction of Noise Exposure and Land Uses • Documentation of Data Collection and Analysis • Public Involvement in Process

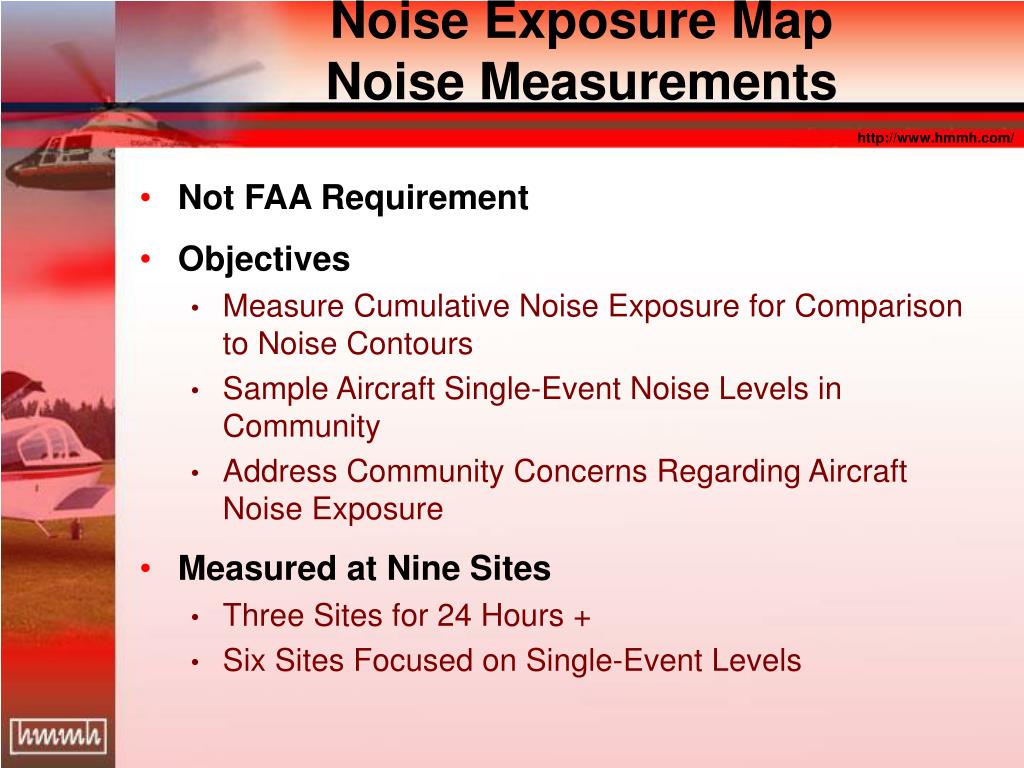

  7. Noise Exposure Map Noise Measurements • Not FAA Requirement • Objectives • Measure Cumulative Noise Exposure for Comparison to Noise Contours • Sample Aircraft Single-Event Noise Levels in Community • Address Community Concerns Regarding Aircraft Noise Exposure • Measured at Nine Sites • Three Sites for 24 Hours + • Six Sites Focused on Single-Event Levels

  8. Noise Exposure Map Noise Modeling • Develop CNEL Contours for Annual Average Day • Use FAA Integrated Noise Model (INM) and Following Inputs • Physical Description of Airport Layout • Aircraft Operation Mix and Number • Operations Split into Day-Evening-Night by Aircraft • Aircraft Noise and Performance Characteristics • Runway Utilization Rates • Typical Flight Track Descriptions and Utilization Rates • Validate Model with Measurements

  9. Noise Exposure Map2002 CNEL Contours

  10. Noise Exposure Map 2007 CNEL Contours

  11. Noise Exposure Map Land Use Analysis • Determine Incompatible Land Use Areas • County and Municipality Land Use Plans • Land Use Categories • Areas Inside the 65-dB CNEL Contour • Acreage • Population Affected • Basis for Noise Mitigation Analysis and Noise Compatibility Plan

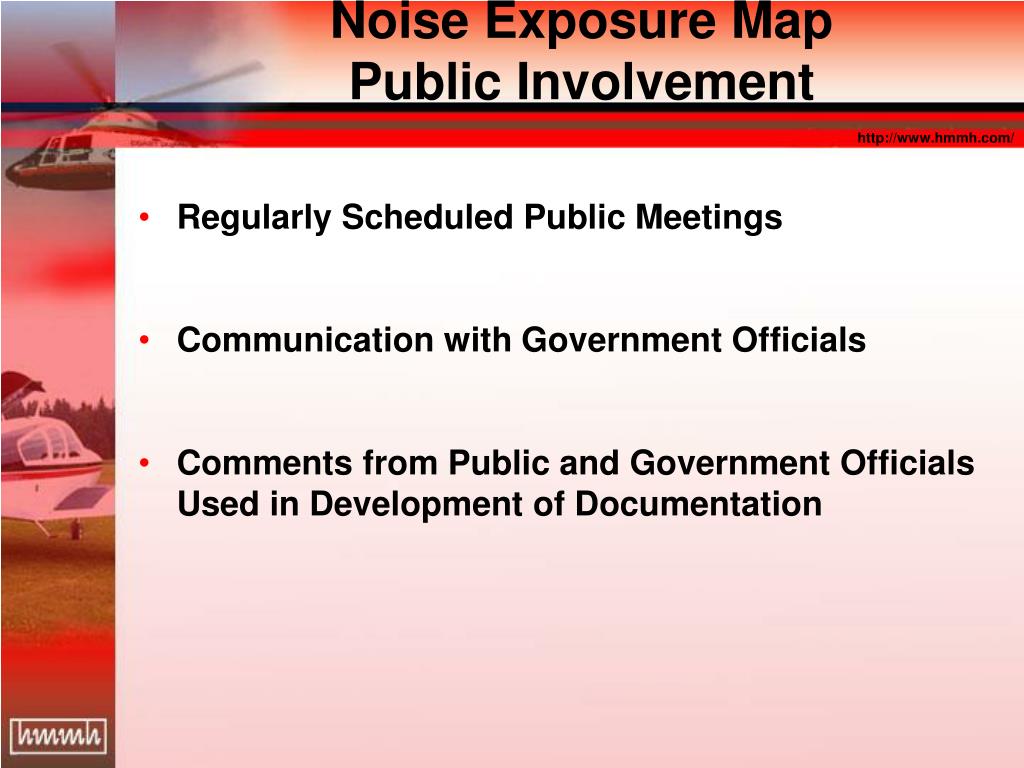

  12. Noise Exposure Map Public Involvement • Regularly Scheduled Public Meetings • Communication with Government Officials • Comments from Public and Government Officials Used in Development of Documentation

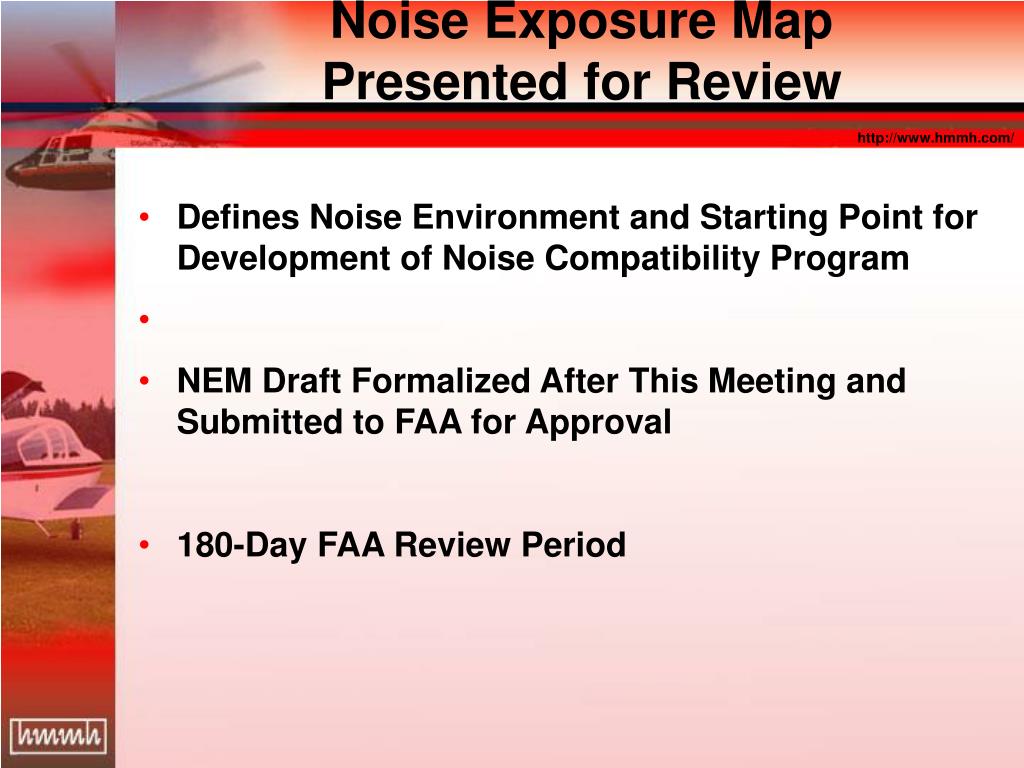

  13. Noise Exposure Map Presented for Review • Defines Noise Environment and Starting Point for Development of Noise Compatibility Program • NEM Draft Formalized After This Meeting and Submitted to FAA for Approval • 180-Day FAA Review Period

  14. Meeting Agenda 7:00 PM Welcome & Introductions 7:05 PM Review Noise Exposure Map 7:25 PM Discuss Noise Mitigation and Abatement Measures 8:00 PM Open Floor for Discussion 8:55 PM What’s Next 9:00 PM Adjourn

  15. Noise Mitigation and Abatement Measures • Start of Noise Compatibility Program Process • Assess Existing and Potential New Noise Abatement and Mitigation Measures • FAR Part 150 Requires Considering: • Land Acquisition • Barriers, Shielding, Public Building Soundproofing • Preferential Runway System • Flight Procedures • Restrictions on Type/Class of Aircraft • Other Actions with Beneficial Impact • Other FAA Recommendations

  16. Noise Mitigation and Abatement Measures • Reviewed Existing Measures • Derived Potential New Measures • Unsigned Letter of Agreement Between FAA and RHV • Three Previous Public Meetings • RHV Staff • Consultant Staff

  17. Noise Mitigation and Abatement Measures • Screened Potential New Measures and Eliminated Measures that: • Will Not Reduce Noise Exposure • Are Not an Option Under the Terms of FAR Part 150 • Will Not Likely Obtain FAA Approval • Are Not Feasible at RHV

  18. Noise Mitigation and Abatement Measures • Recommended for Further Analysis • Preferential Runway Use • Quiet One Procedure Revision • Voluntary Flight Operations Limitations • Departures • Between 7:00 a.m. and 10:00 p.m. • Touch-and-Go • Monday - Friday 9:00 a.m. to 7:00 p.m. • Saturday 10:00 a.m. to 5:00 p.m. • Sunday 12:00 p.m. (Noon) to 5:00 p.m.

  19. Noise Mitigation and Abatement Measures • Recommended for Further Analysis (Continued) • New Engine Run-up Area for Twin Engine Aircraft • Use of Minimum Power Settings on Departure • Sound Barrier at Western Edge of RHV

  20. Noise Mitigation and Abatement Measures • Recommended for Further Analysis (Continued) • Prohibiting Intersection Departures, Formation Arrivals and Departures, Low-Level Fly-Bys (Except Gear Checks), Simulated Emergencies • Standard Glide Slope Arrival Procedures • Aircraft Engine Silencer/Muffler Systems • Corrective and Preventive Land Use Strategies

  21. Implementation Program • Potential tools or continuing program measures that may be used to implement, maintain, and monitor the final recommended measures: • Encourage pilots to use AOPA’s “Fly Friendly” techniques • Encourage flight training schools to train pilots in the “Fly Friendly” techniques • Establish an airport/airport user/community noise committee to discuss noise issues on a quarterly basis • Continually publish the RHV noise complaint line

  22. Implementation Program (cont.) • Install noise monitors in the RHV environs to measure and compare unusual or high-level aircraft noise events with a voice recorder system • Install a radar flight track collection system to match aircraft noise events to flight tracks • Designate a person at RHV to respond to noise complaints, investigate noise exceedances, and notify operators of their noise exceedances

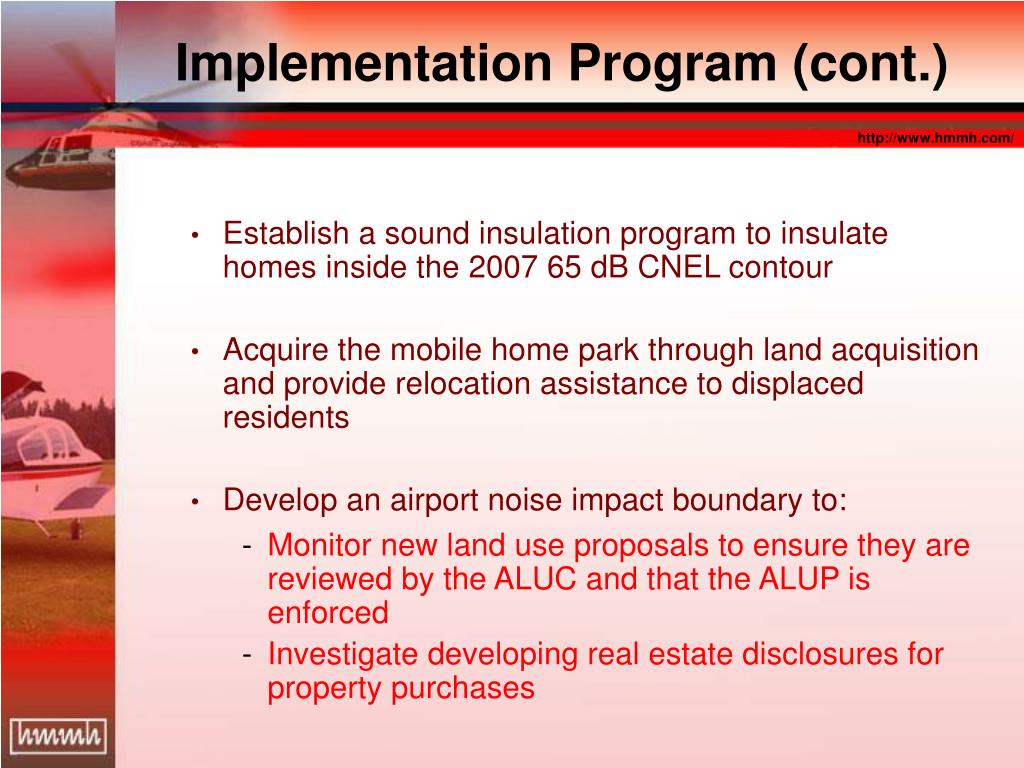

  23. Implementation Program (cont.) • Establish a sound insulation program to insulate homes inside the 2007 65 dB CNEL contour • Acquire the mobile home park through land acquisition and provide relocation assistance to displaced residents • Develop an airport noise impact boundary to: • Monitor new land use proposals to ensure they are reviewed by the ALUC and that the ALUP is enforced • Investigate developing real estate disclosures for property purchases

  24. Implementation Program (cont.) • Update the RHV Part 150 NEM and NCP within five years of FAA approval or sooner if needed • Update and distribute the pilot handout with the FAA-approved noise abatement measures • Revise the on-airport noise abatement signs to reflect the FAA-approved noise abatement measures • Maintain information about RHV’s noise abatement program on the County’s web site

  25. Meeting Agenda 7:00 PM Welcome & Introductions 7:05 PM Review Noise Exposure Map 7:25 PM Discuss Noise Mitigation and Abatement Measures 8:00 PM Open Floor for Discussion 8:55 PM What’s Next 9:00 PM Adjourn

  26. Community Questions, Comments & Concerns

  27. Meeting Agenda 7:00 PM Welcome & Introductions 7:05 PM Review Noise Exposure Map 7:25 PM Discuss Noise Mitigation and Abatement Measures 8:00 PM Open Floor for Discussion 8:55 PM What’s Next 9:00 PM Adjourn

  28. What’s Next • Finalize and Submit Noise Exposure Map to FAA • Analyze Potential Noise Mitigation and Abatement Measures for Inclusion in Noise Compatibility Program • Present Mitigation Results to Community includes a public hearing • Finalize Noise Compatibility Program and Submit to FAA for Approval • 180 Days for FAA Review of NCP • Conclusion of Study

  29. Meeting Agenda 7:00 PM Welcome & Introductions 7:05 PM Review Noise Exposure Map 7:25 PM Discuss Noise Mitigation and Abatement Measures 8:00 PM Open Floor for Discussion 8:55 PM What’s Next 9:00 PM Adjourn

  30. Reid-Hillview Airport FAR Part 150 Noise and Land Use Compatibility Study Project e-mail address: Reid@3dvisions.biz Project Meeting Notices: www.countyairports.org Project mail: Kate Gillespie, 3D Visions 3661 Buchanan Street, Suite 200 San Francisco, CA 94123-1708 Project fax line: 415-409-9612 RHV noise complaints: 408-272-0290

  31. Reid-Hillview Airport FAR Part 150 Noise and Land Use Compatibility Study Thank you for participating tonight! Reid-Hillview FAR Part 150 Noise and Land Use Compatibility Mitigation Study
