PROTEIN SYNTHESIS

PROTEIN SYNTHESIS. Involves 3 steps :- Transcription RNA processing Translation. transcription. Involves 3 steps :- Initiation Elongation Termination. INITIATION. DNA unwinds using helicase . This produces a transcription bubble . Only one strand of DNA is copied.

abel
Download Presentation

PROTEIN SYNTHESIS

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. PROTEIN SYNTHESIS • Involves 3 steps :- • Transcription • RNA processing • Translation

  2. transcription • Involves 3 steps :- • Initiation • Elongation • Termination

  3. INITIATION • DNA unwinds using helicase. • This produces a transcription bubble. • Only one strand of DNA is copied. • The strand that serves as the template is known as the sense strand. • The strand that lies dormant is the antisense strand.

  4. INITIATION • RNA synthesis is catalyzed by RNA polymerase • The DNA sequence where RNA polymerase attaches is called the promoter. Promoter RNA polymerase

  5. Promoter-rich in A’s &T’s ….. “TATA Box” Transcription Factors- proteins That bind to Promoter so RNA Polymerase knows where to begin Promoter Eukaryotic promoters 5¢ 3¢ 3¢ 5¢ TATA box Start point Template DNA strand Several transcription factors Transcription factors 5¢ 3¢ 3¢ 5¢ Additional transcription factors Transcription factors RNA polymerase II 5¢ 3¢ 5¢ 3¢ 5¢ RNA transcript Transcription initiation complex

  6. ELONGATION • RNA polymerase brings free RNA nucleotides to the DNA strand and forms a molecule of mRNA in the 5’ to 3’ direction.

  7. Elongation Anti-sense strand of DNA RNA nucleotides RNA Polymerase II 3¢ 5¢ 3¢ end 5¢ 3¢ Direction of Transcription “Downstream” Sense strand of DNA 5¢ Newly made RNA

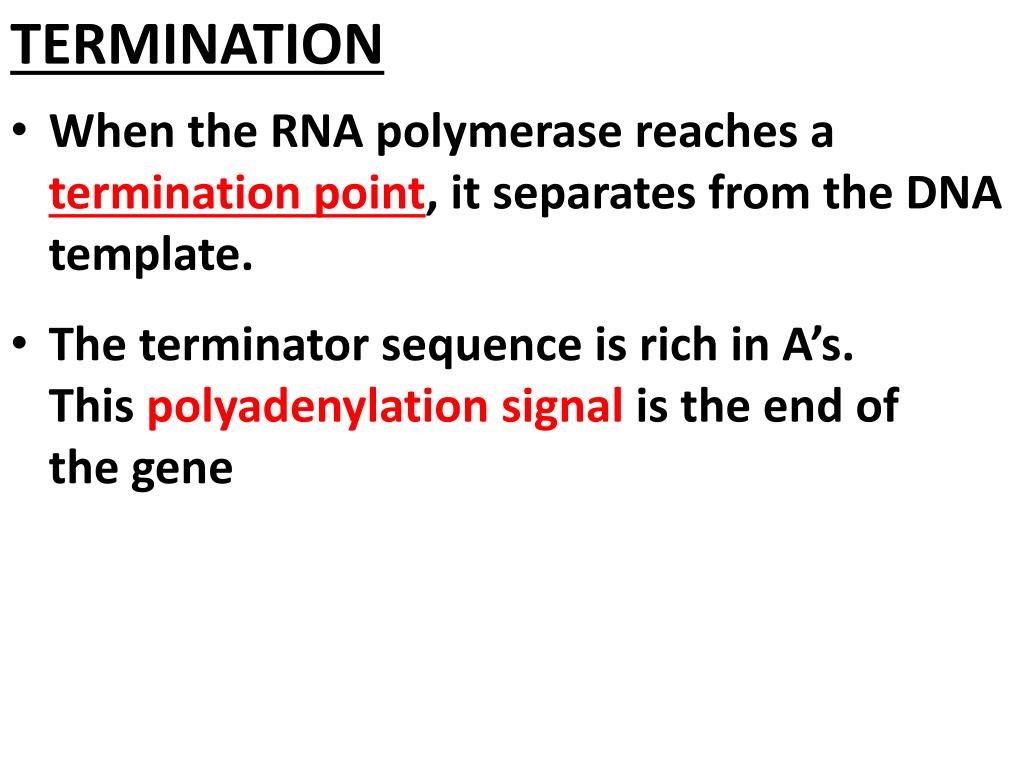

  8. TERMINATION • When the RNA polymerase reaches a termination point, it separates from the DNA template. • The terminator sequence is rich in A’s. This polyadenylation signal is the end of the gene

  9. Processing RNA • Enzymes modify pre-mRNA before the message leaves the nucleus

  10. Start codon Stop codon Cap 5¢ Poly-A tail Alteration of the Ends • The 5 end receives a modified nucleotide (G) cap • The 3 end gets a poly-A tail

  11. Functions of these mods: • facilitate export of mRNA • protect mRNA from hydrolytic enzymes • help ribosomes attach to the 5’ end

  12. Exon Intron Exon Intron Exon 3¢ Pre-mRNA 5¢Cap Poly-A tail Introns cut out and exons spliced together Coding segment Poly-A tail 5¢Cap Splicing • Introns=noncoding sections • Exons=coding sections • Spliceosomes (snRNPs) remove introns and join exons, creating a continuous coding sequence

  13. RNA transcript (pre-mRNA) 5¢ Exon 1 Intron Exon 2 Protein Other proteins snRNA snRNPs LE 17-11 Spliceosome 5¢ Spliceosome components Cut-out intron mRNA 5¢ Exon 1 Exon 2

  14. Now that the RNA has been processed, it leaves the nucleus via the nuclear pores and enters the cytoplasm.
