Presentation Transcript
Administration l.jpg

Administration

[email protected]

Technologist (MCT Partner keytrainer)

Sidem Systems Solutions


Agenda l.jpg
Agenda

  • New Tools and Tasks

    • Active Directory Administrative Center

    • Active Directory Recycle Bin

    • Offline Domain Join

  • Improved Tools

    • Server Manager

  • Improved Accessories

    • Group Policies

    • Resource Monitor

    • Windows Backup


New tools tasks l.jpg
New Tools & Tasks

  • Active Directory Administrative Center

  • Active Directory Recycle Bin

  • Offline Domain Join


P s ll 2 0 l.jpg
P_ _ _ _S_ _ ll 2.0

  • Using pkgmgr to install Web Server (IIS):

    • start /w pkgmgr /iu:IIS-WebServerRole;IIS-WebServer;IIS-CommonHttpFeatures;IIS-StaticContent;IIS-DefaultDocument;IIS-DirectoryBrowsing;IIS-HttpErrors;IIS-HttpRedirect;IIS-ApplicationDevelopment;IIS-ASPNET; IIS-NetFxExtensibility;

    • IIS-ASP;IIS-CGI;IIS-ISAPIExtensions;IIS-ISAPIFilter;IIS-ServerSideIncludes;IIS-HealthAndDiagnostics;IIS-HttpLogging;IIS-LoggingLibraries;IIS-RequestMonitor;

    • IIS-HttpTracing;IIS-CustomLogging;IIS-ODBCLogging;IIS-Security;IIS-BasicAuthentication;IIS-WindowsAuthentication;IIS-DigestAuthentication;IIS-ClientCertificateMappingAuthentication;IIS-IISCertificateMappingAuthentication;

    • IIS-URLAuthorization;IIS-RequestFiltering;

    • IIS-IPSecurity;IIS-Performance;IIS-HttpCompressionStatic;IIS-HttpCompressionDynamic;IIS-WebServerManagementTools;IIS-ManagementConsole;IIS-ManagementScriptingTools;IIS-ManagementService;IIS-IIS6ManagementCompatibility;

    • IIS-Metabase;IIS-WMICompatibility;IIS-LegacyScripts;IIS-LegacySnapIn;

    • IIS-FTPPublishingService;IIS-FTPServer;IIS-FTPManagement;WAS-WindowsActivationService;WAS-ProcessModel;WAS-NetFxEnvironment;WAS-ConfigurationAPI

  • Or using Server Manager:

    • Add-WindowsFeature web-server


Active directory administrative center l.jpg
Active DirectoryAdministrative Center

  • PowerShell-written console

    • Customizable

    • Expendable

    • Demonstration for future consoles

  • AD object search

  • Password reset

  • The new TaskPad?


Active directory administrative center6 l.jpg

Active DirectoryAdministrative Center

demo


Active directory recycle bin l.jpg
Active Directory Recycle Bin

  • Permits the recovery of deleted AD objects

  • Enable AD Recycle Bin

    • Enable-ADOptionalFeature‘Recycle Bin Feature’ –Scope Forest–Target <forest>

    • Disabled by default

    • Once enabled, cannot be disabled!

  • Restore object:

    • Restore-ADObject–Identity <objectGUID>


Active directory recycle bin8 l.jpg

Active DirectoryRecycle Bin

demo


Offline domain join l.jpg
Offline Domain Join

  • Allows the joining in a domain of a client with network access to the domain controller

  • On the DC:

    djoin /provision/domain <domain to be joined>/machine <computer joining the domain>/savefile<filename.txt>

  • On the client:

    djoin/requestODJ/loadfile<filename.txt>/windowspath %SystemRoot% /localos



Improved tools l.jpg

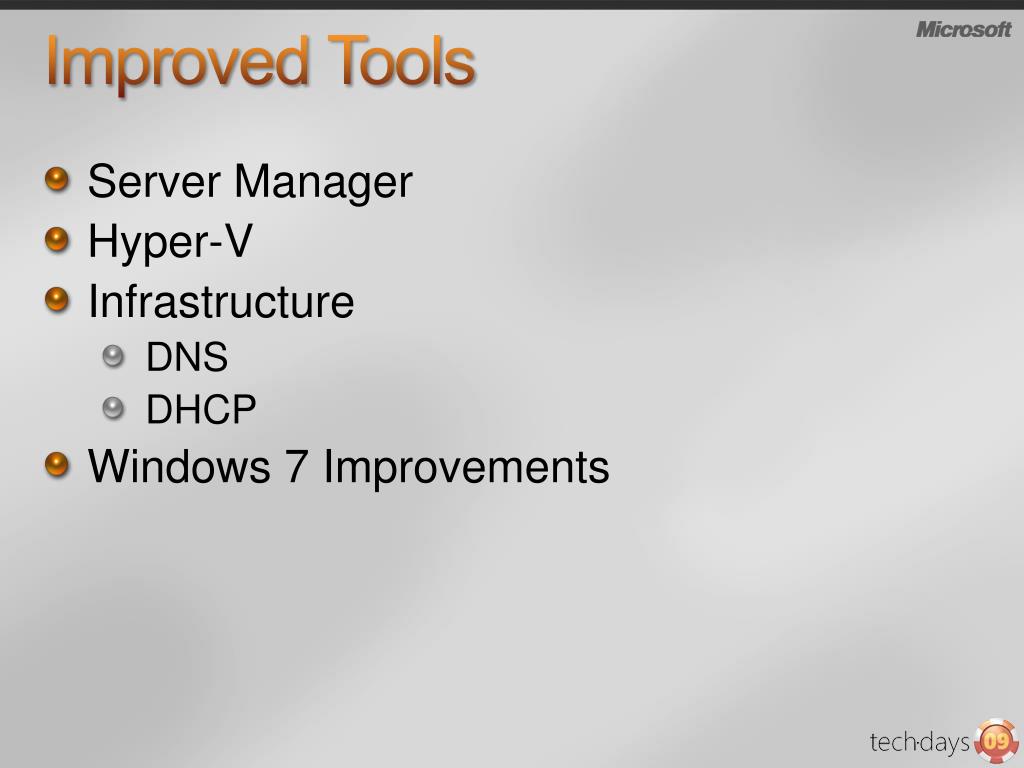

Improved Tools

  • Server Manager

  • Hyper-V

  • Infrastructure

    • DNS

    • DHCP

  • Windows 7 Improvements


Server manager l.jpg
Server Manager

  • Remoting!

    • Connect to: <other server>

    • Windows Server 2008 R2 and Windows 7 Clients

    • Full and Core installations targets

  • New features

    • Branch Cache

    • Direct Access

  • PowerShell-enabled


Best practices analyzers l.jpg
Best Practices Analyzers

  • Updated through Windows Update

    • Current Coverage:

    • ADCS

    • ADDS

    • DNS

    • Remote Desktop Services

    • Web Server (IIS)


Best practices analyzer process l.jpg

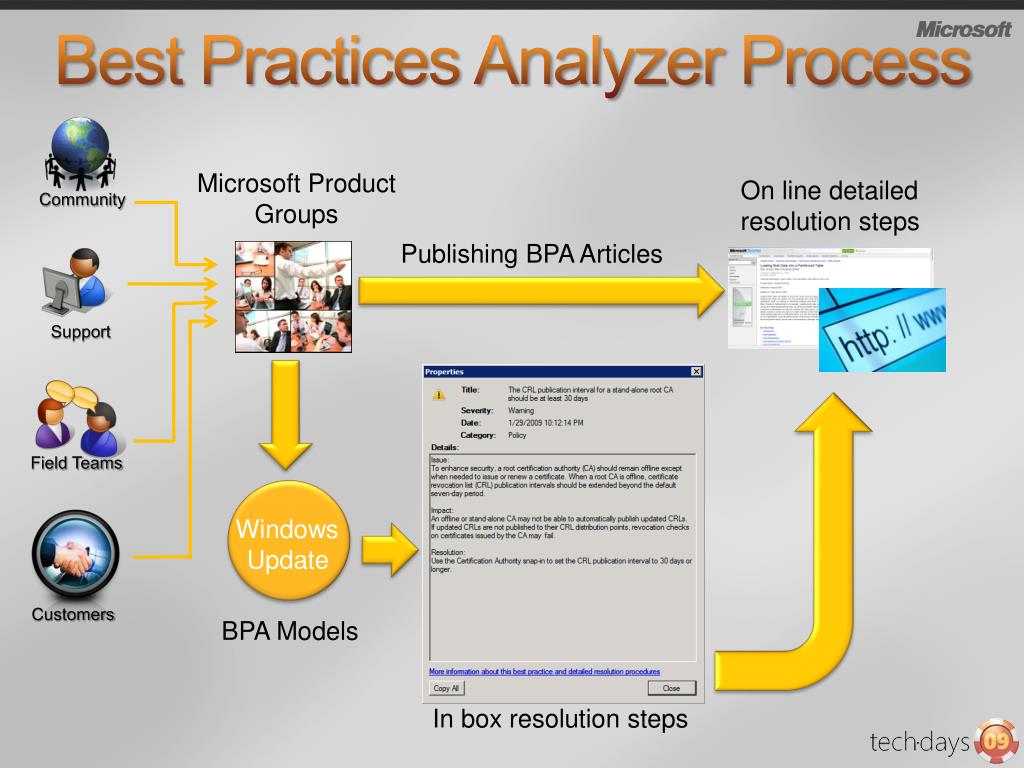

Best Practices Analyzer Process

Microsoft Product

Groups

On line detailed

resolution steps

Community

Publishing BPA Articles

Support

Field Teams

Windows

Update

Customers

BPA Models

In box resolution steps


Bpa online feedback l.jpg

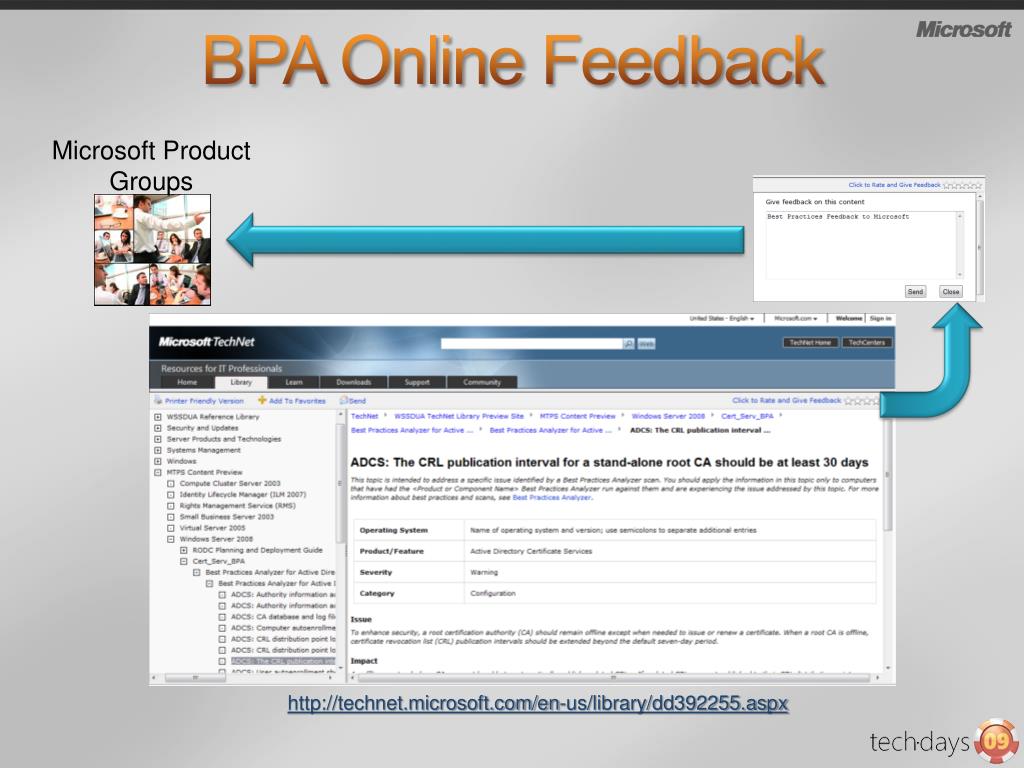

BPA Online Feedback

Microsoft Product

Groups

http://technet.microsoft.com/en-us/library/dd392255.aspx



Improved accesories l.jpg
Improved Accesories

  • Group Policies

  • Performance Monitor

  • Windows Backup


Group policies l.jpg
Group Policies

  • Now PowerShell-enabled

    • Authoring and management

    • Client scripting

    • Reporting

  • New settings

    • Power options

    • AppLocker

    • BranchCache & Direct Access

  • And still:

    • Starter GPOs

    • Preferences 



Ressource monitor l.jpg
Ressource Monitor

  • Separate Tab per Resource

    • Appropriate presentation

  • Selectable process groups

  • Selection saved for repeated use


Windows backup l.jpg

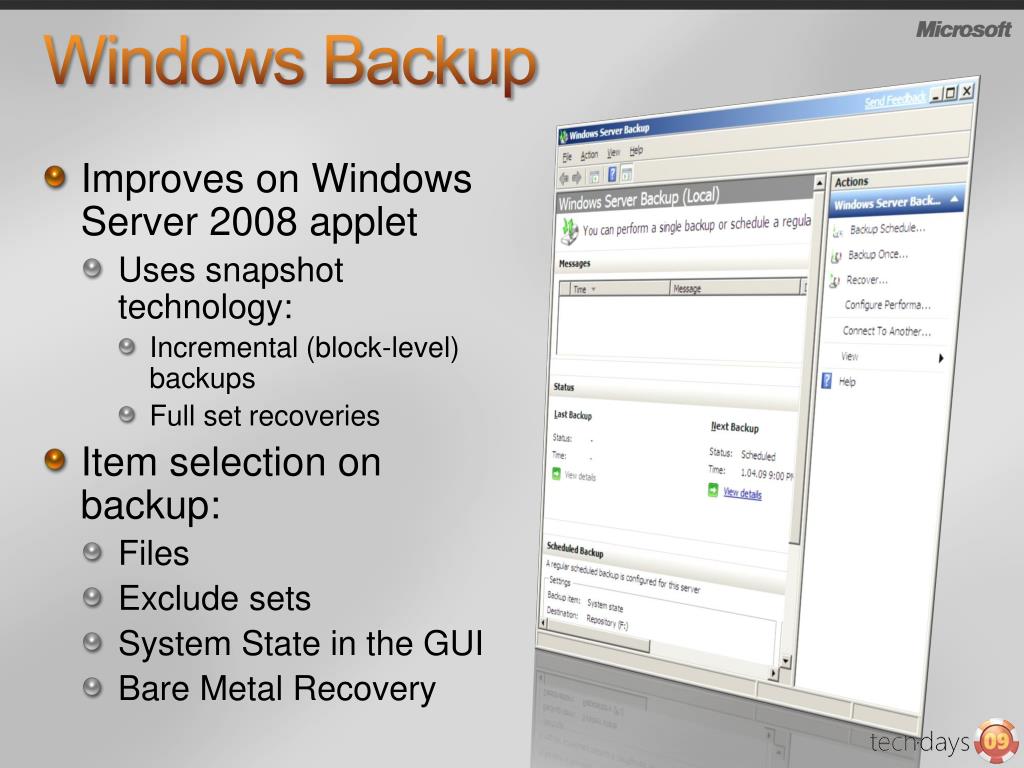

Windows Backup

  • Improves on Windows Server 2008 applet

    • Uses snapshot technology:

      • Incremental (block-level) backups

      • Full set recoveries

  • Item selection on backup:

    • Files

    • Exclude sets

    • System State in the GUI

    • Bare Metal Recovery


Windows backup22 l.jpg
Windows Backup

  • Backup destination flexibility

    • Local (exclusive) drive

    • File on volume

    • Remote share

      • One full copy, replaced on each backup

  • Application support?…



Additional information l.jpg
Additional Information

  • Windows Server 2008 R2 TechCenter

    • http://technet.microsoft.com/en-us/windowsserver/dd362341.aspx

    • Windows Server 2008 R2 Reviewers Guide

  • TechNet Newsgroup

    • http://social.technet.microsoft.com/Forums/en-US/windowsserver2008r2general/threads


Save the date for tech days next year l.jpg

Save the date for tech·days nextyear!

14 – 15 avril 2010, CICG
