How to Create a Download Button in Flutter

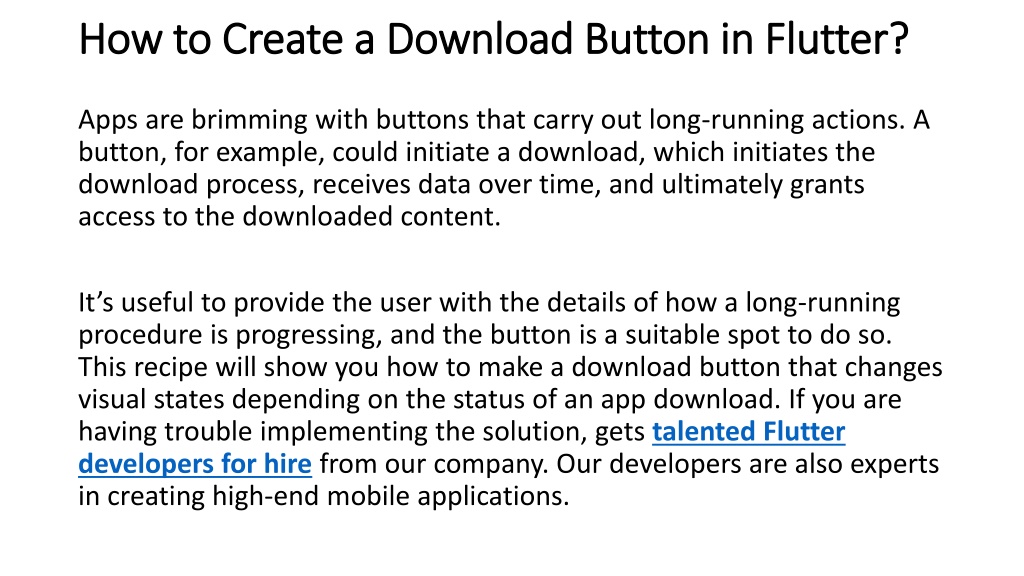

2. How to Create a Download Button in Flutter? Apps are brimming with buttons that carry out long-running actions. A button, for example, could initiate a download, which initiates the download process, receives data over time, and ultimately grants access to the downloaded content. It’s useful to provide the user with the details of how a long-running procedure is progressing, and the button is a suitable spot to do so. This recipe will show you how to make a download button that changes visual states depending on the status of an app download. If you are having trouble implementing the solution, gets talented Flutter developers for hire from our company. Our developers are also experts in creating high-end mobile applications.

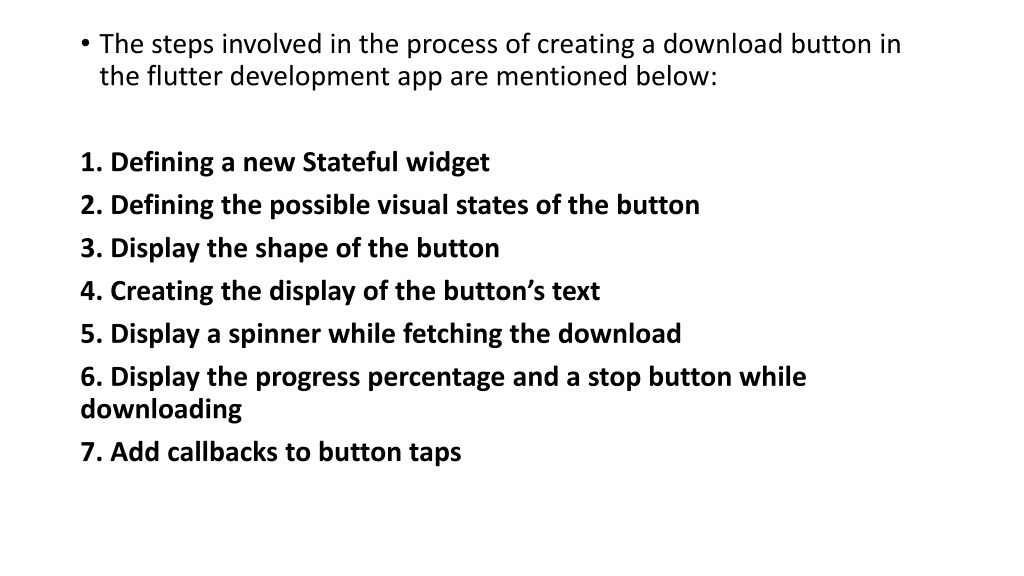

3. The steps involved in the process of creating a download button in the flutter development app are mentioned below: 1. Defining a new Stateful widget 2. Defining the possible visual states of the button 3. Display the shape of the button 4. Creating the display of the button’s text 5. Display a spinner while fetching the download 6. Display the progress percentage and a stop button while downloading 7. Add callbacks to button taps

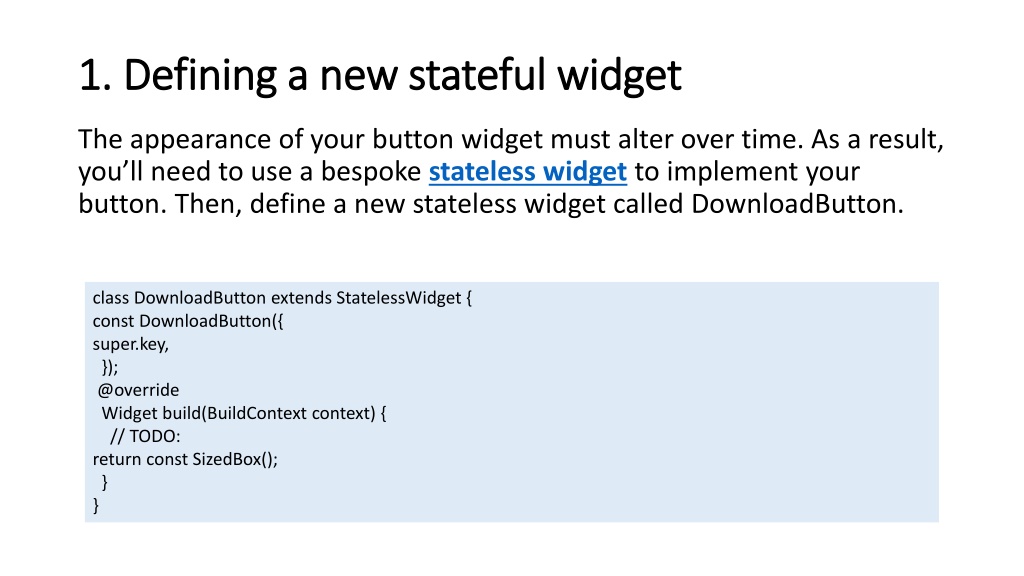

4. 1. Defining a new stateful widget The appearance of your button widget must alter over time. As a result, you’ll need to use a bespoke stateless widget to implement your button. Then, define a new stateless widget called DownloadButton. class DownloadButton extends StatelessWidget { constDownloadButton({ super.key, }); @override Widget build(BuildContext context) { // TODO: return constSizedBox(); } }

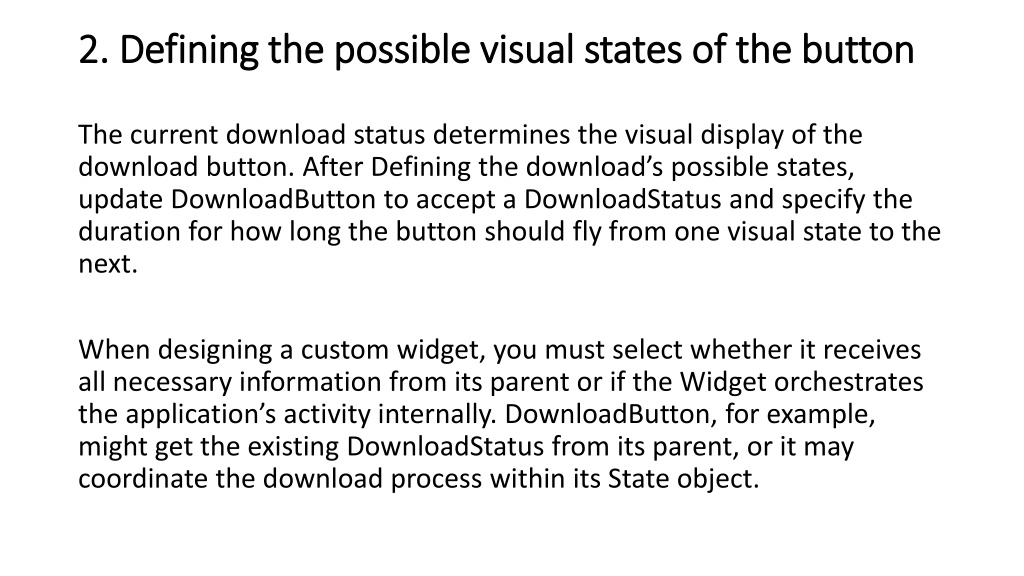

5. 2. Defining the possible visual states of the button The current download status determines the visual display of the download button. After Defining the download’s possible states, update DownloadButton to accept a DownloadStatus and specify the duration for how long the button should fly from one visual state to the next. When designing a custom widget, you must select whether it receives all necessary information from its parent or if the Widget orchestrates the application’s activity internally. DownloadButton, for example, might get the existing DownloadStatus from its parent, or it may coordinate the download process within its State object.

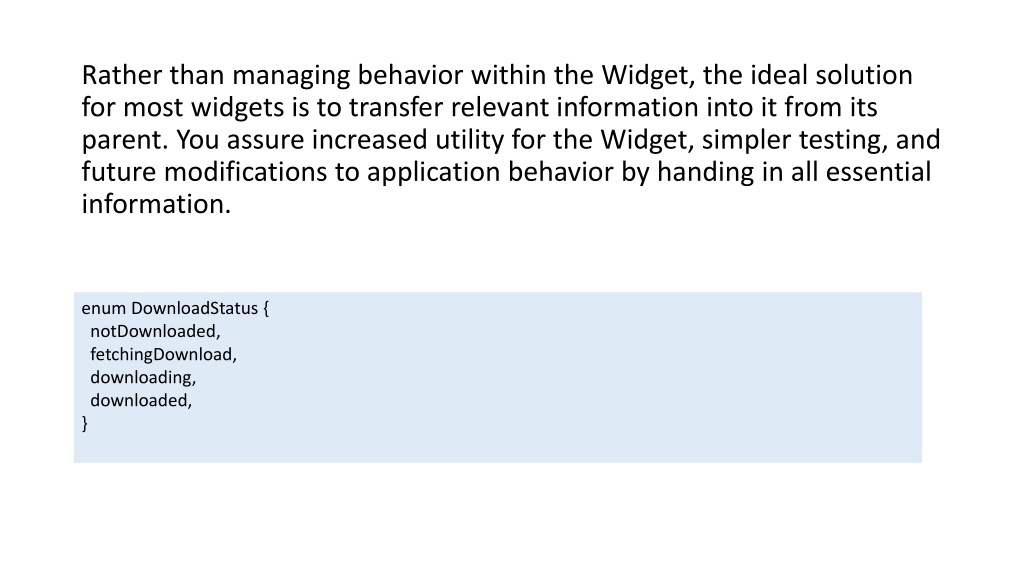

6. Rather than managing behavior within the Widget, the ideal solution for most widgets is to transfer relevant information into it from its parent. You assure increased utility for the Widget, simpler testing, and future modifications to application behavior by handing in all essential information. enumDownloadStatus { notDownloaded, fetchingDownload, downloading, downloaded, }

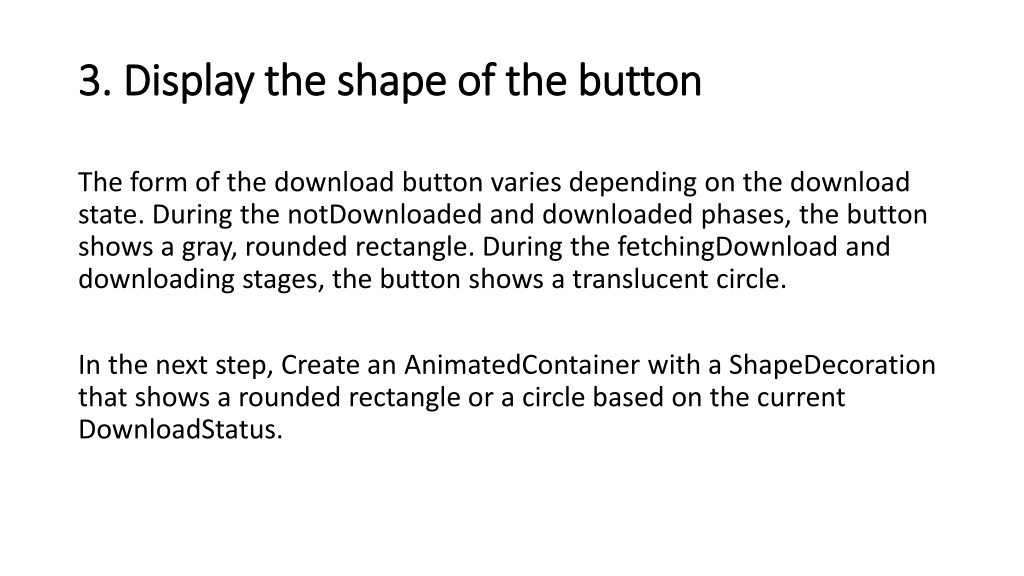

7. 3. Display the shape of the button The form of the download button varies depending on the download state. During the notDownloaded and downloaded phases, the button shows a gray, rounded rectangle. During the fetchingDownload and downloading stages, the button shows a translucent circle. In the next step, Create an AnimatedContainer with a ShapeDecoration that shows a rounded rectangle or a circle based on the current DownloadStatus.

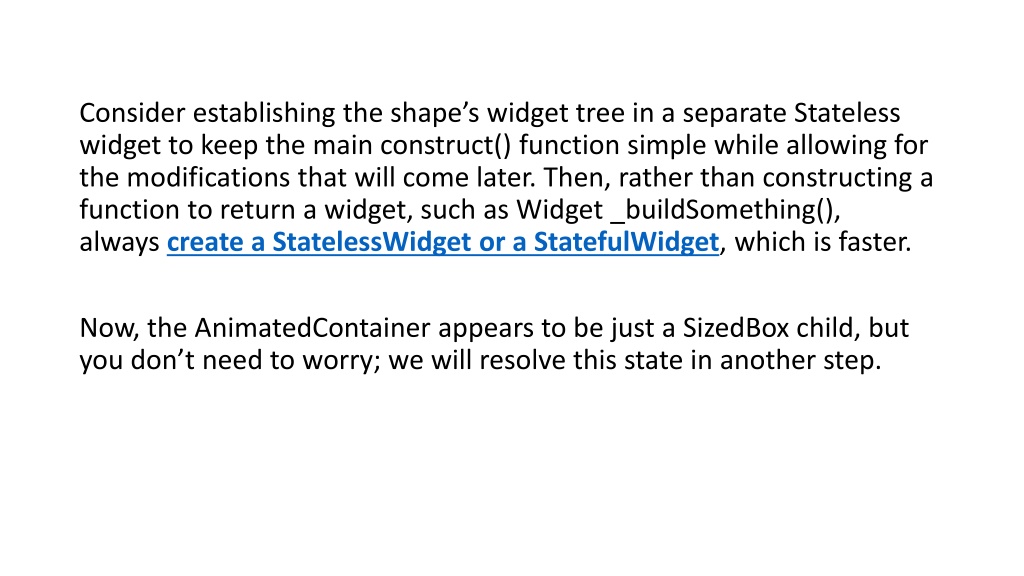

8. Consider establishing the shape’s widget tree in a separate Stateless widget to keep the main construct() function simple while allowing for the modifications that will come later. Then, rather than constructing a function to return a widget, such as Widget _buildSomething(), always create a StatelessWidget or a StatefulWidget, which is faster. Now, the AnimatedContainer appears to be just a SizedBox child, but you don’t need to worry; we will resolve this state in another step.

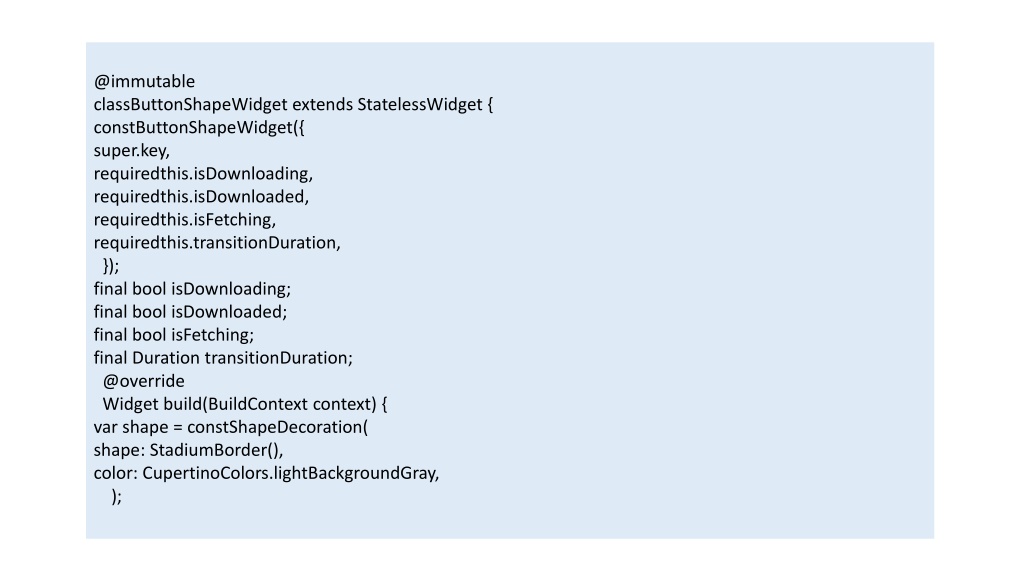

9. @immutable classButtonShapeWidget extends StatelessWidget { constButtonShapeWidget({ super.key, requiredthis.isDownloading, requiredthis.isDownloaded, requiredthis.isFetching, requiredthis.transitionDuration, }); final bool isDownloading; final bool isDownloaded; final bool isFetching; final Duration transitionDuration; @override Widget build(BuildContext context) { var shape = constShapeDecoration( shape: StadiumBorder(), color: CupertinoColors.lightBackgroundGray, );

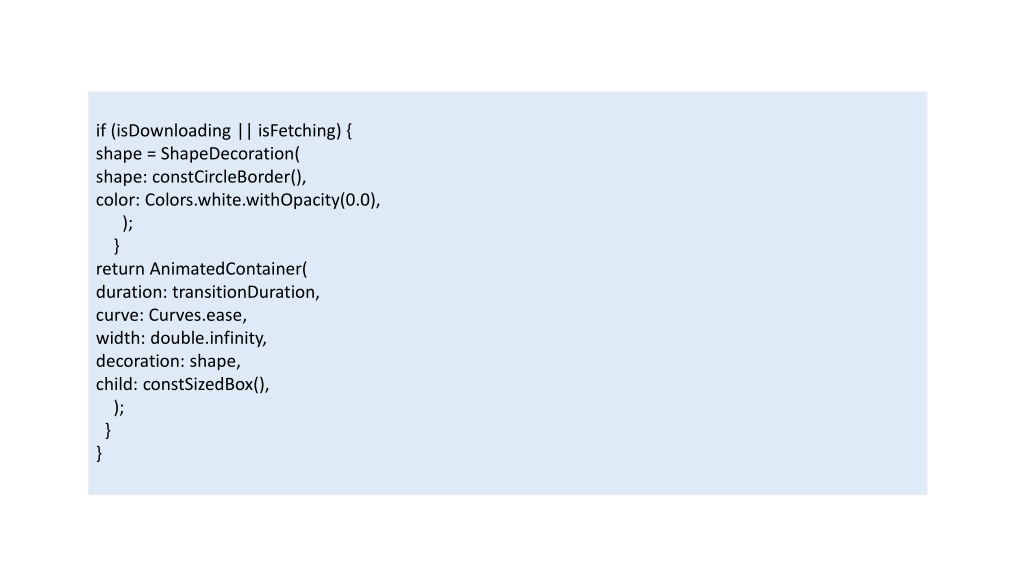

10. if (isDownloading || isFetching) { shape = ShapeDecoration( shape: constCircleBorder(), color: Colors.white.withOpacity(0.0), ); } return AnimatedContainer( duration: transitionDuration, curve: Curves.ease, width: double.infinity, decoration: shape, child: constSizedBox(), ); } }

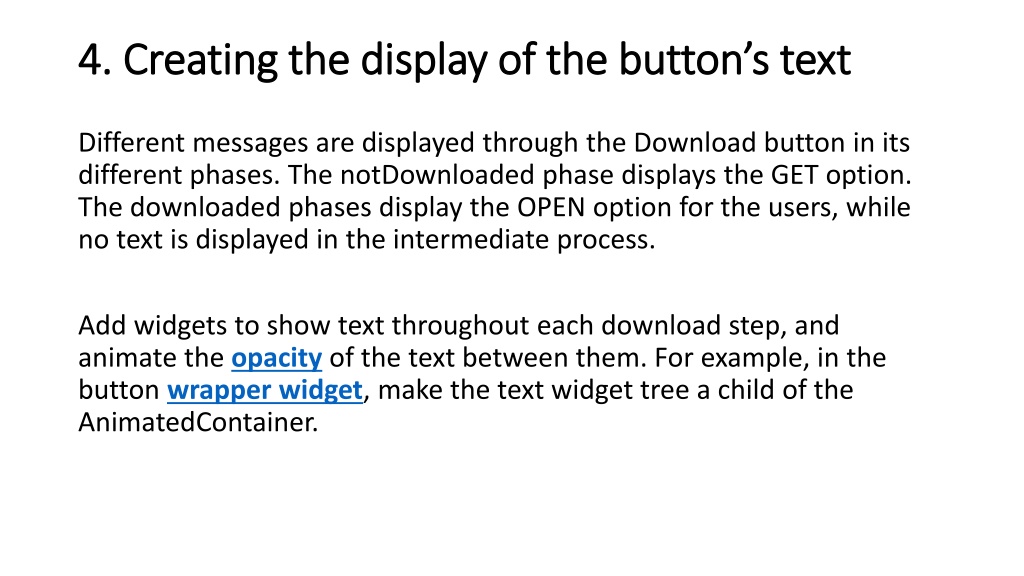

11. 4. Creating the display of the button’s text Different messages are displayed through the Download button in its different phases. The notDownloaded phase displays the GET option. The downloaded phases display the OPEN option for the users, while no text is displayed in the intermediate process. Add widgets to show text throughout each download step, and animate the opacity of the text between them. For example, in the button wrapper widget, make the text widget tree a child of the AnimatedContainer.

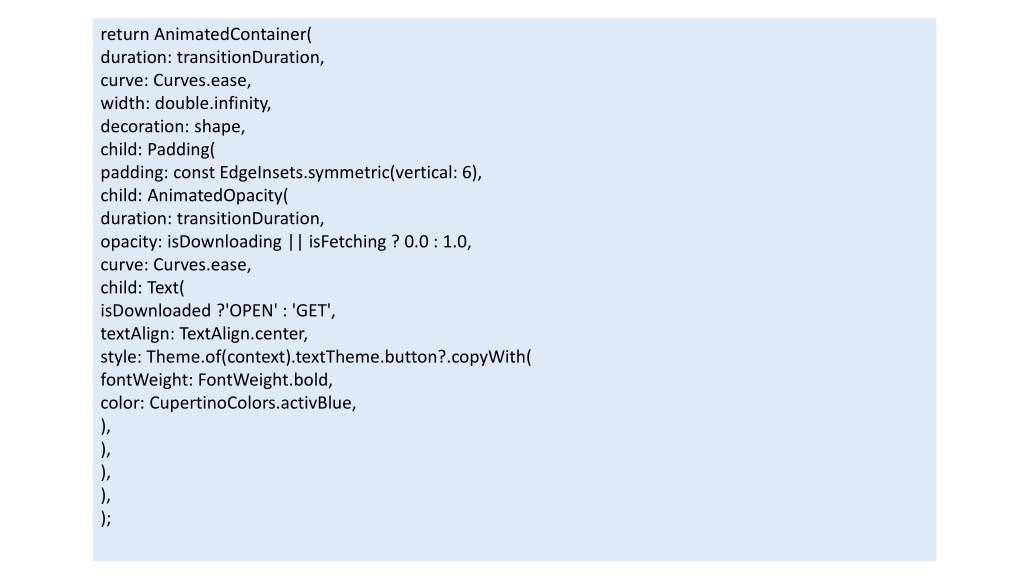

12. return AnimatedContainer( duration: transitionDuration, curve: Curves.ease, width: double.infinity, decoration: shape, child: Padding( padding: constEdgeInsets.symmetric(vertical: 6), child: AnimatedOpacity( duration: transitionDuration, opacity: isDownloading || isFetching ? 0.0 : 1.0, curve: Curves.ease, child: Text( isDownloaded ?'OPEN' : 'GET', textAlign: TextAlign.center, style: Theme.of(context).textTheme.button?.copyWith( fontWeight: FontWeight.bold, color: CupertinoColors.activBlue, ), ), ), ), );

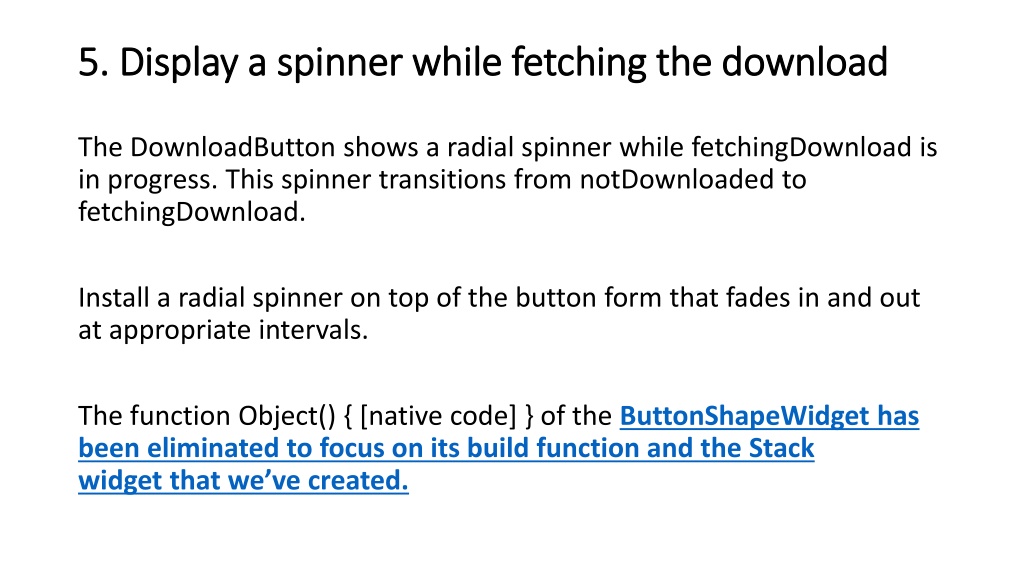

13. 5. Display a spinner while fetching the download The DownloadButton shows a radial spinner while fetchingDownload is in progress. This spinner transitions from notDownloaded to fetchingDownload. Install a radial spinner on top of the button form that fades in and out at appropriate intervals. The function Object() { [native code] } of the ButtonShapeWidget has been eliminated to focus on its build function and the Stack widget that we’ve created.

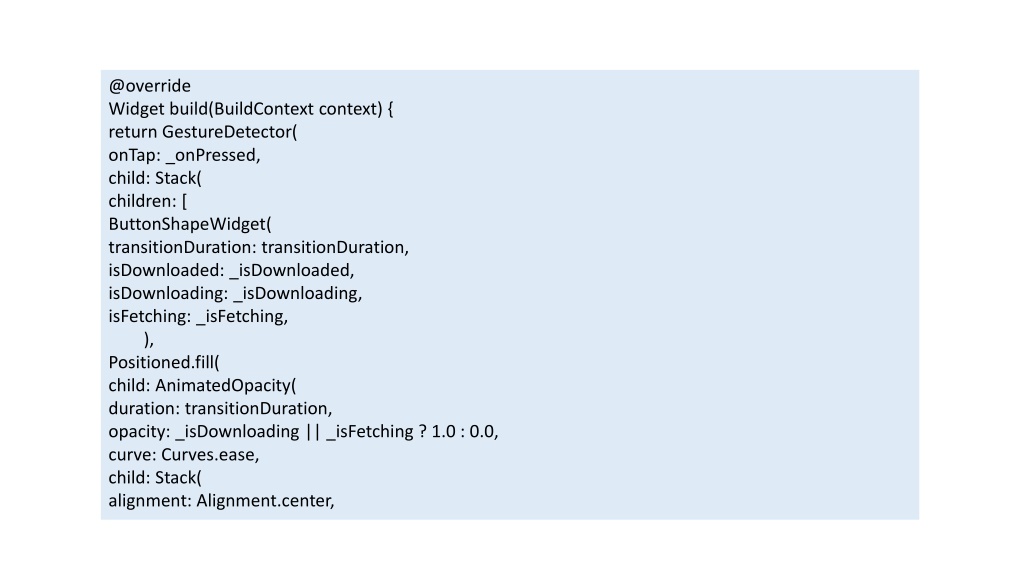

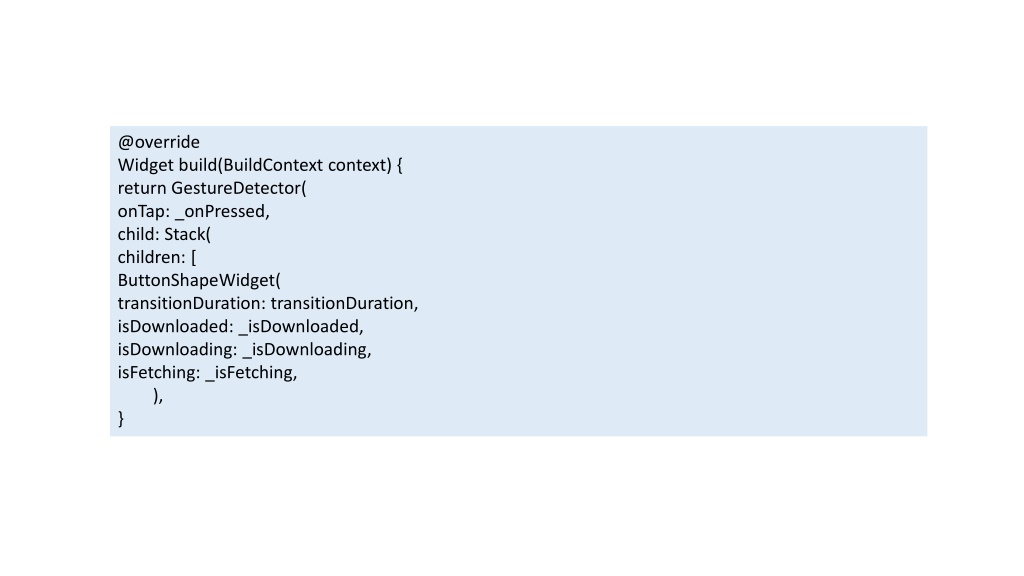

14. @override Widget build(BuildContext context) { return GestureDetector( onTap: _onPressed, child: Stack( children: [ ButtonShapeWidget( transitionDuration: transitionDuration, isDownloaded: _isDownloaded, isDownloading: _isDownloading, isFetching: _isFetching, ), }

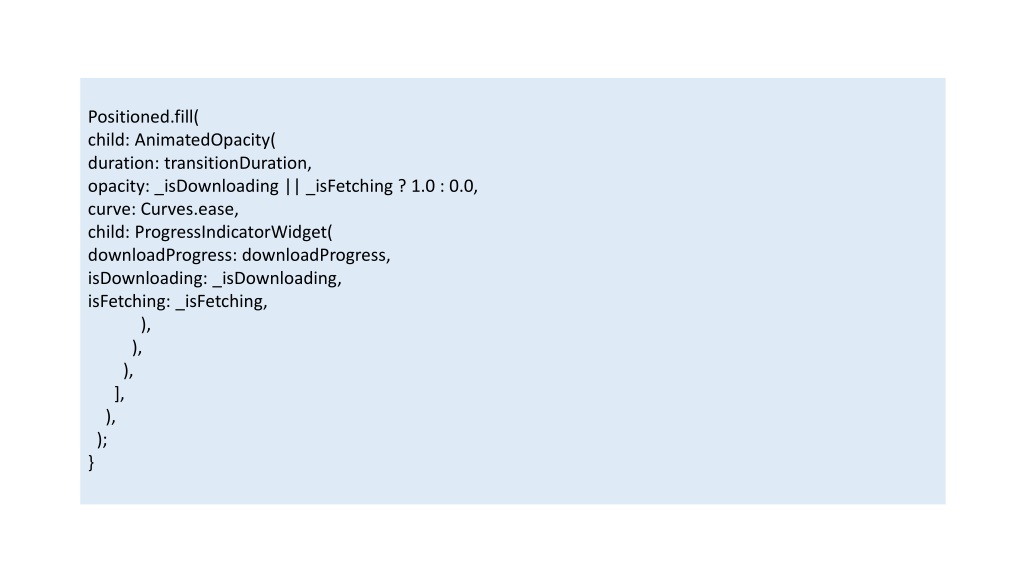

15. Positioned.fill( child: AnimatedOpacity( duration: transitionDuration, opacity: _isDownloading || _isFetching ? 1.0 : 0.0, curve: Curves.ease, child: ProgressIndicatorWidget( downloadProgress: downloadProgress, isDownloading: _isDownloading, isFetching: _isFetching, ), ), ), ], ), ); }

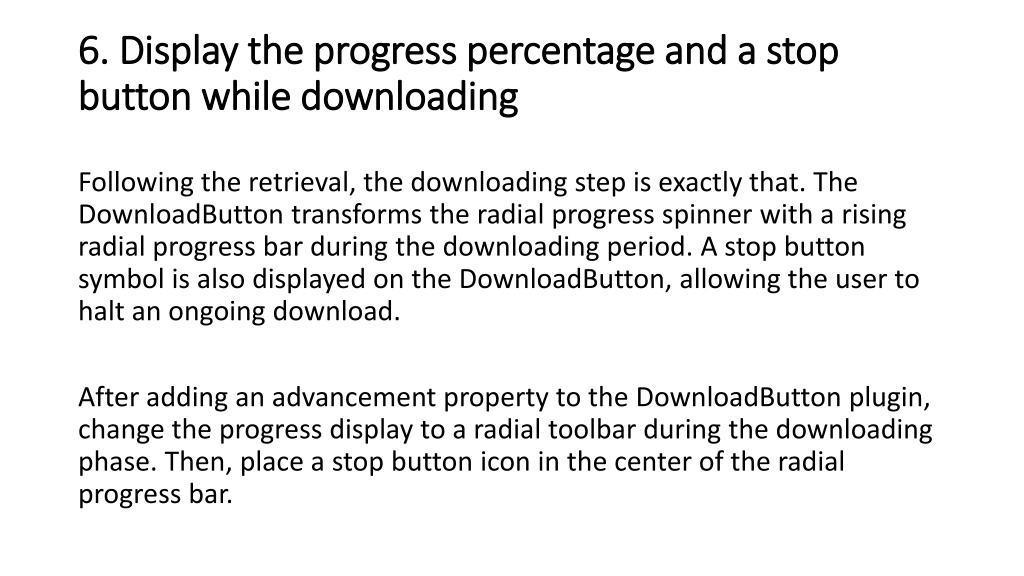

16. 6. Display the progress percentage and a stop button while downloading Following the retrieval, the downloading step is exactly that. The DownloadButton transforms the radial progress spinner with a rising radial progress bar during the downloading period. A stop button symbol is also displayed on the DownloadButton, allowing the user to halt an ongoing download. After adding an advancement property to the DownloadButton plugin, change the progress display to a radial toolbar during the downloading phase. Then, place a stop button icon in the center of the radial progress bar.

17. @override Widget build(BuildContext context) { return GestureDetector( onTap: _onPressed, child: Stack( children: [ ButtonShapeWidget( transitionDuration: transitionDuration, isDownloaded: _isDownloaded, isDownloading: _isDownloading, isFetching: _isFetching, ), Positioned.fill( child: AnimatedOpacity( duration: transitionDuration, opacity: _isDownloading || _isFetching ? 1.0 : 0.0, curve: Curves.ease, child: Stack( alignment: Alignment.center,

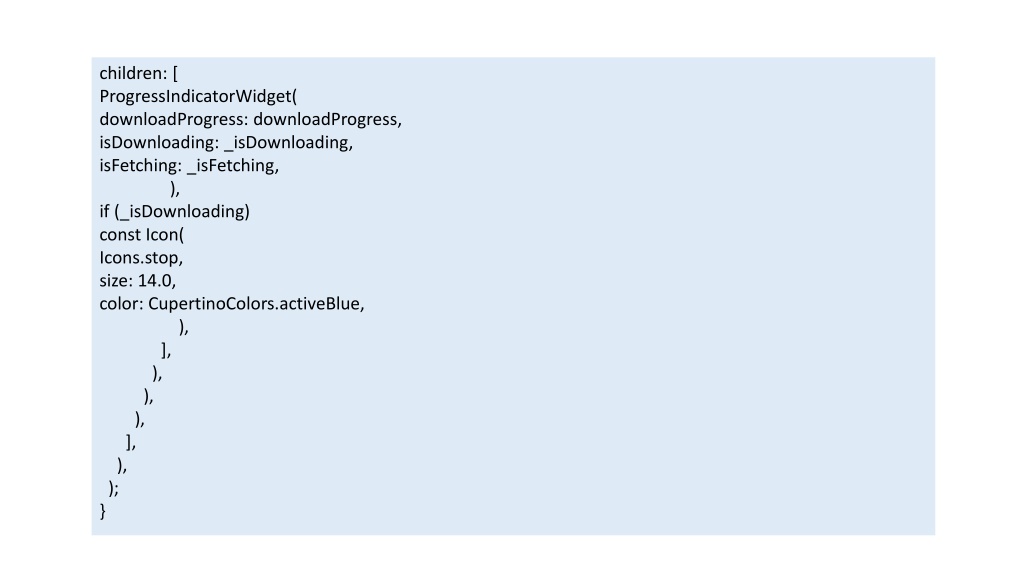

18. children: [ ProgressIndicatorWidget( downloadProgress: downloadProgress, isDownloading: _isDownloading, isFetching: _isFetching, ), if (_isDownloading) const Icon( Icons.stop, size: 14.0, color: CupertinoColors.activeBlue, ), ], ), ), ), ], ), ); }

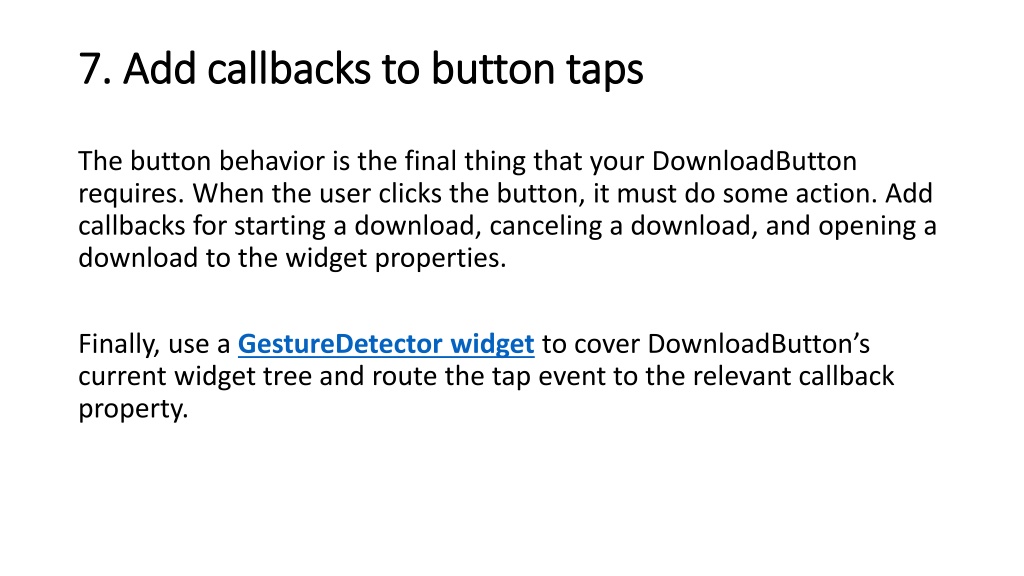

19. 7. Add callbacks to button taps The button behavior is the final thing that your DownloadButton requires. When the user clicks the button, it must do some action. Add callbacks for starting a download, canceling a download, and opening a download to the widget properties. Finally, use a GestureDetector widget to cover DownloadButton’s current widget tree and route the tap event to the relevant callback property.

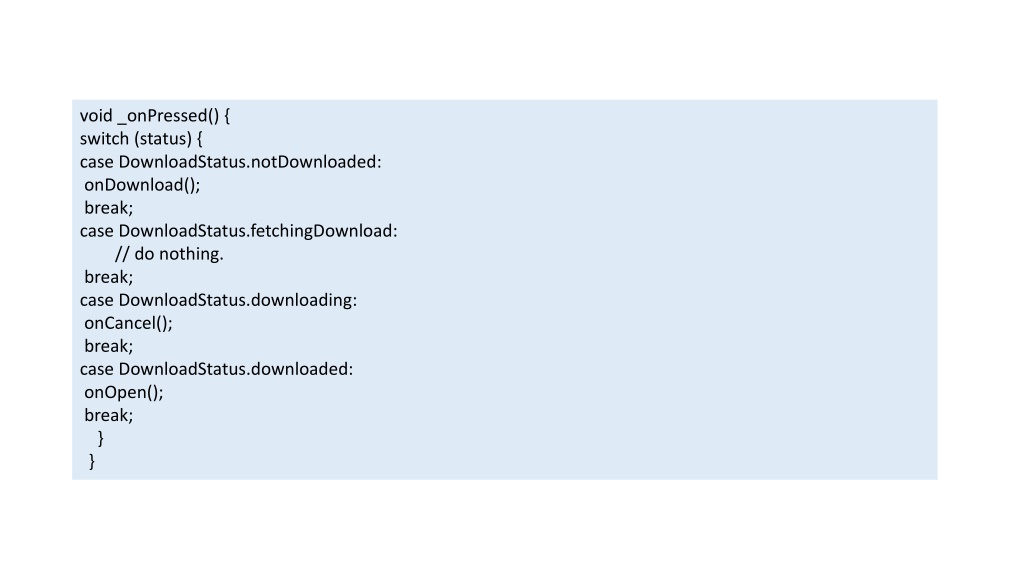

20. void _onPressed() { switch (status) { case DownloadStatus.notDownloaded: onDownload(); break; case DownloadStatus.fetchingDownload: // do nothing. break; case DownloadStatus.downloading: onCancel(); break; case DownloadStatus.downloaded: onOpen(); break; } }

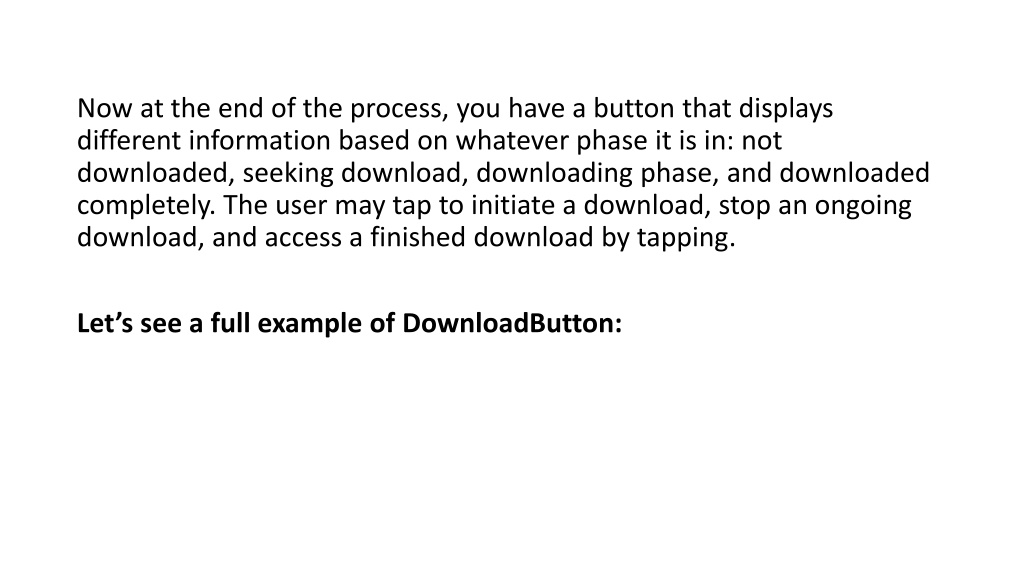

21. Now at the end of the process, you have a button that displays different information based on whatever phase it is in: not downloaded, seeking download, downloading phase, and downloaded completely. The user may tap to initiate a download, stop an ongoing download, and access a finished download by tapping. Let’s see a full example of DownloadButton:

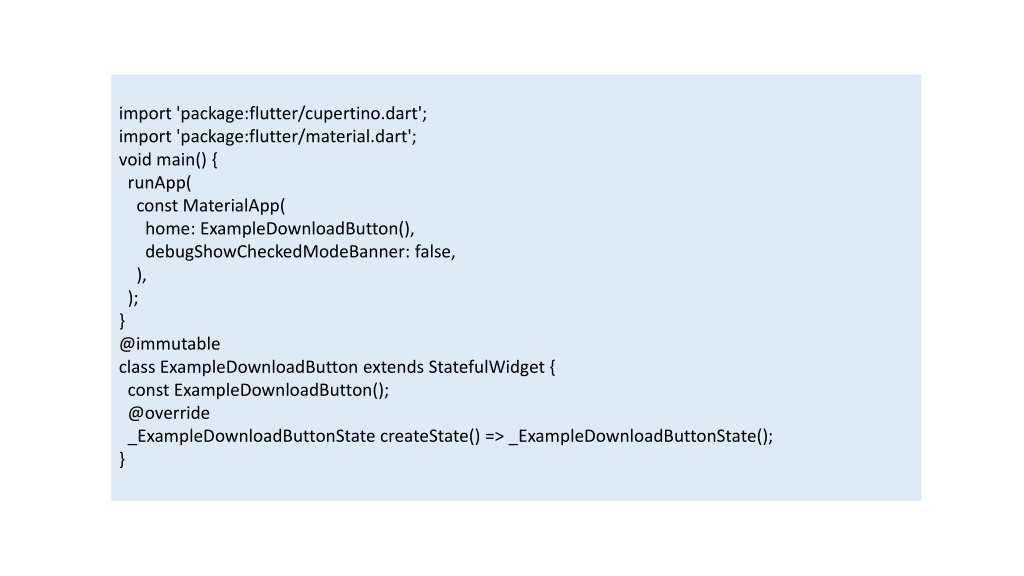

22. import 'package:flutter/cupertino.dart'; import 'package:flutter/material.dart'; void main() { runApp( constMaterialApp( home: ExampleDownloadButton(), debugShowCheckedModeBanner: false, ), ); } @immutable class ExampleDownloadButton extends StatefulWidget { constExampleDownloadButton(); @override _ExampleDownloadButtonStatecreateState() => _ExampleDownloadButtonState(); }

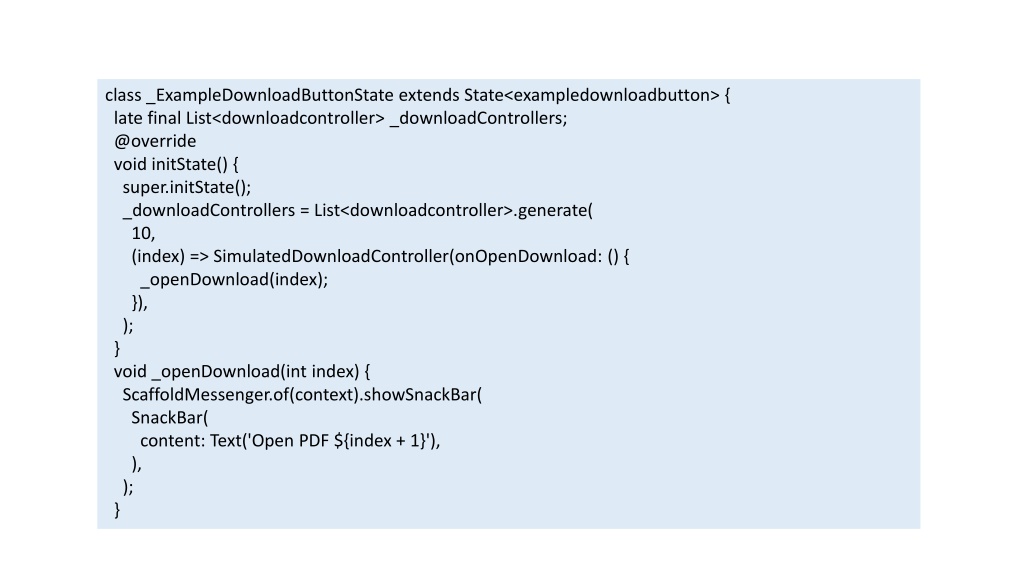

23. class _ExampleDownloadButtonState extends State<exampledownloadbutton> { late final List<downloadcontroller> _downloadControllers; @override void initState() { super.initState(); _downloadControllers = List<downloadcontroller>.generate( 10, (index) => SimulatedDownloadController(onOpenDownload: () { _openDownload(index); }), ); } void _openDownload(int index) { ScaffoldMessenger.of(context).showSnackBar( SnackBar( content: Text('Open PDF ${index + 1}'), ), ); }

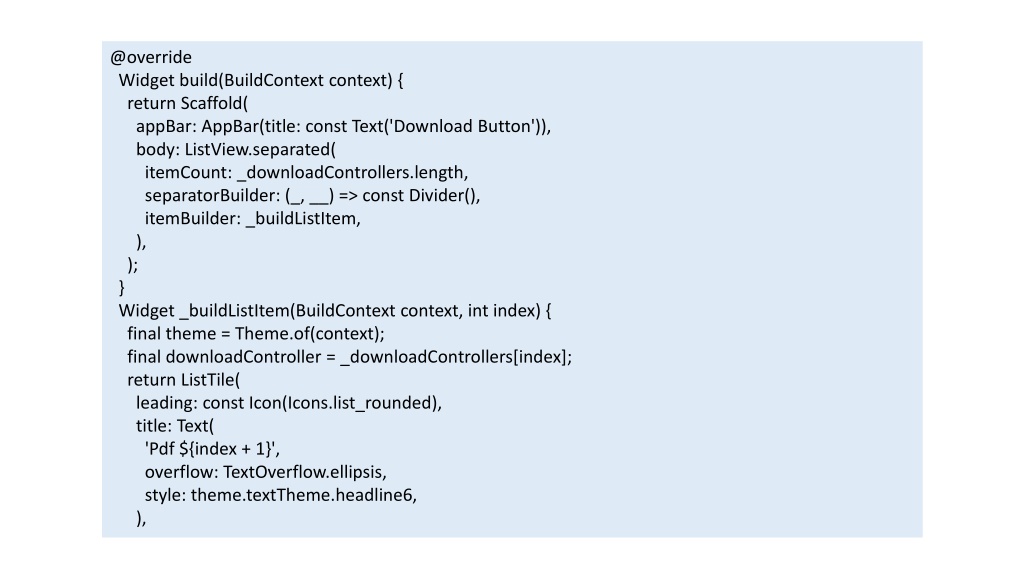

24. @override Widget build(BuildContext context) { return Scaffold( appBar: AppBar(title: const Text('Download Button')), body: ListView.separated( itemCount: _downloadControllers.length, separatorBuilder: (_, __) => const Divider(), itemBuilder: _buildListItem, ), ); } Widget _buildListItem(BuildContext context, int index) { final theme = Theme.of(context); final downloadController = _downloadControllers[index]; return ListTile( leading: const Icon(Icons.list_rounded), title: Text( 'Pdf ${index + 1}', overflow: TextOverflow.ellipsis, style: theme.textTheme.headline6, ),

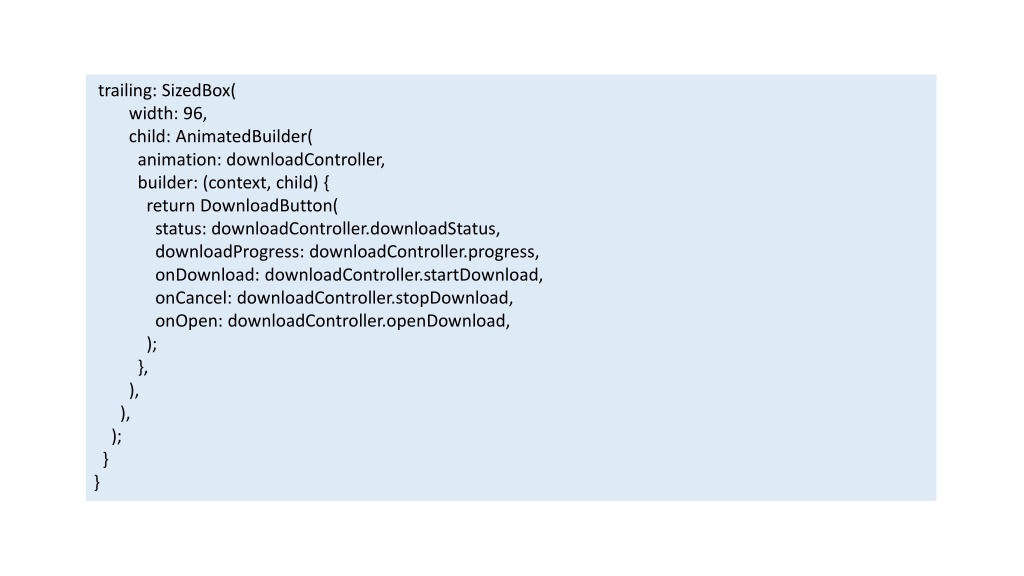

25. trailing: SizedBox( width: 96, child: AnimatedBuilder( animation: downloadController, builder: (context, child) { return DownloadButton( status: downloadController.downloadStatus, downloadProgress: downloadController.progress, onDownload: downloadController.startDownload, onCancel: downloadController.stopDownload, onOpen: downloadController.openDownload, ); }, ), ), ); } }

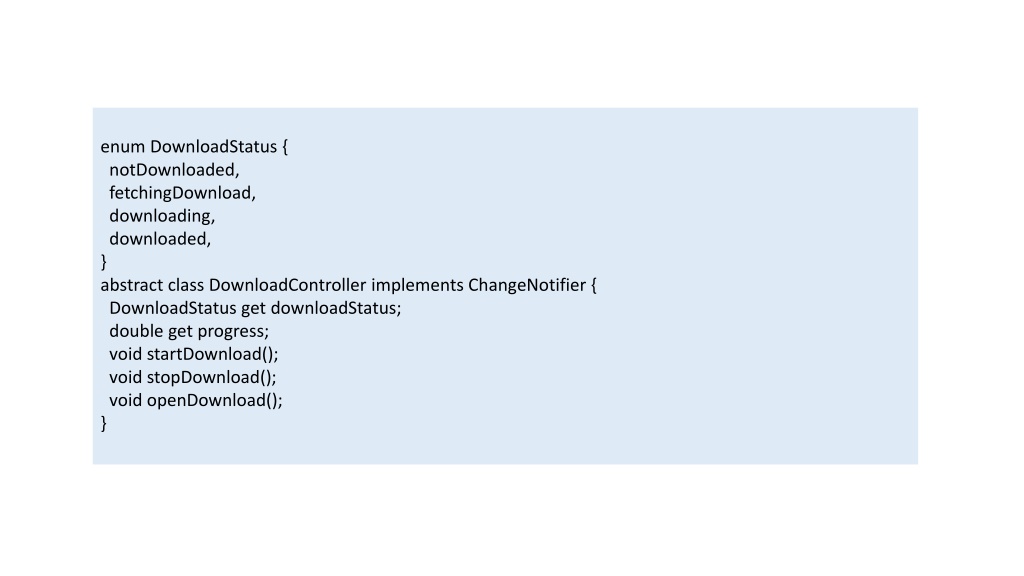

26. enumDownloadStatus { notDownloaded, fetchingDownload, downloading, downloaded, } abstract class DownloadController implements ChangeNotifier { DownloadStatus get downloadStatus; double get progress; void startDownload(); void stopDownload(); void openDownload(); }

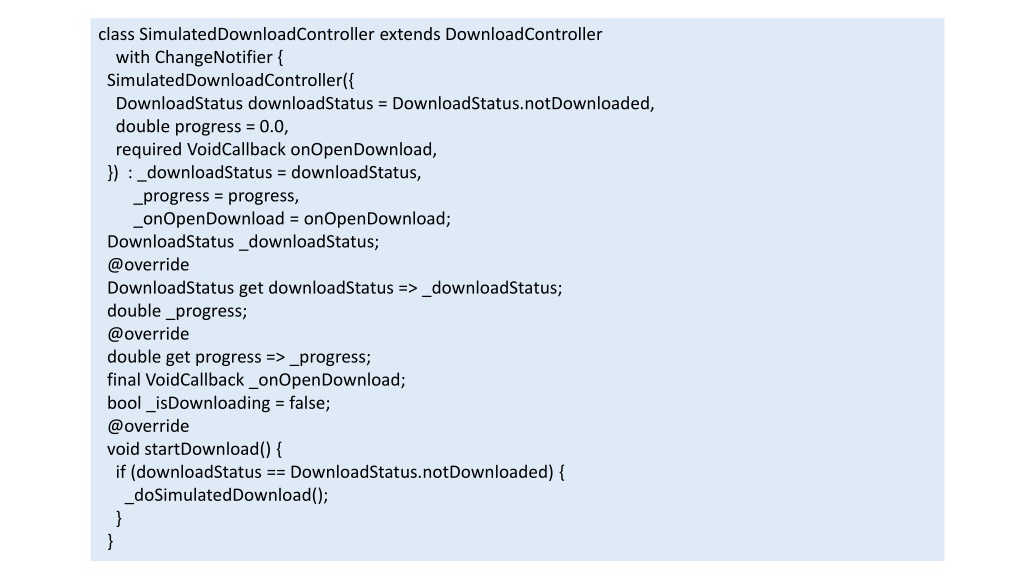

27. class SimulatedDownloadController extends DownloadController with ChangeNotifier { SimulatedDownloadController({ DownloadStatus downloadStatus = DownloadStatus.notDownloaded, double progress = 0.0, required VoidCallback onOpenDownload, }) : _downloadStatus = downloadStatus, _progress = progress, _onOpenDownload = onOpenDownload; DownloadStatus _downloadStatus; @override DownloadStatus get downloadStatus => _downloadStatus; double _progress; @override double get progress => _progress; final VoidCallback _onOpenDownload; bool _isDownloading = false; @override void startDownload() { if (downloadStatus == DownloadStatus.notDownloaded) { _doSimulatedDownload(); } }

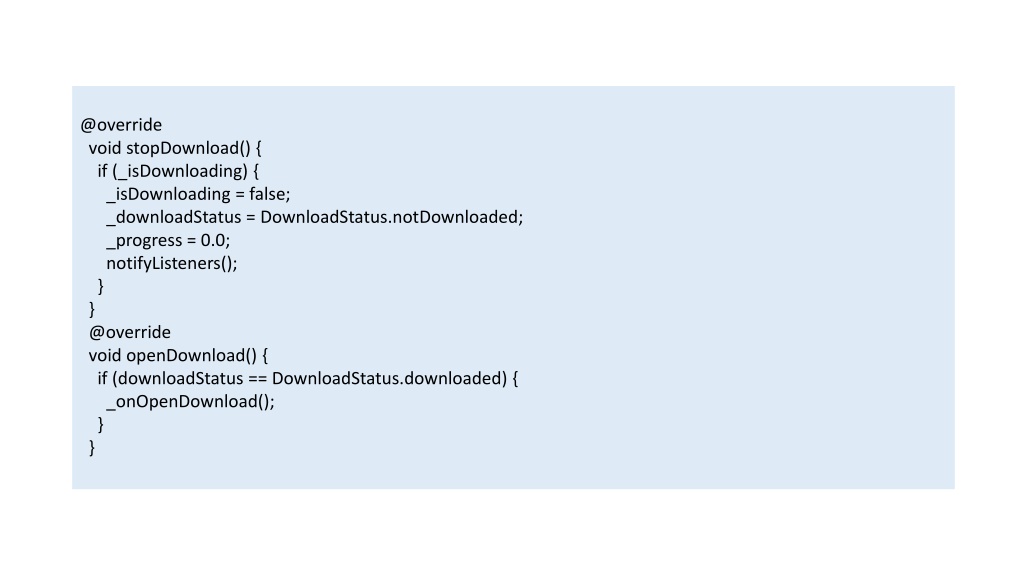

28. @override void stopDownload() { if (_isDownloading) { _isDownloading = false; _downloadStatus = DownloadStatus.notDownloaded; _progress = 0.0; notifyListeners(); } } @override void openDownload() { if (downloadStatus == DownloadStatus.downloaded) { _onOpenDownload(); } }

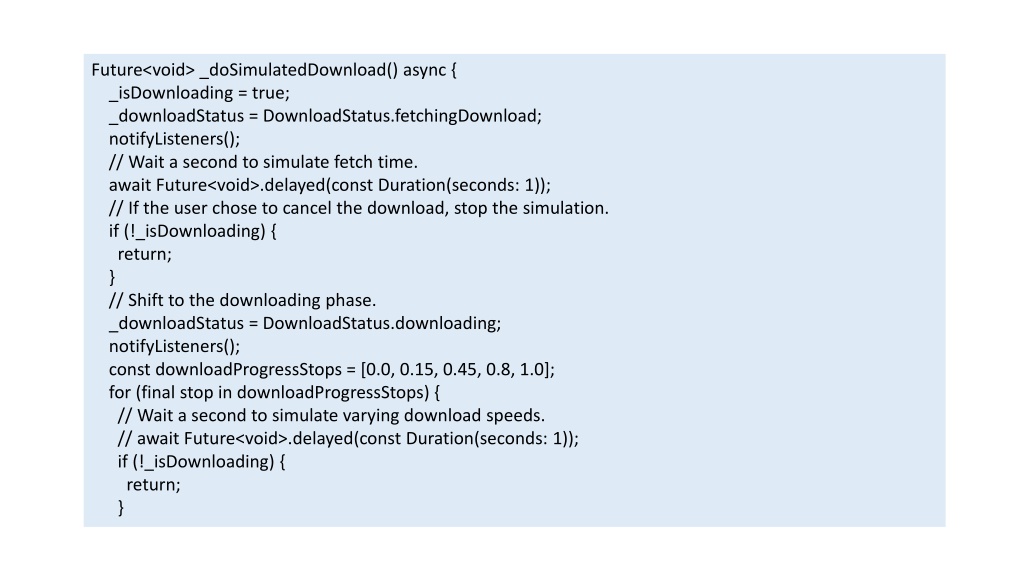

29. Future<void> _doSimulatedDownload() async { _isDownloading = true; _downloadStatus = DownloadStatus.fetchingDownload; notifyListeners(); // Wait a second to simulate fetch time. await Future<void>.delayed(const Duration(seconds: 1)); // If the user chose to cancel the download, stop the simulation. if (!_isDownloading) { return; } // Shift to the downloading phase. _downloadStatus = DownloadStatus.downloading; notifyListeners(); const downloadProgressStops = [0.0, 0.15, 0.45, 0.8, 1.0]; for (final stop in downloadProgressStops) { // Wait a second to simulate varying download speeds. // await Future<void>.delayed(const Duration(seconds: 1)); if (!_isDownloading) { return; }

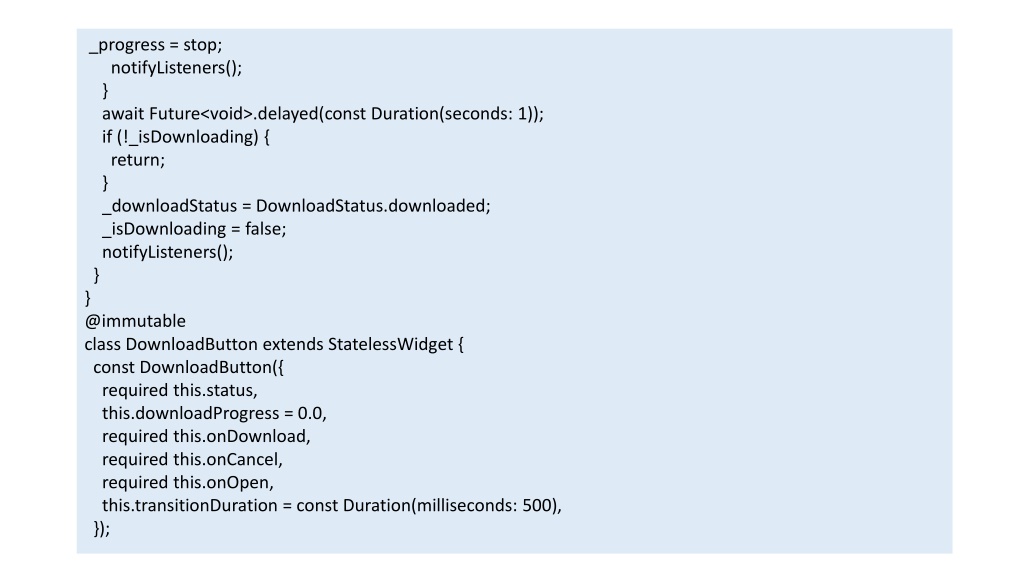

30. _progress = stop; notifyListeners(); } await Future<void>.delayed(const Duration(seconds: 1)); if (!_isDownloading) { return; } _downloadStatus = DownloadStatus.downloaded; _isDownloading = false; notifyListeners(); } } @immutable class DownloadButton extends StatelessWidget { const DownloadButton({ required this.status, this.downloadProgress = 0.0, required this.onDownload, required this.onCancel, required this.onOpen, this.transitionDuration = const Duration(milliseconds: 500), });

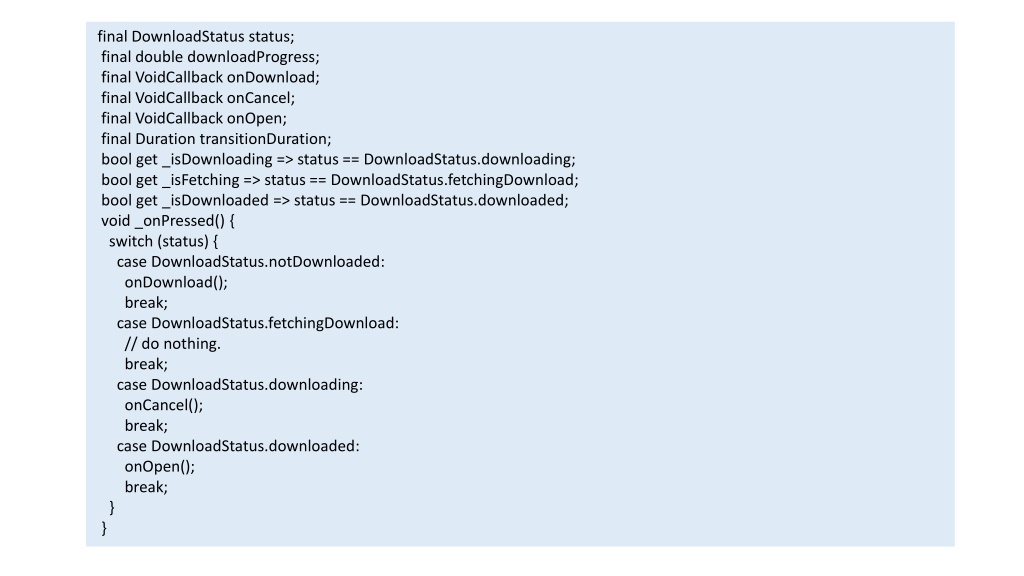

31. final DownloadStatus status; final double downloadProgress; final VoidCallbackonDownload; final VoidCallbackonCancel; final VoidCallbackonOpen; final Duration transitionDuration; bool get _isDownloading => status == DownloadStatus.downloading; bool get _isFetching => status == DownloadStatus.fetchingDownload; bool get _isDownloaded => status == DownloadStatus.downloaded; void _onPressed() { switch (status) { case DownloadStatus.notDownloaded: onDownload(); break; case DownloadStatus.fetchingDownload: // do nothing. break; case DownloadStatus.downloading: onCancel(); break; case DownloadStatus.downloaded: onOpen(); break; } }

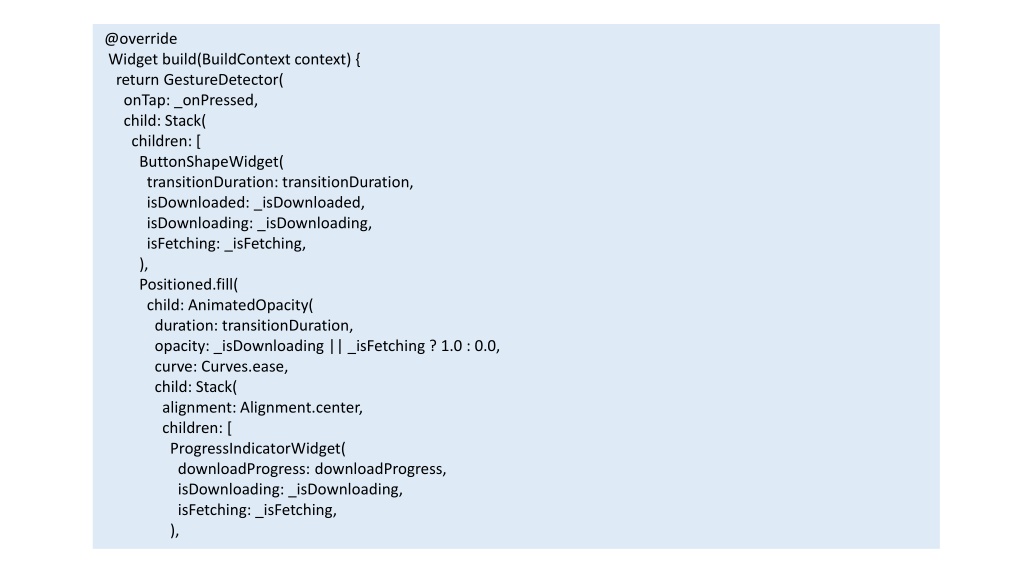

32. @override Widget build(BuildContext context) { return GestureDetector( onTap: _onPressed, child: Stack( children: [ ButtonShapeWidget( transitionDuration: transitionDuration, isDownloaded: _isDownloaded, isDownloading: _isDownloading, isFetching: _isFetching, ), Positioned.fill( child: AnimatedOpacity( duration: transitionDuration, opacity: _isDownloading || _isFetching ? 1.0 : 0.0, curve: Curves.ease, child: Stack( alignment: Alignment.center, children: [ ProgressIndicatorWidget( downloadProgress: downloadProgress, isDownloading: _isDownloading, isFetching: _isFetching, ),

33. if (_isDownloading) const Icon( Icons.stop, size: 14, color: CupertinoColors.activeBlue, ), ], ), ), ), ], ), ); } }

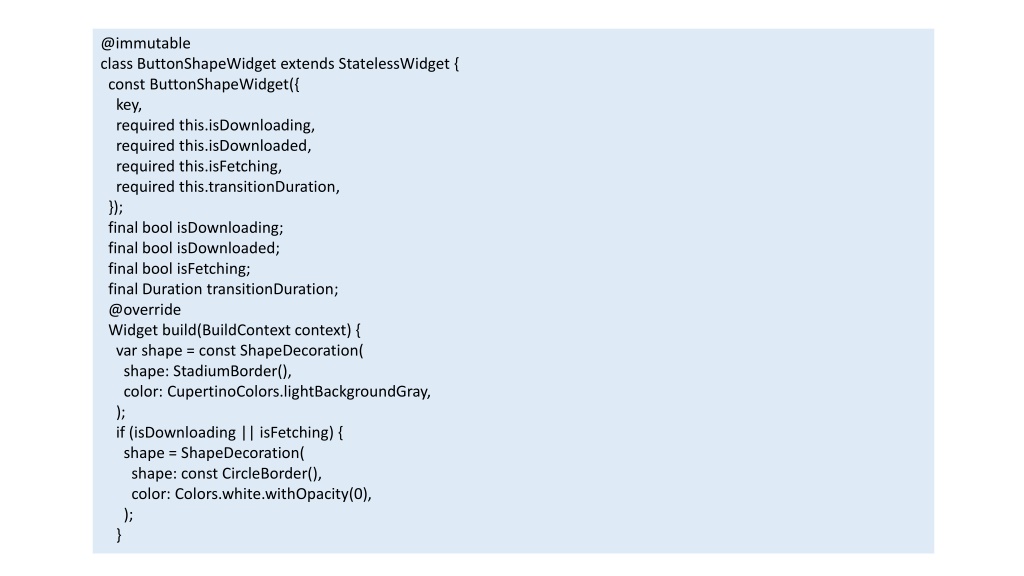

34. @immutable class ButtonShapeWidget extends StatelessWidget { constButtonShapeWidget({ key, required this.isDownloading, required this.isDownloaded, required this.isFetching, required this.transitionDuration, }); final bool isDownloading; final bool isDownloaded; final bool isFetching; final Duration transitionDuration; @override Widget build(BuildContext context) { var shape = constShapeDecoration( shape: StadiumBorder(), color: CupertinoColors.lightBackgroundGray, ); if (isDownloading || isFetching) { shape = ShapeDecoration( shape: constCircleBorder(), color: Colors.white.withOpacity(0), ); }

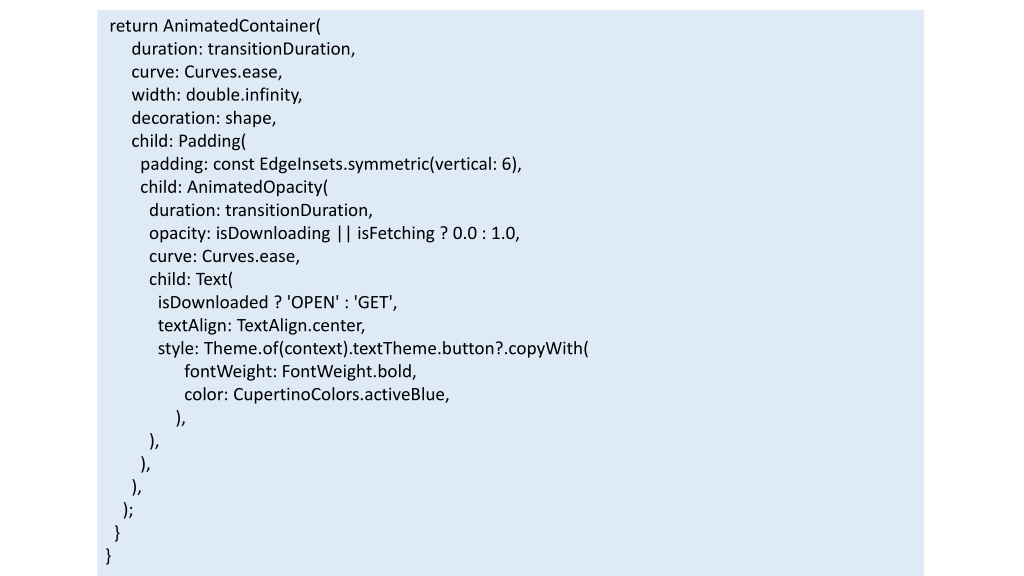

35. return AnimatedContainer( duration: transitionDuration, curve: Curves.ease, width: double.infinity, decoration: shape, child: Padding( padding: const EdgeInsets.symmetric(vertical: 6), child: AnimatedOpacity( duration: transitionDuration, opacity: isDownloading || isFetching ? 0.0 : 1.0, curve: Curves.ease, child: Text( isDownloaded ? 'OPEN' : 'GET', textAlign: TextAlign.center, style: Theme.of(context).textTheme.button?.copyWith( fontWeight: FontWeight.bold, color: CupertinoColors.activeBlue, ), ), ), ), ); } }

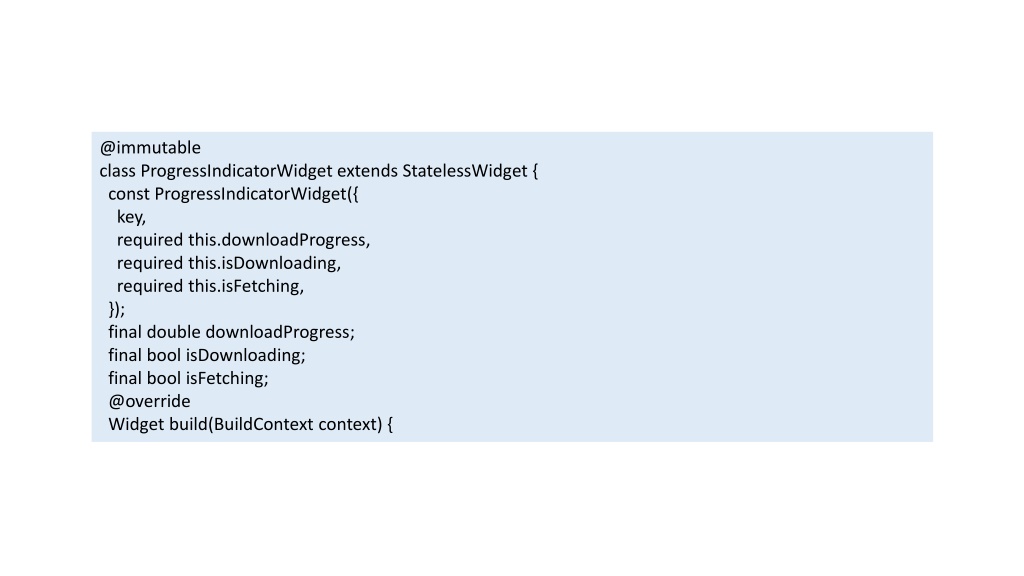

36. @immutable class ProgressIndicatorWidget extends StatelessWidget { constProgressIndicatorWidget({ key, required this.downloadProgress, required this.isDownloading, required this.isFetching, }); final double downloadProgress; final bool isDownloading; final bool isFetching; @override Widget build(BuildContext context) {

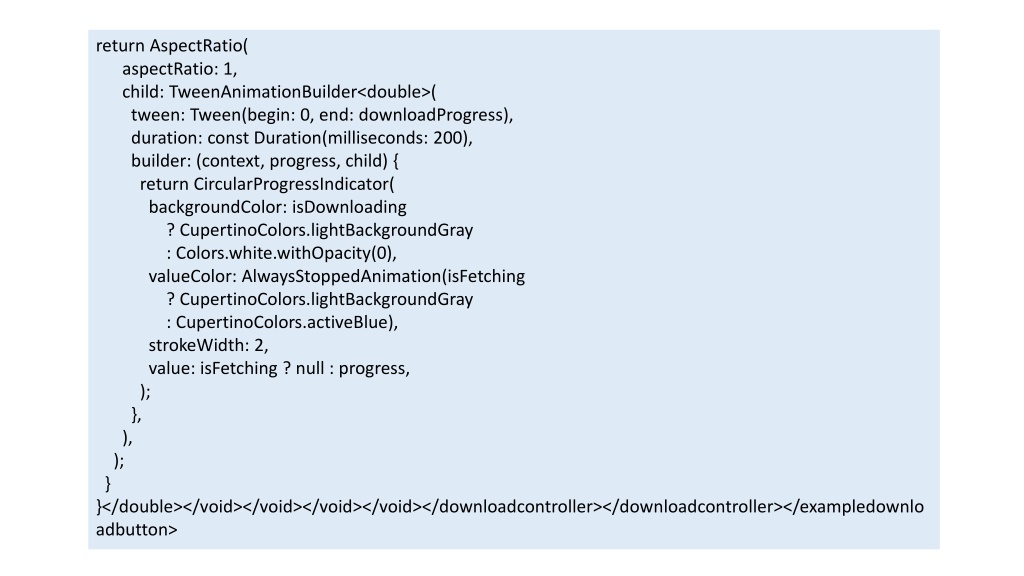

37. return AspectRatio( aspectRatio: 1, child: TweenAnimationBuilder<double>( tween: Tween(begin: 0, end: downloadProgress), duration: const Duration(milliseconds: 200), builder: (context, progress, child) { return CircularProgressIndicator( backgroundColor: isDownloading ? CupertinoColors.lightBackgroundGray : Colors.white.withOpacity(0), valueColor: AlwaysStoppedAnimation(isFetching ? CupertinoColors.lightBackgroundGray : CupertinoColors.activeBlue), strokeWidth: 2, value: isFetching ? null : progress, ); }, ), ); } }</double></void></void></void></void></downloadcontroller></downloadcontroller></exampledownloadbutton>

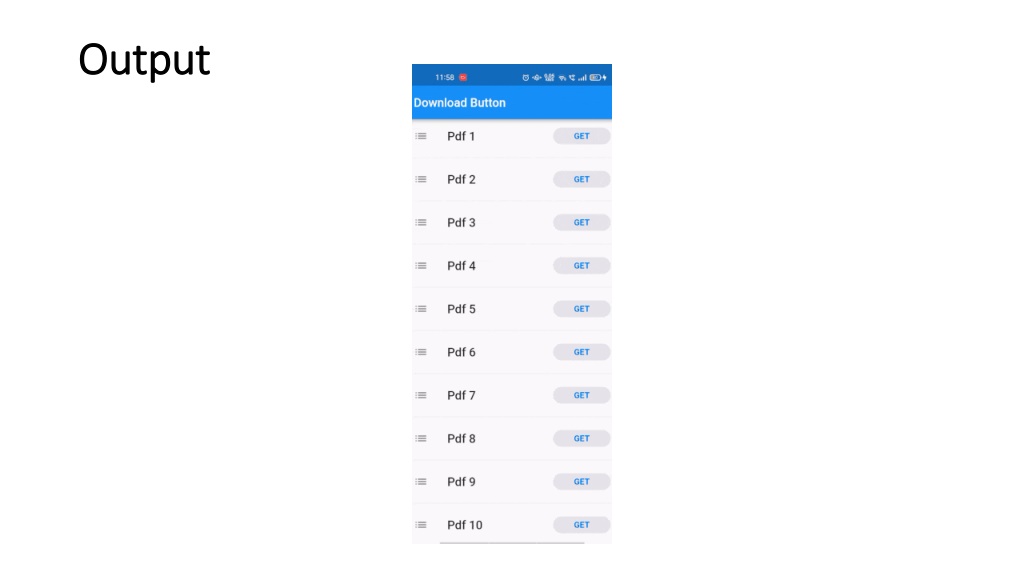

38. Output

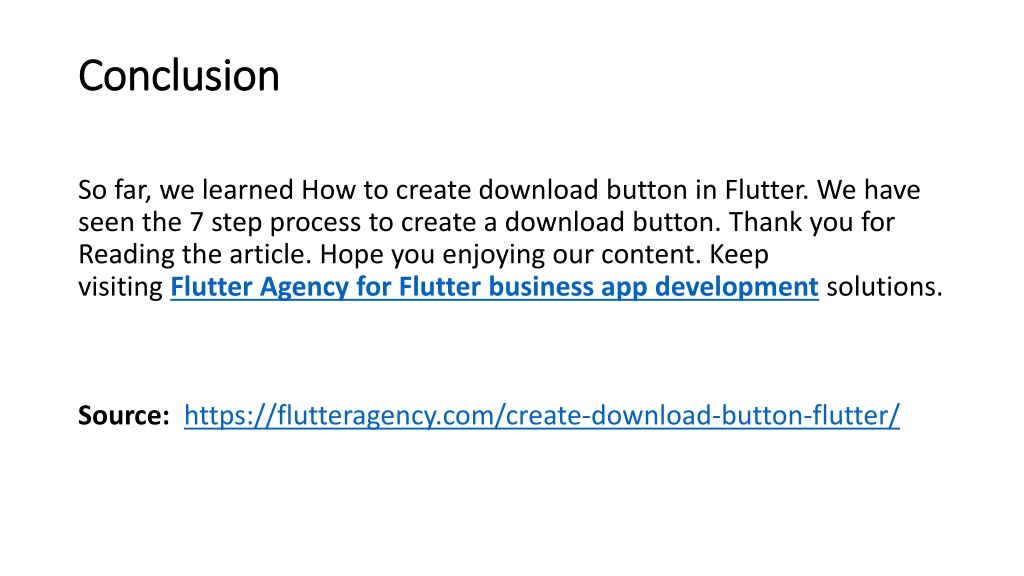

39. Conclusion So far, we learned How to create download button in Flutter. We have seen the 7 step process to create a download button. Thank you for Reading the article. Hope you enjoying our content. Keep visiting Flutter Agency for Flutter business app development solutions. Source:https://flutteragency.com/create-download-button-flutter/
