Automatic-Liquid-Extraction-Rotary-Agitator-FM-ARA-B100

Automatic Liquid Extraction Rotary Agitator is a microprocessor controlled, sample agitating device with 8 pcs separating funnel and 15 to 40 rpm adjustable speed. Designed <br>with active sliding door for easy loading and unloading of separation funnel. Device features electricity insulated flip cover, electricity leakage protection and overload <br>protection for safety of the user. Used during liquid-liquid extraction procedure in environment protection industry and disease control and research labs.

BrentFison
Download Presentation

Automatic-Liquid-Extraction-Rotary-Agitator-FM-ARA-B100

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

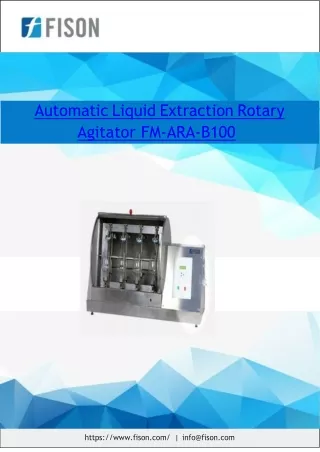

  1. Automatic Liquid Extraction Rotary Agitator FM-ARA-B100 https://www.fison.com/ | info@fison.com

  2. Description : Automatic Liquid Extraction Rotary Agitator FM-ARA-B100 is a microprocessor controlled, sample agitating device with 8 pcs separating funnel and 15 to 40 rpm adjustable speed. Designed with active sliding door for easy loading and unloading of separation funnel. Device features electricity insulated flip cover, electricity leakage protection and overload protection for safety of the user. Used during liquid-liquid extraction procedure in environment protection industry and disease control and research labs. Features: Vessel quantity of 8 pcs separation funnel High quality stainless steel design, long service life Organic glass window to observe funnel rotation LCD display to view test parameters 15 to 40 rpm, adjustable rotation speed Upside and downside buckles to perfectly fix sample separating funnel Rotation types: - Positive rotation, reverse rotation and continuous positive rotation Specifications: Vessel (Funnel) loaded 8 pcs

  3. Separating funnel capacity 500, 1000 and 2000 ml Separating funnel type Glass (Positive 360° over turn rotations for 2 min and stop for 5 seconds) (Reverse for 3 min and stop for 5 seconds) Rotation method Rotation speed Adjustable, 15 to 45 rpm Rotation accuracy ± 1 rpm Display LCD display Minute/hour setting, 1-24 hour for alternative, accuracy to minute Time setting Continous working time 18 hours Temperature RT to 65°C Temperature accuracy ± 0.5 °C Power supply AC 220 V, 50 Hz Pacakging dimension 1120 × 420 × 620 mm

  4. Net weight 47 kg Gross weight 59 kg Applications: Used during liquid-liquid extraction procedure in environment protection industry and disease control and research labs. Fison Instruments Ltd 272 Bath Street Glasgow G2 4JR UK Email: info@fison.com | Website: www.fison.com
