Automatic Rotary Evaporator

Automatic Rotary Evaporator is designed to facilitate the efficient and precise evaporation of solvents and other volatile substances from liquid samples. The <br>evaporator accommodates a versatile sample processing capacity from 50 ml to 1 L and the rotary speed can be smoothly adjusted within the 0-150 rpm range. It <br>features a motorized automatic vertical lifting system facilitating precise control over the distillation process.

Kimber4
Download Presentation

Automatic Rotary Evaporator

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

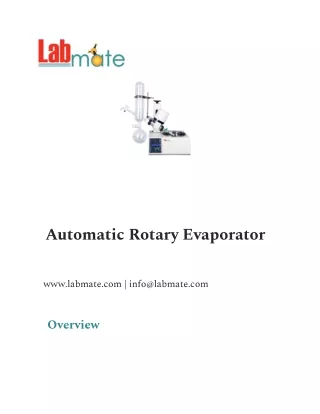

  1. Automatic Rotary Evaporator www.labmate.com | info@labmate.com Overview

  2. Automatic Rotary Evaporator is designed to facilitate the efficient and precise evaporation of solvents and other volatile substances from liquid samples. The evaporator accommodates a versatile sample processing capacity from 50 ml to 1 L and the rotary speed can be smoothly adjusted within the 0-150 rpm range. It features a motorized automatic precise control over the distillation process. vertical li?ing system facilitating Specifications : Evaporating Flask 2 L Li?ing Type Automatic li?ing Optional Evaporating Flask 0.25 L, 0.5 L, 1 L

  3. Condenser Type Vertical condenser Receiving Flask 1 L Max. Evaporating Speed 1.2 L / hr (H2O) Condensing Surface 0.27 m² Rotation Speed 0 to 150 rpm Reachable Vacuum Rate < 133 Pa Bath Power 1.1 kW Heating Power 1000 W

  4. Rotation Power 25 W Temperature Control Range RT to 99 °C ± 2 °C Bath Size Capacity 5 L Certification ISO and CE Power 220 V / 60 Hz Dimension 690 × 380 × 980 mm Weight 26 kg Features :

  5. - Motorized flasks li? with safety auto-release during power failure - Digital display for temperature, rotation speed, and timer monitoring - Resilient PTFE seals that are resistant to chemicals and assembly for effective sealing - Automatic water bath filling for user convenience - Constructed with SUS 304 stainless steel material - LCD display and user-friendly controls for clear monitoring of the bath temperature in real time - It supports continuous charge processes, allowing uninterrupted operation - Features a Taper joint PTFE Sleeve, enhancing its versatility - It operates with low noise levels, creating a quieter working environment

  6. Optional Accessories : Cold trap Water bath lid Applications : It including flavor extraction in the food industry, solvent removal in chemical and educational settings, HPLC sample preparation, drying powders, and trapping environmental industry. is widely used for various applications, determining sample concentrations, hazardous waste liquids in the Labmate Scientific

  7. Email: info@labmate.com | Website: www.labmate.com
