Automatic lifting rotary evaporator

Automatic lifting rotary evaporator is an ergonomic design with motorized vertical lift comprising of a large LCD display and intuitive controls for easy visualization of the distillation process. Convenient motor lift adjusts heights making it user friendly. The rotation speed ranges from 0-150 rpm. Automatic water bath filling is a key feature

Aliza16
Download Presentation

Automatic lifting rotary evaporator

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

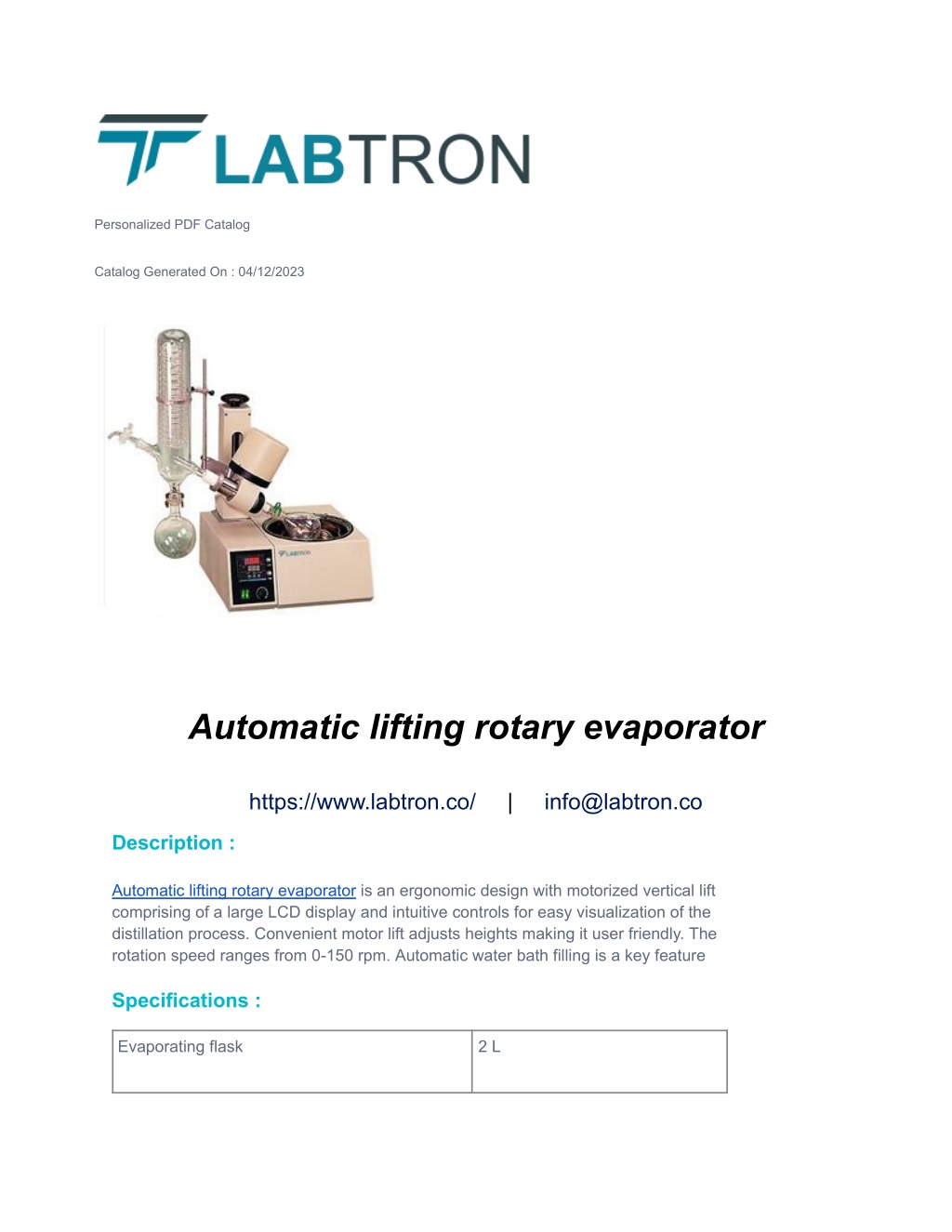

  1. Personalized PDF Catalog Catalog Generated On : 04/12/2023 Automatic lifting rotary evaporator https://www.labtron.co/ | info@labtron.co Description : Automatic lifting rotary evaporator is an ergonomic design with motorized vertical lift comprising of a large LCD display and intuitive controls for easy visualization of the distillation process. Convenient motor lift adjusts heights making it user friendly. The rotation speed ranges from 0-150 rpm. Automatic water bath filling is a key feature Specifications : Evaporating flask 2 L

  2. Lifting type Automatic lifting Optional evaporating flask 0.25 L , 0.5 L , 1 L Condenser type Vertical condenser Receiving flask 1 L Max evaporating speed ( H2O ) 1.2 L / hr. Condensing surface 0.27 m² Rotation speed 0 ~150 rpm Reachable vacuum rate < 133 Pa Bath power 1.1 kW Heating power 1000 W Rotation power 25 W Static temp control range and wave RT – 99 °C ± 2 °C Bath size capacity 5 L Material SUS 304 Certification ISO and CE

  3. Power 220 V / 60 Hz Dimensions 690 x 380 x 980 mm Weight 26 kg Features : Motorized flask lift with safety automatic release of evaporating flask in case of power failure Rotation speed 0 ~ 150 rpm Digital display for visualization of temperature , rotation speed and timer Process samples from 50 ml to 1 L Chemical resistant PTFE seals Automated water bath filling Applications : Used for flavor extraction in food industry, solvent removal in separation and recycling chemical / educational / fuel / environmental industry , to determine sample concentration , HPLC and natural product sample preparation , drying down powders (using test tube adapter) and trapping hazardous waste liquid.

  4. www.labtron.co Labtron Equipment Ltd. Quatro House, Lyon Way, Camberley, Surrey GU16 7ER United Kingdom Email: info@labtron.co | Website: https://www.labtron.co/ | Phone: +44 2080 043 608
