  1. Top-down characterization of proteins in bacteria with unsequenced genomes Nathan Edwards Georgetown University Medical Center

  2. Microorganism Identification • Homeland-security/defense applications • Long history of fingerprinting approaches • Clinical applications in strain identification: • Selection of treatment and/or antibiotics • New applications in microbiome analysis: • Bacterial colonies in gut, .... • Chronic wound infections • Compete with genomic approaches? • PCR, Next-gen sequencing • Primary sales-pitch is speed.

  3. Microorganism Identifications • Match spectra with proteome (or genome) sequence for (species) identity • Provides robust match with respect to instrumentation and sample prep • Many bacteria will never be sequenced or "finished"... • Pathogen simulants, for example • ...but many have – about 2500 to date.

  4. Microorganism Identifications • Match spectra with proteome (or genome) sequence for (species) identity • Provides robust match with respect to instrumentation and sample prep • Many bacteria will never be sequenced or "finished"... • Pathogen simulants, for example • ...but many have – about 2500 to date. • Can we use the available sequence to identify proteins from unknown, unsequenced bacteria? • Yes, for some proteins in some organisms!

  5. Crude cell lysate Capilary HPLC C8 column LTQ-Orbitrap XL Precursor scan: 30,000 @ 400 m/z Data-dependent precursor selection: 5 most abundant ions 10 second dynamic exclusion Charge-state +3 or greater CAD product ion scan 15,000 @ 400 m/z Intact protein LC-MS/MS

  6. CID Protein Fragmentation Spectrum from Y. rohdei

  7. Enterobacteriaceae Protein Sequences • Exhaustive set of all Enterobacteriaceae family protein sequences from • Swiss-Prot, TrEMBL, RefSeq, Genbank, and [CMR] • ...plus Glimmer3 predictions on RefSeq Enterobacteriaceae genomes • Primary and alternative translation start-sites • Filter for intact mass in range 1 kDa – 20 kDa • 253,626 distinct protein sequences, 256 species • Derived from "Rapid Microorganism Identification Database" (RMIDb.org) infrastructure.

  8. ProSightPC 2.0 • Product ion scan decharging • Enabled by high-resolution fragment ion measurements • THRASH algorithm implementation • Absolute mass search mode • 15 ppm fragment ion match tolerance • 250 Da precursor ion match tolerance • "Single-click" analysis of entire LC-MS/MS datafile.

  9. Other tools • Explored using standard search engines: • Decharge and format as charge +1 spectrum • X!Tandem scoring plugin (ProSight, delta M) • OMSSA, Mascot, etc… • MS-Tools: • MS-Deconv, MS-TopDown, • MS-Align, MS-Align+, MS-Align-E!

  10. CID Protein Fragmentation Spectrum from Y. rohdei Match to Y. pestis 50S Ribosomal Protein L32

  11. Exact match sequence…

  12. Phylogeny: Protein vs DNA Protein Sequence 16S-rRNA Sequence

  13. What about mixtures?

  14. Shared Small Ribosomal Proteins

  15. Shared Small Ribosomal Proteins

  16. Identified E. herbicola proteins • 30S Ribosomal Protein S19 • m/z 686.39, z 15+, E-value 1.96e-16, Δ 0.007 • Six proteins identified with |Δ| < 0.02

  17. Identified E. herbicola proteins • DNA-binding protein HU-alpha • m/z 732.71, z 13+, E-value 7.5e-26, Δ-14.128 • Eight proteins identified with "large" |Δ|

  18. Identified E. herbicola proteins • DNA-binding protein HU-alpha • m/z 732.71, z 13+, E-value 1.91e-58 • Use "Sequence Gazer" to find mass shift • ΔM mode can "tolerate" one shift for free!

  19. ProSightPC: ΔM mode ExperimentalPrecursor b- and y-ions ΔM Protein Sequence Also: PIITA - Tsai et al. 2009

  20. ProSightPC: ΔM mode Match a single "blind" mass-shift for free! b'- and y'-ions ExperimentalPrecursor b- and y-ions ΔM ΔM Protein Sequence Also: PIITA - Tsai et al. 2009

  21. ProSightPC: ΔM mode Match a single "blind" mass-shift for free! ExperimentalPrecursor b-, b'-, y- and y'-ions ΔM ΔM Protein Sequence Also: PIITA - Tsai et al. 2009

  22. Identified E. herbicola proteins • DNA-binding protein HU-alpha • m/z 732.71, z 13+, E-value 7.5e-26, Δ-14.128 • Extract N- and C-terminus sequence supported by at least 3 b- or y-ions

  23. E. herbicola protein sequences

  24. E. herbicola sequences found in other species

  25. Phylogenetic placement of E. herbicola Cladogram Phylogram phylogeny.fr – "One-Click"

  26. Genome annotation errors • UniProt: E. coli Cell division protein ZapB • 22 (371) E. coli strains MQFRRGMTMSLEVFEKLEAKVQQAIDTITL… 3 (204) 17 (166) 0 (2)

  27. Genome annotation errors • UniProt: E. coli Cell division protein ZapB • 22 (371) E. coli strains • Need ±1500 Da precursor tolerance… MQFRRGMTMSLEVFEKLEAKVQQAIDTITL… 3 (204) 17 (166) 0 (2)

  28. Conclusions • Protein identification for unsequenced organisms. • Identification and localization for sequence mutations and post-translational modifications. • Extraction of confidently established sequence suitable for phylogenetic analysis. • Genome annotation correction. • New paradigm for phylogenetic analysis?

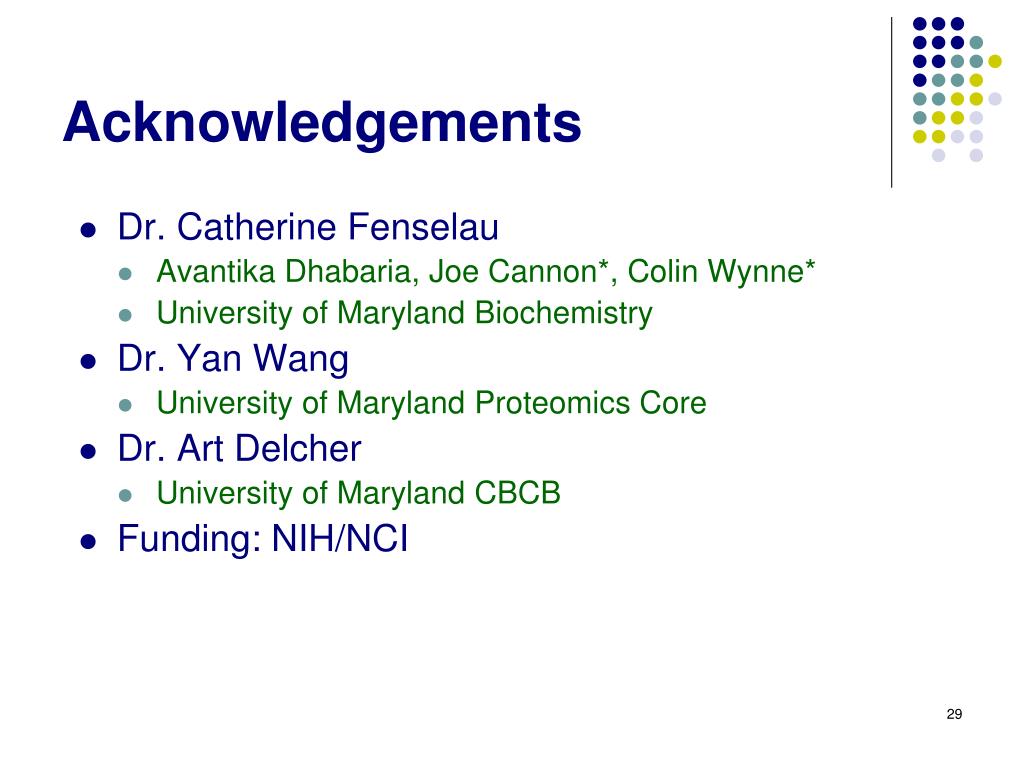

  29. Acknowledgements • Dr. Catherine Fenselau • Avantika Dhabaria, Joe Cannon*, Colin Wynne* • University of Maryland Biochemistry • Dr. Yan Wang • University of Maryland Proteomics Core • Dr. Art Delcher • University of Maryland CBCB • Funding: NIH/NCI
