  1. Mobile Agents in Click Tushar Mohan

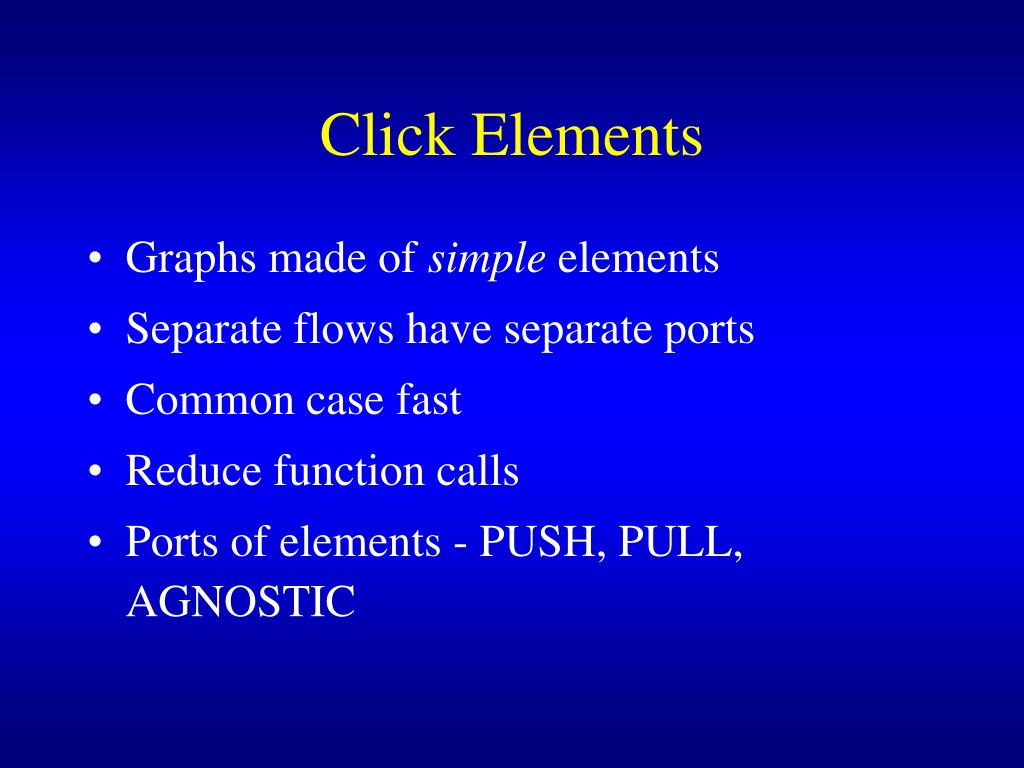

  2. Click Elements • Graphs made of simple elements • Separate flows have separate ports • Common case fast • Reduce function calls • Ports of elements - PUSH, PULL, AGNOSTIC

  3. Advertisements and Registration M F H

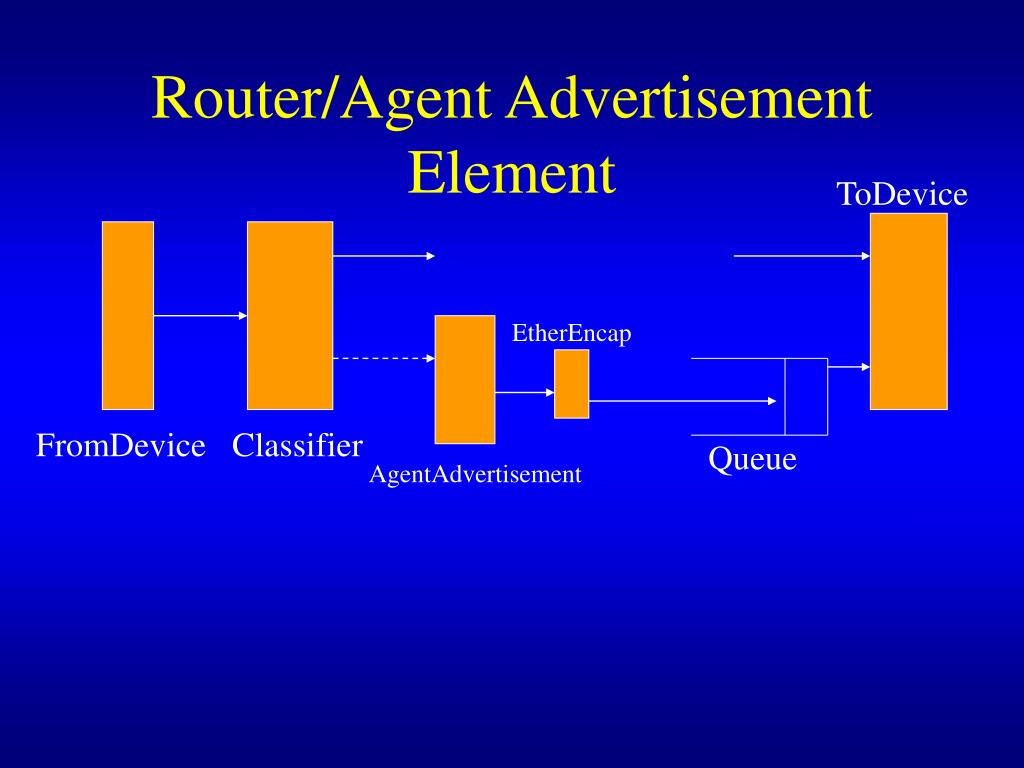

  4. Router/Agent Advertisement Element ToDevice EtherEncap FromDevice Classifier Queue AgentAdvertisement

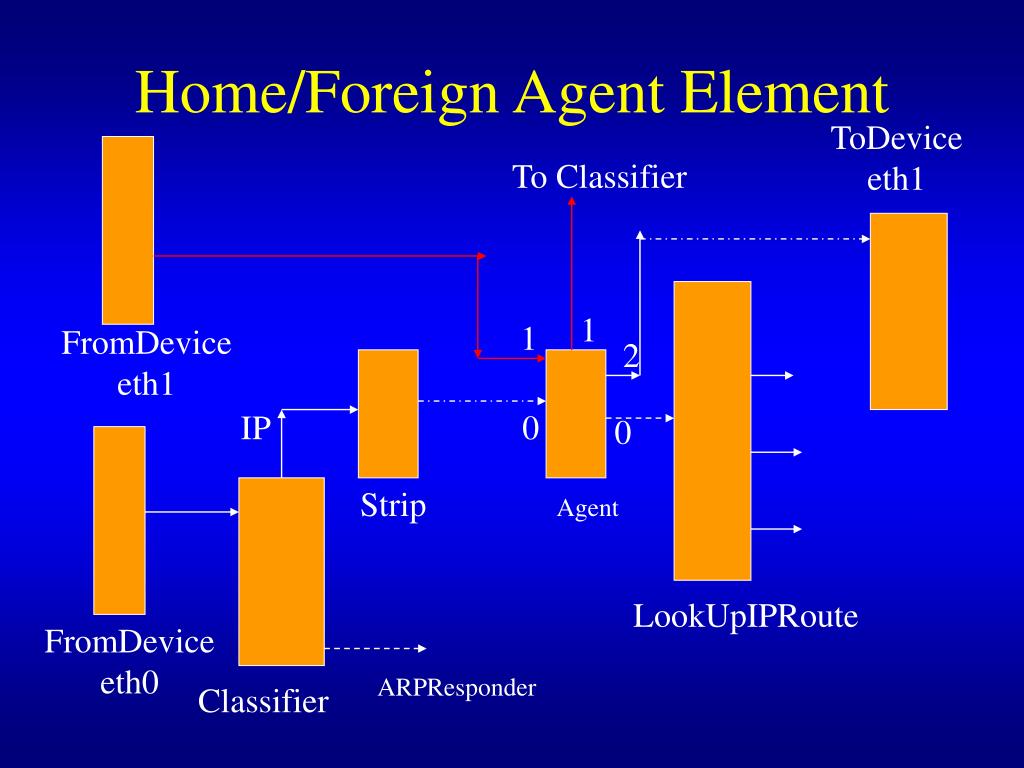

  5. Home/Foreign Agent Element ToDevice eth1 To Classifier 1 1 FromDevice eth1 2 IP 0 0 Strip Agent LookUpIPRoute FromDevice eth0 ARPResponder Classifier

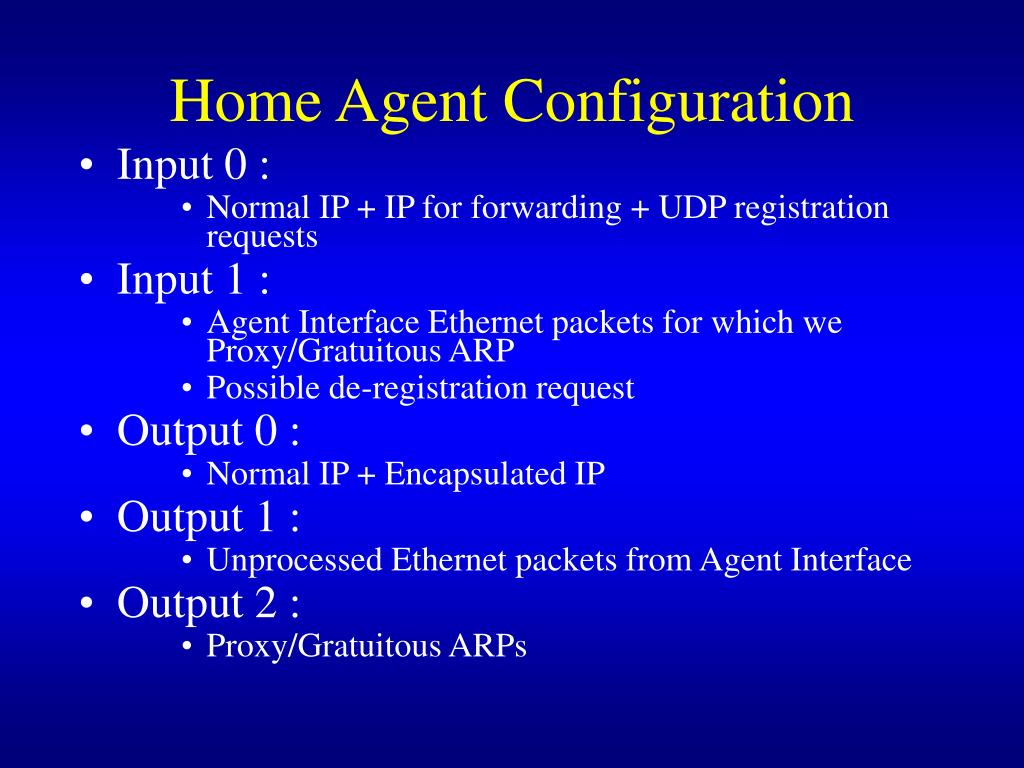

  6. Home Agent Configuration • Input 0 : • Normal IP + IP for forwarding + UDP registration requests • Input 1 : • Agent Interface Ethernet packets for which we Proxy/Gratuitous ARP • Possible de-registration request • Output 0 : • Normal IP + Encapsulated IP • Output 1 : • Unprocessed Ethernet packets from Agent Interface • Output 2 : • Proxy/Gratuitous ARPs

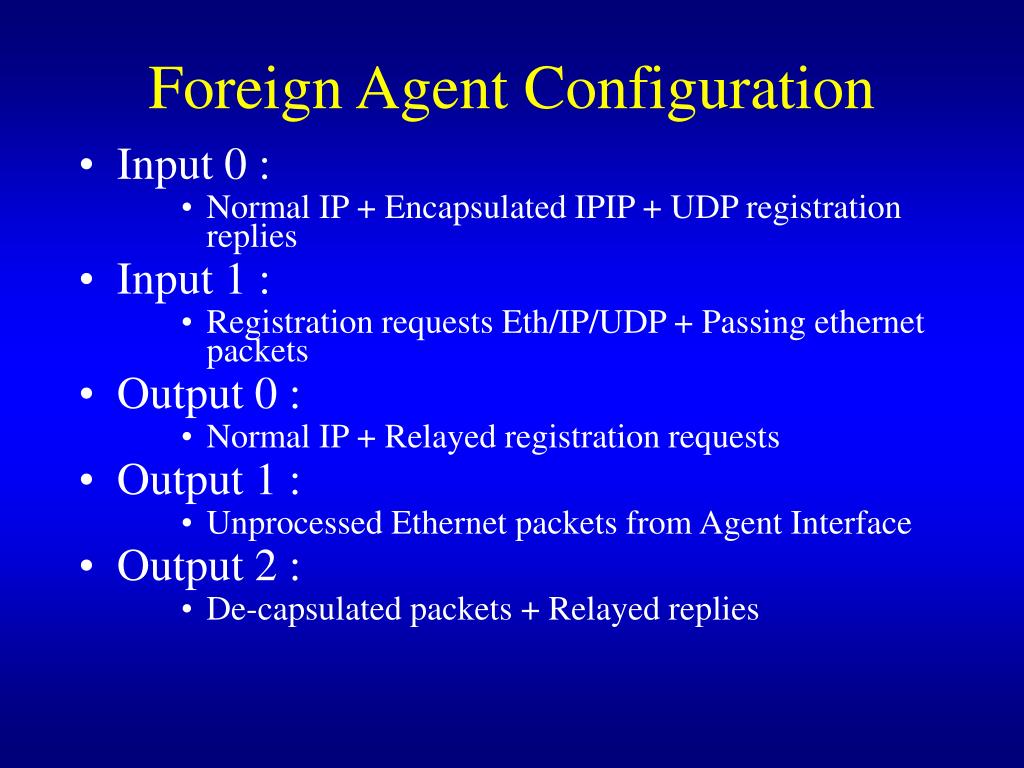

  7. Foreign Agent Configuration • Input 0 : • Normal IP + Encapsulated IPIP + UDP registration replies • Input 1 : • Registration requests Eth/IP/UDP + Passing ethernet packets • Output 0 : • Normal IP + Relayed registration requests • Output 1 : • Unprocessed Ethernet packets from Agent Interface • Output 2 : • De-capsulated packets + Relayed replies

  8. Test Configuration MH 202.54.15.1 202.54.1.1 H 192.168.0.1 F 192.168.10.1 202.54.15.10 202.54.15.1 Ex-MH

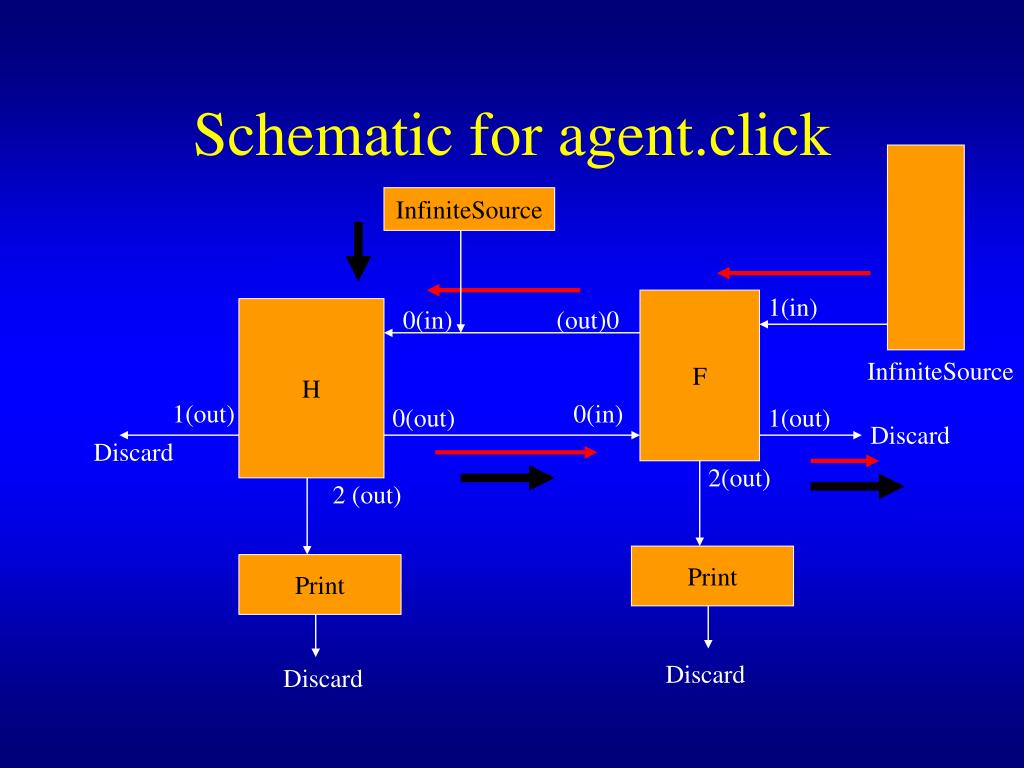

  9. Schematic for agent.click InfiniteSource 1(in) F H 0(in) (out)0 InfiniteSource 1(out) 0(in) 0(out) 1(out) Discard Discard 2(out) 2 (out) Print Print Discard Discard

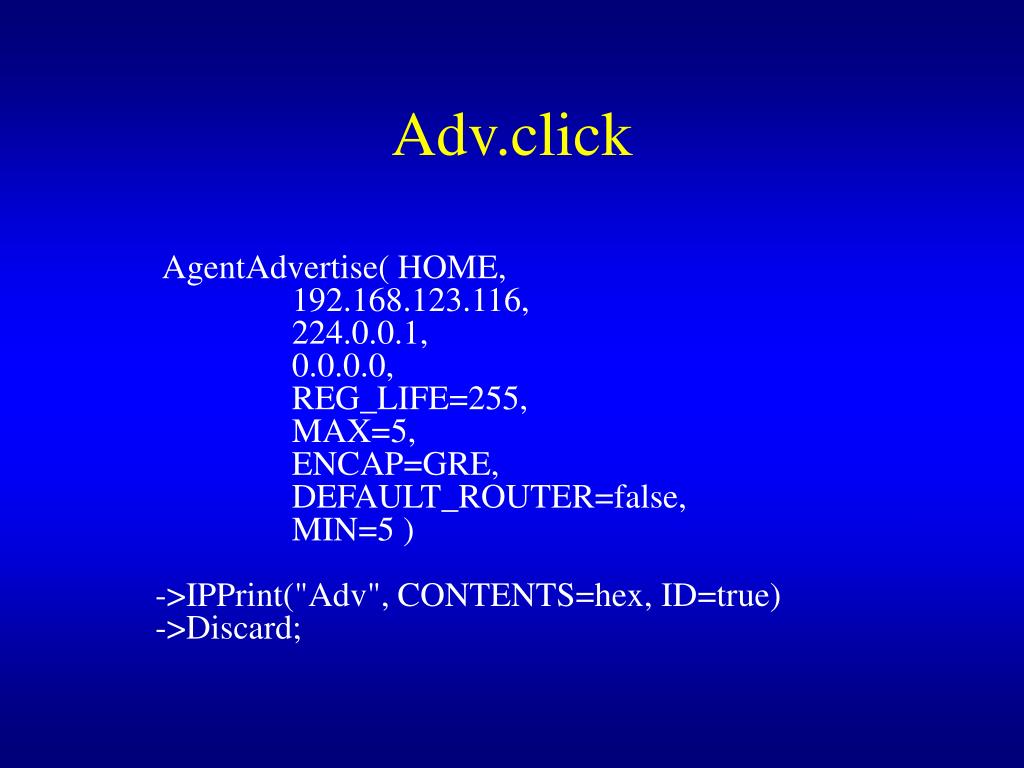

  10. Adv.click AgentAdvertise( HOME, 192.168.123.116, 224.0.0.1, 0.0.0.0, REG_LIFE=255, MAX=5, ENCAP=GRE, DEFAULT_ROUTER=false, MIN=5 ) ->IPPrint("Adv", CONTENTS=hex, ID=true) ->Discard;

  11. What Remains ? • Not fully compliant (RFC2002) • ARPs, validation, authentication • multiple simultaneous binding • Speed-up (hash classes) • Hardware testing • Documentation • Integration with the MIT toolkit

  12. Objectives • Add to the Click tool-kit • Practically implement a protocol • Enjoy the project
