Gears & V E X. Agenda. Essential Terminology Gear Types Gearing Up/Gearing Down Direction Gear Ratios Example Application: Sumo-Bot Competition. gear testing apparatus. Essential Terminology. Driver – gear attached to a motor Follower – gear doing useful work

Download Presentation
## Gears & V E X

**An Image/Link below is provided (as is) to download presentation**
Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author.
Content is provided to you AS IS for your information and personal use only.
Download presentation by click this link.
While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server.
During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

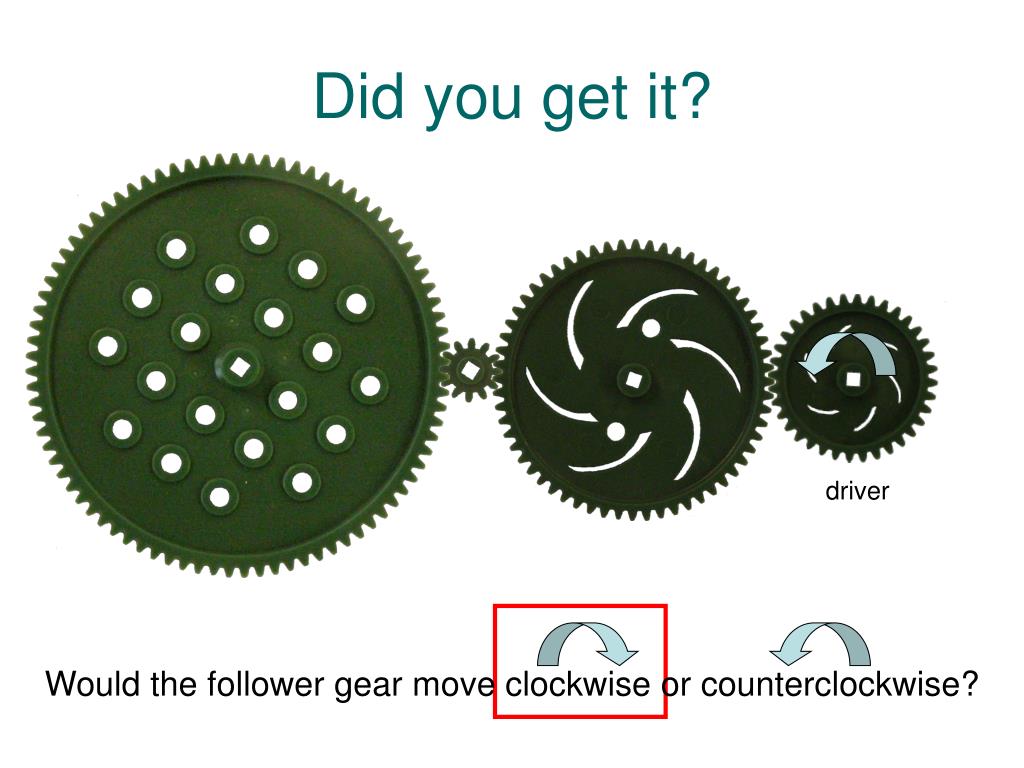

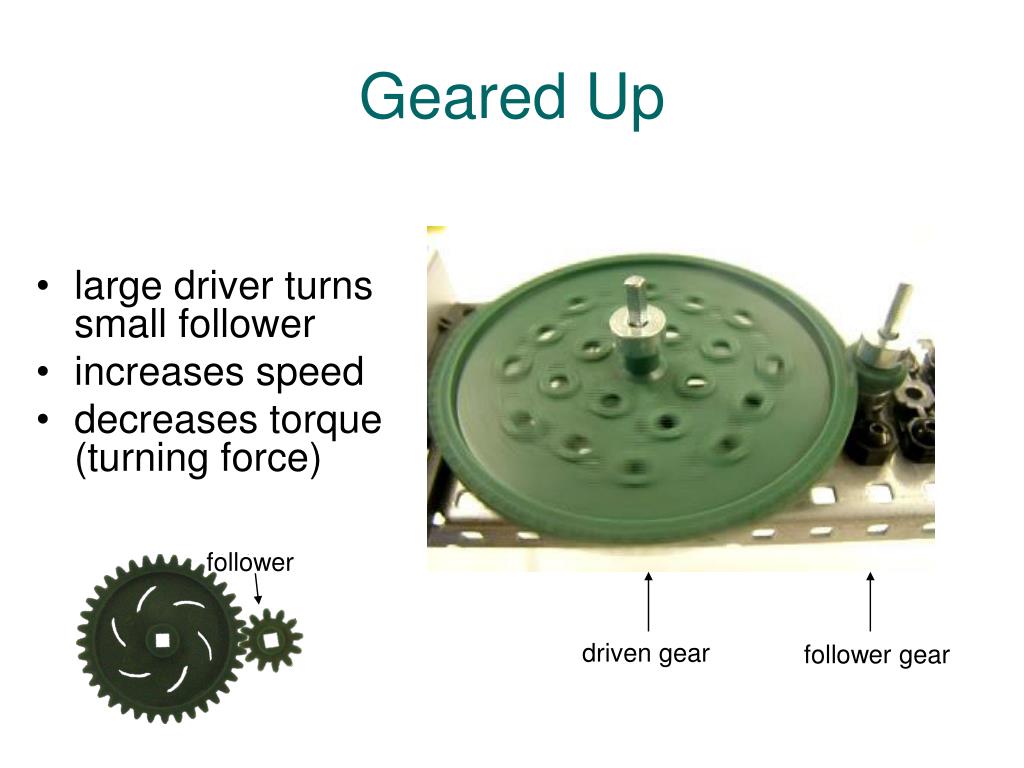

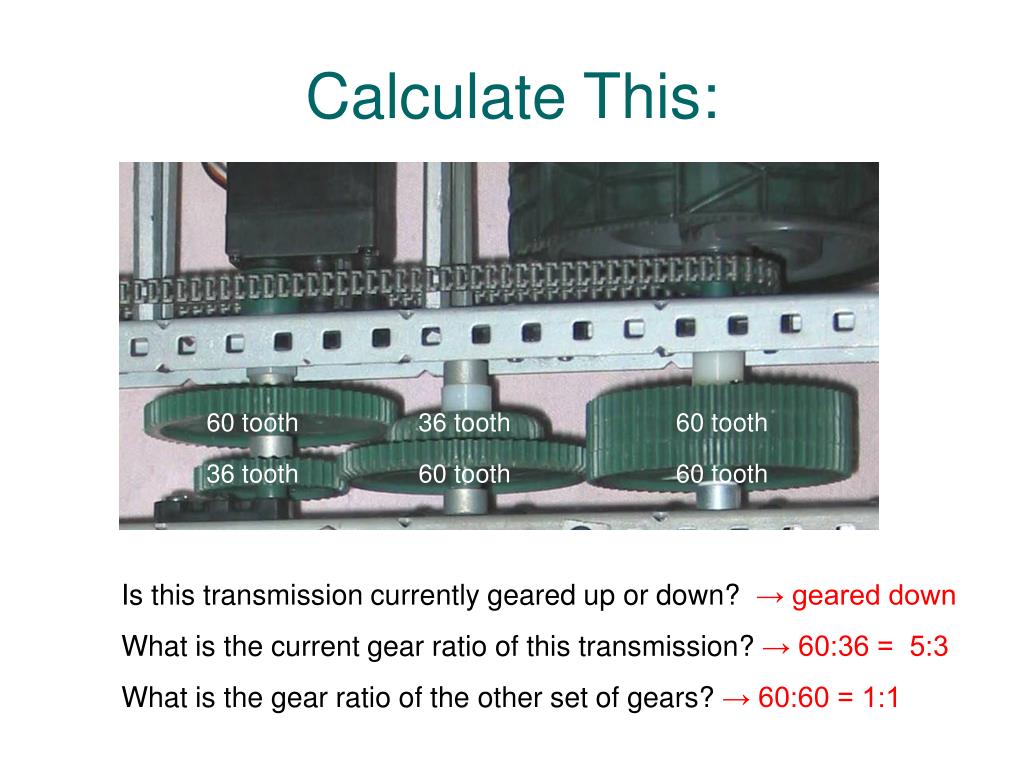

**Agenda**• Essential Terminology • Gear Types • Gearing Up/Gearing Down • Direction • Gear Ratios • Example • Application: Sumo-Bot Competition gear testing apparatus**Essential Terminology**• Driver – gear attached to a motor • Follower – gear doing useful work • Idler – gear between the driver and follower • Gear Train – a row of gears • Geared Up – the follower moves faster than the driver • Geared Down – the follower moves slower than the driver • Compound gears – a gear train with multiple gears on one axle**Do you get it?**• Which gear is the driver (A or B)? • Which gear is the follower (A or B)? B A motor**Do you get it?**• Which gear is the driver (A or B)? →A • Which gear is the follower (A or B)? →B B A motor**Do you get it?**• Which gear is the follower (A, B, or C)? • Which gear is the driver (A, B, or C)? • Which gear is the idler (A, B, or C)? wheel motor A B C**Do you get it?**• Which gear is the follower (A, B, or C)? → C • Which gear is the driver (A, B, or C)? → A • Which gear is the idler (A, B, or C)? → B wheel motor A B C**Gear Types**spur gears differential bevel gears rack & pinion worm gear**Spur Gears**12 tooth 24 tooth 84 tooth 36 tooth 60 tooth**Worm Gears**Worm gears allow axles at right angles to transfer rotational motion. worm gear**Bevel Gears**Bevel gears allow rotational motion to be transferred at right angles.**Rack & Pinion**pinion rack Racks and pinions are used to translate rotational motion into linear motion.**Differential**Differentials are devices that allow each of the axles to rotate at different speeds, while supplying equal torque to each of them.**Sprockets & Chains**Sprockets inside the same chain rotate in the same direction. Sprockets outside the chain rotate in the opposite direction.**Pulleys & Belts**Pulleys and belts are not available for VEX Sometimes tank treads can be used as belts.**Direction**follower • even number of gears: driver & follower turn in opposite directions • odd number of gears: driver & follower turn in same direction driver driver follower follower driver**Would the follower gear move clockwise or counterclockwise?**Did you get it? driver**Would the follower gear move clockwise or counterclockwise?**Did you get it? driver**Would the follower gear move clockwise or counterclockwise?**Did you get it? driver**Would the follower gear move clockwise or counterclockwise?**Did you get it? driver**Geared Up**• large driver turns small follower • increases speed • decreases torque (turning force) follower driver driven gear follower gear**Geared Down**• small driver turns large follower • increases torque (turning force) • decreases speed driver follower driven gear follower gear**Gear Analysis**To analyze any gear train you need to: • Locate the driver gear • Locate the follower gear • Calculate the Gear Ratio Use the following rules to calculate gear ratios.**Gear Ratios(determining what a gear will do)**Example Gear Ratio: • ⅓ or 1:3 • read as 1 to 3 • 1 turn of the driver will turn the follower 3 times**What is the gear ratio?**84 tooth driver 60 tooth follower**What is the gear ratio?**driver follower**Long Gear Trains**The gear attached to the motor is the driver. The gear doing work is the follower. All in-between gears are idlers. Ignore the idler gears! Follower Gear Ratio = 24/40 = 3/5 3 turns of the 40 tooth gear will turn the 24 tooth gear 5 times. Idlers Driver**Compound Gears(Multiple Gears on One Axle)**• Pair up drivers and followers • Start a new driver/follower pair if an axle has a second gear attached. • Multiply the gear ratios of all the driver/follower pairs. D2 Gear 1 = 12 teeth Gear 2 = 36 teeth Gear 3 = 12 teeth Gear 4 = 60 teeth**Compound Gears(Multiple Gears on One Axle)**• Pair up drivers and followers • Start a new driver/follower pair if an axle has a second gear attached. • Multiply the gear ratios of all the driver/follower pairs. Gear 1 & Gear 2: D2 Gear 1 = 12 teeth Gear 2 = 36 teeth Gear 3 = 12 teeth Gear 4 = 60 teeth**Compound Gears(Multiple Gears on One Axle)**• Pair up drivers and followers • Start a new driver/follower pair if an axle has a second gear attached. • Multiply the gear ratios of all the driver/follower pairs. Gear 1 & Gear 2: D2 Gear 3 & Gear 4: Multiply the gear ratios: Gear 1 = 12 teeth Gear 2 = 36 teeth Gear 3 = 12 teeth Gear 4 = 60 teeth**Compound Gears(Multiple Gears on One Axle)**• Pair up drivers and followers • Start a new driver/follower pair if an axle has a second gear attached. • Multiply the gear ratios of all the driver/follower pairs. Gear 1 & Gear 2: D2 Gear 3 & Gear 4: Multiply the gear ratios: Gear 1 = 12 teeth Gear 2 = 36 teeth Gear 3 = 12 teeth Gear 4 = 60 teeth 15:1**Calculate the Gear Ratio(Assume the last axle does the**useful work) 60t 36t 12t 12t 4 12t 36t 3 2 1**Calculate the Gear Ratio(Assume the last axle does the**useful work) 60t Pair 1: 36t 12t 12t 4 12t 36t 3 2 1**Calculate the Gear Ratio(Assume the last axle does the**useful work) 60t Pair 1: 36t 12t 12t 4 Pair 2: 12t 36t 3 2 1**Calculate the Gear Ratio(Assume the last axle does the**useful work) 60t Pair 1: 36t 12t 12t 4 Pair 2: 12t 36t 3 2 1 Pair 3:**Calculate the Gear Ratio(Assume the last axle does the**useful work) 60t Pair 1: 36t 12t 12t 4 Pair 2: 12t 36t 3 2 1 Pair 3: Multiply the gear ratios: 45:1**Calculate This:**60 tooth 36 tooth 60 tooth 36 tooth 60 tooth 60 tooth Is this transmission currently geared up or down? → geared down What is the current gear ratio of this transmission? → 60:36 = 5:3 What is the gear ratio of the other set of gears? → 60:60 = 1:1**Calculate This:**60 tooth 36 tooth 60 tooth 36 tooth 60 tooth 60 tooth Is this transmission currently geared up or down? → geared down What is the current gear ratio of this transmission? → 60:36 = 5:3 What is the gear ratio of the other set of gears? → 60:60 = 1:1**Sumo-Bot**• All robots are placed in a 10’ x 10’ field • If any part of a robot touches the field wall, it is removed • The last robot left on the field wins!**Good Luck!**Hint: use gears to get the perfect combination of speed & torque**Thanks/Resources**• Teaching Gear Theory to Students • CMU's Vex Curriculum: Gearbox Lesson
