Diagnostics of thermal plasma with ev level resolution

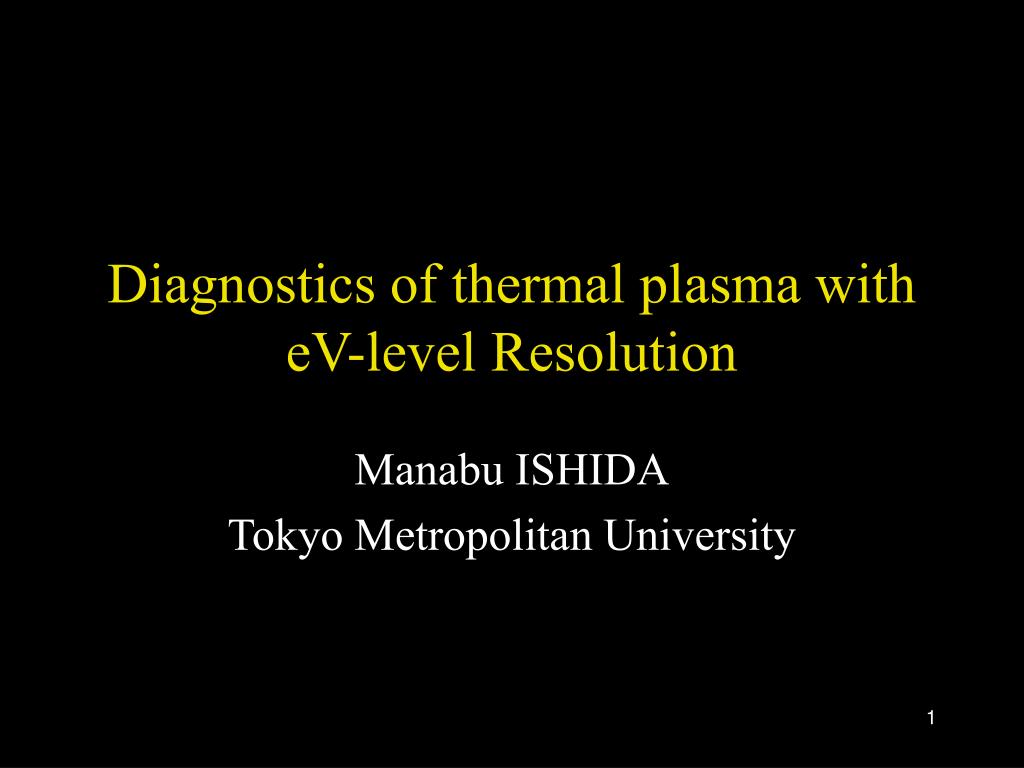

Diagnostics of thermal plasma with eV-level Resolution

Manabu ISHIDA

Tokyo Metropolitan University


Objectives of plasma diagnostic with next in particular
Objectives of Plasma Diagnostic (with NeXT in particular)

  • Measurements of physical parameters of thermal plasma.

    • kT ~  keV

    • For better understanding of star-forming region, star, planetary nebula, supernova remnant, binary, galaxy, cluster of galaxies…

    • He(H)-like K of iron in general, of other metals from diffuse source which are inaccessible with Chandra/XMM-Newton.

    • Te TioniTZ AZne etc…

  • Bulk motion of plasma in particle-acceleration regions.

    • Geometry of the plasma surrounding a compact object.

    • Turbulence in the clusters of galaxies

    • Shock front of SNR.

    • Help understanding non-thermal universe in E > 10 keV.


Iron spectrum at t max of he like k
Iron spectrum at Tmax of He-like K

  • He-like

  • resonance (r)

    • w :1P1 → 1S0

  • intercombination (i)

    • x :3P2 → 1S0

    • y :3P1 → 1S0

  • forbidden (f)

    • z :3S1 → 1S0

  • H-like

  • resonance

    • Ly1 :2P1/2→2S1/2

    • Ly2 :2P3/2→2S1/2

B


Density diagnostics with he like triplet
Density diagnostics with He-like triplet

Ishida (1995)

Porquet et al (2001)

  • 3S1 decays through 3P2,1 if A(3S1-1S0) ~ neC(3S1-3P2,1)

  • f + i = const.

  • Caution:3S1 →3P2,1 occurs also with UV photo-excitation.

  • Resolving degeneracy between ne and V in a point source.

r

i

f


He like triplet as a density probe

CVs

T Tau star

Solar corona

Stellar flare

He-like triplet as a density probe

nc(Z) = 6.75 (Z-1)11.44 cm-3

Proto star

Tm(Z) = 8320 (Z-0.4)2.71 K


Density measurement of ae aqr with xmm rgs
Density measurement of AE Aqr with XMM RGS

  • AE Aqr (mCV, Pspin = 33.08s, Porb = 9.88h, B = 105-6G ?)

  • ne~1011cm-3, lp = (2-3)x1010cm

Itoh et al. (2006)


What s happening in ae aqr
What’s happening in AE Aqr ?!

  • In the accretion column of mCV

  • ne~1016cm-3, lp ~107cm, whereas

    ne~1011cm-3, lp = (2-3)x1010cm.

  • kT (~ GMmH/R) of AE Aqr is extremely lower than other mCVs, suggestive of intermediate release of the gravitational energy.

  • Plasma is surely accreting because we have X-ray emission, but not arriving at the white dwarf surface, diffuse in an orbit scale.


Ae aqr as a magnetic propeller source
AE Aqr as a Magnetic Propeller Source

  • Steady spin down (P-dot = 5.64x10-14 s s-1) for >14 yrs.

  • TeV g-ray emission.

  • Note: no bulk velocity is detected from oxygen K.

    v < 300 km s-1 (expected ~100km s-1).

  • The maximum vbulk is expected iron K.

    • Theme of the calorimeter onboard NeXT.

Wynn & King (1997)


Origin of the grxe
Origin of the GRXE

Suzaku XIS

6.4keV

  • Thin thermal: kTmax ~ 7keV.

  • Diffuse ?

    • Ebisawa et al. (2005)

  • Ensemble of point sources ?

    • Revnivtsev et al. (2006)

    • CVs or Active Star Binaries.

  • Suzaku clearly detected 6.4keV line from the GRXE.

    • ASB

    • CV

  • Suzaku should measure spatial uniformity of intensity ratios of the iron K components.

  • Debate will be terminated if ne is measured with the NeXT calorimeter.

Thanks to S. Yamauchi@Iwate

B


He like satellite lines
He-like Satellite lines

  • Satellite lines: a series of mission lines at energies slightly lower than w.

  • More intense for larger Z, prominent for iron.

  • New information that can be accessed first by the NeXT calorimeter.


Origin of the satellite lines
Origin of the Satellite Lines

0 E

  • Satellite lines of Z+z originates from ion Z+(z1).

  • Spectatorshields part of the charge of the nuclei.

    • Er > ES4 > ES3 > ES2

  • ES2is strongest and most separated from w.

  • Sn (n≧4)cannot be separated from r.

  • Satellite of H-like Koriginates from DR.

  • Satellite of He-like K

  • 1s2[sp]2p→(1s)22p: DR

  • 1s2[sp]2s→(1s)22s : DR+IE

    • DR: interaction of e- with He-like ion.

    • IE: additionally with Li-like ion.


Spectrum of h like he like iron k
Spectrum of H-like/He-likeiron K

  • Number of major satellite lines with spectator n=2 is 22.

  • Spectator = 2p (DR): a, b, c, …, m, n: 14 in total.

    j and k are prominent

  • Spectator = 2s (DR+IE): o, p, q, …, u, v: 8 in total.

    r, q, and t are strong in ionizing plasma


T e with g x y z w vs j k w
Te with G = (x+y+z)/w vs j+k/w

  • w, j,k: all originate from interaction between an electron and a He-like ion.

  • Their intensity ratio is a function only of Te.

  • It does not matter even if NEI.

  • The intensity ratio does not depend on ne.

  • It has been claimed that G = (x+y+z)/w is a good measure of Te, however ….

  • j+k/w is much more sensitive to Te.


Intensity of the satellites with t e
Intensity of the satellites with Te

kTe = 1.6keV

kTe = 3.2keV

kTe = 7.9keV


Snr nei with kt e 2kev
SNR: NEI with kTe = 2keV


T e from j w t ioni from q t w
Te from j/w, Tioni from(q+t)/w

  • For SNR:

  • j/w: Te, (q+t)/w: net, line width: TZ, central energy: vbulk.

  • For recombining plasma

  • j/w is stronger, (q+t)/w is weaker thanthat of CIE plasma.

  • Central region of the cluster of galaxies, stellar flare, post-shock accregion flow in mCV…

B


Boundary layer of dwarf novae
Boundary Layer of Dwarf Novae

  • Accretion onto WD takes place through an optically thick Keplerian disc (T~105K).

  • Hard X-rays are radiated from the Boundary Layer which is optically thin/geometrically thick with T~108K.

    • The rotation speed of WD at its surface is usually much smaller than vK(R*) (~5000km/s).

    • For settling down onto the white dwarf, accreting matter is decelerated from vK to v* by converting its Keplerian kinetic energy into heat.

  • Understanding of BL is not yet enough on various aspects such as size, density, geometry (2-dim or 3-dim) etc…


Ss cyg with chandra hetg
SS Cyg with Chandra HETG

  • Lines are broad in Outburst.

  • If BL is like a cooling flow, the line originates in a radially falling spherical shell.

  • Line profile becomes rectangular rather than a simple broad Gaussian.

  • Need info of iron to discriminate in/out flow.

  • We need NeXT calorimeter.

Okada et al. (2006)
