Optimus L Series II Retail Mode Installation Guide

LGE Internal Use Only. Optimus L Series II Retail Mode Installation Guide. Apr. 2013. MC Marketing Communication. Retail Mode Installation Guide. This is an installation guide to install retail mode application on your Optimus L Series II.

zena
Download Presentation

Optimus L Series II Retail Mode Installation Guide

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. LGE Internal Use Only Optimus L Series II Retail Mode Installation Guide Apr. 2013 MC Marketing Communication

  2. Retail Mode Installation Guide • This is an installation guide to install retail mode application on your Optimus L Series II. • This guide describes how to install retail mode application and • the necessary contents (video clips/images/flash apps) to your • Optimus L Series II using a microSD card, or a PC. • Retail mode application can play video clips with .flv format • or .mp4 format that Optimus L Series II is able to handle.

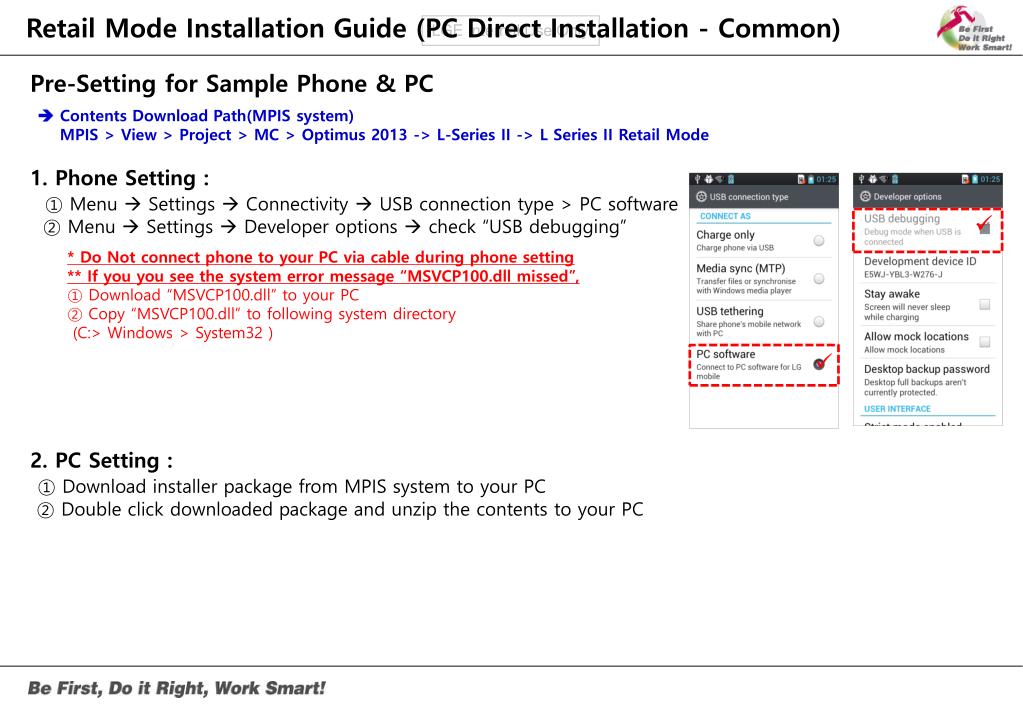

  3. Retail Mode Installation Guide (PC Direct Installation - Common) Pre-Setting for Sample Phone & PC  Contents Download Path(MPIS system) MPIS > View > Project > MC > Optimus 2013 -> L-Series II -> L Series II Retail Mode 1. Phone Setting : ① Menu  Settings  Connectivity  USB connection type > PC software ② Menu  Settings  Developer options  check “USB debugging” * Do Not connect phone to your PC via cable during phone setting ** If you you see the system error message “MSVCP100.dll missed”, ① Download “MSVCP100.dll” to your PC ② Copy “MSVCP100.dll” to following system directory (C:> Windows > System32 ) 2. PC Setting : ① Download installer package from MPIS system to your PC ② Double click downloaded package and unzip the contents to your PC

  4. Retail Mode Installation Guide (PC Direct Installation - Common) PC Direct Installation Process PCRetailAppInstaller_XXX.zip PCRetailAppInstaller_XXX.exe 1. Download from MPIS and unpack 2. Double Click! 3. Check the installation progress (include USB Driver) 4. Connect the phone to your PC via USB cable 5. Double Click! (window) 6. Click! 7. Check the installation progress 8. Check the application

  5. Retail Mode Installation Guide (microSD Card Installation - Common) Pre-Setting for Sample Phone & microSD Card  Contents Download Path(MPIS system) MPIS > View > Project > MC > Optimus 2013 -> L-Series II -> L Series II Retail Mode 1. Phone Setting : ① Menu  Settings  Connectivity  USB connection type > PC software ② Menu  Settings  Developer options  check “USB debugging” * Do Not connect phone to your PC via cable during phone setting 2. microSD Card Setting : ① Download RetailMode.zip to your PC (from MPIS system) ② Copy RetailMode.zip file to your microSD card If you want to change screen saver movie from default user guide movie, you should convert format of screen saver movie as .flv format instead of .mp4 format due to limitation on Optimus L9 play. you need to change file name starting with “1 OOO.flv & “1 OOO.png” (File name starting with “1” should be only one in the RetailMode folder)

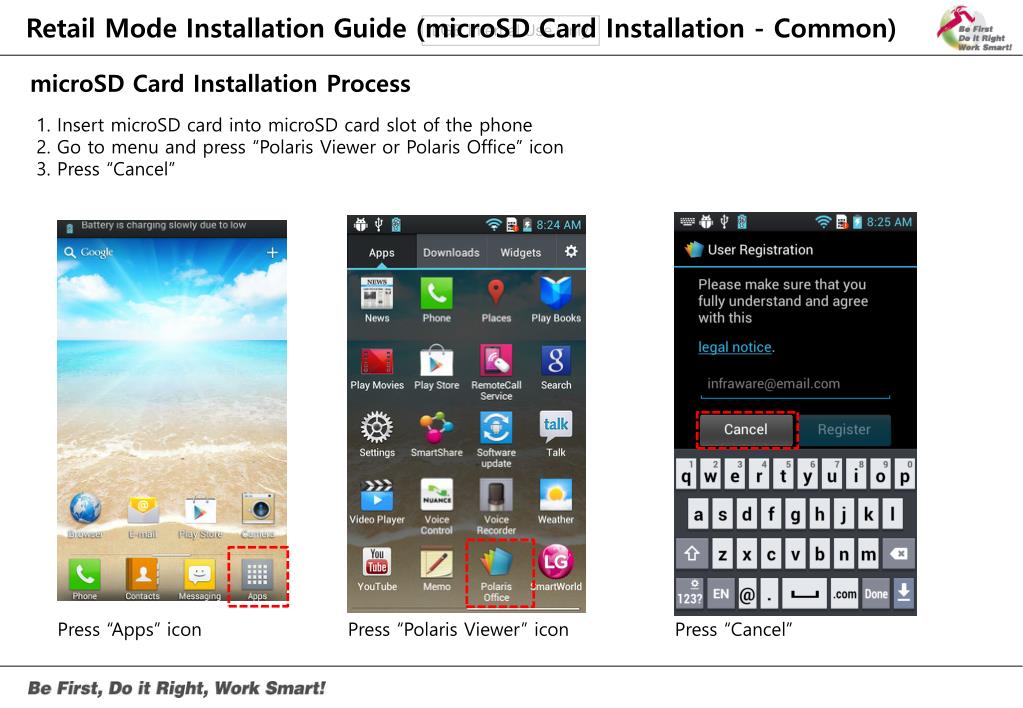

  6. Retail Mode Installation Guide (microSD Card Installation - Common) microSD Card Installation Process 1. Insert microSD card into microSD card slot of the phone 2. Go to menu and press “Polaris Viewer or Polaris Office” icon 3. Press “Cancel” Press “Apps” icon Press “Polaris Viewer” icon Press “Cancel”

  7. Retail Mode Installation Guide (microSD Card Installation - Common) microSD Card Installation Process 4. Press “My files” 5. Press “external_sd” (or “_ExternalSD”) 6. Press & hold (Long-press) “RetailMode.zip” file 7. Press Copy button on a pop-up menu and select root directory (copy RetailMode.zip file to the root directory) RetailMode2.0.apk Press Copy button and Select root directory Long-press “RetailMode.zip” file Press “My files” Press “external_sd”

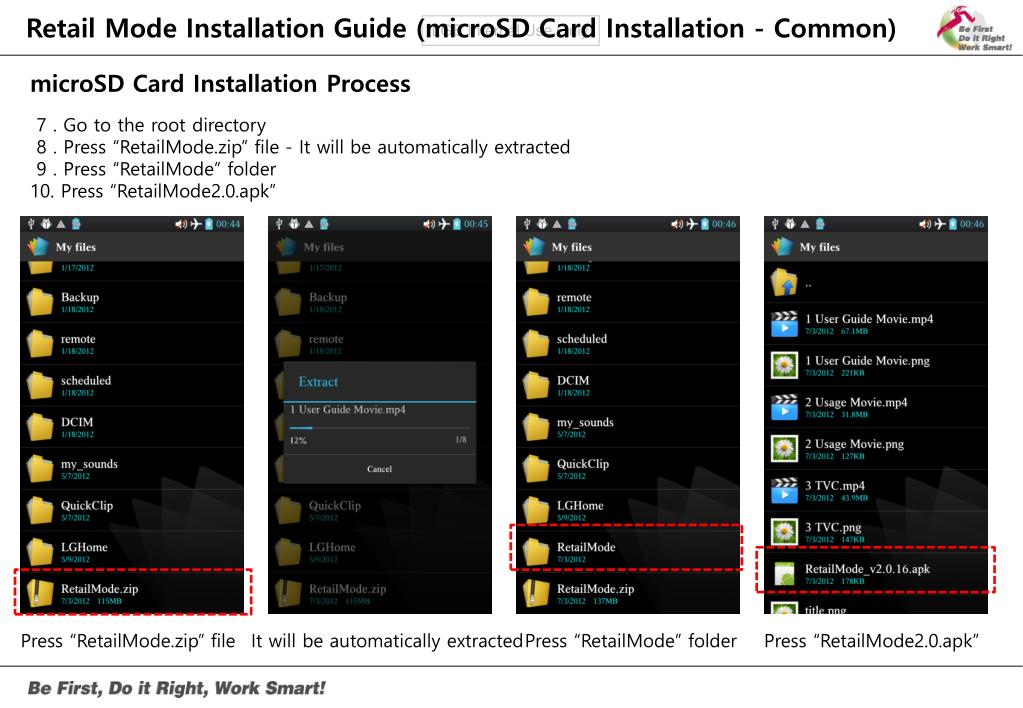

  8. Retail Mode Installation Guide (microSD Card Installation - Common) microSD Card Installation Process 7 . Go to the root directory 8 . Press “RetailMode.zip” file - It will be automatically extracted 9 . Press “RetailMode” folder 10. Press “RetailMode2.0.apk” RetailMode2.0.apk Press “RetailMode.zip” file It will be automatically extracted Press “RetailMode” folder Press “RetailMode2.0.apk”

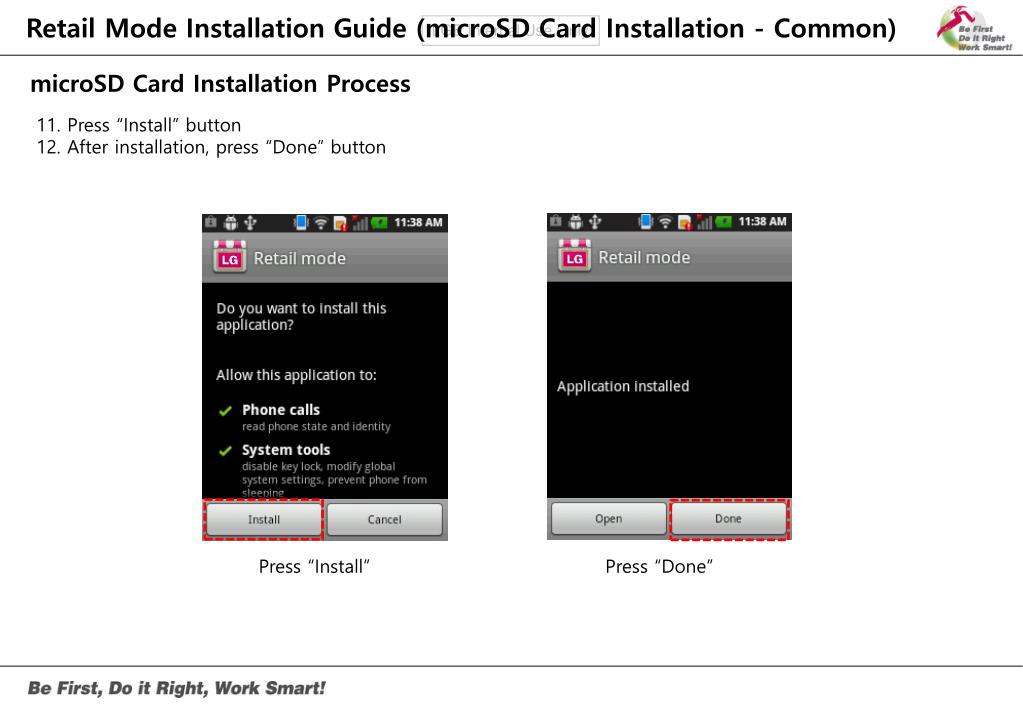

  9. Retail Mode Installation Guide (microSD Card Installation - Common) microSD Card Installation Process 11. Press “Install” button 12. After installation, press “Done” button Press “..” Press “Install” Press “Done”

  10. Retail Mode Installation Guide (microSD Card Installation - Common) microSD Card Installation Process 13. Restart your phone for media scanning of internal memory - If the name of the “RetailMode” folder is wrong or the folder does not exist at the root directory, you will see a warning pop-up and a password input screen 14. Go to menu and press “Retail Mode” app. icon 15. Check that contents are played properly on the phone 16. To change default setting value, press “Menu key” on the phone Warning pop-up Password input screen After Restarting The Phone Press Retail Mode App. icon Main Screen

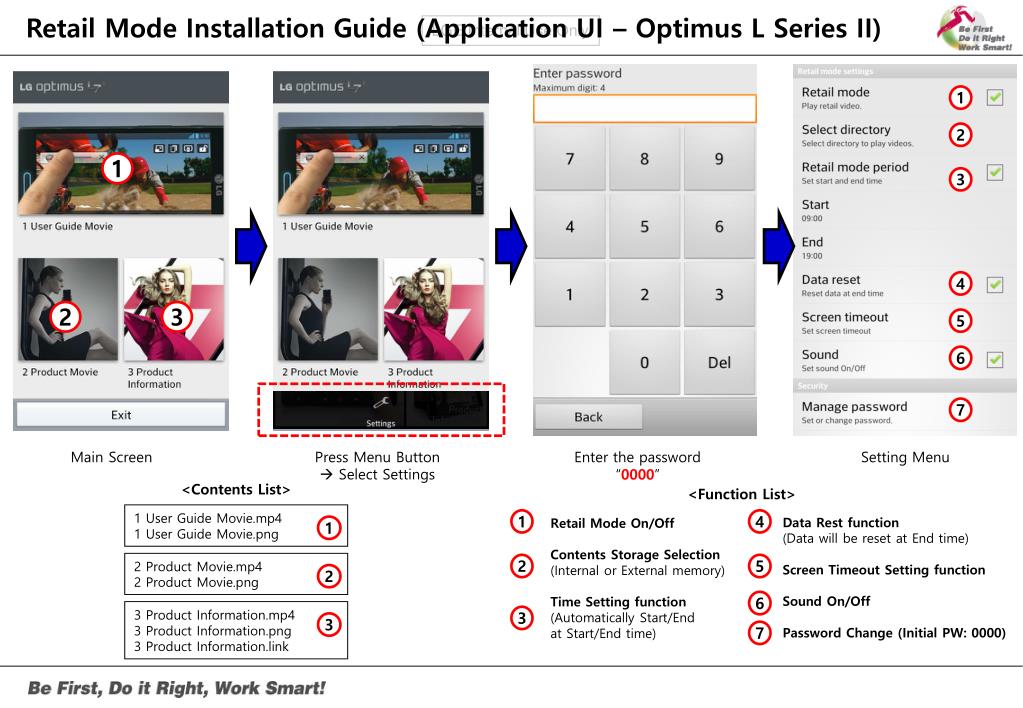

  11. Retail Mode Installation Guide (Application UI – Optimus L Series II) 1 2 1 3 4 2 3 5 6 7 Main Screen Press Menu Button  Select Settings Enter the password “0000” Setting Menu <Contents List> <Function List> Data Rest function (Data will be reset at End time) Screen Timeout Setting function Sound On/Off Password Change (Initial PW: 0000) 1 User Guide Movie.mp4 1 User Guide Movie.png 1 Retail Mode On/Off Contents Storage Selection (Internal or External memory) Time Setting function (Automatically Start/End at Start/End time) 4 1 2 Product Movie.mp4 2 Product Movie.png 2 5 2 3 Product Information.mp4 3 Product Information.png 3 Product Information.link 6 3 3 7

  12. Appendix. Guideline for Contents Variation onRetail Mode # of Contents can be adjusted up to 6. and images for thumbnail & title Imageshould be prepared depending on product resolution when . 7/2 Main Sub Sub

  13. End of Document
