Presentation Transcript
multiple testing correlation and regression and clustering in r

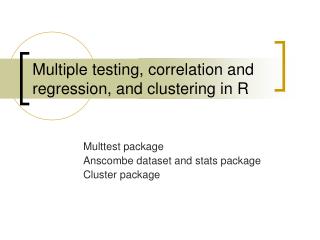

Multiple testing, correlation and regression, and clustering in R

Multtest package

Anscombe dataset and stats package

Cluster package

multtest package
Multtest package
  • The multtest package contains a collection of functions for multiple hypothesis testing.
  • These functions can be used to identify differentially expressed genes in microarray experiments, i.e., genes whose expression levels are associated with a response or covariate of interest.
multtest package1
Multtest package
  • These procedures are implemented for tests based on t–statistics, F–statistics, paired t–statistics, Wilcoxon statistics.
    • The multtest package implements multiple testing procedures for controlling different Type I error rates. It includes procedures for controlling the family–wise Type I error rate (FWER): Bonferroni, Hochberg (1988), Holm (1979).
    • It also includes procedures for controlling the false discovery rate (FDR): Benjamini and Hochberg (1995) and Benjamini and Yekutieli (2001) step–up procedures.
data analysis
Data Analysis
  • Leukemia Data by Golub et al. (1999)

> library(multtest, verbose = FALSE)

> data(golub)

golub data
Golub Data
  • Golub et al. (1999) were interested in identifying genes that are differentially expressed in patients with two type of leukemias, acute lymphoblastic leukemia (ALL, class 0) and acute myeloid leukemia (AML, class 1).
  • Gene expression levels were measured using Affymetrix high–density oligonucleotide chips containing p = 6, 817 human genes.
  • The learning set comprises n = 38 samples, 27 ALL cases and 11 AML cases (data available at http://www.genome.wi.mit.edu/MPR).
golub data1
Golub Data
  • Three preprocessing steps were applied to the normalized matrix of intensity values available on the website:

(i) thresholding: floor of 100 and ceiling of 16,000;

(ii) filtering: exclusion of genes with max / min <= 5 or (max−min) <= 500, where max and min refer respectively to the maximum and minimum intensities for a particular gene across mRNA samples;

(iii) base 10 logarithmic transformation.

  • Boxplots of the expression levels for each of the 38 samples revealed the need to standardize the expression levels within arrays before combining data across samples. The data were then summarized by a 3, 051×38 matrix X = (xji), where xji denotes the expression level for gene j in tumor mRNA sample i.
golub dataset
Golub Dataset
  • The dataset golub contains the gene expression data for the 38 training set tumor mRNA samples and 3,051 genes retained after pre–processing. The dataset includes
    • golub: a 3, 051 × 38 matrix of expression levels;
    • golub.gnames: a 3, 051 × 3 matrix of gene identifiers;
    • golub.cl: a vector of tumor class labels (0 for ALL, 1 for AML).
golub dataset1
Golub Dataset

> dim(golub)

> [1] 3051 38

the mt teststat and mt teststat num denum functions
The mt.teststat and mt.teststat.num.denum functions
  • Used to to compute test statistics for each row of a data frame, e.g., two–sample Welch t–statistics, Wilcoxon statistics, F–statistics, paired t–statistics, block F–statistics.
usage
usage

mt.teststat(X,classlabel,test="t",na=.mt.naNUM,nonpara="n")

'test="wilcoxon"'

'test="pairt"'

'test="f"'

mt.teststat.num.denum(X,classlabel,test="t",na=.mt.naNUM,nonpara="n")

two sample t statistics
two–sample t–statistics
  • comparing, for each gene, expression in the ALL cases to expression in the AML cases

> teststat <- mt.teststat(golub, golub.cl)

qq plot
QQ plot
  • First create an empty .pdf file to plot the QQ plot.

> pdf("mtQQ.pdf")

  • Plot the qqplot

> qqnorm(teststat)

  • Plot a diagonal line

> qqline(teststat)

  • Shuts down the graphical object (e.g., pdf file)

> dev.off()

what is a qq plot1
What is a QQ plot?
  • The quantile-quantile (q-q) plot is a graphical technique for determining if two data sets come from populations with a common distribution (e.g. normal distribution).
  • A q-q plot is a plot of the quantiles of the first data set (expected) against the quantiles of the second data set (observed).
what is a qq plot2
What is a QQ plot?
  • By a quantile, we mean the fraction (or percent) of points below the given value. That is, the 0.3 (or 30%) quantile is the point at which 30% percent of the data fall below and 70% fall above that value.
  • A 45-degree reference line is also plotted.
  • If the two sets come from a population with the same distribution, the points should fall approximately along this reference line.
store the numerator and denominator of the test stat
Store the numerator and denominator of the test stat.
  • Create a variable tmp in which you store the numerators and denominators of the test statistic

tmp <- mt.teststat.num.denum(golub, golub.cl, test = "t")

  • Name the numerator as num (teststat.num atribute of the tmp object)

> num <- tmp$teststat.num

  • Name the denominator as denum (teststat.denum atribute of the tmp object).

> denum <- tmp$teststat.denum

plot the num to denum
Plot the num to denum
  • Create a pdf devise

> pdf("mtNumDen.pdf")

  • Plot

> plot(sqrt(denum), num)

  • Shut off the graphics

> dev.off()

mt rawp2adjp function
mt.rawp2adjp function
  • This function computes adjusted p–values for simple multiple testing procedures from a vector of raw (unadjusted) p–values.
  • The procedures include the Bonferroni, Holm (1979), Hochberg (1988), and Sidak procedures for strong control of the family–wise Type I error rate (FWER), and the Benjamini and Hochberg (1995) and Benjamini and Yekutieli (2001) procedures for (strong) control of the false discovery rate (FDR).
raw p values unadjusted
Raw p-values (unadjusted)
  • As a first approximation, compute raw nominal two–sided p–values for the 3051 test statistics using the standard Gaussian distribution. Create a variable known as rawp0 that contain the p-values of the 3051 test statistics.

> rawp0 <- 2 * (1 - pnorm(abs(teststat)))

> rawp0[1:5]

[1] 0.07854436 0.36289759 0.92191171 0.73463771 0.17063542

the order function
The order function

> aa<-c(3,5,2,1,9)

> ia<-order(aa) #index order

> ia

[1] 4 3 1 2 5

> aa[ia] # order aa according to ia

[1] 1 2 3 5 9

adjusted p values
Adjusted p-values
  • Create a vector of character strings containing the names of the multiple testing procedures for which adjusted p-values are to be computed. This vector should include any of the following: '"Bonferroni"', '"Holm"', '"Hochberg"', '"SidakSS"', '"SidakSD"', '"BH"', '"BY"'.

> procs <- c("Bonferroni", "Holm",

+ "Hochberg", "SidakSS", "SidakSD",

+ "BH", "BY")

adjusted p values in the order of the gene list
Adjusted p-values in the order of the gene list
  • Adjusted p–values can be stored in the original gene order in adjp using order(res$index)

> res <- mt.rawp2adjp(rawp0, procs)

> adjp <- res$adjp[order(res$index), ]

adjusted p values in the order of significance
Adjusted p-values in the order of significance
  • Adjusted p–values can be stored in the order of significance

> adjp <- res$adjp

> adjp[1:5,]

get the data of significantly modulated genes
Get the data of significantly modulated genes

> which <- mt.reject(cbind(rawp0, adjp), 0.000001)$which[, 2]

> sum(which)

[1] 143

> gsignificant<-golub[which,]

> dim(gsignificant)

[1] 143 38

> gsignificant[1:5,1:5]

[,1] [,2] [,3] [,4] [,5]

[1,] -1.45769 -0.32639 -1.46227 -0.18983 -0.12402

[2,] 0.86019 -0.14271 0.67037 0.70706 0.87697

[3,] -1.00702 -0.89365 -1.21154 -1.40715 -1.42668

[4,] -1.27427 -0.66834 -0.58252 -1.40715 -0.03531

[5,] -0.45670 0.48916 -0.48474 0.02261 0.00704

mt plot function
mt.plot function
  • The mt.plot function produces a number of graphical summaries for the results of multiple testing procedures and their corresponding adjusted p–values.
mt plot function1
mt.plot function
  • To produce plots of adjusted p–values for the Bonferroni, maxT, Benjamini and Hochberg 7 (1995), and Benjamini and Yekutieli (2001) procedures use
plot adjp values over number of rejected hypotheses
Plot adjp values over number of rejected hypotheses

> res <- mt.rawp2adjp(rawp, c("Bonferroni", "BH", "BY"))

> adjp <- res$adjp[order(res$index), ]

> allp <- cbind(adjp, maxT)

> dimnames(allp)[[2]] <- c(dimnames(adjp)[[2]], "maxT")

> procs <- dimnames(allp)[[2]]

> procs <- procs[c(1, 2, 5, 3, 4)]

> cols <- c(1, 2, 3, 5, 6)

> ltypes <- c(1, 2, 2, 3, 3)

> mt.plot(adjp,teststat,plottype = "pvsr")

correlation and regression in r
Correlation and Regression in R
  • Anscombe dataset

> data(anscombe)

> ? anscombe

find correlation coefficient of specific pairs
Find correlation coefficient of specific pairs

> cor(anscombe[,1],anscombe[,2])

[1] 1

> cor(anscombe[,1],anscombe[,4])

[1] -0.5

cor test
cor.test

> cor.test(anscombe[,1],anscombe[,4])

Pearson's product-moment correlation

data: anscombe[, 1] and anscombe[, 4]

t = -1.7321, df = 9, p-value = 0.1173

alternative hypothesis: true correlation is not equal to 0

95 percent confidence interval:

-0.8460984 0.1426659

sample estimates:

cor

-0.5

plot scatterplots
Plot scatterplots

> plot(anscombe[,1],anscombe[,4])

calculate the linear regression coefficients and get a summary
Calculate the linear regression coefficients and get a summary

> ll<-lm(anscombe[,4] ~ anscombe[,1])

> summary(ll)

plot the regression line
Plot the regression line

> plot(anscombe[,1],anscombe[,4])

> abline(lm(anscombe[,4] ~ anscombe[,1]))

heatmap for significant genes
heatmap for significant genes

> attributes(clust.euclid.single)

$names

[1] "merge" "height" "order" "labels" "method"

[6] "call" "dist.method"

$class

[1] "hclust"

> clust.euclid.single$order

[1] 129 10 124 125 54 35 28 59 44 85 110 90 106 15 137 138 139 37

[19] 47 126 63 88 27 134 79 80 76 121 131 81 3 82 11 1 104 78

[37] 140 31 34 98 89 8 26 123 92 113 61 127 16 95 29 96 39 142

[55] 7 57 128 14 32 6 67 9 71 133 52 19 74 72 23 73 132 99

[73] 55 135 56 136 5 97 24 18 25 4 107 84 94 109 114 51 68 69

[91] 45 65 46 41 75 49 102 122 50 100 83 12 86 141 17 116 143 2

[109] 77 105 112 22 36 101 111 13 62 21 60 87 38 58 118 115 119 93

[127] 30 33 108 43 120 91 70 130 53 40 66 64 20 42 103 48 117

> gsignificantordered<-gsignificant[clust.euclid.single$order,]

> heatmap(gsignificantordered)

silioutte plot
Silioutte plot

> plot(clust.pam.2)

microarray data analysis software
Microarray Data Analysis Software
  • http://rana.lbl.gov/EisenSoftware.htm
  • http://classify.stanford.edu/
  • http://www.broad.mit.edu/cancer/software/software.html
  • http://homes.esat.kuleuven.be/~dna/Biol/Software.html
  • http://vortex.cs.wayne.edu/Projects.html
  • http://visitor.ics.uci.edu/cgi-bin/genex/rcluster/index.cgi
  • http://www-stat.stanford.edu/%7Etibs/SAM/index.html
  • http://maexplorer.sourceforge.net/
  • http://ihome.cuhk.edu.hk/~b400559/arraysoft.html
  • http://genome.ws.utk.edu/resources/restech.shtml
