  1. Malware Detection Slides courtesy of Mihai Christodorescu

  2. The Rising Malware Tide • Malware is software with unwanted functionality. Viruses, trojans, backdoors, bots, adware, spyware, browser hijackers, downloaders, droppers, keyloggers, password stealers, ... • “Blended” threats 100,000,000 machines are infected. [Vint Cerf, World Economic Forum 2007] Mihai Christodorescu – “Behavior-based Malware Detection”

  3. Organized Cyber-Crime • Boom in online fraud: • Spamming • Trade in stolen data • Financial fraud • ID theft Malware is the tool of the trade. Mihai Christodorescu – “Behavior-based Malware Detection”

  4. The Changing Threat Landscape 1995: Hobby malware, for fun • Show programming prowess • Single author 2007: Professional malware, for profit • Collaborative development • Bug-fix releases, code reuse Botnets: distributed computing has finally arrived. Creator of the Melissa worm ? Mihai Christodorescu – “Behavior-based Malware Detection”

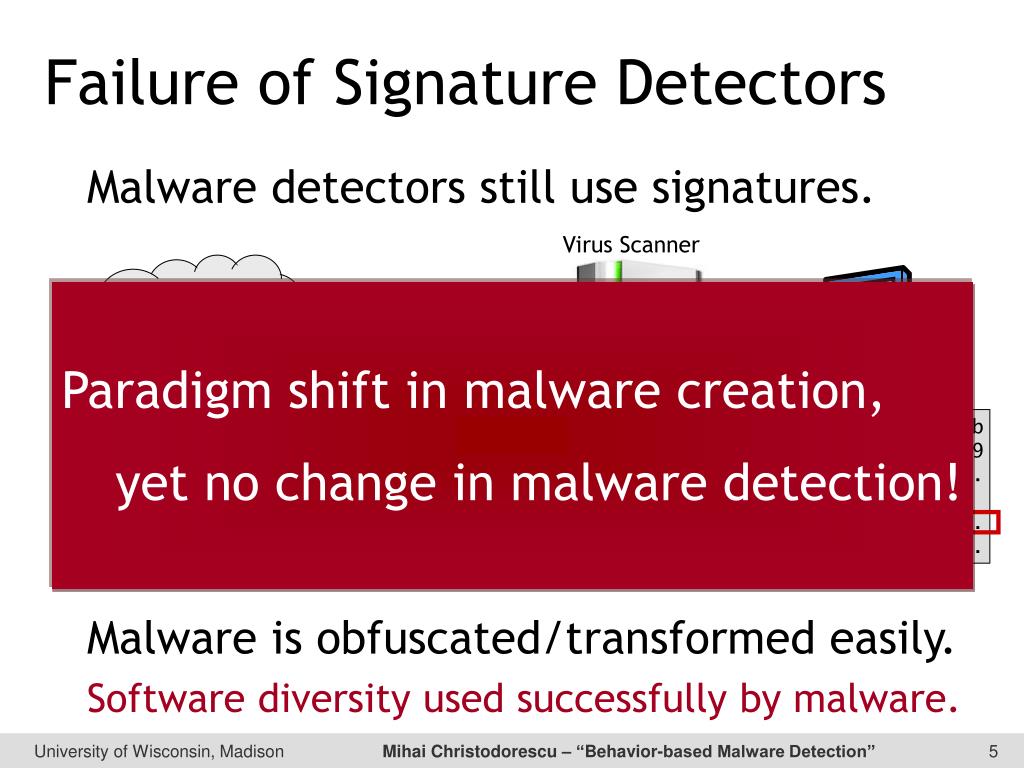

  5. Known Malware New Malware 1 New Malware 2 Failure of Signature Detectors Malware detectors still use signatures. Malware is obfuscated/transformed easily. Software diversity used successfully by malware. Virus Scanner Internet Paradigm shift in malware creation, yet no change in malware detection! ac028c0e86009d8edfac0ac075fb e81cfd72ef50b91000f7f15052b9 0:*:504b03040a0001000800*... *:188420:181779:*:8 ad6900f5088cab9356678e43c... 3:*:3e3c623e6c696e6b3c2f6... Mihai Christodorescu – “Behavior-based Malware Detection”

  6. Focus On Behavior New malware & malware families Number of variants grows exponentially. 100,000 86,876 53,950 31,726 20,731 11,136 8,821 10,000 1,000 Number of families stays constant. 325 335 274 202 (est.) 100 Family = malware with a common code base. 10 1 Time 2001 2002 2003 2004 2005 2006 A family is a collection of behaviors. A behavior can be shared by many families. [Kaspersky Labs, Symantec] Mihai Christodorescu – “Behavior-based Malware Detection”

  7. Main thesis Detection of obfuscated malware requires a semantic analysis of program behavior. Program verification provides the techniques necessary to perform malware detection effectively and efficiently. Mihai Christodorescu – “Behavior-based Malware Detection”

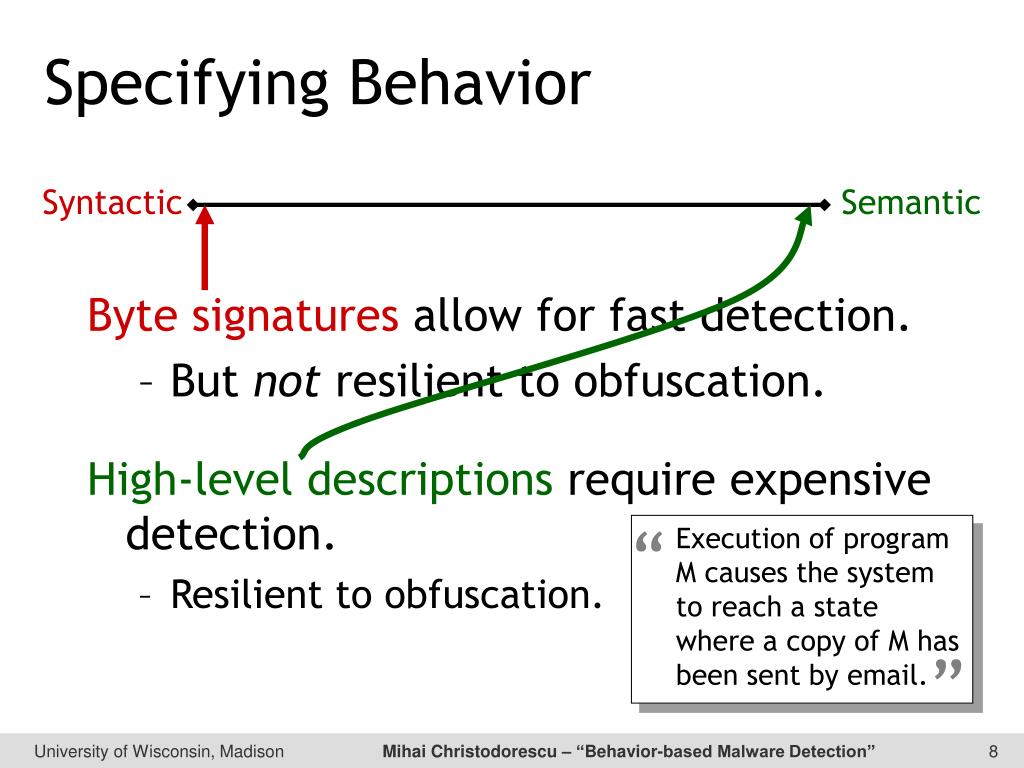

  8. Syntactic Semantic “ Execution of program M causes the system to reach a state where a copy of M has been sent by email. ” Specifying Behavior Byte signatures allow for fast detection. • But not resilient to obfuscation. High-level descriptions require expensive detection. • Resilient to obfuscation. Mihai Christodorescu – “Behavior-based Malware Detection”

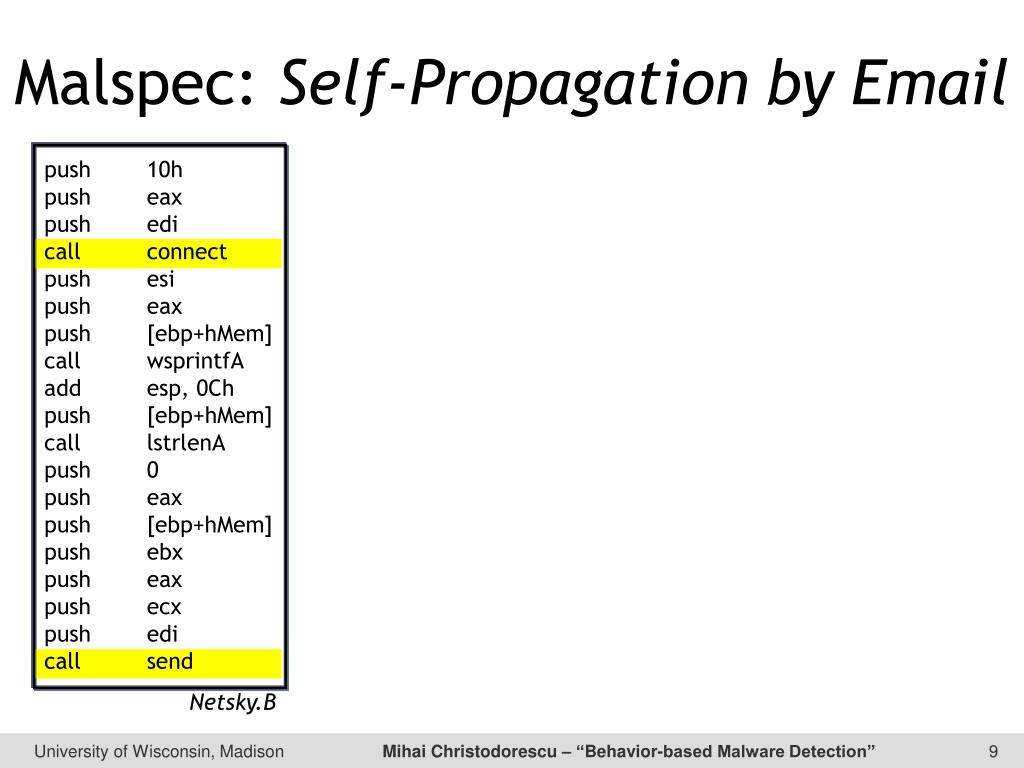

  9. Malspec: Self-Propagation by Email push 10h push eax push edi call connect push esi push eax push [ebp+hMem] call wsprintfA add esp, 0Ch push [ebp+hMem] call lstrlenA push 0 push eax push [ebp+hMem] push ebx push eax push ecx push edi call send Connect Send Netsky.B Mihai Christodorescu – “Behavior-based Malware Detection”

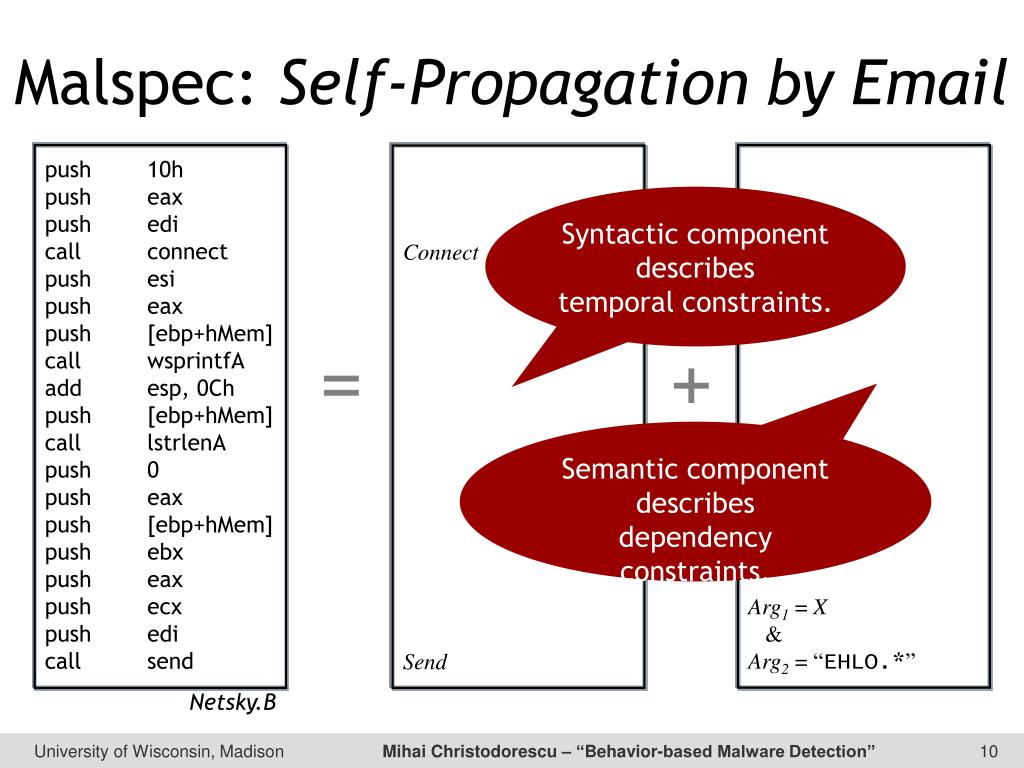

  10. Malspec: Self-Propagation by Email push 10h push eax push edi call connect push esi push eax push [ebp+hMem] call wsprintfA add esp, 0Ch push [ebp+hMem] call lstrlenA push 0 push eax push [ebp+hMem] push ebx push eax push ecx push edi call send X := Arg1 Arg1 = X & Arg2= “EHLO.*” Connect Send Syntactic component describes temporal constraints. = + Semantic component describes dependency constraints. Netsky.B Mihai Christodorescu – “Behavior-based Malware Detection”

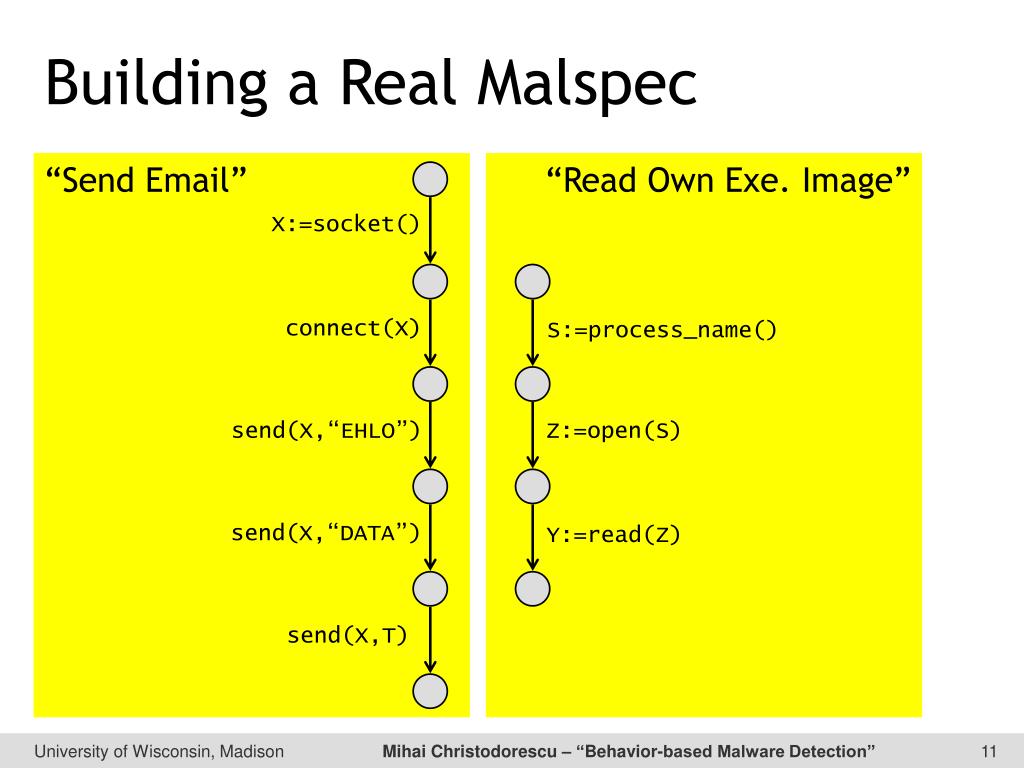

  11. X:=socket() connect(X) S:=process_name() send(X,“EHLO”) Z:=open(S) send(X,“DATA”) Y:=read(Z) send(X,T) Building a Real Malspec “Send Email” “Read Own Exe. Image” Mihai Christodorescu – “Behavior-based Malware Detection”

  12. send(X,T) Building a Real Malspec “Send Email” “Read Own Exe. Image” X:=socket() connect(X) S:=process_name() send(X,“EHLO”) Z:=open(S) send(X,“DATA”) Y:=read(Z) send(X,T) Mihai Christodorescu – “Behavior-based Malware Detection”

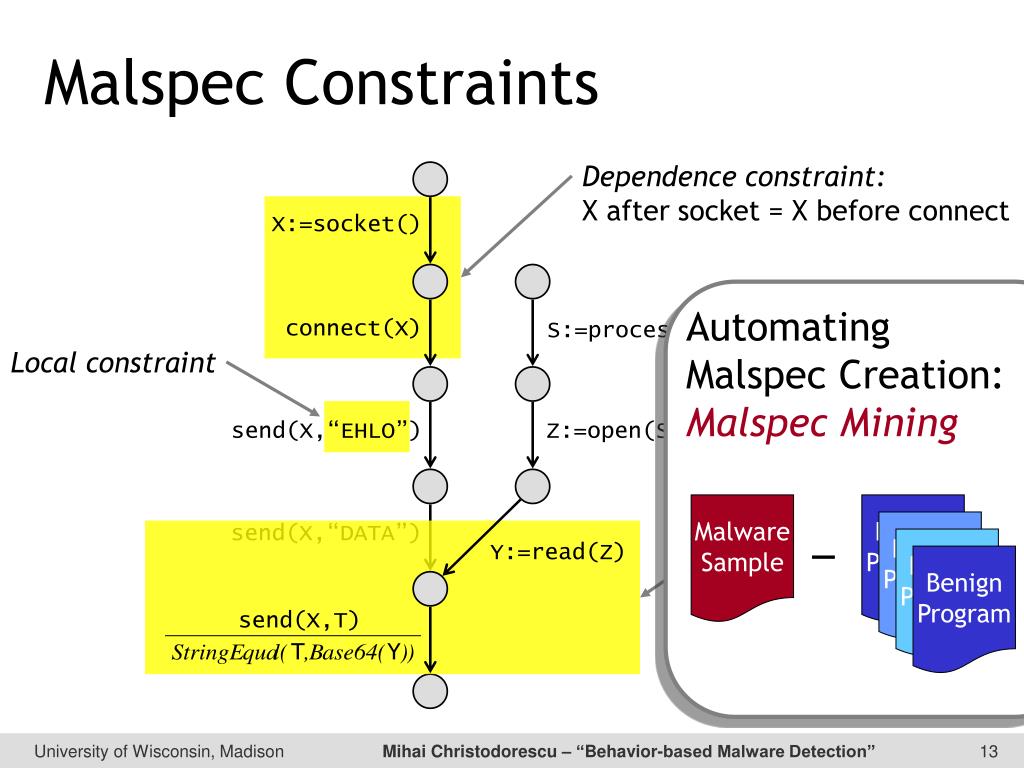

  13. Dependence constraint: X after socket = X before connect Automating Malspec Creation: Malspec Mining Local constraint Malware Sample Benign Program Benign Program Dependence constraint — Benign Program Benign Program Malspec Constraints X:=socket() connect(X) S:=process_name() send(X,“EHLO”) Z:=open(S) send(X,“DATA”) Y:=read(Z) send(X,T) Mihai Christodorescu – “Behavior-based Malware Detection”

  14. X:=socket() connect(X) S:=process_name() Z:=open(S) send(X,“EHLO”) send(X,“DATA”) Y:=read(Z) send(X,T) Malspecs Benefits • Choice of security-sensitive operations • Constraint-based execution order • Dependences free of obfuscation artifacts Expressive to describe even obfuscated behavior. Mihai Christodorescu – “Behavior-based Malware Detection”

  15. X:=socket() connect(X) S:=process_name() Z:=open(S) send(X,“EHLO”) send(X,“DATA”) Y:=read(Z) send(X,T) Malspec Detection Strategies • Static analysis • Dynamic analysis • Host-based IDS • Inline Reference Monitors Malspecs are independent of detection method. Mihai Christodorescu – “Behavior-based Malware Detection”

  16. X:=socket() connect(X) S:=process_name() Z:=open(S) send(X,“EHLO”) send(X,“DATA”) Y:=read(Z) send(X,T) Detection of Malicious Behavior Binary File Malware Detector Goal: Find a program path that matches the malspec. Mihai Christodorescu – “Behavior-based Malware Detection”

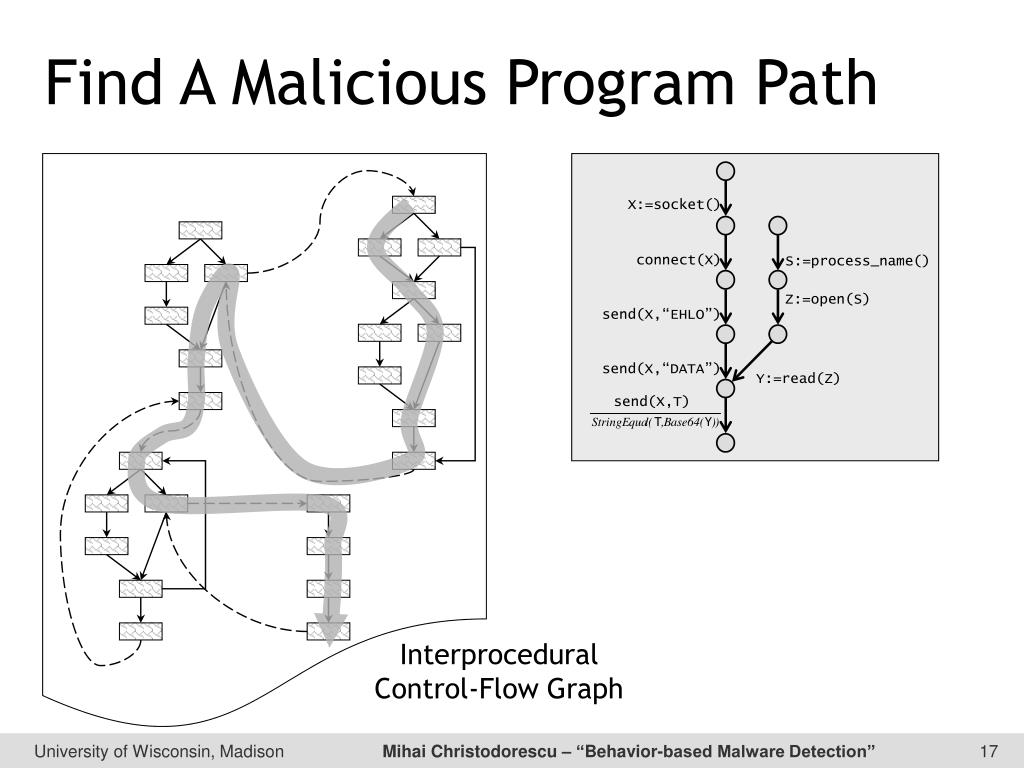

  17. X:=socket() connect(X) S:=process_name() Z:=open(S) send(X,“EHLO”) send(X,“DATA”) Y:=read(Z) send(X,T) Find A Malicious Program Path Interprocedural Control-Flow Graph Mihai Christodorescu – “Behavior-based Malware Detection”

  18. X:=socket() connect(X) S:=process_name() send(X,“EHLO”) Z:=open(S) send(X,“DATA”) Y:=read(Z) send(X,T) Match Malspec Operations Mihai Christodorescu – “Behavior-based Malware Detection”

  19. X:=socket() connect(X) S:=process_name() send(X,“EHLO”) Z:=open(S) send(X,“DATA”) Y:=read(Z) send(X,T) Match Malspec Constraints Program Constraint: The program fragment preserves the program expression bound to Z. Malspec Constraint: Z after open = Z before read Like a semantic def-use constraint. Mihai Christodorescu – “Behavior-based Malware Detection”

  20. Match Malspec Constraints Semantic nop wrt E = program fragment preserving an expression E. Program Constraint: The program fragment preserves the program expression bound to Z. Mihai Christodorescu – “Behavior-based Malware Detection”

  21. Match Malspec Constraints Need an Oracle... Program Constraint: The program fragment preserves the program expression bound to Z. Mihai Christodorescu – “Behavior-based Malware Detection”

  22. Advances in Decision Procedures Dramatic improvements in SAT solvers: • SATO[Zhang, CADE 1997] • GRASP[Marques-Silva & Sakallah, 1999] • zChaff[Moskewicz et al., DAC 2001] • BerkMin [Goldberg & Novikov, DATE 2002] SAT-based Bounded Model Checking: [Clarke et al., FMSD 2001] • SAT-specific speedups [Strichman, CHARME 2001] • Richer logics[Seshia et al., DAC 2003] A decision procedure can approx. an Oracle. Mihai Christodorescu – “Behavior-based Malware Detection”

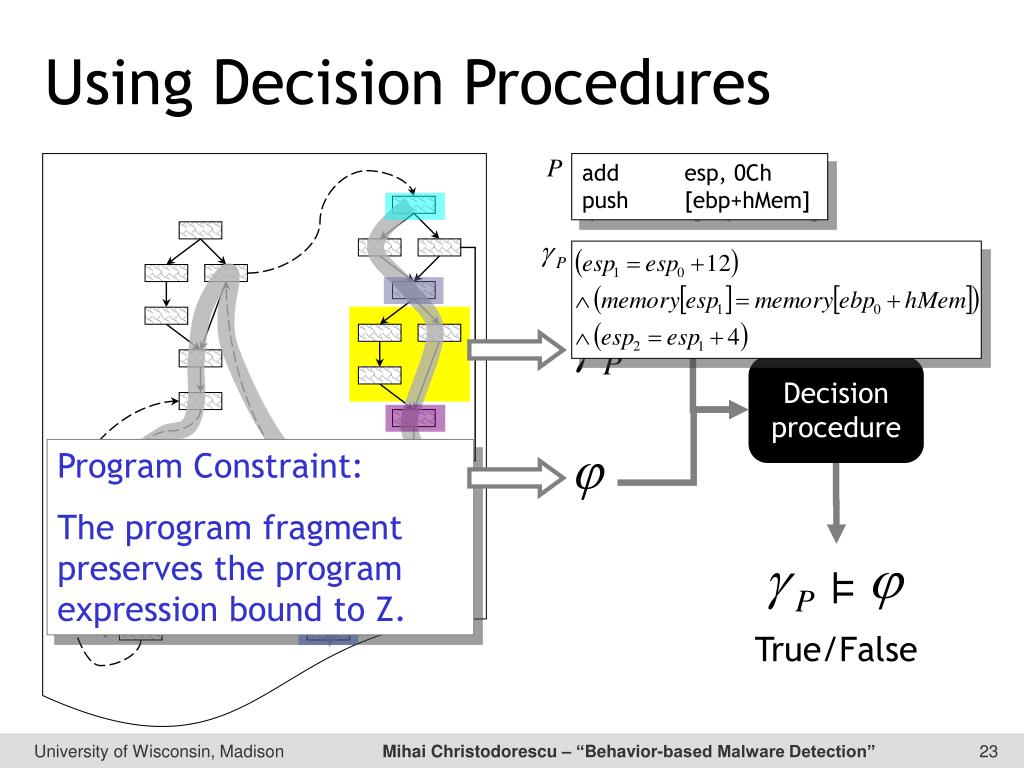

  23. P add esp, 0Ch push [ebp+hMem] £ Using Decision Procedures Decision procedure Program Constraint: The program fragment preserves the program expression bound to Z. True/False Mihai Christodorescu – “Behavior-based Malware Detection”

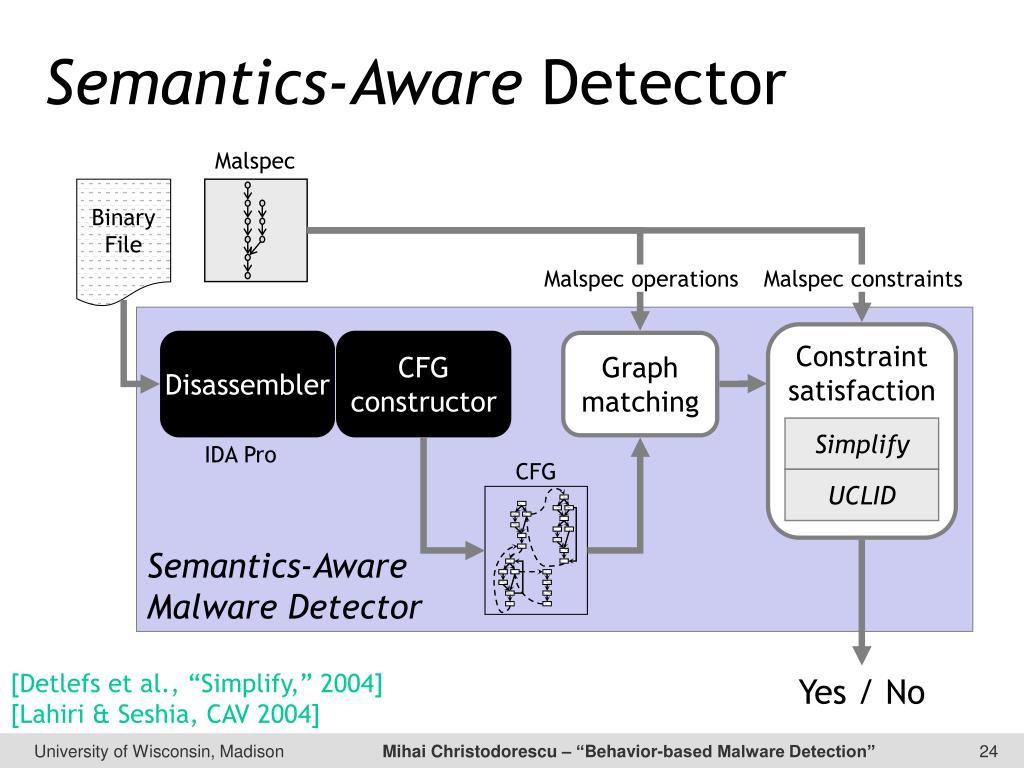

  24. CFG Constraint satisfaction Malspec Simplify UCLID Semantics-Aware Detector Binary File Malspec operations Malspec constraints Semantics-Aware Malware Detector Disassembler CFG constructor Graph matching IDA Pro [Detlefs et al., “Simplify,” 2004] [Lahiri & Seshia, CAV 2004] Yes / No Mihai Christodorescu – “Behavior-based Malware Detection”

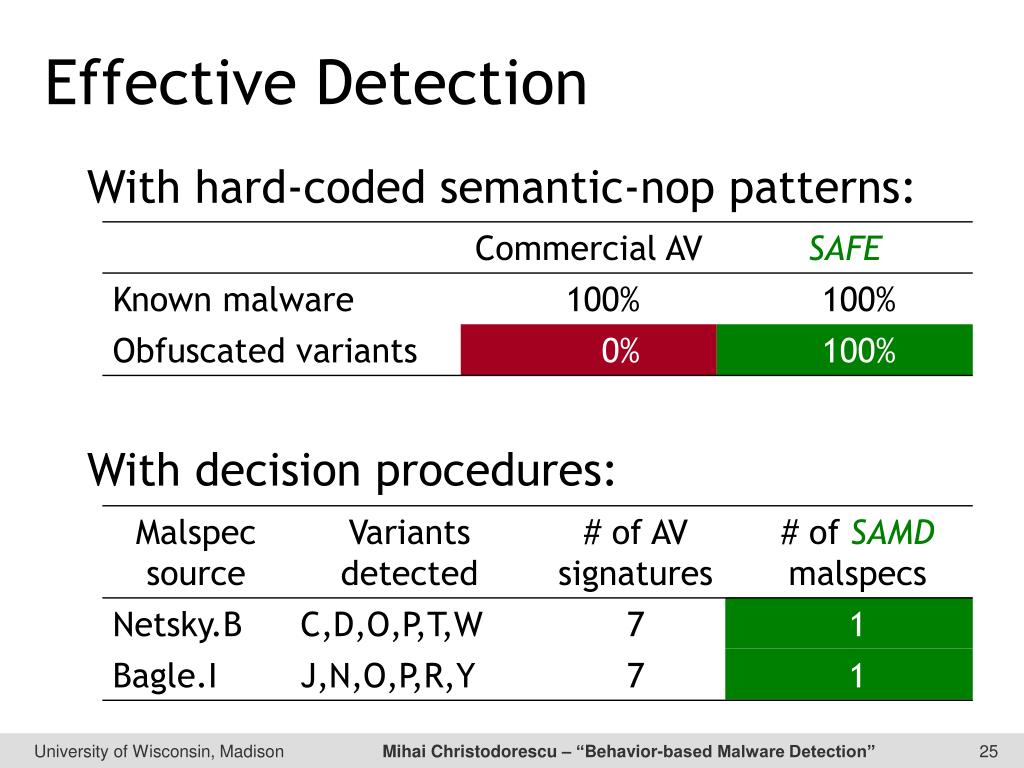

  25. Effective Detection With hard-coded semantic-nop patterns: With decision procedures: Mihai Christodorescu – “Behavior-based Malware Detection”

  26. Semantic-Nop features: Flow sensitivity Binding procedure Decision procedures Rich constraints Obfuscation resilience: Code reordering Register renaming Junk code Code substitution Semantic-Nop Detection Benefits Mihai Christodorescu – “Behavior-based Malware Detection”

  27. Detection Performance Powerful decision procedures are expensive. SAFE pattern matching 1–9 s Idea: Use expensive decision procedures only if cheap decision procedures do not provide a definitive answer. Simplify theorem prover 300–800 s UCLID bounded model checker Mihai Christodorescu – “Behavior-based Malware Detection”

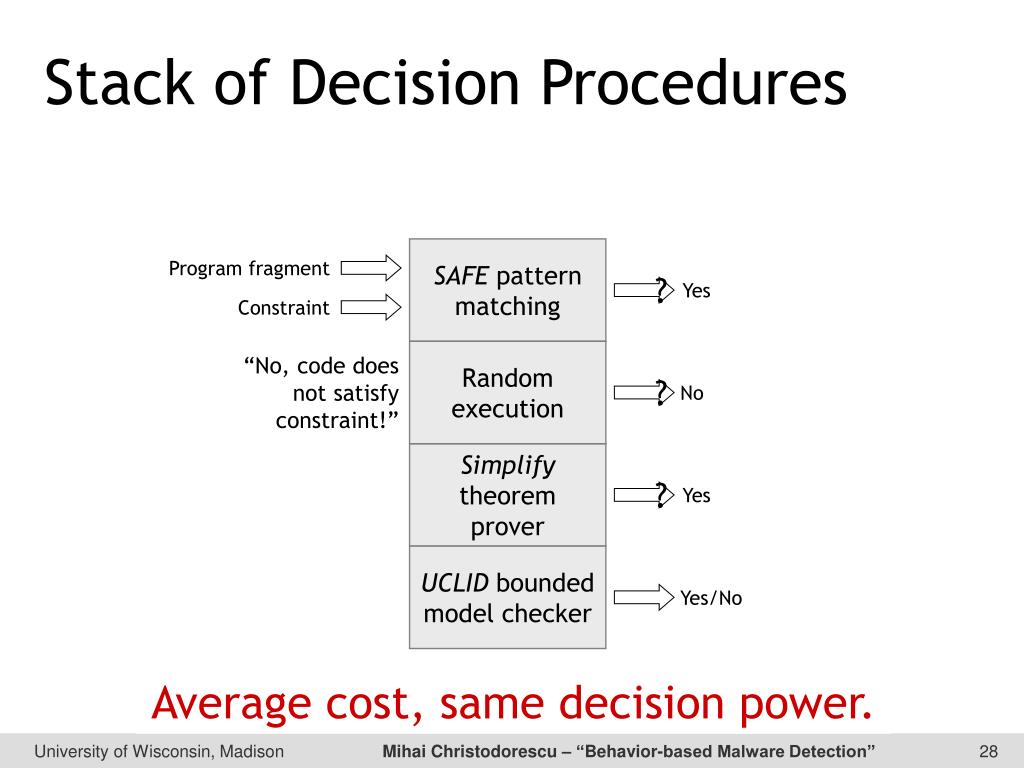

  28. Program fragment Constraint No Yes Yes Yes/No Stack of Decision Procedures SAFE pattern matching ? Random execution “No, code does not satisfy constraint!” ? Simplify theorem prover ? UCLID bounded model checker Average cost, same decision power. Mihai Christodorescu – “Behavior-based Malware Detection”

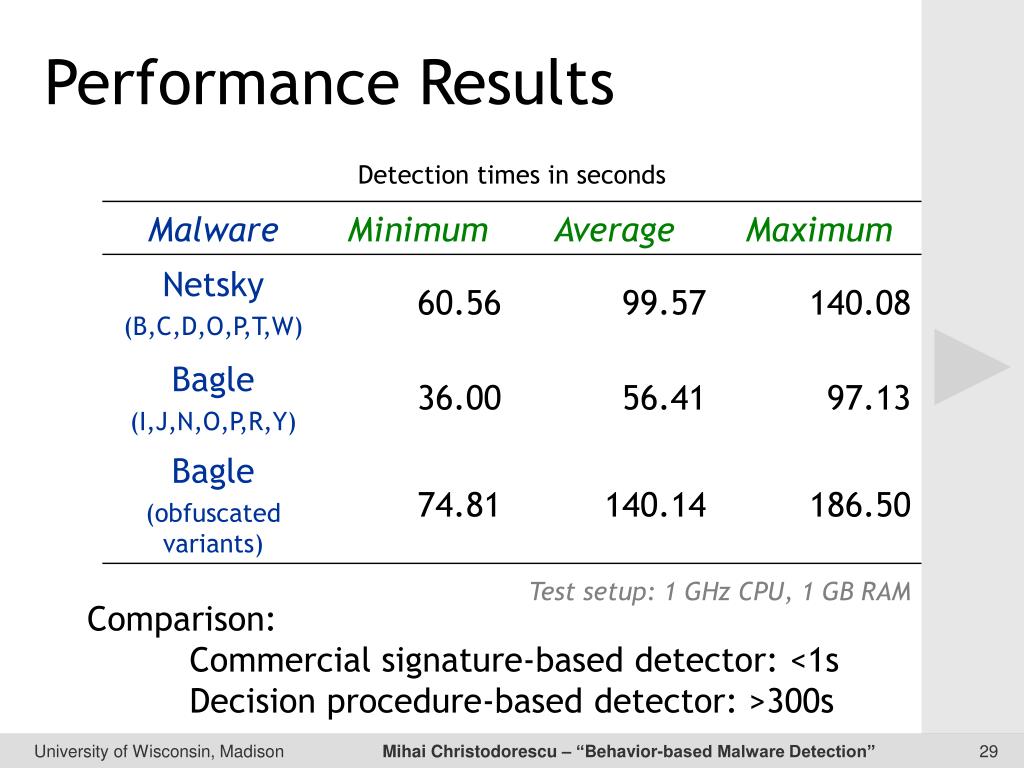

  29. Performance Results Detection times in seconds Test setup: 1 GHz CPU, 1 GB RAM Comparison: Commercial signature-based detector: <1s Decision procedure-based detector: >300s Mihai Christodorescu – “Behavior-based Malware Detection”
