Presentation Transcript

  1. Malware detectionwith OSSEC @santiagobassett

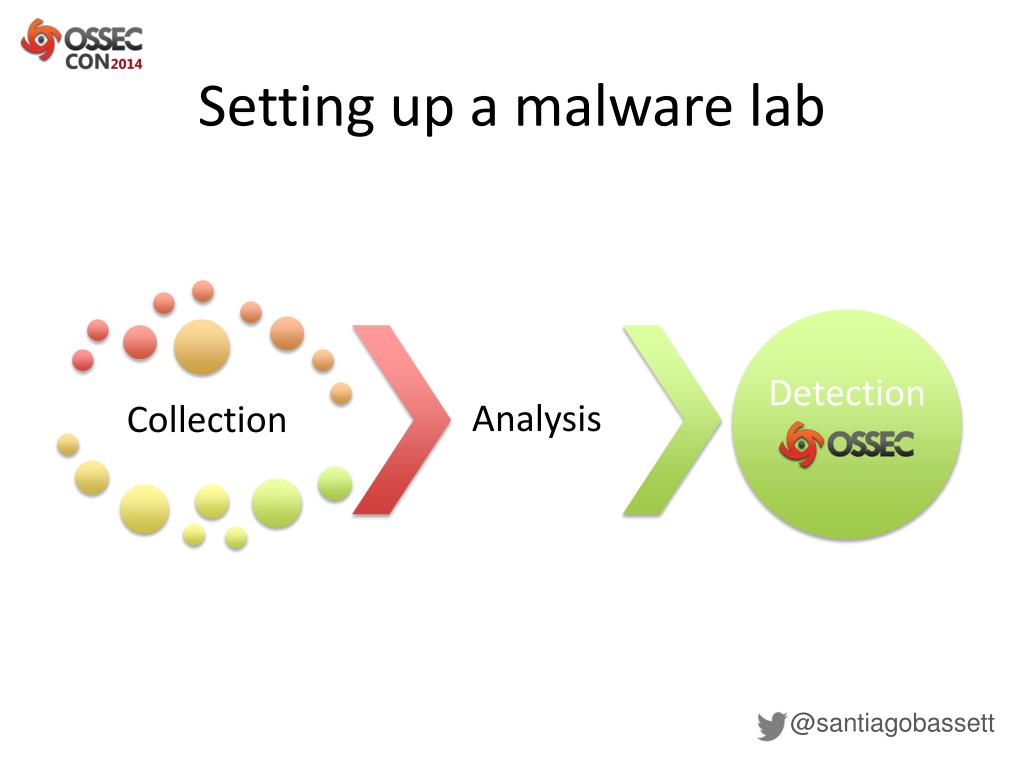

  2. Setting up a malware lab @santiagobassett

  3. MW collection techniques @santiagobassett

  4. Honeypot Dionaea: Low interaction honeypotthat emulates vulnerable network services. https://github.com/rep/dionaea (written in C) santiago@cuckoo:~$ nmapdionaea StartingNmap 6.00 ( http://nmap.org ) at 2014-09-07 21:04 PDT Nmap scan report for dionaea (54.235.216.XXX) Host is up (0.070s latency). Not shown: 992 closed ports PORT STATE SERVICE 21/tcp open ftp 42/tcp open nameserver 80/tcp open http 135/tcp open msrpc 443/tcp open https 445/tcp open microsoft-ds 1433/tcp open ms-sql-s 3306/tcp open mysql Nmap done: 1 IP address (1 host up) scanned in 1.16 seconds @santiagobassett

  5. Honeypot results • Captured 126 unique binaries in 3 months • Highly detected by clamav (80%) santiago@dionaea:/opt/dionaea/var/dionaea/binaries# clamscan * 022aeb126d2d80e683f7f2a3ee920874: Trojan.Spy-78857 FOUND 05800e1eb163994359e4c946d4a0fecb: Backdoor.Floder-3 FOUND 06267149140c0bc9ba51222c165f2d61: Worm.Autorun-7683 FOUND 0682f3dfbdab7c040ac9307c50792d0a: Trojan.Buzus-9369 FOUND 074b815d9ded01b516a62e3b739caa10: Win.Trojan.Agent-372503 FOUND 07fea379703307c5addc20e237cdd0f0: Win.Trojan.Jorik-1388 FOUND 09481313331ff5a8b8bfa4e25cbaa524: Worm.Autorun-7516 FOUND 0a9f1cd12f1b34ca71fa585e87e91c7d: OK 0b4c4078231ee36731080858187a49b8: Win.Trojan.Injector-8166 FOUND 0feae931ee71a495614f14f3c1d37246: Trojan.Mybot-5073 FOUND 10ec7cb47314a2c08decb25e53fedcfa: Trojan.Injector-558 FOUND 1205a52e42687c922aa4d3700d778398: Trojan.Kazy-1372 FOUND 12fb7332920a7797c2d02df29b57c640: Trojan.Spy-78857 FOUND 16b0357b804d9651d9057b61d78bee08: Win.Trojan.Agent-368816 FOUND 1a813b6ea08a47f2997e2e4215eba96b: WIN.Trojan.IRCBot-1225 FOUND … ----------- SCAN SUMMARY ----------- Known viruses: 3517573 Engine version: 0.98.1 Scanned directories: 0 Scanned files: 126 Infected files: 101 Data scanned: 17.65 MB Data read: 18.11 MB (ratio 0.97:1) Time: 56.447 sec (0 m 56 s) @santiagobassett

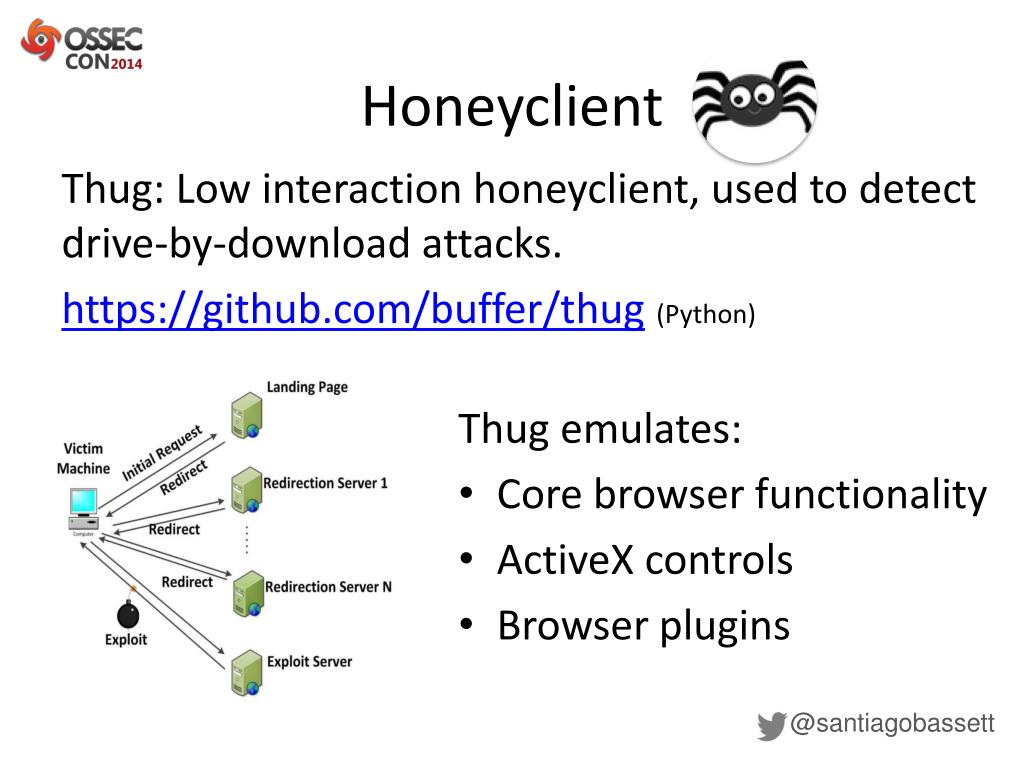

  6. Honeyclient Thug: Low interaction honeyclient, used to detect drive-by-download attacks. https://github.com/buffer/thug(Python) • Thug emulates: • Core browser functionality • ActiveX controls • Browser plugins @santiagobassett

  7. Drive by download attack http://urlquery.net/report.php?id=1410227505197 @santiagobassett

  8. Honeyclient results santiago@mwcollector:~/thug/src$ ./thug.pywebgalleriet.no/ [2014-09-11 22:58:31] [HTTP] URL: http://www.webgalleriet.no/wordpress/wp-includes/js/comment-reply.js?ver=20090102 (Status: 200, Referrer: http://www.webgalleriet.no/) [2014-09-11 22:58:31] [HTTP] URL: http://www.webgalleriet.no/wordpress/wp-includes/js/comment-reply.js?ver=20090102 (Content-type: application/javascript, MD5: d484fa08997df765852c6ad283ec52c6) [2014-09-11 22:58:31] <iframealign="center" frameborder="no" height="2" name="Twitter" scrolling="auto" src="http://168bet.com/cocs.html?j=1095012" width="2"></iframe> [2014-09-11 22:58:31] [iframeredirection] http://www.webgalleriet.no/ -> http://168bet.com/cocs.html?j=1095012 [2014-09-11 22:58:31] [URL Classifier] URL: http://168bet.com/cocs.html?j=1095012 (Rule: Redkit 1, Classification: Landingpage, Exploit Kit) @santiagobassett

  9. Malware crawlers Retrieve files using malware tracking sites. https://github.com/technoskald/maltrieve (Python) https://code.google.com/p/malware-crawler/ (Python) @santiagobassett

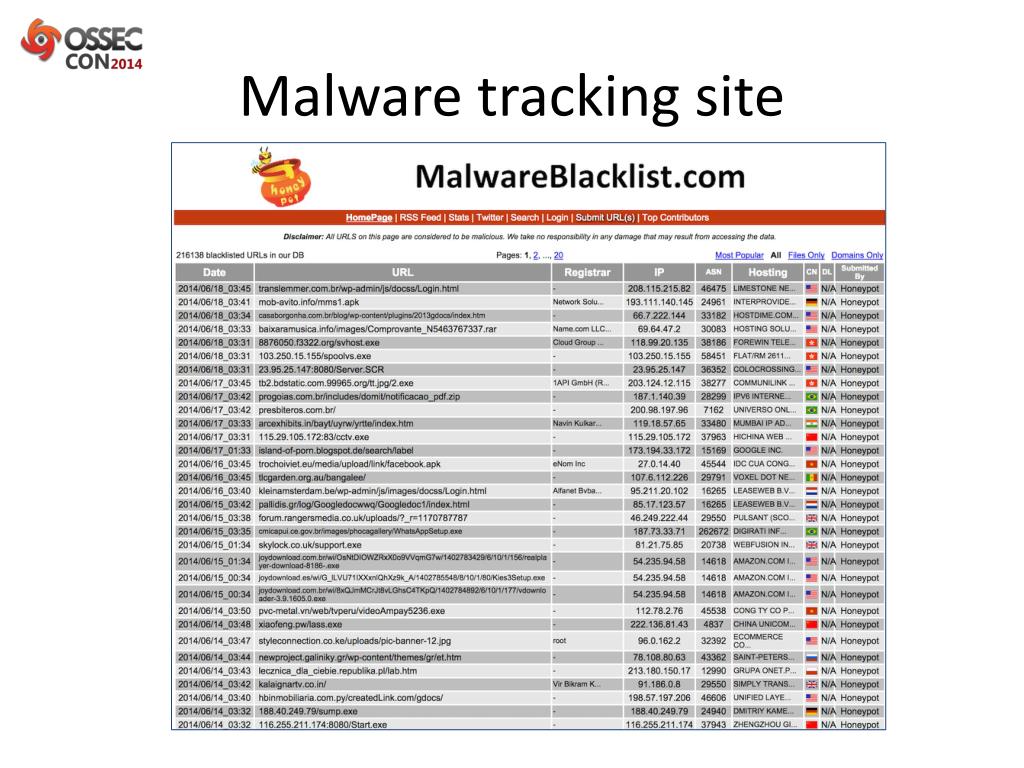

  10. Malware tracking site

  11. Malware crawlers results • Captured 345 unique binaries in 15 minutes • Poorly detected by clamav (16%) santiago@mwcollector:~/binaries/maltrieve$ clamscan * 02d36dff08b63b123d2d2a36089e3d97: OK 03a6ac145099cf77bf5c7af127696687: OK 03e49fb415aacf9d2c90821ff0596024: OK 0568a72d4c5a2eb510207ca45b8d8799: OK 06ddb91e1d5f056590dfeef71a2da264: JS.Iframe-2 FOUND 074fbceca8fe84bae582a7a114b2ce94: HTML.Iframe-63 FOUND 0889504acc370f2adec7869b9bc5bc5c: OK 08d53833d032d71c1e7ffd3cddcd2a5e: JS.Iframe-2 FOUND 0ac790c459a0ef9bb4959321918a2d57: OK 0cc1c5c2ef510bd9f587abbc402d04a3: OK 0e3c692048a35c06ffe81a473ffd1d41: OK 136264a09b94bf8f08278b0045a84905: OK 13e78b2bab4a0ae9a3c2003d3f004dd1: JS.Obfus-31 FOUND ----------- SCAN SUMMARY ----------- Known viruses: 3517100 Engine version: 0.98.4 Scanned directories: 0 Scanned files: 235 Infected files: 38 Data scanned: 164.24 MB Data read: 143.86 MB (ratio 1.14:1) Time: 254.462 sec (4 m 14 s) @santiagobassett

  12. Malware database - Viper Binary analysis and management framework. https://github.com/botherder/viper(Python) @santiagobassett

  13. Static Analysis - Yara Flexible, human-readable rules for identifying malicious streams. Can be used to analyze: • files • memory (volatility) • network streams. private rule APT1_RARSilent_EXE_PDF { meta: author = "AlienVault Labs" info = "CommentCrew-threat-apt1" strings: $winrar1 = "WINRAR.SFX" wide ascii $winrar2 = ";The comment below contains SFX script commands" wide ascii $winrar3 = "Silent=1" wide ascii $str1 = /Setup=[\s\w\"]+\.(exe|pdf|doc)/ $str2 = "Steup=\"" wide ascii condition: all of ($winrar*) and 1 of ($str*) } @santiagobassett

  14. Static Analysis - Yara rule APT1_WEBC2_TABLE { meta: author = "AlienVault Labs" info = "CommentCrew-threat-apt1" strings: $msg1 = "Fail To Execute The Command" wide ascii $msg2 = "Execute The Command Successfully" wide ascii $gif1 = /\w+\.gif/ $gif2 = "GIF89" wide ascii condition: 3 of them } viper > find name 3f2fda43121d888428b66717b984a7fb +---+----------------------------------+-----------------------+----------------------------------+------+ | # | Name | Mime | MD5 | Tags | +---+----------------------------------+-----------------------+----------------------------------+------+ | 1 | 3F2FDA43121D888428B66717B984A7FB | application/x-dosexec | 3f2fda43121d888428b66717b984a7fb | apt | +---+----------------------------------+-----------------------+----------------------------------+------+ viper > open -l 1 [*] Session opened on /home/santiago/viper/binaries/6/a/f/2/6af2116c4b59c69917e0e25efe4530a127830e2ed383ea91e0eebfa1cae4b78e viper 3F2FDA43121D888428B66717B984A7FB > yara scan [*] Scanning 3F2FDA43121D888428B66717B984A7FB (6af2116c4b59c69917e0e25efe4530a127830e2ed383ea91e0eebfa1cae4b78e) +------------------+--------+--------+----------------------------------+ | Rule | String | Offset | Content | +------------------+--------+--------+----------------------------------+ | APT1_WEBC2_TABLE | $msg1 | 440032 | Fail To Execute The Command | | APT1_WEBC2_TABLE | $msg2 | 440060 | Execute The Command Successfully | | APT1_WEBC2_TABLE | $gif1 | 440100 | sdwefa.gif | | APT1_WEBC2_TABLE | $gif1 | 440101 | dwefa.gif | | APT1_WEBC2_TABLE | $gif1 | 440102 | wefa.gif | | APT1_WEBC2_TABLE | $gif1 | 440103 | efa.gif | | APT1_WEBC2_TABLE | $gif1 | 440104 | fa.gif | | APT1_WEBC2_TABLE | $gif1 | 440105 | a.gif | | APT1_WEBC2_TABLE | $gif2 | 440112 | GIF89 | +------------------+--------+--------+----------------------------------+ viper 3F2FDA43121D888428B66717B984A7FB > yara rules +----+-----------------------------------+ | # | Path | +----+-----------------------------------+ | 1 | data/yara/hangover.yara | | 2 | data/yara/citizenlab.yara | | 3 | data/yara/APT_NGO_wuaclt_PDF.yara | | 4 | data/yara/kins.yara | | 5 | data/yara/themask.yara | | 6 | data/yara/vmdetect.yara | | 7 | data/yara/index.yara | | 8 | data/yara/GeorBotBinary.yara | | 9 | data/yara/leverage.yar | | 10 | data/yara/apt1.yara | | 11 | data/yara/GeorBotMemory.yara | | 12 | data/yara/rats.yara | | 13 | data/yara/embedded.yara | | 14 | data/yara/urausy_skypedat.yar | | 15 | data/yara/fpu.yara | +----+-----------------------------------+ @santiagobassett

  15. Static Analysis – Trojan Dropper viper 0A37D49E798F50C8F1010D5CFDE0E851 > pe sections [*] PE Sections: +--------+---------+-------------+-------------+---------------+ | Name | RVA | VirtualSize | RawDataSize | Entropy | +--------+---------+-------------+-------------+---------------+ | .text | 0x1000 | 0xbe8f | 49152 | 6.52204488284 | | .rdata | 0xd000 | 0x1855 | 6656 | 5.17849300065 | | .data | 0xf000 | 0x19cb8 | 512 | 1.31023024266 | | .CRT | 0x29000 | 0x10 | 512 | 0.21310128451 | | .rsrc | 0x2a000 | 0x7fd8 | 32768 | 5.79943302325 | +--------+---------+-------------+-------------+---------------+ viper 0A37D49E798F50C8F1010D5CFDE0E851 > pe imports ... [*] DLL: ADVAPI32.dll - 0x40d000: RegCloseKey - 0x40d004: RegOpenKeyExA - 0x40d008: RegQueryValueExA - 0x40d00c: RegCreateKeyExA - 0x40d010: RegSetValueExA ... viper 0A37D49E798F50C8F1010D5CFDE0E851 > pecompiletime [*] Compile Time: 2010-03-14 23:27:58 viper 0A37D49E798F50C8F1010D5CFDE0E851 > yara scan [*] Scanning 0A37D49E798F50C8F1010D5CFDE0E851 (dbf0436908c9d900e69ea2a108f08061786d299b511265b78620a4401361084b) viper0A37D49E798F50C8F1010D5CFDE0E851 > fuzzy [*]1relevantmatchesfound +-------+----------------------------------+------------------------------------------------------------------+ | Score | Name | SHA256 | +-------+----------------------------------+------------------------------------------------------------------+ | 68% | 003EE3D21DF82975337AE976F8BA67CC| 2803fba5fbe908f6151597c2a387caef8f00a5f0f194bfc6b4d9f89026d53621 | +-------+----------------------------------+------------------------------------------------------------------+ viper 0A37D49E798F50C8F1010D5CFDE0E851 > virustotal [*]VirusTotal Report: +----------------------+----------------------------------------------+ | Antivirus | Signature | +----------------------+----------------------------------------------+ | nProtect | Trojan.Downloader.JKVR | | McAfee | Artemis!0A37D49E798F | | K7GW | Trojan-Downloader | | NANO-Antivirus | Trojan.Win32.Agent.hbmsz | | Symantec | Downloader | | TotalDefense | Win32/FakeDoc_i | | TrendMicro-HouseCall | TROJ_DLOADER.VTG | | Avast | Win32:Trojan-gen | | ClamAV | Trojan.Downloader-83571 | | Kaspersky | Trojan-Downloader.Win32.Agent.thb | | BitDefender | Trojan.Downloader.JKVR | | Agnitum | Trojan.DL.Agent!virRS0ijj7k | | Emsisoft | Trojan.Downloader.JKVR (B) | | Comodo | TrojWare.Win32.TrojanDownloader.Agent.thb_30 | | F-Secure | Trojan.Downloader.JKVR | | TrendMicro | TROJ_DLOADER.VTG | | McAfee-GW-Edition | Artemis!0A37D49E798F | | Sophos | Troj/DwnLdr-IYR | | Jiangmin | TrojanDownloader.Agent.boly | | Antiy-AVL | Trojan/Win32.Agent.gen | | Microsoft | TrojanDownloader:Win32/Pingbed.A | | Commtouch | W32/Downloader.NIHT-8726 | | AhnLab-V3 | Dropper/Malware.101512 | | VBA32 | TrojanDownloader.Agent | | ESET-NOD32 | a variant of Win32/Agent.TUJ | | Fortinet | W32/Scar.SJU!tr | | AVG | Downloader.Agent2.HEL | | Panda | Trj/Downloader.MDW | +----------------------+----------------------------------------------+ @santiagobassett

  16. Fuzzy hash match info @santiagobassett

  17. Dynamic Analysis - Cuckoo Automated malware analysis. Runs binary files in virtual machines to study their behavior. • Traces Win32 API calls • Files created, deleted and downloaded • Memory dumps of malicious processes • Network traffic pcaps Integrated with yara, virustotaland volatility among other tools. Supports Virtualbox KVM and Vmware. @santiagobassett

  18. Dynamic Analysis – Trojan Dropper @santiagobassett

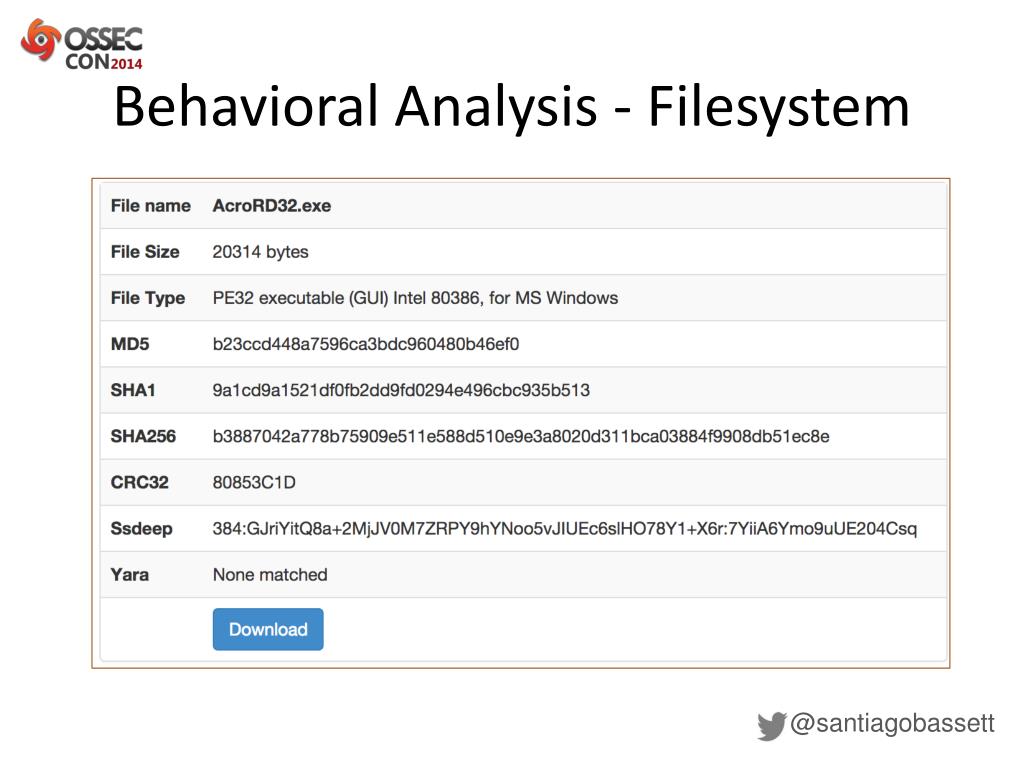

  19. Behavioral Analysis – Filesystem @santiagobassett

  20. Behavioral Analysis - Filesystem @santiagobassett

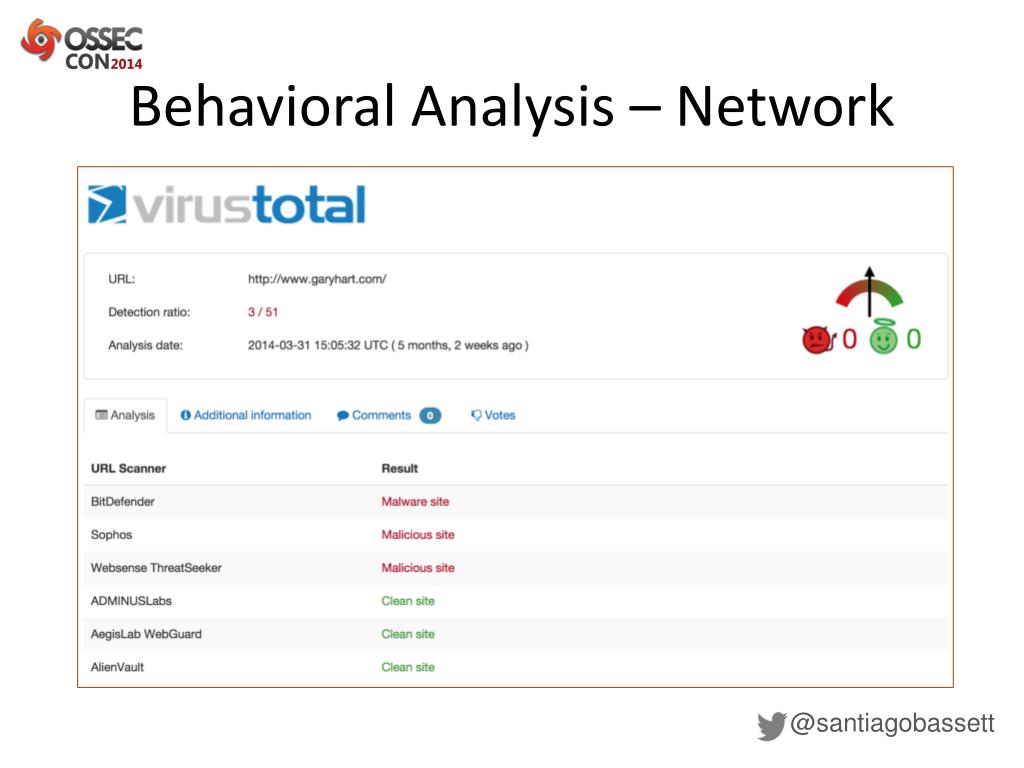

  21. Behavioral Analysis – Network @santiagobassett

  22. Behavioral Analysis – Network @santiagobassett

  23. Behavioral Analysis - Network santiago@cuckoo:~/Cuckoo/cuckoo/storage/analyses/34$ sudotcpdump -s 0 -XX -AA -nn -r dump.pcap | grep -A 4 63.233.155.6 reading from file dump.pcap, link-type EN10MB (Ethernet) 23:32:20.655808 IP 8.8.8.8.53 > 192.168.56.103.63943: 53551 1/0/0 A 63.233.155.6 (50) 0x0000: 0800 2723 f165 0a00 2700 0000 0800 4500 ..'#.e..'.....E. 0x0010: 004e eca8 0000 2d11 97d7 0808 0808 c0a8 .N....-......... 0x0020: 3867 0035 f9c7 003a ef52 d12f 8180 0001 8g.5...:.R./.... 0x0030: 0001 0000 0000 0377 7777 0867 6172 7968 .......www.garyh -- 23:32:20.662766 IP 192.168.56.103.49166 > 63.233.155.6.80: Flags [S], seq 2615622815, win 8192, options [mss 1460,nop,wscale 2,nop,nop,sackOK], length 0 0x0000: 0a00 2700 0000 0800 2723 f165 0800 4500 ..'.....'#.e..E. 0x0010: 0034 10ab 4000 8006 161a c0a8 3867 3fe9 .4..@.......8g?. 0x0020: 9b06 c00e 0050 9be7 3c9f 0000 0000 8002 .....P..<....... 0x0030: 2000 e231 0000 0204 05b4 0103 0302 0101 ...1............ -- 23:32:23.663174 IP 192.168.56.103.49166 > 63.233.155.6.80: Flags [S], seq 2615622815, win 8192, options [mss 1460,nop,wscale 2,nop,nop,sackOK], length 0 0x0000: 0a00 2700 0000 0800 2723 f165 0800 4500 ..'.....'#.e..E. 0x0010: 0034 10c2 4000 8006 1603 c0a8 3867 3fe9 .4..@.......8g?. 0x0020: 9b06 c00e 0050 9be7 3c9f 0000 0000 8002 .....P..<....... 0x0030: 2000 e231 0000 0204 05b4 0103 0302 0101 ...1............ -- 23:32:29.661778 IP 192.168.56.103.49166 > 63.233.155.6.80: Flags [S], seq 2615622815, win 8192, options [mss 1460,nop,nop,sackOK], length 0 0x0000: 0a00 2700 0000 0800 2723 f165 0800 4500 ..'.....'#.e..E. 0x0010: 0030 10dc 4000 8006 15ed c0a8 3867 3fe9 .0..@.......8g?. 0x0020: 9b06 c00e 0050 9be7 3c9f 0000 0000 7002 .....P..<.....p. 0x0030: 2000 f63a 0000 0204 05b4 0101 0402 ...:.......... @santiagobassett

  24. Behavioral Analysis – Registry @santiagobassett

  25. Memory Analysis - Volatility santiago@cuckoo:~/Cuckoo/cuckoo/storage/analyses/34$ vol.pypsxview --profile=Win7SP1x86 -f memory.dmp Volatility Foundation Volatility Framework 2.4 Offset(P) Name PID pslistpsscanthrdprocpspcidcsrss session deskthrd ---------- -------------------- ------ ------ ------ -------- ------ ----- ------- -------- 0x7b6fa500 audiodg.exe 960 True False TrueTrueTrueTrueTrue 0x7b7afd40 sppsvc.exe 1780 True False True True True True True 0x779fb808 svchost.exe 724 True False True True True True True 0x7b7be710 svchost.exe 1892 True False True True True True True 0x7c4ea7d8 VBoxService.ex 624 True False True True True True True 0x7b6f4030 svchost.exe 900 True False True True True True True 0x7b7bb618 svchost.exe 3376 True False True True True True True 0x7cd99a58 AcroRD32.exe 3080 True False True True True True True 0x7b4fa030 SearchIndexer. 360 True False True True True True True 0x7b94a858 taskhost.exe 2920 True False True True True True True … santiago@cuckoo:~/Cuckoo/cuckoo/storage/analyses/34$ vol.pymemdump --profile=Win7SP1x86 -f memory.dmp -D ./ -p 3080 Volatility Foundation Volatility Framework 2.4 ************************************************************************ Writing AcroRD32.exe [ 3080] to 3080.dmp santiago@cuckoo:~$ strings 3080.dmp | grep -igaryhart www.garyhart.com w.garyhart.com w.garyhart.com w.garyhart.com www.garyhart.com st: www.garyhart.com w.garyhart.com tp://www.garyhart.com/nfuse.htm tp://www.garyhart.com/nfuse.htm tp://www.garyhart.com/nfuse.htm tp://www.garyhart.com/nfuse.htm tp://www.garyhart.com/nfuse.htm tp://www.garyhart.com/nfuse.htm www.garyhart.com http://www.garyhart.com/nfuse.htm @santiagobassett

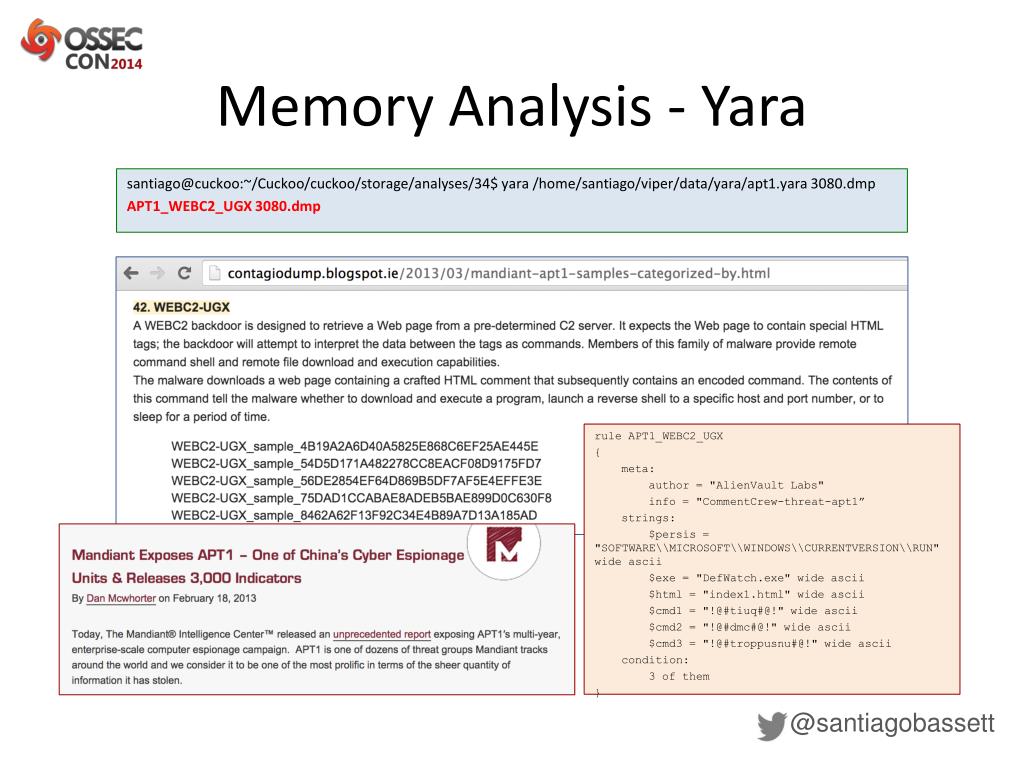

  26. Memory Analysis - Yara santiago@cuckoo:~/Cuckoo/cuckoo/storage/analyses/34$ yara /home/santiago/viper/data/yara/apt1.yara 3080.dmp APT1_WEBC2_UGX 3080.dmp rule APT1_WEBC2_UGX { meta: author = "AlienVault Labs" info = "CommentCrew-threat-apt1” strings: $persis = "SOFTWARE\\MICROSOFT\\WINDOWS\\CURRENTVERSION\\RUN" wide ascii $exe = "DefWatch.exe" wide ascii $html = "index1.html" wide ascii $cmd1 = "!@#tiuq#@!" wide ascii $cmd2 = "!@#dmc#@!" wide ascii $cmd3 = "!@#troppusnu#@!" wide ascii condition: 3 of them } @santiagobassett

  27. OSSEC - Rootcheck Used for rootkits and malware detection. It can be used to: • Look for suspicious files. • Inspect files and registry keys for common rootkits/malware entries. • Look for hidden processes and network ports. @santiagobassett

  28. OSSEC – Rule for Trojan Dropper /var/ossec/etc/shared/win_malware_rcl.txt [Trojan Dropper] [all] [0A37D49E798F50C8F1010D5CFDE0E851] f:C:\Users\IEUser\AppData\Local\Temp\AcroRD32.exe; r:HKEY_USERS\S-1-5-21-3463664321-2923530833-3546627382-1000 \Software\Microsoft\Windows\CurrentVersion\Run -> Acroread -> r:AcroRD32.exe; p:r:AcroRD32.exe; @santiagobassett

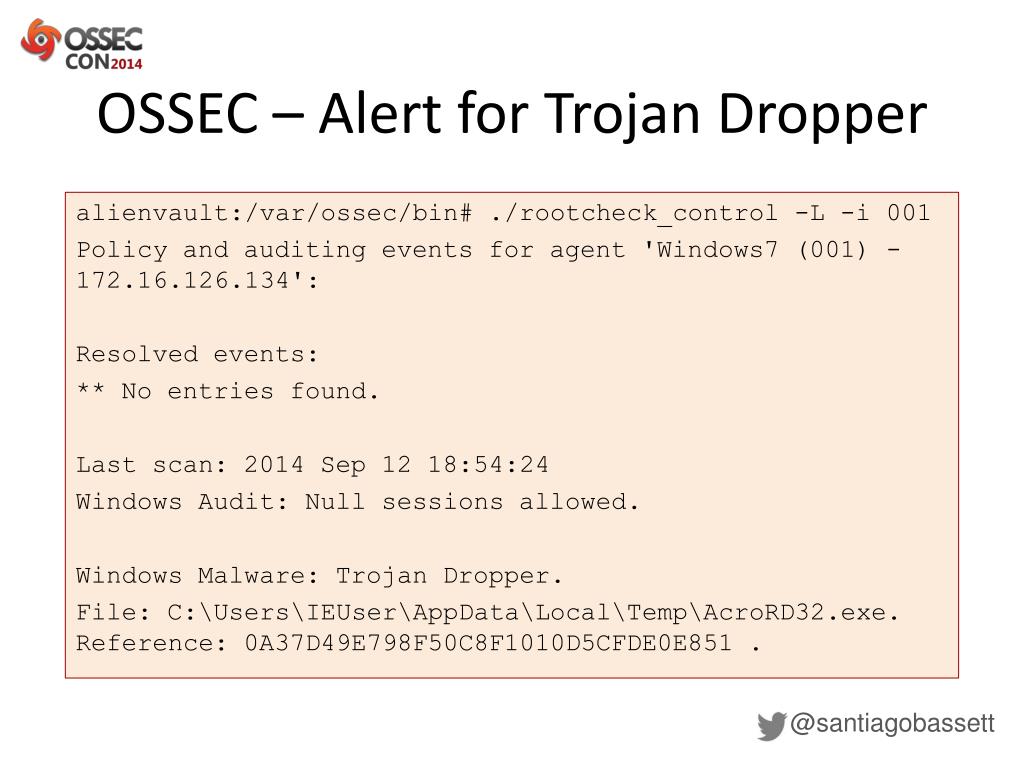

  29. OSSEC – Alert for Trojan Dropper alienvault:/var/ossec/bin# ./rootcheck_control -L -i001 Policy and auditing events for agent 'Windows7 (001) - 172.16.126.134': Resolved events: ** No entries found. Last scan: 2014 Sep 12 18:54:24 Windows Audit: Null sessions allowed. Windows Malware: Trojan Dropper. File: C:\Users\IEUser\AppData\Local\Temp\AcroRD32.exe. Reference: 0A37D49E798F50C8F1010D5CFDE0E851 . @santiagobassett

  30. Demo – Alert for Trojan Dropper @santiagobassett

  31. Future Work • Use/create Cuckoo signatures to identify different malware patterns (droppers, downloaders, trojans, rootkits, …) • Create Cuckoo reporting module to report (JSON) on those patterns that OSSEC can detect. • Python tool to parse module output and generate rootcheck rules. • Add/improve OSSEC malware detection capabilities. @santiagobassett

  32. Thank you! santiago@alienvault.com @santiagobassett
