Raycus 3000W Single Module CW Fiber Laser Source Data Sheet V1.0

It has the advantages of high electro-optical conversion efficiency, good beam quality, high energy density, wide modulation frequency, strong reliability, long life, and maintenance-free operation.

yupec
Download Presentation

Raycus 3000W Single Module CW Fiber Laser Source Data Sheet V1.0

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

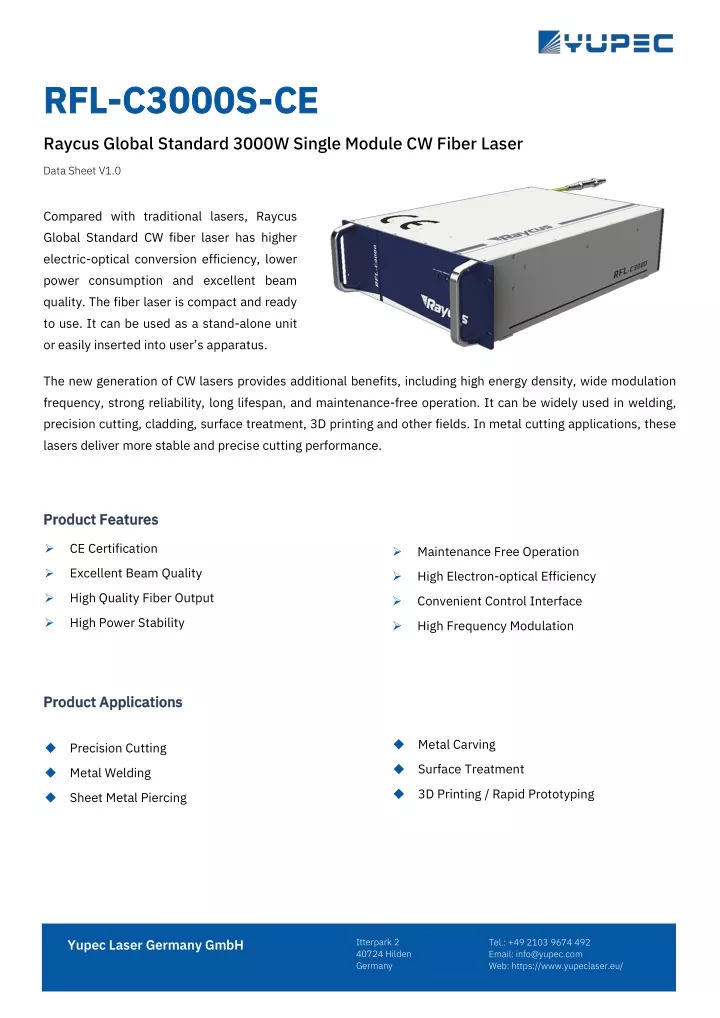

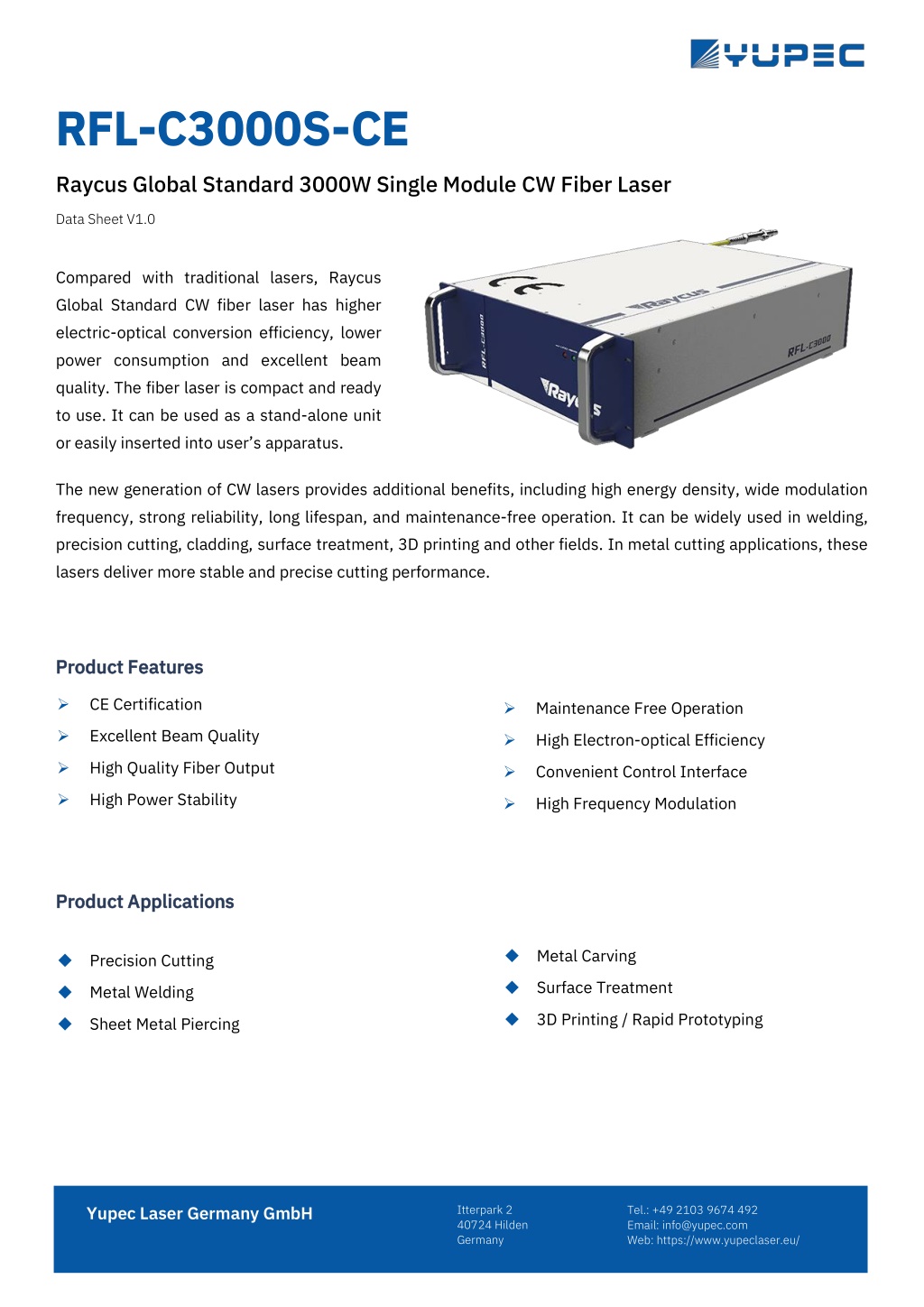

  1. RFL RFL-C3000S- -C3000S-CE CE Raycus Global Standard 3000W Single Module CW Fiber Laser Data Sheet V1.0 Compared with traditional lasers, Raycus Global Standard CW fiber laser has higher electric-optical conversion efficiency, lower power consumption and excellent beam quality. The fiber laser is compact and ready to use. It can be used as a stand-alone unit or easily inserted into user’s apparatus. The new generation of CW lasers provides additional benefits, including high energy density, wide modulation frequency, strong reliability, long lifespan, and maintenance-free operation. It can be widely used in welding, precision cutting, cladding, surface treatment, 3D printing and other fields. In metal cutting applications, these lasers deliver more stable and precise cutting performance. Product Product Features Features CE Certification  Maintenance Free Operation  Excellent Beam Quality  High Electron-optical Efficiency  High Quality Fiber Output  Convenient Control Interface  High Power Stability  High Frequency Modulation  Product Product Application Applications s Metal Carving  Precision Cutting  Surface Treatment  Metal Welding  3D Printing / Rapid Prototyping  Sheet Metal Piercing  Yupec Laser Germany GmbH Itterpark 2 40724 Hilden Germany Tel.: +49 2103 9674 492 Email: info@yupec.com Web: https://www.yupeclaser.eu/

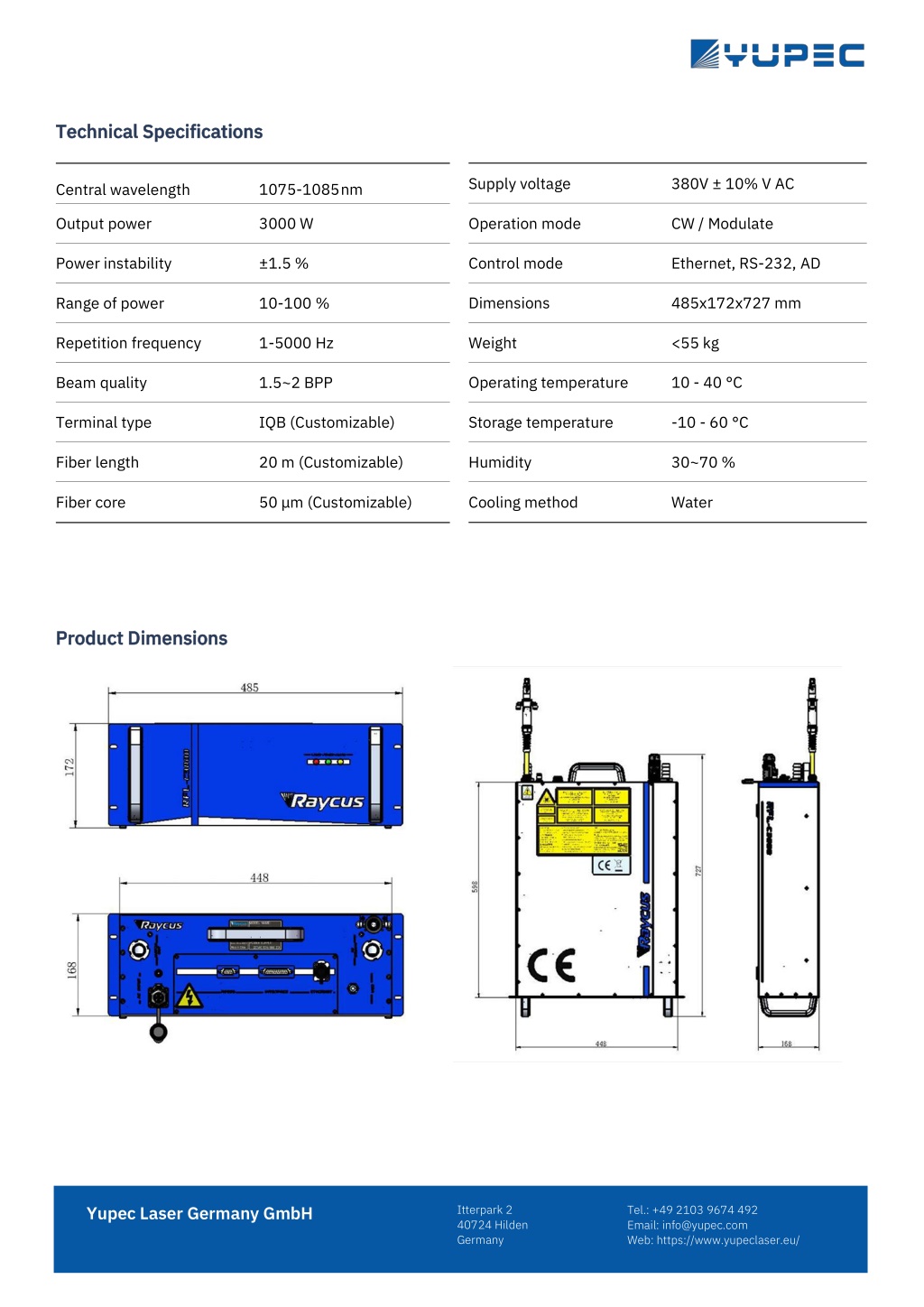

  2. Technical Technical Specifications Specifications Supply voltage 380V ± 10% V AC 1075-1085nm Central wavelength Output power 3000 W Operation mode CW / Modulate Power instability ±1.5 % Control mode Ethernet, RS-232, AD Dimensions 485x172x727 mm Range of power 10-100 % Repetition frequency 1-5000 Hz Weight <55 kg Operating temperature 10 - 40 °C Beam quality 1.5~2 BPP Terminal type IQB (Customizable) Storage temperature -10 - 60 °C Fiber length 20 m (Customizable) Humidity 30~70 % Fiber core 50 μm (Customizable) Cooling method Water Product Product Dimension Dimensions s Yupec Laser Germany GmbH Itterpark 2 40724 Hilden Germany Tel.: +49 2103 9674 492 Email: info@yupec.com Web: https://www.yupeclaser.eu/
