Automated Fiber Management System for Large Infrastructure Networks

This robust system streamlines fiber management for over 3250 network equipment, 950 Wi-Fi stations, and 12000 fixed phones. With simplified automation, it efficiently handles critical applications, ensuring CERN's network dependency. Explore the current and future fiber modules for enhanced control and flexibility.

tudor
Download Presentation

Automated Fiber Management System for Large Infrastructure Networks

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

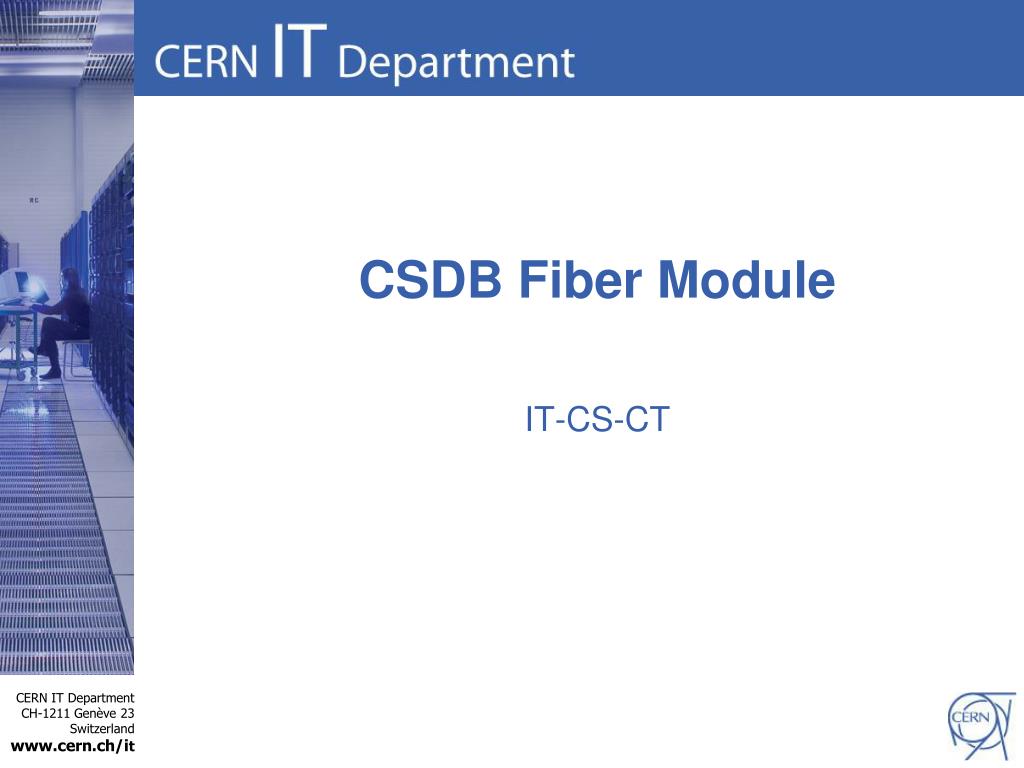

  1. CSDB Fiber Module IT-CS-CT

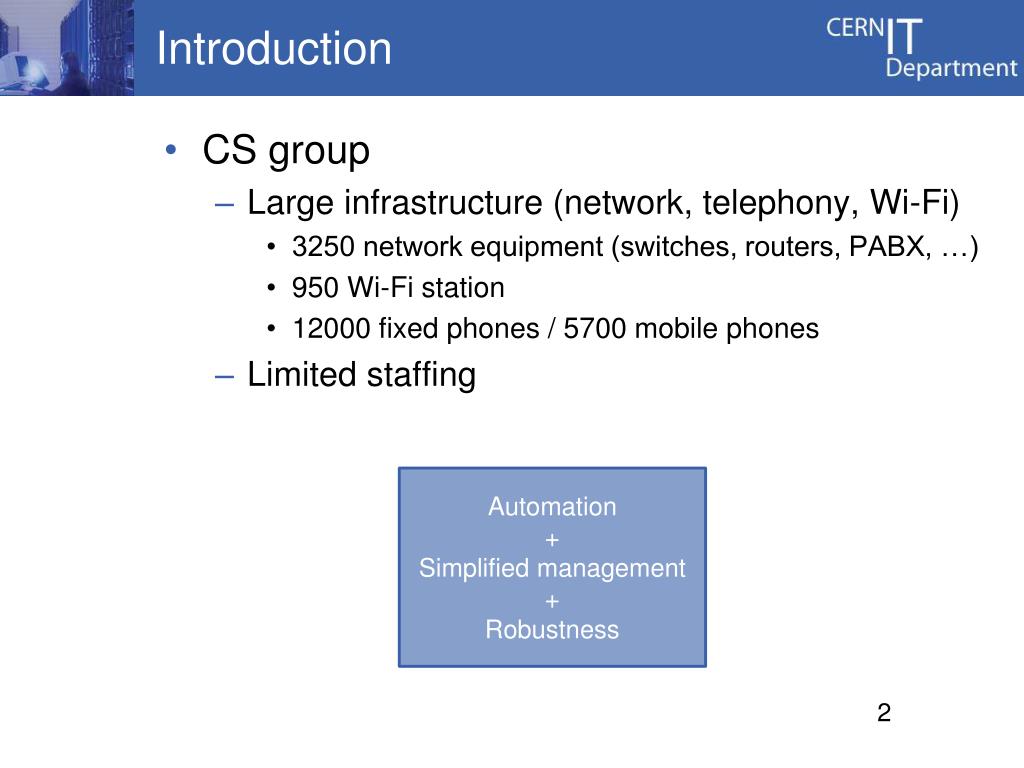

  2. Introduction Automation + Simplified management + Robustness • CS group • Large infrastructure (network, telephony, Wi-Fi) • 3250 network equipment (switches, routers, PABX, …) • 950 Wi-Fi station • 12000 fixed phones / 5700 mobile phones • Limited staffing

  3. Introduction High turnover + Flexible to new user demands • CT section (7 people) • Software for automation • Critical applications • CERN network and telephony depend on these

  4. Introduction

  5. Introduction • Main applications

  6. Introduction More than 200 tables

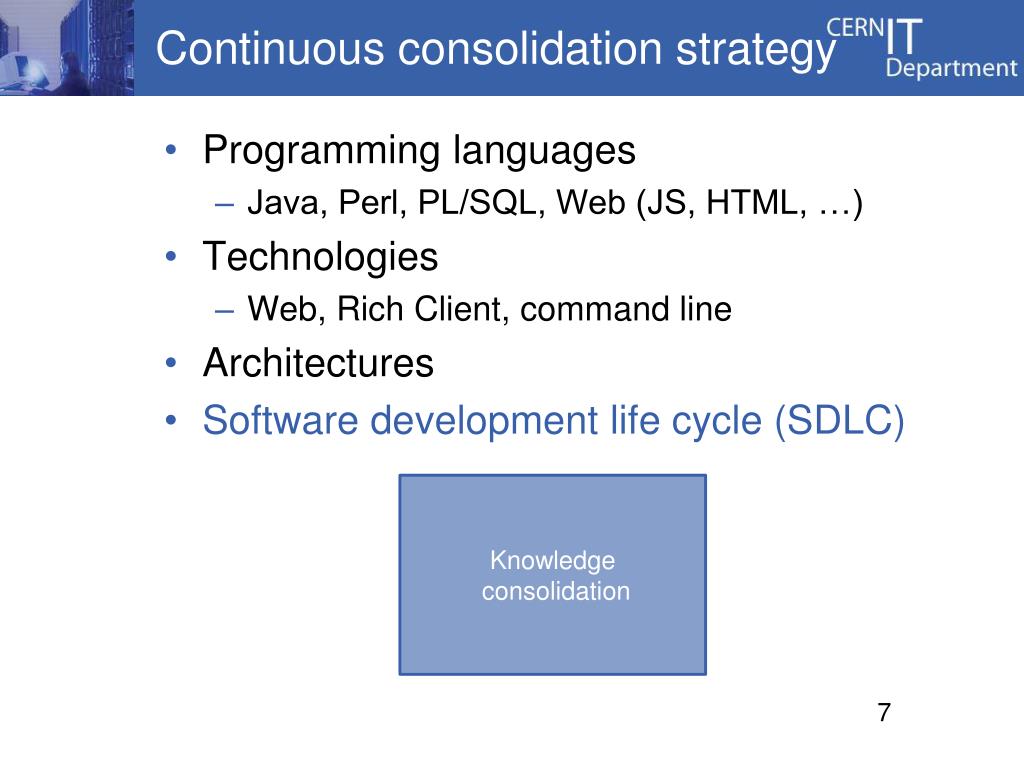

  7. Continuous consolidation strategy Knowledge consolidation • Programming languages • Java, Perl, PL/SQL, Web (JS, HTML, …) • Technologies • Web, Rich Client, command line • Architectures • Software development life cycle (SDLC)

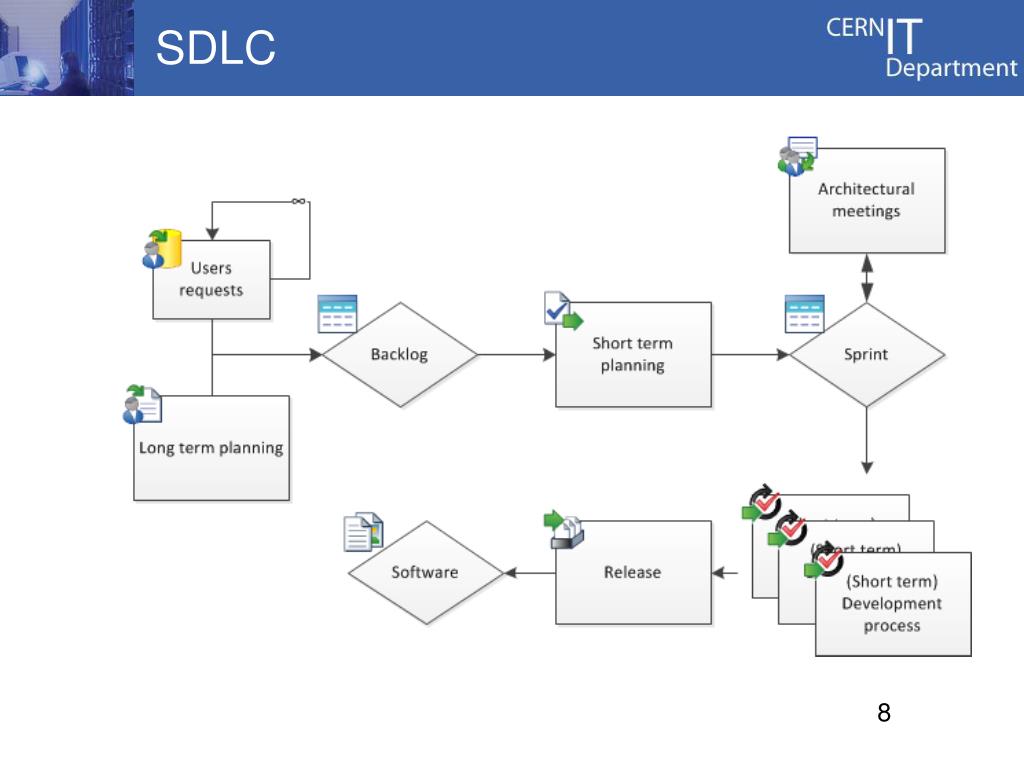

  8. SDLC

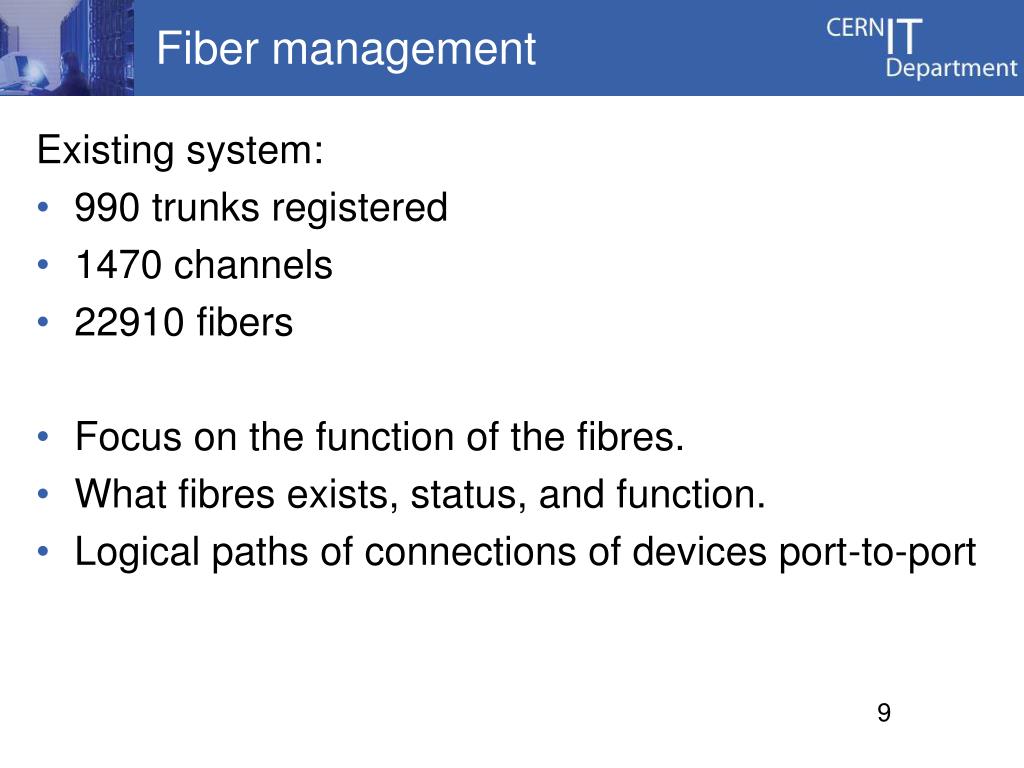

  9. Fiber management Existing system: • 990 trunks registered • 1470 channels • 22910 fibers • Focus on the function of the fibres. • What fibres exists, status, and function. • Logical paths of connections of devices port-to-port 9

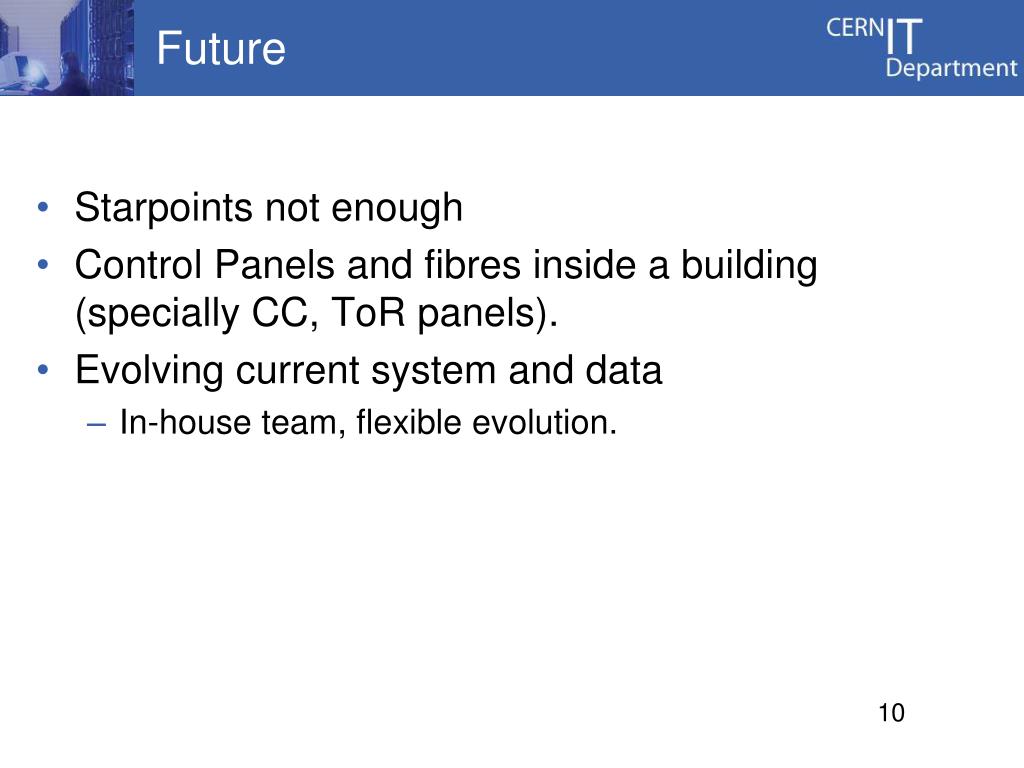

  10. Future • Starpoints not enough • Control Panels and fibres inside a building (specially CC, ToR panels). • Evolving current system and data • In-house team, flexible evolution. 10

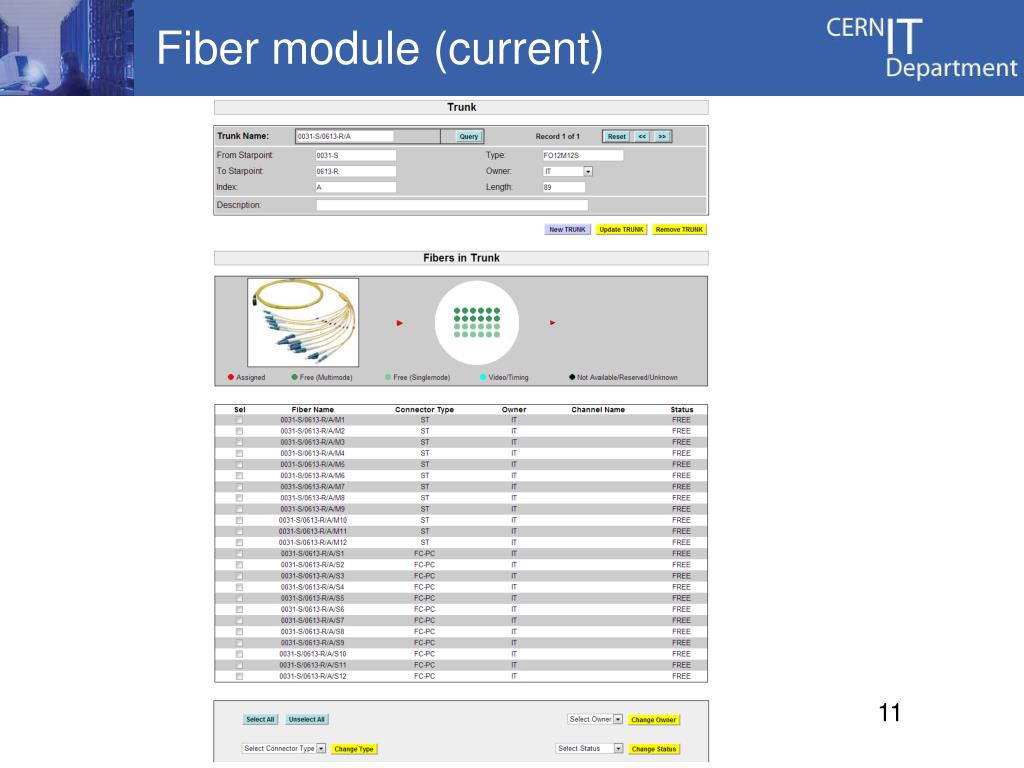

  11. Fiber module (current) 11

  12. Fiber module (current) 12

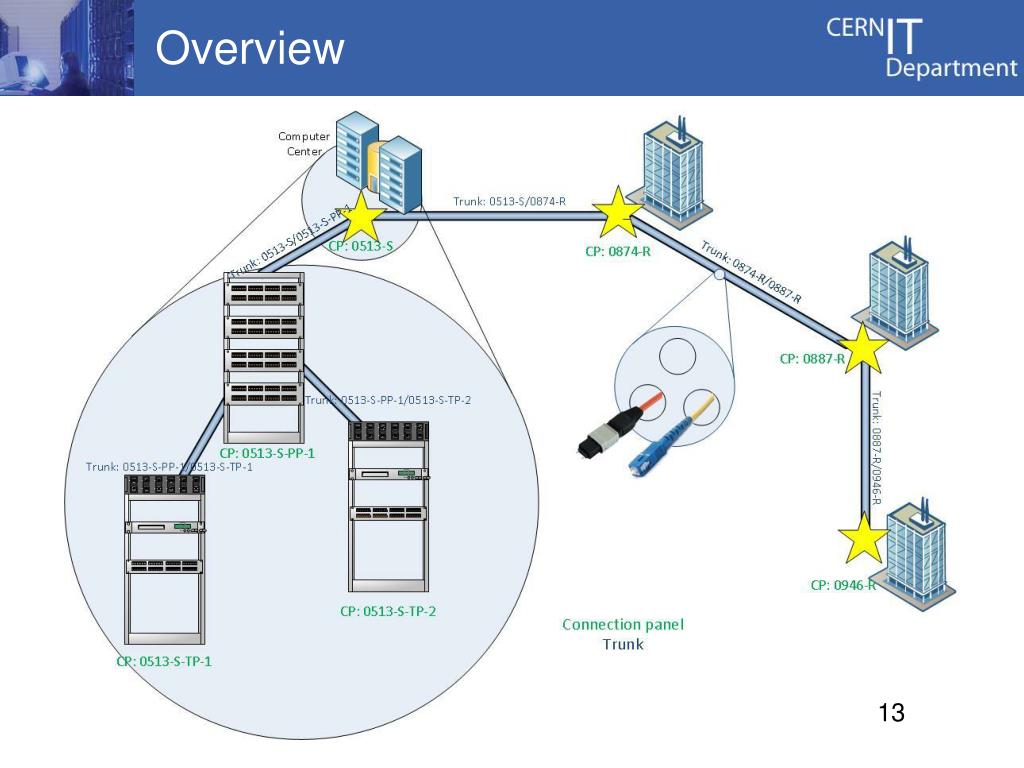

  13. Overview 13

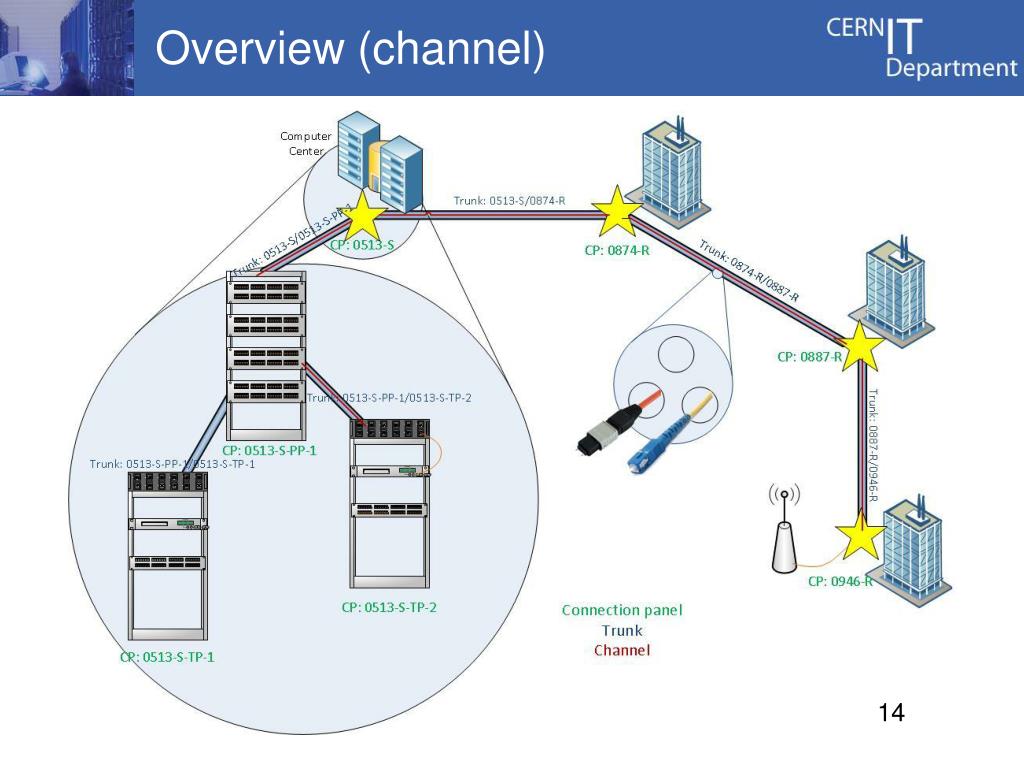

  14. Overview (channel) 14

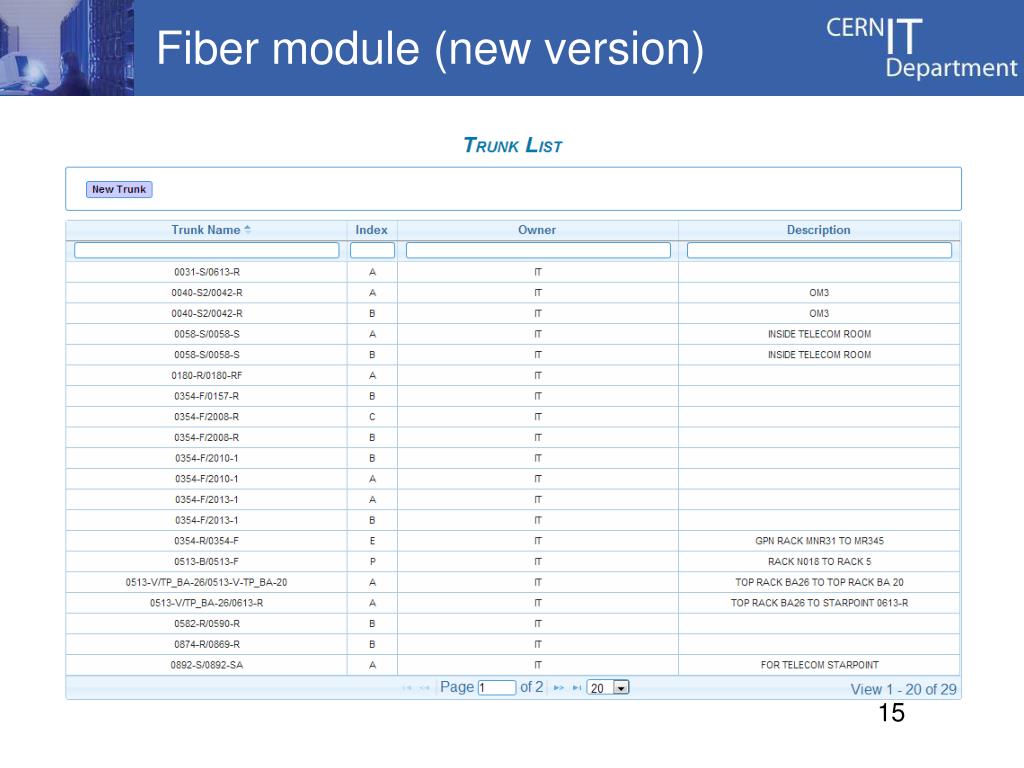

  15. Fiber module (new version) 15

  16. Fiber module (new version) 16

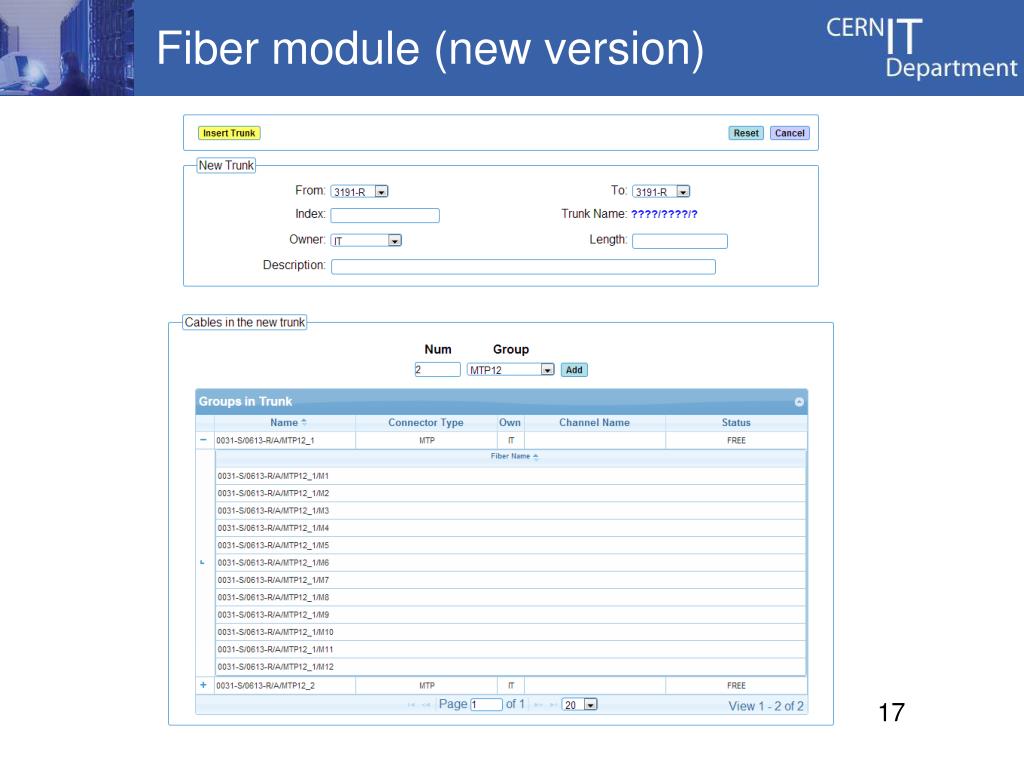

  17. Fiber module (new version) 17

  18. Fiber module (new version) 18

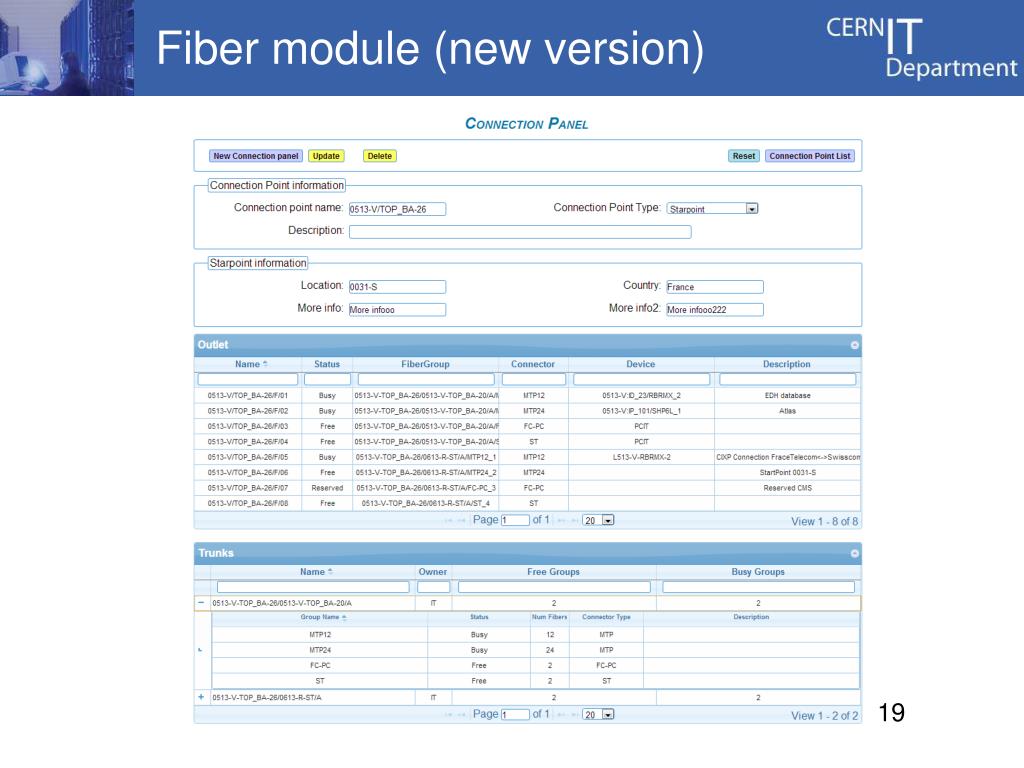

  19. Fiber module (new version) 19
