  1. Achieving Link Reliability GZ01 Networked Systems Kyle Jamieson Lecture 5 Department of Computer Science University College London

  2. Achieving reliability: the story so far • Apply forward error correction (FEC) at physical layer • Apply error detection at higher layers

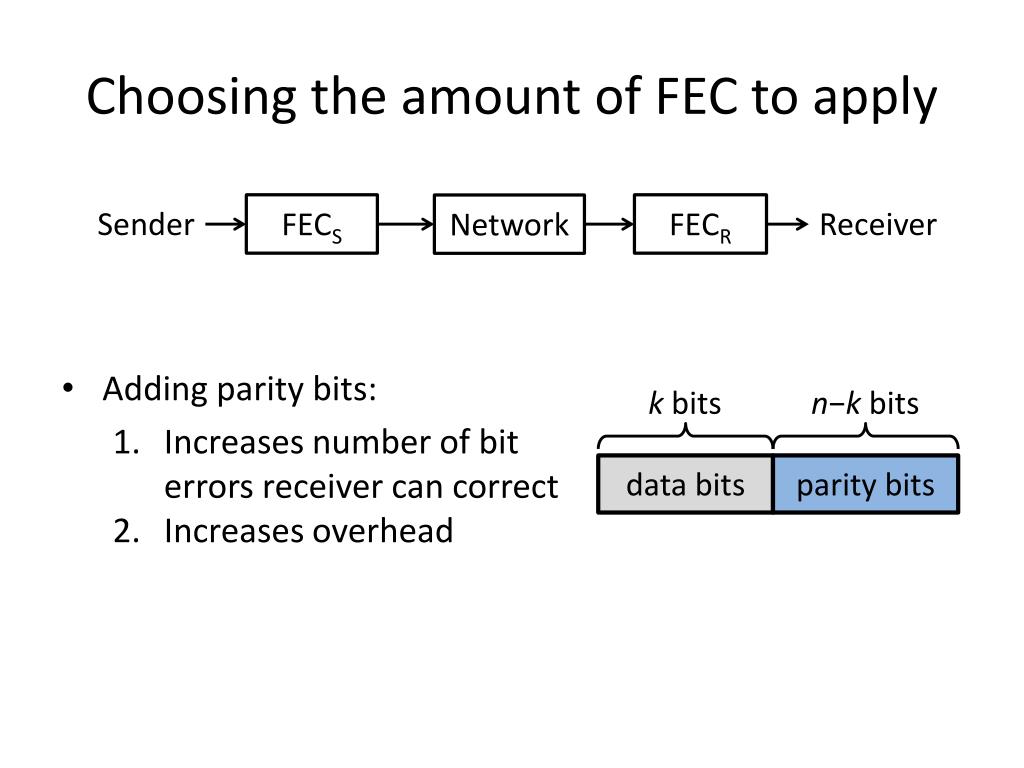

  3. Choosing the amount of FEC to apply • Adding parity bits: • Increases number of bit errors receiver can correct • Increases overhead k bits n−k bits FECS FECR Network Sender Receiver data bits parity bits

  4. How much FEC do we need to apply? FLR n = 320 (40 bytes) n = 104 (1250 bytes) Bit error rate(p)

  5. How much FEC do we need to apply? • Goal: Frame loss rate (FLR) < ≈10-3 • Suppose after applying FEC, probability of a bit error is p • Pr[Frame of length n bits delivered] = (1 − p)n • Assumption: Independence between bit errors (worst case) • Frame loss rate (FLR): 1 − Pr[Frame delivered] • Add enough FEC to keep FLR below knee, but no more (wastes bits on the channel) • For small x, binomial expansion of (1+x)n ≈ 1 + nx • FLR = 1 − (1 − p)n ≈ n × (BER)  BER / n < 10-3 • BER before FEC of some links (wireless) can be as high as 10-2 (wired much less) • For data packet of 1250 bytes (104 bits), need BER after FEC of 10-7 FLR n = 320 (40 bytes) n = 104 (1250 bytes) Bit error rate(p)

  6. Some errors are too severe to be corrected • No matter how many parity bits we add, the network could flip them and data bits, causing errors! • Error detection (CRC) then discards these frames How to ensure that links are reliable? FECS FECR Network Sender Receiver

  7. Reliable delivery: Plan • Goal: ensure every packet is received exactly once • Exactly-once delivery • Pipelining for performance • Handling retransmissions intelligently • Congestion in the Internet • Culmination: the Transmission Control Protocol

  8. Today • Designing reliable transfer from first principles: the Stop and Wait protocol • Performance calculations: link utilization • Making stop and wait reliable transfer fast: the Go Back N protocol

  9. Reliable transfer over an unreliable network • Classic networking problem, recurs at many different layers • Our approach will be abstract • Functionality split between sender and receiver • Task: Design sender and receiver sides of a reliable data transfer (rdt) protocol, using unreliable data transfer (udt) protocol rdt_send(data) deliver_data(data) Reliable data transfer protocol (sender side) Reliable data transfer protocol (receiver side) udt_send(pkt) rdt_recv(pkt) Transport Layer Link Layer Physical Layer Network Layer Unreliable channel

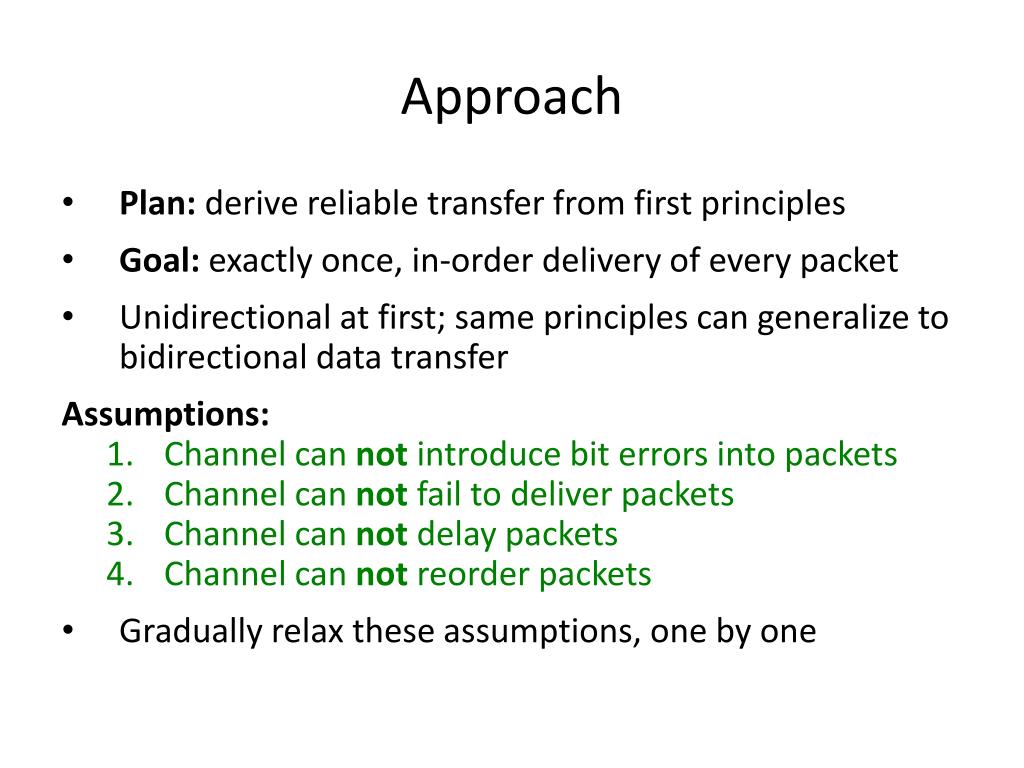

  10. Approach • Plan: derive reliable transfer from first principles • Goal: exactly once, in-order delivery of every packet • Unidirectional at first; same principles can generalize to bidirectional data transfer Assumptions: • Channel can not introduce bit errors into packets • Channel can not fail to deliver packets • Channel can not delay packets • Channel can not reorder packets • Gradually relax these assumptions, one by one

  11. Reliable data transfer (rdt) v1.0 • Independent state machines at sender, receiver • No need for feedback (underlying channel is reliable) • No flow control in this protocol Sender state machine: Receiver state machine:

  12. Assumptions • Channel can introduce bit errors into packets • Channel (sender to receiver) can introduce bit errors • Channel (receiver to sender) can not introduce bit errors • Channel can not fail to deliver packets • Channel can not delay packets • Channel can not reorder packets

  13. Idea: Receiver requests re-sends • Three fundamental mechanisms: • Error detection: typically a packet checksum (like the CRC) • Acknowledgements: small control frame (ACK) transmitted from the receiver back to the sender • Positive ACKs acknowledge correct receipt • Negative ACKs inform sender of incorrect receipt • Timeouts: sender waits a reasonable amount of time, then retransmits the frame • Protocols using these techniques are called automatic repeat request (ARQ) protocols • Surprisingly challenging to apply correctly! Three loaves of bread, OK. A dozen eggs, Sorry? A dozen eggs,

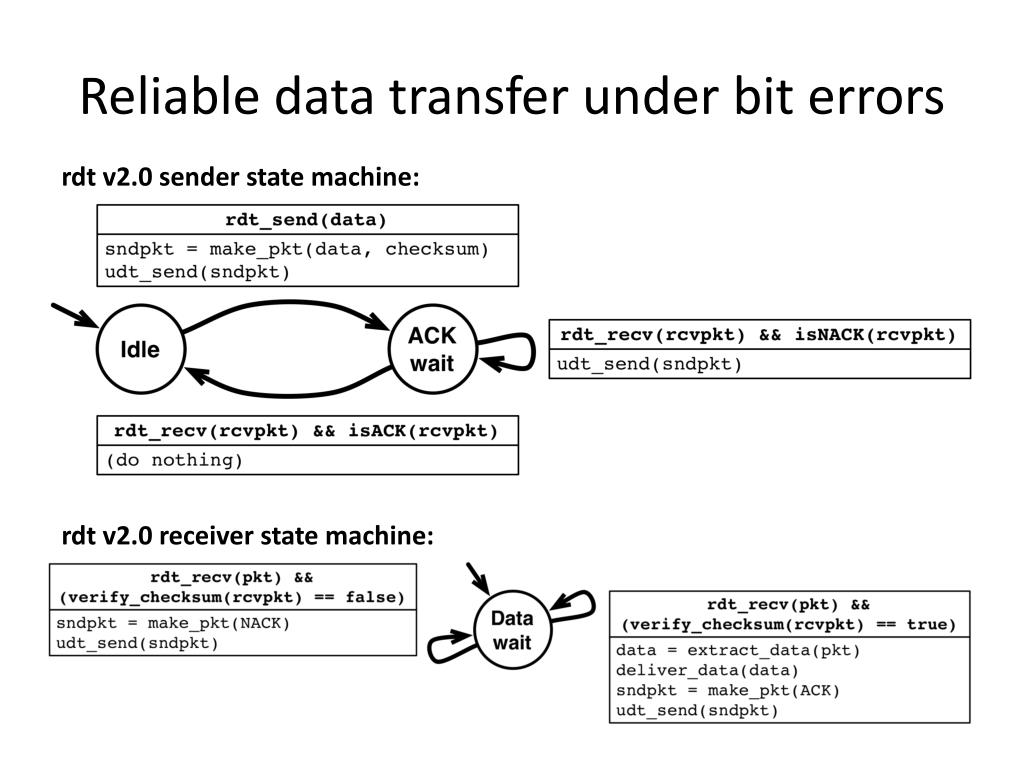

  14. Reliable data transfer under bit errors rdt v2.0 sender state machine: rdt v2.0 receiver state machine:

  15. Reliable data transfer v2.0 analysis Sender Receiver • Stop-and-wait protocol: Sender doesn’t send more data until sure original data received • e.g. rdt v2.0 • Performance depends on sender-receiver delay, and throughput • Two cases: • Data arrives okay • ACK comes back immediately • Sender sends next packet • Data arrives corrupted • NACK comes back immediately • Sender retransmits corrupted packet • Exactly once, in-order delivery IDLE ACK wait Data A ACK IDLE ACK wait Data B NACK IDLE ACK wait Data B ACK

  16. Assumptions • Channel can introduce bit errors into packets • Channel (sender to receiver) can introduce bit errors • Channel (receiver to sender) can introduce bit errors • Channel can not fail to deliver packets • Channel can not delay packets arbitrarily • Channel can not reorder packets

  17. Human approach to feedback errors • Idea: Apply ARQ in reverse • Request retransmits of corrupted feedback • If corrupt, receiver doesn’t know if forward-link packets are data or feedback retransmit requests • Clearly heading down a difficult path! Three loaves of bread, OK. Sorry? Sorry? Sorry? …

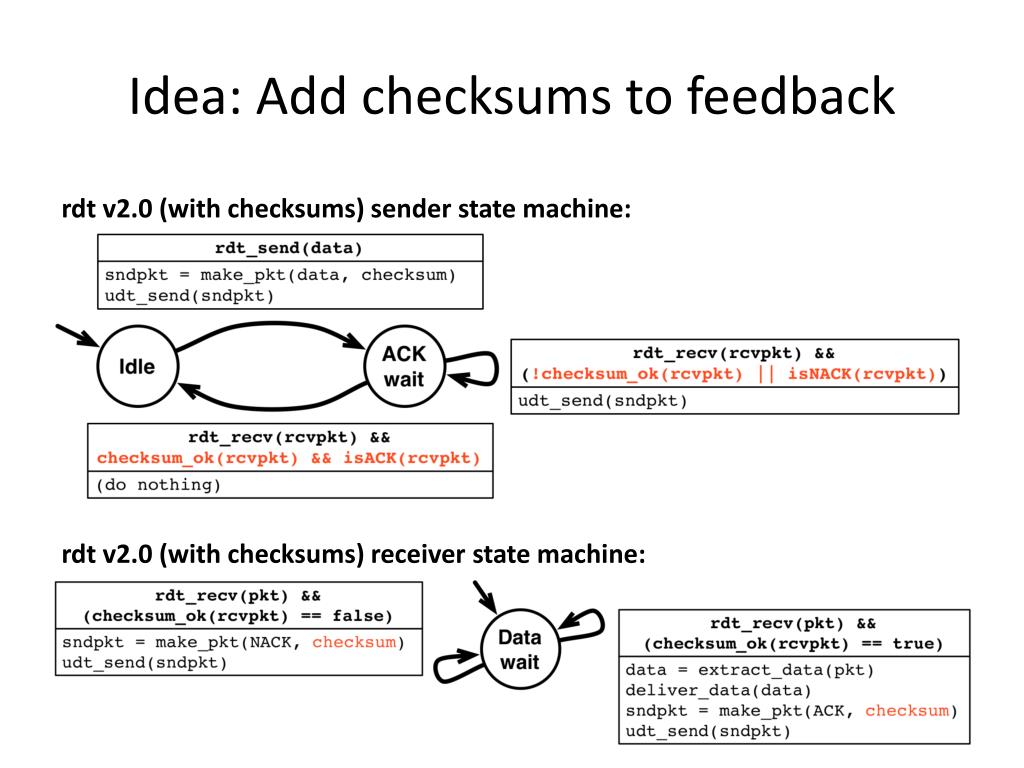

  18. Idea: Add checksums to feedback rdt v2.0 (with checksums) sender state machine: rdt v2.0 (with checksums) receiver state machine:

  19. Problem for rdt v2.0: duplicates Sender Receiver • Three cases: • Data okay, ACK okay • Data corrupted • NACK comes back immediately • Sender retransmits corrupted packet • Data okay, ACK corrupted • ACK comes back immediately • Sender resends same packet • Result: At least once, in-order delivery IDLE ACK wait Data B NACK IDLE ACK wait Data B ACK IDLE ACK wait Data B ACK

  20. Assumptions • Channel can introduce bit errors into packets • Channel (sender to receiver) can introduce bit errors • Channel (receiver to sender) can introduce bit errors • Channel can not fail to deliver packets • Channel can not delay packets arbitrarily • Channel can not reorder packets • Sender or channel can duplicate packets

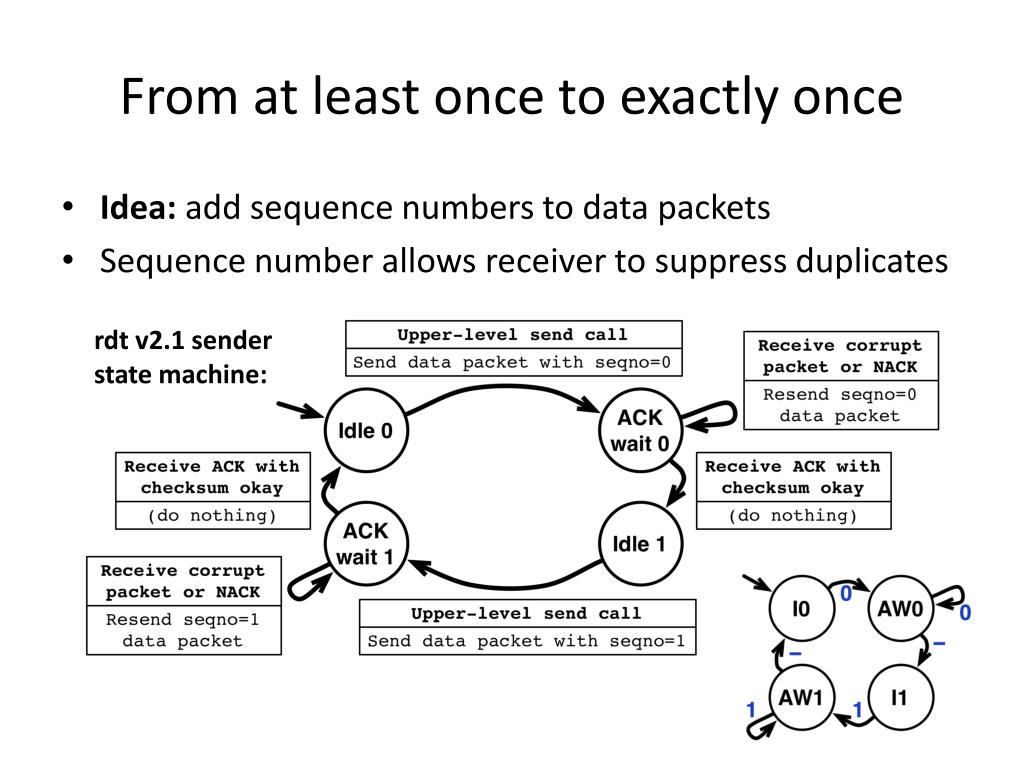

  21. From at least once to exactly once • Idea: add sequence numbers to data packets • Sequence number allows receiver to suppress duplicates rdt v2.1 sender state machine:

  22. From at least once to exactly once • Two states at receiver: one for expecting seqno=1; the other for expecting seqno=0 rdt v2.1 receiver state machine:

  23. rdt v2.1 error-free operation • Sender: send data, wait for reply • Receiver: deliver data, send ACK • Sender: send next data, wait • Receiver: deliver data, send ACK • Sender: transition to Idle State 0 Sender state machine: Sender Receiver Data, seqno=0 I0 DW 0 AW0 DW 1 Receiver state machine: ACK I1 Data, seqno=1 AW1 DW 0 ACK I0

  24. rdt v2.1: bit errors on the forward link • Sender: send data, wait for reply • Receiver: checksum fails; NACK • Sender: resend seqno=0 data • Receiver: deliver data; send ACK • Sender: transition to Idle State 1 Sender state machine: Sender Receiver I0 DW 0 Data, seqno=0 AW0 DW 0 Receiver state machine: NACK Data, seqno=0 AW0 DW 1 ACK I1

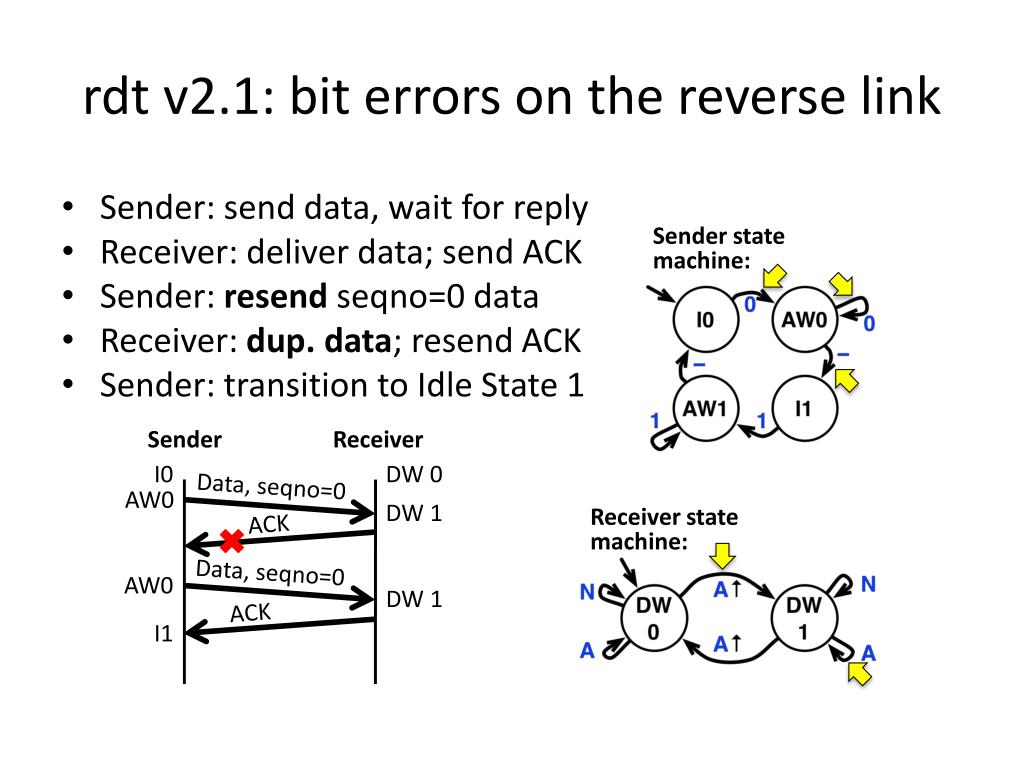

  25. rdt v2.1: bit errors on the reverse link • Sender: send data, wait for reply • Receiver: deliver data; send ACK • Sender: resend seqno=0 data • Receiver: dup. data; resend ACK • Sender: transition to Idle State 1 Sender state machine: Sender Receiver I0 DW 0 Data, seqno=0 AW0 DW 1 Receiver state machine: ACK Data, seqno=0 AW0 DW 1 ACK I1

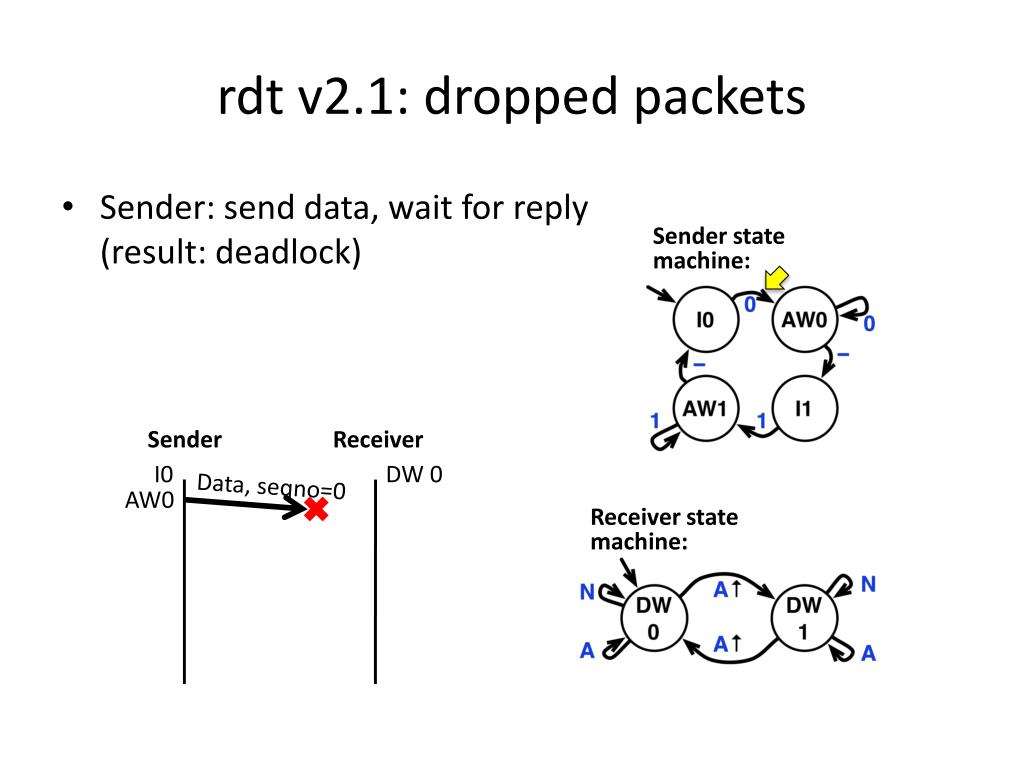

  26. rdt v2.1: dropped packets • Sender: send data, wait for reply (result: deadlock) Sender state machine: Sender Receiver I0 DW 0 Data, seqno=0 AW0 Receiver state machine:

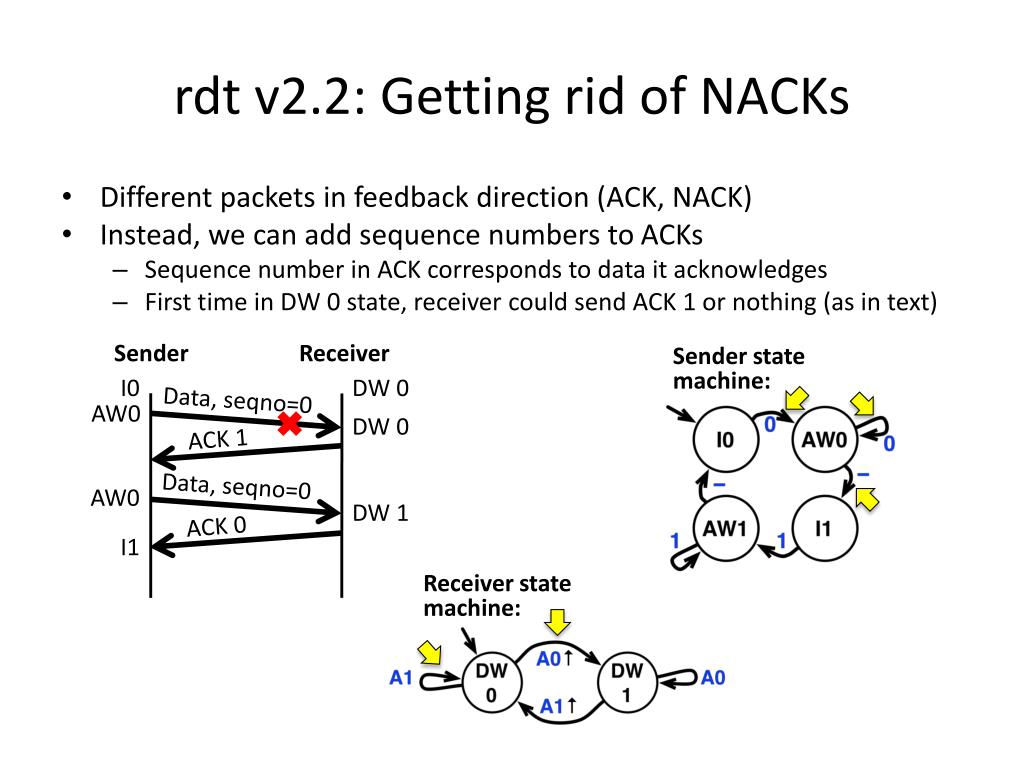

  27. rdt v2.2: Getting rid of NACKs • Different packets in feedback direction (ACK, NACK) • Instead, we can add sequence numbers to ACKs • Sequence number in ACK corresponds to data it acknowledges • First time in DW 0 state, receiver could send ACK 1 or nothing (as in text) Sender state machine: Sender Receiver I0 DW 0 Data, seqno=0 AW0 DW 0 Receiver state machine: ACK 1 I1 Data, seqno=0 AW0 DW 1 ACK 0

  28. Assumptions • Channel can introduce bit errors into packets • Channel (sender to receiver) can introduce bit errors • Channel (receiver to sender) can introduce bit errors • Channel can fail to deliver packets • Channel can delay packets arbitrarily • Channel can not reorder packets • Sender or channel can duplicate packets

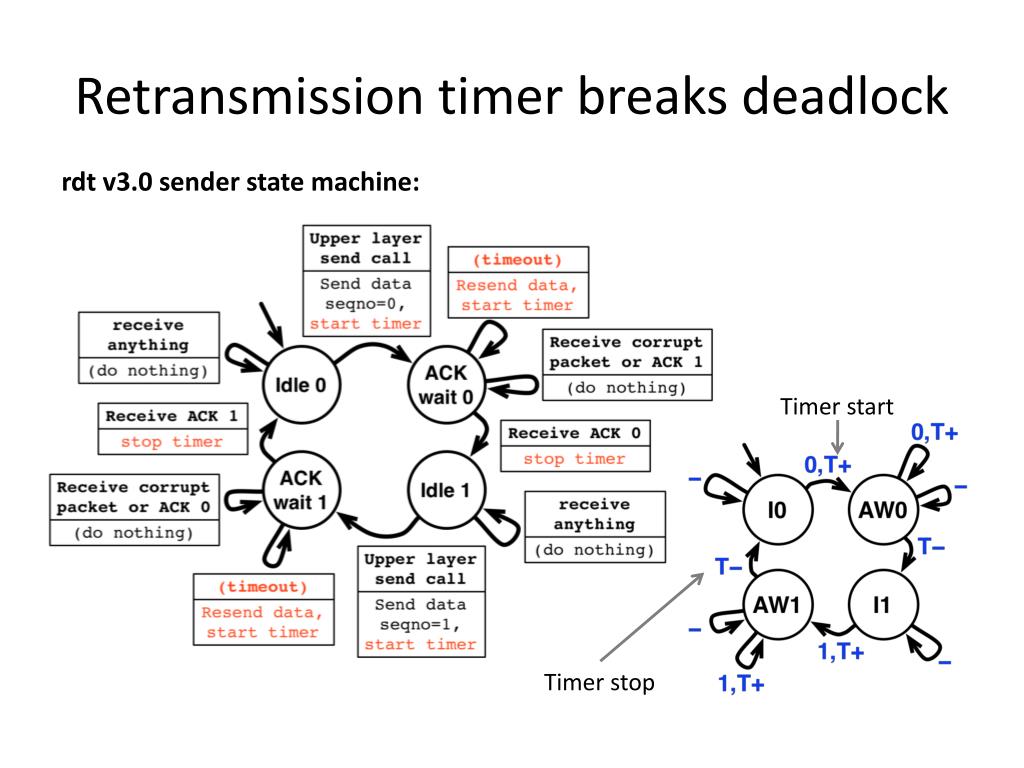

  29. Retransmission timer breaks deadlock rdt v3.0 sender state machine: Timer start Timer stop

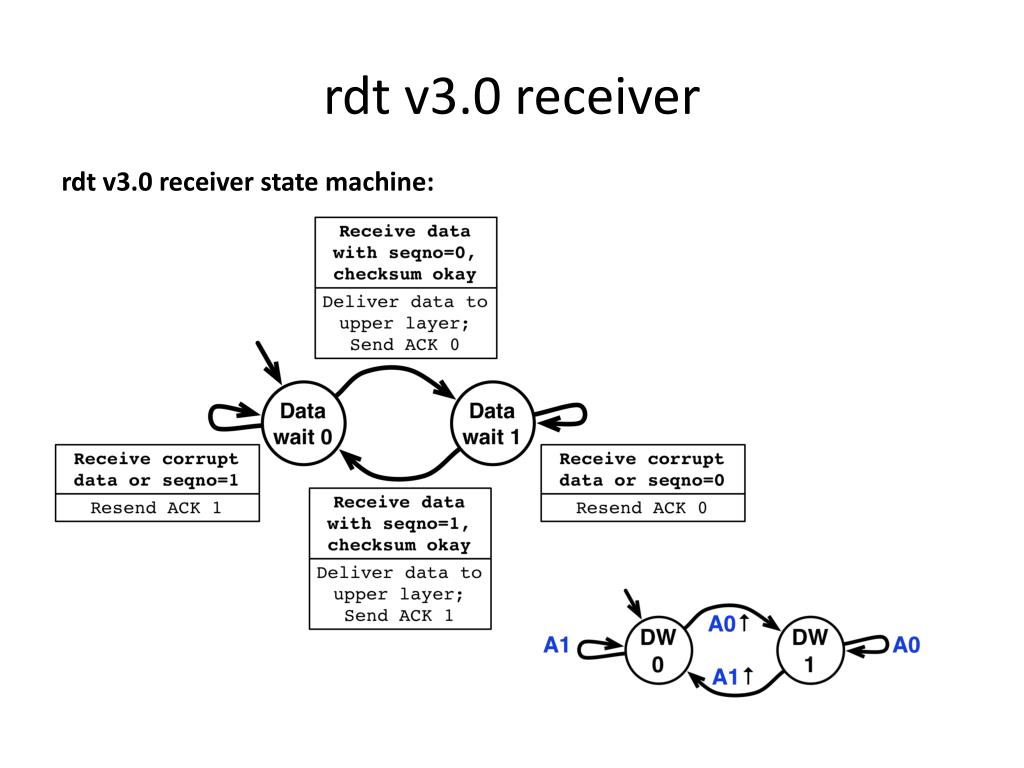

  30. rdt v3.0 receiver rdt v3.0 receiver state machine:

  31. rdt v3.0: recovering lost packets • Sender: send, start timer, wait/reply • Receiver: deliver; send ACK 0 (lost) • Sender: timeout, resend, start timer • Receiver: dup. data; resend ACK 0 • Sender: stop timer, go to Idle State 1 Sender state machine: Sender Receiver I0 DW 0 Data, seqno=0 AW0 DW 1 Receiver state machine: ACK 0 Timeout Data, seqno=0 AW0 DW 1 ACK 0 I1

  32. rdt v3.0: delays in the network • Sender: send, start timer, wait/reply • Receiver: deliver; send ACK (delayed) • Sender: timeout, resend, start timer • Sender: stop timer, go to Idle State 1 • Receiver: dup. data, resend ACK 0 • Sender: recv. dup. ACK 0, do nothing Sender state machine: Sender Receiver I0 DW 0 Data, seqno=0 AW0 DW 1 Receiver state machine: Timeout ACK 0 Data, seqno=0 AW0 DW 1 I1 ACK 0 I1

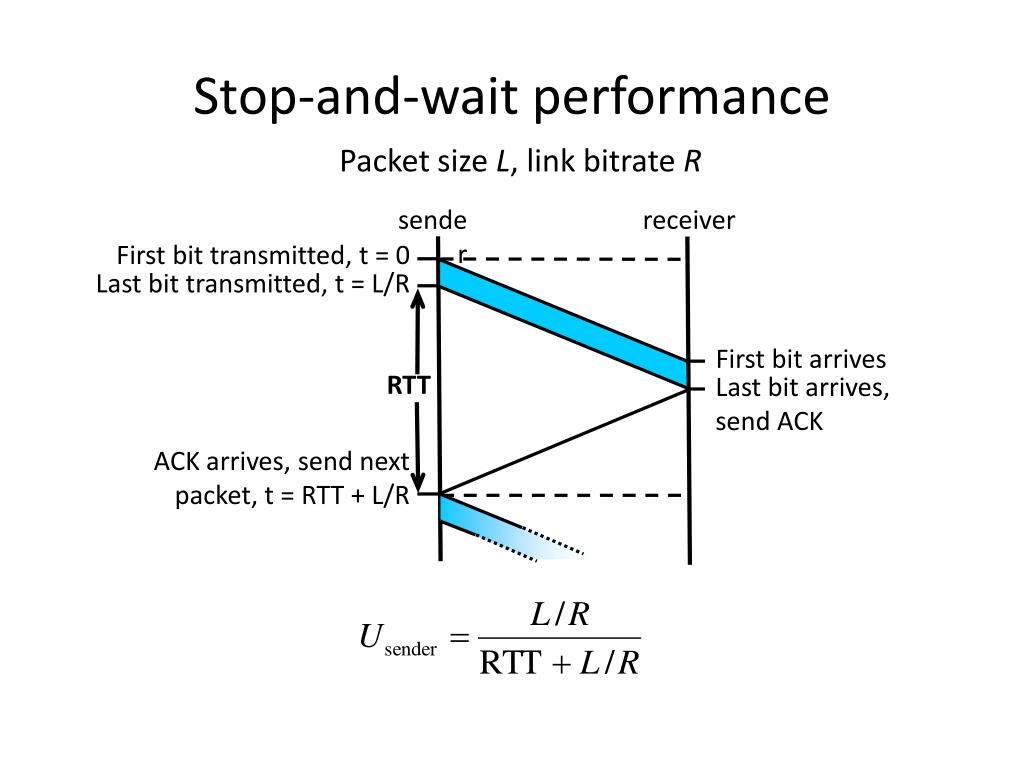

  33. Stop-and-wait performance Packet size L, link bitrate R sender receiver First bit transmitted, t = 0 Last bit transmitted, t = L/R First bit arrives RTT Last bit arrives, send ACK ACK arrives, send next packet, t = RTT + L/R

  34. Packet size L, link bitrate R; utilization Internet e.g.: 8000 bit packet; 1 Gbit/s link, 30 ms RTT: WiFi e.g.: 8000 bit packet; 54 Mbit/s link, 100 ns RTT Performance of stop and wait protocols (not including other unrelated overheads) When packet time << RTT, stop-and-wait underperforms.

  35. Pipelining: sender allows multiple unacknowledged packets “in-flight” from sender to receiver Range of sequence numbers must be increased Buffering at sender and/or receiver Two generic forms of pipelined protocols: Go-Back-N, Selective Repeat Idea: Pipelined protocols

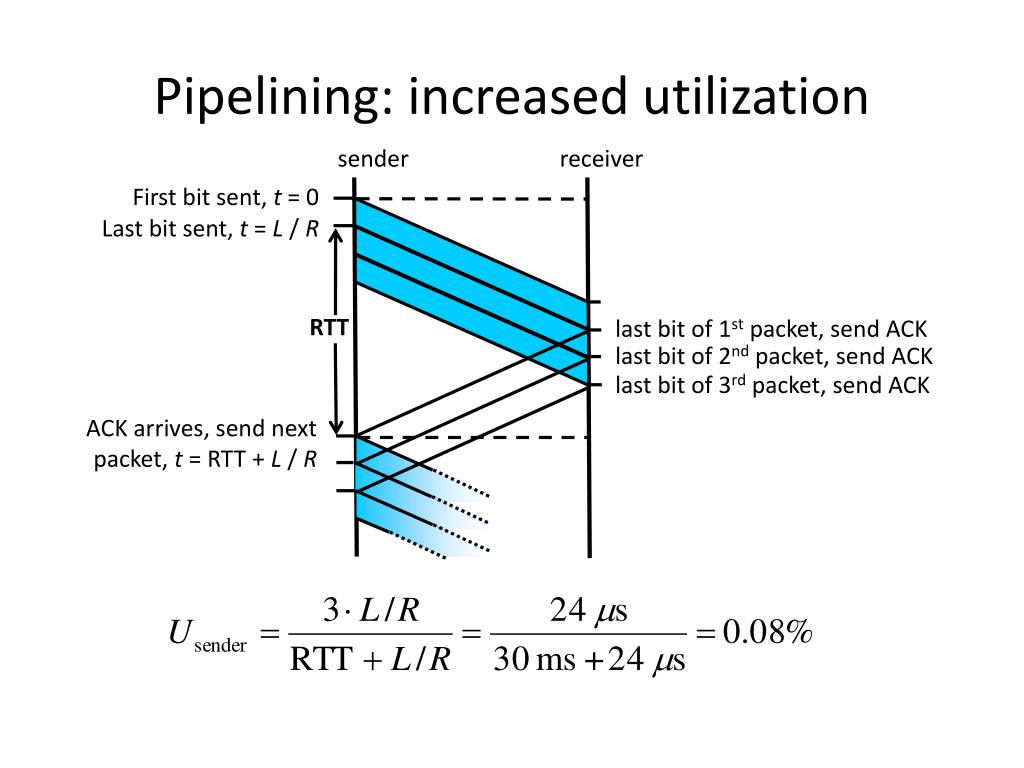

  36. Pipelining: increased utilization sender receiver First bit sent, t = 0 Last bit sent, t = L / R RTT last bit of 1st packet, send ACK last bit of 2nd packet, send ACK last bit of 3rd packet, send ACK ACK arrives, send next packet, t = RTT + L / R

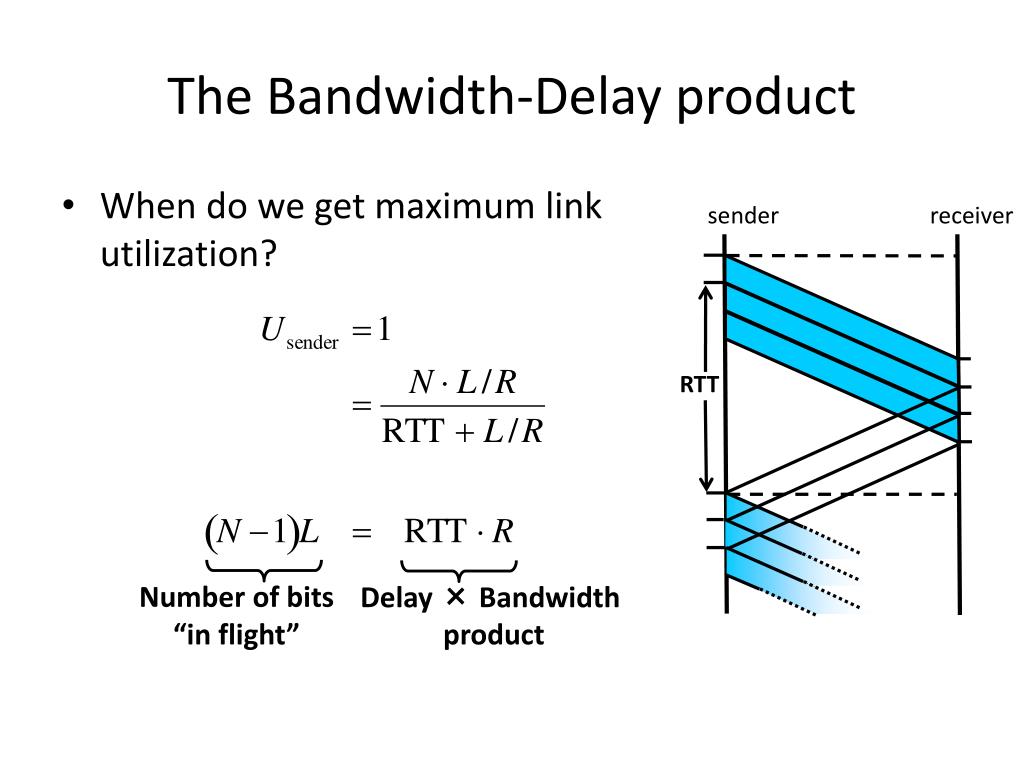

  37. The Bandwidth-Delay product • When do we get maximum link utilization? sender receiver RTT Number of bits “in flight” Delay × Bandwidth product

  38. Today • Designing reliable transfer from first principles: the Stop and Wait protocol • Performance calculations: link utilization • Making stop and wait reliable transfer fast: the Go Back N protocol

  39. Assumptions • Channel can introduce bit errors into packets • Channel (sender to receiver) can introduce bit errors • Channel (receiver to sender) can introduce bit errors • Channel can fail to deliver packets • Channel can delay packets arbitrarily • Channel can reorder packets in forward direction • Sender or channel can duplicate packets

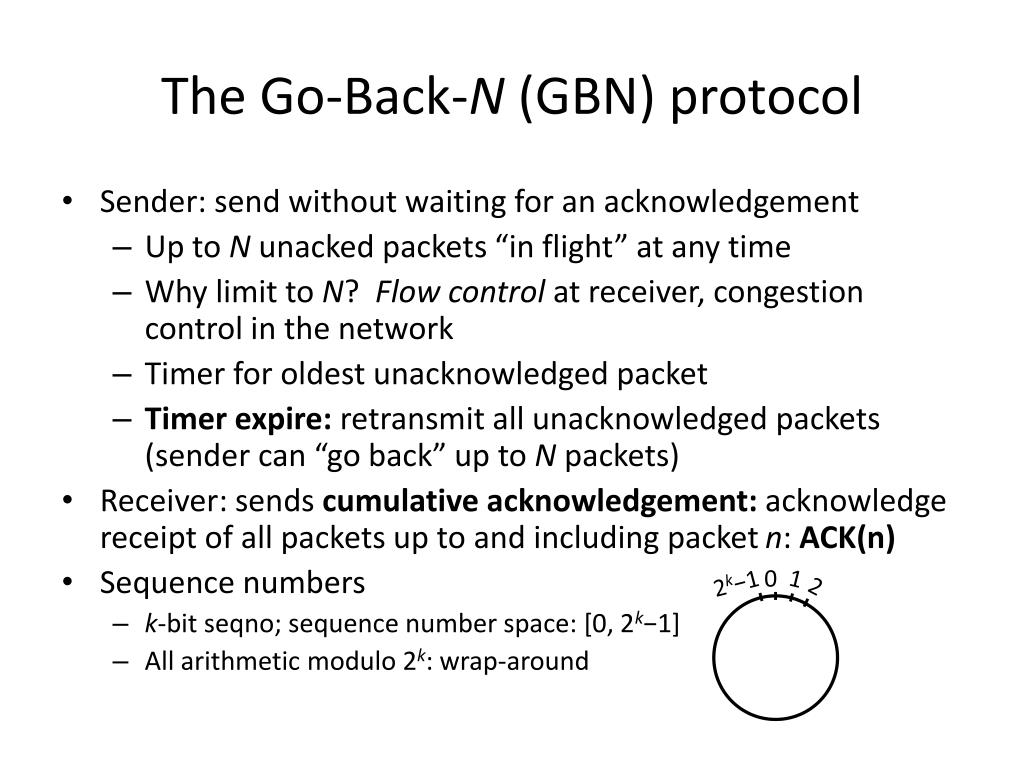

  40. The Go-Back-N (GBN) protocol • Sender: send without waiting for an acknowledgement • Up to N unacked packets “in flight” at any time • Why limit to N? Flow control at receiver, congestion control in the network • Timer for oldest unacknowledged packet • Timer expire: retransmit all unacknowledged packets (sender can “go back” up to N packets) • Receiver: sends cumulative acknowledgement: acknowledge receipt of all packets up to and including packet n:ACK(n) • Sequence numbers • k-bit seqno; sequence number space: [0, 2k−1] • All arithmetic modulo 2k: wrap-around 1 0 2k−1 2

  41. GBN: at the sender rdt_send(data): if nextseqnum < send_base + N: sndpkt[nextseqnum] = make_pkt send data with nextseqnum nextseqnum++ else: (refuse data) timeout: send(sndpkt[base]) send(sndpkt[base+1]) … send(sndpkt[nextseqnum−1]) rdt_recv(ackpkt): send_base = ackpkt.seqno + 1 • GBN: A type of Sliding Window Protocol (Timer code not shown)

  42. GBN: at the receiver • Maintain expectedseqnum variable: sequence number of the next in-order packet • send_base ≤ expectedseqnum < nextseqnum • Incoming data packet with seqno=n • n = expectedseqnum: send ACK(n), increment expectedseqnum • n <> expectedseqnum: discard packet, send ACK(expectedseqnum − 1) • Nothing more, because in the event of loss, the sender will go back to expectedseqnum! • Could buffer correctly-received out-of-order packets, but the sender will transmit them later anyway expectedseqnum

  43. GBN (N = 4) in operation Sender Receiver Send packet 0 Receive 0; send ACK 0 Send packet 1 Receive 1; send ACK 1 Send packet 2 Send packet 3 (wait) Receive 3; discard; send ACK 1 Receive ACK 0; send 4 Receive 4; discard; send ACK 1 Receive ACK 1; send 5 (wait) Receive 5; discard; send ACK 1 Timeout; resend 2 Receive 2; send ACK 2 Resend packet 3 Receive 3; send ACK 3 Resend packet 4 Receive 4; send ACK 4 Resend packet 5 Receive 5; send ACK 5

  44. The role of the retransmission timer • Keeps track of time at sender since the oldest unacknowledged packet was sent • This is the packet to which send_base points • Issue: Choosing a reasonable timer value • Compare to RTT of one packet: • Too small causes unnecessary retransmissions • Too big wastes time • Later: we will see how TCP solves this problem robustly

  45. Next time • No lecture this Thursday, 21st October
