  1. Waste Energy for Future

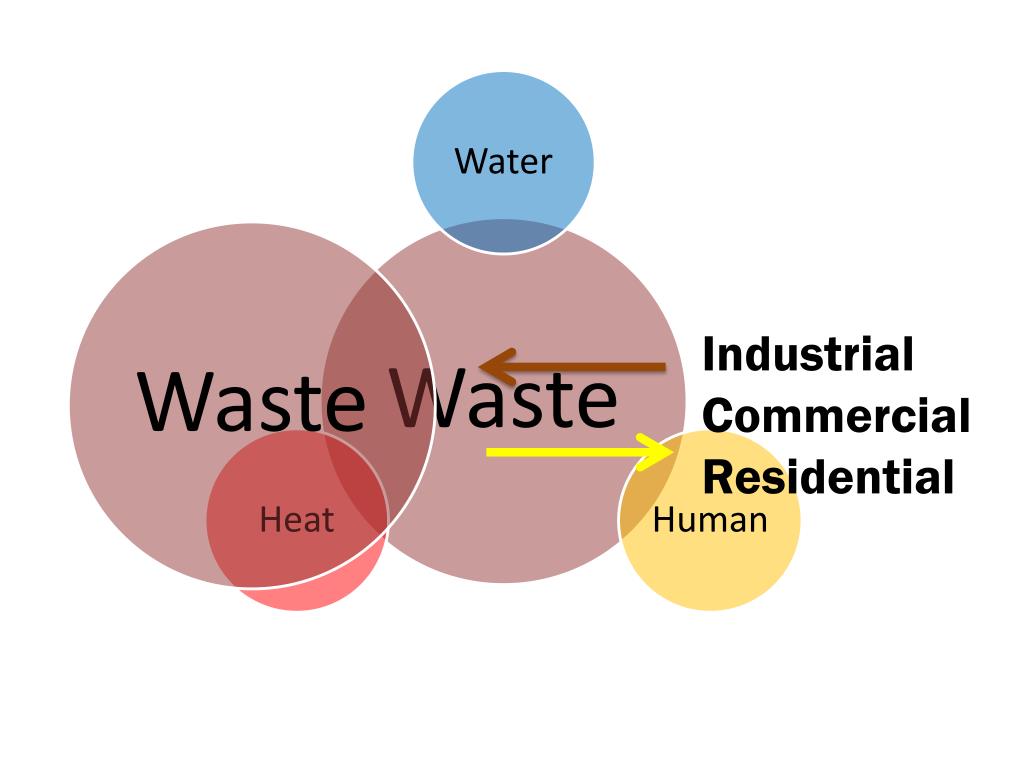

  2. Waste Industrial Commercial Residential

  3. Recoverable Heat Can power 60W Light Bulb for Industrial Process Data Center/Server Air-Conditioner Refrigerator Calcium Carbide Sulphuric Acid Furnace Slag 50, 000 hour 3 hour 18, 000 hour 27, 000 hour 17, 000 Hour 28, 000 hour

  4. Thermoelectric Recovery System Heat N-Semiconductor P-Semiconductor - - + + Cooling System Conductor

  5. B. Siphon concept - Create large water current C. Micro-hydro generator D. Waste outlet - Single acting spring hinge - Remove solid/semi-liquid waste Sedimentation tank with Inclined Plate Technology - Separate solid from liquid waste - Filter

  6. Feasibility Average family uses 400 gallons water everyday 70 %of water is used indoors. kW • With 100 l/s flow rate, it can produce 5kW power • The system has an average efficiency of 60% litre/s

  7. Microbial Fuel Cell Convert energy released in metabolic reactions into electrical energy

  8. 30% energy • conversion

  9. Generate 3,150 kWh Fuel Cell (2700kg dry weight) • Power a light bulb for 50,000 hours

  10. Integrated Harness System Air conditioner Sedimentation tank Heat Sewage Server Generator Microbial fuel cell Generator Turbine generator

  11. We see waste as a resource
