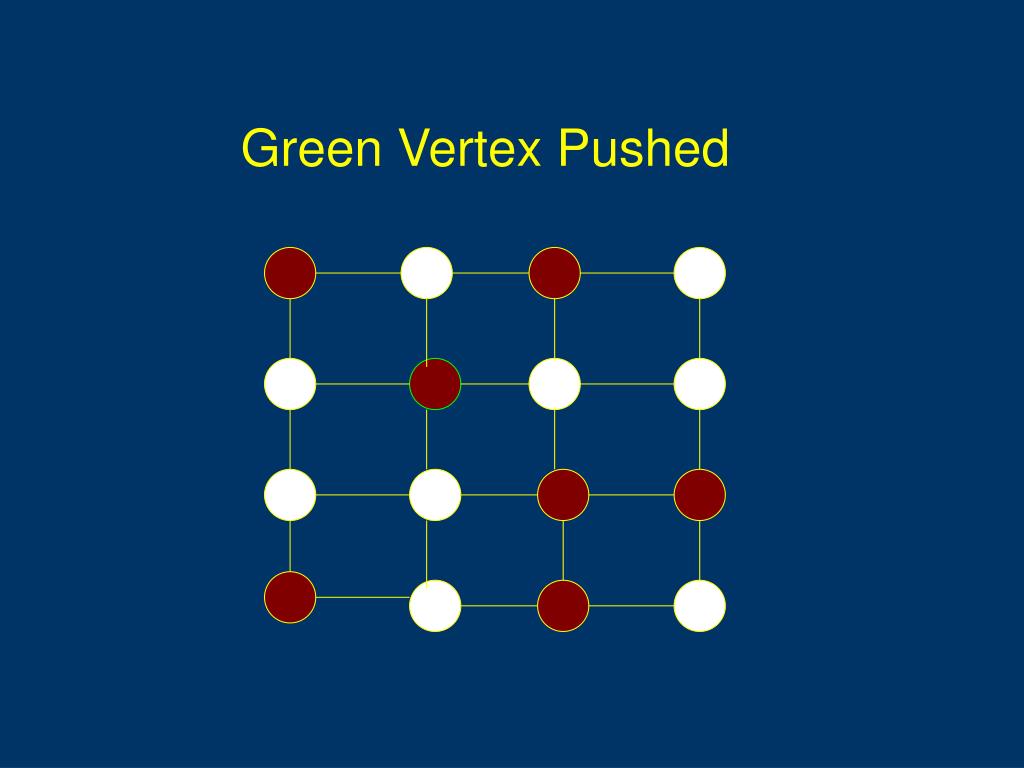

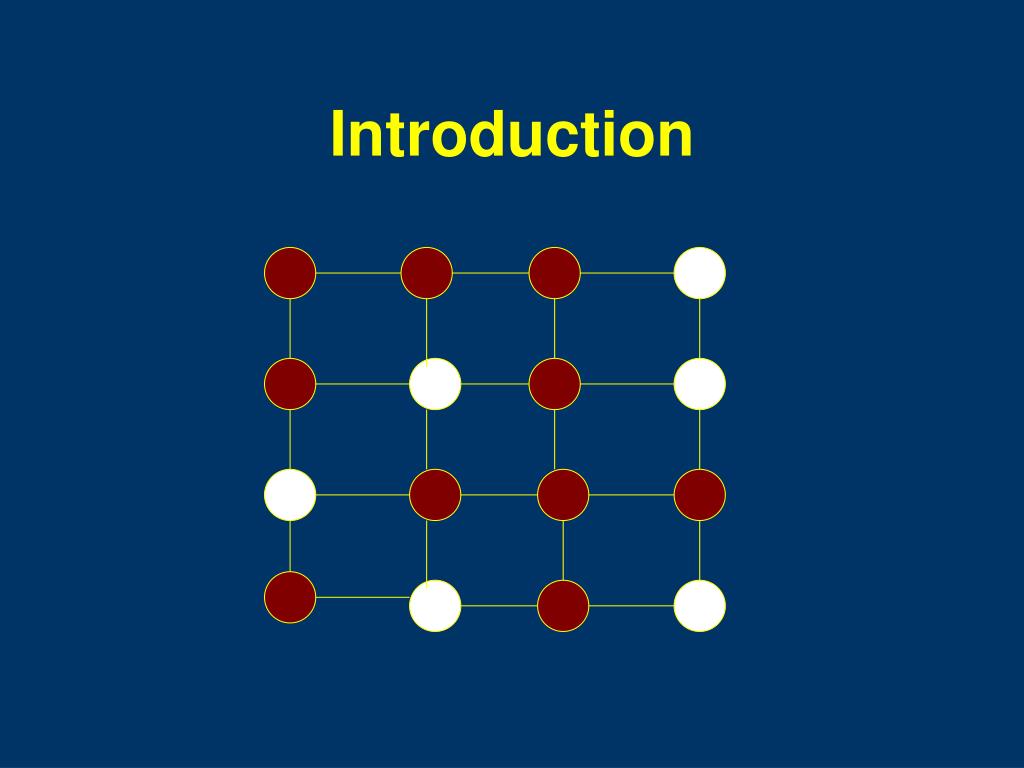

Lights Out for Fun and Profit! Parity Domination: Algorithmic and Graph Theoretic Results. William F. Klostermeyer University of North Florida. Introduction. Green Vertex Pushed. Introduction cont. Of the 2 16 initial configurations of 4 X 4 grid, 2 12 can be changed to all-off

loader
I am the owner, or an agent authorized to act on behalf of the owner, of the copyrighted work described.
capcha
Download Presentation

PowerPoint Slideshow about 'Lights Out for Fun and Profit! Parity Domination: Algorithmic and Graph Theoretic Results' - yosefu


An Image/Link below is provided (as is) to download presentation

Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author.While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server.


- - - - - - - - - - - - - - - - - - - - - - - - - - E N D - - - - - - - - - - - - - - - - - - - - - - - - - -
Presentation Transcript
lights out for fun and profit parity domination algorithmic and graph theoretic results

Lights Out for Fun and Profit!Parity Domination:Algorithmic and Graph Theoretic Results

William F. Klostermeyer

University of North Florida

introduction cont

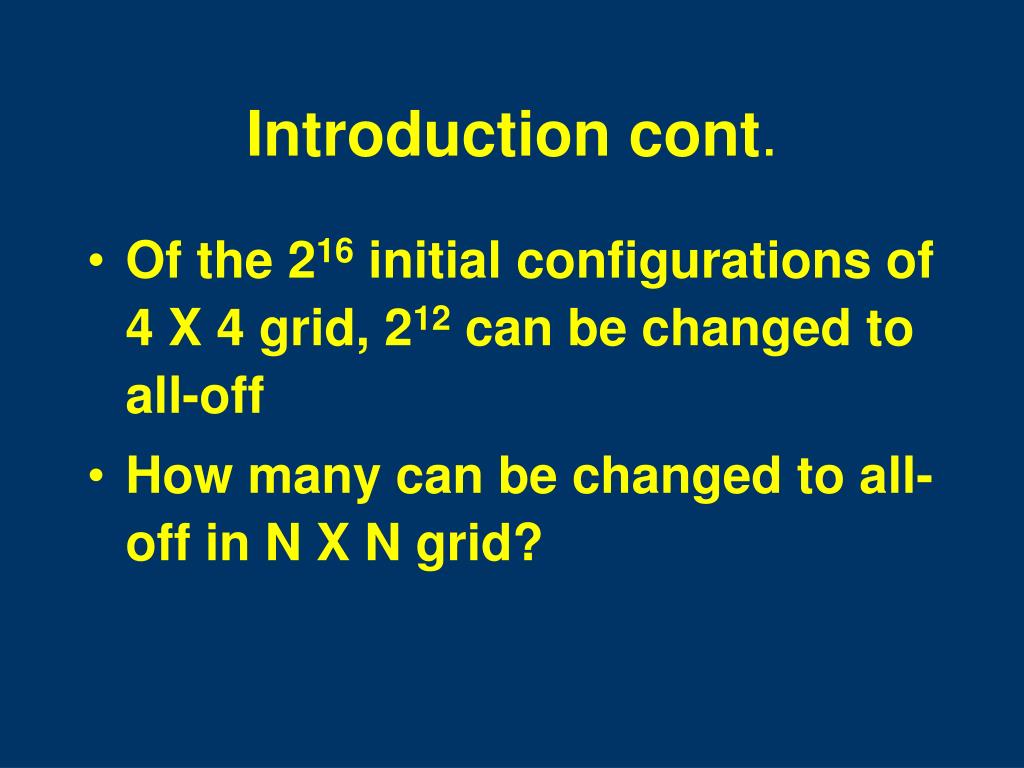

Introduction cont.
  • Of the 216 initial configurations of 4 X 4 grid, 212 can be changed to all-off
  • How many can be changed to all-off in N X N grid?
history
History
  • Lights Out! (~ 1995)
  • Button Madness (PC Game)
  • ACM Programming Contest
  • Cellular Automata (1989)
  • Parity Domination (1990’s)
overview

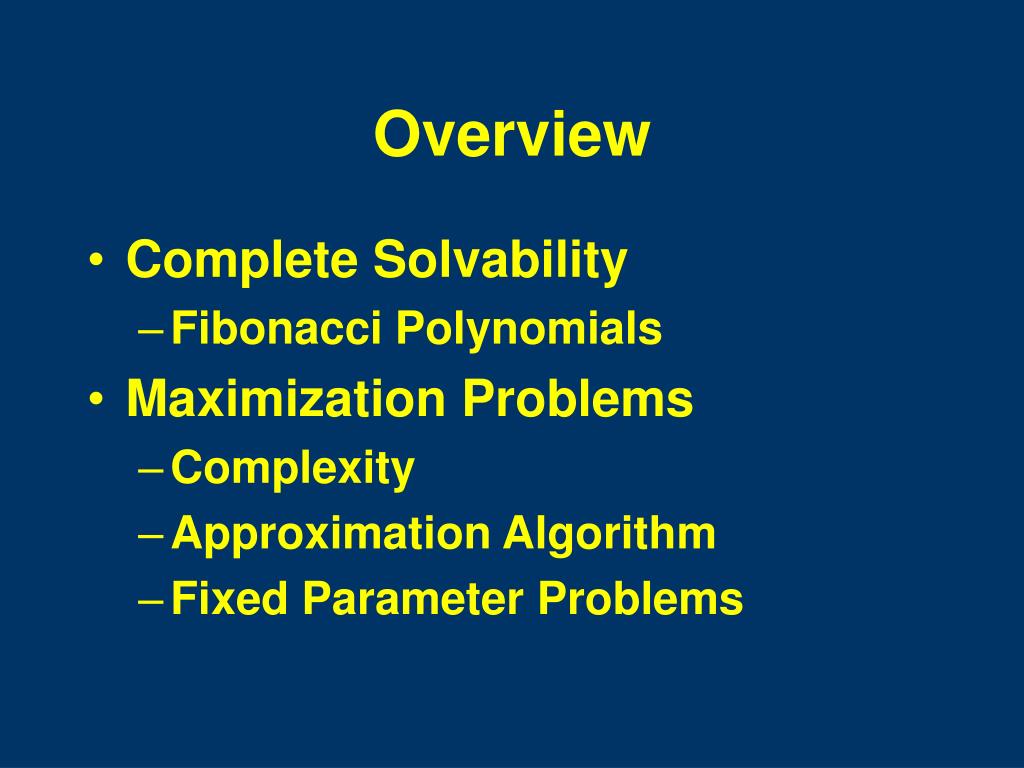

Overview
  • Complete Solvability
    • Fibonacci Polynomials
  • Maximization Problems
    • Complexity
    • Approximation Algorithm
    • Fixed Parameter Problems
parity domination

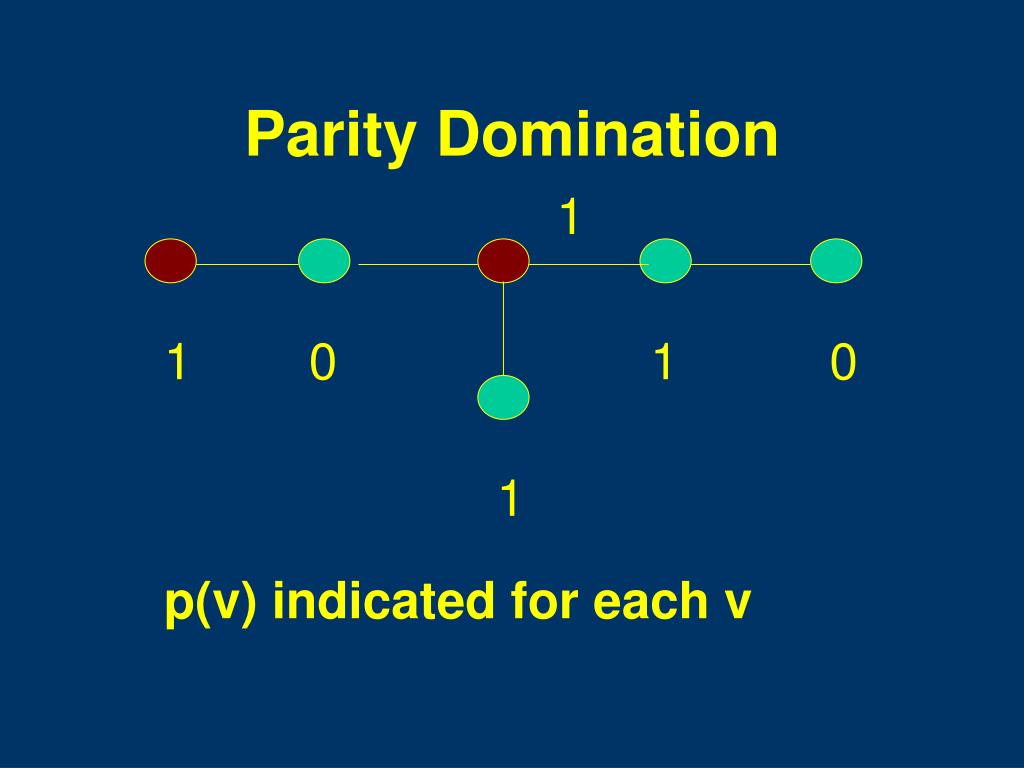

Parity Domination

1

1

0

1

0

1

p(v) indicated for each v

parity domination cont
Parity Domination cont.
  • Even Dominating Set:
    • Non-empty set of vertices D s.t. each vertex is adjacent to an even number of vertices of D
  • Odd Dominating Set:
    • Defined accordingly
parity domination cont1

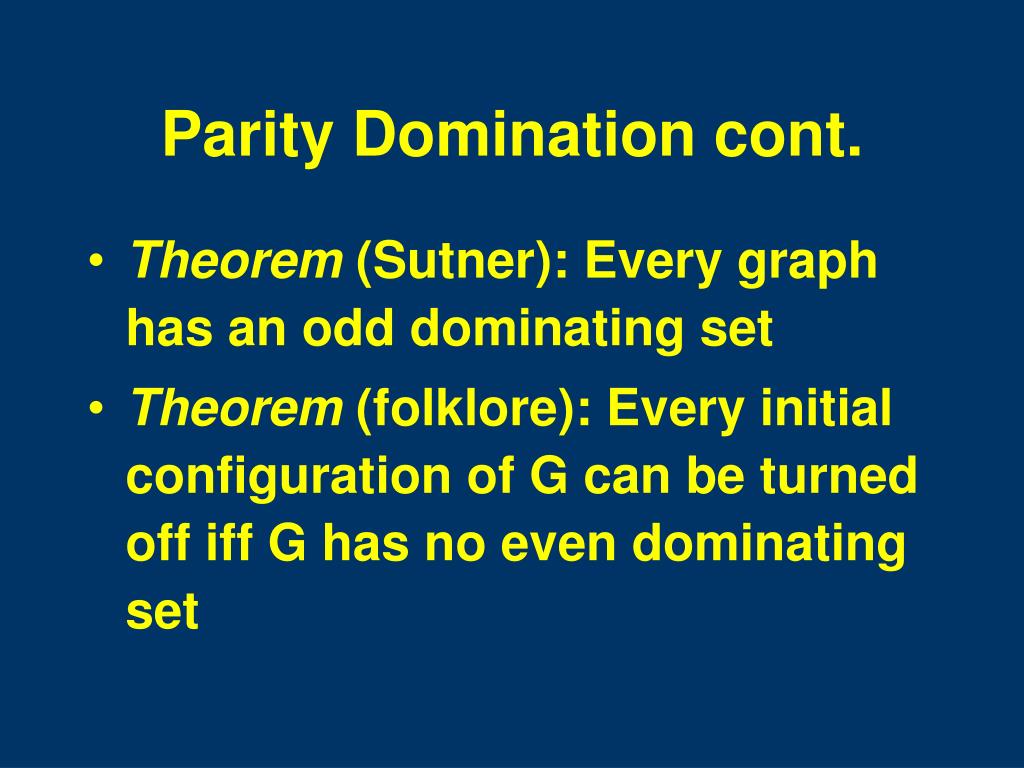

Parity Domination cont.
  • Theorem (Sutner): Every graph has an odd dominating set
  • Theorem (folklore): Every initial configuration of G can be turned off iff G has no even dominating set
even dominating sets
Even Dominating Sets
  • If G has even dominating set, D, closed neighborhood matrix is singular
  • Pushing D and empty set have same effect : no change!
  • Which graphs have even dominating sets?
even dominating set cont

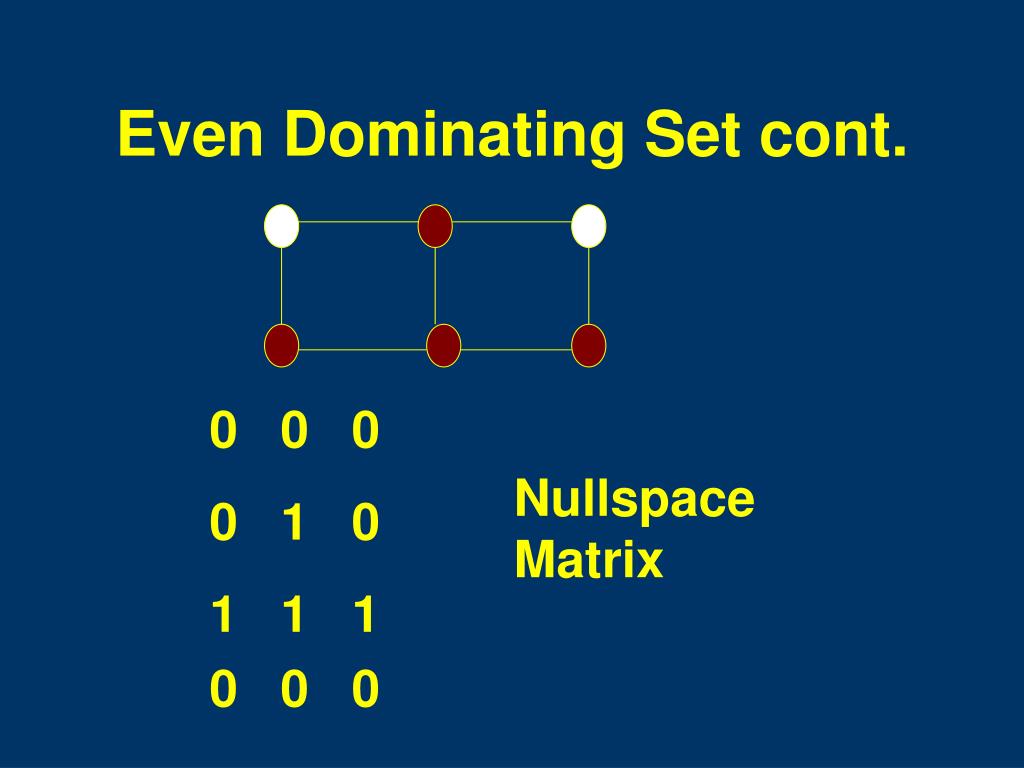

Even Dominating Set cont.

0 0 0

0 1 0

1 1 1

0 0 0

Nullspace Matrix

basics

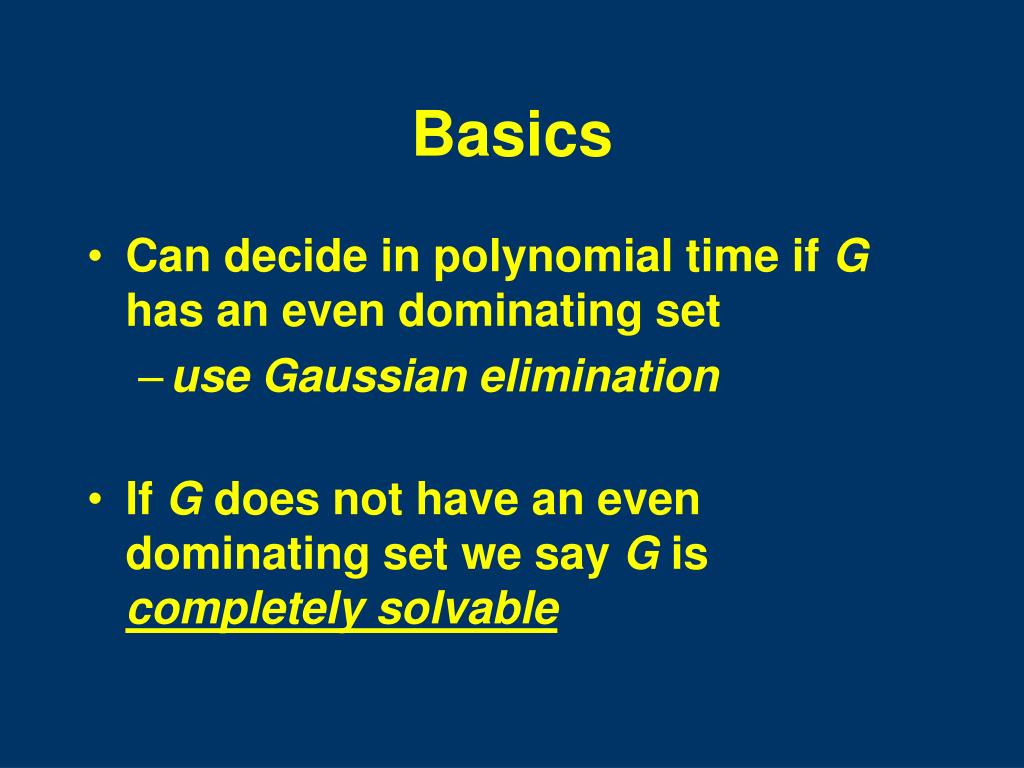

Basics
  • Can decide in polynomial time if G has an even dominating set
    • use Gaussian elimination
  • If G does not have an even dominating set we say G is completely solvable
basics cont
Basics cont.
  • If G has an even dominating set:
    • Can decide in polynomial time if a given configuration can be turned off (use linear algebra methods)
linear equations

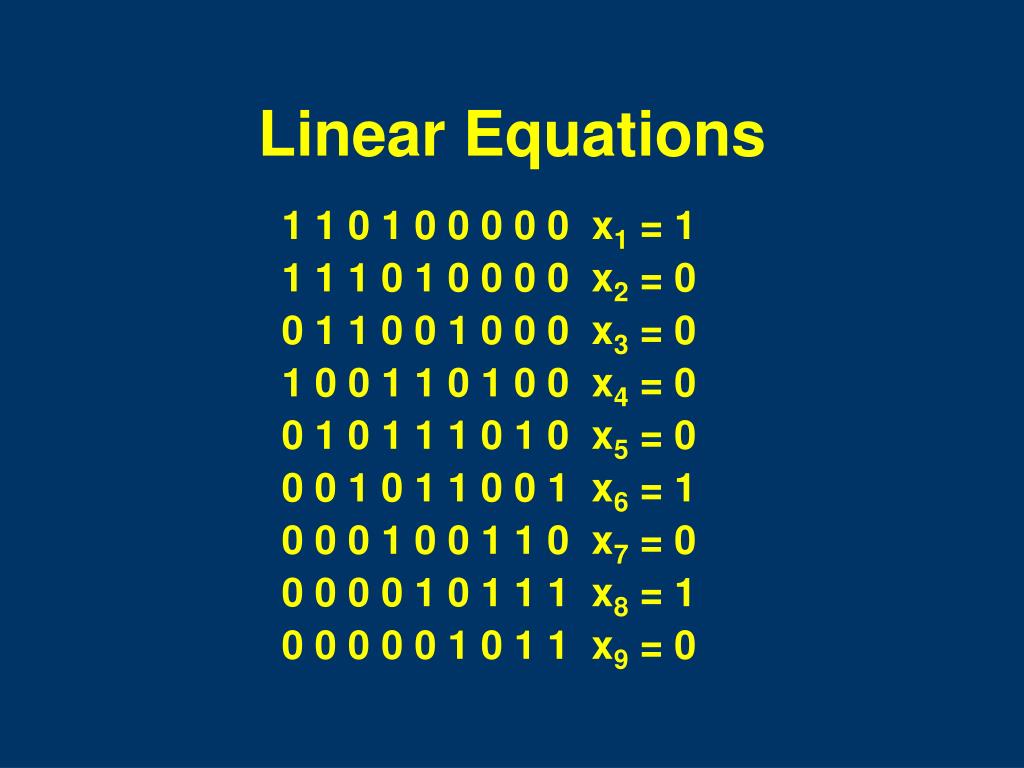

Linear Equations

1 1 0 1 0 0 0 0 0 x1 = 1

1 1 1 0 1 0 0 0 0 x2 = 0

0 1 1 0 0 1 0 0 0 x3 = 0

1 0 0 1 1 0 1 0 0 x4 = 0

0 1 0 1 1 1 0 1 0 x5 = 0

0 0 1 0 1 1 0 0 1 x6 = 1

0 0 0 1 0 0 1 1 0 x7 = 0

0 0 0 0 1 0 1 1 1 x8 = 1

0 0 0 0 0 1 0 1 1 x9 = 0

grids

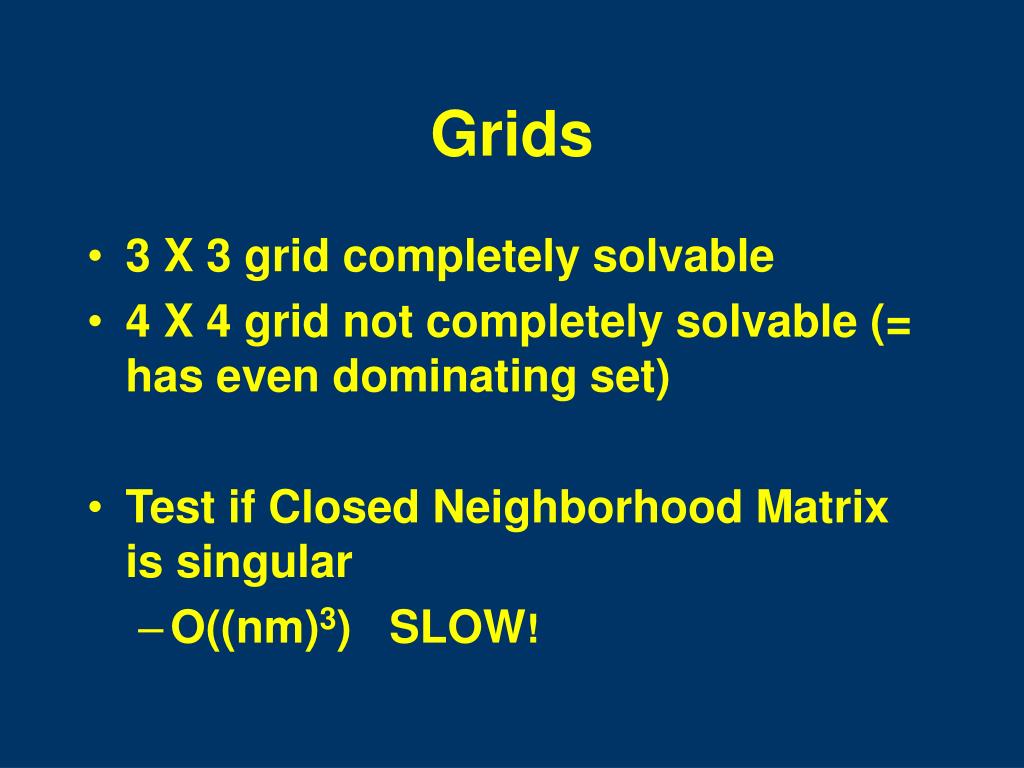

Grids

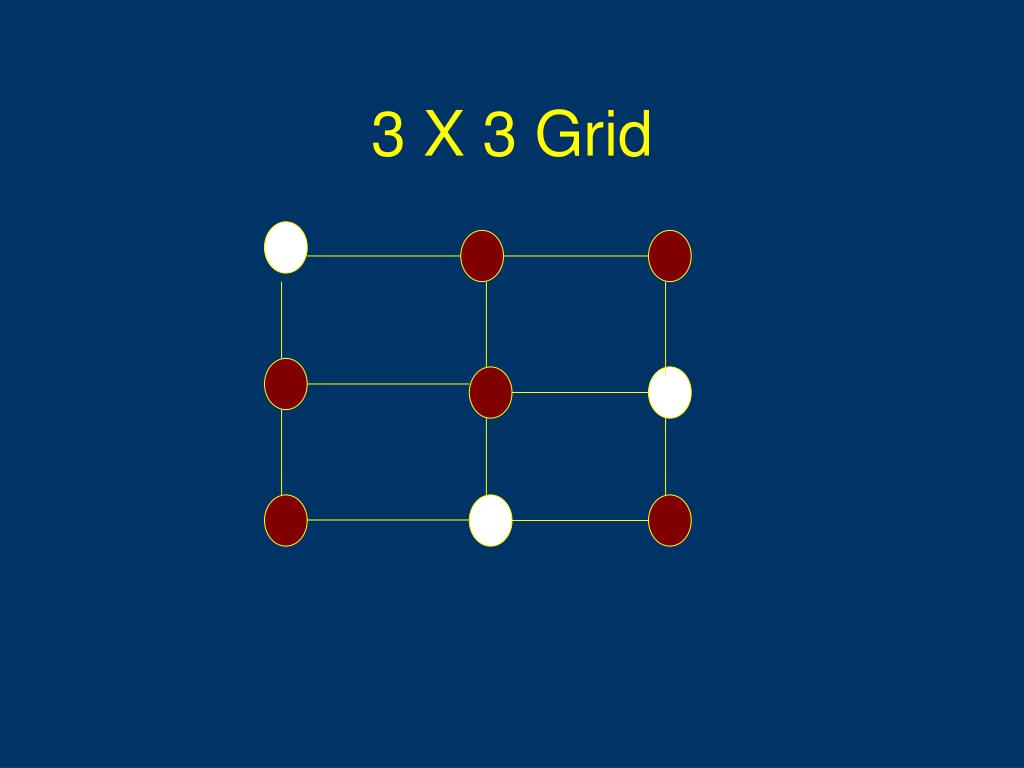

  • 3 X 3 grid completely solvable
  • 4 X 4 grid not completely solvable (= has even dominating set)
  • Test if Closed Neighborhood Matrix is singular
    • O((nm)3) SLOW!
nullspace matrices
Nullspace Matrices

1 0 0 1 1’s = Even Dominating

1 1 1 1 Set of 4 X 4 Grid

1 1 1 1

1 0 0 1

“Linearize” this matrix to get a 16 X 1 vector in nullspace of closed neighborhood matrix of 4 X 4 grid

building nullspace matrices
Building Nullspace Matrices

0 0 0 0 0 0 0 0 0

1 1 0 1 0 1 0 1 1

0 0 0 1 0 1 0 0 0

1 1 1 0 0 0 1 1 1

0 1 0 0 0 0 0 1 0

0 0 0 0 0 0 0 0 0

  • Thus 4 X 9 grid is not completely solvable.
  • Likewise 9 X 9, 4 X 14, 9 X 14, etc.
nullspace recurrence
Nullspace Recurrence

1 0 0 1 1’s = Even Dominating

1 1 1 1 Set of 4 X 4 Grid

1 1 1 1

1 0 0 1

r[I, j]=r[I-1,j]+r[I-1,j-1]+r[I-1,j+1]+r[I-2,j]

mod 2

recurrence cont

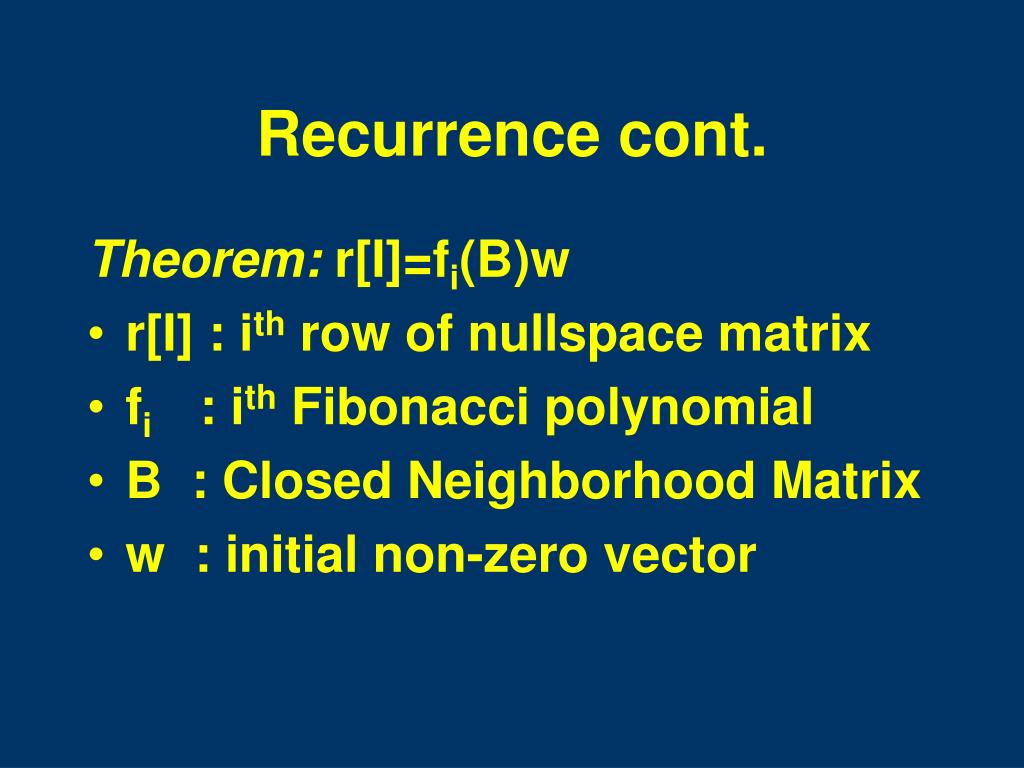

Recurrence cont.

Theorem: r[I]=fi(B)w

  • r[I] : ith row of nullspace matrix
  • fi : ith Fibonacci polynomial
  • B : Closed Neighborhood Matrix
  • w : initial non-zero vector
fibonacci polynomials

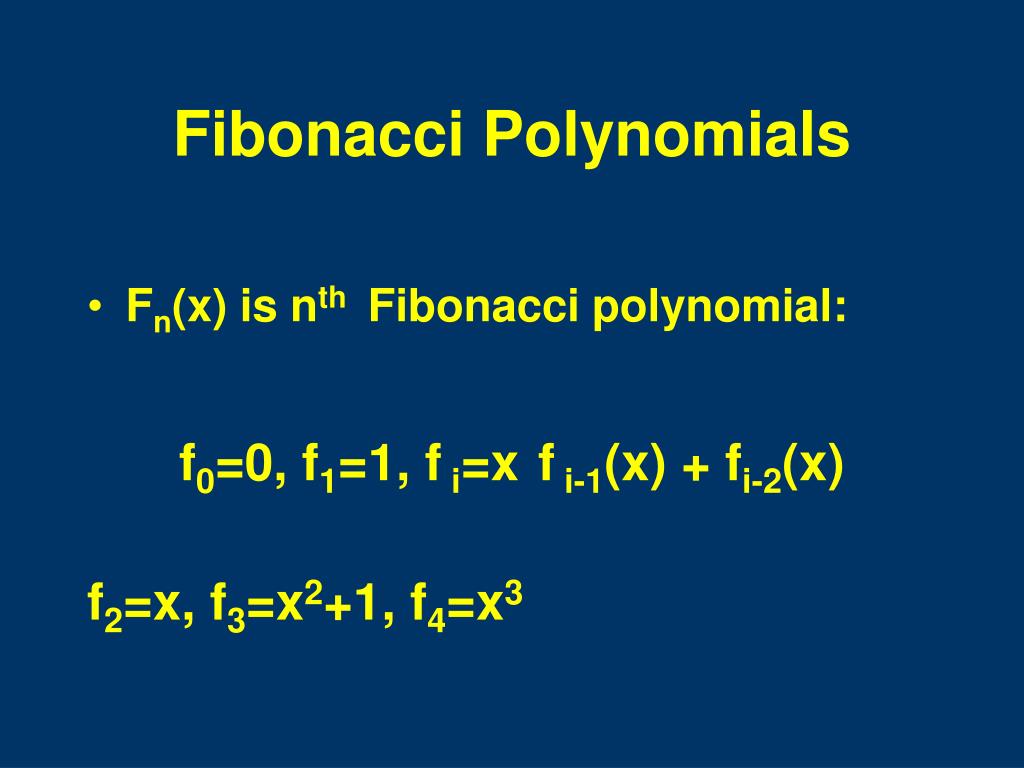

Fibonacci Polynomials
  • Fn(x) is nth Fibonacci polynomial:

f0=0, f1=1, f i=xf i-1(x) + fi-2(x)

f2=x, f3=x2+1, f4=x3

example
Example

0 0 0

1 0 0 <-- w

1 1 0

1 0 1 = 1 1 0 1 1 0 1 0 0

( 1 1 1 * 1 1 1 + 0 1 1) * 1 0 0 = w

0 1 1 0 1 1 0 1 1

f3=x2+1

factored fibonacci polynomials

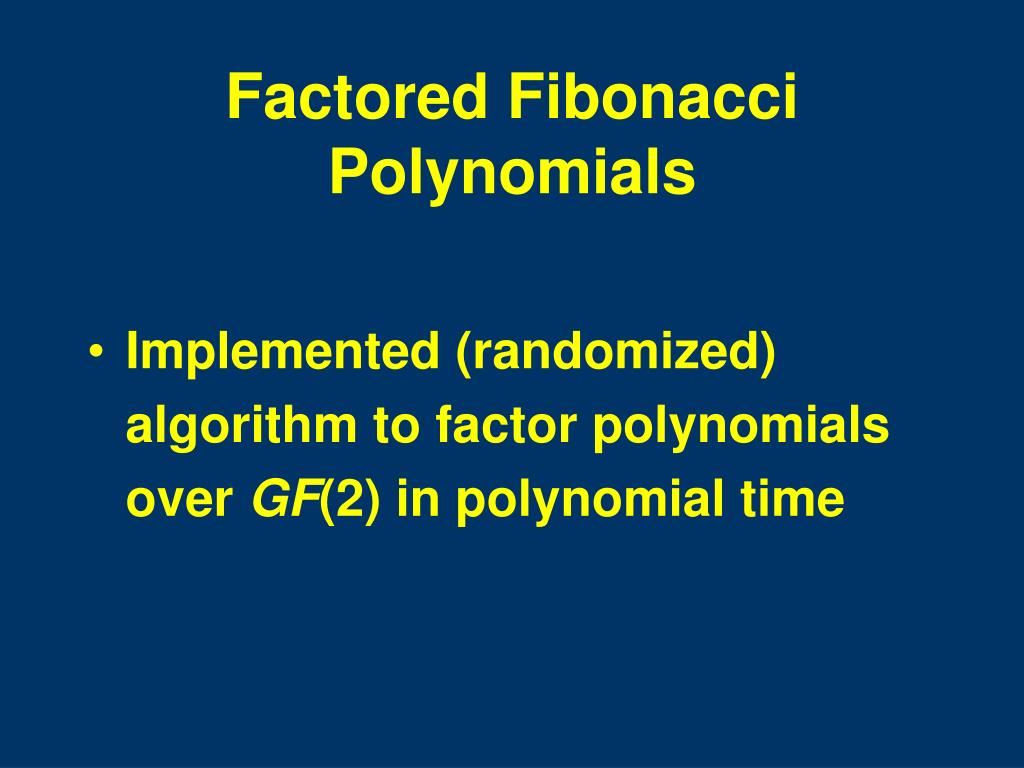

Factored Fibonacci Polynomials
  • Implemented (randomized) algorithm to factor polynomials over GF(2) in polynomial time
factored cont
Factored cont.
  • f_2: x

(x)^1

  • f_3: x^2 +1

(x +1)^2

  • f_4: x^3

(x)^3

fibonacci polynomials cont

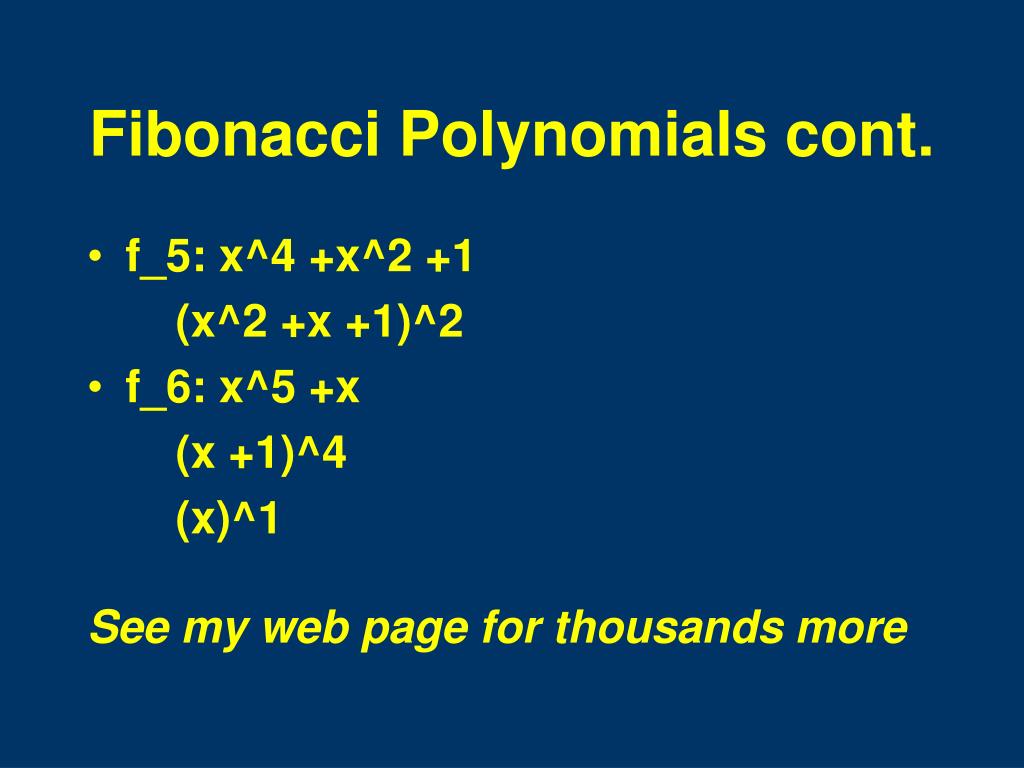

Fibonacci Polynomials cont.
  • f_5: x^4 +x^2 +1

(x^2 +x +1)^2

  • f_6: x^5 +x

(x +1)^4

(x)^1

See my web page for thousands more

more on the recurrence

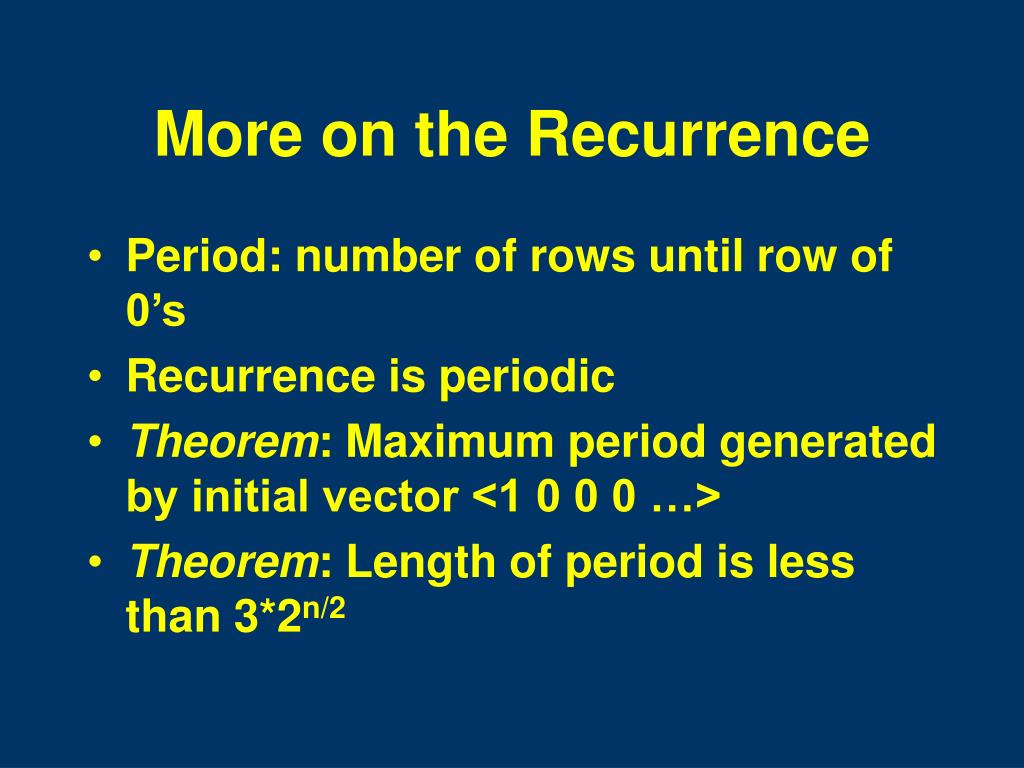

More on the Recurrence
  • Period: number of rows until row of 0’s
  • Recurrence is periodic
  • Theorem: Maximum period generated by initial vector <1 0 0 0 …>
  • Theorem: Length of period is less than 3*2n/2
periods

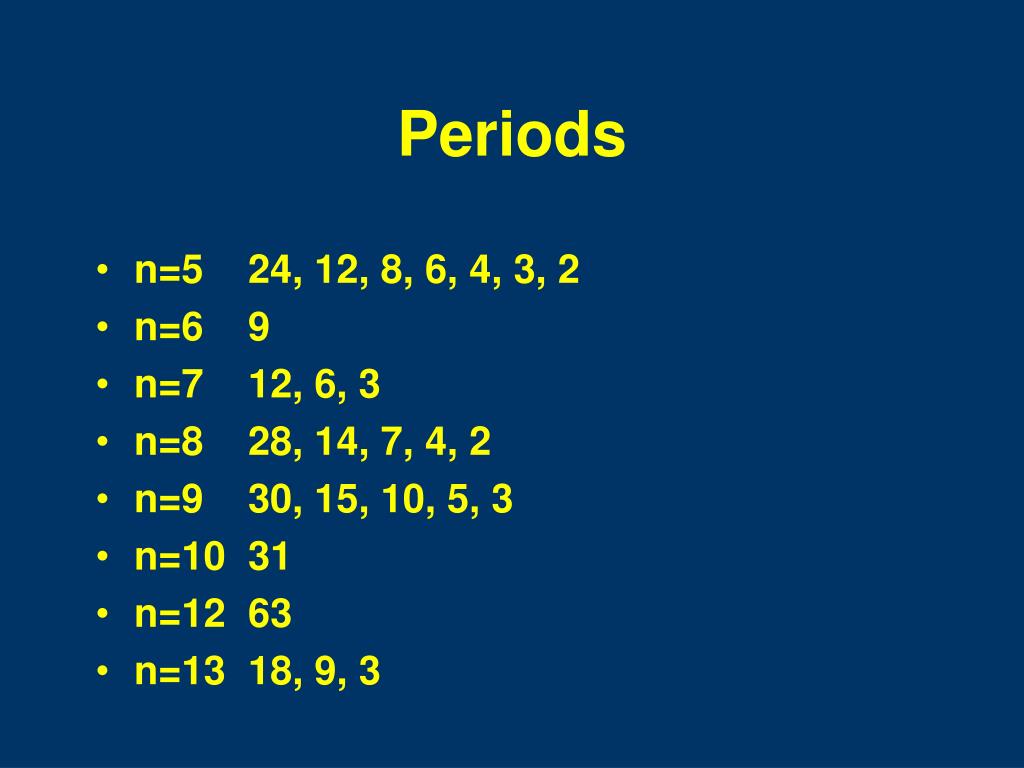

Periods
  • n=5 24, 12, 8, 6, 4, 3, 2
  • n=6 9
  • n=7 12, 6, 3
  • n=8 28, 14, 7, 4, 2
  • n=9 30, 15, 10, 5, 3
  • n=10 31
  • n=12 63
  • n=13 18, 9, 3
more periods

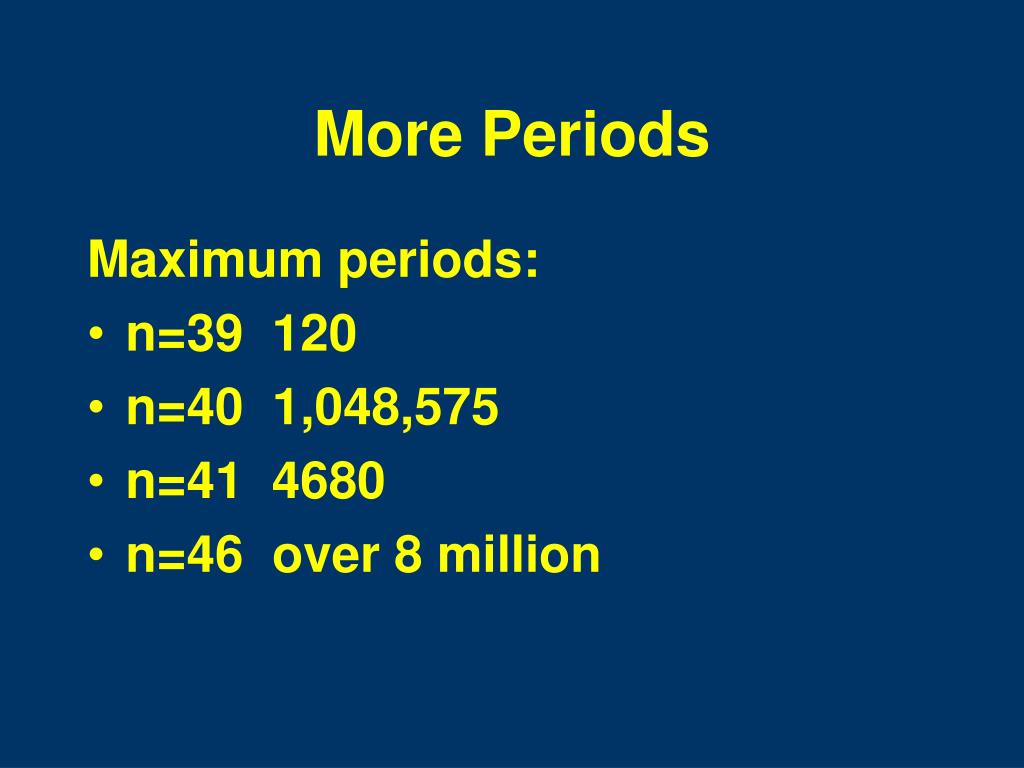

More Periods

Maximum periods:

  • n=39 120
  • n=40 1,048,575
  • n=41 4680
  • n=46 over 8 million
divisibility properties

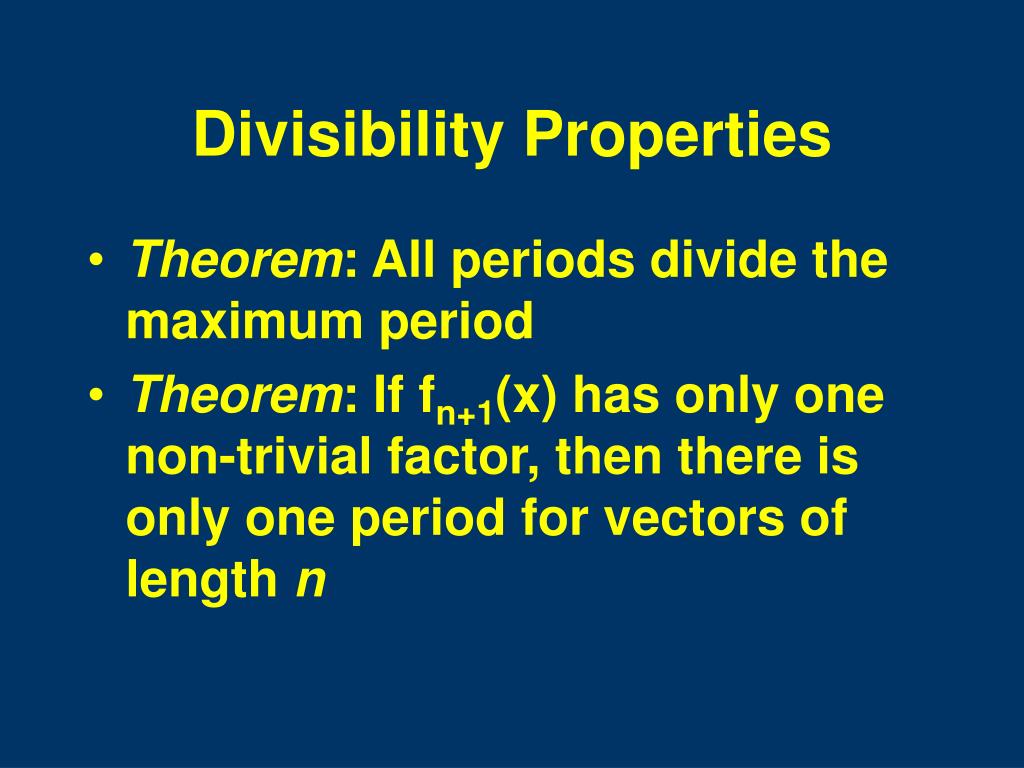

Divisibility Properties
  • Theorem: All periods divide the maximum period
  • Theorem: If fn+1(x) has only one non-trivial factor, then there is only one period for vectors of length n
characterization

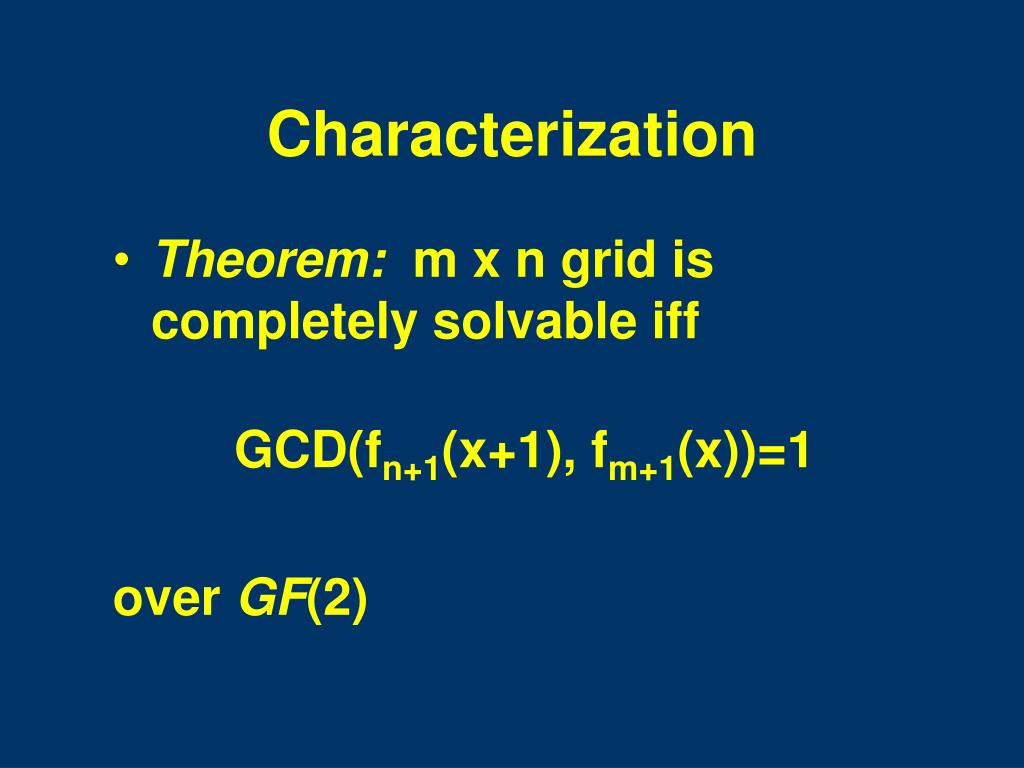

Characterization
  • Theorem: m x n grid is completely solvable iff

GCD(fn+1(x+1), fm+1(x))=1

over GF(2)

fast algorithm

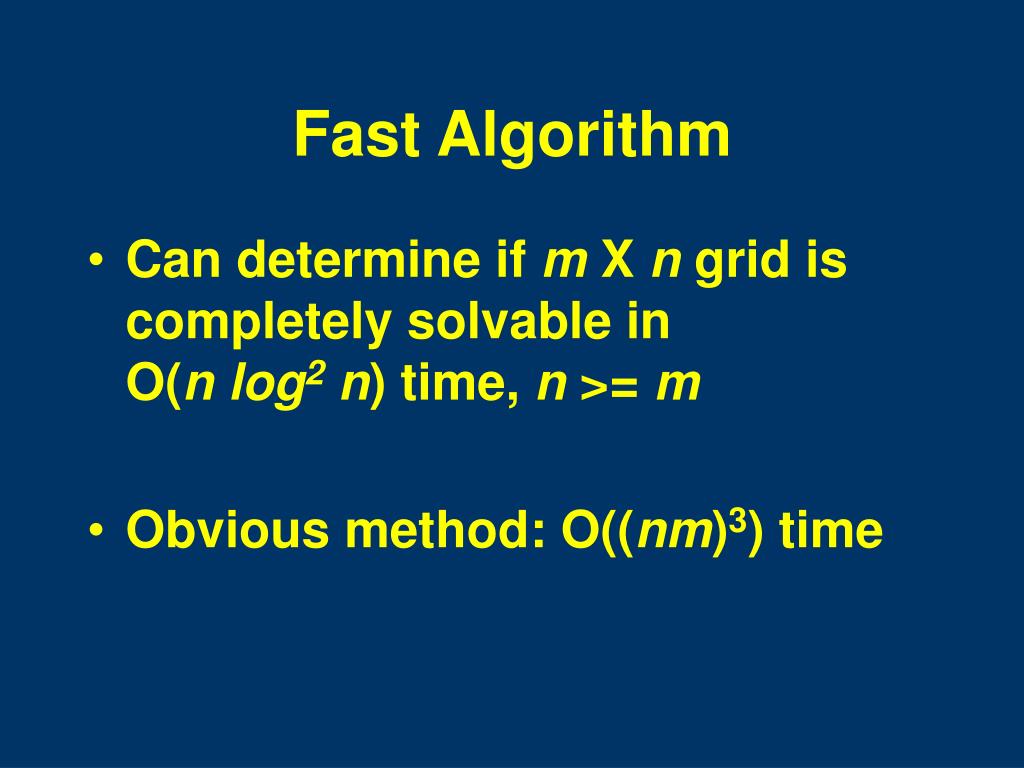

Fast Algorithm
  • Can determine if m X n grid is completely solvable in O(n log2 n) time, n>= m
  • Obvious method: O((nm)3) time
square grids

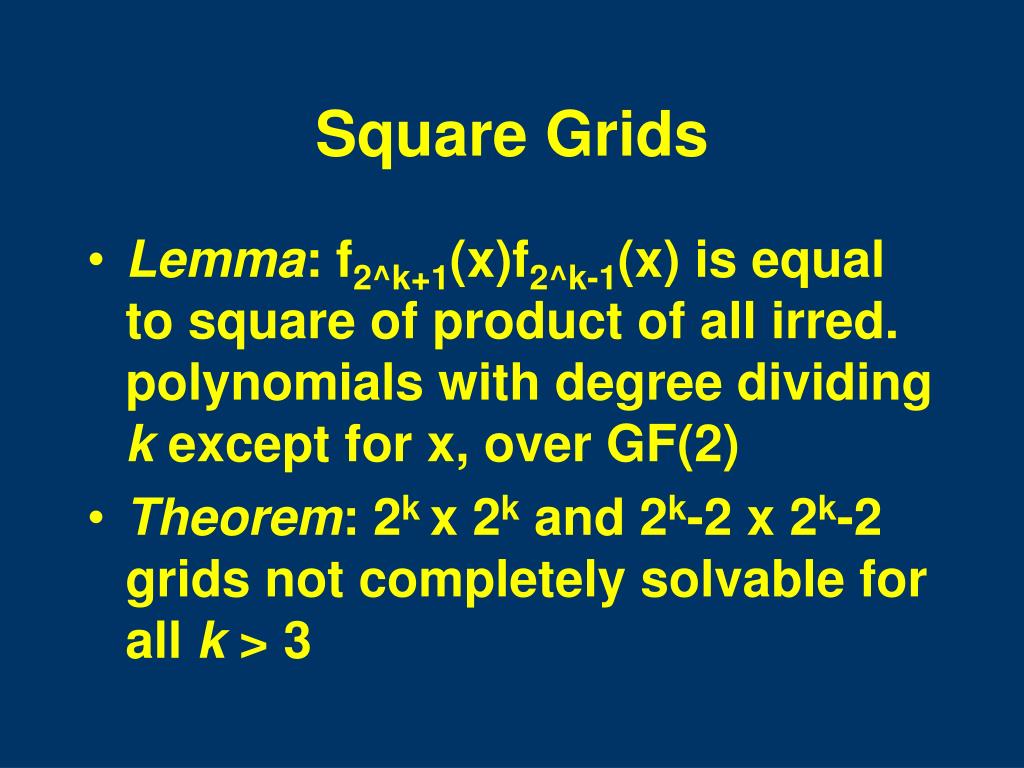

Square Grids
  • Lemma: f2^k+1(x)f2^k-1(x) is equal to square of product of all irred. polynomials with degree dividing k except for x, over GF(2)
  • Theorem: 2k x 2k and 2k-2 x 2k-2 grids not completely solvable for all k > 3
maximization problems
Maximization Problems
  • Theorem: Can always get at least mn-m/2 off in m X n grid, n >= m
  • Theorem: Exist m X n grids for which some initial configurations can get at most mn - (m/log m) off, n >= m
graphs

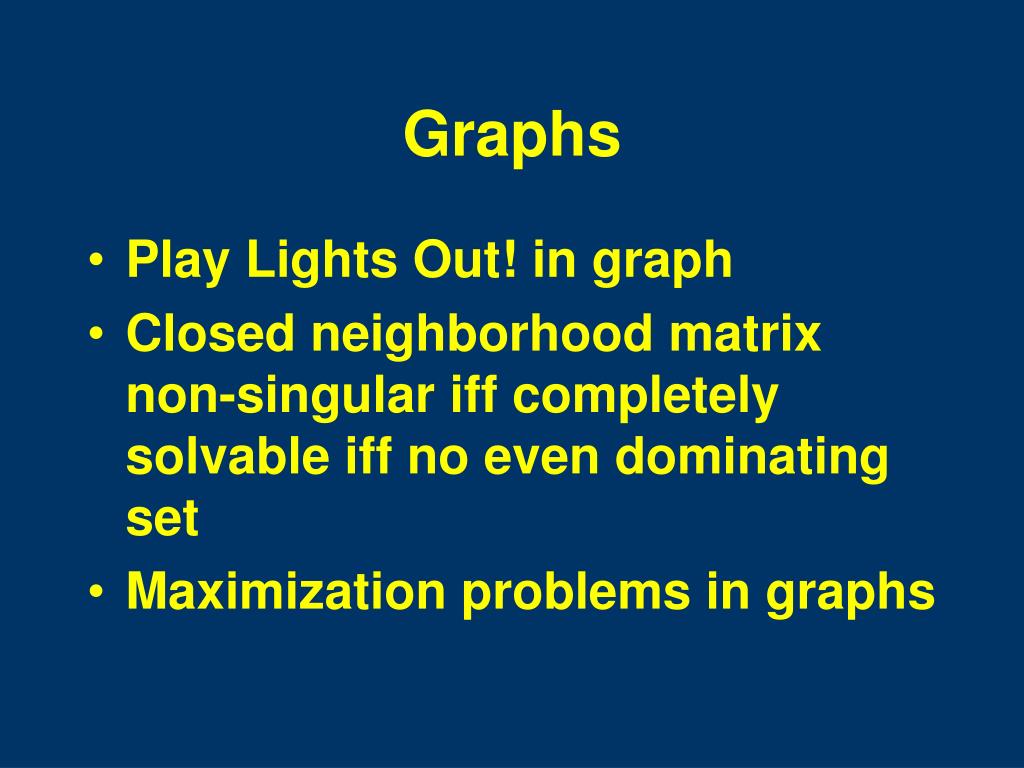

Graphs
  • Play Lights Out! in graph
  • Closed neighborhood matrix non-singular iff completely solvable iff no even dominating set
  • Maximization problems in graphs
complexity results

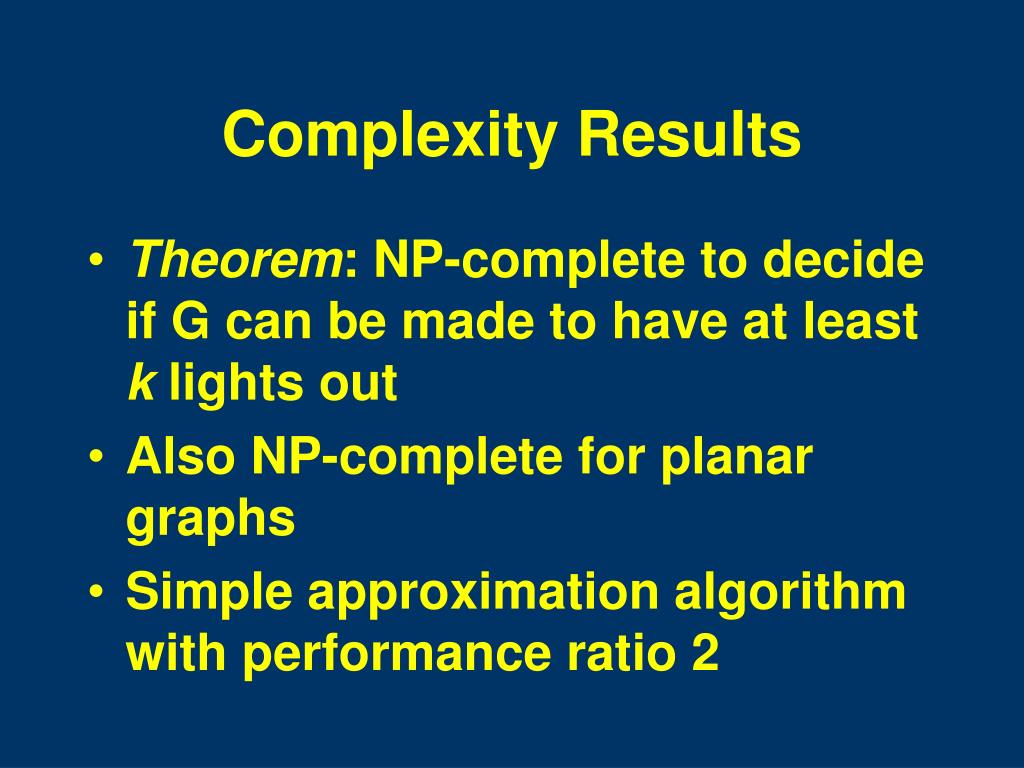

Complexity Results
  • Theorem: NP-complete to decide if G can be made to have at least k lights out
  • Also NP-complete for planar graphs
  • Simple approximation algorithm with performance ratio 2
max snp hard

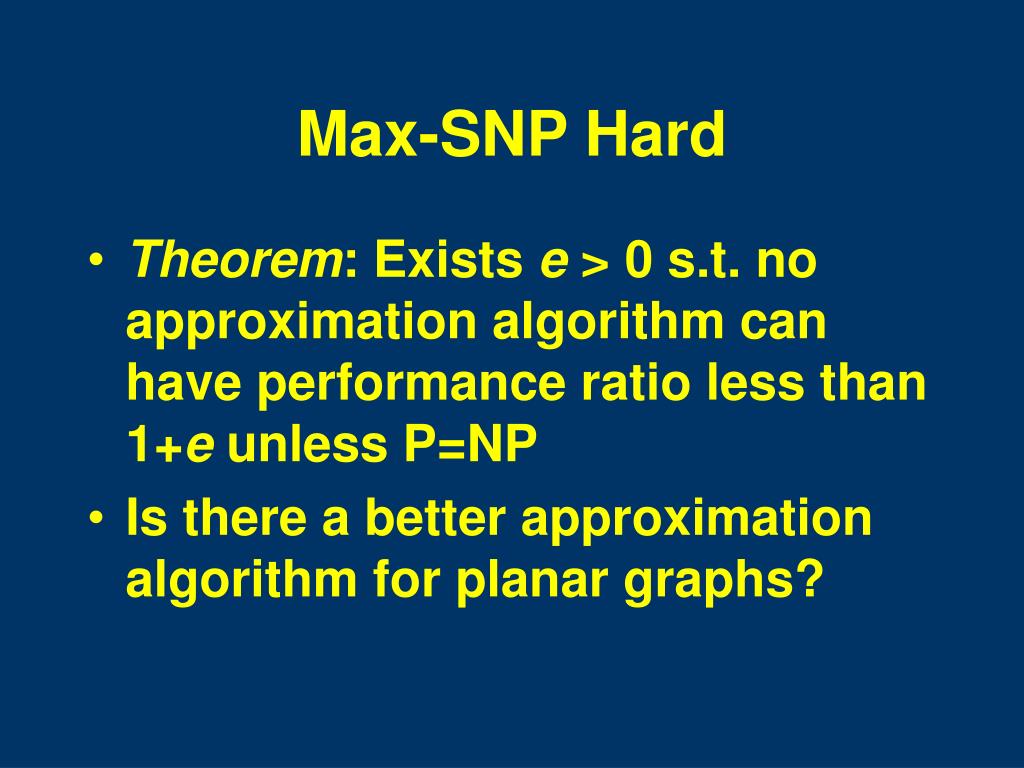

Max-SNP Hard
  • Theorem: Exists e > 0 s.t. no approximation algorithm can have performance ratio less than 1+e unless P=NP
  • Is there a better approximation algorithm for planar graphs?
fixed parameter problems

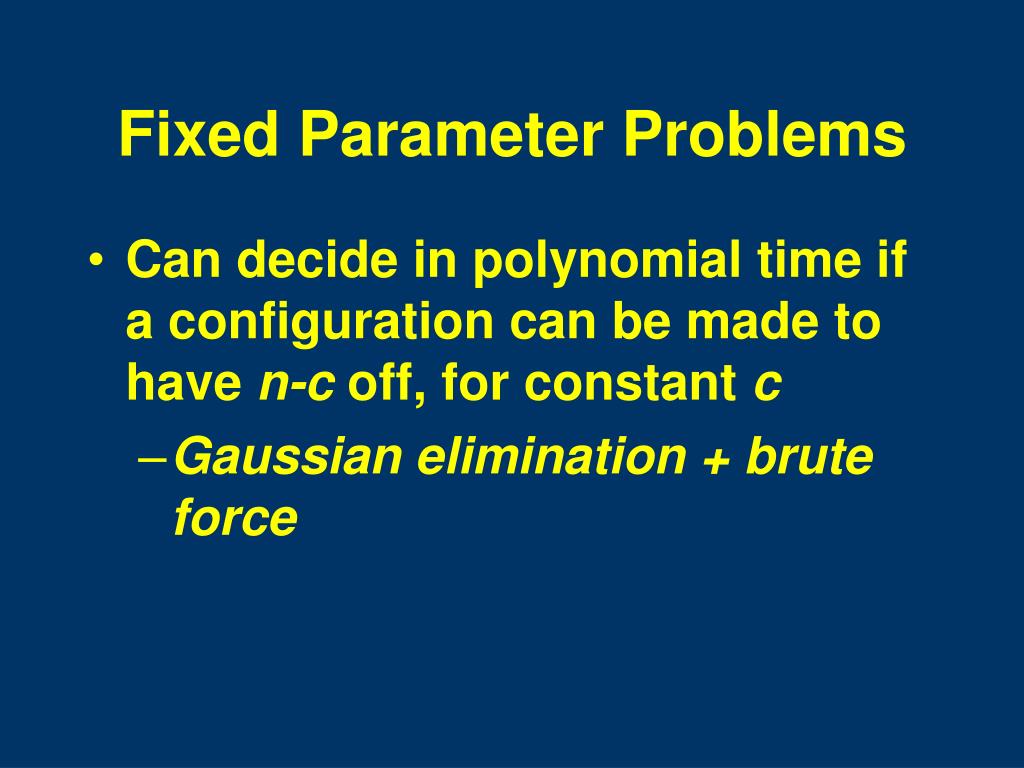

Fixed Parameter Problems
  • Can decide in polynomial time if a configuration can be made to have n-c off, for constant c
    • Gaussian elimination + brute force
fixed parameter cont

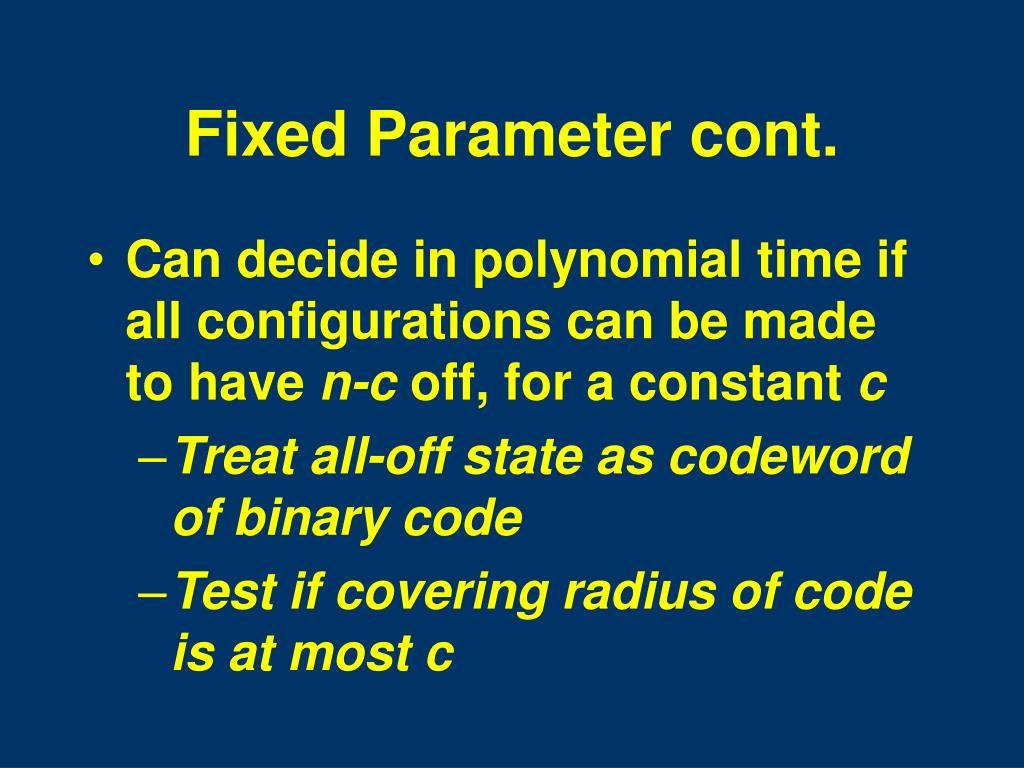

Fixed Parameter cont.
  • Can decide in polynomial time if all configurations can be made to have n-c off, for a constant c
    • Treat all-off state as codeword of binary code
    • Test if covering radius of code is at most c
slide39

Large grids, 5 by 5 and larger:

Theorem.(Counting argument).

Unsolvable implies not all initial

configurations can be made to

have at most one light on.

Trees:always at most leaves/2 on.

conjecture

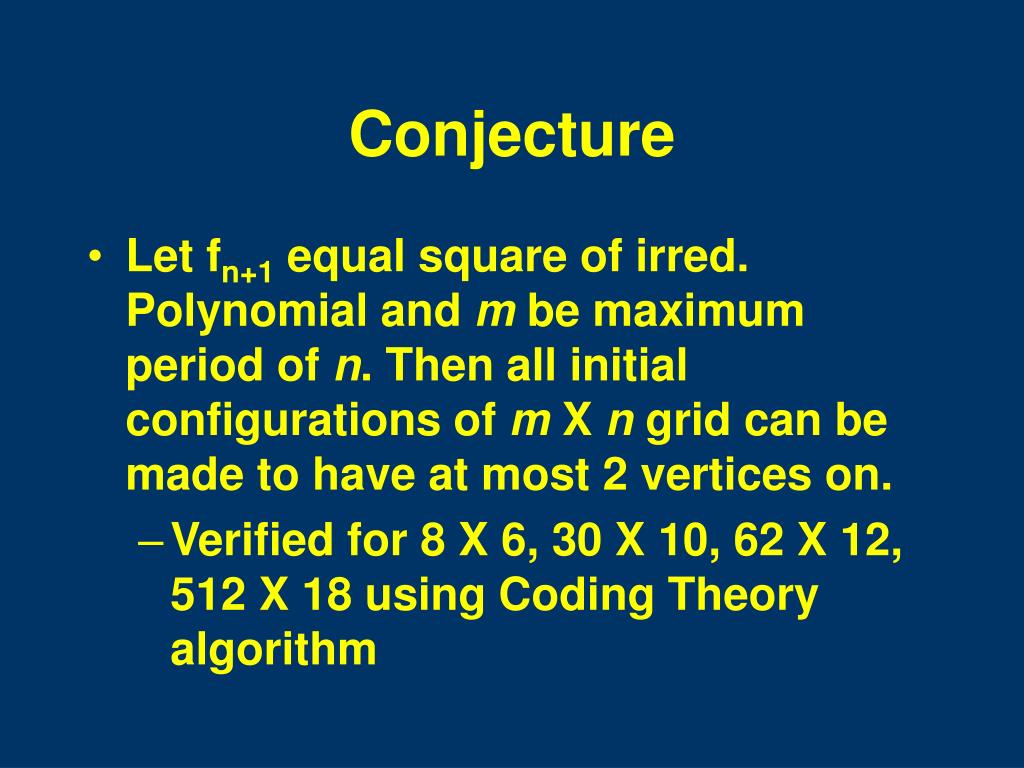

Conjecture
  • Let fn+1 equal square of irred. Polynomial and m be maximum period of n. Then all initial configurations of m X n grid can be made to have at most 2 vertices on.
    • Verified for 8 X 6, 30 X 10, 62 X 12, 512 X 18 using Coding Theory algorithm
publications

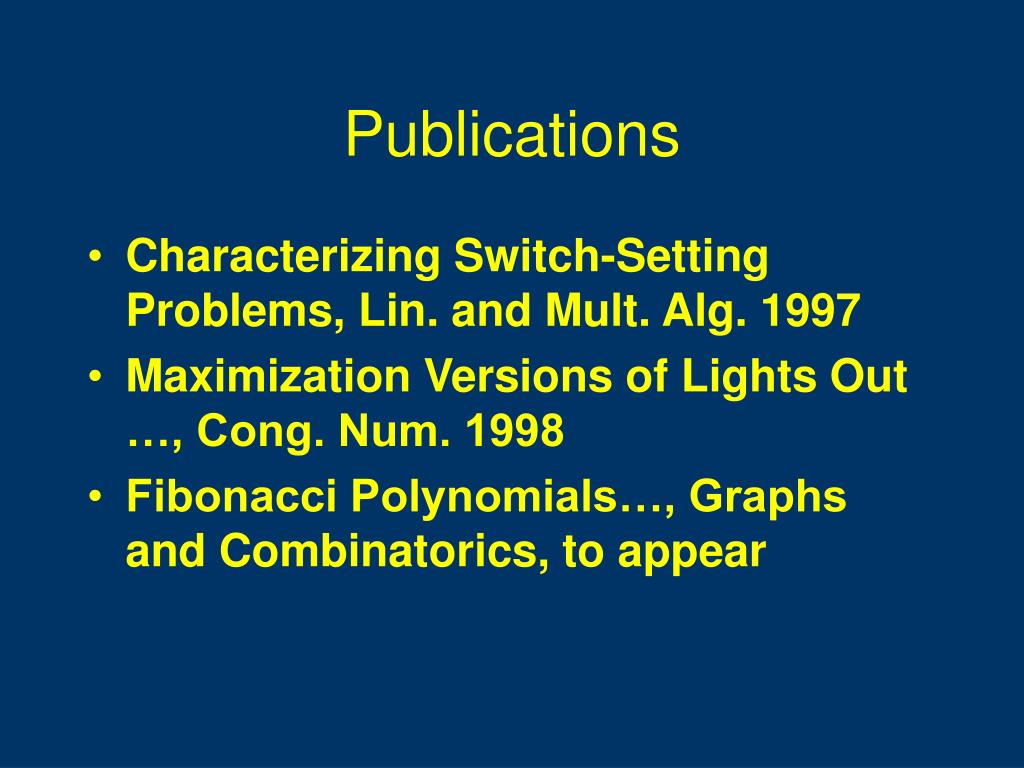

Publications
  • Characterizing Switch-Setting Problems, Lin. and Mult. Alg. 1997
  • Maximization Versions of Lights Out …, Cong. Num. 1998
  • Fibonacci Polynomials…, Graphs and Combinatorics, to appear
related work

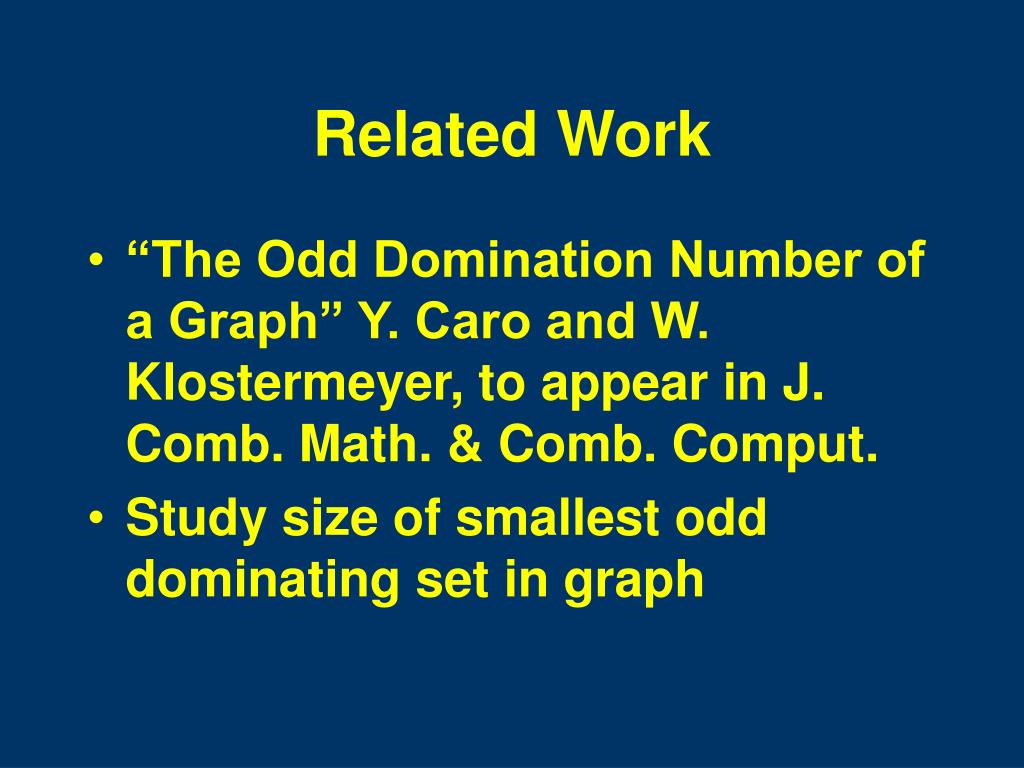

Related Work
  • “The Odd Domination Number of a Graph” Y. Caro and W. Klostermeyer, to appear in J. Comb. Math. & Comb. Comput.
  • Study size of smallest odd dominating set in graph
