Introduction to Biostatistical AnalysisUsing RStatistics course for first-year PhD students

Session 5

Lecture: Multivariate analysis of ecological data

Practical: Assessment exercises

Lecturer: Lorenzo Marini, PhD

Department of Environmental Agronomy and Crop Production,

University of Padova, Viale dell’Università 16, 35020 Legnaro, Padova.

E-mail: [email protected]

Tel.: +39 0498272807

http://www.biodiversity-lorenzomarini.eu/

Type of analysesVariables

Univariate analysis

Y

- One Response variable (Y):

(e.g. Y= hormone concentration)

- One or more explanatory variables (Xi) (e.g. N, pH, Temp)

Multivariate analysis

Y1 Y2 Y3 Y4 Y5

Variables

- More than 1 response variable (Yi)

(e.g. Yi= abundance of 5 species in 6 plots

or DNA sequences in different individuals)

- One or more explanatory variables (xi) (e.g. N, pH, Temp)

MULTIVARIATE ANALYSES

Response matrix

Explanatory matrix

Yes

3. Constrained

Ordinations

(RDA, CCA…)

No explanatory matrix

1. CLASSIFICATION (Cluster Analysis)

2. Unconstrained ORDINATIONS (PCA, CA…)

Dissimilarity

Distance-dissimilarity

The most natural dissimilarity measure is the Euclidean distance

(distance in species space - each species is an axis)

Sp 1

object3

object 1

Sp 2

object 2

Sp 3

[Σ(xi j-xi k)2]0.5

Euclidean distance:

object1-object2= 2

object2-object3= 6

object1-object3= 5

One value for

each possible pair of objects

Dissimilarity

There are many different dissimilarity indices (e.g.):

- Jaccard index

- Manhattan

- Bray-Curtis

- Morisita

- 1-Correlation…

Source of subjectivity in the choice of the method

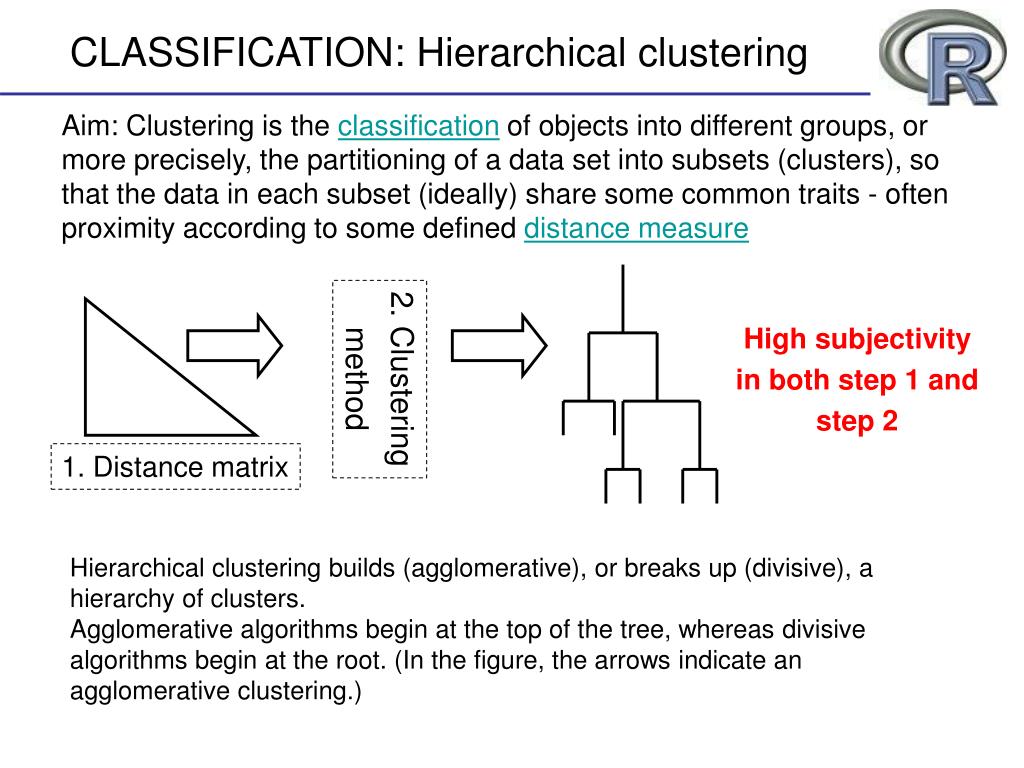

CLASSIFICATION: Hierarchical clustering

Aim: Clustering is the classification of objects into different groups, or more precisely, the partitioning of a data set into subsets (clusters), so that the data in each subset (ideally) share some common traits - often proximity according to some defined distance measure

High subjectivity

in both step 1 and

step 2

2. Clustering

method

1. Distance matrix

Hierarchical clustering builds (agglomerative), or breaks up (divisive), a hierarchy of clusters.

Agglomerative algorithms begin at the top of the tree, whereas divisive algorithms begin at the root. (In the figure, the arrows indicate an agglomerative clustering.)

CLASSIFICATION: Hierarchical clustering
• Main biostatistical applications:
• Classification of plant and animal community in types
• Phylogeny (old methods)
• Bioinformatics (e.g. In sequence analysis, clustering is used to group homologous sequences into gene families)
• Geographical applications:
• Imaging (image segmentation)
ORDINATION

Definition

In multivariate analysis, ordination is a method complementary to data clustering, and used mainly in exploratory data analysis (rather than in hypothesis testing). Ordination orders objects that are characterized by values on multiple variables (i.e., multivariate objects) so that similar objects are near each other and dissimilar objects are farther from each other. These relationships between the objects, on each of several axes (one for each variable), are then characterized numerically and/or graphically.

UNCONSTRAINED ORDINATION

They order objects according to traits, NO explanatory variables

Principal Components Analysis (PCA)

PCA is mathematically defined as an orthogonallinear transformation that transforms the data to a new coordinate system such that the greatest variance by any projection of the data comes to lie on the first coordinate (called the first principal component), the second greatest variance on the second coordinate, and so on. PCA assumes that species have linear species response curves.

Maximization of the variation explained by the axes

UNCONSTRAINED ORDINATION

Correspondence Analysis (CA)

Correspondence Analysis (as well as its derivatives) represent species AND samples as occurring in a postulated environmental space, or ordination space. CA assumes that species have unimodal species response curves.

Short

Long

Linear approximation of an unimodal response

UNCONSTRAINED ORDINATION: PCA

PCA

PCA is theoretically the optimal linear scheme, in terms of least mean square error, for compressing a set of high dimensional vectors into a set of lower dimensional vectors and then reconstructing the original set

Total Variance = Σλ n= 1

Original variables

x1, x2, x3, ..., xn

Components

y1 = a1x1 + a2x2+…+ anxn

y2 = b1x1 + b2x2+…+ bnxn

y3 = c1x1 + c2x2+…+ cnxn

λ1=variance1

λ2=variance2

λ3=variance3

UNCONSTRAINED

UNCONSTRAINED ORDINATION: PCA

Example with 23 variables (e.g. 23 species in 50 sites)

Inertia Rank

Total 14.78

Unconstrained 14.78 23

Inertia is total variance

Eigenvalues for unconstrained axes:

E.g. PC1 explained variation = λ1/ Σλi

UNCONSTRAINED ORDINATION: PCA

Main biostatistical applications:

• Reduction of a set of intercorrelated predictors to a smaller set of independent variables in multiple regression
• For example, two situations in regression where principal components may be useful are (1) if the number of response variables is large relative to the number of observations, a test may be ineffective or even impossible (e.g. biometry), and (2) if the explanatory variables are highly correlated, the estimates of regression coefficients may be unstable. In such cases, the regression variables can be reduced to a smaller number of principal components that will yield a better test or more stable estimates of the regression coefficients.
• 2. Indirect gradient analysis
• In the analysis of community data we can do a multiple regression between the PCA axes and some explanatory variables to explain the change in species composition
UNCONSTRAINED VS. CONSTRAINED

If you have both the environmental data and the species composition, you can both calculate the unconstrained ordination first and then calculate regression of ordination axes on the measured environmental variables or you can calculate directly the constrained ordination.

The approaches are complementary and should be used both!

By calculating the unconstrained ordination first you surely do not miss the main part of the variability in species composition, but you could miss the part of variability that is related to the measured environmental variables.

By calculating the constrained ordination, you surely do not miss the main part of the variability explained by the environmental variables, but you could miss the main part of variability that is not related to the measured environmental variables.

CONSTRAINED ORDINATION: RDA

Explanatory matrix

Response matrix

Think like you are

working on a linear

multiple regression

model

RDA

Explanatory matrix

Response vector

Multiple regression

CONSTRAINED ORDINATION: RDA

The unconstrained ordination axes correspond to the directions of the greatest variability within the data set.

The constrained ordination axes correspond to the directions of the greatest variability of the data set that can be explained by the environmental variables

There are as many constrained axes as there are independent explanatory variables

CONSTRAINED ORDINATION: RDA

The constrained ordination axes correspond to the directions of the greatest variability of the data set that can be explained by the environmental variables

How to choose our explanatory variables?

Can we test them?

We can use a pseudo-F test using Monte Carlo Permutation

MONTE CARLO PERMUTATION

F value = 10

RDAreal

First permutation

F1 value = 1.4

RDA1

Repeat for n times

Get n F values

Compute the pseudo F

Fixed

Shuffle

CONSTRAINED ORDINATION: CCA

We can apply the same approach using Canonical Correspondence Analysis (CCA)

The difference is related only to the unimodal response underlying

How to prepare the report

Report is composed of two parts: abstract + R script

Abstract layout:

A4

Font 11

Margins (2.5 cm)

Times new roman

Word count: no more than 1000 words

Lines numbered

Double lines

1 figure with caption and/or 1 table with caption

Four sections:

1. Title: give a title to your study

2. Introduction: just set the aims of the study

3. Material and Methods: explain the sampling & statistical analysis performed

4. Results and Discussion: present the results with 1 figure and/or 1 table and discuss briefly.

How to prepare the report

R script

Write down the script used to perform the analysis on a separate page.

Include everything you used.

You can find all you need in the single practical we have done.

Topic: multiple regression or ANOVA

If you are in trouble look at these books how to run your analysis (http://cran.r-project.org/):

Practical Regression and Anova using R” by Julian Faraway

Statistics Using R with Biological Examples” by Kim Seefeld and Ernst Linder

An Introduction to R: Software for Statistical Modelling & Computing” by Petra Kuhnert and Bill Venables
