  1. Optical Instruments Chapter 25

  2. The Human Eye: Corrective Lenses • Parts of the eye • Iris • Adjusts to control the amount of light entering the eye • Pupil • Retina • Contains nerves and sensors known as rods and cones • Changes light energy into electrical energy • Fovea • Cones are closely packed • Sharpest image and best color discrimination

  3. The Human Eye: Corrective Lenses • Cornea • Location where most of refraction is done • n = 1.376 • Ciliary muscles change the curvature, and focal point, of the lens • Distant objects • Ciliary muscles are relaxed • Lens is thin • Close objects • Ciliary muscles are tightened • Lens is thick • Shortens the focal length

  4. The Human Eye: Corrective Lenses • Near point • Closest distance at which the eye can focus • Average = 25 cm • Far point • Farthest distance at which the eye can focus • Average = infinity • Nearsightedness, or myopia • Can only focus on near objects; distant objects are not clear • Eye is too long or curvature is too great • Diverging lens fixes problem • Farsightedness, or hyperopia • Can only focus on distant objects;near objects are not clear • Eye is too short or curvature is too small • Converging lens fixes the problem

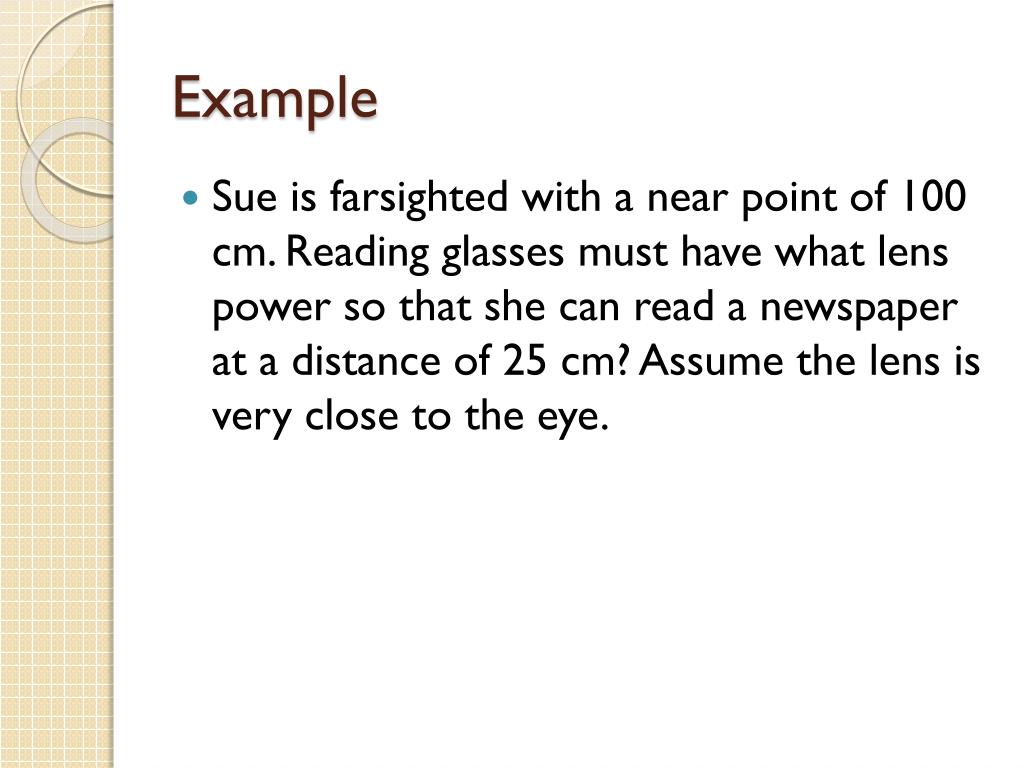

  5. Example • Sue is farsighted with a near point of 100 cm. Reading glasses must have what lens power so that she can read a newspaper at a distance of 25 cm? Assume the lens is very close to the eye.

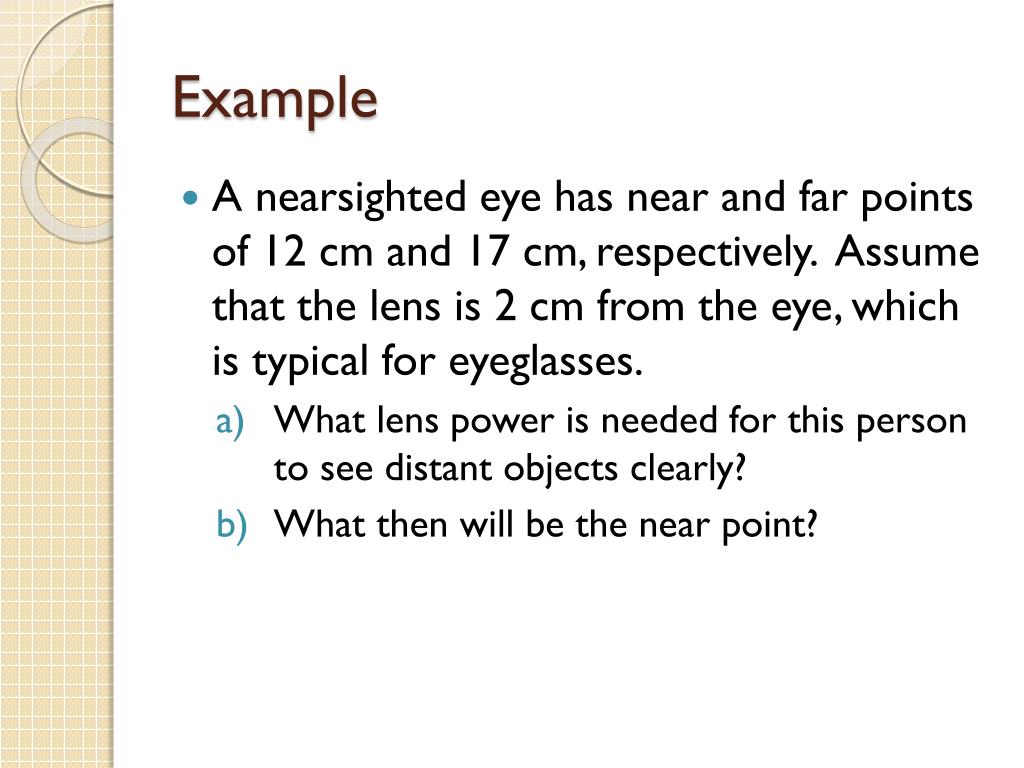

  6. Example • A nearsighted eye has near and far points of 12 cm and 17 cm, respectively. Assume that the lens is 2 cm from the eye, which is typical for eyeglasses. • What lens power is needed for this person to see distant objects clearly? • What then will be the near point?
