Presentation Transcript
slide1
High Density Airport Time-based RNAV/RNP NextGen/JPDO Demonstrations

3D Path Arrival Management (PAM) Project

table of contents
Table of Contents
  • The Team
  • Executive Summary – What is 3D PAM
  • Project Status
  • Detailed Description of the Concept
  • High Level Schedule
team members
NextGen Transportation System

Joint Planning and Development Office

Team Members
3d pam faa nasa and industry leads for coordination
3D PAM – FAA, NASA and Industry Leads for Coordination:
  • Marc Buntin - Project Lead
  • Richard Coppenbarger - EDA Principal Investigator
  • Ewald Schoemig – FD Concept Lead, FD HITL Sims
  • Doug Sweet - EDA SW development
executive summary the problem
Executive Summary(The Problem)
  • Significant congestion exists today in the arrival and departures streams of medium to large airports
  • Air Traffic Controllers frequently sequence traffic
    • Diminishes capacity and efficiency
    • Problem will not improve without intervention
  • 3D Path Arrival Management operational concept is an initial intervention in advance of NextGen 4D trajectory operations to address this problem.
executive summary the solution 3d pam
Executive Summary(The solution – 3D PAM)
  • Efficient and predictable method to deliver aircraft from the TOD to a metering fix:
    • Requires: New automation support tool (TMA enhancement) and modern FMS
  • Allows the aircraft to fly an efficient, optimized descent arrival trajectory from cruise to meter fix
  • The automation provides the clearance for the ATC to send to an aircraft
    • Clearance issued via voice (Future: domestic datalink)
  • Clearance is manually loaded into the FMS for execution
    • The FMS executes the clearance taking advantage of RNAV / RNP capabilities
3d pam concept definition
3D PAM Concept Definition
  • Efficient and predictable method to deliver aircraft from the TOD to a metering fix in medium/high traffic demand:
      • New automation support tool (TMA enhancement) and
      • Modern FMS
  • Ground automation provides conflict-free, trajectory-based clearance advisories to ATC
    • Clearance issued via voice (Future: domestic datalink)
  • Trajectory-based clearances are FMS executed in the airplane:
    • Utilization of existing aircraft navigation capabilities (LNAV, VNAV, RNP)

3D Path Arrival Management concept is an initial intervention to 4D Trajectory Based Operations, providing efficiency benefits in today’s operational environment

primary expected benefits
Primary Expected Benefits
  • Improved flight efficiency:
    • Reliable / Efficient routing
    • Optimum speed and altitude profiles
    • Reduced fuel burn, emissions and environmental impact
  • Operational efficiency improvements:
    • Improved meter fix delivery accuracies
    • Delay reduction
    • Reduced frequency and duration of voice communications
  • Increase controller productivity
    • Reduced workload from trajectory clearances
  • Increased flight path predictability and repeatability
    • Flight path execution with airplane navigation accuracies
    • Improved air/ground situational awareness
required navigation performance rnav rnp and 3d path operations
Required Navigation Performance (RNAV/RNP) and 3D Path Operations
  • Operational Environment – Arrival Transition:
    • Path stretching is required when speed control is insufficient to achieve spacing
    • ATC uses automation tools to select conflict free path and speed to space traffic
    • Voice based clearances for all aircraft
    • FMS execution of cleared flight paths
  • 3D Path Design:
    • Lateral path design enables FMS-based execution with LNAV, not headingcommands RNP
      • En-route: “Place/Bearing/Distance” or lateral offsets
      • Arrival transition: “Place/Bearing/Distance” (PBD)
      • Terminal Area: Pre-defined 3D paths, published and available in air and on ground
    • Vertical flight path enables VNAV execution by the aircraft:
      • FMS optimizes the vertical profile:

Continuous Descent Arrivals (CDA) in high traffic conditions

slide10
3D Paths in Arrival Management - Overview
  • Ground automation maximizes airport throughput and flight efficiency
    • Computes schedule at runways and meter fixes
    • Selects cruise/descent speeds and lateral path

stretch to meet schedule

  • ATC provides complete flight path

from cruise to Meter Fix

  • Allows FMS to fly optimal vertical profile
  • LNAV/RNP/VNAV execution of flight path
  • Enables trajectory-based operations

Path Stretch

Start

TOD

Path

Stretch

End

Triangular Delay Paths in Center:

Waypoint Insertion Using

Place-Bearing Distance (PBD)–

Cleared Using Voice

Meter

Fix

3D PAM Target Domain

Pre-Defined 3D Path Sets

in Terminal Area

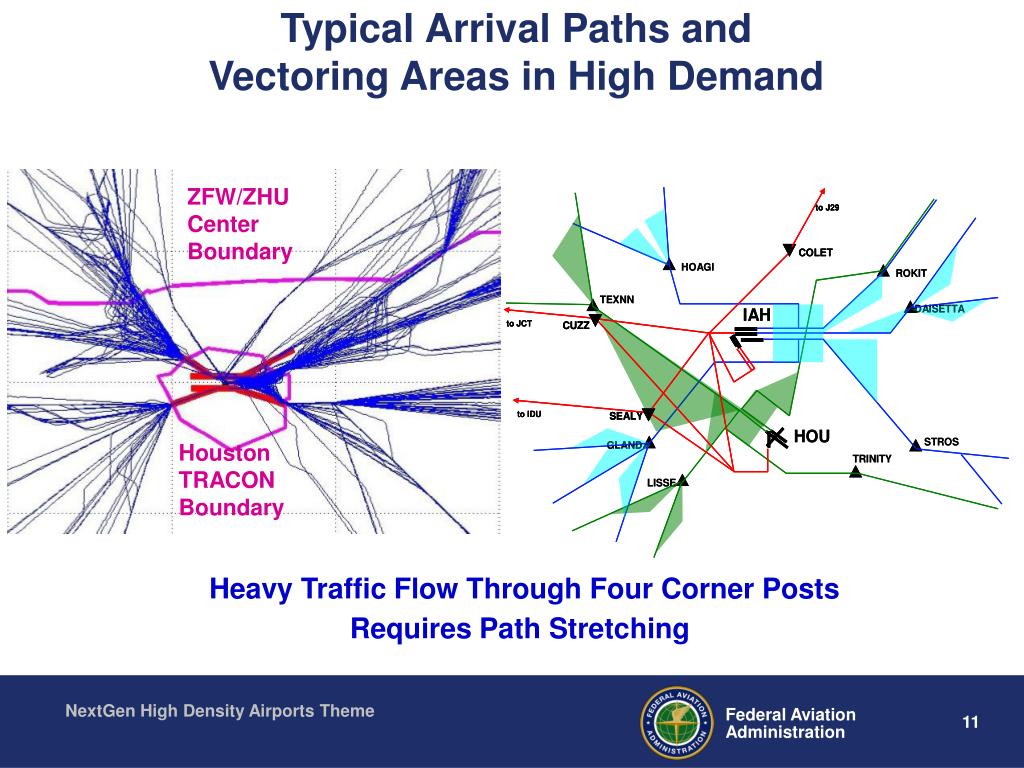

typical arrival paths and vectoring areas in high demand
ZFW/ZHU

Center Boundary

Houston

TRACON

Boundary

Typical Arrival Paths and Vectoring Areas in High Demand

Heavy Traffic Flow Through Four Corner Posts

Requires Path Stretching

arrival management automation
Arrival Management Automation

Traffic Management (TMA) and

En Route Descent Advisor (EDA) Functions

Required: EDA

Functionality

3d paths in arrival management supporting ground automation
Flight: EGF586

Clearance issued

Before TOD

STA

Original path

ETA

Mag. North

Stretched

Path

Bearing:

52 deg

Distance: 61nm

Meter

Fix:

DAS

EGF586 P/DAS 052 061 P/DASC/250 D/240

3D Paths in Arrival Management: Supporting Ground Automation

Meter Fix Schedule:

Traffic Management Advisor

(TMA)

Path-Based Advisory to Meet the Schedule:

En-Route Descent Advisor (EDA) Functionality

3d pam clearance and aircraft types
3D PAM – Clearance and Aircraft Types
  • Strategic 3D Path clearances:
    • Issued after TMA freeze horizon and before TOD
    • Path stretch based on Place-Bearing Distance (PBD)
    • Conflict free EDA type advisories consist of new cruise/descent speeds, lateral path stretch, and intermediate altitude (for conflicts only)
  • Tactical 3D Path clearances – issued if required:
    • Strategic clearance could not be implemented
    • EDA time-based monitoring: Meter fix ETA out of compliance
    • Combined speed and path stretch advisory based on PBD
  • Considered Aircraft Types:
3d pam core fy08 activities
3D PAM Core FY08 Activities
  • Project plans for FY08 focuses on four main areas
    • Development of the overall 3D PAM Concept
      • ATC / Flight deck perspective
    • Continued development of EDA functionality
    • Initiation of the Concept Requirements Definition phase of AMS process
    • Definition of Functional Requirements Specification

(Acquisition strategy TBD)

high level schedule
Q1

Q1

Q1

Q1

Q1

Q2

Q2

Q2

Q2

Q2

Q3

Q3

Q3

Q3

Q3

Q4

Q4

Q4

Q4

Q4

High Level Schedule

FY08

FY09

FY10

FY11

FY12

ATC / FD

Centric Simulations

OMB / JPDO Demonstrations

Integrated Sim Demo

Boeing (Seattle, WA)

Flight Demo (Denver, CO)

Fast Time Sims.

Metrics ID / Initial Metrics Plan

Initial Benefits Analysis

CRD Process

IARD Process

Flight Trials

Tech Transfer – EDA Functionality

JRC – 2A

All work is being conducted in collaboration with following offices: TMA and ERAM

Organizational partners: JPDO, ATO-E, ATO-R, ATO-T

JRC-2A lead most likely ATO-E (Acquisition strategy is TBD)

summary
Summary

3D Paths provide a feasible near term operational concept:

  • Based on integrated use of current FMS capabilities and advanced ground automation (TMA, EDA-type functionality)
  • Feasible in today’s operational environment
  • Provides near term efficiency benefits – enables CDA operations from TOD to meter fix
  • Crucial step towards Trajectory Based Operations in NextGen
  • Enables transition to integrated data link operations
  • Mixed equipage accommodation in future concepts
  • Initial implementation domain from cruise to meter fixes
