Presentation Transcript
compiler and runtime support for efficient software transactional memory

Compiler and Runtime Supportfor EfficientSoftware Transactional Memory

Vijay Menon

Programming Systems Lab

Ali-Reza Adl-Tabatabai, Brian T. Lewis,

Brian R. Murphy, Bratin Saha, Tatiana Shpeisman

motivation
Motivation

Locks are hard to get right

  • Programmability vs scalability

Transactional memory is appealing alternative

  • Simpler programming model
  • Stronger guarantees
    • Atomicity, Consistency, Isolation
    • Deadlock avoidance
  • Closer to programmer intent
  • Scalable implementations

Questions

  • How to lower TM overheads – particularly in software?
  • How to balance granularity / scalability?
our system
Our System
  • Java Software Transactional Memory (STM) System
      • Pure software implementation (McRT-STM – PPoPP ’06)
      • Language extensions in Java (Polyglot)
      • Integrated with JVM & JIT (ORP & StarJIT)
  • Novel Features
      • Rich transactional language constructs in Java
      • Efficient, first class nested transactions
      • Complete GC support
      • Risc-like STM API / IR
      • Compiler optimizations
      • Per-type word and object level conflict detection
transactional java java

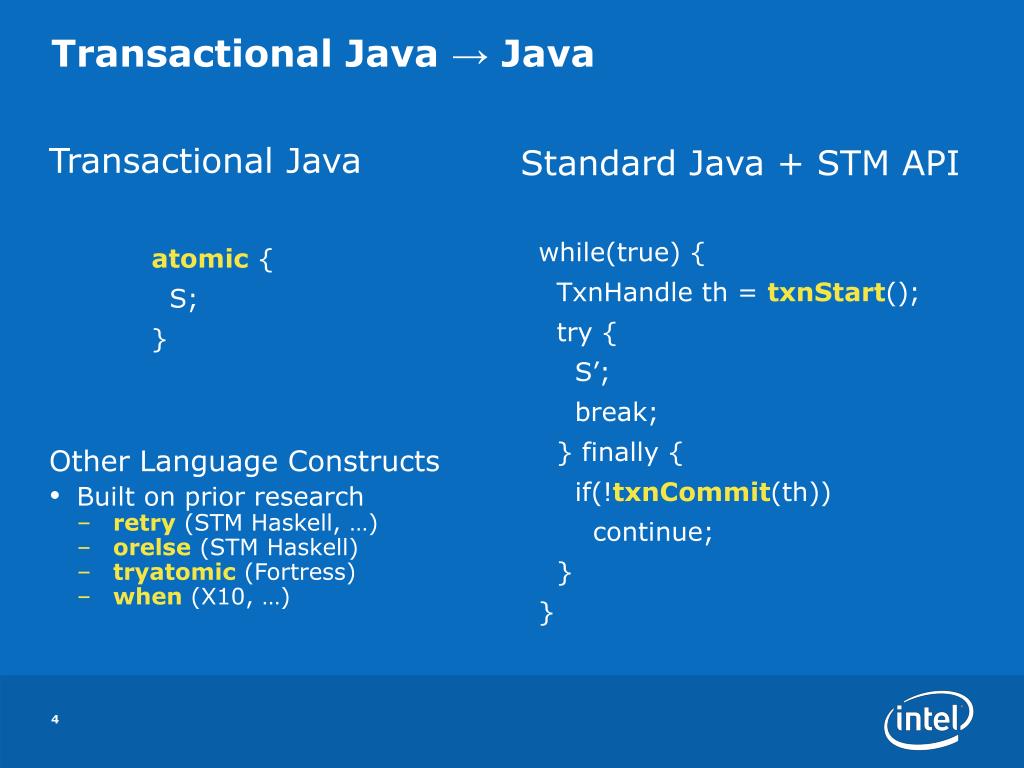

Transactional Java

atomic {

S;

}

Other Language Constructs

Built on prior research

retry (STM Haskell, …)

orelse (STM Haskell)

tryatomic (Fortress)

when (X10, …)

Standard Java + STM API

while(true) {

TxnHandle th = txnStart();

try {

S’;

break;

} finally {

if(!txnCommit(th))

continue;

}

}

Transactional Java → Java

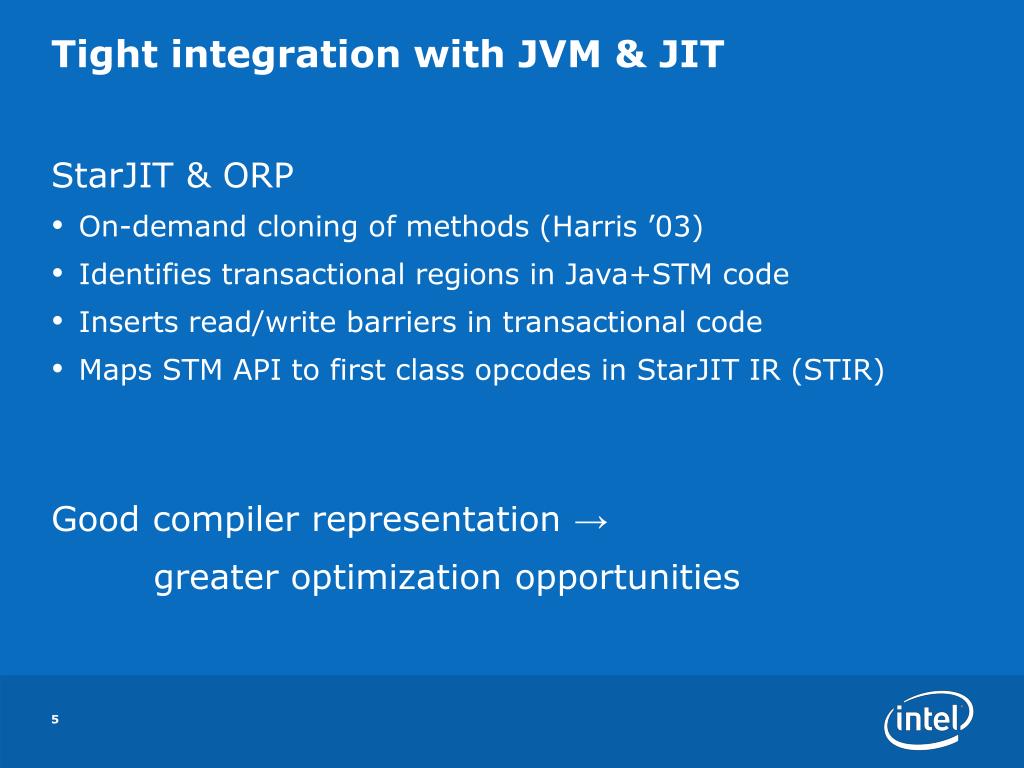

tight integration with jvm jit
Tight integration with JVM & JIT
  • StarJIT & ORP
    • On-demand cloning of methods (Harris ’03)
    • Identifies transactional regions in Java+STM code
    • Inserts read/write barriers in transactional code
    • Maps STM API to first class opcodes in StarJIT IR (STIR)

Good compiler representation →

greater optimization opportunities

representing read write barriers
atomic {

a.x = t1

a.y = t2

if(a.z == 0) {

a.x = 0

a.z = t3

}

}

stmWr(&a.x, t1)

stmWr(&a.y, t2)

if(stmRd(&a.z) != 0) {

stmWr(&a.x, 0);

stmWr(&a.z, t3)

}

Representing Read/Write Barriers

Traditional barriers hide redundant locking/logging

an stm ir for optimization
Redundancies exposed:

atomic {

a.x = t1

a.y = t2

if(a.z == 0) {

a.x = 0

a.z = t3

}

}

txnOpenForWrite(a)

txnLogObjectInt(&a.x, a)

a.x = t1

txnOpenForWrite(a)

txnLogObjectInt(&a.y, a)

a.y = t2

txnOpenForRead(a)

if(a.z != 0) {

txnOpenForWrite(a)

txnLogObjectInt(&a.x, a)

a.x = 0

txnOpenForWrite(a)

txnLogObjectInt(&a.z, a)

a.z = t3

}

An STM IR for Optimization

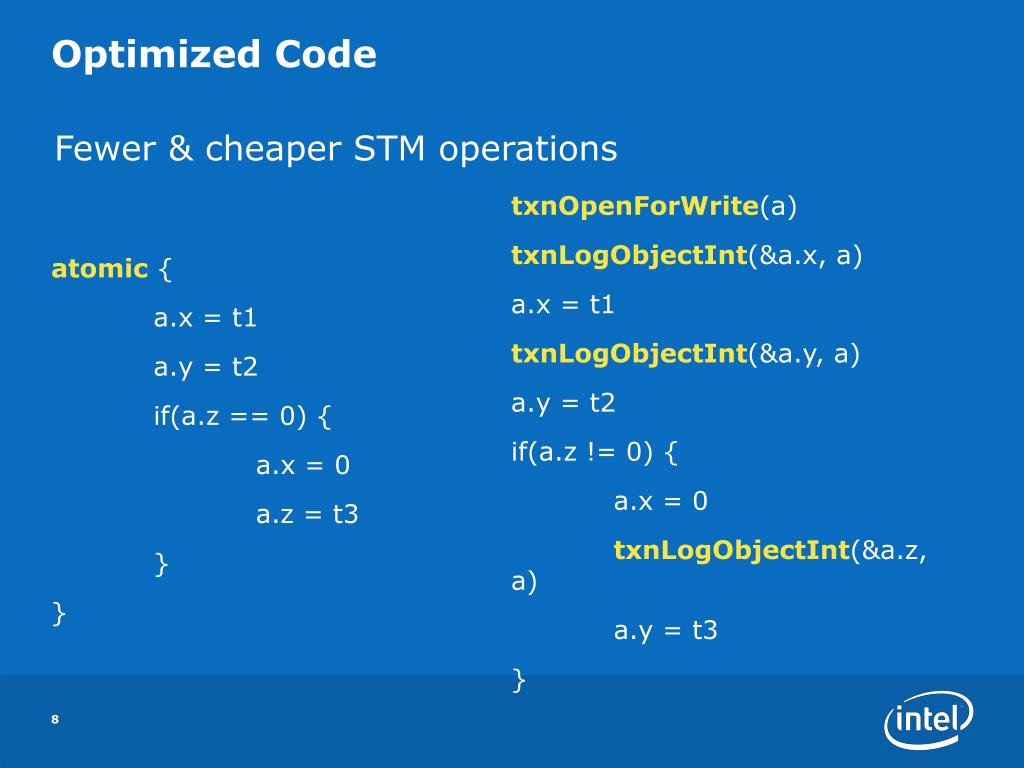

optimized code
atomic {

a.x = t1

a.y = t2

if(a.z == 0) {

a.x = 0

a.z = t3

}

}

txnOpenForWrite(a)

txnLogObjectInt(&a.x, a)

a.x = t1

txnLogObjectInt(&a.y, a)

a.y = t2

if(a.z != 0) {

a.x = 0

txnLogObjectInt(&a.z, a)

a.y = t3

}

Optimized Code

Fewer & cheaper STM operations

compiler optimizations for transactions

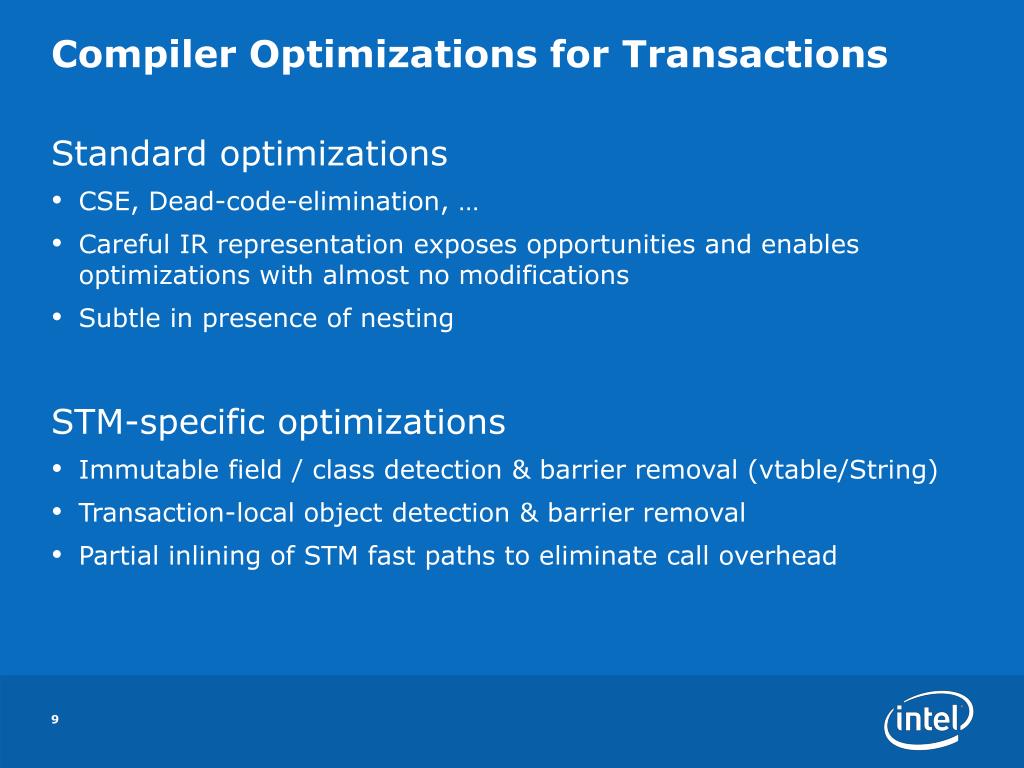

Compiler Optimizations for Transactions
  • Standard optimizations
    • CSE, Dead-code-elimination, …
    • Careful IR representation exposes opportunities and enables optimizations with almost no modifications
    • Subtle in presence of nesting
  • STM-specific optimizations
    • Immutable field / class detection & barrier removal (vtable/String)
    • Transaction-local object detection & barrier removal
    • Partial inlining of STM fast paths to eliminate call overhead
mcrt stm
McRT-STM
  • PPoPP 2006 (Saha, et. al.)
    • C / C++ STM
    • Pessimistic Writes:
      • strict two-phase locking
      • update in place
      • undo on abort
    • Optimistic Reads:
      • versioning
      • validation before commit
    • Benefits
      • Fast memory accesses (no buffering / object wrapping)
      • Minimal copying (no cloning for large objects)
      • Compatible with existing types & libraries

Similar STMs: Ennals (FastSTM), Harris, et.al (PLDI ’06)

stm data structures
STM Data Structures
  • Per-thread:
    • Transaction Descriptor
      • Per-thread info for version validation, acquired locks, rollback
      • Maintained in Read / Write / Undo logs
    • Transaction Memento
      • Checkpoint of logs for nesting / partial rollback
  • Per-data:
    • Transaction Record
      • Pointer-sized field guarding a set of shared data
      • Transactional state of data
        • Shared: Version number (odd)
        • Exclusive: Owner’s transaction descriptor (even / aligned)
mapping data to transaction record

vtbl

vtbl

hash

TxR

x

x

y

y

TxR1

TxR2

TxR3

TxRn

Mapping Data to Transaction Record
  • Every data item has an associated transaction record

Transaction

record embedded

In object

class Foo {

int x;

int y;

}

Object

granularity

Object words hash

into table of TxRs

Hash is

f(obj.hash, offset)

class Foo {

int x;

int y;

}

Word

granularity

granularity of conflict detection
Object-level

Cheaper operation

Exposes CSE opportunities

Lower overhead on 1P

Word-level

Reduces false sharing

Better scalability

Mix & Match

Per type basis

E.g., word-level for arrays, object-level for non-arrays

// Thread 1

a.x = …

a.y = …

// Thread 2

… = … a.z …

Granularity of Conflict Detection
experiments
Experiments
  • 16-way 2.2 GHz Xeon with 16 GB shared memory
    • L1: 8KB, L2: 512 KB, L3: 2MB, L4: 64MB (per four)
  • Workloads
    • Hashtable, Binary tree, OO7 (OODBMS)
      • Mix of gets, in-place updates, insertions, and removals
    • Object-level conflict detection by default
      • Word / mixed where beneficial
effective of compiler optimizations

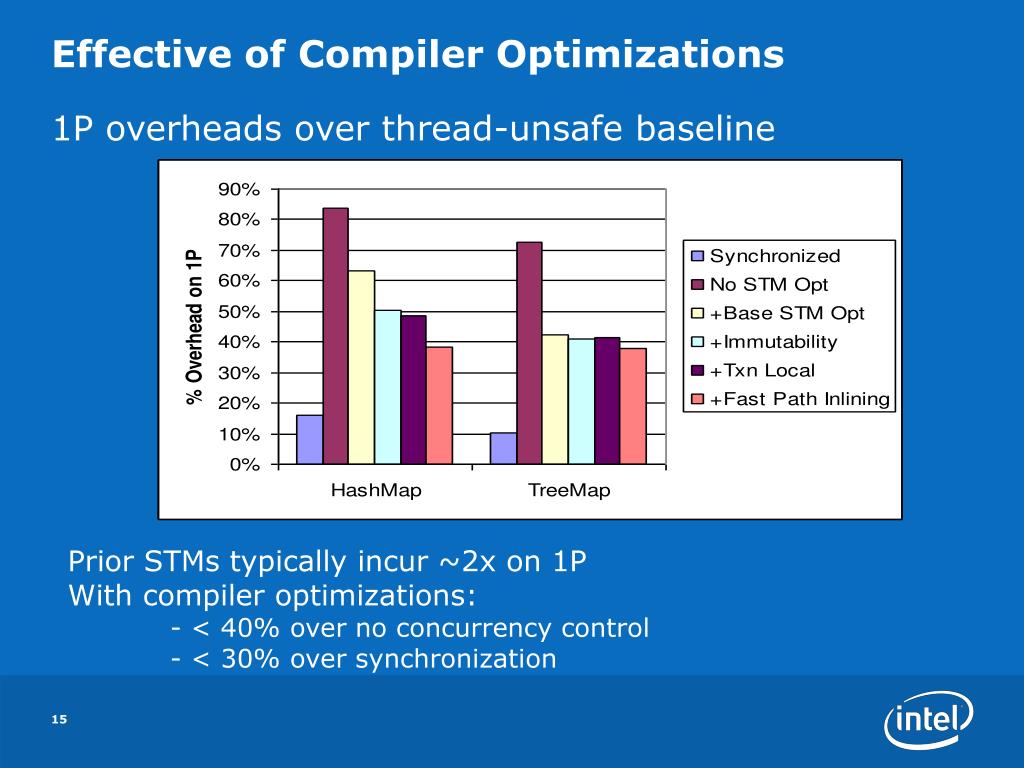

Effective of Compiler Optimizations
  • 1P overheads over thread-unsafe baseline

Prior STMs typically incur ~2x on 1P

With compiler optimizations:

- < 40% over no concurrency control

- < 30% over synchronization

scalability java hashmap shootout
Scalability: Java HashMap Shootout
  • Unsafe (java.util.HashMap)
      • Thread-unsafe w/o Concurrency Control

Synchronized

      • Coarse-grain synchronization via SynchronizedMap wrapper

Concurrent (java.util.concurrent.ConcurrentHashMap)

      • Multi-year effort: JSR 166 -> Java 5
      • Optimized for concurrent gets (no locking)
      • For updates, divides bucket array into 16 segments (size / locking)

Atomic

      • Transactional version via “AtomicMap” wrapper

Atomic Prime

      • Transactional version with minor hand optimization
        • Tracks size per segment ala ConcurrentHashMap
  • Execution
      • 10,000,000 operations / 200,000 elements
      • Defaults: load factor, threshold, concurrency level

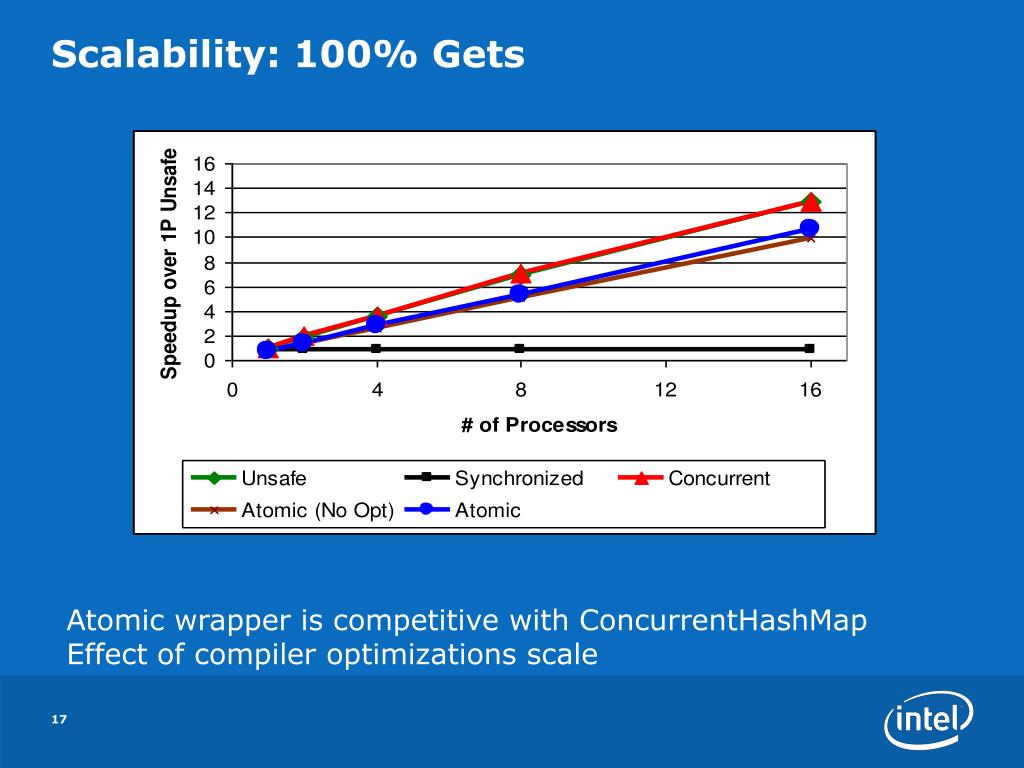

scalability 100 gets
Scalability: 100% Gets

Atomic wrapper is competitive with ConcurrentHashMap

Effect of compiler optimizations scale

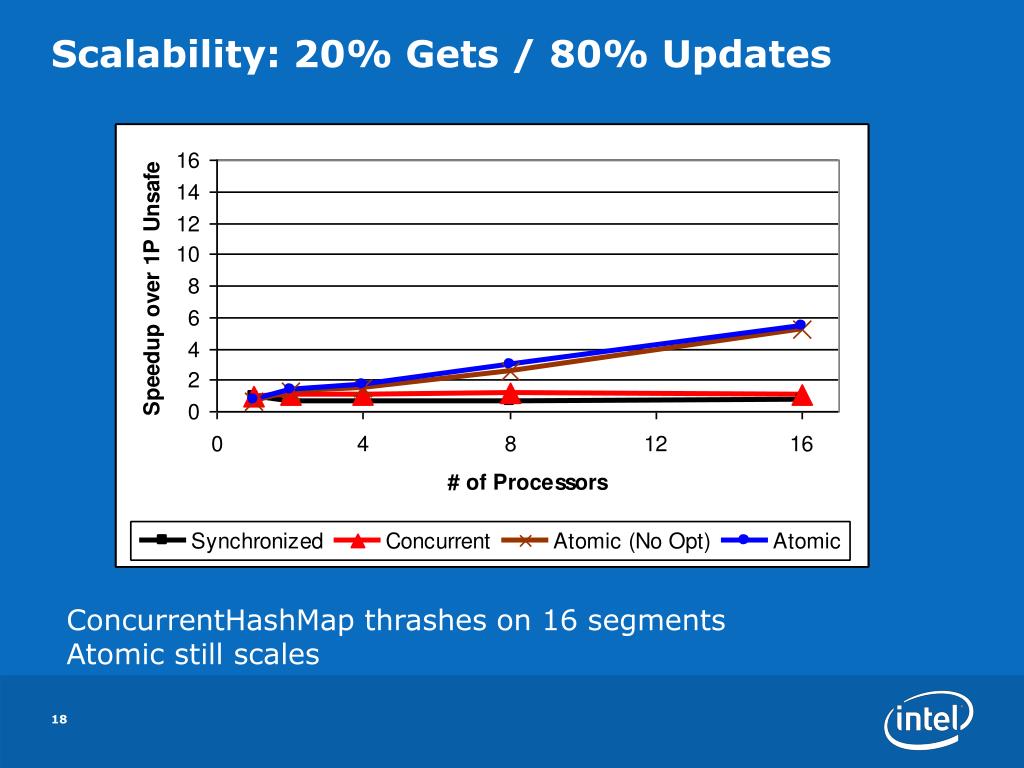

scalability 20 gets 80 updates
Scalability: 20% Gets / 80% Updates

ConcurrentHashMap thrashes on 16 segments

Atomic still scales

20 inserts and removes
20% Inserts and Removes

Atomic conflicts on entire bucket array

- The array is an object

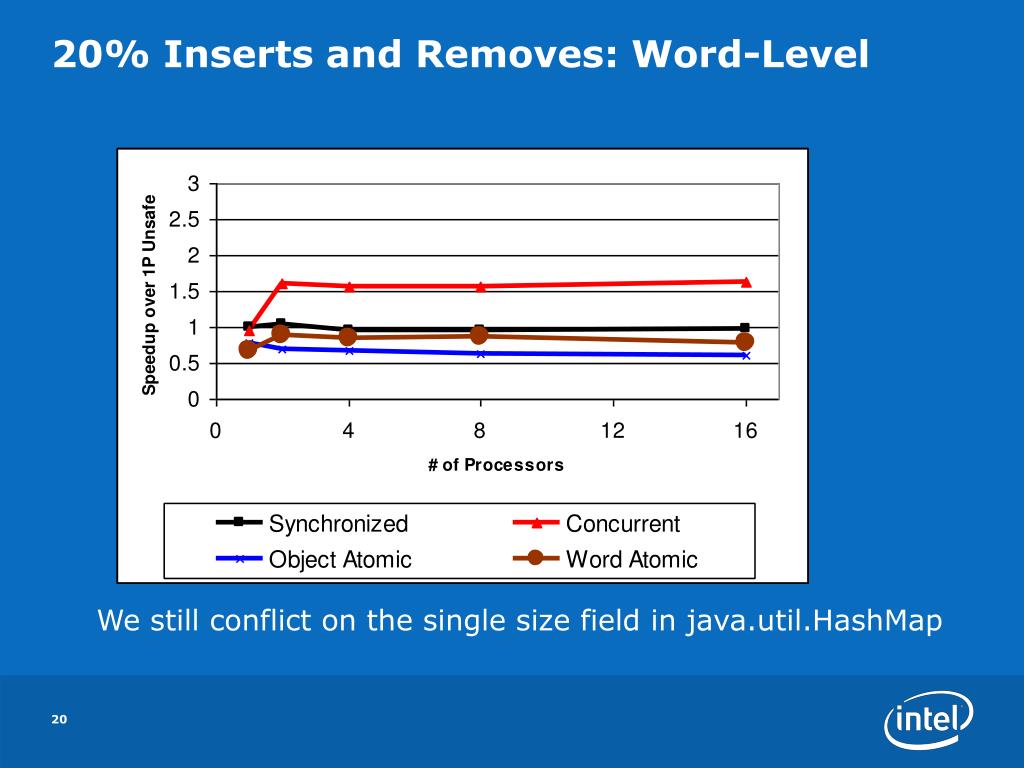

20 inserts and removes word level
20% Inserts and Removes: Word-Level

We still conflict on the single size field in java.util.HashMap

20 inserts and removes atomic prime
20% Inserts and Removes: Atomic Prime

Atomic Prime tracks size / segment – lowering bottleneck

No degradation, modest performance gain

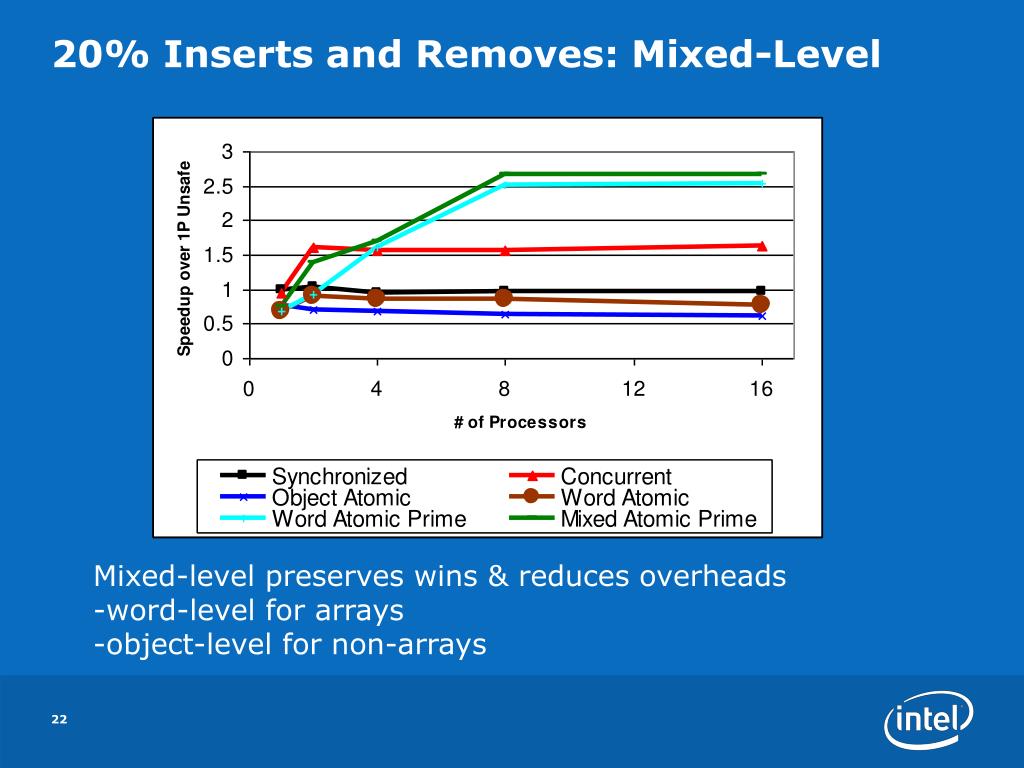

20 inserts and removes mixed level
20% Inserts and Removes: Mixed-Level
  • Mixed-level preserves wins & reduces overheads
  • word-level for arrays
  • object-level for non-arrays

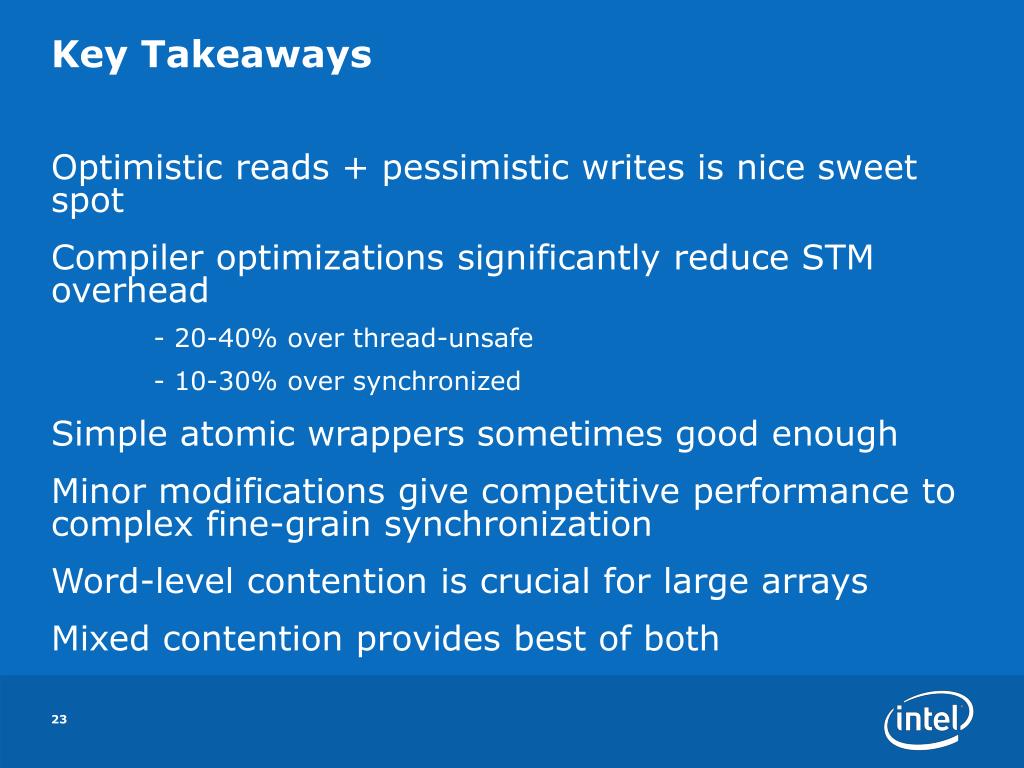

key takeaways
Key Takeaways
  • Optimistic reads + pessimistic writes is nice sweet spot
  • Compiler optimizations significantly reduce STM overhead
  • - 20-40% over thread-unsafe
  • - 10-30% over synchronized
  • Simple atomic wrappers sometimes good enough
  • Minor modifications give competitive performance to complex fine-grain synchronization
  • Word-level contention is crucial for large arrays
  • Mixed contention provides best of both
novel contributions

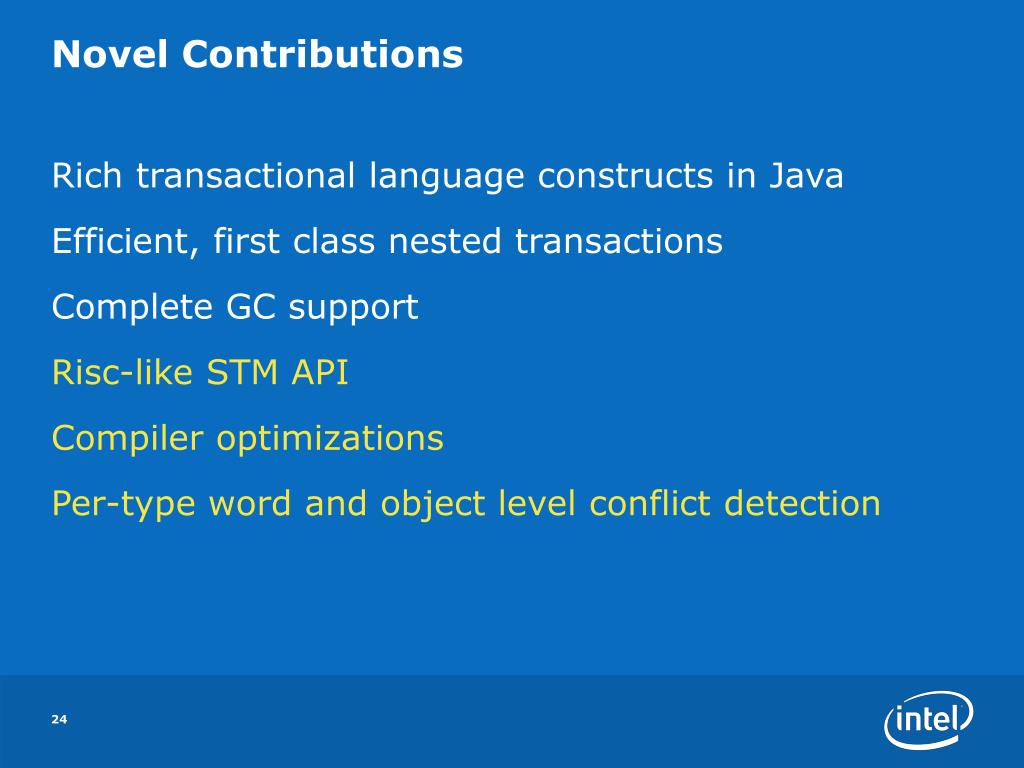

Novel Contributions
  • Rich transactional language constructs in Java
  • Efficient, first class nested transactions
  • Complete GC support
  • Risc-like STM API
  • Compiler optimizations
  • Per-type word and object level conflict detection
