NSTX outer TF leg analysis (with diamonds not uniformly distributed). Non-standard (short) diamond bar. *Full 360 º model *Al blocks connected to springs to simulate umbrella structure (stiffness is calculated from HM’s vv model)
E N D

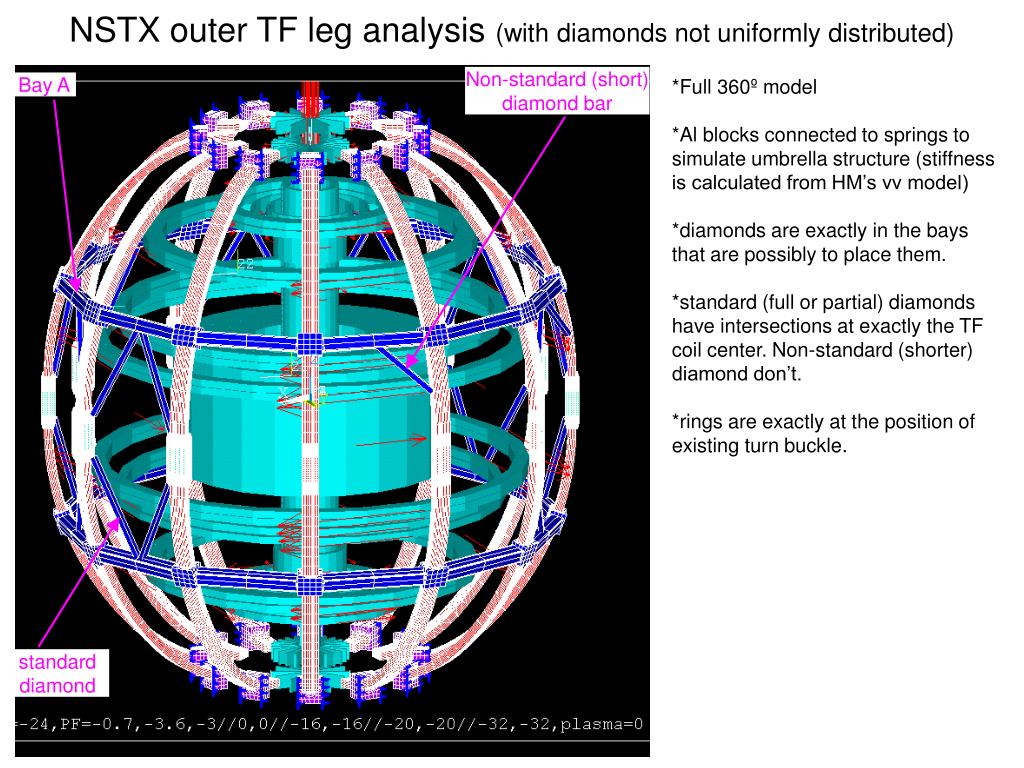

NSTX outer TF leg analysis (with diamonds not uniformly distributed) Non-standard (short) diamond bar *Full 360º model *Al blocks connected to springs to simulate umbrella structure (stiffness is calculated from HM’s vv model) *diamonds are exactly in the bays that are possibly to place them. *standard (full or partial) diamonds have intersections at exactly the TF coil center. Non-standard (shorter) diamond don’t. *rings are exactly at the position of existing turn buckle. Bay A standard diamond

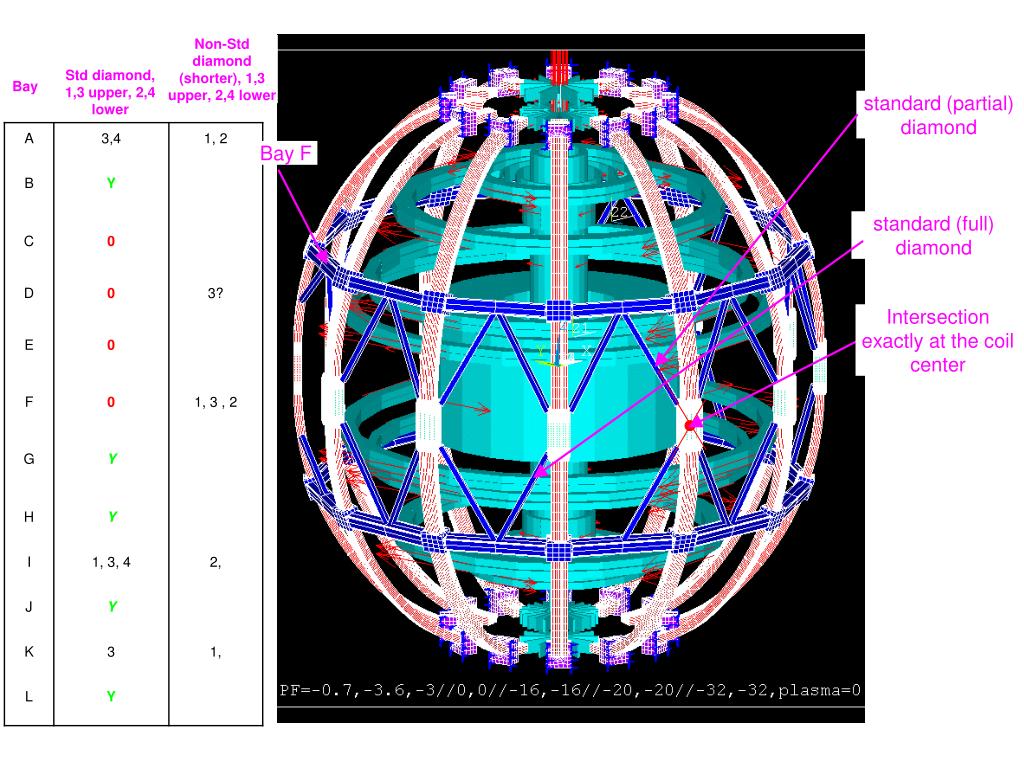

Non-Std diamond (shorter), 1,3 upper, 2,4 lower Std diamond, 1,3 upper, 2,4 lower Bay standard (partial) diamond Bay F standard (full) diamond Intersection exactly at the coil center

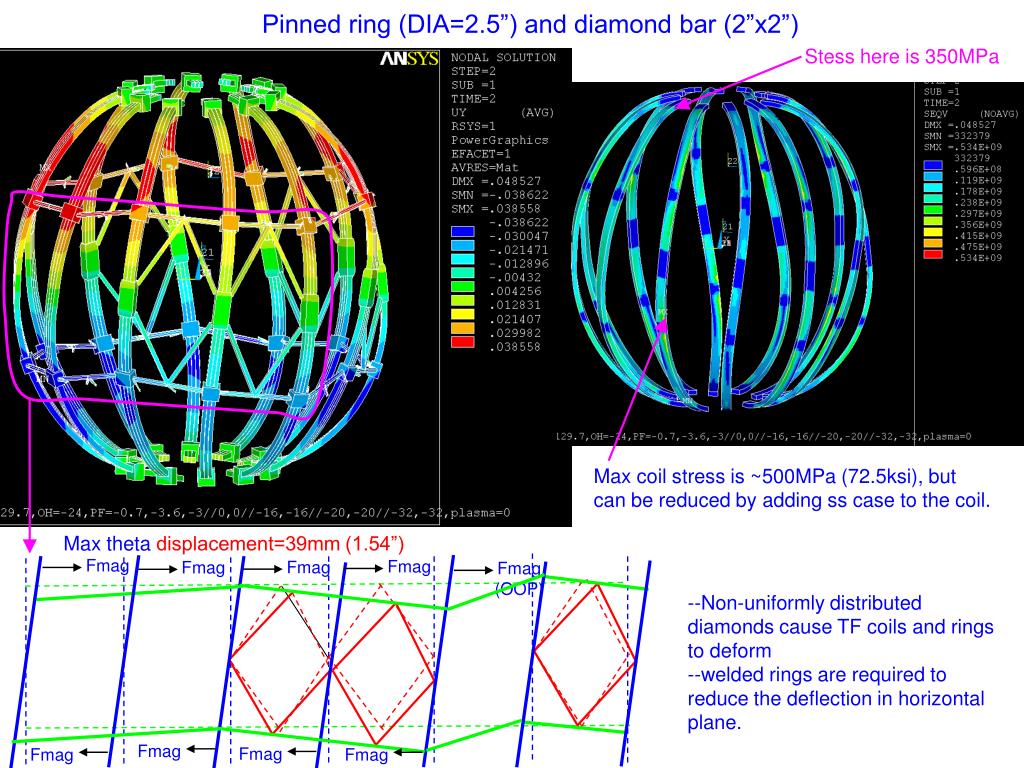

Pinned ring (DIA=2.5”) and diamond bar (2”x2”) Stess here is 350MPa Max coil stress is ~500MPa (72.5ksi), but can be reduced by adding ss case to the coil. Max theta displacement=39mm (1.54”) Fmag Fmag Fmag Fmag Fmag (OOP) --Non-uniformly distributed diamonds cause TF coils and rings to deform --welded rings are required to reduce the deflection in horizontal plane. Fmag Fmag Fmag Fmag

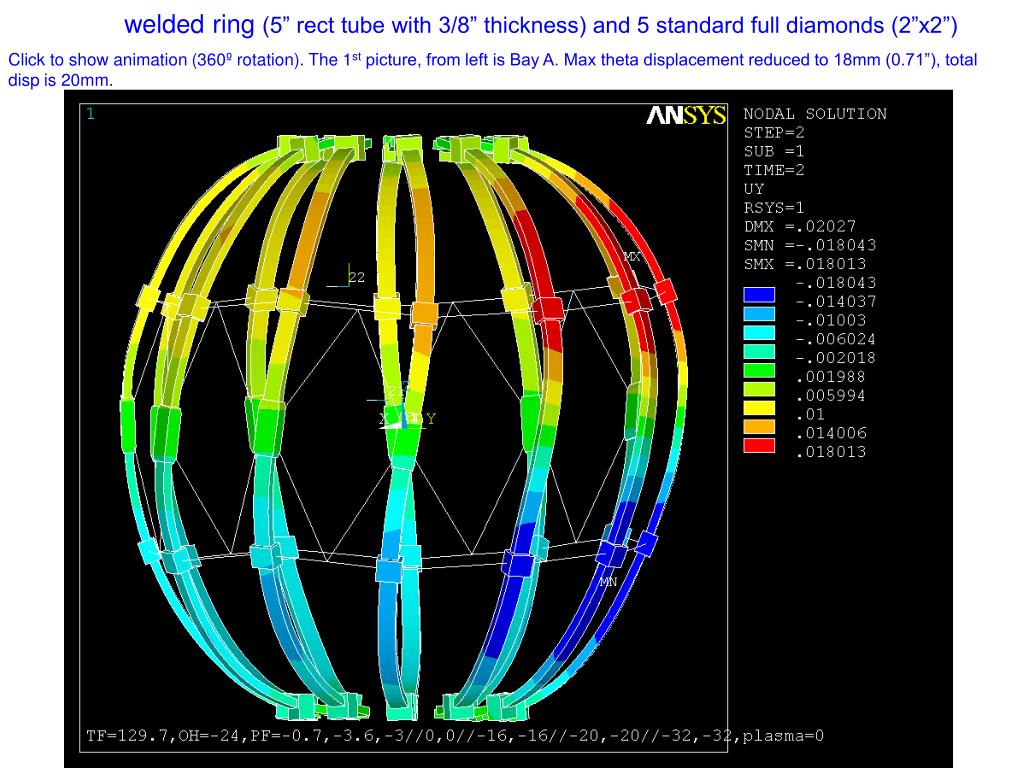

welded ring (5” rect tube with 3/8” thickness) and 5 standard full diamonds (2”x2”) Click to show animation (360º rotation). The 1st picture, from left is Bay A. Max theta displacement reduced to 18mm (0.71”), total disp is 20mm.
welded ring (5” rect tube with 3/8” thickness) and 5 standard full diamonds (2”x2”) High coil stress at the connection between coil and ring: ~500MPa (72.5ksi), and at the connection between coil and Al. block: ~250MPa (36.3ksi) But these can be reduced by adding ss case of Peter’s design: TF ss case ring Bay E Max stress here

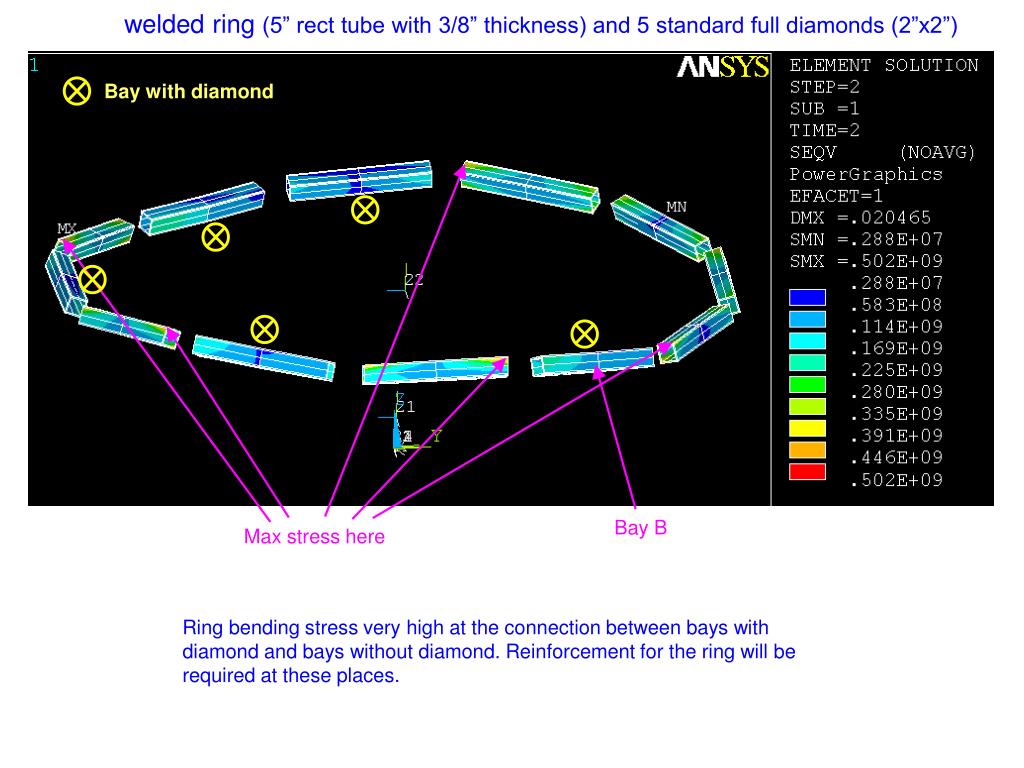

welded ring (5” rect tube with 3/8” thickness) and 5 standard full diamonds (2”x2”) Bay with diamond Bay B Max stress here Ring bending stress very high at the connection between bays with diamond and bays without diamond. Reinforcement for the ring will be required at these places.
welded ring (5” rect tube with 3/8” thickness) and std full and partial diamonds (2”x2”) Click to show animation(360º rotation). The 1st picture, from left is Bay A. Max theta displacement reduced to 18mm (0.71”), total disp is 21mm.

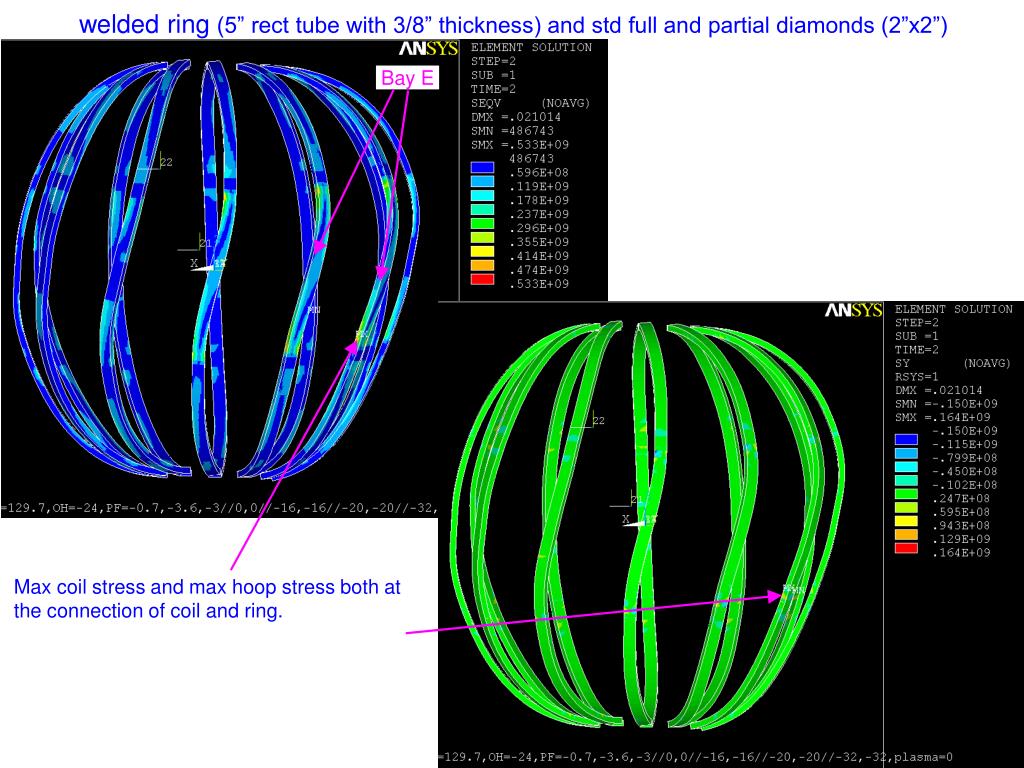

welded ring (5” rect tube with 3/8” thickness) and std full and partial diamonds (2”x2”) Bay E Max coil stress and max hoop stress both at the connection of coil and ring.

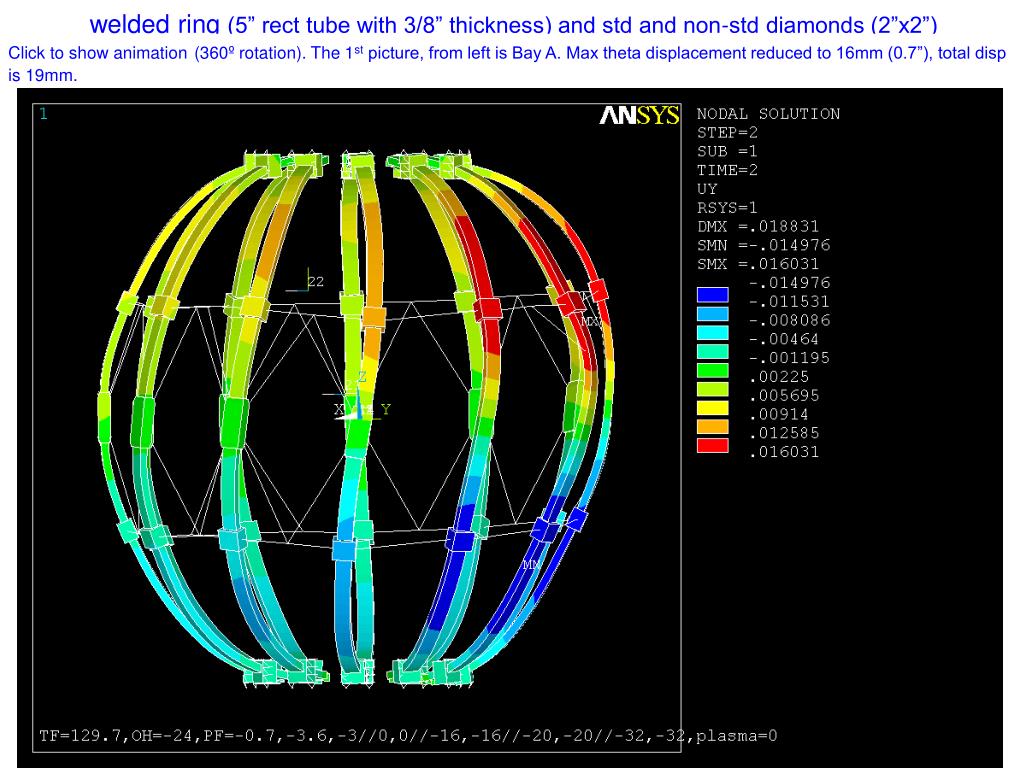

welded ring (5” rect tube with 3/8” thickness) and std and non-std diamonds (2”x2”) Click to show animation(360º rotation). The 1st picture, from left is Bay A. Max theta displacement reduced to 16mm (0.7”), total disp is 19mm.

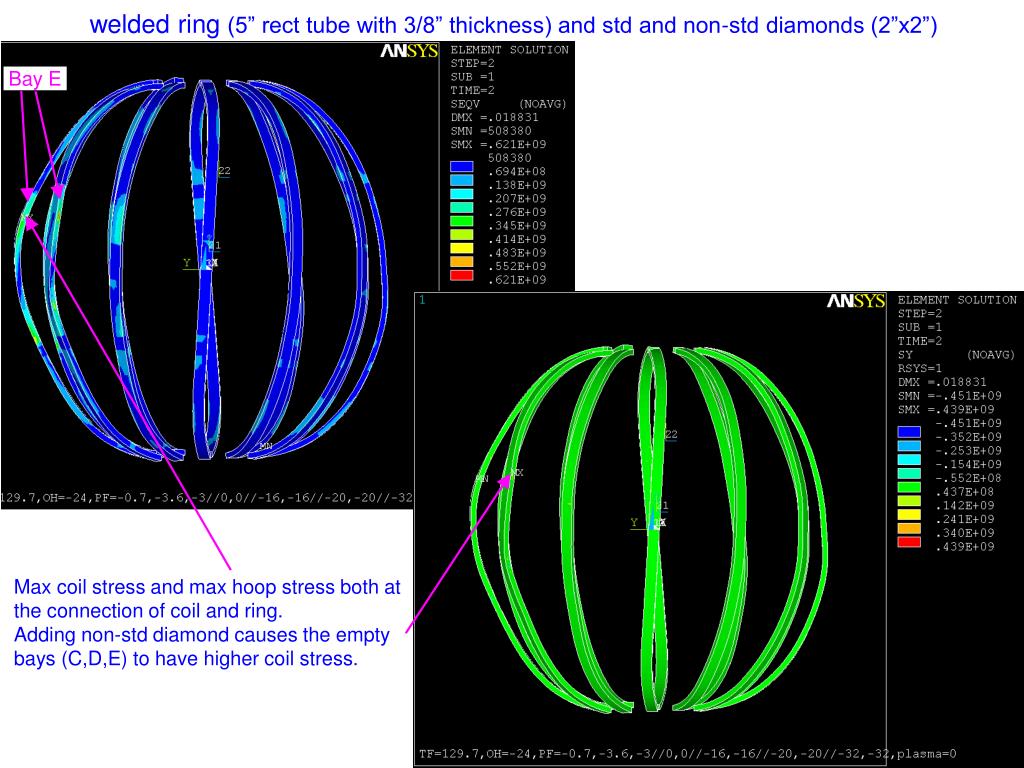

welded ring (5” rect tube with 3/8” thickness) and std and non-std diamonds (2”x2”) Bay E Max coil stress and max hoop stress both at the connection of coil and ring. Adding non-std diamond causes the empty bays (C,D,E) to have higher coil stress.

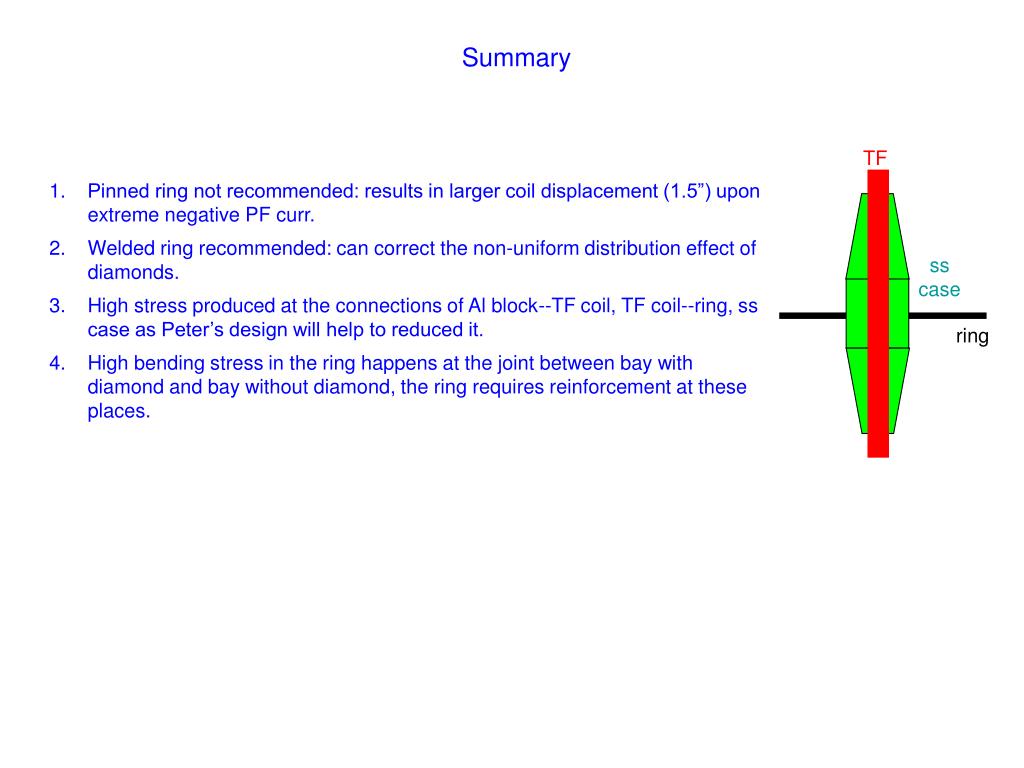

TF ss case ring Summary • Pinned ring not recommended: results in larger coil displacement (1.5”) upon extreme negative PF curr. • Welded ring recommended: can correct the non-uniform distribution effect of diamonds. • High stress produced at the connections of Al block--TF coil, TF coil--ring, ss case as Peter’s design will help to reduced it. • High bending stress in the ring happens at the joint between bay with diamond and bay without diamond, the ring requires reinforcement at these places.
