  1. 6.9Case: Hadramawt Improved Traditional Engineering

  2. YEMEN WADI HADRAMAWT Rainfall isohyets

  3. Hadramawt: special characteristics • Extremely low rainfall (50 mm/year) • Very irregular and often heavy floods • Special efforts to avoid that large floods destroy command area and residential area) much attention for spillways( • Groundwater and hence recharge is important

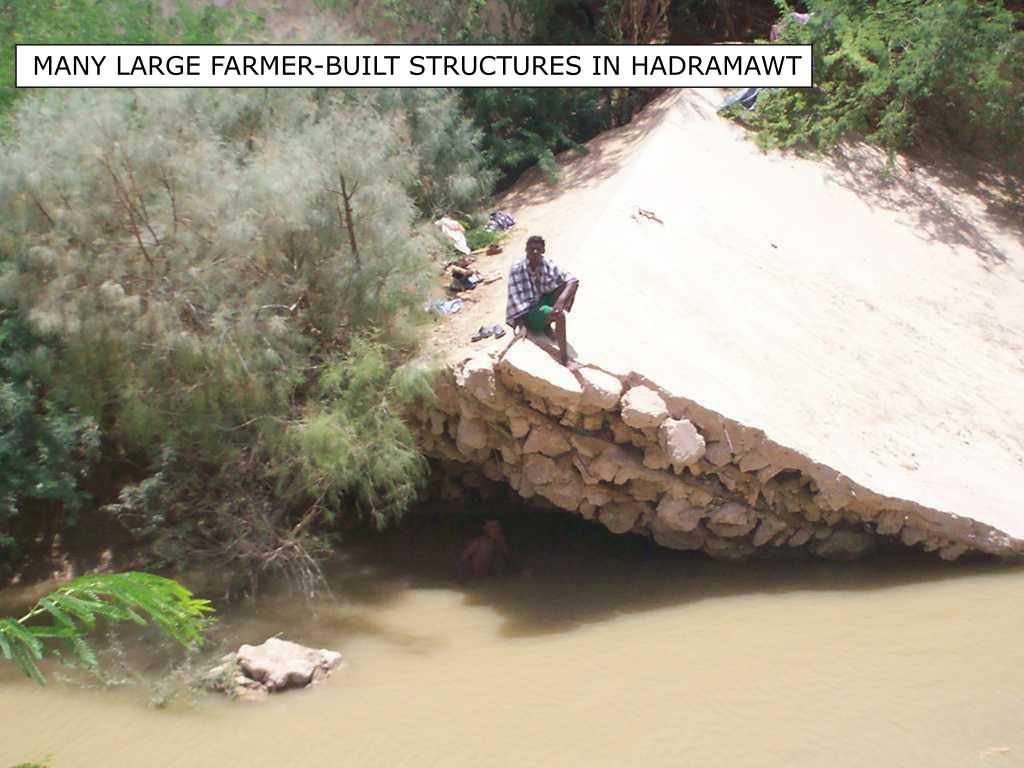

  4. MANY LARGE FARMER-BUILT STRUCTURES IN HADRAMAWT

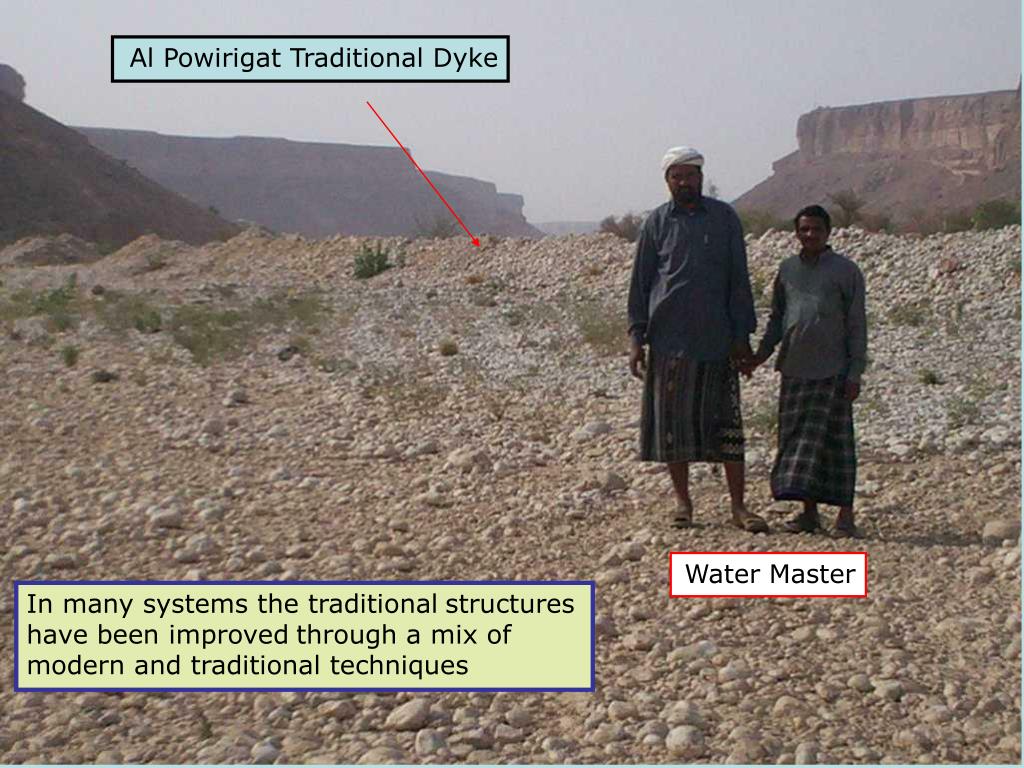

  5. Al Powirigat Traditional Dyke Water Master In many systems the traditionalstructures have been improvedthrough a mix of modern and traditional techniques

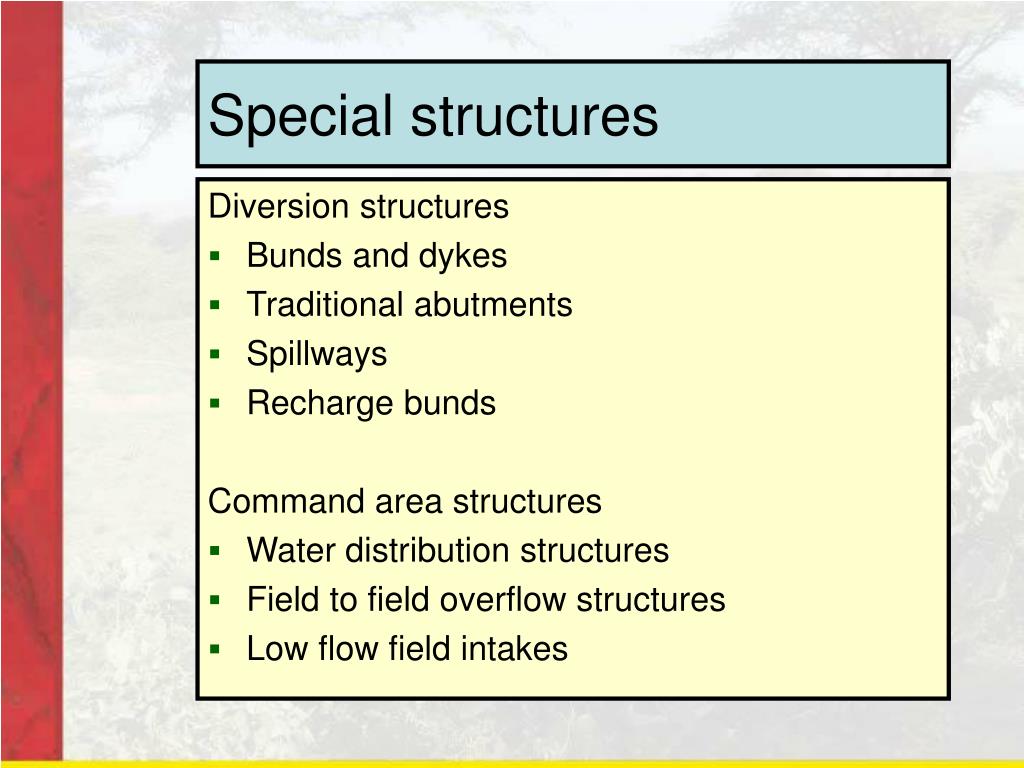

  6. Special structures Diversion structures • Bunds and dykes • Traditional abutments • Spillways • Recharge bunds Command area structures • Water distribution structures • Field to field overflow structures • Low flow field intakes

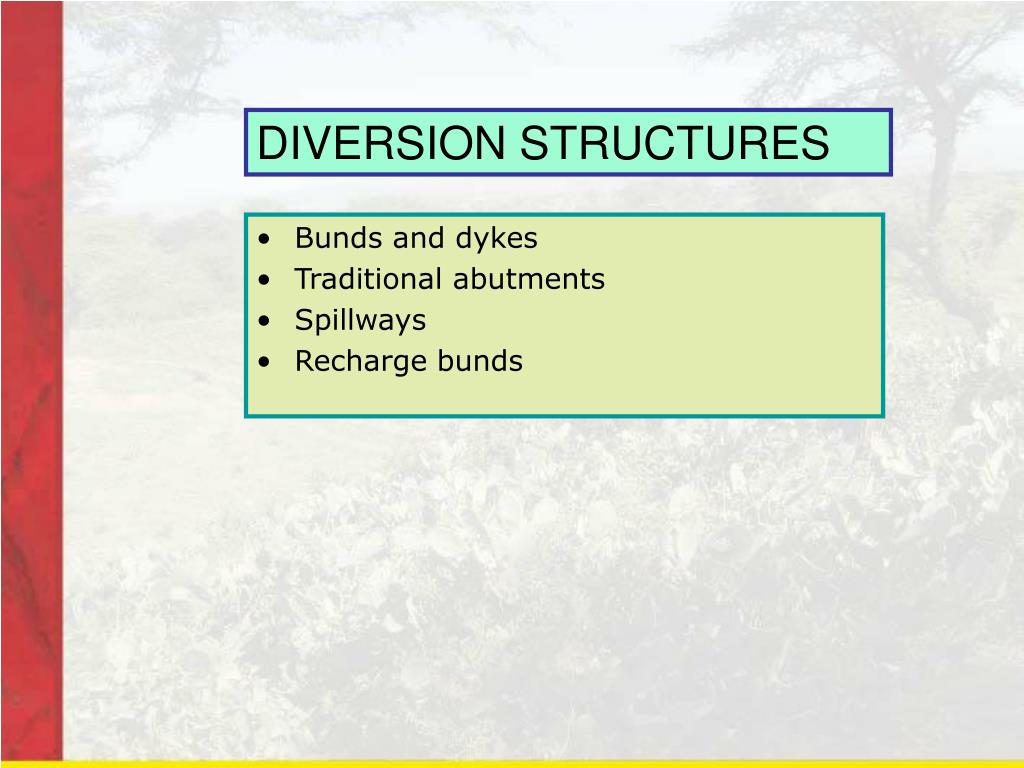

  7. DIVERSION STRUCTURES • Bunds and dykes • Traditional abutments • Spillways • Recharge bunds

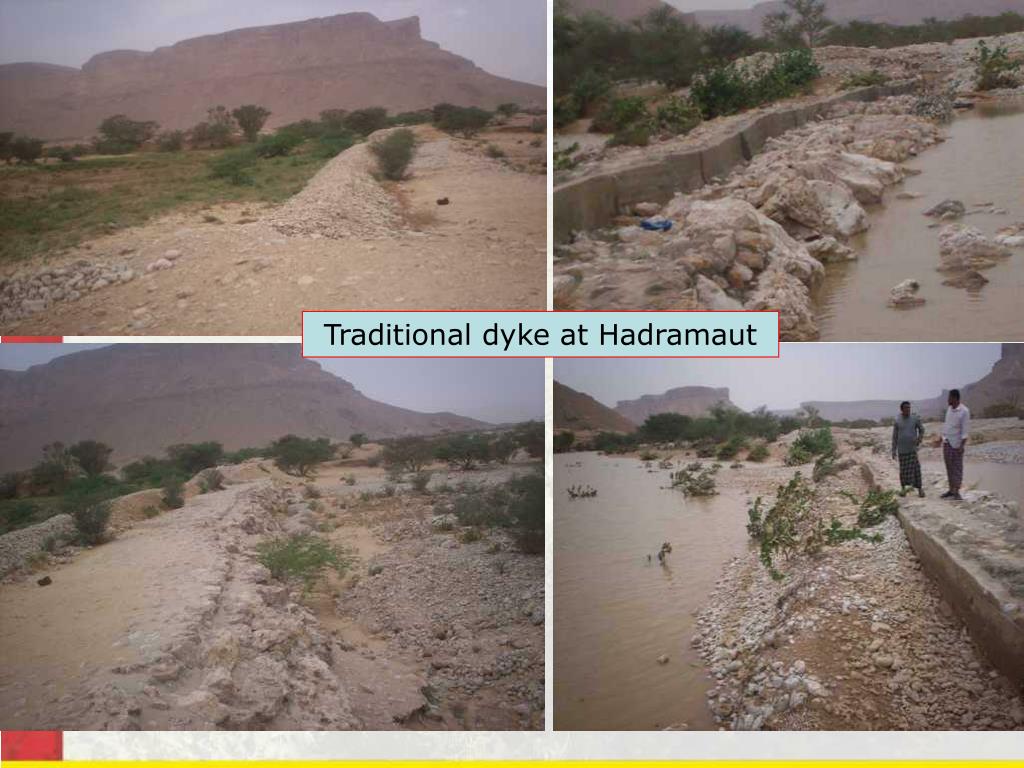

  8. Traditional dyke at Hadramaut

  9. Traditional diversion dyke – at angle with the flow of the river

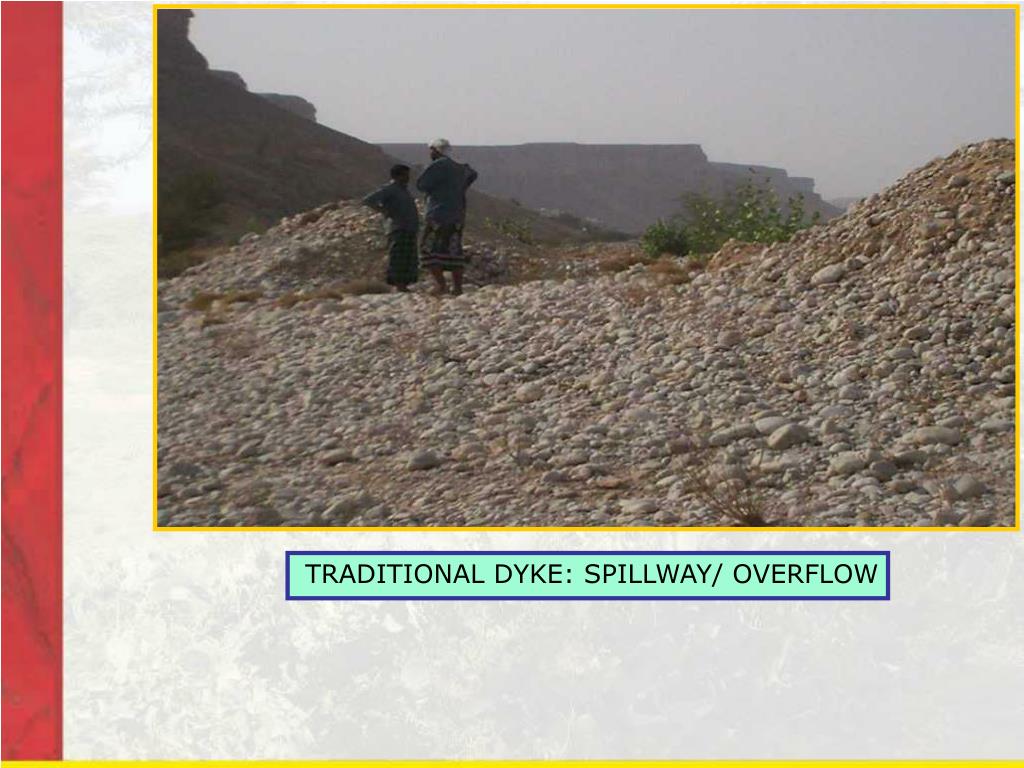

  10. TRADITIONAL DYKE: SPILLWAY/ OVERFLOW

  11. SPILLWAYWITH STEPPEDSTONES AL ROMALYATRADITIONALWEIRREINFORCEDWITH CONCRETE

  12. FLOOD CHANNEL INTAKE TRADITIONAL ABUTMENT BREACH-ABLE EARTHENBUND TO BREAK IN HIGHFLOODS AND RELEASE FLOOD WATER INTO THERIVER

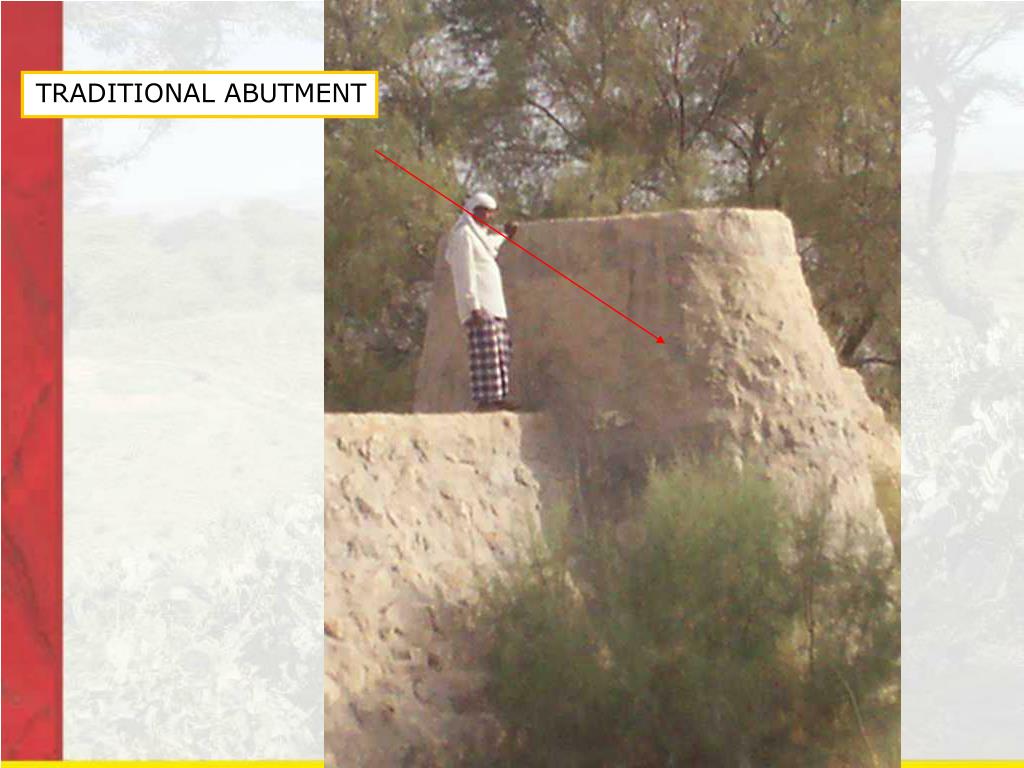

  13. TRADITIONAL ABUTMENT

  14. LIME MORTAR STRUCTURES

  15. TRADITIONAL INTAKE IN HADRAMUAT

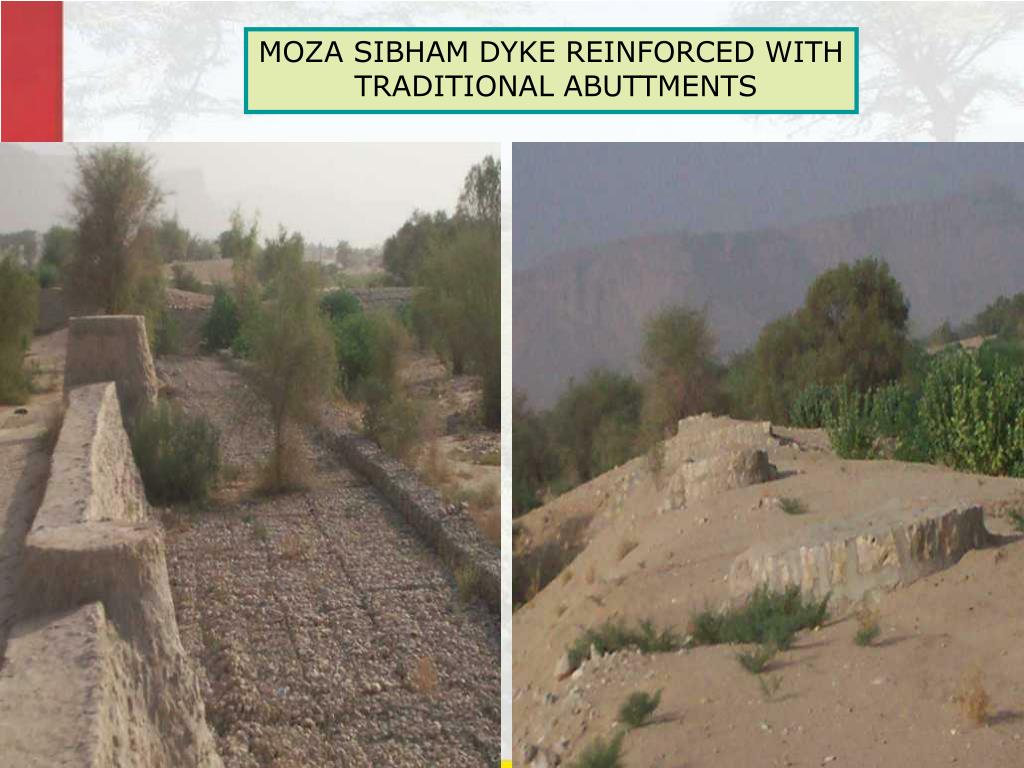

  16. MOZA SIBHAM DYKE REINFORCED WITH TRADITIONAL ABUTTMENTS

  17. MODERN ABUTMENT FOLLOWING TRADITIONAL DESIGN

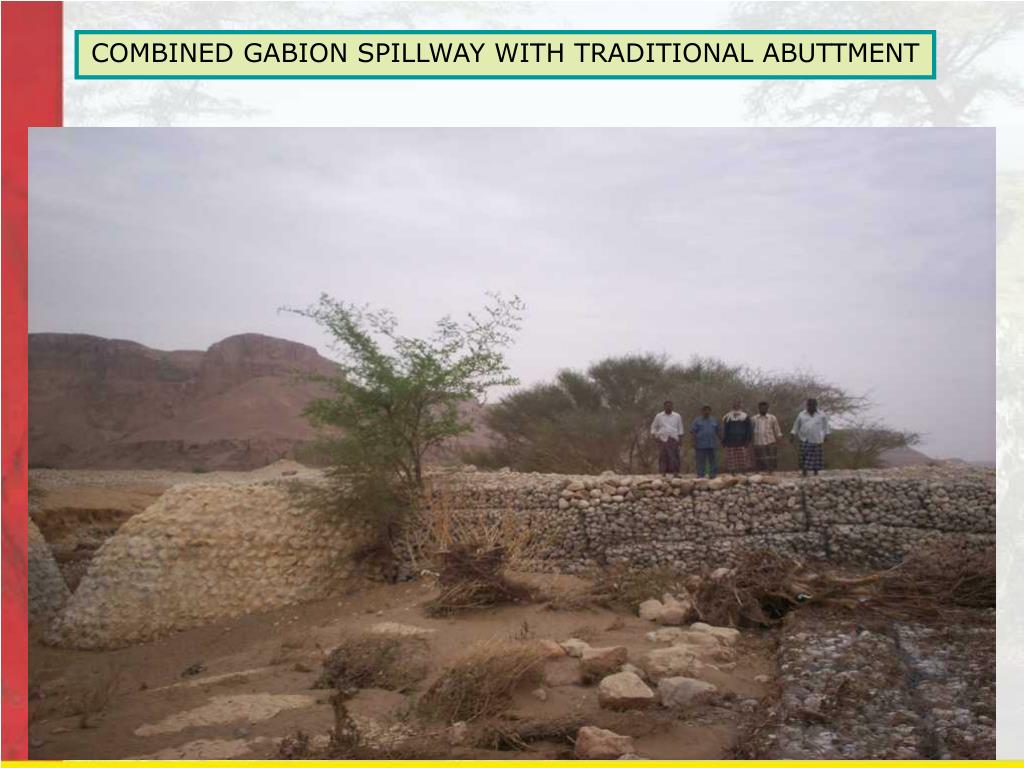

  18. COMBINED GABION SPILLWAY WITH TRADITIONAL ABUTTMENT

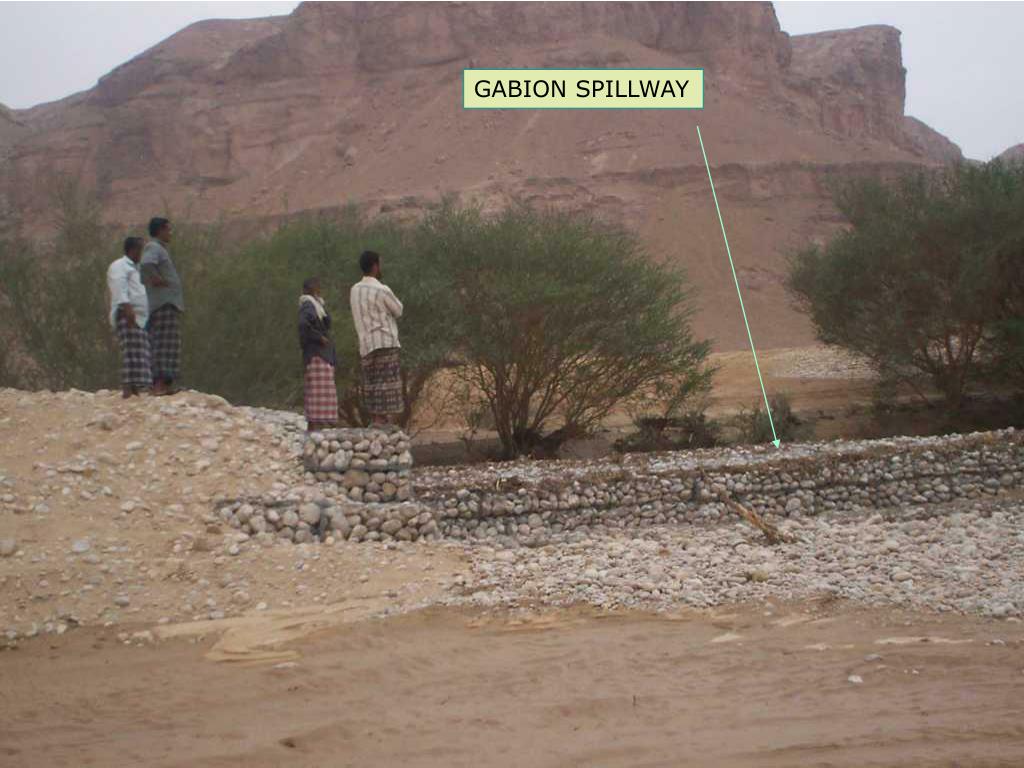

  19. GABION SPILLWAY

  20. Gabion spillway and traditional intake at gar-Sudan area (at wadi Dowan)Hadramawt

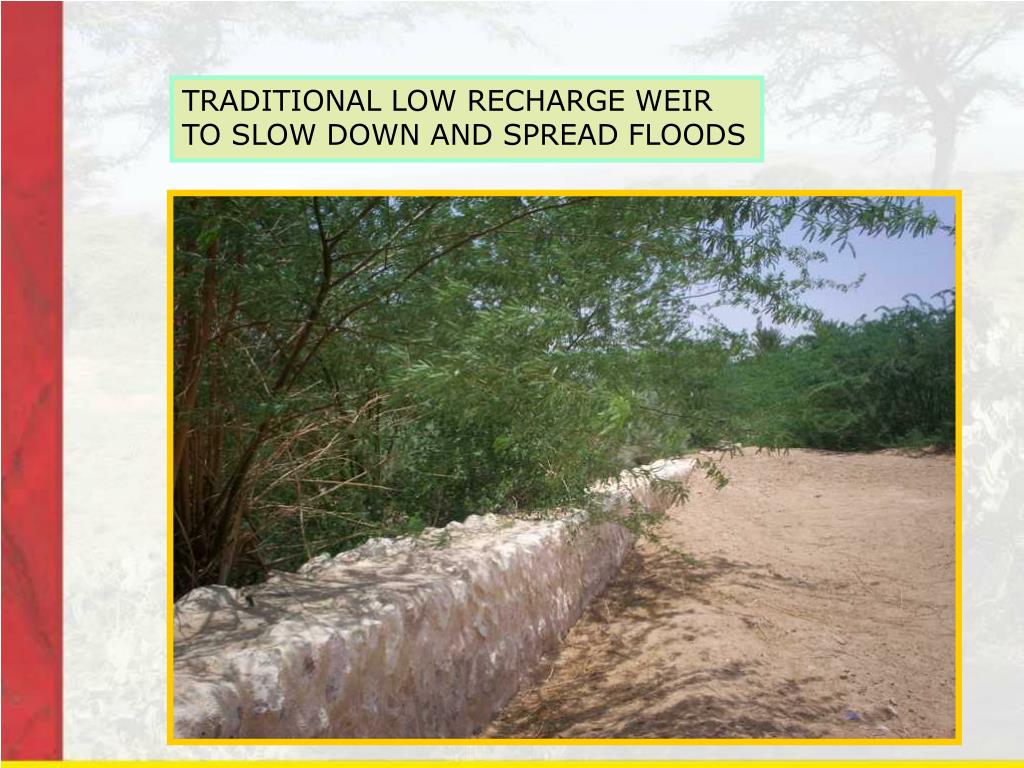

  21. TRADITIONAL LOW RECHARGE WEIR TO SLOW DOWN AND SPREAD FLOODS

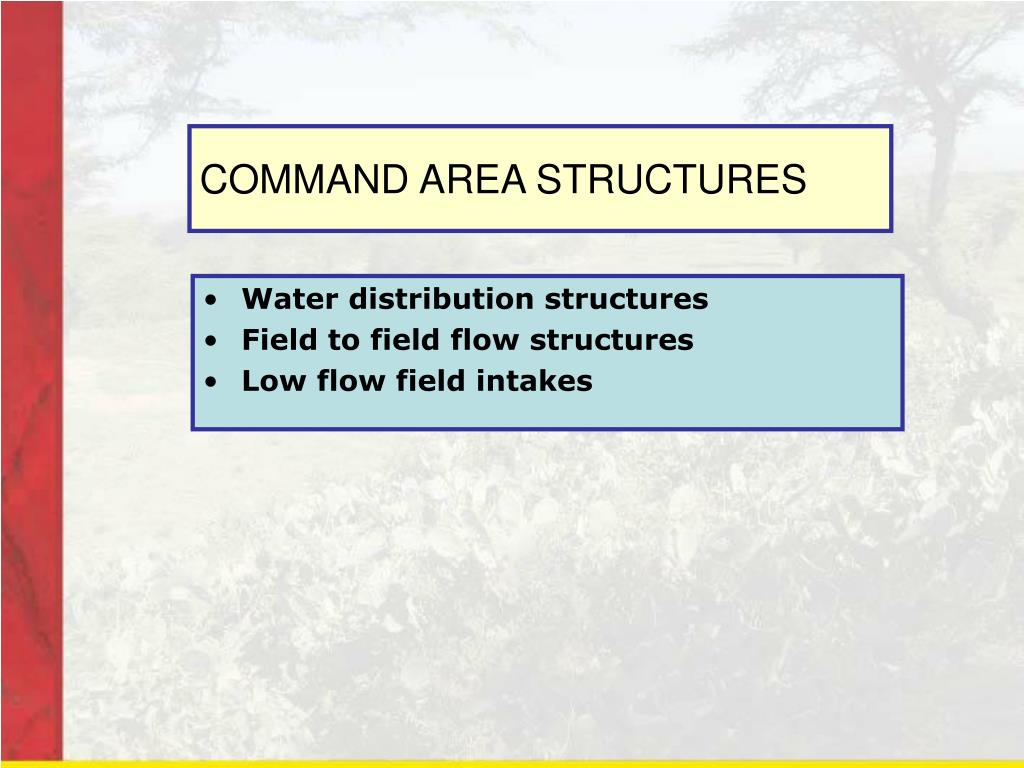

  22. COMMAND AREA STRUCTURES • Water distribution structures • Field to field flow structures • Low flow field intakes

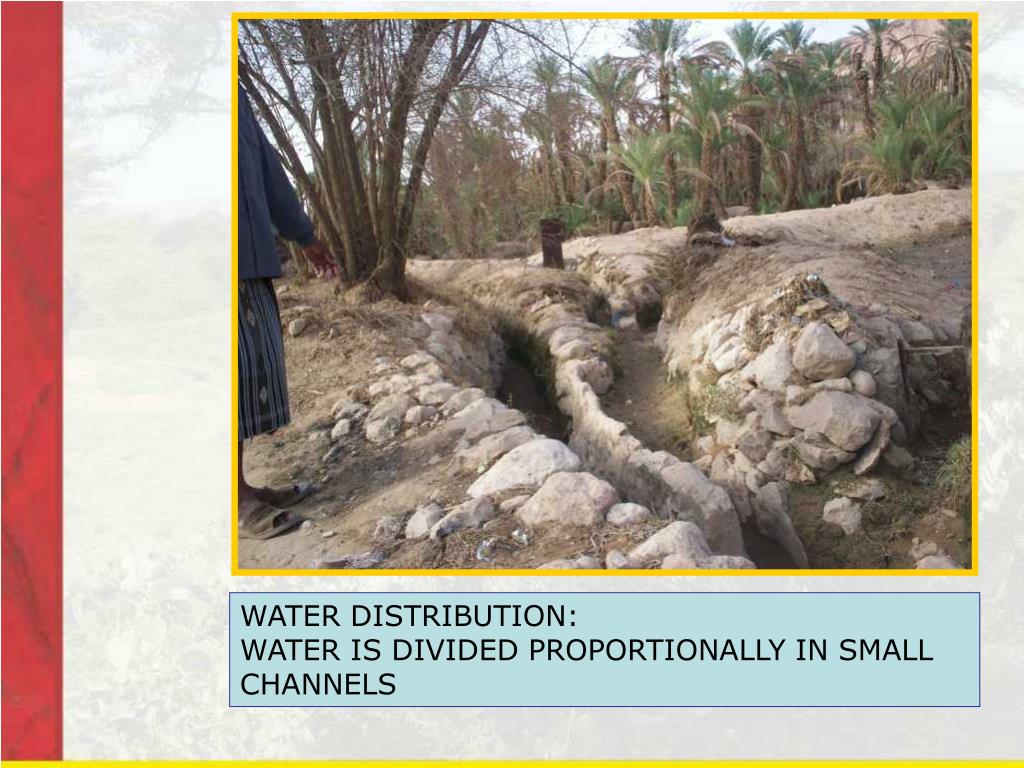

  23. WATER DISTRIBUTION: WATER IS DIVIDED PROPORTIONALLY IN SMALL CHANNELS

  24. WATER DISTRIBUTION: GATES USED ON SOME OF THE SMALL CHANNELS TO CLOSE SUPPLIES AFTER AREA IS SERVED

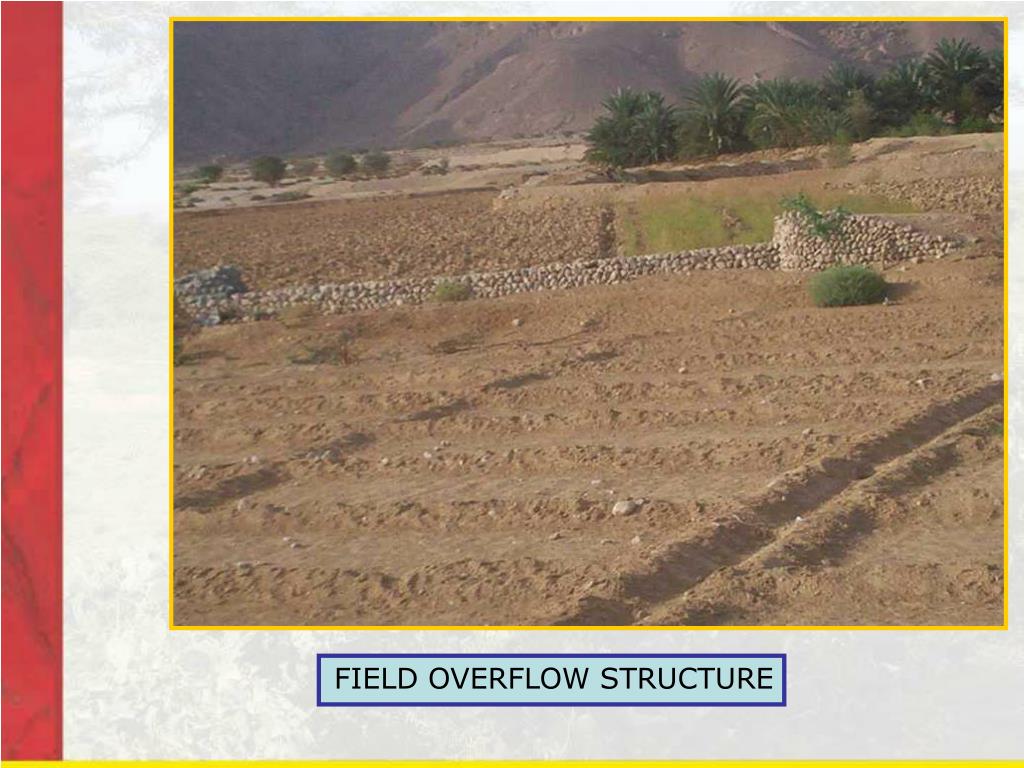

  25. FIELD OVERFLOW STRUCTURE

  26. FIELD TO FIELD FLOW STRUCTURES (SPILLWAY)

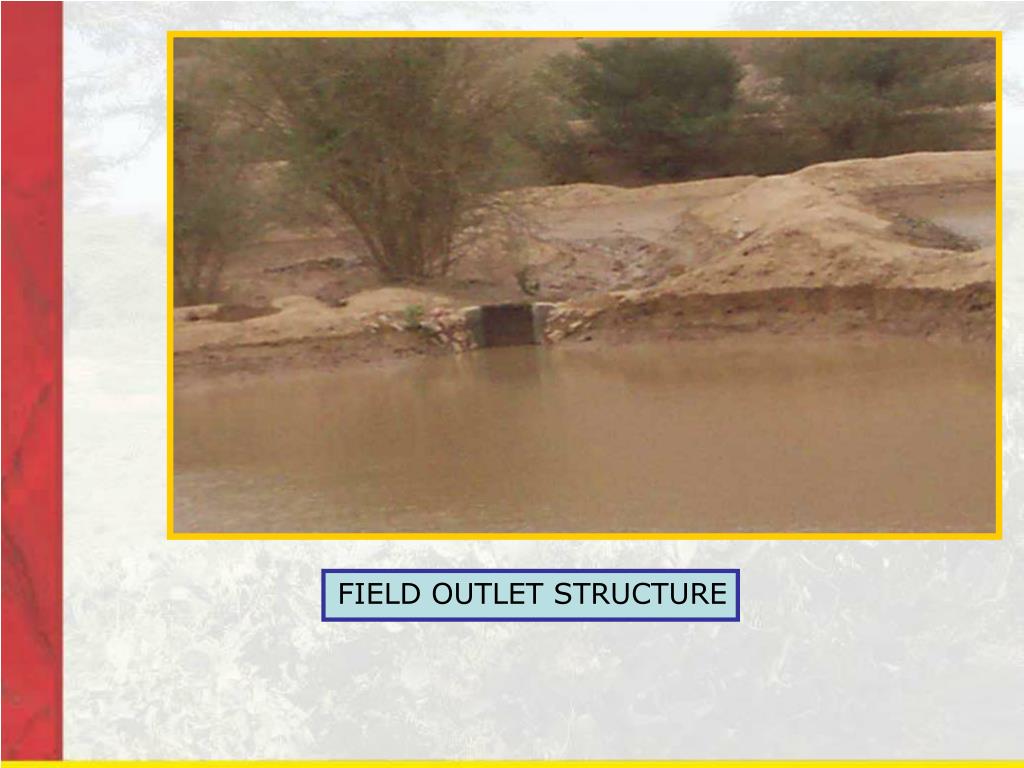

  27. FIELD OUTLET STRUCTURE

  28. FIELD TO FIELD FLOW STRUCTURE (INLET OR OUTLET

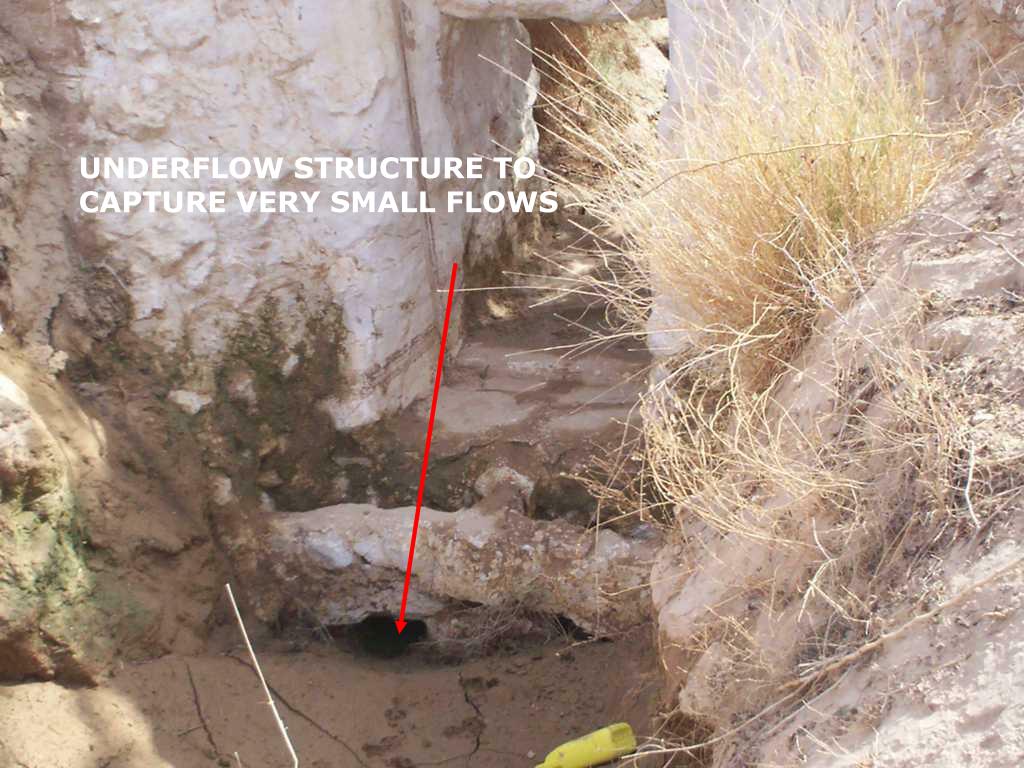

  29. UNDERFLOW STRUCTURE TO CAPTURE VERY SMALL FLOWS

  30. FIELD SYPHON FOR FIELDSHIGH ABUTMENT
