vertimaster 1

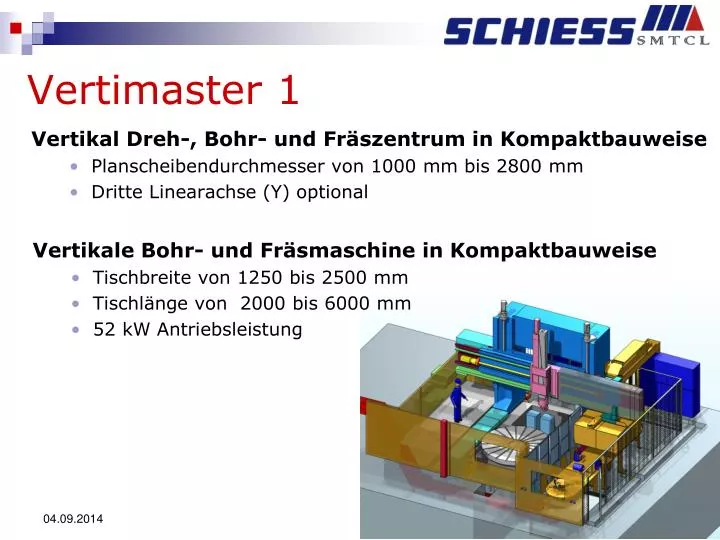

Vertimaster 1
  • Vertikale Bohr- und Fräsmaschine in Kompaktbauweise
    • Tischbreite von 1250 bis 2500 mm
    • Tischlänge von 2000 bis 6000 mm
    • 52 kW Antriebsleistung

Vertikal Dreh-, Bohr- und Fräszentrum in Kompaktbauweise

  • Planscheibendurchmesser von 1000 mm bis 2800 mm
  • Dritte Linearachse (Y) optional
slide2

Vertimaster VMG 1.30

PCA Halberstadt

Palettendurchmesser 3000 mm

max. Werkstückgewicht 25000 kg

RAM – Abmessungen 280 x 240 mm

52 kW, 2400 Nm, 3000/min

slide3

Vertimaster VMG 6

Alstom Belfort
