securely enabling intermediary based transport services

Securely Enabling Intermediary-based Transport Services

U. Blumenthal, I. Faynberg, S. Kasera, S.Mizikovsky, G. Sundaram and T. Woo

Presented by Thomas Woo

Bell Labs, Lucent Technologies

  • We provide motivations and problem statement of securely enabling intermediary-based transport services
  • We present several concrete examples to highlight the problem
  • We invite discussions on further defining the problem, and possible solutions
  • “Access’’ links mostly refer to wireless links
    • 3G (UMTS, CDMA 2000)
    • 802.11
    • Satellitebut applies also to wireline links such as dialup and even cable
  • These links exhibit many problems that affect end-to-end transport-level performance
    • High loss: up to 10-2
    • High latency and variability of latency: up to 100s of ms
    • Low bandwidth
    • Variable bandwidth: adaptive multi-rate
    • Intermittent connectivity: temporal signal lull due to mobility
motivation cont d
Motivation (cont’d)
  • Intermediary-based transport services can help mitigate many transport-level problems of access links
  • Examples:
    • TCP PEPs (RFC 3135)
    • Triggers for Transport





Access Link

Wired Network




TCP Connection

problem statement
Problem Statement
  • To perform its function, an intermediary may need to:
    • Signal to the end points
    • Inspect or even modify the traffic sent between the end points
  • Threats:
    • An attacker can send bogus signals to end points
    • Existing end-to-end security may be compromised
      • An attacker can gain unauthorized access to end to end traffic
  • Need to securely enable intermediary-based transport services while minimizing impact on end-to-end security
    • Solicitation and configuration of services
    • Security relationships between end-points, intermediary
solicitation and configuration of service

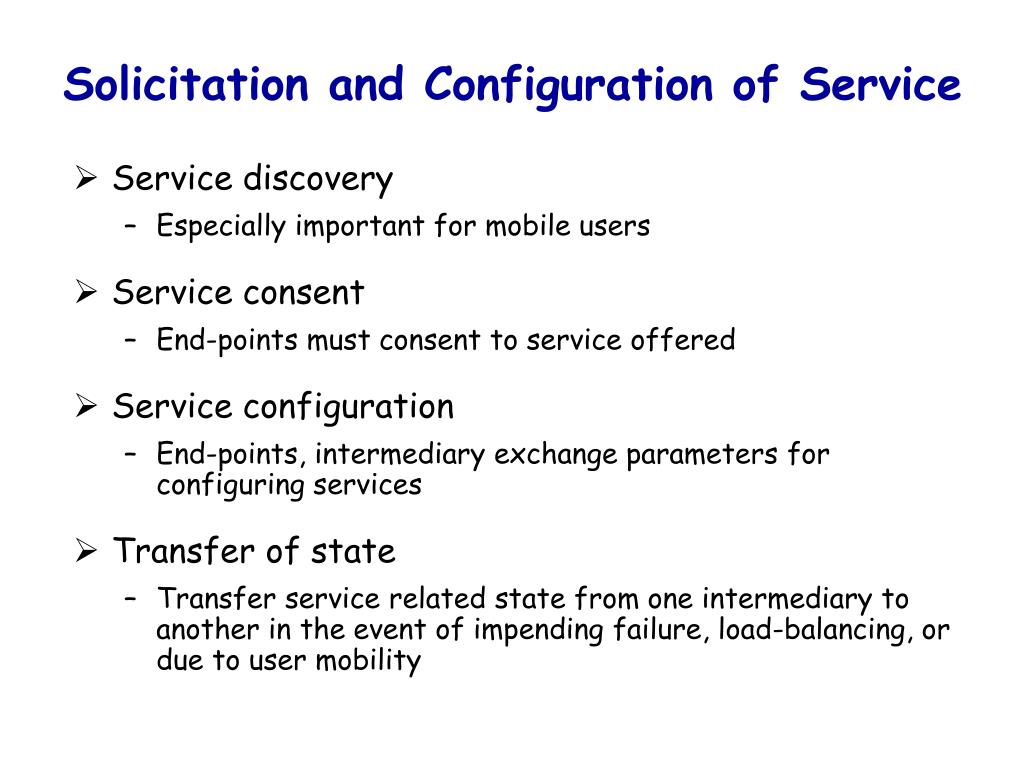

Solicitation and Configuration of Service
  • Service discovery
    • Especially important for mobile users
  • Service consent
    • End-points must consent to service offered
  • Service configuration
    • End-points, intermediary exchange parameters for configuring services
  • Transfer of state
    • Transfer service related state from one intermediary to another in the event of impending failure, load-balancing, or due to user mobility
security relationships between end points intermediary
Security Relationships betweenEnd-points, Intermediary
  • Signaling aspect
    • Establish security relationship between end-points and intermediary
      • Authenticate and authorize trusted intermediary
      • One-to-one vs one-to-many
    • Securely exchange control information
  • Data aspect
    • Securely reveal selected packet information to authorized intermediaries for processing (inspection and/or modification as authorized)
example 1 tcp enhancements
Example 1: TCP Enhancements




Wired Network




Regulated Acks


TCP Connection

  • Problem: Large wireless link delay variance causes degradation in TCP throughput
  • Solution: TCP PEP [RFC3135]
  • Example: Ack Regulator [Mobicom 2002]
    • regulate acks from mobile user at intermediary to account for downlink delay variance
example 1 tcp enhancements cont d
Example 1: TCP Enhancements (cont’d)
  • Requirement: AR mechanism relies on TCP header information
    • TCP port numbers for flow identification
    • TCP sequence number for ACK pacing

How do we securely enable TCP PEP service such as AR?

example 2 header compression
Example 2: Header Compression
  • Problem: Access link bandwidth tends to be limited
  • Solution: Header compression/decompression close to access link with the help of an intermediary could be used [RFC 1144, RFC 2507, RFC 3095, SRTP]
  • An end-to-end IPsec tunnel between the two end-points would prevent header compression at an intermediate node

Can we support header compression and have good security

at the same time?

example 3 network based packet filtering
Example 3: Network-based Packet Filtering
  • Problem: Spoofed IPsec packets to VPN client can consume valuable transport resources, especially in bandwidth-limited wireless links
  • Solution: Network-based packet filtering
  • Issue: Client mobility requires dynamic configuration, invocation and revocation of network-based filters

Attacker sends address-spoofed,

IPSec encrypted packets to mobile user



VPN Gateway



Wireless Access Network





IPSec Tunnel

example 4 triggers for transport
Example 4: Triggers for Transport
  • Problem: An access link can go up, go down and change rate
  • Solution: TrigTran intermediary to notify transport end systems of such events
  • Issue: Such notifications should be performed in a secure manner

See next presentation

issues to explore in architecture
Issues to Explore in Architecture
  • Characteristics of intermediary-based transport services
    • Their need for packet processing and signaling
  • Support for multiple intermediaries in an end-to-end path?
  • One-to-one vs one-to-many security relationship
  • Association of intermediary with “access” links
  • How to minimize the impact on end-to-end security?
  • Protocol Functions
    • How to reliably and securely configure, invoke and revoke intermediary-based transport services from the end systems?
    • How does the intermediary obtain the information needed to offer services?
  • Applicability of existing mechanisms, e.g., IKE for key exchange?

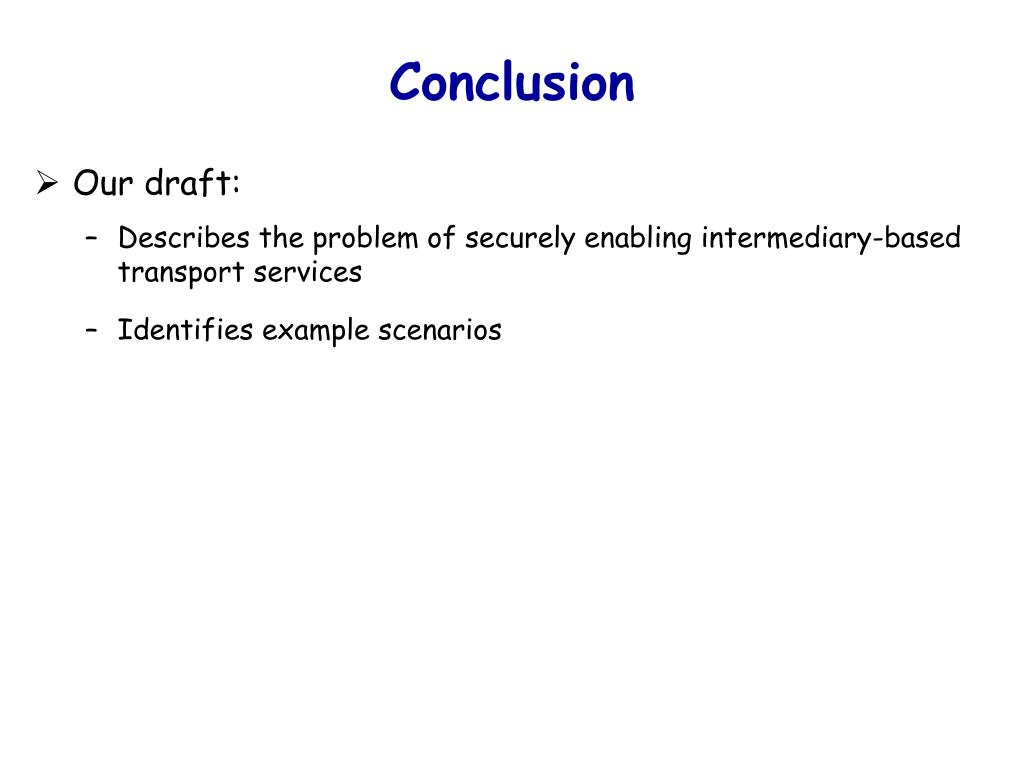

  • Our draft:
    • Describes the problem of securely enabling intermediary-based transport services
    • Identifies example scenarios
tcp enhancements

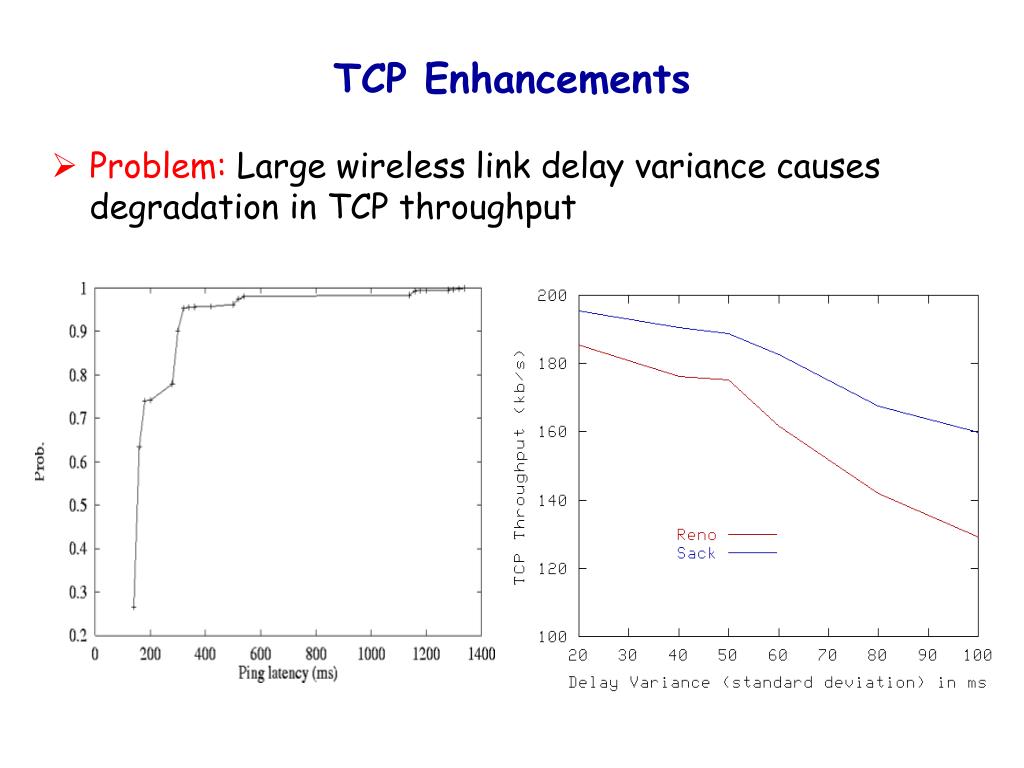

TCP Enhancements
  • Problem: Large wireless link delay variance causes degradation in TCP throughput
tcp enhancements cont d
TCP Enhancements (cont’d)
  • AR improves throughput significantly over Reno, Sack (up to 50%)
  • Higher proportional improvement at smaller buffer size
  • AR throughput improvement robust against buffer size
  • TCP's window-based congestion control functions by estimating the available bandwidth-delay product. A loss happens when the congestion window exceeds the available bandwidth-delay product (BDP)
  • Large delay and/or rate variation causes the available BDP to vary as well. Thus, TCP's window-based congestion control may trigger a loss even when the congestion window is significantly below the "average" BDP but larger than the instantaneous BDP
  • If the instantaneous BDP shrinks by sufficiently large amount, multiple packets can be lost at the same time, causing further window backoff and even timeouts
multimedia packet differentiation
Multimedia Packet Differentiation
  • Example: Differentiated packet treatment based on network congestion condition using multimedia transport header [Keller et al (Infocom 2000)]







Congested Link

Drop Lower

Priority Layers

Multi-layer Video Unicast

multimedia packet differentiation cont d
Multimedia Packet Differentiation (cont’d)

No Differentiated Packet Treatment: plain queuing

High frequency subbands

Low frequency subbands

Differentiated Packet Treatment: dropping low priority layers

  • Grey level shows amountof data received in 5 frames:
  • white: nothing received
  • black: everything received


Dramatic improvement in video quality

*slide is taken from Keller et. al.’s INFOCOM 2000 presentation

multimedia packet differentiation cont d21
Multimedia Packet Differentiation (cont’d)

Plain – No differentiated packet filtering

Active – Differentiated dropping of low priority layers

Burst – Congestion burst

header compression benefits
Header Compression Benefits
  • TCP/IP headers reduced from 40 octets to 4 octets (RFC 2507)
    • 6% savings for 576 octet packets but 90% savings for ACK only packets
  • RTP/UDP/IP headers reduced from 40 bytes to 1 octet under steady state (RFC 3095)
    • 65% savings for 60 octet speech packets
