Presentation Transcript

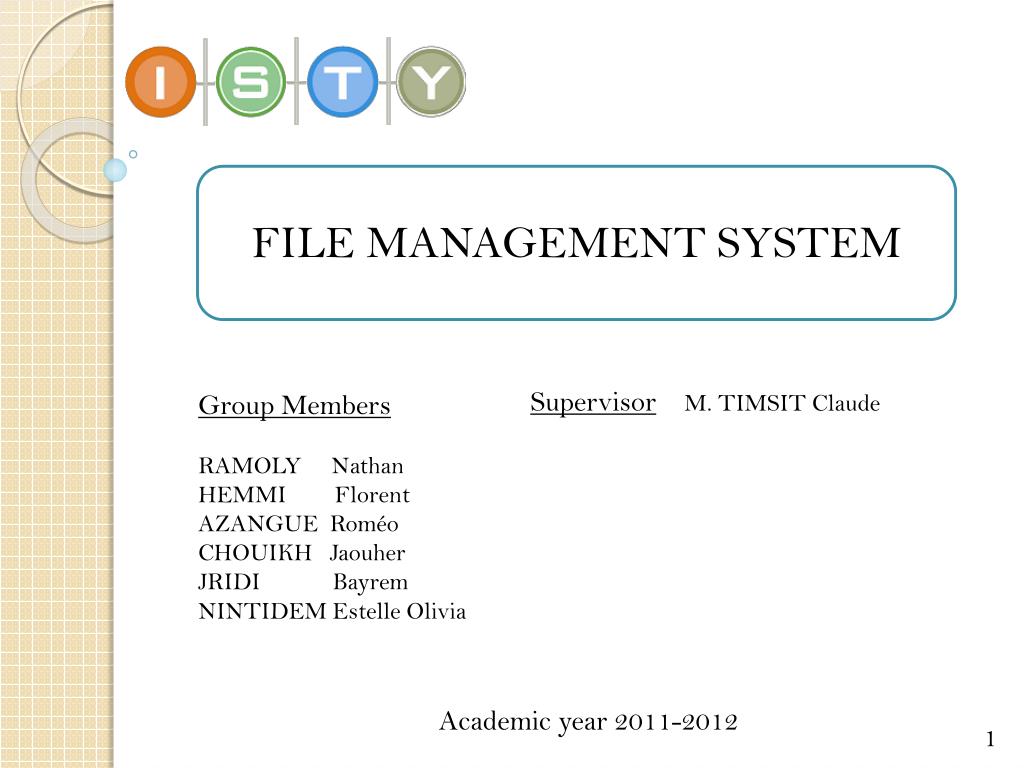

slide1

FILE MANAGEMENT SYSTEM

SupervisorM. TIMSIT Claude

Group Members

RAMOLY Nathan

HEMMI Florent

AZANGUE Roméo

CHOUIKH Jaouher

JRIDI Bayrem

NINTIDEM Estelle Olivia

Academic year 2011-2012

slide2

INTRODUCTION

PLAN

MATERIAL AND DIFFERENTS STAGES

II. METHODS AND SYSTEM DESIGN

III. PROBLEMS AND SOLUTIONS

IV. DEMONSTRATION

CONCLUSION

Nathan RAMOLY, Florent HEMMI, Roméo AZANGUE, JaouherCHOUIKH, Bayrem JRIDI, Estelle NINTIDEM

slide3

INTRODUCTION

Nathan RAMOLY, Florent HEMMI, Roméo AZANGUE, JaouherCHOUIKH, Bayrem JRIDI, Estelle NINTIDEM

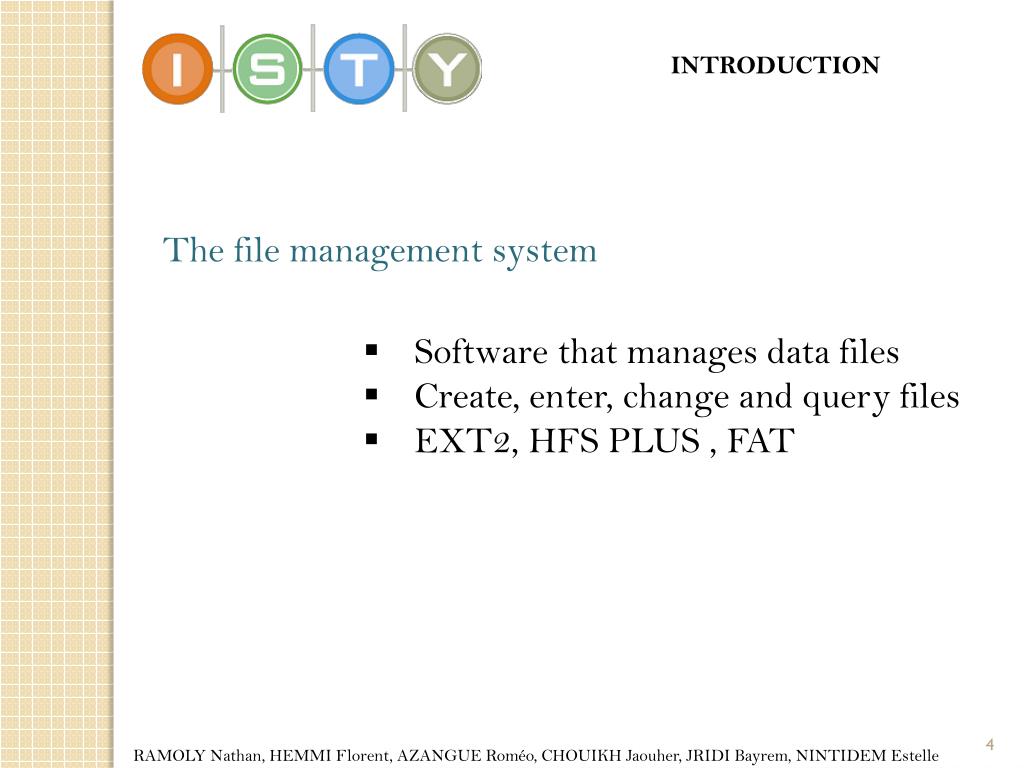

slide4

INTRODUCTION

  • The file management system
  • Software that manages data files
  • Create, enter, change and query files
  • EXT2, HFS PLUS , FAT

RAMOLY Nathan, HEMMI Florent, AZANGUE Roméo, CHOUIKH Jaouher, JRIDI Bayrem, NINTIDEM Estelle

slide5

INTRODUCTION

Requirements

  • Functional Requirements
  • Management module
  • Execution module
  • Documentation module
  • Non-Functional Requirements
        • Convenient GUI
        • Clear errors messages

RAMOLY Nathan, HEMMI Florent, AZANGUE Roméo, CHOUIKH Jaouher, JRIDI Bayrem, NINTIDEM Estelle

slide6

INTRODUCTION

Use Case Diagram

RAMOLY Nathan, HEMMI Florent, AZANGUE Roméo, CHOUIKH Jaouher, JRIDI Bayrem, NINTIDEM Estelle

slide7

I. MATERIAL AND DIFFERENT STAGES

Nathan RAMOLY, Florent HEMMI, Roméo AZANGUE, JaouherCHOUIKH, Bayrem JRIDI, Estelle NINTIDEM

slide8

I. MATERIAL AND DIFFERENTS STAGES

Material

  • Software
    • Code blocks
    • QT
  • Turtoise SVN (Subversion)
  • Libraries
    • Standard libraries

RAMOLY Nathan, HEMMI Florent, AZANGUE Roméo, CHOUIKH Jaouher, JRIDI Bayrem, NINTIDEM Estelle

slide9

I. MATERIAL AND DIFFERENTS STAGES

Differents Stages

  • The Theory
  • Realisation
  • Debug

RAMOLY Nathan, HEMMI Florent, AZANGUE Roméo, CHOUIKH Jaouher, JRIDI Bayrem, NINTIDEM Estelle

slide10

II. METHODS AND SYSTEM DESIGN

  • THE THEORY
  • HANDLING OF THE DISK
  • BITMAPS
  • INODES
  • DIRECTORIES
  • FILES

RAMOLY Nathan, HEMMI Florent, AZANGUE Roméo, CHOUIKH Jaouher, JRIDI Bayrem, NINTIDEM Estelle

slide11

II. METHODS AND SYSTEM DESIGN

The Theory

  • The disk is declared as static
  • It is composed of a number of blocks that’s declared in the defines

Simulation of the disk

RAMOLY Nathan, HEMMI Florent, AZANGUE Roméo, CHOUIKH Jaouher, JRIDI Bayrem, NINTIDEM Estelle

slide12

II. METHODS AND SYSTEM DESIGN

Handling of the disk

  • int8_t disk_access(Block** block, int pos)
  • Block* disk_ptr()
  • int8_t disk_set_block(Block* block, int pos)
  • int8_t disk_get_block(Block* block, int pos)
  • int8_t save_disk_hard_drive()
  • int8_t load_disk_hard_drive()…

RAMOLY Nathan, HEMMI Florent, AZANGUE Roméo, CHOUIKH Jaouher, JRIDI Bayrem, NINTIDEM Estelle

slide13

II. METHODS AND SYSTEM DESIGN

Bitmaps

Bitmap

We can consider the bitmap as a map that facilitatesmoving in the blocks of our disk

Nathan RAMOLY, Florent HEMMI, Roméo AZANGUE, JaouherCHOUIKH, Bayrem JRIDI, Estelle NINTIDEM

slide14

II. METHODS AND SYSTEM DESIGN

Bitmaps

Bitmap Inode

Nathan RAMOLY, Florent HEMMI, Roméo AZANGUE, JaouherCHOUIKH, Bayrem JRIDI, Estelle NINTIDEM

slide15

II. METHODS AND SYSTEM DESIGN

Bitmaps

Bitmap Block

Nathan RAMOLY, Florent HEMMI, Roméo AZANGUE, JaouherCHOUIKH, Bayrem JRIDI, Estelle NINTIDEM

slide16

II. METHODS AND SYSTEM DESIGN

Bitmaps

  • Implementation of some functions
  • int8_t bitmap_inode_init()
  • int8_t bitmap_inode_get_status(int numInode)
  • int8_t bitmap_inode_set_status(int numInode, int status)
  • int32_t bitmap_first_free_inode()
  • int32_t bitmap_nb_free_inode()

Nathan RAMOLY, Florent HEMMI, Roméo AZANGUE, JaouherCHOUIKH, Bayrem JRIDI, Estelle NINTIDEM

slide17

II. METHODS AND SYSTEM DESIGN

Bitmaps

  • Bitmap Bloc
  • int8_t bitmap_block_init().
  • int8_t bitmap_block_get_status(int nBlock)
  • int8_t bitmap_block_set_status(int nBlock, int status)
  • int32_t bitmap_first_free_block()
  • int32_t bitmap_nb_free_block()
  • int32_t bitmap_nb_occupied_block()

Nathan RAMOLY, Florent HEMMI, Roméo AZANGUE, JaouherCHOUIKH, Bayrem JRIDI, Estelle NINTIDEM

slide18

II. METHODS AND SYSTEM DESIGN

Inodes

  • The structure
  • Size (in bytes)
  • The last access time
  • Type (file or folder)
  • 10 addresses blocks
  • An address for the single indirection block
  • An address for the double indirection block

Nathan RAMOLY, Florent HEMMI, Roméo AZANGUE, JaouherCHOUIKH, Bayrem JRIDI, Estelle NINTIDEM

slide19

II. METHODS AND SYSTEM DESIGN

Inodes

  • Indirections

Nathan RAMOLY, Florent HEMMI, Roméo AZANGUE, JaouherCHOUIKH, Bayrem JRIDI, Estelle NINTIDEM

slide20

II. METHODS AND SYSTEM DESIGN

Inodes

  • Indirections
  • 1 block = N bytes
  • 10 blocks: 10*N bytes
  • Single indirection: N²/4
  • Double indirection: N3/16
  • Total: [10 + N/4 + (N/4)²]*N

Nathan RAMOLY, Florent HEMMI, Roméo AZANGUE, JaouherCHOUIKH, Bayrem JRIDI, Estelle NINTIDEM

slide21

II. METHODS AND SYSTEM DESIGN

Inodes

  • Navigation functions
  • Inode_get_next_block:next adress block
  • Inode_get_pos_block_from_byte:block adress which contains the byte number

Nathan RAMOLY, Florent HEMMI, Roméo AZANGUE, JaouherCHOUIKH, Bayrem JRIDI, Estelle NINTIDEM

slide22

II. METHODS AND SYSTEM DESIGN

Inodes

  • Inode low level function
  • Function in charge allocating and freeing blocks
  • Two choices:
    • Allocate and stop (no more free space)
    • Don’t allocate if there is not enough space
  • Take two parameters:
    • A pointer to an inode
    • A new size for the inode

Nathan RAMOLY, Florent HEMMI, Roméo AZANGUE, JaouherCHOUIKH, Bayrem JRIDI, Estelle NINTIDEM

slide23

II. METHODS AND SYSTEM DESIGN

Inodes

  • Allocating a block
  • Allocated an indirection block if necessary
  • Asked to the bitmap the address of the first free block
  • Added it to the inode by selecting the corresponding block (10 blocks or indirections)
  • Indicated that the block in now occupied

Nathan RAMOLY, Florent HEMMI, Roméo AZANGUE, JaouherCHOUIKH, Bayrem JRIDI, Estelle NINTIDEM

slide24

II. METHODS AND SYSTEM DESIGN

Inodes

  • Freeing a block
  • Flagged the address block to -1
  • Removed indirection block from the inode if necessary(memory leak possible if it is not done)
  • Indicated that the block in now free so it can be used by another

Nathan RAMOLY, Florent HEMMI, Roméo AZANGUE, JaouherCHOUIKH, Bayrem JRIDI, Estelle NINTIDEM

slide25

II. METHODS AND SYSTEM DESIGN

Inodes

  • Basic functions
  • Initialization:
    • Size: 0
    • Type: 1 for a file (by default)
    • Last access time: system time
    • Addresses: -1
  • Last access time
  • Inode storage:
    • Get an inode from the RAM-disk
    • Save an inode to the RAM-disk

Nathan RAMOLY, Florent HEMMI, Roméo AZANGUE, JaouherCHOUIKH, Bayrem JRIDI, Estelle NINTIDEM

slide26

II. METHODS AND SYSTEM DESIGN

Directories

  • Needed in any file system
  • Lists all the files
  • Allows the user to create hierarchy
    • Travel in the tree
    • Main directory called root

Nathan RAMOLY, Florent HEMMI, Roméo AZANGUE, JaouherCHOUIKH, Bayrem JRIDI, Estelle NINTIDEM

slide27

II. METHODS AND SYSTEM DESIGN

Directories

  • Directory implementation
    • A special file (inode, blocks, etc…)
    • Contains the list with the following forms
      • 4 bytes for the address
      • 8+1 bytes for the name
      • Not sorted
    • First entry: “..” referring the parent directory
    • Root corresponds to the first inode
    • Current directory saved as a global variable

Nathan RAMOLY, Florent HEMMI, Roméo AZANGUE, JaouherCHOUIKH, Bayrem JRIDI, Estelle NINTIDEM

slide28

II. METHODS AND SYSTEM DESIGN

Directories

  • Addition of an element
    • Two steps
      • Increase the size
      • Add the entry at the end

RAMOLY Nathan, HEMMI Florent, AZANGUE Roméo, CHOUIKH Jaouher, JRIDI Bayrem, NINTIDEM Estelle

slide29

II. METHODS AND SYSTEM DESIGN

Directories

  • Deleting an element
    • Four main steps
      • Save the last element
      • Find the element to delete
      • Replace it by the last one
      • Reduce the size of the directory
    • No memory is released

Nathan RAMOLY, Florent HEMMI, Roméo AZANGUE, JaouherCHOUIKH, Bayrem JRIDI, Estelle NINTIDEM

slide30

II. METHODS AND SYSTEM DESIGN

Directories

  • Deleting of an element
    • Schemas of a deletion in the system

Nathan RAMOLY, Florent HEMMI, Roméo AZANGUE, JaouherCHOUIKH, Bayrem JRIDI, Estelle NINTIDEM

slide31

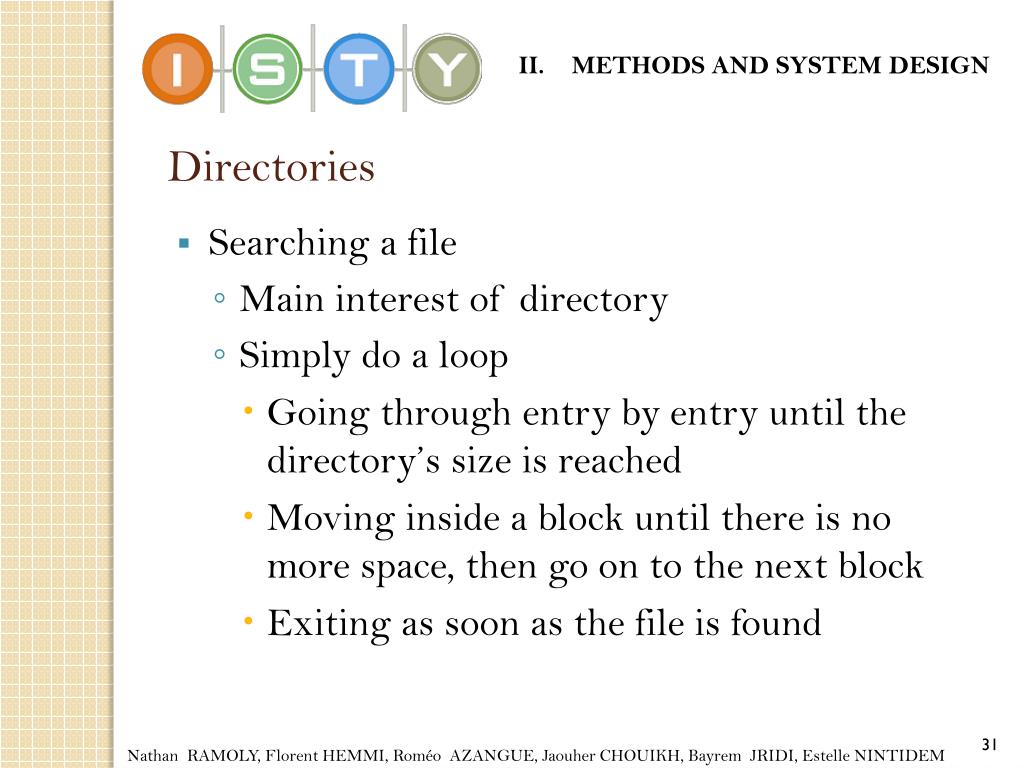

II. METHODS AND SYSTEM DESIGN

Directories

  • Searching a file
    • Main interest of directory
    • Simply do a loop
      • Going through entry by entry until the directory’s size is reached
      • Moving inside a block until there is no more space, then go on to the next block
      • Exiting as soon as the file is found

Nathan RAMOLY, Florent HEMMI, Roméo AZANGUE, JaouherCHOUIKH, Bayrem JRIDI, Estelle NINTIDEM

slide32

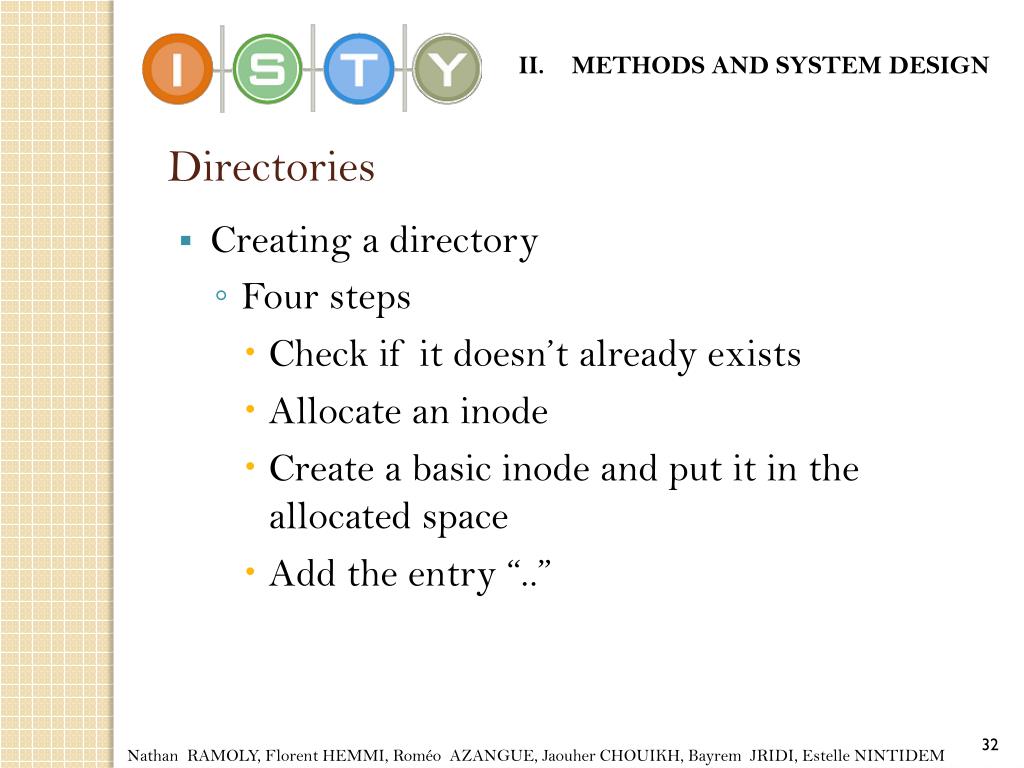

II. METHODS AND SYSTEM DESIGN

Directories

  • Creating a directory
    • Four steps
      • Check if it doesn’t already exists
      • Allocate an inode
      • Create a basic inode and put it in the allocated space
      • Add the entry “..”

Nathan RAMOLY, Florent HEMMI, Roméo AZANGUE, JaouherCHOUIKH, Bayrem JRIDI, Estelle NINTIDEM

slide33

II. METHODS AND SYSTEM DESIGN

Directories

  • Deleting a directory
    • Delete all the content
      • Loop to read all the content
      • File: call the specified function
      • Directory: recall this function
    • Set the size to 0
    • Free the inode
    • Remove the entry from the parent directory

Nathan RAMOLY, Florent HEMMI, Roméo AZANGUE, JaouherCHOUIKH, Bayrem JRIDI, Estelle NINTIDEM

slide34

II. METHODS AND SYSTEM DESIGN

Directories

  • Printing
    • Extraction of the directory’s content as a linked list
    • Sorting the list
      • Using comparison functions (Size, date and name)
      • Using a bubble sort algorithm
    • Printing the list
    • Function ls
      • Simply allow the user to select :
        • The kind of sort
        • Ascendant or not
        • Complete or not

Nathan RAMOLY, Florent HEMMI, Roméo AZANGUE, JaouherCHOUIKH, Bayrem JRIDI, Estelle NINTIDEM

slide35

II. METHODS AND SYSTEM DESIGN

Directories

  • Moving in the tree
    • Move the current directory
    • Path syntax used: “dir1/dir2/dir3”
    • Path interpretation by cut_dir
    • Movement done by mini_cd
      • Moves the current directory

Nathan RAMOLY, Florent HEMMI, Roméo AZANGUE, JaouherCHOUIKH, Bayrem JRIDI, Estelle NINTIDEM

slide36

II. METHODS AND SYSTEM DESIGN

Files

HEADER FUNCTIONS

  • Mini _format : int8_t mini_format () This function allows to free all the inodes and blocks and set status of Bitmaps to available.
  • Mini_ls : void mini_ls (char* input, int8_t dataSort, int8_t asc, int8_t complete) This function allows to view the content of our directories
  • Mini_rm : int8_t mini_rm (char* dir, char* name) It removes file in the directory dir
  • toto/titi
  • .. titi

Nathan RAMOLY, Florent HEMMI, Roméo AZANGUE, JaouherCHOUIKH, Bayrem JRIDI, Estelle NINTIDEM

slide37

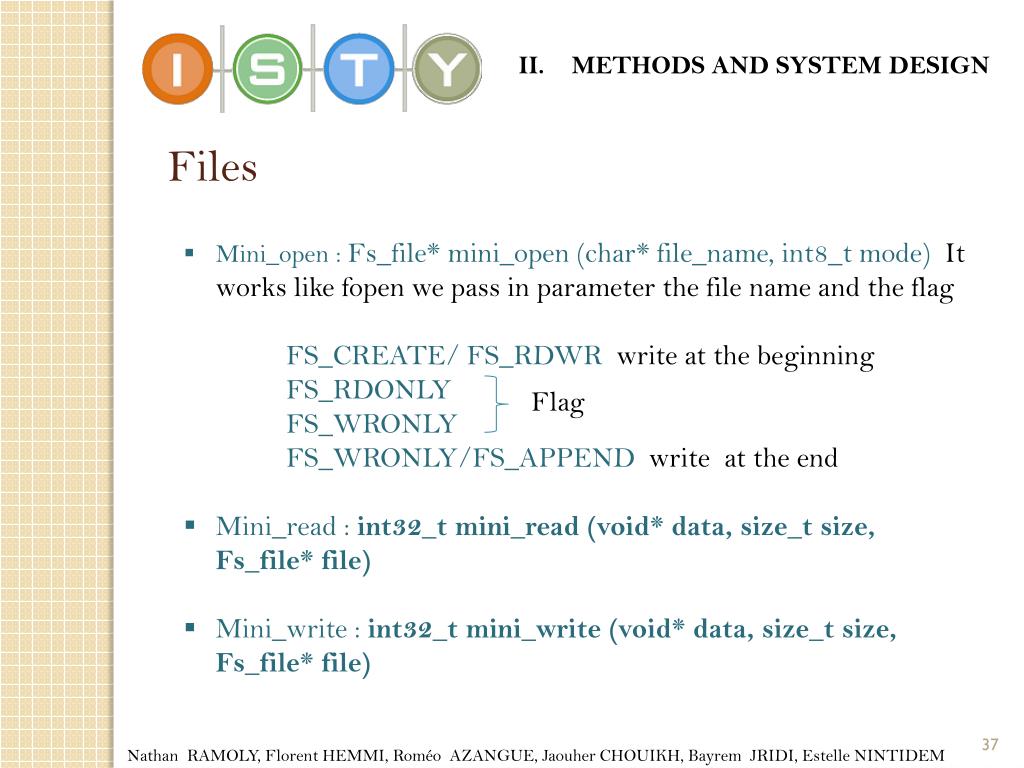

II. METHODS AND SYSTEM DESIGN

Files

  • Mini_open : Fs_file* mini_open (char* file_name, int8_t mode) It works like fopen we pass in parameter the file name and the flag
      • FS_CREATE/ FS_RDWR write at the beginning
      • FS_RDONLY
      • FS_WRONLY
      • FS_WRONLY/FS_APPEND write at the end
  • Mini_read : int32_t mini_read (void* data, size_t size, Fs_file* file)
  • Mini_write : int32_t mini_write (void* data, size_t size, Fs_file* file)

Flag

Nathan RAMOLY, Florent HEMMI, Roméo AZANGUE, JaouherCHOUIKH, Bayrem JRIDI, Estelle NINTIDEM

slide38

II. METHODS AND SYSTEM DESIGN

Files

  • Mini_cd : int32_t mini_cd (char* directory)
  • Mini_df : int8_t mini_df (Fs_stat* st)
  • Mini_close : : int8_t mini_close (Fs_file* file)

Nathan RAMOLY, Florent HEMMI, Roméo AZANGUE, JaouherCHOUIKH, Bayrem JRIDI, Estelle NINTIDEM

slide39

III. PROBLEMS AND SOLUTIONS

Nathan RAMOLY, Florent HEMMI, Roméo AZANGUE, JaouherCHOUIKH, Bayrem JRIDI, Estelle NINTIDEM

slide40

III. PROBLEMS AND SOLUTIONS

  • None technical problems
  • Technical problems
  • Conception

“disk.img”

File Structure

Nathan RAMOLY, Florent HEMMI, Roméo AZANGUE, JaouherCHOUIKH, Bayrem JRIDI, Estelle NINTIDEM

slide41

III. PROBLEMS AND SOLUTIONS

  • Tests
  • The Inodes
  • The directories
  • The files

Inode_get_next_block(Inode *inode);

Nathan RAMOLY, Florent HEMMI, Roméo AZANGUE, JaouherCHOUIKH, Bayrem JRIDI, Estelle NINTIDEM

slide42

III. PROBLEMS AND SOLUTIONS

  • Error management

#define RET_SUCCESS 0

#define RET_TRUE1

#define RET_FALSE0

#define ERROR -1

#define ERR_NULL -2

#define ERR_READ -3

#define ERR_CORRUPT -4

#define ERR_OUT_OF_RANGE -5

#define ERR_PARAMETER -6

#define ERR_INIT -7

#define ERR_ALLOC -8

#define ERR_FILE -9

Nathan RAMOLY, Florent HEMMI, Roméo AZANGUE, JaouherCHOUIKH, Bayrem JRIDI, Estelle NINTIDEM

slide43

IV. DEMONSTRATION

Nathan RAMOLY, Florent HEMMI, Roméo AZANGUE, JaouherCHOUIKH, Bayrem JRIDI, Estelle NINTIDEM

slide44

CONCLUSION

Nathan RAMOLY, Florent HEMMI, Roméo AZANGUE, JaouherCHOUIKH, Bayrem JRIDI, Estelle NINTIDEM

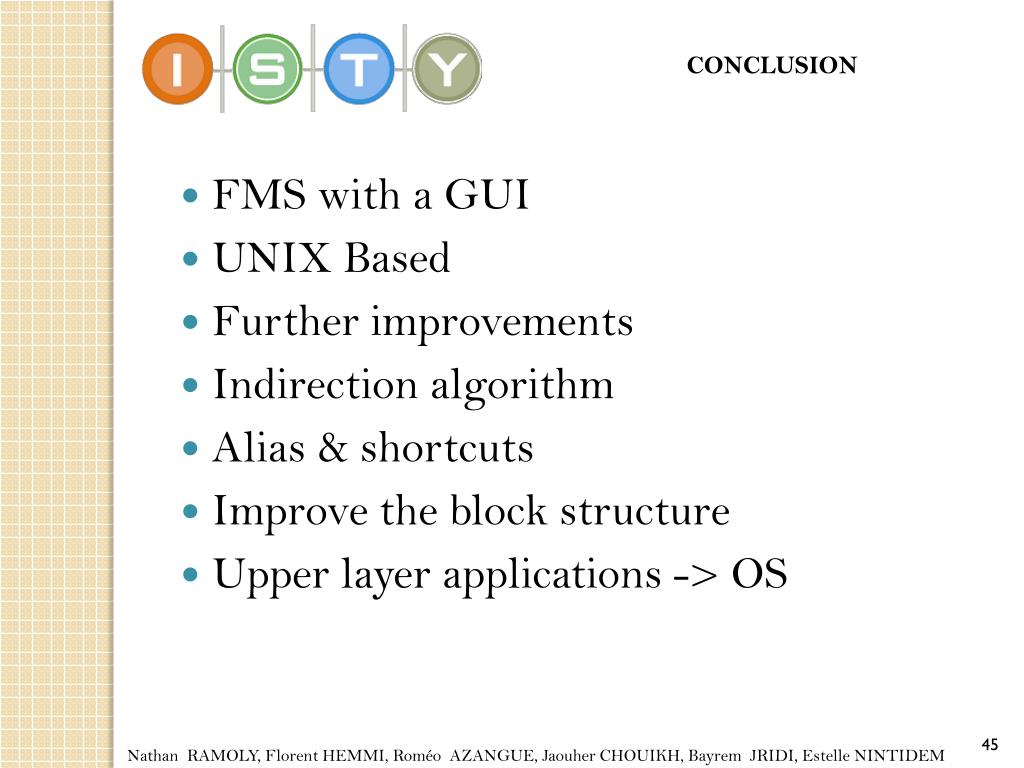

slide45

CONCLUSION

  • FMS with a GUI
  • UNIX Based
  • Further improvements
  • Indirection algorithm
  • Alias & shortcuts
  • Improve the block structure
  • Upper layer applications -> OS

Nathan RAMOLY, Florent HEMMI, Roméo AZANGUE, JaouherCHOUIKH, Bayrem JRIDI, Estelle NINTIDEM

slide46

THANK FOR YOUR ATTENTION

Nathan RAMOLY, Florent HEMMI, Roméo AZANGUE, JaouherCHOUIKH, Bayrem JRIDI, Estelle NINTIDEM
