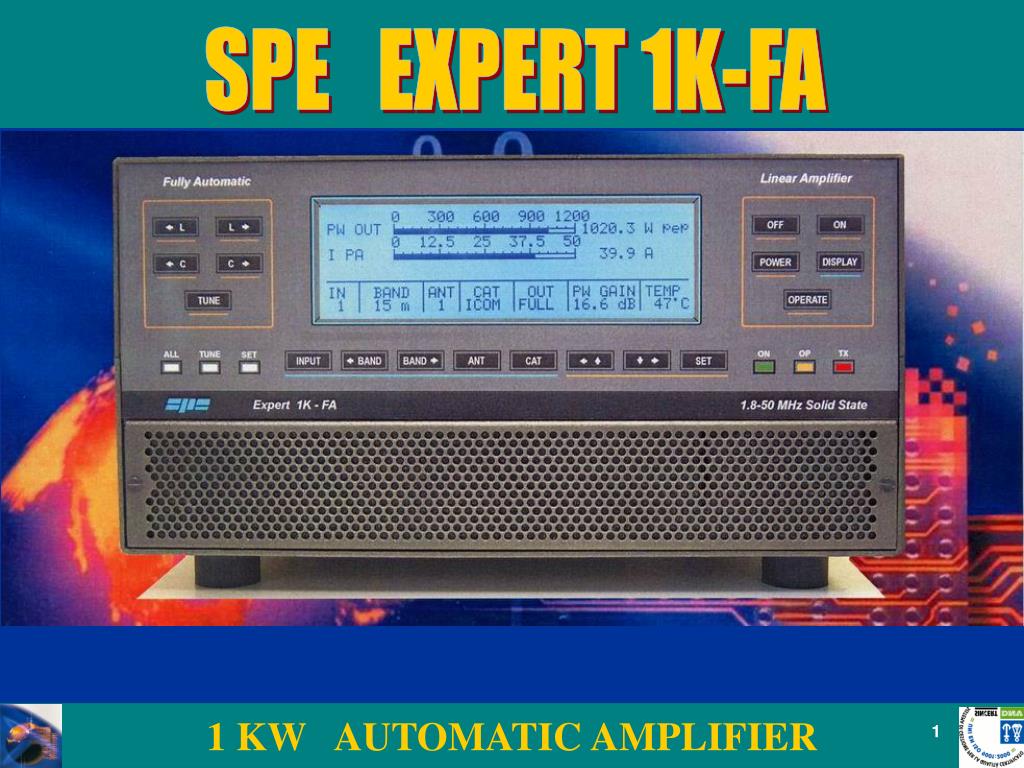

  1. SPE EXPERT 1K-FA

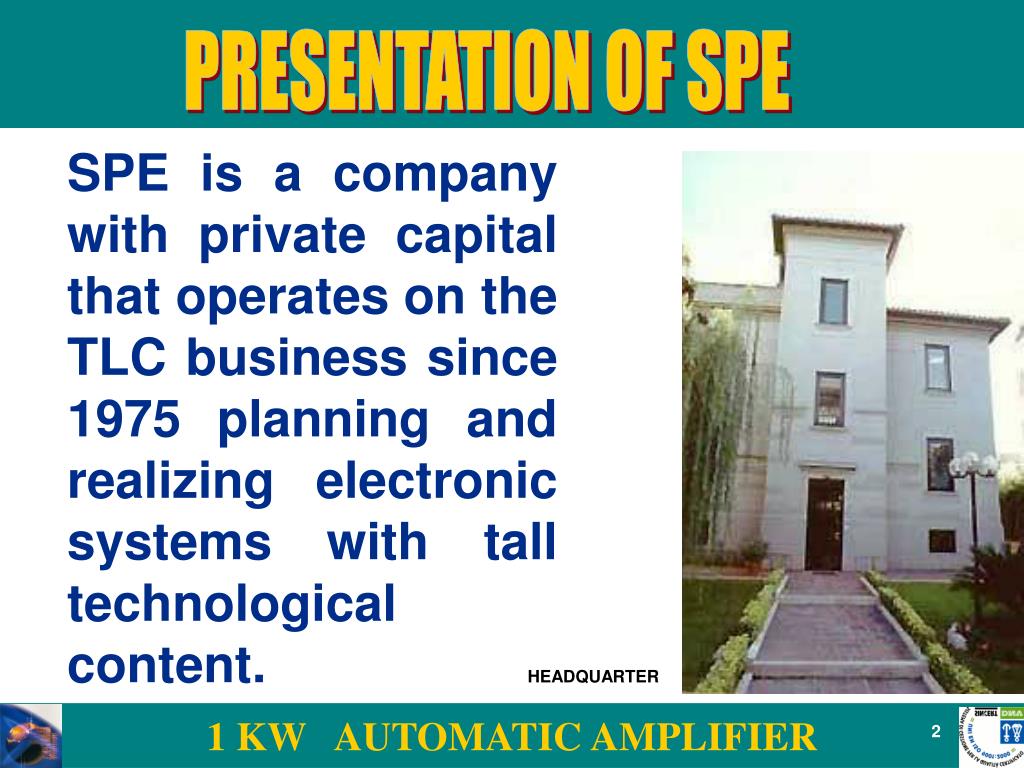

  2. PRESENTATION OF SPE SPE is a company with private capital that operates on the TLC business since 1975 planning and realizing electronic systems with tall technological content. HEADQUARTER

  3. PRESENTATION OF SPE Founded in 1975 by Dr. Gianfranco Scasciafratti (I0ZY), SPE is a private company located in Rome, Italy.

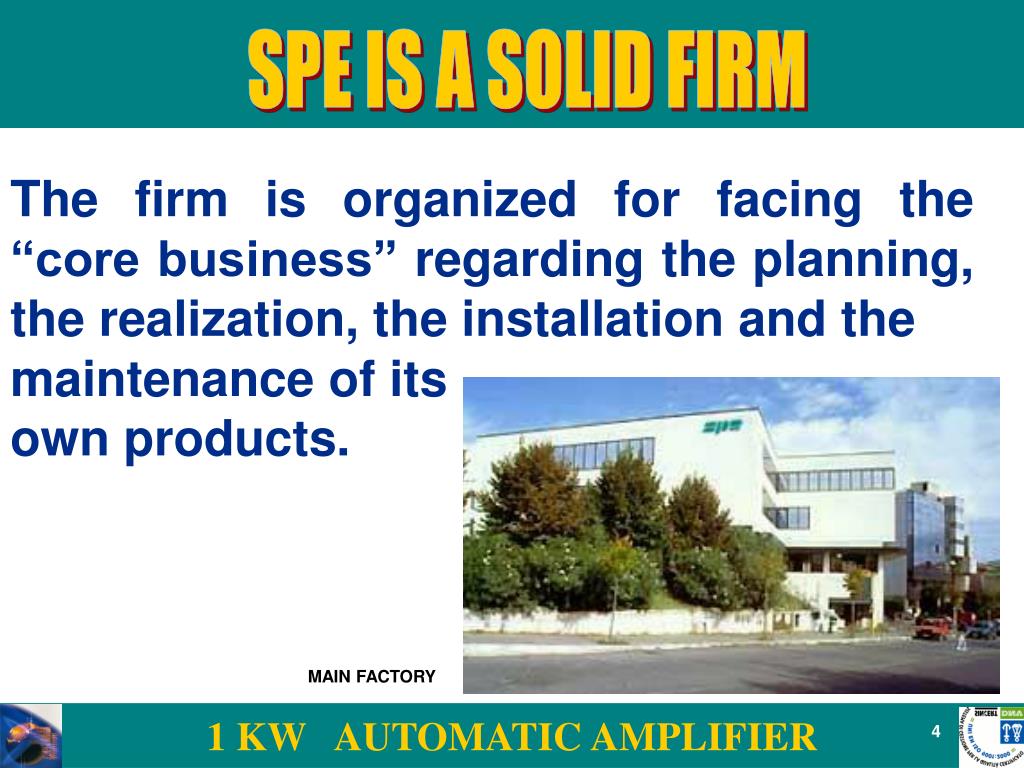

  4. SPE IS A SOLID FIRM The firm is organized for facing the “core business” regarding the planning, the realization, the installation and the maintenance of its own products. MAIN FACTORY

  5. SPE's TEAM SPE, thanks to 35 years of experience and to the continuous adjournment of its know-how is able to offer innovative solutions and inexpensive products for its own customers demands.

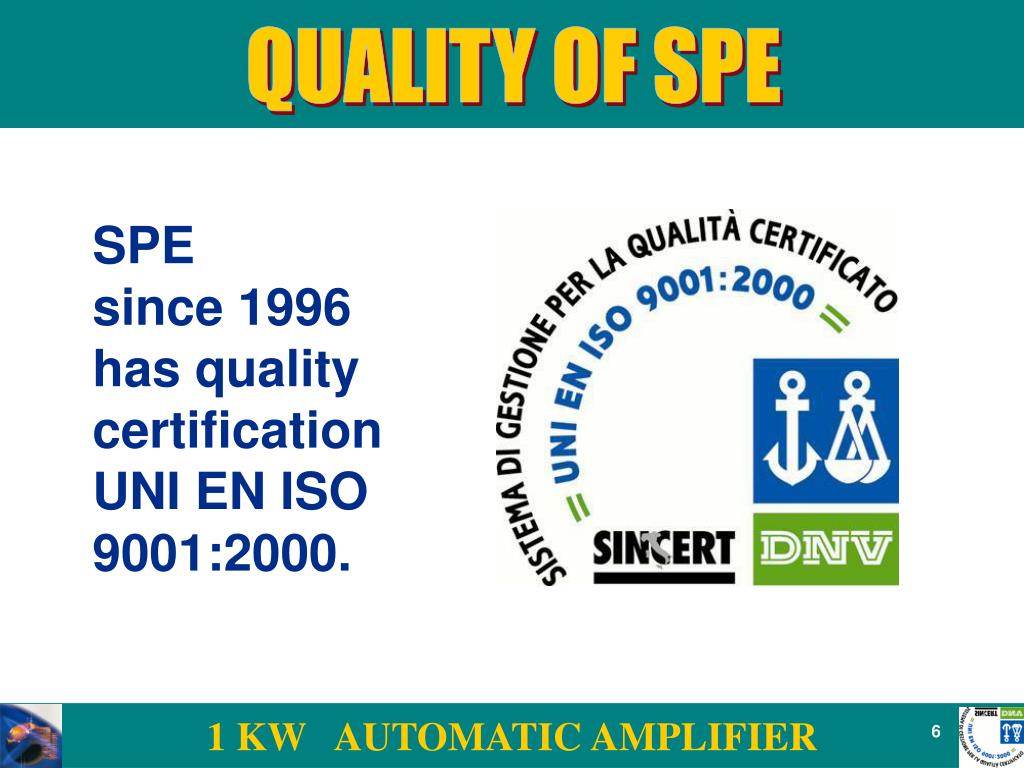

  6. QUALITY OF SPE SPE since 1996 has quality certification UNI EN ISO 9001:2000.

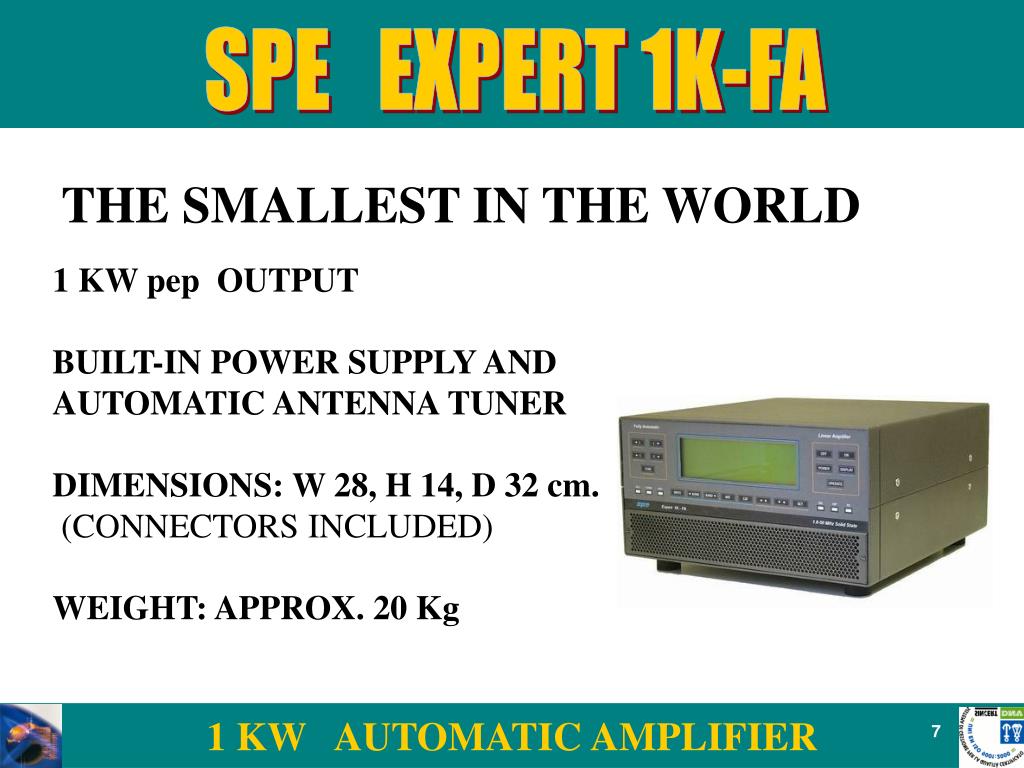

  7. SPE EXPERT 1K-FA THE SMALLEST IN THE WORLD 1 KW pep OUTPUT BUILT-IN POWER SUPPLY AND AUTOMATIC ANTENNA TUNER DIMENSIONS: W 28, H 14, D 32 cm. (CONNECTORS INCLUDED) WEIGHT: APPROX. 20 Kg

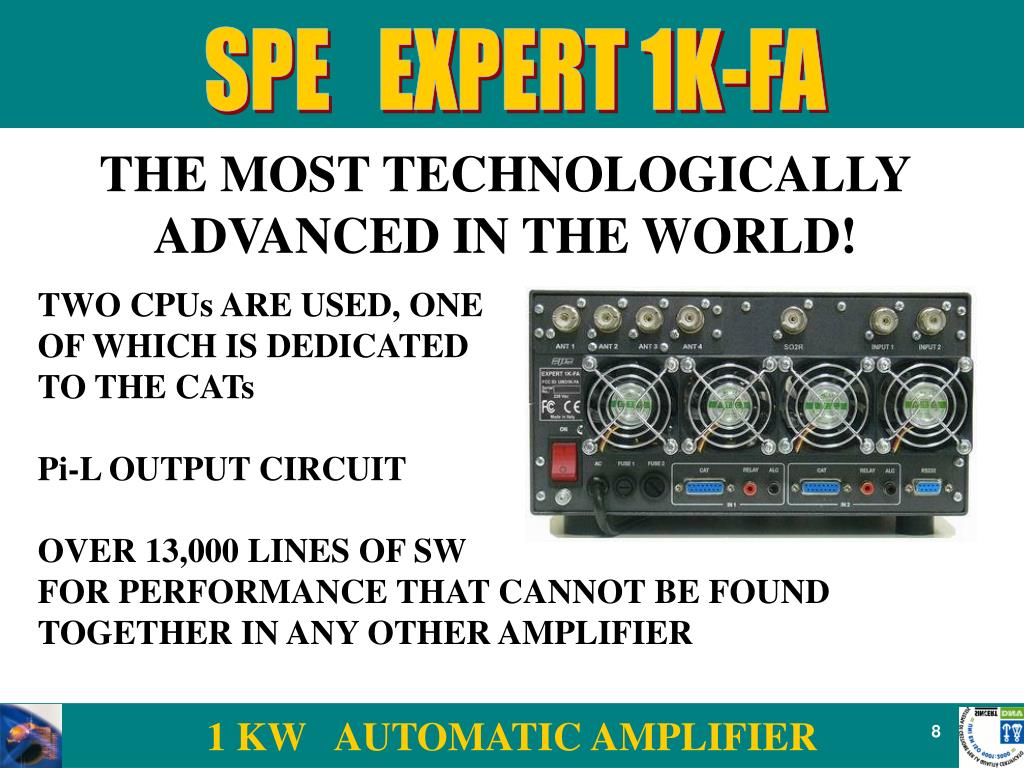

  8. SPE EXPERT 1K-FA THE MOST TECHNOLOGICALLY ADVANCED IN THE WORLD! TWO CPUs ARE USED, ONE OF WHICH IS DEDICATED TO THE CATs Pi-L OUTPUT CIRCUIT OVER 13,000 LINES OF SW FOR PERFORMANCE THAT CANNOT BE FOUND TOGETHER IN ANY OTHER AMPLIFIER

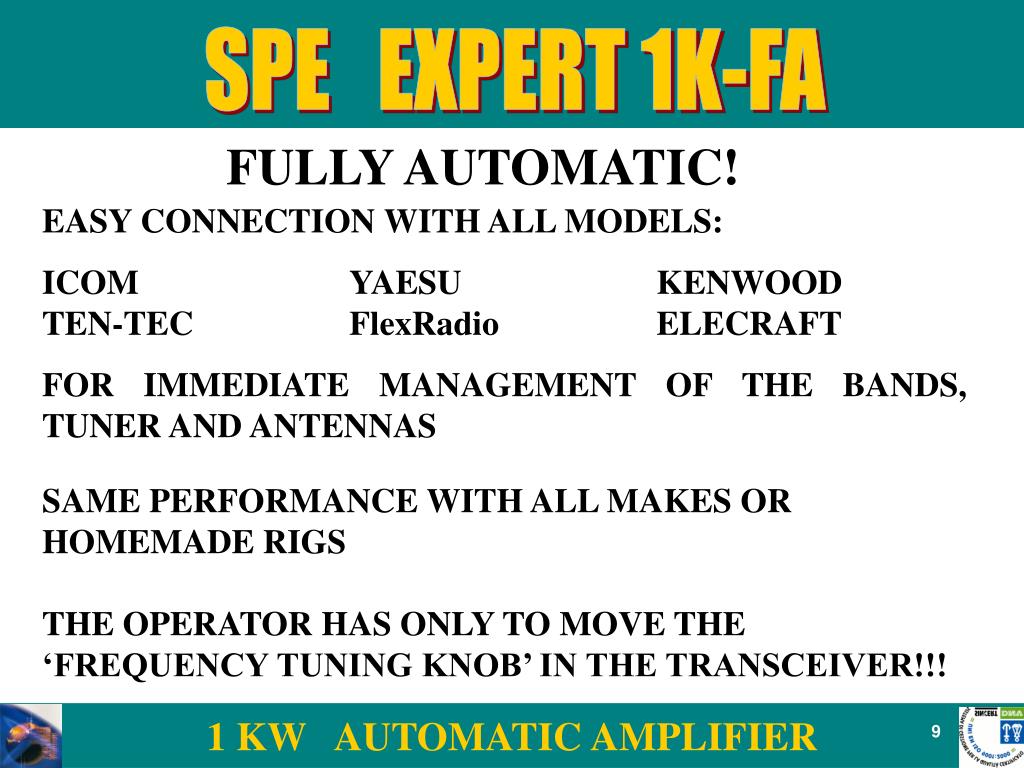

  9. SPE EXPERT 1K-FA FULLY AUTOMATIC! EASY CONNECTION WITH ALL MODELS: ICOM YAESU KENWOOD TEN-TEC FlexRadio ELECRAFT FOR IMMEDIATE MANAGEMENT OF THE BANDS, TUNER AND ANTENNAS SAME PERFORMANCE WITH ALL MAKES OR HOMEMADE RIGS THE OPERATOR HAS ONLY TO MOVE THE ‘FREQUENCY TUNING KNOB’ IN THE TRANSCEIVER!!!

  10. SPE EXPERT 1K-FA WIDE FREQUENCY COVERAGE 1.8 MHz TO 54 MHz INCLUDING WARC BANDS

  11. SPE EXPERT 1K-FA FULL SOLID STATE 1 KW pep SSB out 900 W pep CW out (typ.) 700 W pep out (typ.) on 6 meters FULL/HALF power selection

  12. SPE EXPERT 1K-FA AUTOMATIC ANTENNA TUNER BUILT-IN! Capable of matching 3:1 SWR on HF and 2.5:1 SWR on 6 meters Capable to manage 4 antennas Bands, Antennas, Tuning conditions changed in 10 msec. Bands, Antennas, Tuning conditions are managed also in STBY to support the exciter only

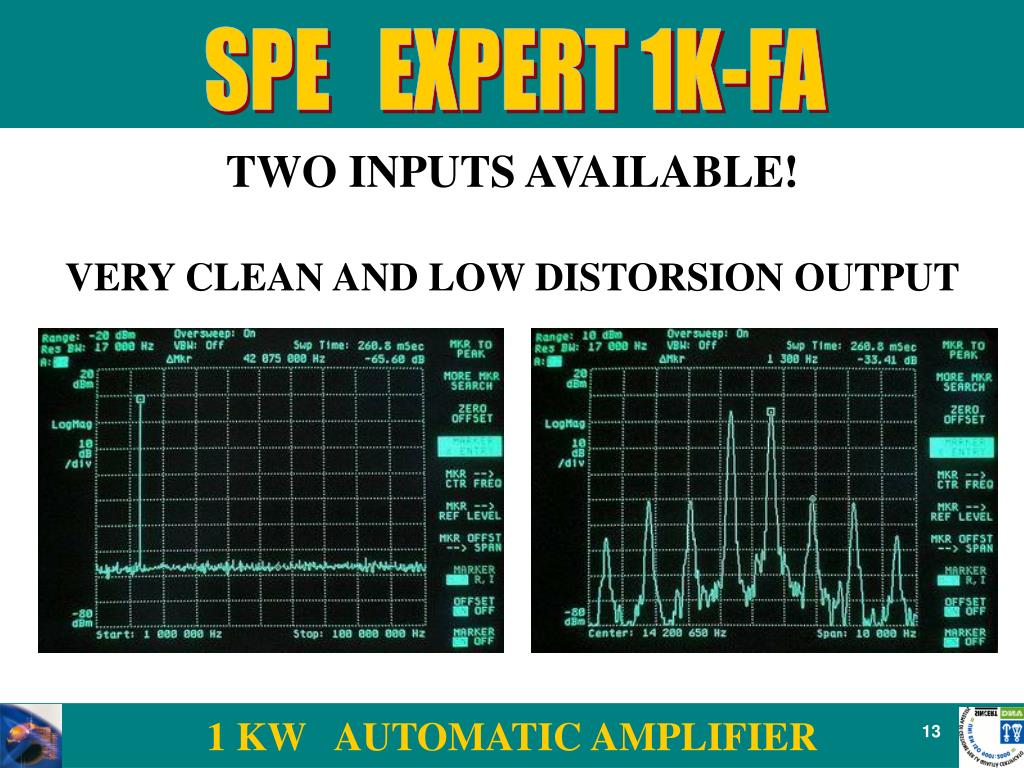

  13. SPE EXPERT 1K-FA TWO INPUTS AVAILABLE! VERY CLEAN AND LOW DISTORSION OUTPUT

  14. SPE EXPERT 1K-FA INPUT 50 OHM ALWAYS PERFECTLY MATCHED!

  15. SPE EXPERT 1K-FA FULLY PROTECTED! • Temperature, Over Voltage, Over Current, SWR, Reflected Power, Max RF Tuner Voltage, Over Drive, Amp. Unbalances are continously controlled. • The same protection is realised in two different ways: • HW to assure great speed; • SW to assure great accuracy. • Thanks to the SW, every relays commutation is carried out with zero current in the contacts.

  16. SPE EXPERT 1K-FA FULL BREAK-IN OPERATION (QSK)! NORMAL/CONTEST OPERATION TO OPTIMIZE THE PERFORMANCE!

  17. SPE EXPERT 1K-FA SO2R OPERATION RTX2 RTX1 INPUT 2 INPUT 1 ANT 1 SPE EXPERT 1K-FA ANT 2 SO2R ANT 3 ANT 4 MULTIBAND ANTENNA TRASMITTING ANTENNAS

  18. SPE EXPERT 1K-FA VERY QUIET OPERATION! REGULATED POWER SUPPLY INPUT 230/115 VAC With both the input voltages, the out power is always 1 KW

  19. SPE EXPERT 1K-FA THE LINEAR CAN BE SWITCHED ON/OFF ALSO, SWITCHING ON/OFF THE EXCITER! WITH A LARGE LCD DISPLAY IS POSSIBLE TO HAVE A GREAT DEAL OF INFORMATION!

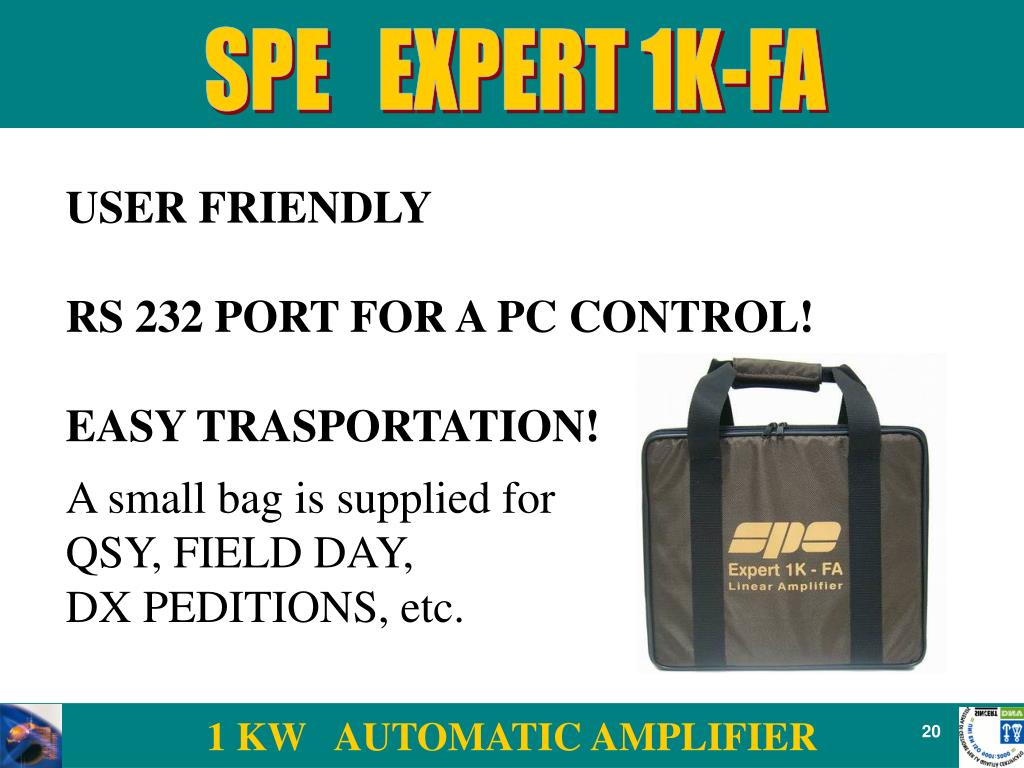

  20. SPE EXPERT 1K-FA USER FRIENDLY RS 232 PORT FOR A PC CONTROL! EASY TRASPORTATION! A small bag is supplied for QSY, FIELD DAY, DX PEDITIONS, etc.

  21. SPE EXPERT 1K-FA WORLDWIDE CERTIFICATIONS

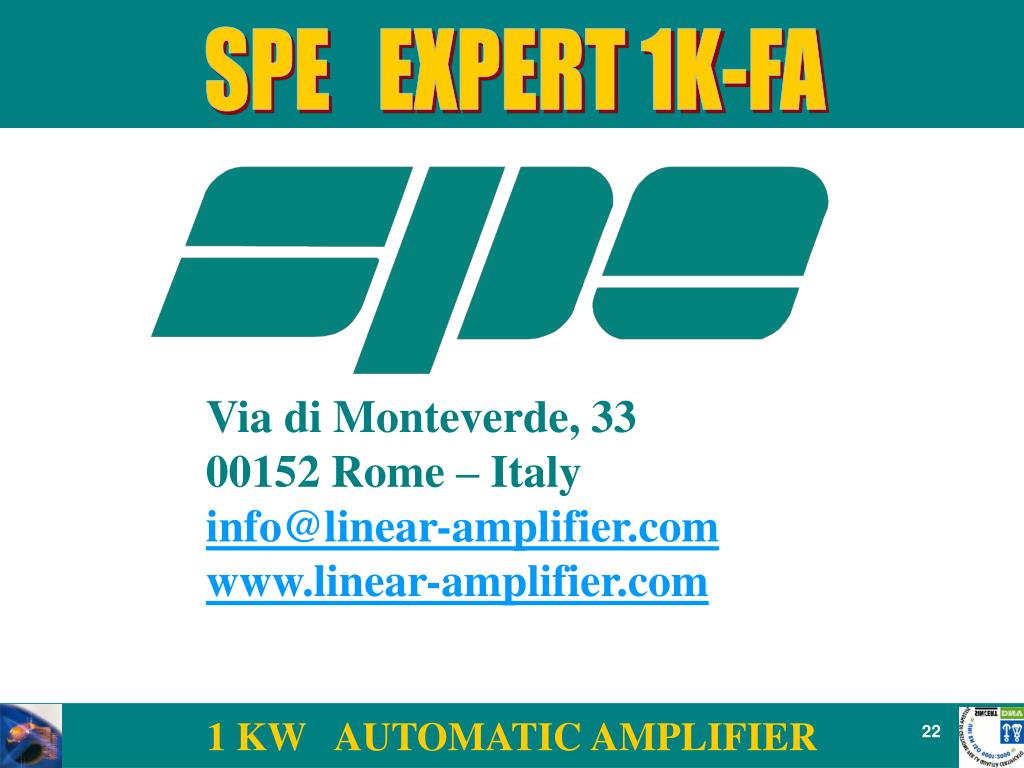

  22. SPE EXPERT 1K-FA Via di Monteverde, 33 00152 Rome – Italy info@linear-amplifier.com www.linear-amplifier.com
