  1. IDEC SmartRelayFL1E Product Update November 2008

  2. Product Review What’s new in the FL1E SmartRelay Compare new features to existing FL1D series New Remote Text Display Panel WindLGC 6.0 What’s new in the latest WindLGC software Marketing and Sales Tools Pricing and Part Numbers Marketing Materials Agenda

  3. IDEC SmartRelay 5th Generation Overview Hardware Improvements Remote Text Display Panel

  4. Overview • 3 New Improvements to FL1E series • Hardware Improvements • WindLGC 6.0 • New Remote Text Display panel

  5. Hardware Improvements • Improved Inputs (12/24VDC and 24VDC models) • 4 Built-in Analog Inputs • Up to 4 Analog Inputs (0-10 VDC) can be utilized • Compare to just 2 in the existing FL1D series I7 = AI1 I8 = AI2 I1 = AI3 I2 = AI4 • 4 Built-in Fast Counter Inputs • Up to 4 Fast Inputs at max. of 5 kHz can be utilized • Compare to just 2 at 2 kHz in the existing FL1D series I3, I4, I5, I6 Fast inputs AI3, AI4 AI1, AI2

  6. Hardware Improvements • Extended Memory • Up to 200 function blocks • 50% increase • Compare to just 130 function blocks in existing FL1D series • Extended Retentive Data Memory • Up to 250 bytes • 300% increase • Compare to just 60 bytes in existing FL1D series

  7. Hardware Improvements • Improved LCD • Brighter and higher LCD contrast • Backlight can be controlled by user’s program • Permanent ON/OFF or program defined • Bar graph display capable

  8. Hardware Improvements • New Accessories • 3 New Memory cartridges • Violet Memory Cartridge • 32K memory • Green Battery Cartridge • Support Real Time Clock up to 2 Years • Brown Memory & Battery Cartridge • Combined memory and battery cartridge • FL1E still supports FL1C-PM3 (taupe) memory cartridge • Direct USB Programming cable • USB converter is not required

  9. Hardware Improvements • Other Improvements • Up to 50 Text Message display function blocks • Compare to 10 in the existing FL1D series • Arithmetic Functions • Add, Subtract, Multiply and Divide • Daylight Saving Time • Automatic daylight saving time is now compliant with new changes in the US • 10 Menu Languages • English, Spanish, French, Japanese, German, Chinese, Italian, Dutch, Russian, and Turkish.

  10. Remote Text Display Panel • Features: • 12 VDC, 24 VAC/DC power • 4 x 12 characters display • Connectable to all FL1E series via a new left-side interface • 2.5m connection cable is provided with each FL1E-RD1 text display • 6 standard keys and 4 additional function keys (F1-F4) • IP65 & NEMA 4/4X protection • Max. 50 message blocks • Scrolling Text with up to 24 characters • Bar Graph display feature; • horizontal and vertical • max 4 per message block • Change Set Points and Real Time Clock

  11. WindLGC 6.0 New Connectors and Function Blocks Updated Function Blocks

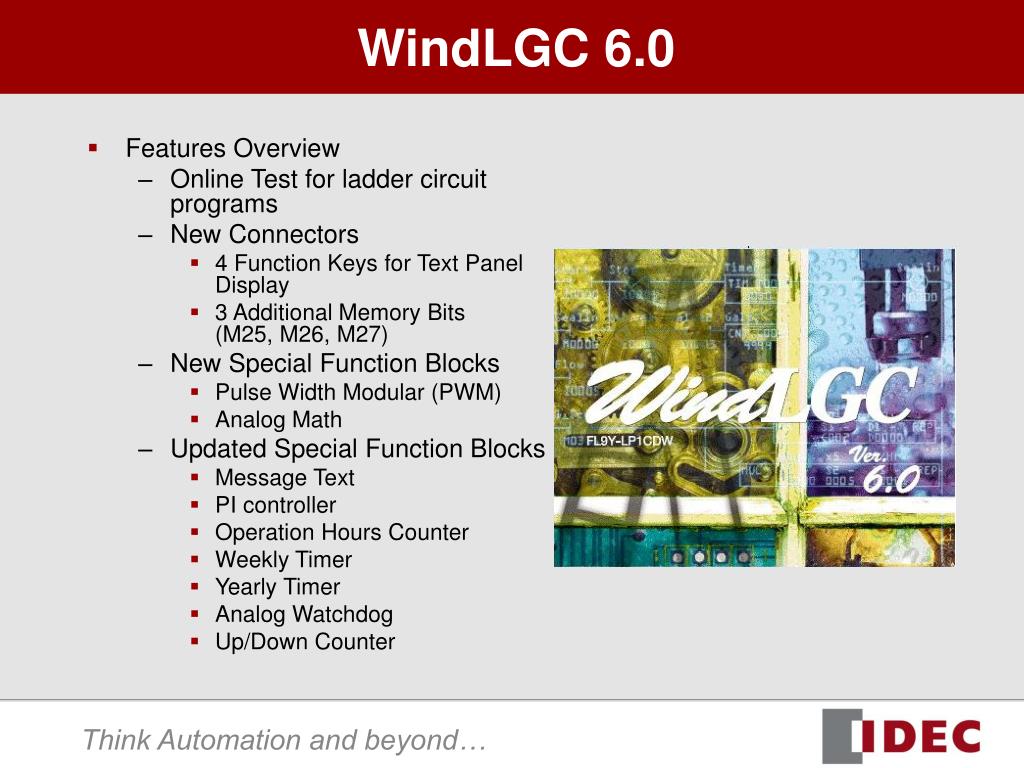

  12. WindLGC 6.0 • Features Overview • Online Test for ladder circuit programs • New Connectors • 4 Function Keys for Text Panel Display • 3 Additional Memory Bits (M25, M26, M27) • New Special Function Blocks • Pulse Width Modular (PWM) • Analog Math • Updated Special Function Blocks • Message Text • PI controller • Operation Hours Counter • Weekly Timer • Yearly Timer • Analog Watchdog • Up/Down Counter

  13. WindLGC 6.0 – New Connectors 4 New FL1E-RD2 Function keys M25 controls the backlight of the FL1E built-in display M26 controls the backlight of the FL1E-RD1 text display panel M27 message character set flag

  14. WindLGC 6.0 – New Functions • NewPWM Function Block The PWM function modulates the analog input value Ax into a digital output signal The pulse width is proportional to the analog value Ax

  15. WindLGC 6.0 – New Functions • NewAnalogMath Function Blocks This new arithmetic function block allow the SmartRelay to process simple arithmetic functions such as +, -, x, /. The result is an internal analog value of -32768 - +32768 • NewAnalog Math Error Detection Overflow or division by zero can be detected using this new analog math error function block.

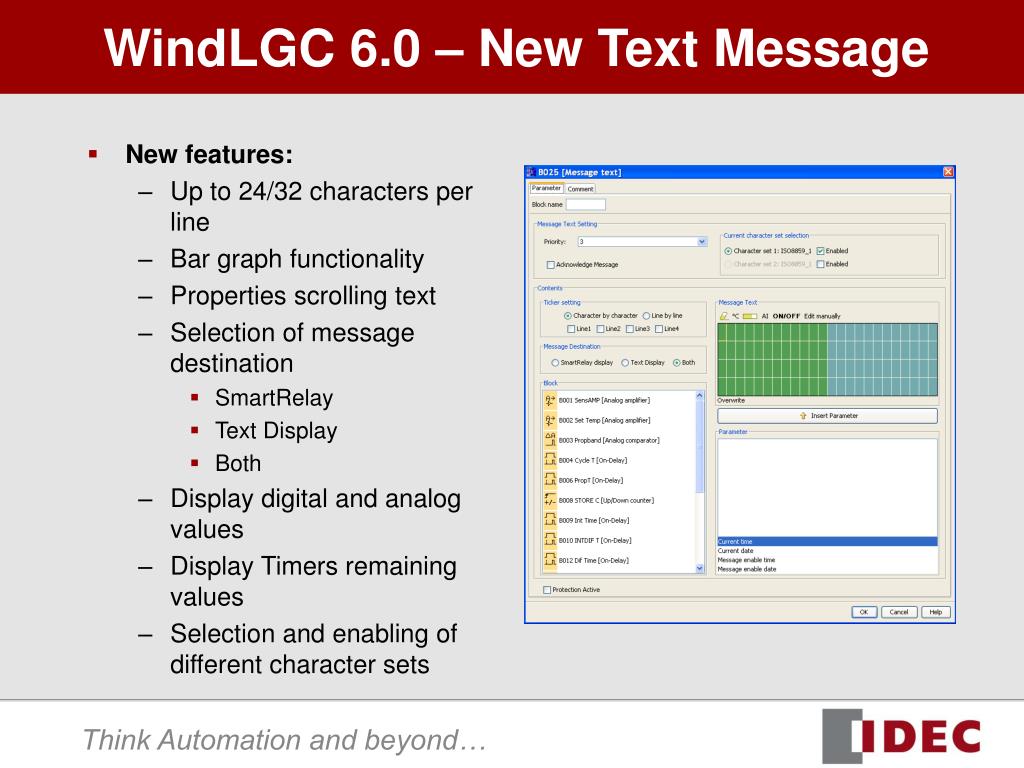

  16. WindLGC 6.0 – New Text Message • New features: • Up to 24/32 characters per line • Bar graph functionality • Properties scrolling text • Selection of message destination • SmartRelay • Text Display • Both • Display digital and analog values • Display Timers remaining values • Selection and enabling of different character sets

  17. Marketing and Sales Tools Part Numbers and List Price Marketing Materials

  18. Part Numbers and List Price

  19. Part Numbers and List Price

  20. Marketing Materials • New12-pg Sales Brochure • PDF available atwww.idec.com/distributor and www.idec.com/smartrelay • New 4-pg Datasheet • New micro site www.idec.com/smartrelay • Dedicated webpage to FL1E • New Flash presentation • New Product Press Release • New Product Manual • Free WindLGC 6.0 upgrades and demo • Available at www.idec.com/smartrelay
