Presentation Transcript
slide1

Introduction to

Fluid Power

by

Mike Pierno

slide2

Pascal’s Law

Pascal’s Law, simply stated, says this:

Pressure applied on a confined fluid is transmitted undiminished in all directions, and acts with equal force on equal areas and at right angles to them.

F = P x A

slide3

HOW PRESSURE IS CREATED

Pressure results whenever there is a resistance to fluid flow or to a force which attempts to make the fluid flow. The tendency to cause flow (or the push) may be supplied by a mechanical pump, compressor, or may be caused simply by the weight of the fluid.

slide4

Pressure “head” comes from the weight of the fluid.

Atmospheric pressure is a “head” of air.

slide5

Force is Proportional to Pressure and Area

F

P

A

These Pressure, Force and Area relationships are sometimes illustrated as shown below to aid in remembering the equations.

When a cylinder is used to clamp or press, its output force can be computed as follows:

F = P x A

Again:

P is Pressure (PSI (Bar) (Pascals))

F is Force (pounds (newtons))

A is Area (Square inches (Square meters)

F = P x A

P = F / A

A = F / P

slide6

Simple Hydraulic Lever

Simple Mechanical Lever

slide10

141.3

141.3

slide11

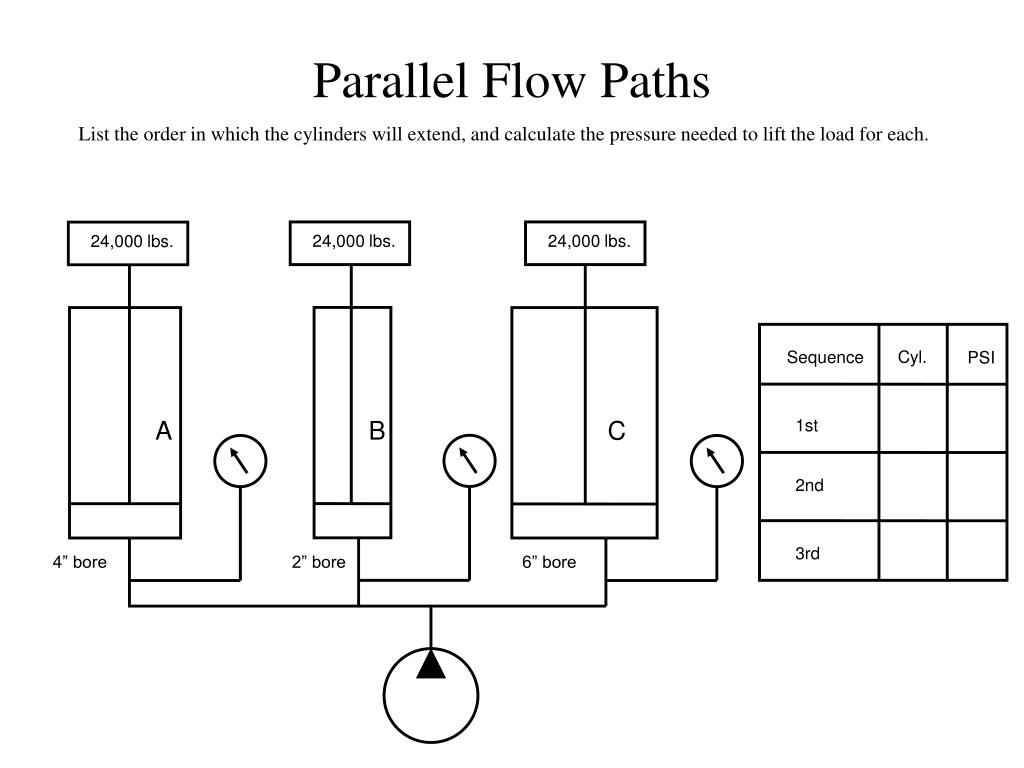

Parallel Flow Paths

List the order in which the cylinders will extend, and calculate the pressure needed to lift the load for each.

24,000 lbs.

24,000 lbs.

24,000 lbs.

Cyl.

Sequence

PSI

A

B

C

1st

2nd

3rd

4” bore

2” bore

6” bore

slide13

Bernoulli’s Principle

Bernoulli’s Principle states that if the flow rate is constant, the sum of the kinetic ands pressure energy must be constant. Therefore, if the kinetic energy decreases, it must result in an increased pressure. Likewise, when the cross-sectional area of the flow path decreases, the kinetic energy (velocity) produces a corresponding decrease in pressure.

slide14

Laminar flow is in parallel paths.

Turbulence results in flow resistance.

slide16

Introduction to

Fluid Power

by

Mike Pierno
