    1. Introduction to Wind Energy

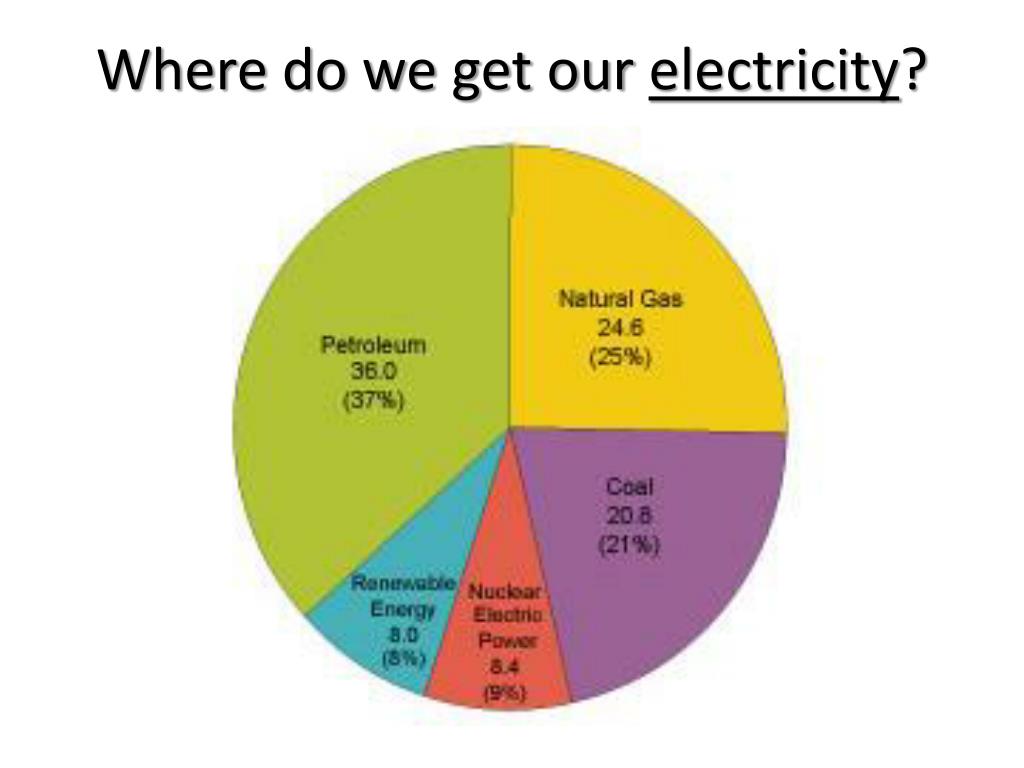

    2. Where do we get our electricity?

    3. What is “Renewable Energy?”

    4. Major Parts of a Wind Turbine Engine/Generator

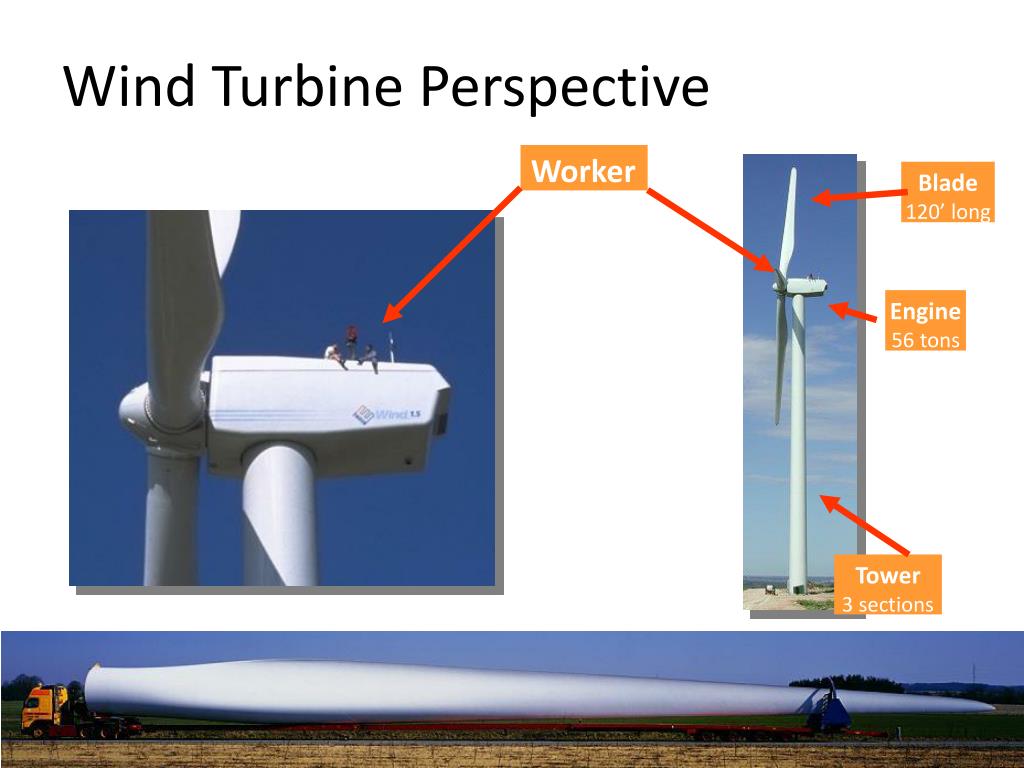

    5. Workers Blade 120’ long Engine 56 tons Tower 3 sections Wind Turbine Perspective

    6. Wind Turbine Perspective • 350’+ base to blade • Each blade 120’ • Span greater than a large plane • Weigh approx 160 tons • Foundation 20+ feet deep • Supply at least 350 homes

    7. Yawing – “Facing the Wind” • Active Yaw (all medium & large turbines produced today) • Meter on engine tells controller which way to point the hub into the wind. • Yaw drive turns gears to point the hub into wind. • Passive Yaw (Most small turbines) • Wind forces direct rotor using tail vanes.

    8. Breakin’ it down • If PA generates 179 MW (per day) • Megawatt = 1,000,000 watts • An average household uses 16,500 watts per day. How many houses will PA’s wind farms support? • Approximately 10,850 homes at no cost to the environment.

    9. Why do windmills need to be high in the sky?? Further From Earth -Less Turbulence from trees, buildings, etc. -Higher Constant Speed.

    10. Carnage!

    11. Jobs in the Wind Industry (next slides)

    12. Construction

    13. Operations/Maintenance

    14. Engineering/Design

    15. Public Relations/Organizing Support

    16. Environmental Assessment

    17. Wind Turbine Project! Create and Design Your Own

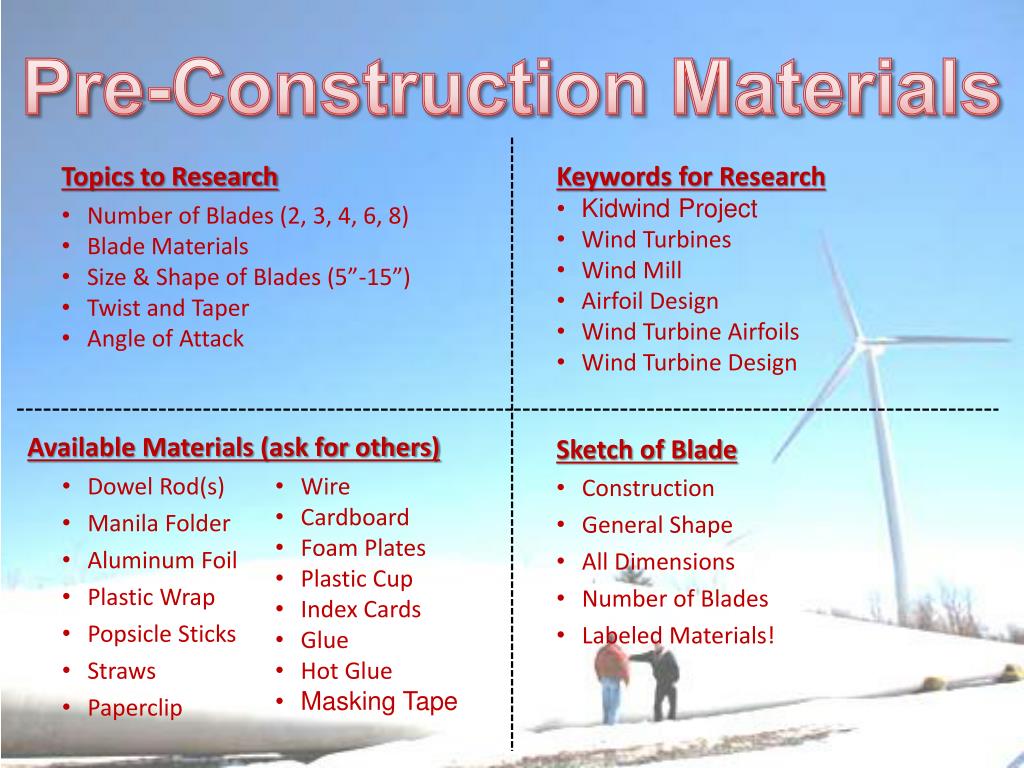

    18. Pre-Construction Materials • Number of Blades (2, 3, 4, 6, 8) • Blade Materials • Size & Shape of Blades (5”-15”) • Twist and Taper • Angle of Attack Topics to Research Keywords for Research • KidwindProject • Wind Turbines • Wind Mill • Airfoil Design • Wind Turbine Airfoils • Wind Turbine Design Available Materials (ask for others) Dowel Rod(s) Manila Folder Aluminum Foil Plastic Wrap Popsicle Sticks Straws Paperclip Sketch of Blade • Construction • General Shape • All Dimensions • Number of Blades • Labeled Materials! • Wire • Cardboard • Foam Plates • Plastic Cup • Index Cards • Glue • Hot Glue • Masking Tape
