WORKING WITH COMPUTER ACCOUNTS

1. Chapter 8 WORKING WITH COMPUTER ACCOUNTS

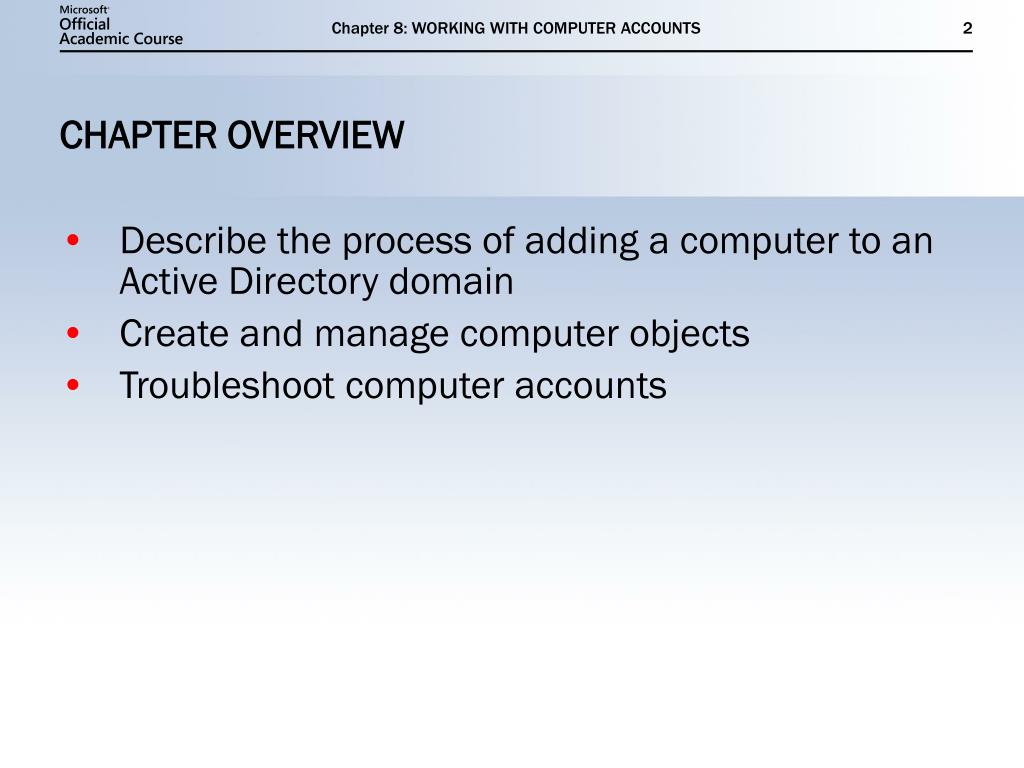

2. Chapter 8: WORKING WITH COMPUTER ACCOUNTS CHAPTER OVERVIEW • Describe the process of adding a computer to an Active Directory domain • Create and manage computer objects • Troubleshoot computer accounts

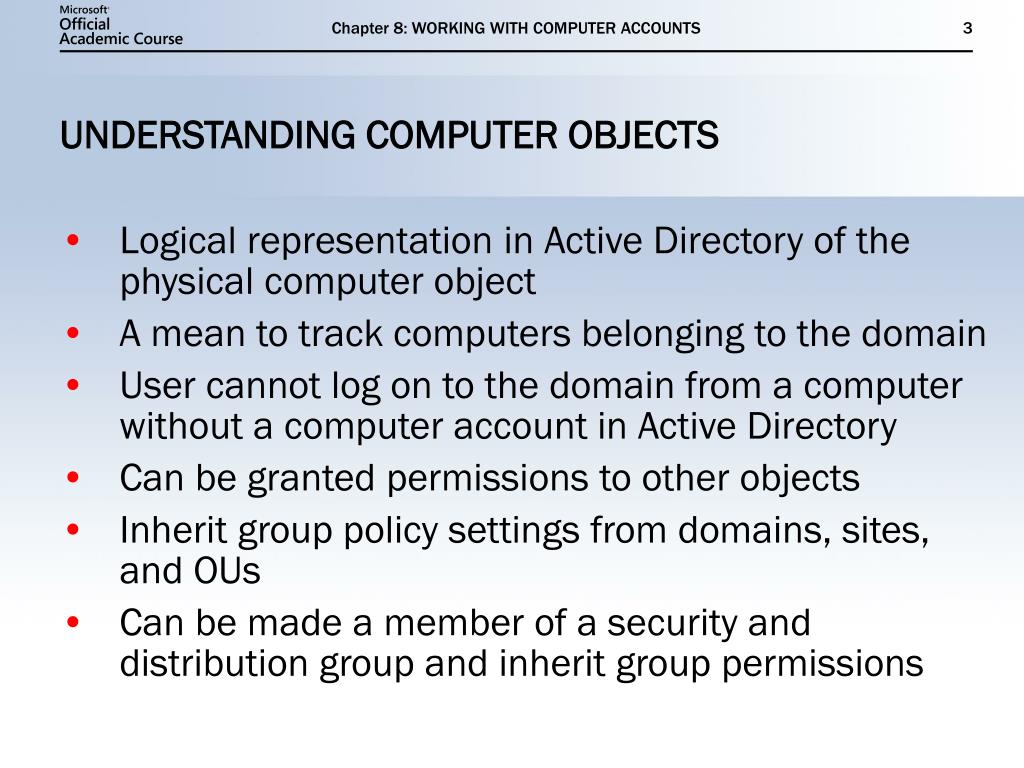

3. Chapter 8: WORKING WITH COMPUTER ACCOUNTS UNDERSTANDING COMPUTER OBJECTS • Logical representation in Active Directory of the physical computer object • A mean to track computers belonging to the domain • User cannot log on to the domain from a computer without a computer account in Active Directory • Can be granted permissions to other objects • Inherit group policy settings from domains, sites, and OUs • Can be made a member of a security and distribution group and inherit group permissions

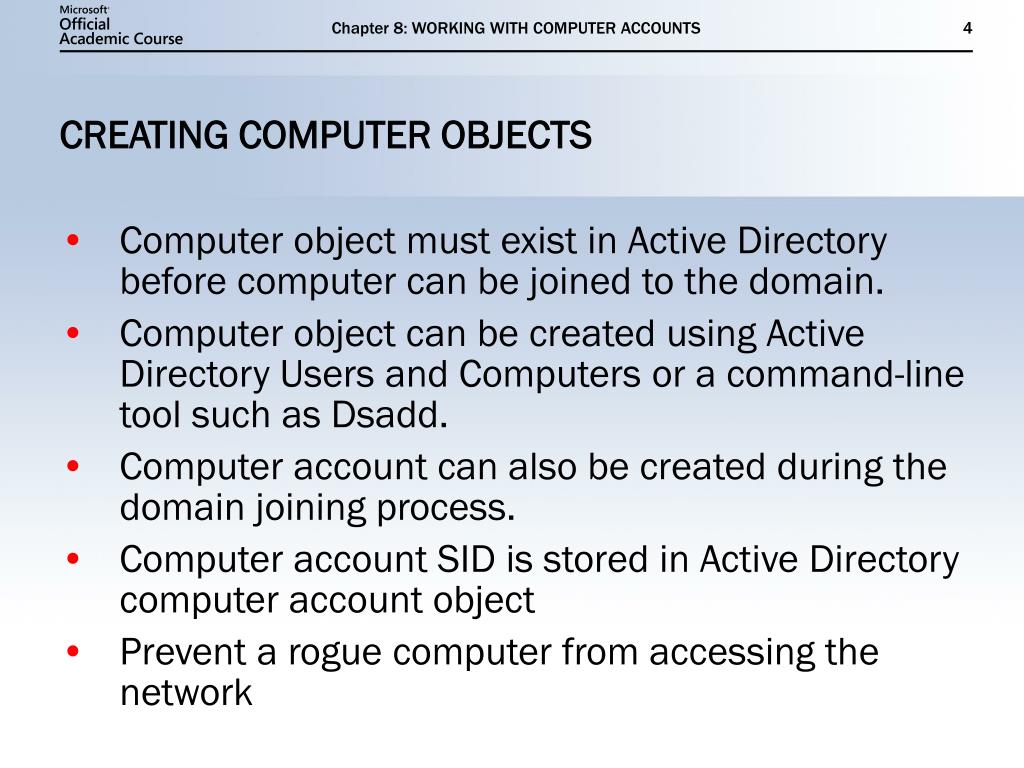

4. Chapter 8: WORKING WITH COMPUTER ACCOUNTS CREATING COMPUTER OBJECTS • Computer object must exist in Active Directory before computer can be joined to the domain. • Computer object can be created using Active Directory Users and Computers or a command-line tool such as Dsadd. • Computer account can also be created during the domain joining process. • Computer account SID is stored in Active Directory computer account object • Prevent a rogue computer from accessing the network

5. Chapter 8: WORKING WITH COMPUTER ACCOUNTS COMPUTER ACCOUNT AUTHENTICATION • Computer authenticate before user account is authenticated • Client computer and Domain Controller mutual authentication • Authenticate using computer account and password • Account name • Up to 63 characters • Pre-Windows 2000 the first 15 characters • Password is generated automatically and kept hidden • Account name up to 63 characters • Pre-Windows 2000 the first 15 characters

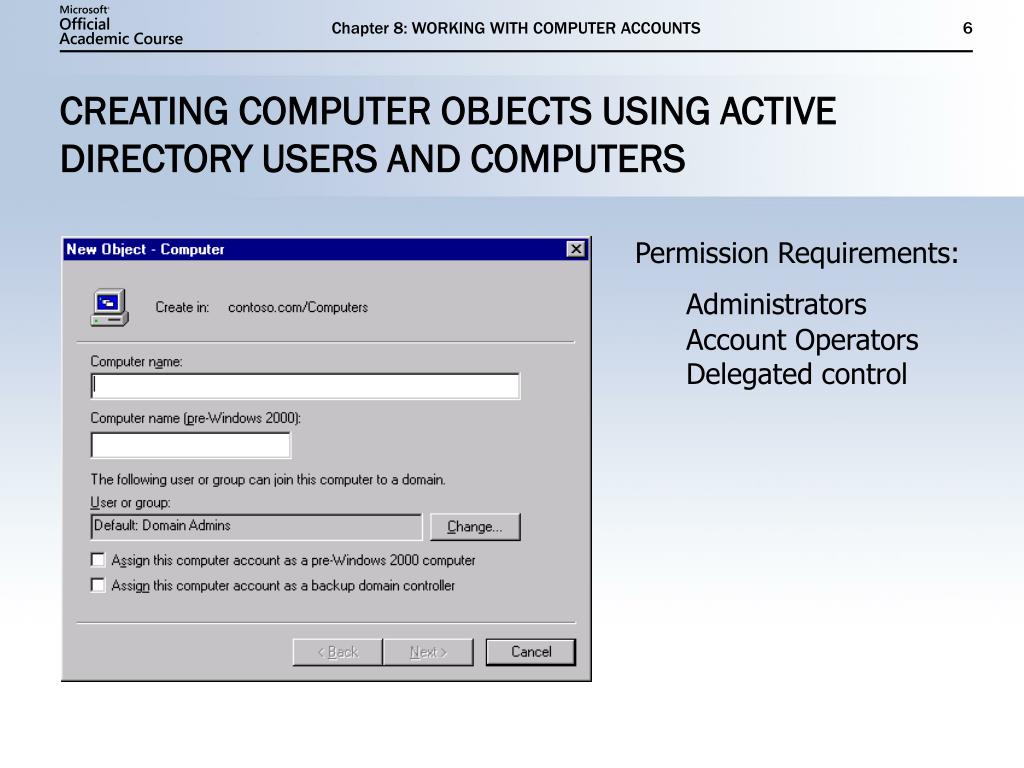

6. Chapter 8: WORKING WITH COMPUTER ACCOUNTS CREATING COMPUTER OBJECTS USING ACTIVE DIRECTORY USERS AND COMPUTERS • Permission Requirements: • Administrators • Account Operators • Delegated control

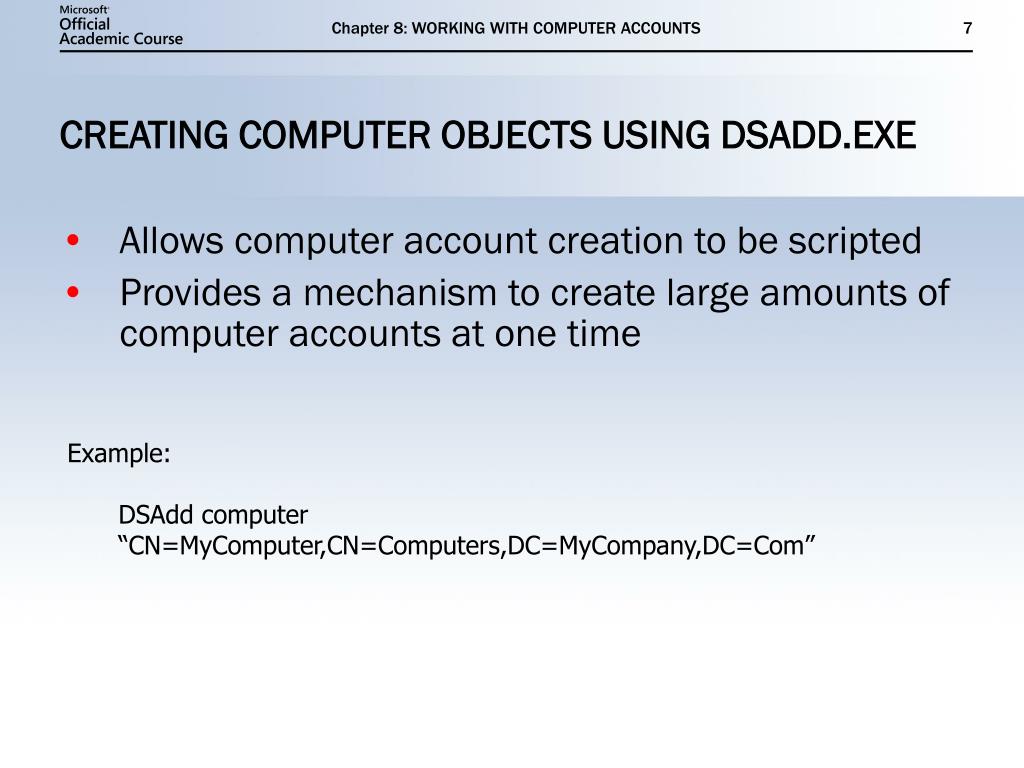

7. Chapter 8: WORKING WITH COMPUTER ACCOUNTS CREATING COMPUTER OBJECTS USING DSADD.EXE • Allows computer account creation to be scripted • Provides a mechanism to create large amounts of computer accounts at one time • Example: • DSAdd computer “CN=MyComputer,CN=Computers,DC=MyCompany,DC=Com”

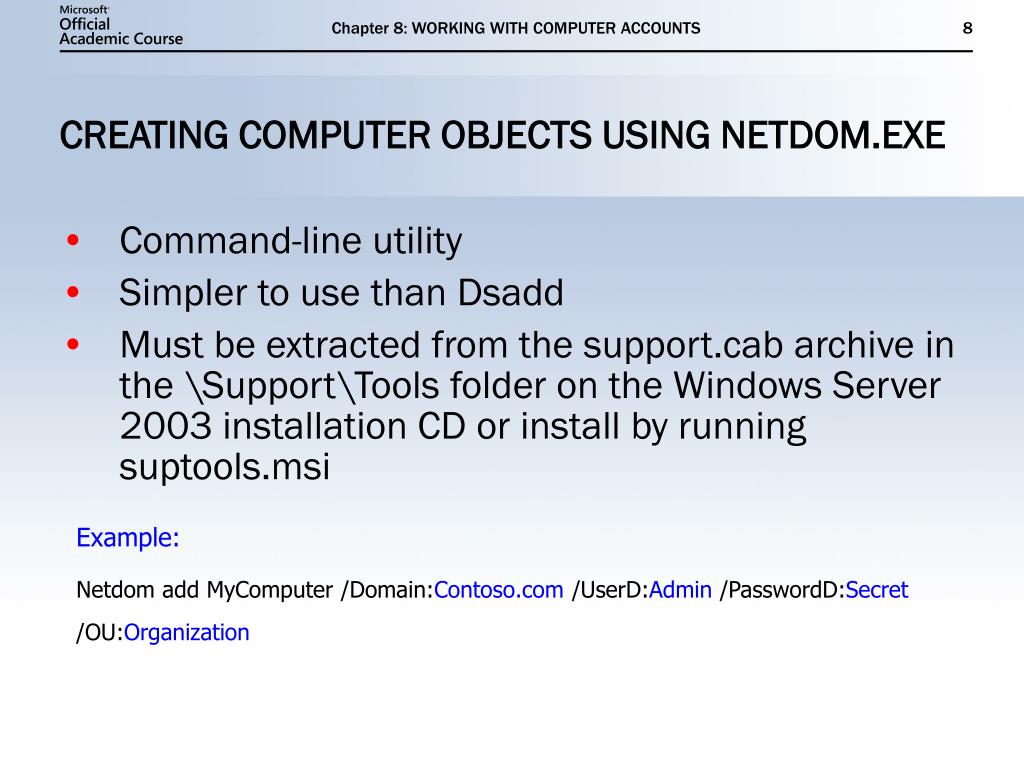

8. Chapter 8: WORKING WITH COMPUTER ACCOUNTS CREATING COMPUTER OBJECTS USING NETDOM.EXE • Command-line utility • Simpler to use than Dsadd • Must be extracted from the support.cab archive in the \Support\Tools folder on the Windows Server 2003 installation CD or install by running suptools.msi Example: Netdom add MyComputer /Domain:Contoso.com /UserD:Admin /PasswordD:Secret /OU:Organization

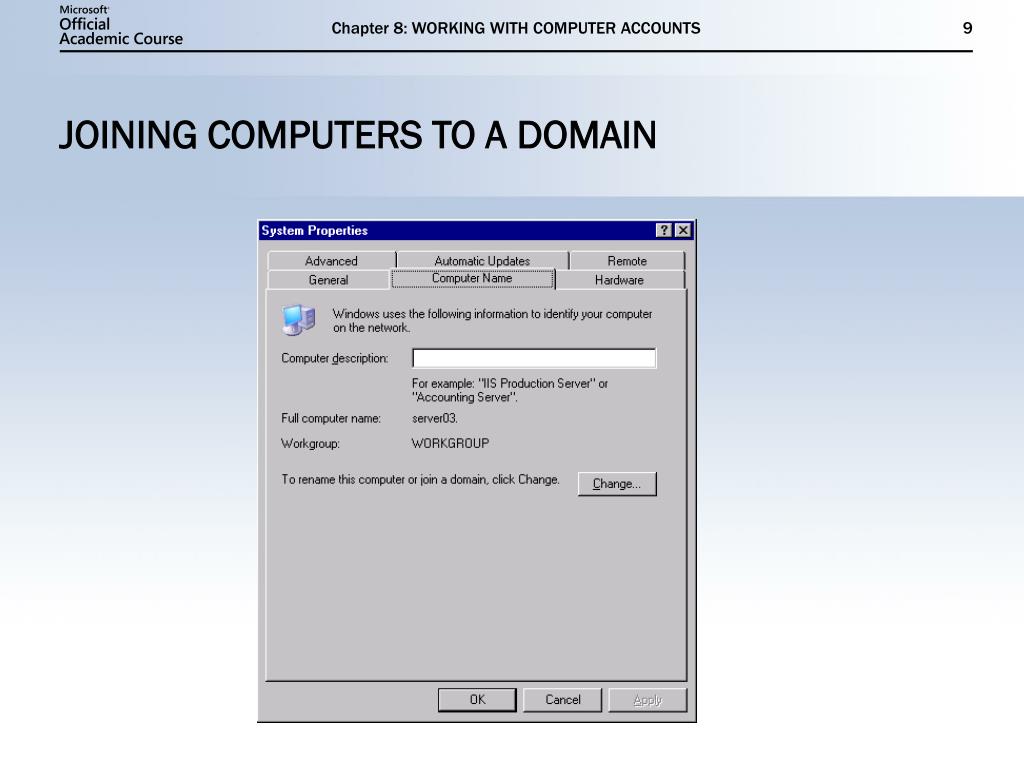

9. Chapter 8: WORKING WITH COMPUTER ACCOUNTS JOINING COMPUTERS TO A DOMAIN

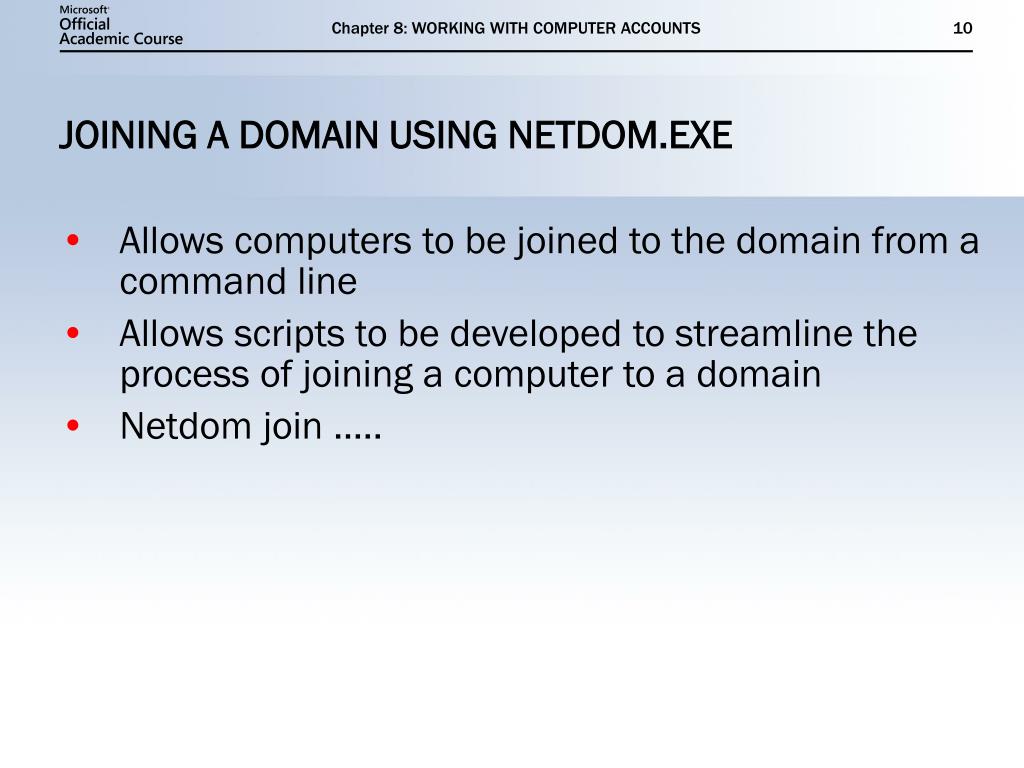

10. Chapter 8: WORKING WITH COMPUTER ACCOUNTS JOINING A DOMAIN USING NETDOM.EXE • Allows computers to be joined to the domain from a command line • Allows scripts to be developed to streamline the process of joining a computer to a domain • Netdom join …..

11. Chapter 8: WORKING WITH COMPUTER ACCOUNTS CREATING COMPUTER OBJECTS WHILE JOINING THE DOMAIN

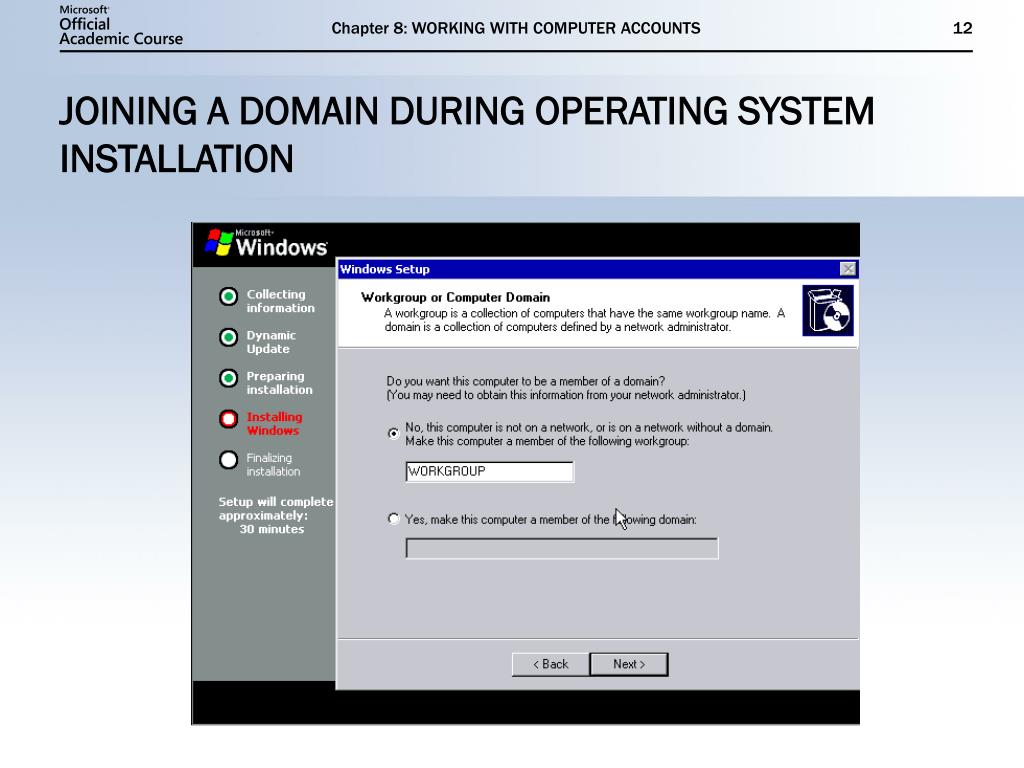

12. Chapter 8: WORKING WITH COMPUTER ACCOUNTS JOINING A DOMAIN DURING OPERATING SYSTEM INSTALLATION

13. Chapter 8: WORKING WITH COMPUTER ACCOUNTS LOCATING COMPUTER OBJECTS • The Computers container • The Domain Controllers OU

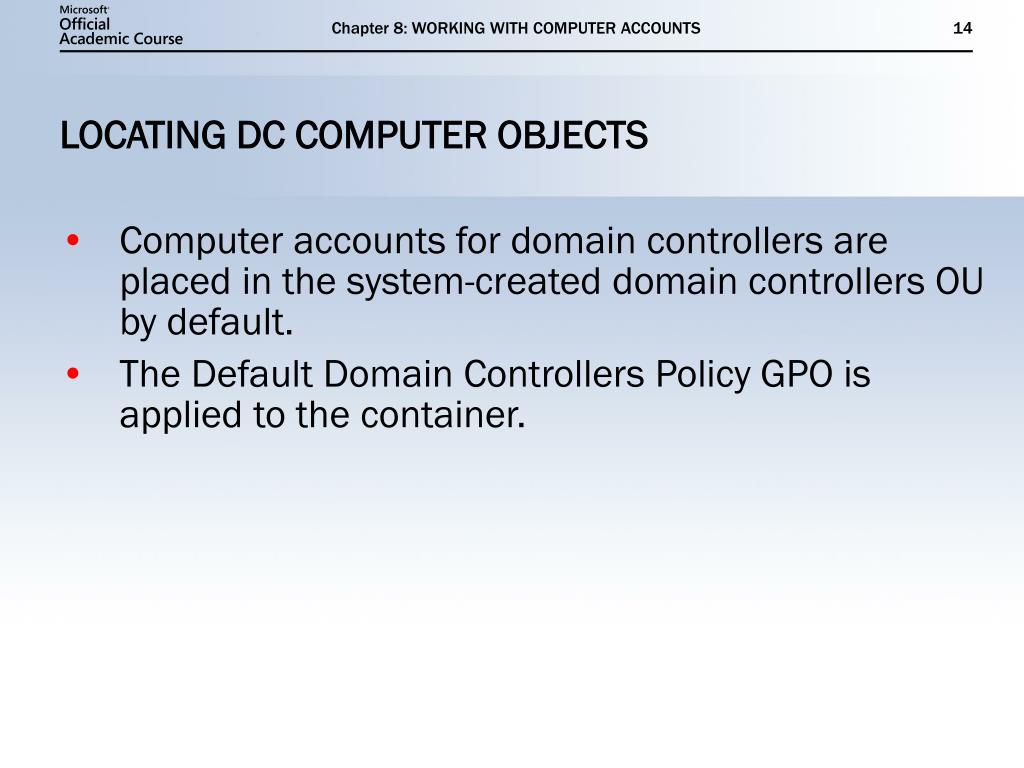

14. Chapter 8: WORKING WITH COMPUTER ACCOUNTS LOCATING DC COMPUTER OBJECTS • Computer accounts for domain controllers are placed in the system-created domain controllers OU by default. • The Default Domain Controllers Policy GPO is applied to the container.

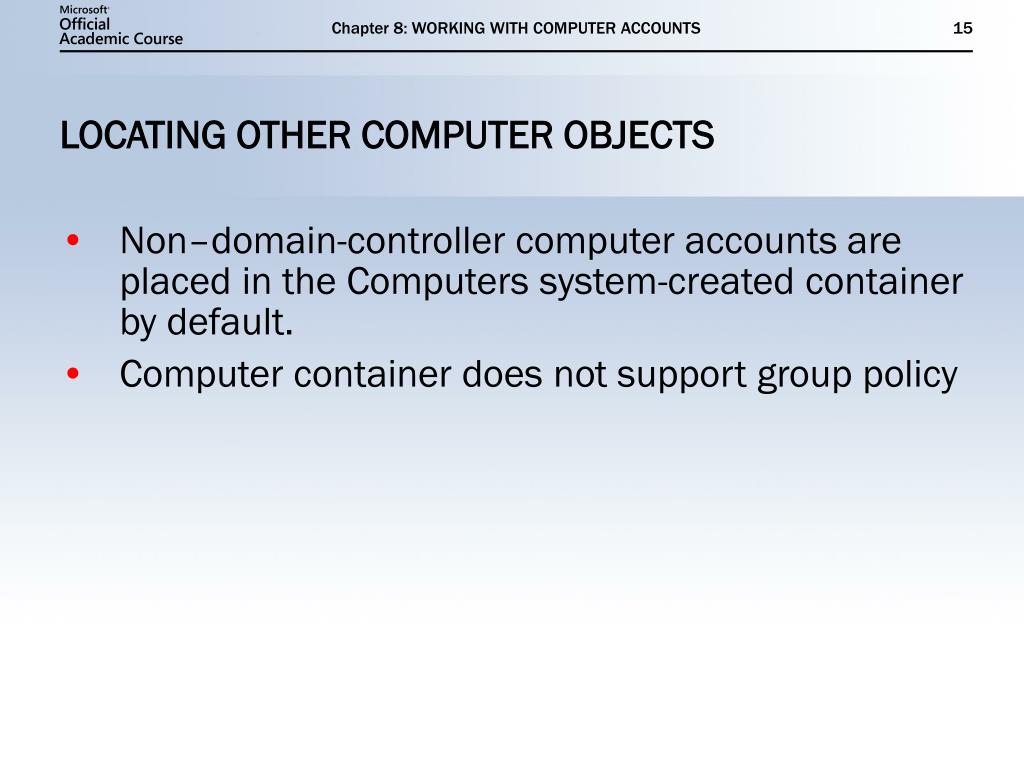

15. Chapter 8: WORKING WITH COMPUTER ACCOUNTS LOCATING OTHER COMPUTER OBJECTS • Non–domain-controller computer accounts are placed in the Computers system-created container by default. • Computer container does not support group policy

16. Chapter 8: WORKING WITH COMPUTER ACCOUNTS REDIRECTING COMPUTER OBJECTS • Allows an alternative default location for computer accounts to be specified. • Use the Redircmp.exe command-line utility. • Works only on Windows Server 2003 domain functional level. • Automatically redirects all computer accounts • Can be overridden by explicit computer account creation commands. Example: Redircmp ou=Workstations,DC=contoso,DC=com

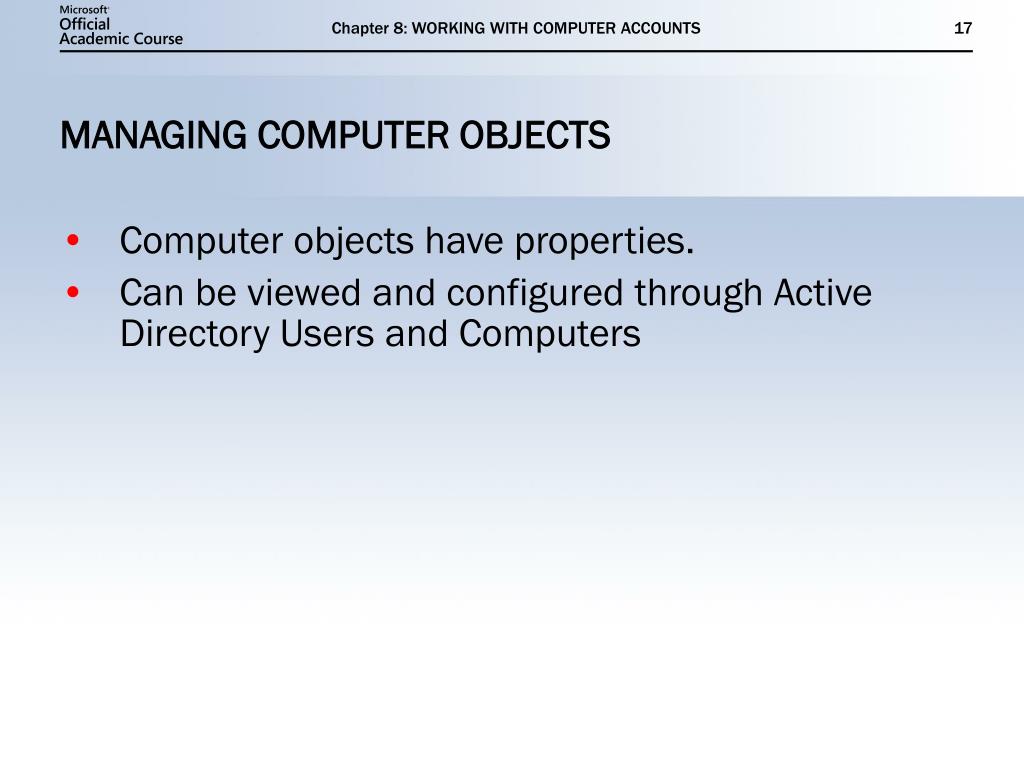

17. Chapter 8: WORKING WITH COMPUTER ACCOUNTS MANAGING COMPUTER OBJECTS • Computer objects have properties. • Can be viewed and configured through Active Directory Users and Computers

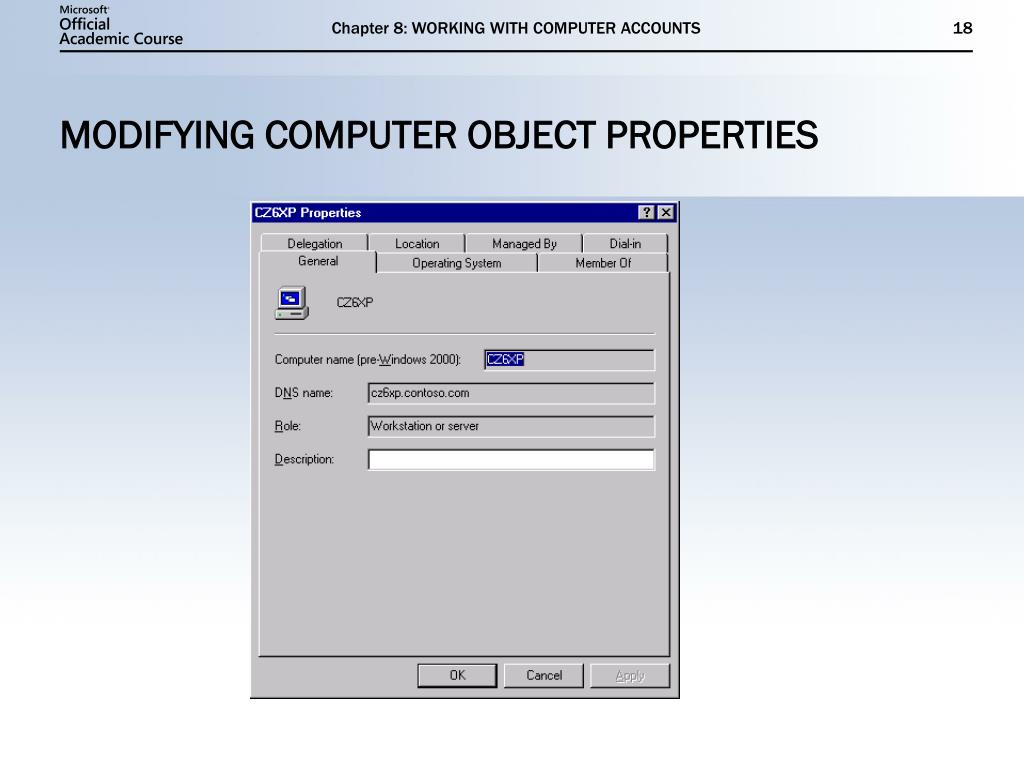

18. Chapter 8: WORKING WITH COMPUTER ACCOUNTS MODIFYING COMPUTER OBJECT PROPERTIES

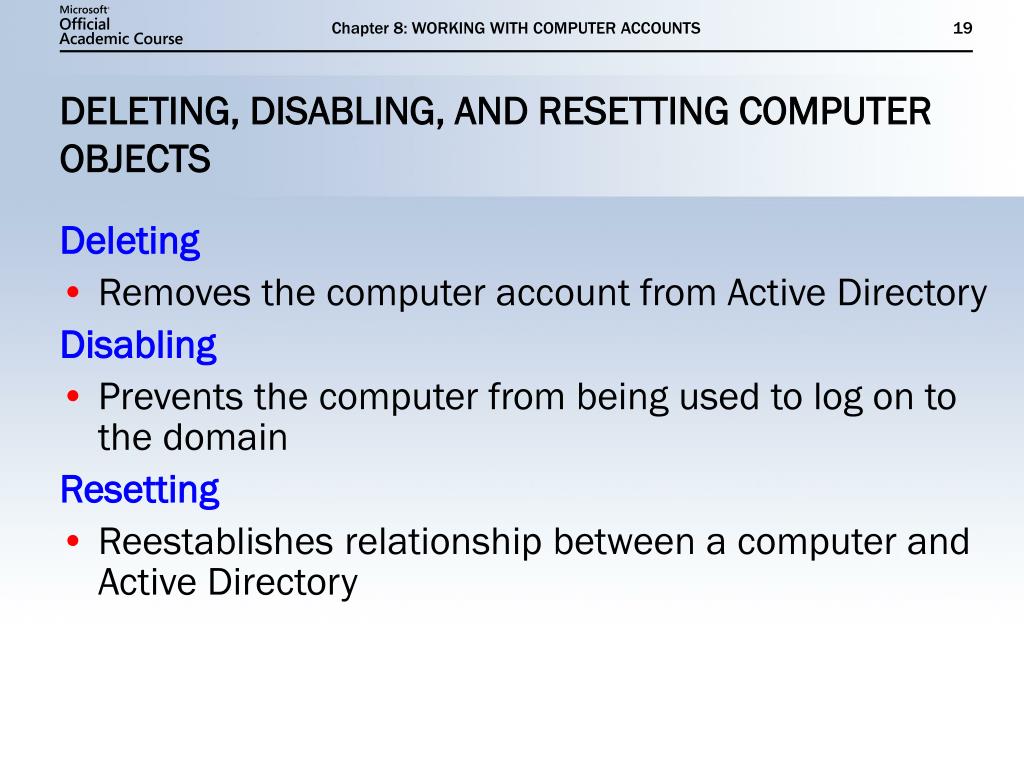

19. Chapter 8: WORKING WITH COMPUTER ACCOUNTS DELETING, DISABLING, AND RESETTING COMPUTER OBJECTS Deleting • Removes the computer account from Active Directory Disabling • Prevents the computer from being used to log on to the domain Resetting • Reestablishes relationship between a computer and Active Directory

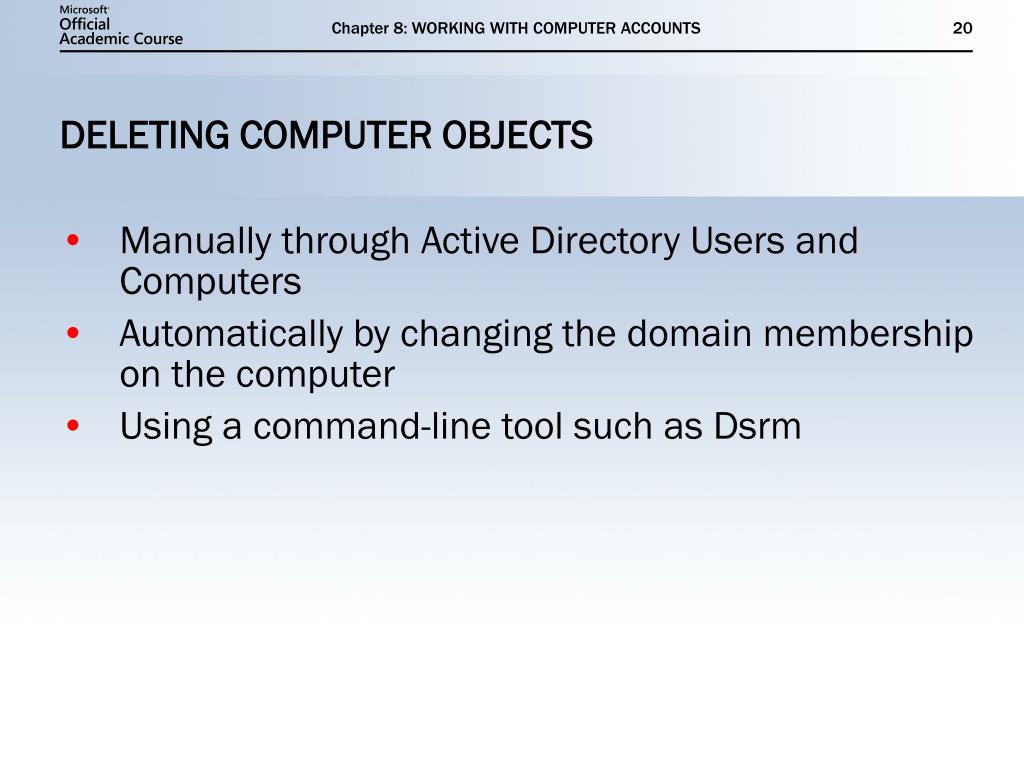

20. Chapter 8: WORKING WITH COMPUTER ACCOUNTS DELETING COMPUTER OBJECTS • Manually through Active Directory Users and Computers • Automatically by changing the domain membership on the computer • Using a command-line tool such as Dsrm

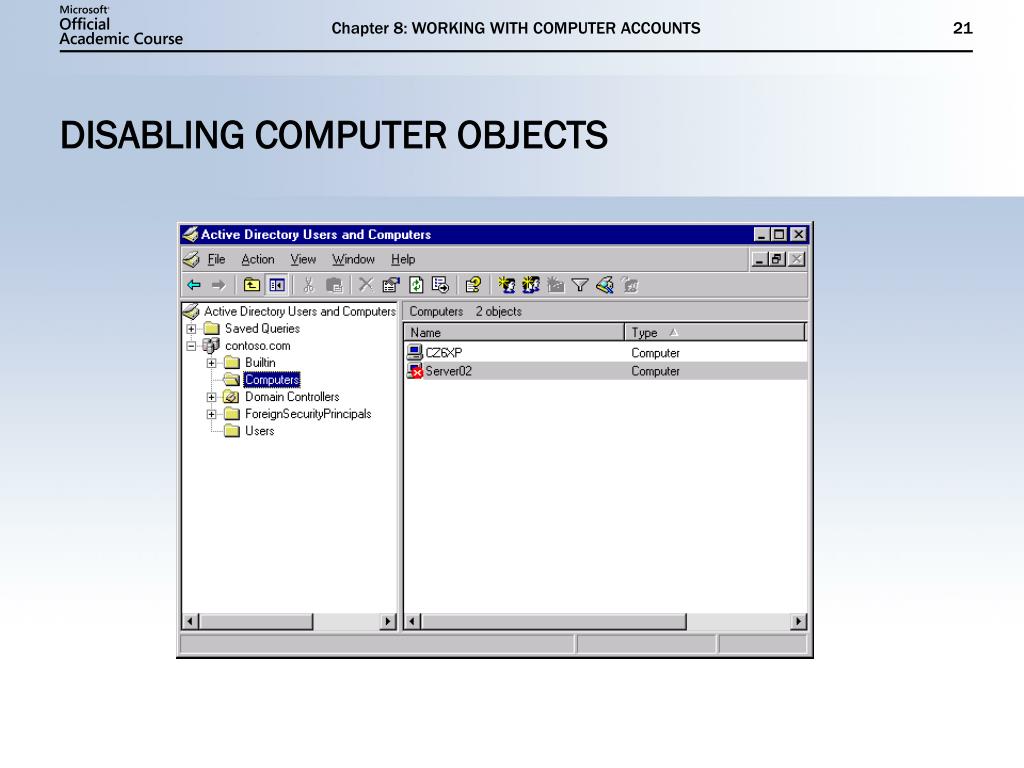

21. Chapter 8: WORKING WITH COMPUTER ACCOUNTS DISABLING COMPUTER OBJECTS

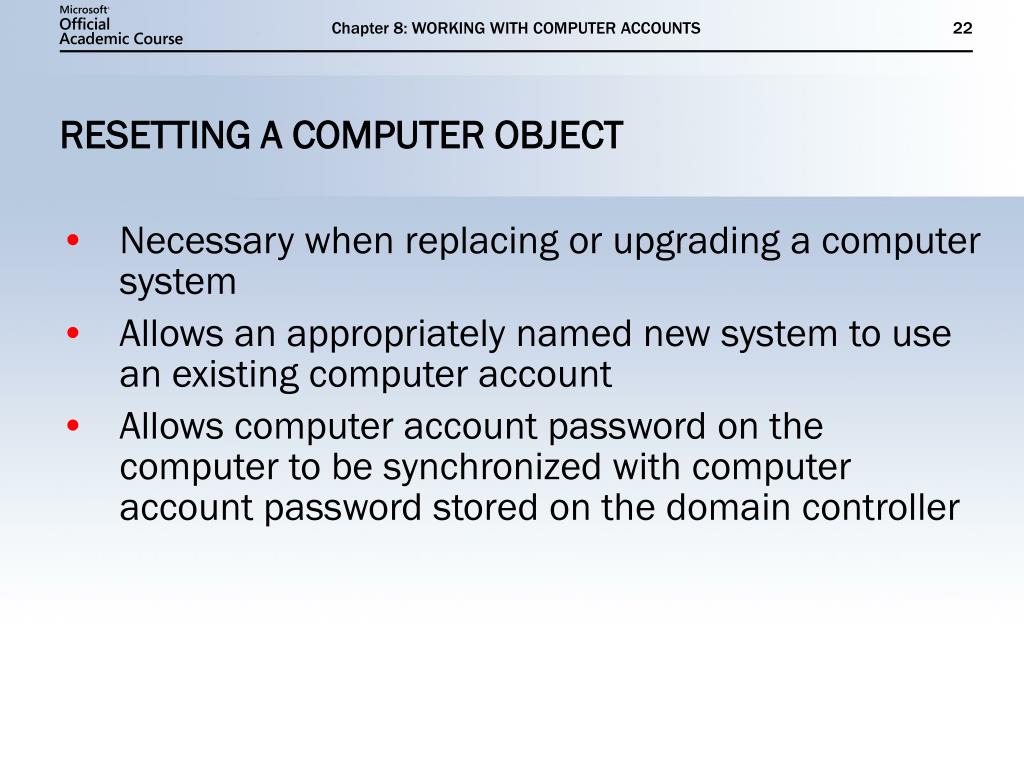

22. Chapter 8: WORKING WITH COMPUTER ACCOUNTS RESETTING A COMPUTER OBJECT • Necessary when replacing or upgrading a computer system • Allows an appropriately named new system to use an existing computer account • Allows computer account password on the computer to be synchronized with computer account password stored on the domain controller

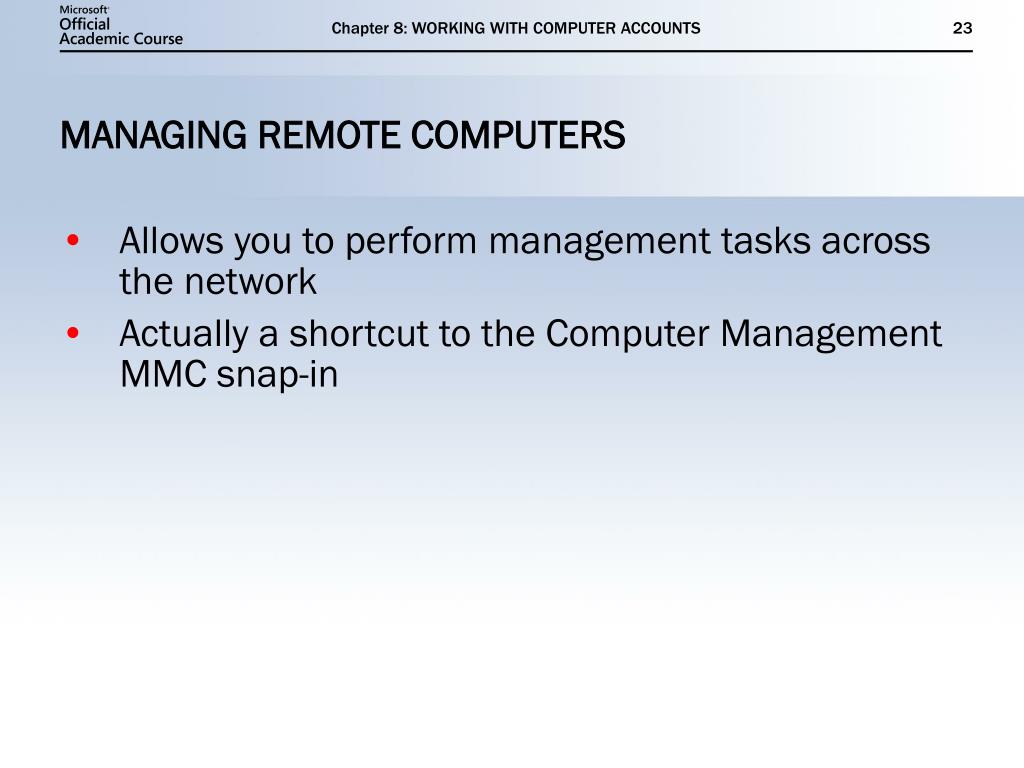

23. Chapter 8: WORKING WITH COMPUTER ACCOUNTS MANAGING REMOTE COMPUTERS • Allows you to perform management tasks across the network • Actually a shortcut to the Computer Management MMC snap-in

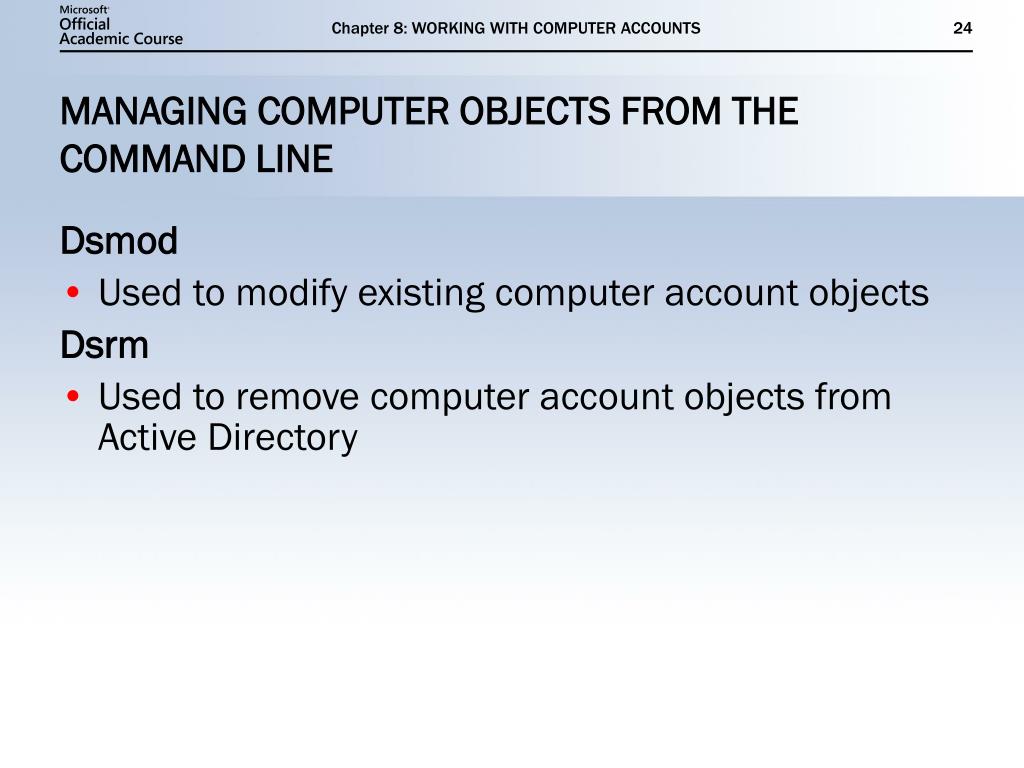

24. Chapter 8: WORKING WITH COMPUTER ACCOUNTS MANAGING COMPUTER OBJECTS FROM THE COMMAND LINE Dsmod • Used to modify existing computer account objects Dsrm • Used to remove computer account objects from Active Directory

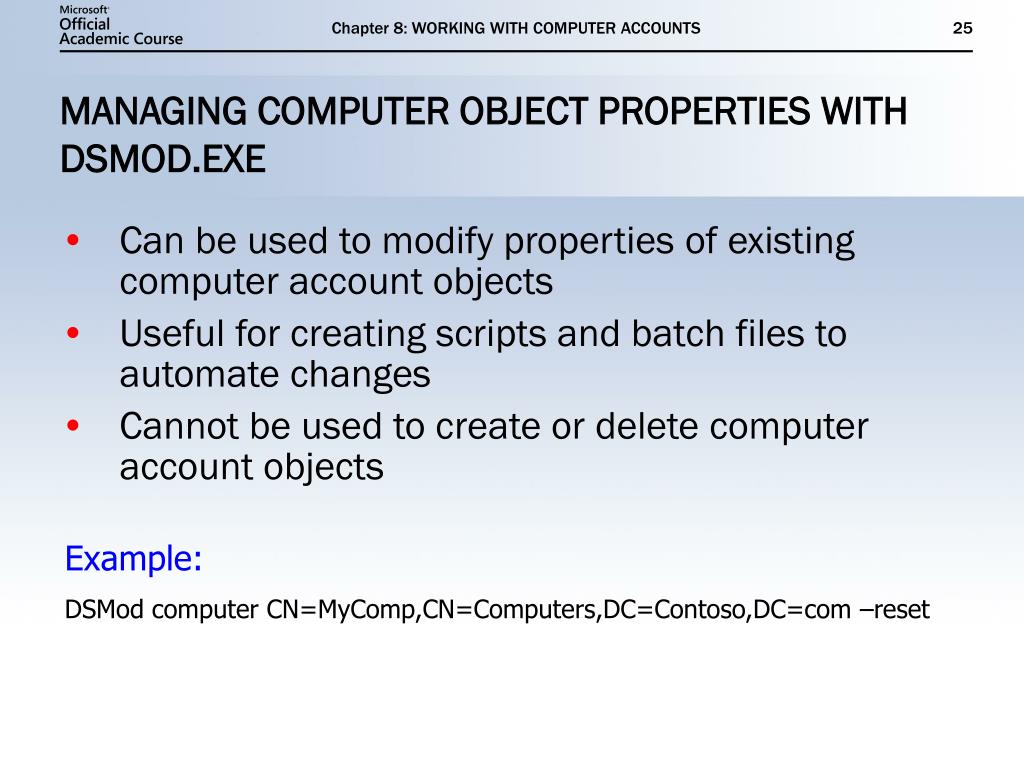

25. Chapter 8: WORKING WITH COMPUTER ACCOUNTS MANAGING COMPUTER OBJECT PROPERTIES WITH DSMOD.EXE • Can be used to modify properties of existing computer account objects • Useful for creating scripts and batch files to automate changes • Cannot be used to create or delete computer account objects Example: DSMod computer CN=MyComp,CN=Computers,DC=Contoso,DC=com –reset

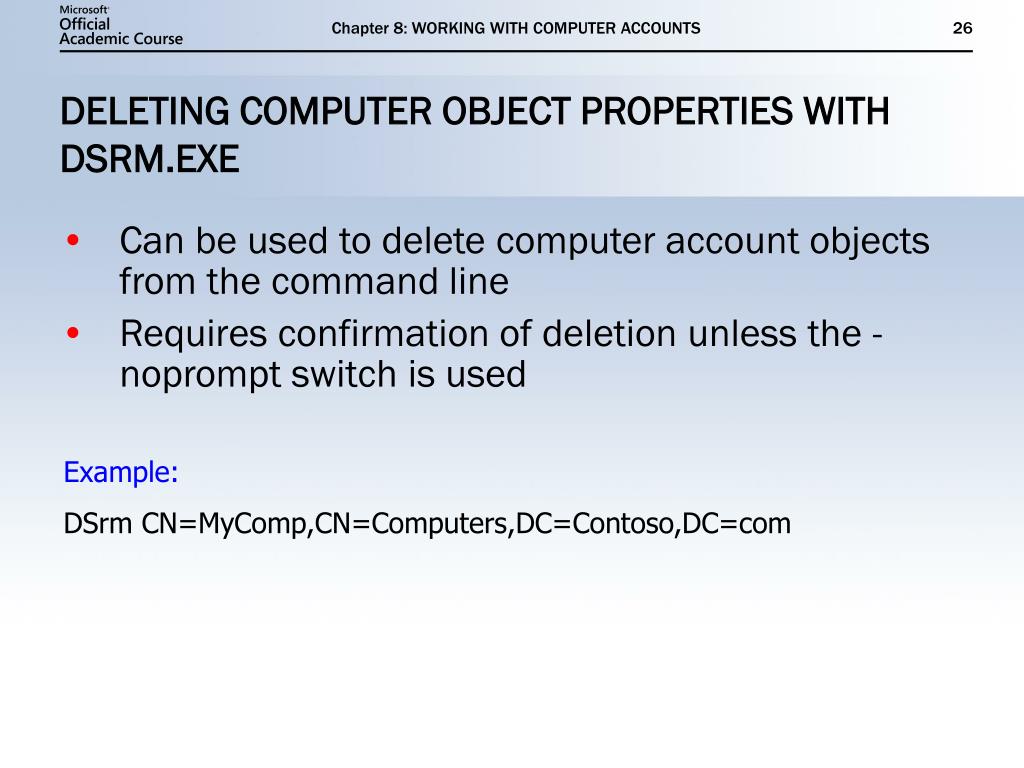

26. Chapter 8: WORKING WITH COMPUTER ACCOUNTS DELETING COMPUTER OBJECT PROPERTIES WITH DSRM.EXE • Can be used to delete computer account objects from the command line • Requires confirmation of deletion unless the -noprompt switch is used Example: DSrm CN=MyComp,CN=Computers,DC=Contoso,DC=com

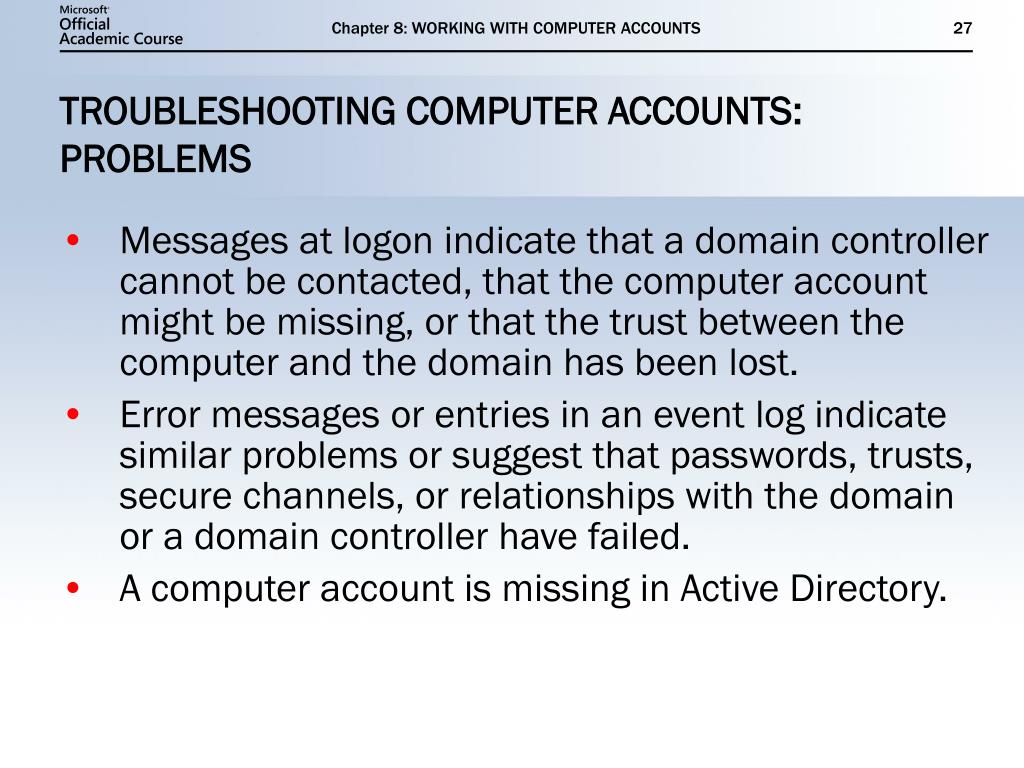

27. Chapter 8: WORKING WITH COMPUTER ACCOUNTS TROUBLESHOOTING COMPUTER ACCOUNTS: PROBLEMS • Messages at logon indicate that a domain controller cannot be contacted, that the computer account might be missing, or that the trust between the computer and the domain has been lost. • Error messages or entries in an event log indicate similar problems or suggest that passwords, trusts, secure channels, or relationships with the domain or a domain controller have failed. • A computer account is missing in Active Directory.

28. Chapter 8: WORKING WITH COMPUTER ACCOUNTS TROUBLESHOOTING COMPUTER ACCOUNTS: SOLUTIONS • Reset the computer account in Active Directory. • If the computer account is missing, create a computer account. • If the computer still belongs to the domain, you must remove it from the domain by changing its membership to a workgroup. • Rejoin the computer to the domain.

29. Chapter 8: WORKING WITH COMPUTER ACCOUNTS SUMMARY • A computer object represents a specific system on the network. • To add a computer to a domain, you must create a computer object for it in Active Directory and then join the physical computer to the object. • To create computer objects, you can use the Active Directory Users and Computers console, the Dsadd utility, or the Netdom utility.

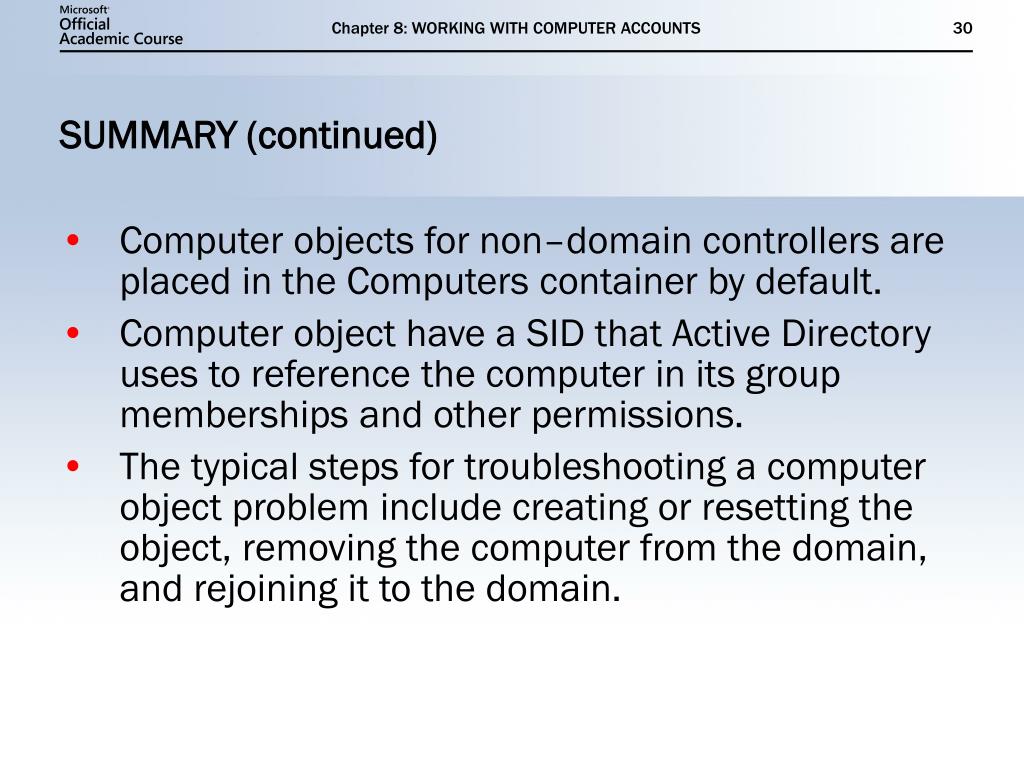

30. Chapter 8: WORKING WITH COMPUTER ACCOUNTS SUMMARY (continued) • Computer objects for non–domain controllers are placed in the Computers container by default. • Computer object have a SID that Active Directory uses to reference the computer in its group memberships and other permissions. • The typical steps for troubleshooting a computer object problem include creating or resetting the object, removing the computer from the domain, and rejoining it to the domain.
