  1. Toward Automatic Synthesis of SOC Test PlatformsWen-Cheng Huang, Chin-Yao Chang and Kuen-Jong LeeDepartment of Electrical EngineeringNational Cheng Kung University, Tainan, Taiwan Presenter : Shao-ChiehHou VLSI Design, Automation and Test, 2007. VLSI-DAT 2007.

  2. Abstract • Employing a test platform in an SOC design to execute test procedures can greatly simplify many SOC test problems. It, however, would require tremendous human efforts if the test platform would be generated manually. In this paper, we describe a design automation system, called DASTEP (Design Automation System for SOC Test Platform), that is aimed to help users build a test platform and incorporate their IP designs into the platform. DASTEP provides an interactive mode to allow users to modify individual IP cores into 1149.1- or 1500-compatible ones and integrate them into the test platform. For a hierarchical core, DASTEP can synthesize a hierarchical test control architecture such that each core in the hierarchy can be efficiently tested in a 1149.1-compatible manner. All of the test procedures using this test platform are carried out on the chip through the cooperation of an embedded processor that usually exists in an SOC design and a dedicated test-access-mechanism (TAM) controller that can be automatically generated. Appropriate simulation environment that allows the simulation of the entire test flow is also created in conjunction with the generation of the test hardware/software, hence the verification of both core design and test plan can be readily carried out. A friendly graphic user interface tool is also developed that can greatly simplify the generation and simulation of the test platform.

  3. What’s the problem? • With the increase complexity, many problems happened in SoC Design • Manufacture bugs • Test problems • Too many pins • Too many registers • For effective debugging, a SW/HW base platform is needed • Trace HW information, show with SW GUI • Automatic method is necessary

  4. Related work Software-base testing[4]-[6] SoC testing architectures [1]-[3] SOC test platform concept[7] Scan-base HW method[9] Test platform Real case This Paper

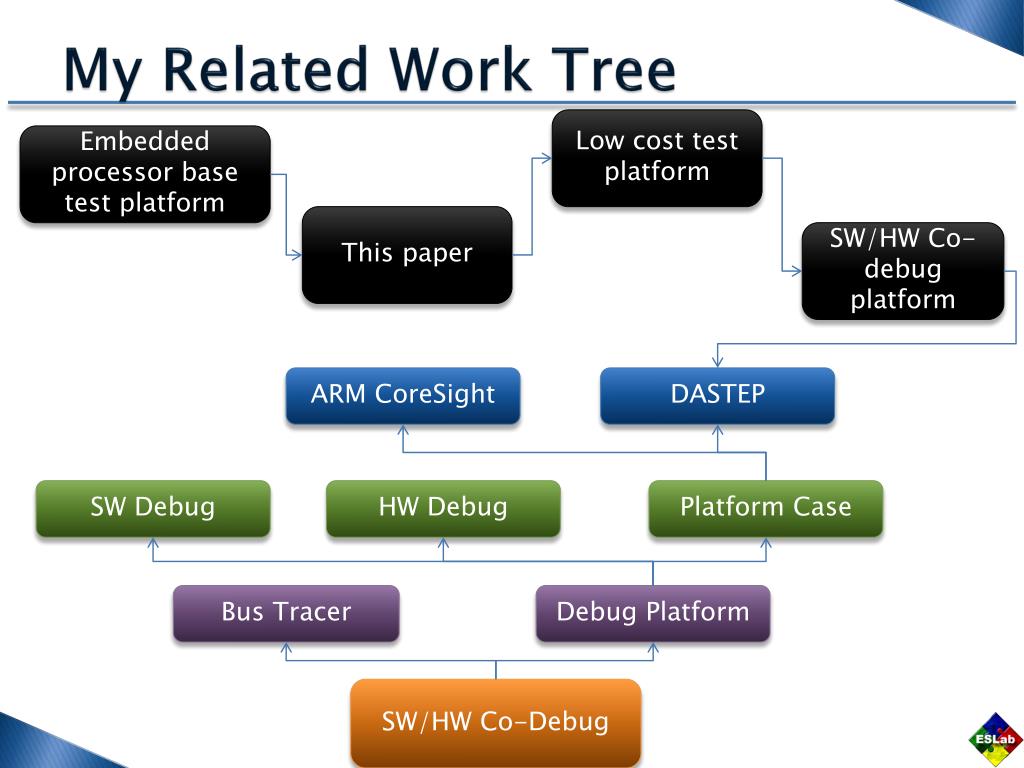

  5. My Related Work Tree Low cost test platform Embedded processor base test platform This paper SW/HW Co-debug platform ARM CoreSight DASTEP SW Debug HW Debug Platform Case Bus Tracer Debug Platform SW/HW Co-Debug

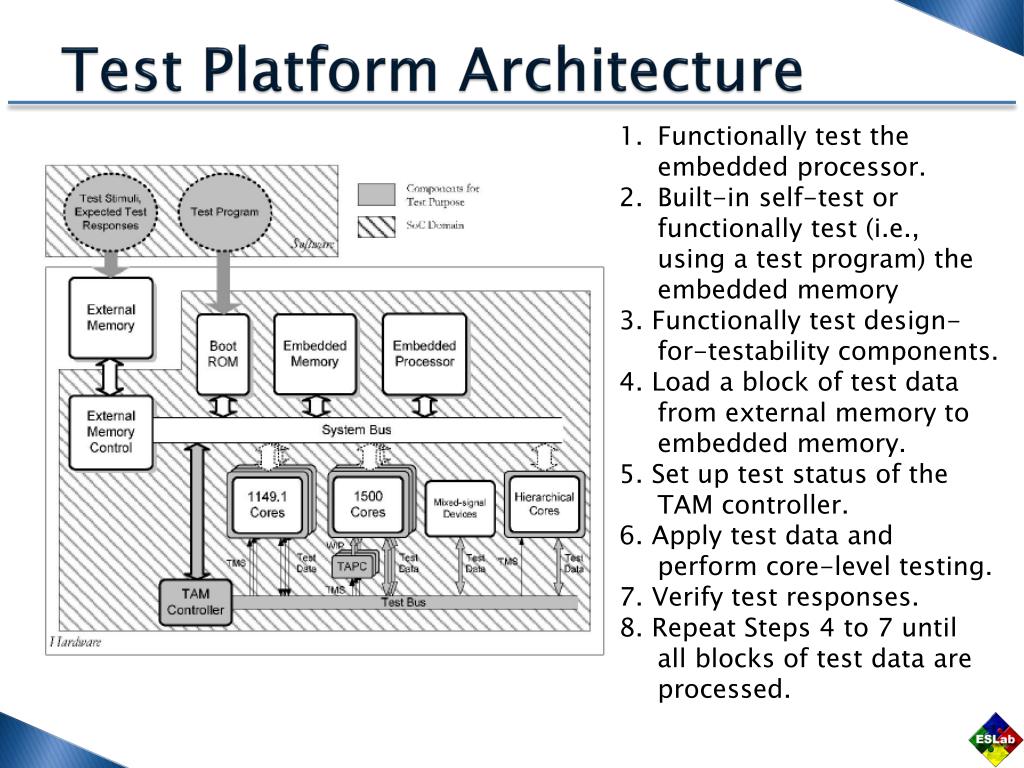

  6. Test Platform Architecture Functionally test the embedded processor. Built-in self-test or functionally test (i.e., using a test program) the embedded memory 3. Functionally test design-for-testability components. 4. Load a block of test data from external memory to embedded memory. 5. Set up test status of the TAM controller. 6. Apply test data and perform core-level testing. 7. Verify test responses. 8. Repeat Steps 4 to 7 until all blocks of test data are processed.

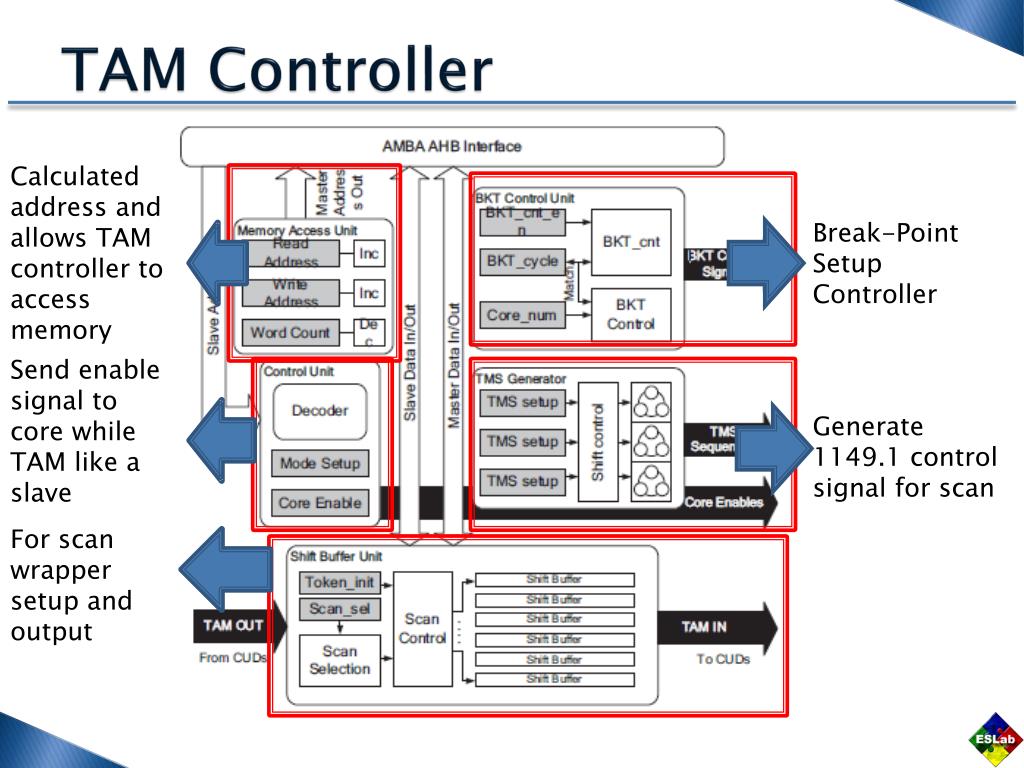

  7. TAM Controller Calculated address and allows TAM controller to access memory Break-Point Setup Controller Send enable signal to core while TAM like a slave Generate 1149.1 control signal for scan For scan wrapper setup and output

  8. SW/HW Co-Debug platform

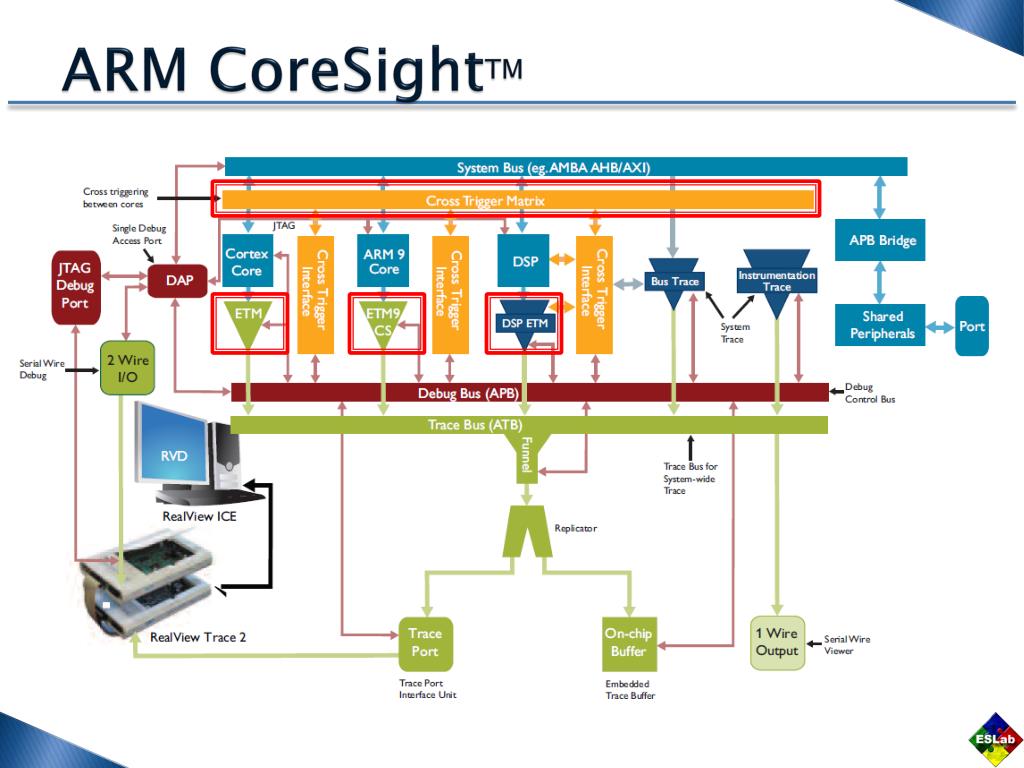

  9. ARM CoreSightTM

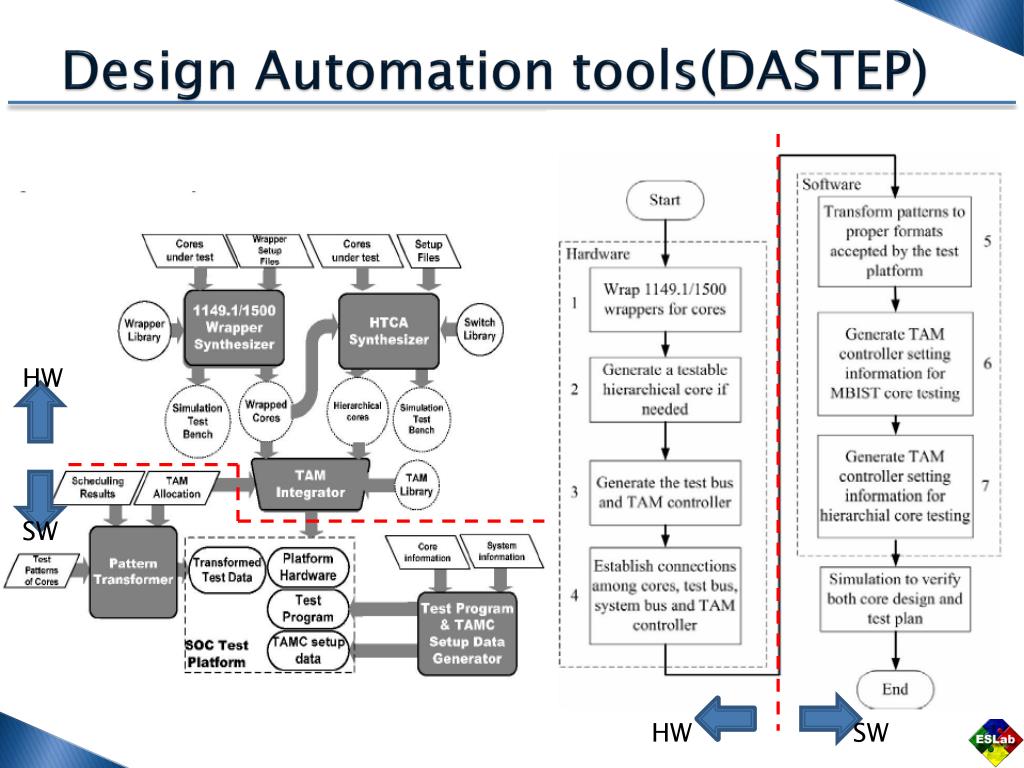

  10. Design Automation tools(DASTEP) HW SW HW SW

  11. Graphic User Interface

  12. Conclusions • The paper propose a automation system to help user build a test environment - DASTEP • HW part • TAMC • 1500WRAPPER • TAPC • SW part • Test program for each part in system

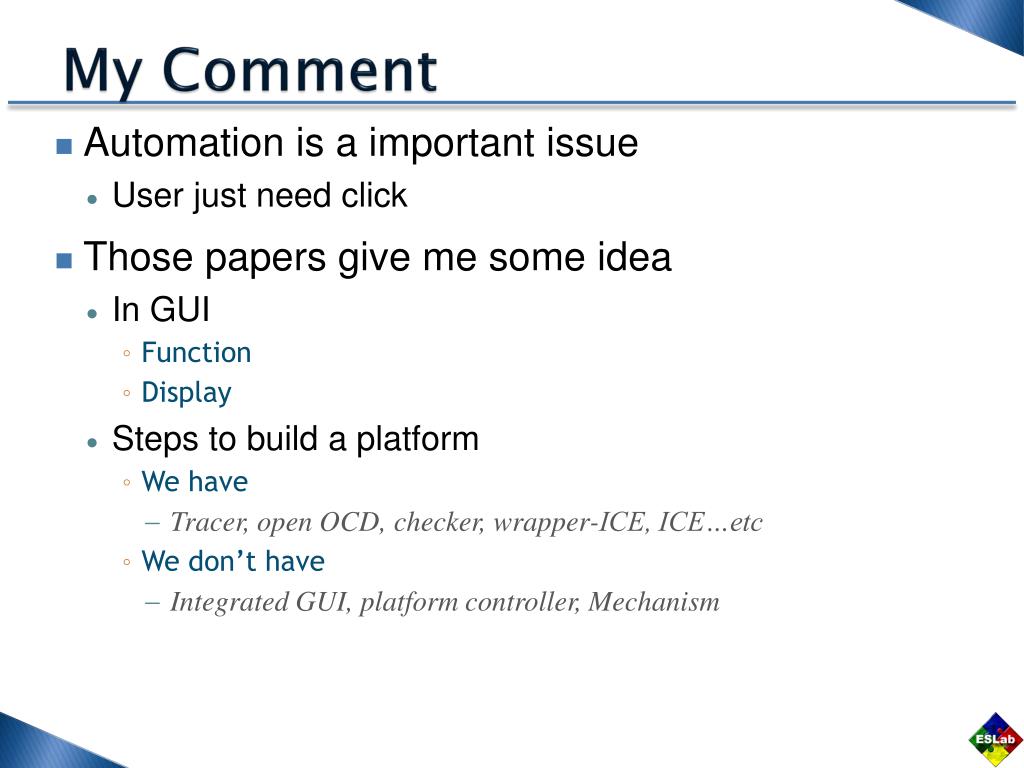

  13. My Comment • Automation is a important issue • User just need click • Those papers give me some idea • In GUI • Function • Display • Steps to build a platform • We have • Tracer, open OCD, checker, wrapper-ICE, ICE…etc • We don’t have • Integrated GUI, platform controller, Mechanism
