  1. Topics presented • XML • XSL • SVG ENGR 6923 Presented by Nassib Awad

  2. XML Presented by Nassib Awad

  3. XML • XMLstandsfor Extensible Markup Language • History of XML • XML is used for structuring data • XML is a text format • XML uses tags and attributes Presented by Nassib Awad

  4. XML • XML is modular Combines and reuses other formats • XML provides a namespacemechanism XSL (Style sheet Language Transformation) RDF (Resource Description Framework) • XML leads HTML to XHTML Presented by Nassib Awad

  5. An XML example about a memo distributed to students <?xml version="1.0" ?> - <!-- Filename firstmemo.xml --> <memo> <to>students in advanced web design</to> <from><staffperson> <rank>adjunct professor</rank> <name>Walter Houser</name> <office>109 Massachusetts Ave</office> </staffperson></from> <subject>student scores</subject> <body>congratulations everyone! Your grades show remarkable improvement. You should be proud of your success. </body> </memo> Presented by Nassib Awad

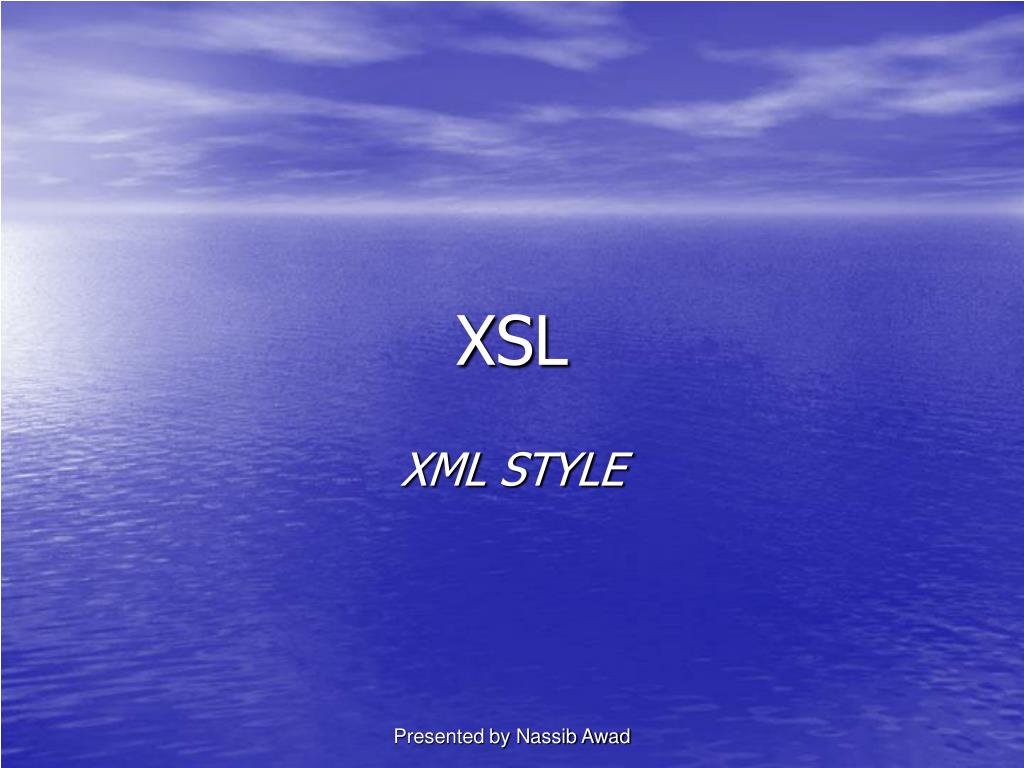

  6. XSL XML STYLE Presented by Nassib Awad

  7. XML style • XML styling is transforming and formatting information Styling is the rendering of information into a form suitable for consumption by a target audience. Presented by Nassib Awad

  8. XSL or Extensible Style sheet Language • Definition XSL was the original proposal to allow formatting of XML files for display • XSL is divided into XSL FO and XSLT XSL FO used for outputting PDF files XSLT stands for Extensive Style sheet Language Transformation • A tree-oriented transformation language Presented by Nassib Awad

  9. Example on XSL style sheet <?xml version="1.0"?><!-- This file is an XSL stylesheet file that is used to read the data from thesimple book catalog database. The filename is listing12-2.xsl. --> <xsl:stylesheet xmlns:xsl="uri:xsl"><xsl:template match="/"><html><body><table border="1"><tr style="font-weight:bold;color:blue"><td>Author Name</td><td>Author Address</td><td>Author City</td><td>Author State</td><td>Author e-mail</td><td>Publisher Name</td><td>Publisher Address</td><td>Publisher Phone</td></tr><xsl:for-each select="Catalog/Book"><tr><xsl:apply-templates/></tr></xsl:for-each></table></body></html> </xsl:template><xsl:template match="Author"><td><xsl:value-of select="Name"/></td><td><xsl:value-of select="Address"/></td><td><xsl:value-of select="City"/></td><td><xsl:value-of select="State"/></td><td><xsl:value-of select="Email"/></td></xsl:template><xsl:template match="Publisher"><td><xsl:value-of select="Name"/></td><td><xsl:value-of select="Address"/></td><td><xsl:value-of select="Phone"/></td></xsl:template></xsl:stylesheet> Presented by Nassib Awad

  10. SVG Scalable Vector Graphics Presented by Nassib Awad

  11. SVG or Scalable Vector Graphics • SVG is a simple text editor standardized on September 2001 • Produces two-dimensional vector diagrams for the Internet • Uses mathematical statements rather than bit-pattern description • Enables the viewing of any size and resolution • SVG files have the extension ".svg" ".svgz" Presented by Nassib Awad

  12. SVG advantages • It has smaller size • Many effects can be manufactured with pure SVG • SVG can be combined with JavaScript and produce animations • SVG can be merged into HTML documents Presented by Nassib Awad

  13. SVG advantages • Can be printed out with best quality • Sound files can be merged in SVG files • Streaming sound is not yet possible • SVG drawings can be interactive and dynamic Presented by Nassib Awad

  14. SVG advantages (continued) • Three types of graphic objects: Images Text Vector graphic shapes • It is a language for rich graphical content • It allows text within images so that the text can be located by a search engine Presented by Nassib Awad

  15. SVG • It has standard basic shapes circle, line, polyline, canavas • It can be a combination of text canavas and basic shapes • Filling and painting operations, and choosing a font Presented by Nassib Awad

  16. Graphical advantages • SVG meets the needs of business presentation • It is an application's user interface • Includes relevant enhancementsGIS/Mapping CAD/Design Printing and Web Design Presented by Nassib Awad

  17. Graphical advantages • It controls the color space used in an animation • Allow SMIL to use animated or static SVG content as media components • It controls the speed of the document timeline Presented by Nassib Awad

  18. Example on SVG <?xml version="1.0" standalone="no"?> <!DOCTYPE svg SYSTEM "SVG-19990812.dtd"> <!-- local DTD so we aren't subject to changes in draft --> <svg width="300" height="300" > <image xlink:href=“ENGR6923.jpg" x="30" y="30" width="431" height="82" /> <text style="font-size:48; stroke: blue" x="120" y="170">SVG Rules!</text> <image xlink:href=“ENGR.jpg" x="170" y="85" width="200" height="27" /> </svg> Presented by Nassib Awad

  19. This is the output with the two distinct images: Presented by Nassib Awad

  20. SVG printing (SVGP) • Scalable printing with high resolution and exact • It is used as a file format for low end printers. • PC-free Photo Album Generation the final form of SVG graphic including images, borders, framing etc. with no driver or PC required Presented by Nassib Awad

  21. References: Among many web sites used as reference, the major sites are: www.xml.com www.w3.org Presented by Nassib Awad

  22. Thank you Presented by Nassib Awad
