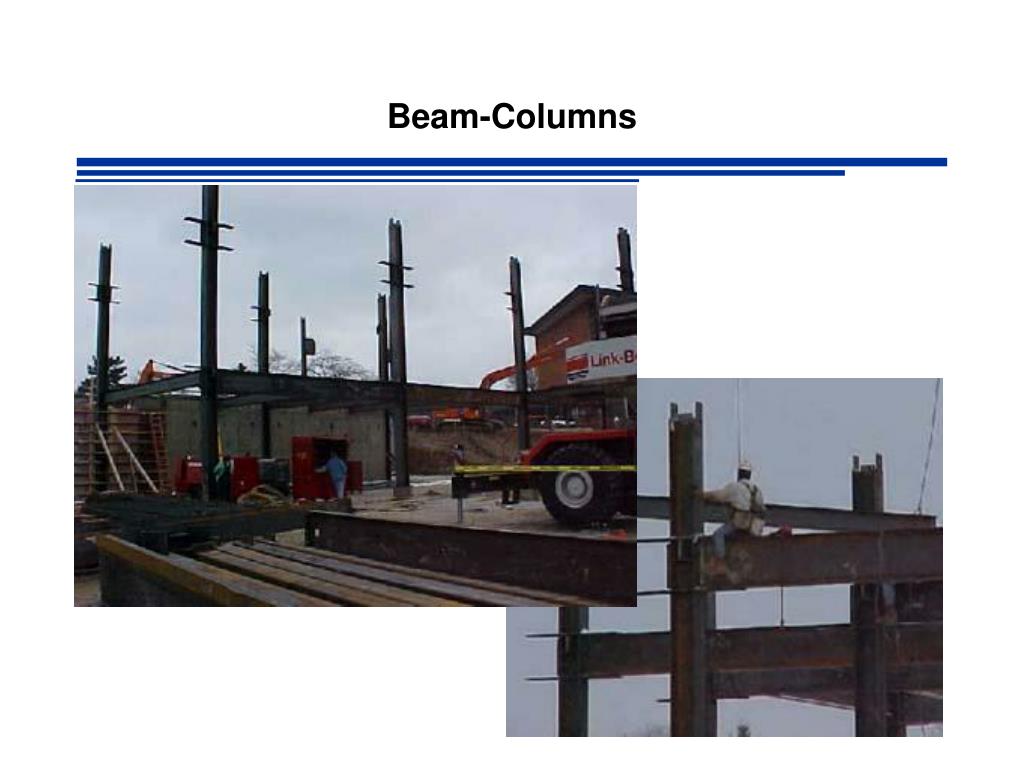

Beam-Columns. A. B. P 1. C. D. P 2. E. F. Members Under Combined Forces. Most beams and columns are subjected to some degree of both bending and axial load. e.g. Statically Indeterminate Structures. Interaction Formulas for Combined Forces. e.g. LRFD

Download Presentation

Beam-Columns

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript


  1. Beam-Columns

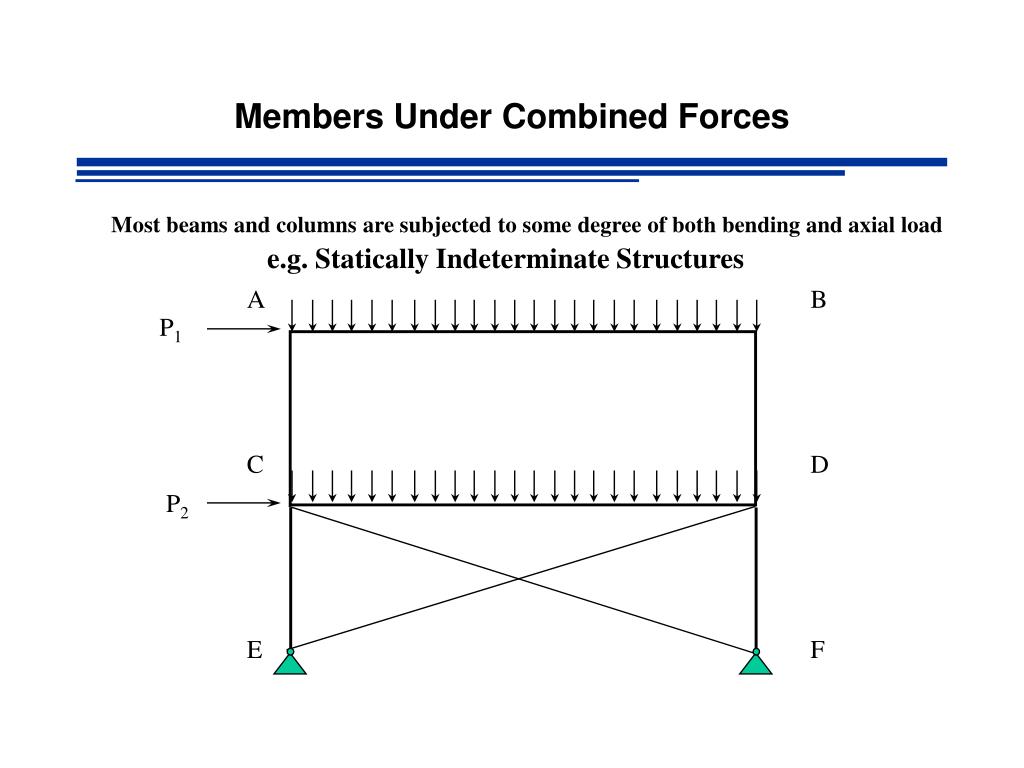

  2. A B P1 C D P2 E F Members Under Combined Forces Most beams and columns are subjected to some degree of both bending and axial load e.g. Statically Indeterminate Structures

  3. Interaction Formulas for Combined Forces e.g. LRFD If more than one resistance is involved consider interaction

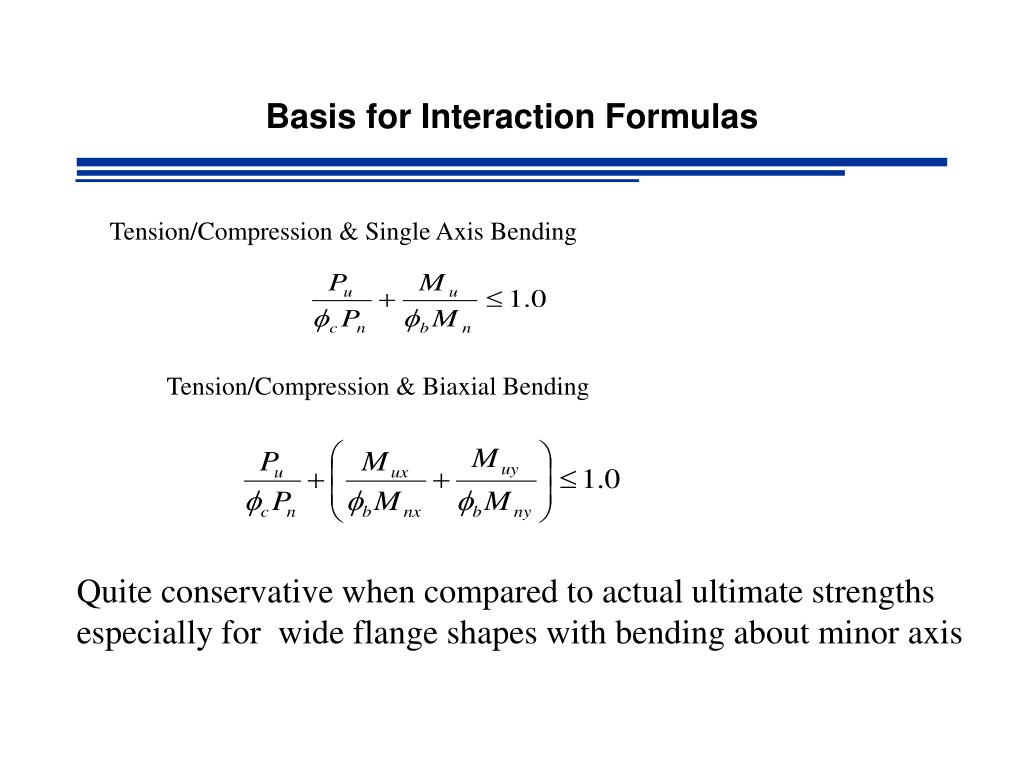

  4. Basis for Interaction Formulas Tension/Compression & Single Axis Bending Tension/Compression & Biaxial Bending Quite conservative when compared to actual ultimate strengths especially for wide flange shapes with bending about minor axis

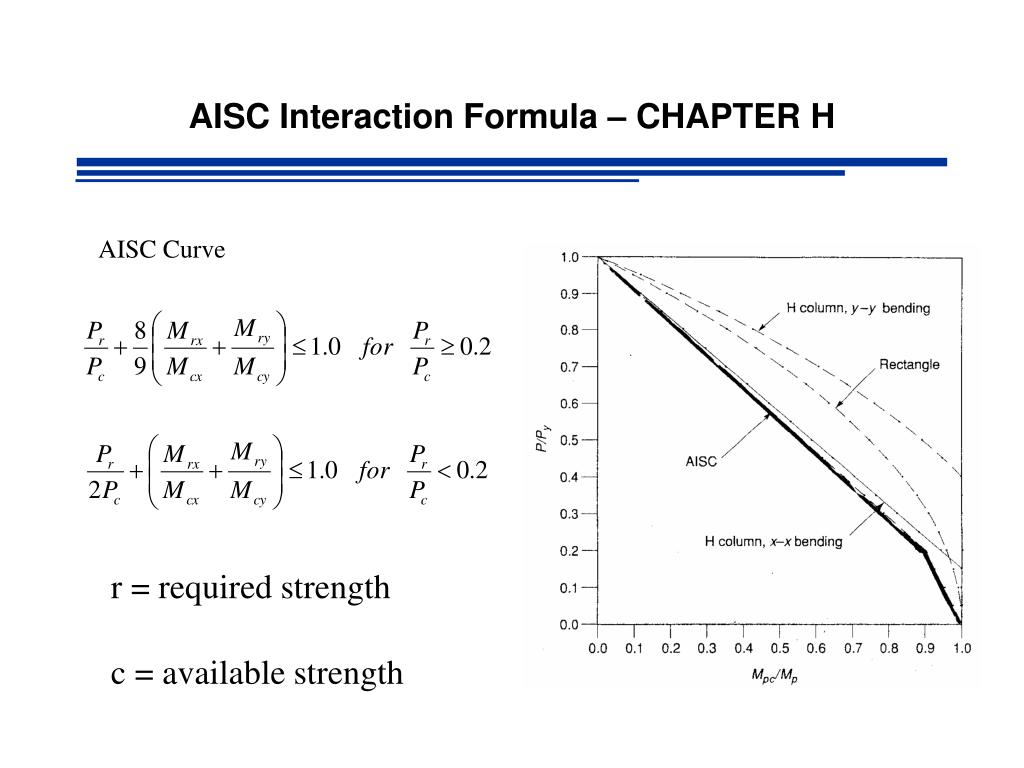

  5. AISC Interaction Formula – CHAPTER H AISC Curve r = required strength c = available strength

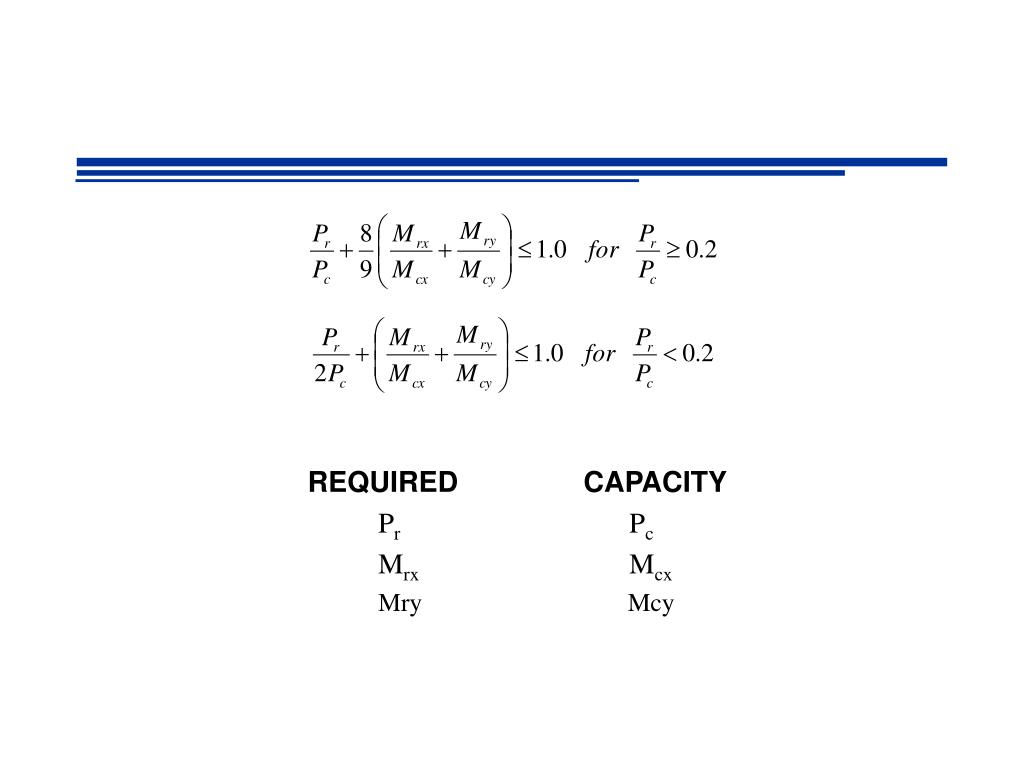

  6. REQUIRED CAPACITY Pr Pc Mrx Mcx Mry Mcy

  7. Axial Capacity Pc

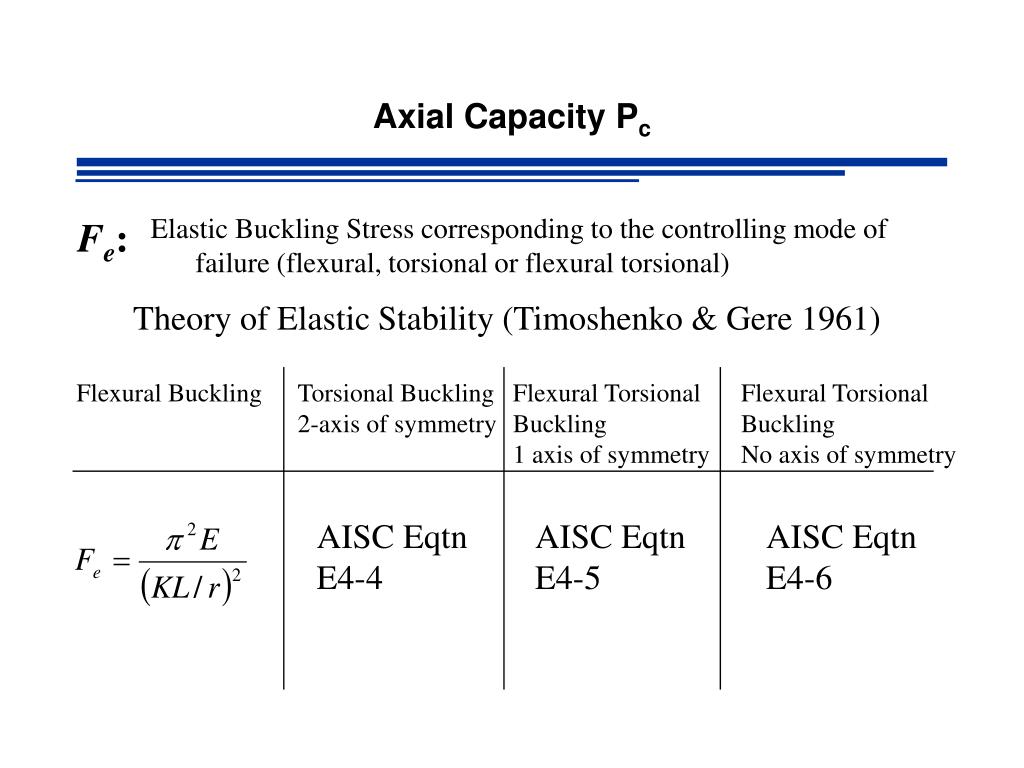

  8. Axial Capacity Pc Elastic Buckling Stress corresponding to the controlling mode of failure (flexural, torsional or flexural torsional) Fe: Theory of Elastic Stability (Timoshenko & Gere 1961) Flexural Buckling Torsional Buckling 2-axis of symmetry Flexural Torsional Buckling 1 axis of symmetry Flexural Torsional Buckling No axis of symmetry AISC Eqtn E4-4 AISC Eqtn E4-5 AISC Eqtn E4-6

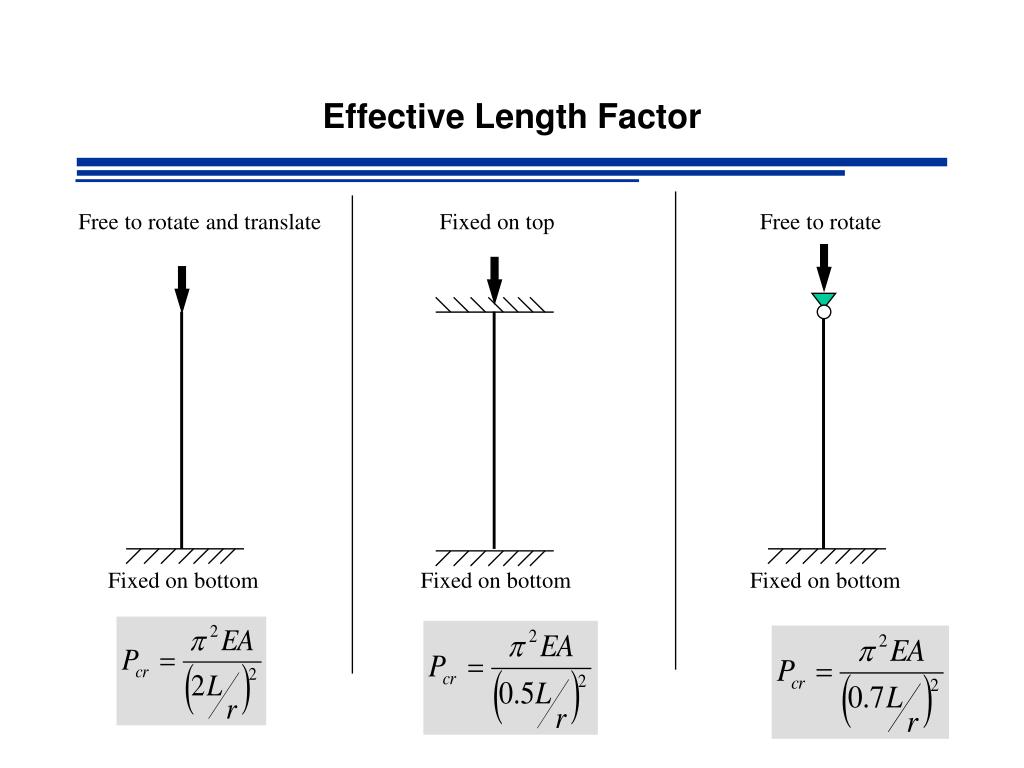

  9. Effective Length Factor Free to rotate and translate Fixed on top Free to rotate Fixed on bottom Fixed on bottom Fixed on bottom

  10. Ic Lc Ig Lg Ig Lg A Ic Lc B Effective Length of Columns • Assumptions • All columns under consideration reach buckling Simultaneously • All joints are rigid • Consider members lying in the plane of buckling • All members have constant A Define:

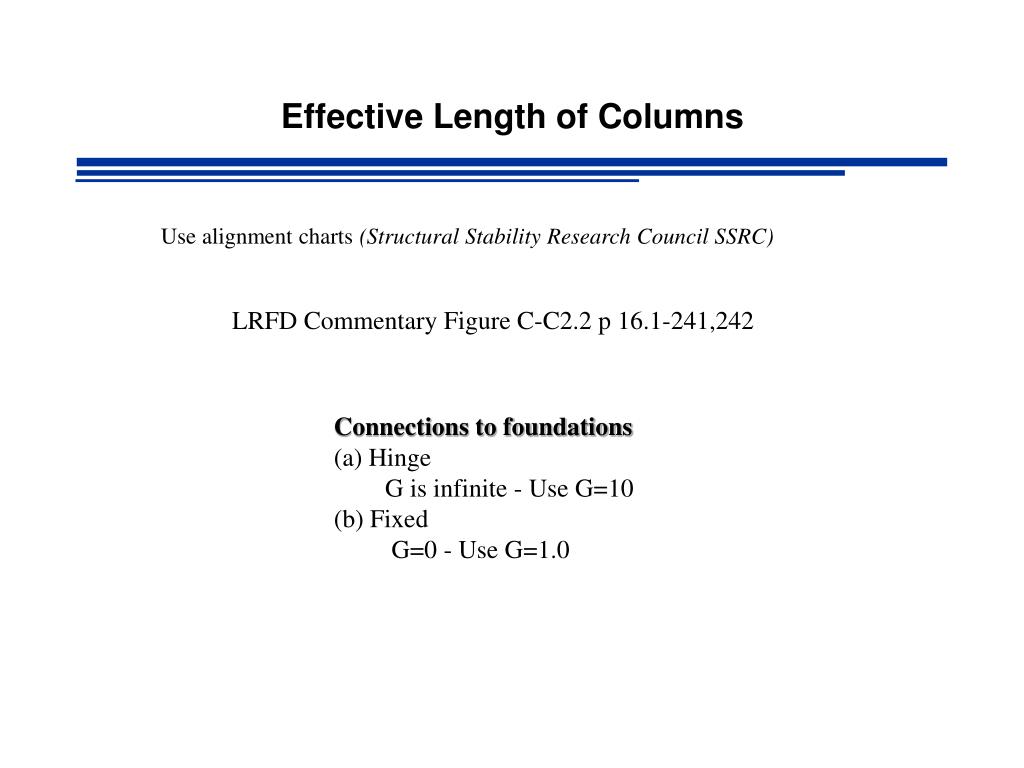

  11. Effective Length of Columns Use alignment charts (Structural Stability Research Council SSRC) LRFD Commentary Figure C-C2.2 p 16.1-241,242 • Connections to foundations • (a) Hinge • G is infinite - Use G=10 • (b) Fixed • G=0 - Use G=1.0

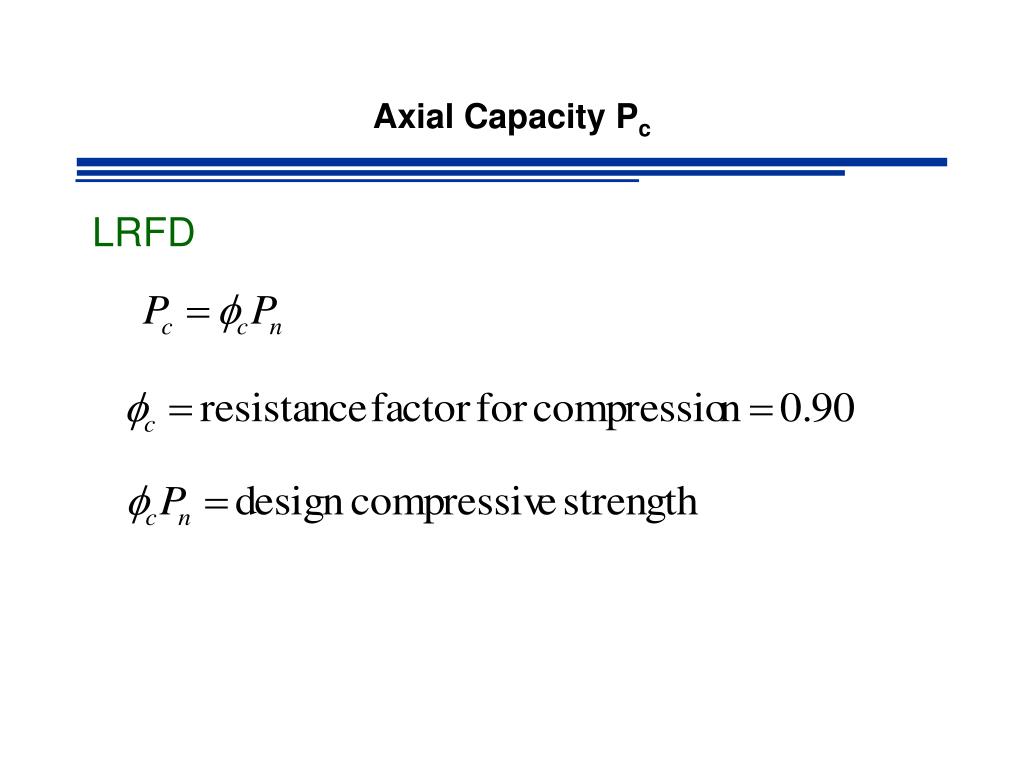

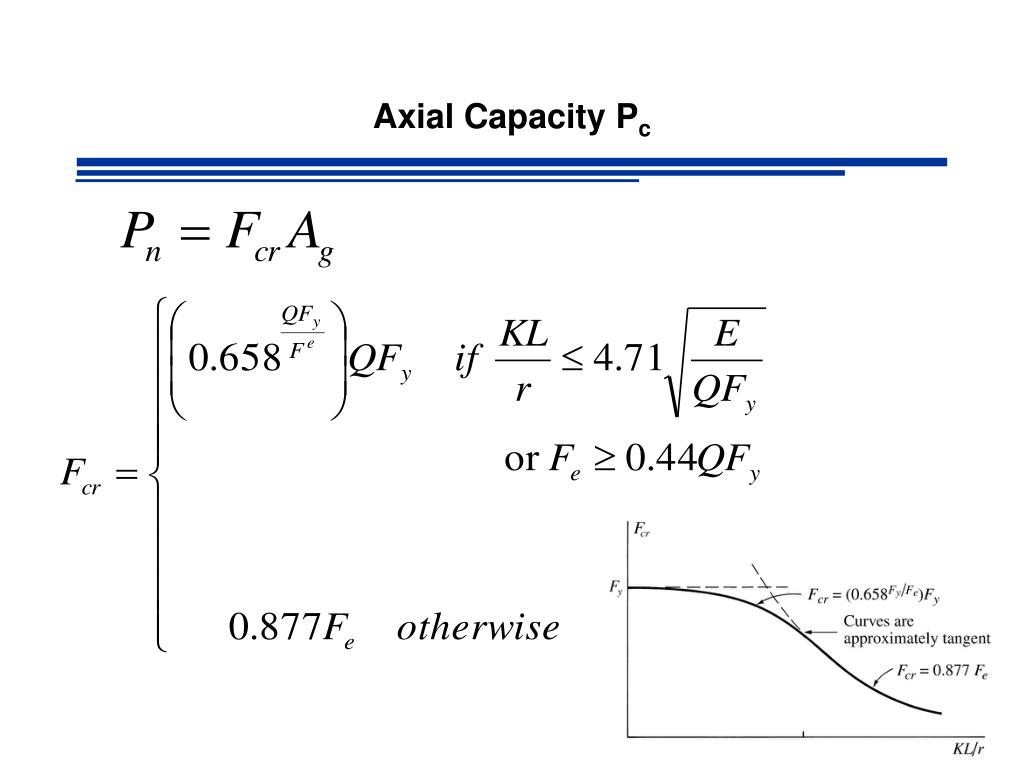

  12. Axial Capacity Pc LRFD

  13. Axial Capacity Pc ASD

  14. Moment Capacity Mcx or Mcy REMEMBER TO CHECK FOR NON-COMPACT SHAPES

  15. Moment Capacity Mcx or Mcy REMEMBER TO ACCOUNT FOR LOCAL BUCKLING IF APPROPRIATE

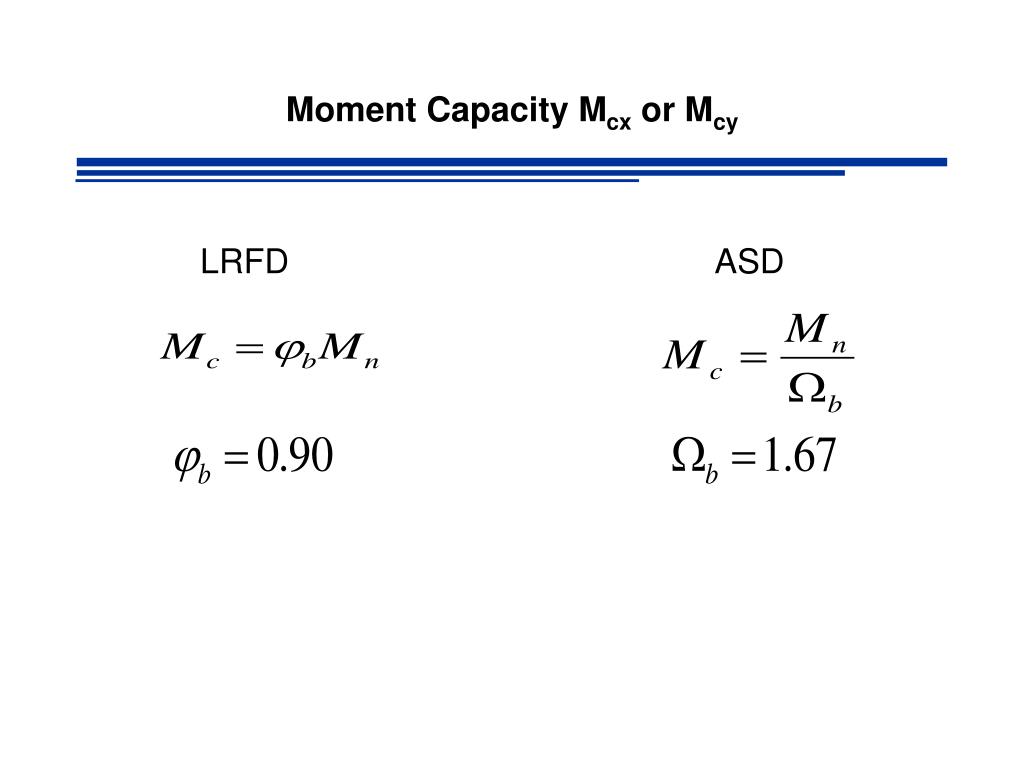

  16. Moment Capacity Mcx or Mcy LRFD ASD

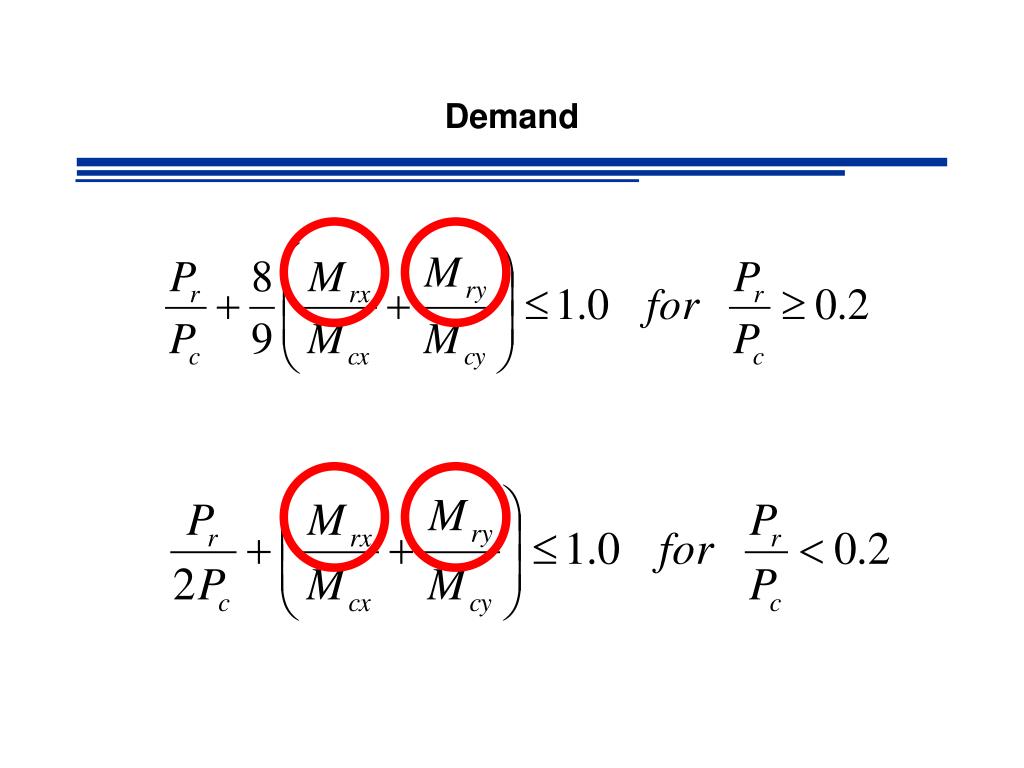

  17. Demand

  18. Axial Demand Pr LRFD ASD factored service

  19. Demand

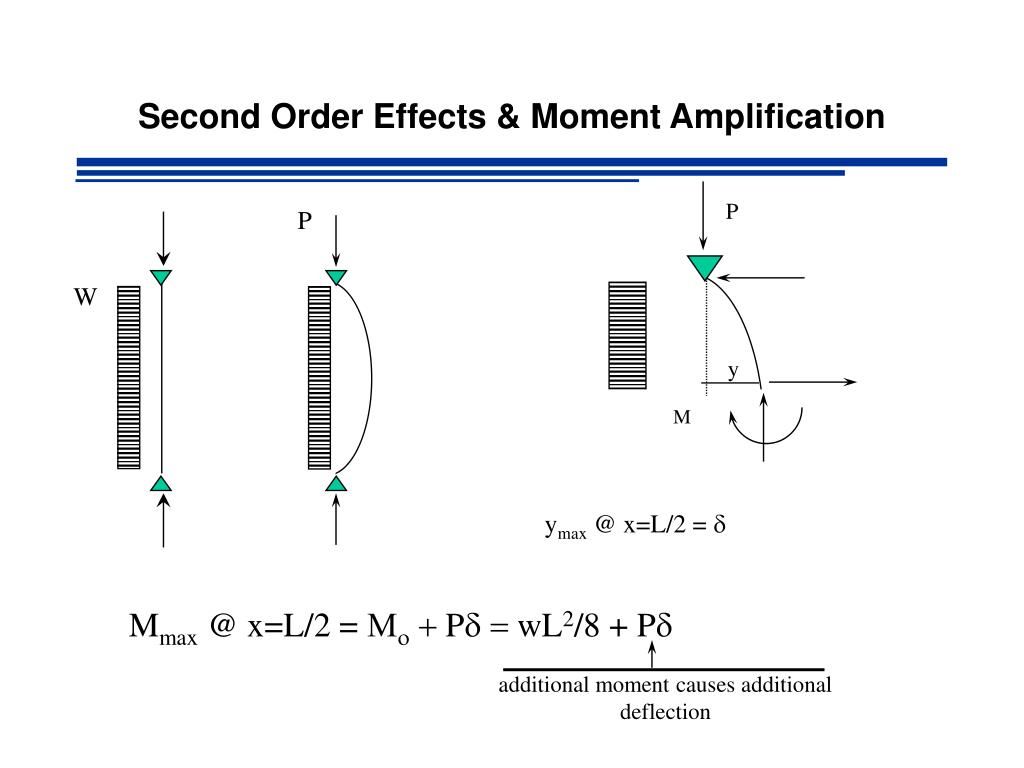

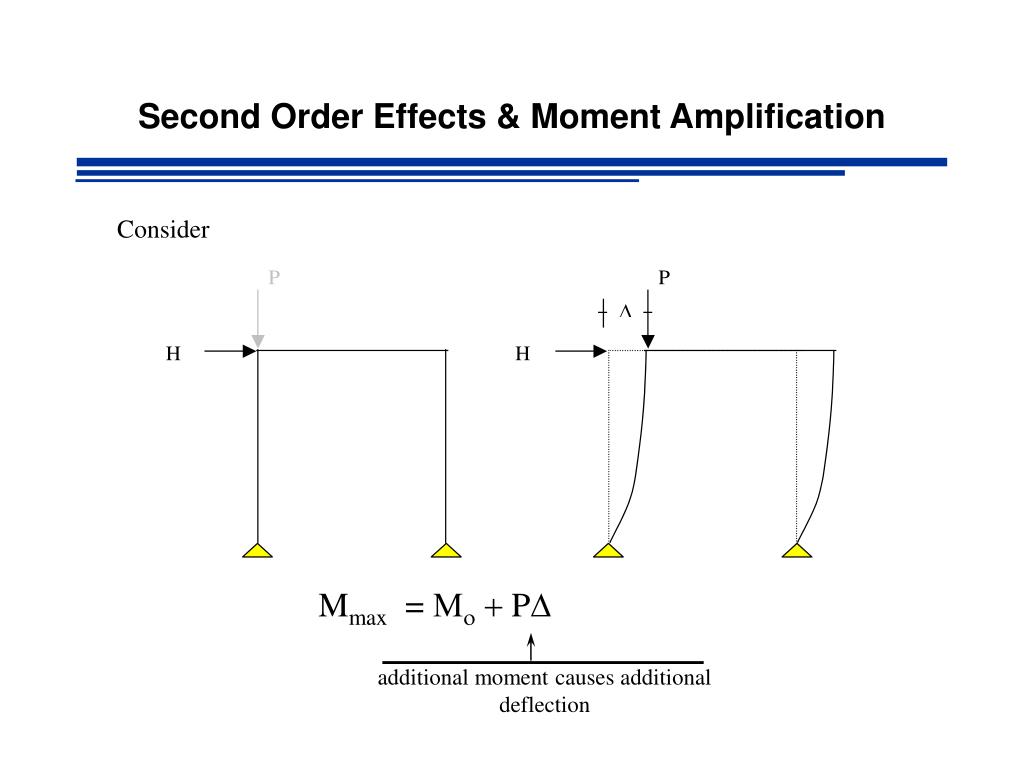

  20. P y M Second Order Effects & Moment Amplification P W ymax @ x=L/2 = d Mmax @ x=L/2 = Mo + Pd = wL2/8 + Pd additional moment causes additional deflection

  21. additional moment causes additional deflection Second Order Effects & Moment Amplification Consider Mmax = Mo + PD

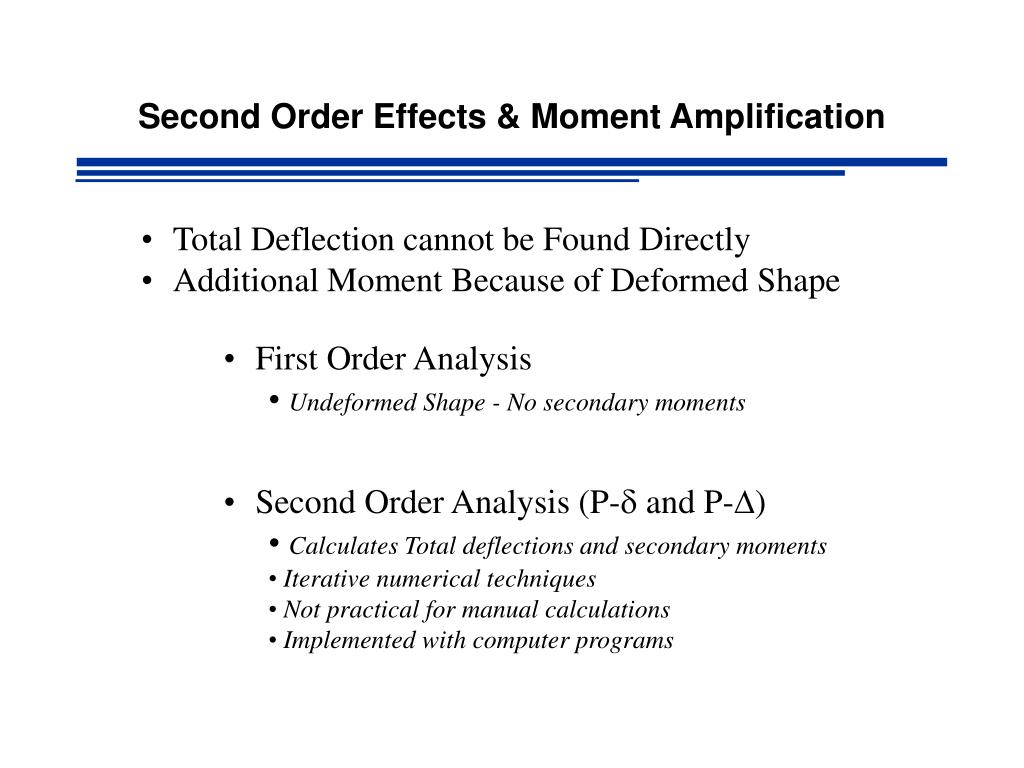

  22. Second Order Effects & Moment Amplification • Total Deflection cannot be Found Directly • Additional Moment Because of Deformed Shape • First Order Analysis • Undeformed Shape - No secondary moments • Second Order Analysis (P-d and P-D) • Calculates Total deflections and secondary moments • Iterative numerical techniques • Not practical for manual calculations • Implemented with computer programs

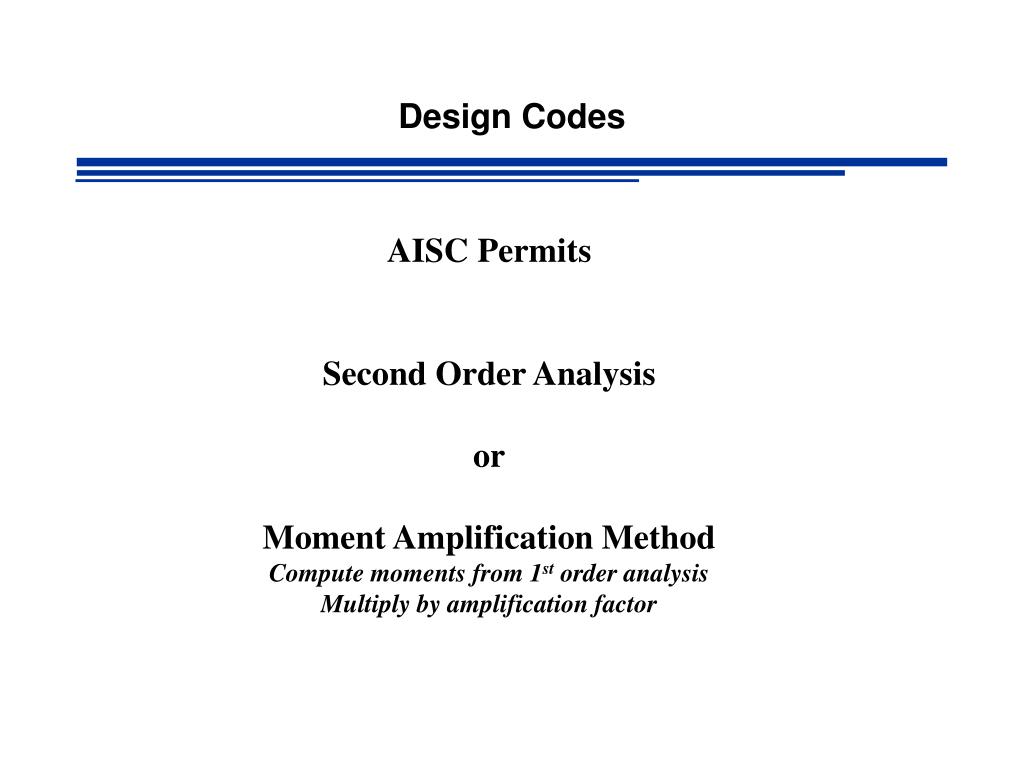

  23. Design Codes AISC Permits Second Order Analysis or Moment Amplification Method Compute moments from 1st order analysis Multiply by amplification factor

  24. Derivation of Moment Amplification

  25. Derivation of Moment Amplification Moment Curvature P M 2nd order nonhomogeneous DE

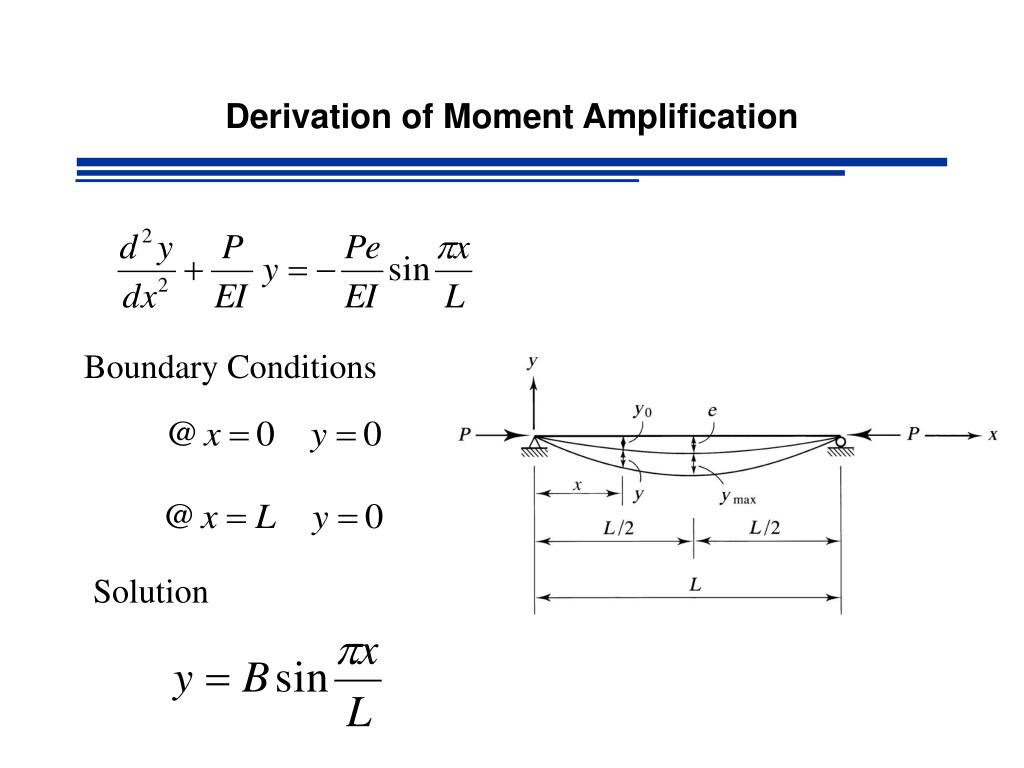

  26. Derivation of Moment Amplification Boundary Conditions Solution

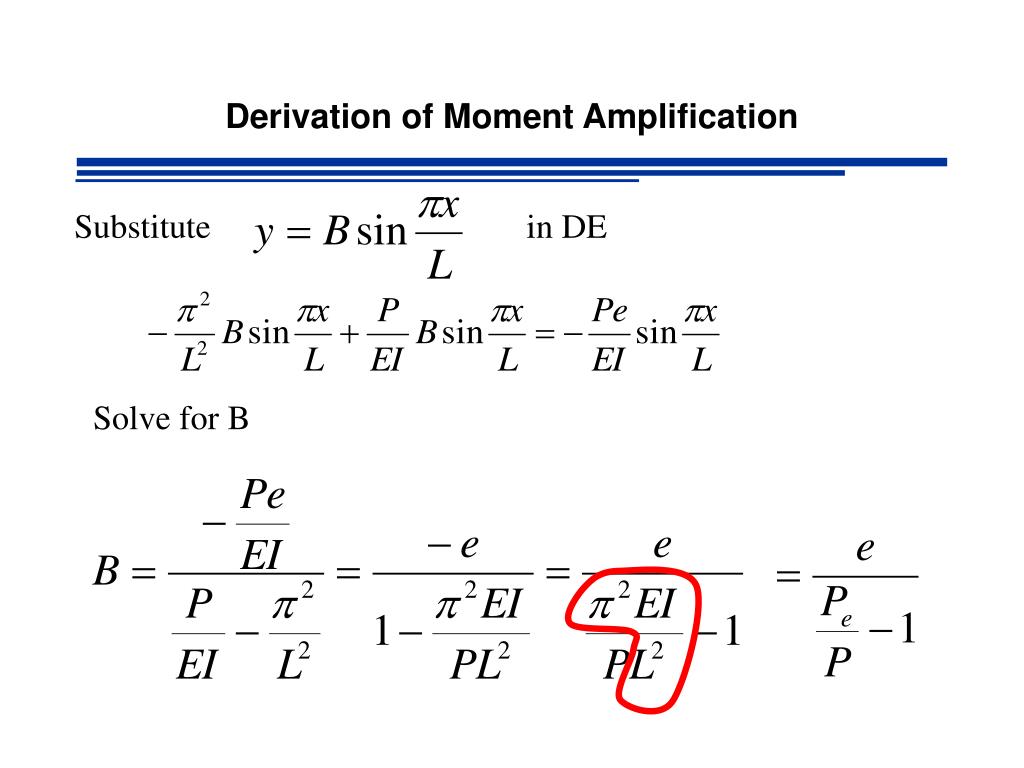

  27. Derivation of Moment Amplification Solve for B

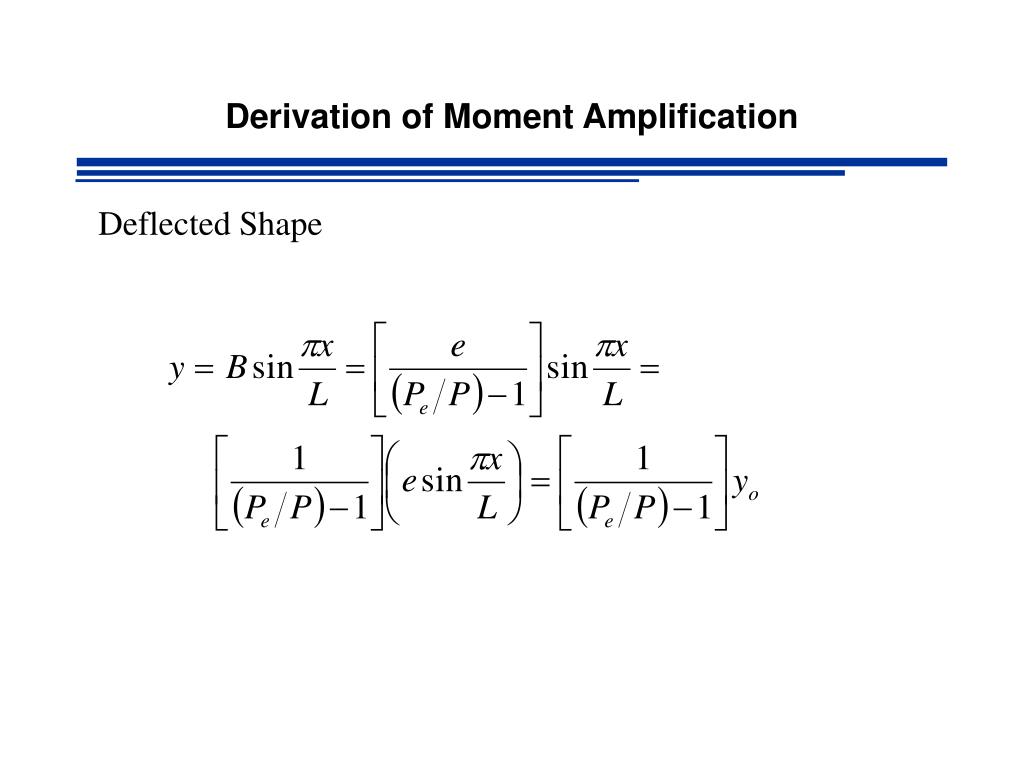

  28. Derivation of Moment Amplification Deflected Shape

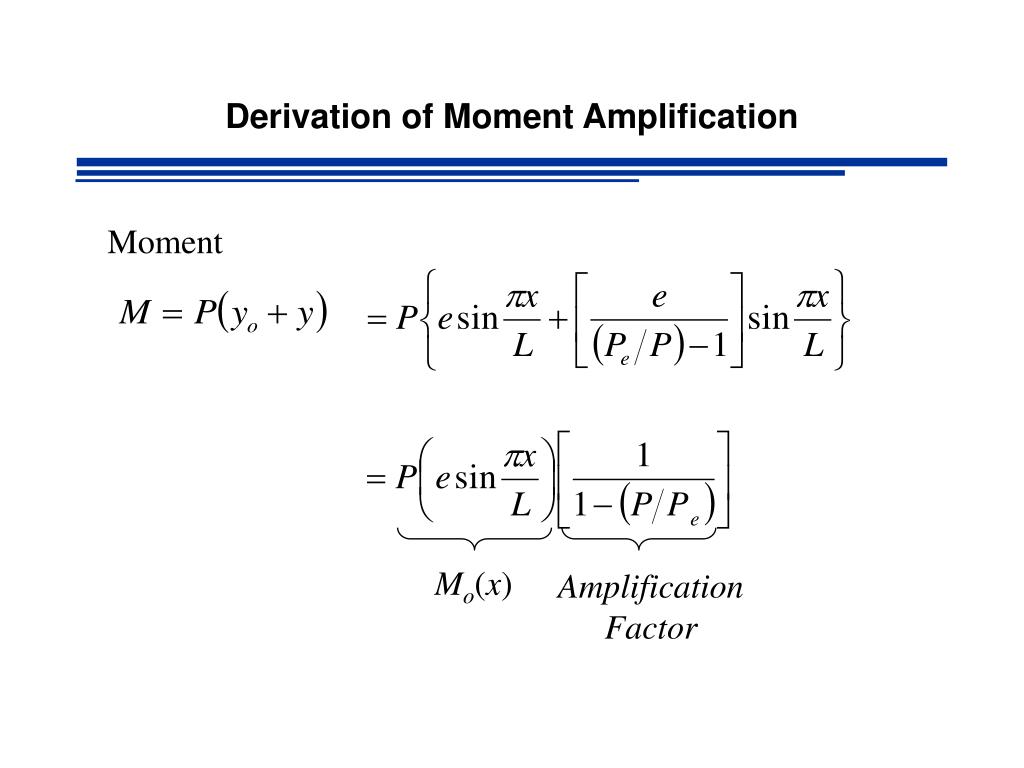

  29. Derivation of Moment Amplification Moment Mo(x) Amplification Factor

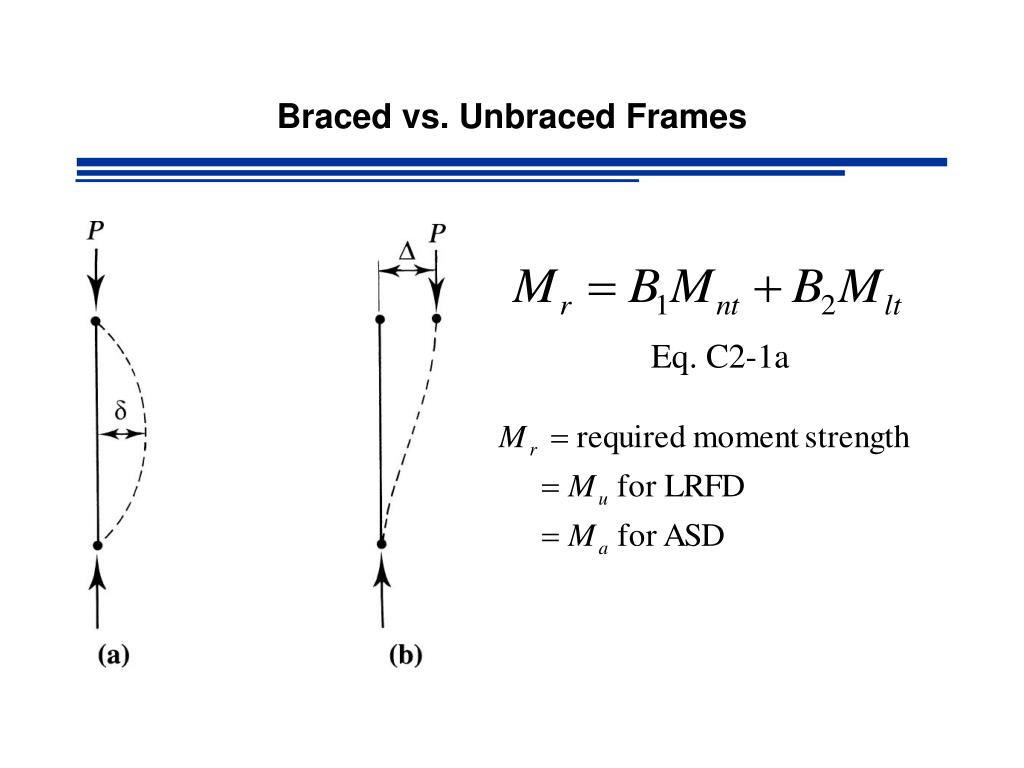

  30. Braced vs. Unbraced Frames Eq. C2-1a

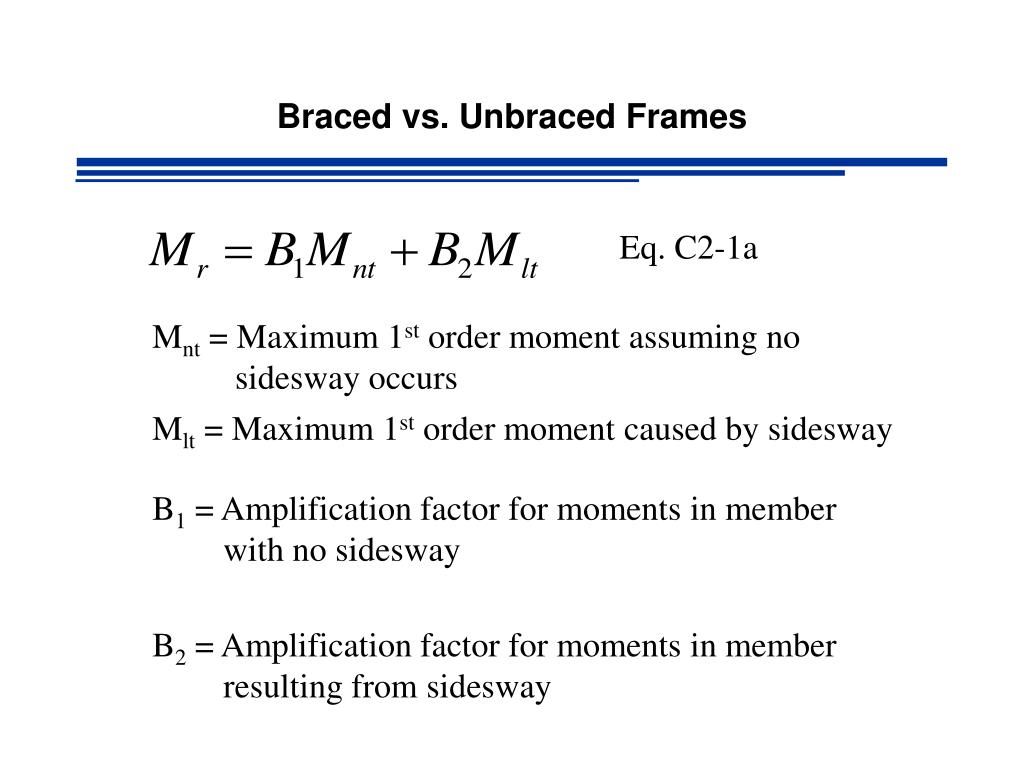

  31. Braced vs. Unbraced Frames Eq. C2-1a Mnt = Maximum 1st order moment assuming no sidesway occurs Mlt = Maximum 1st order moment caused by sidesway B1 = Amplification factor for moments in member with no sidesway B2 = Amplification factor for moments in member resulting from sidesway

  32. Braced Frames

  33. Braced Frames

  34. Braced Frames Pr = required axial compressive strength = Pu for LRFD = Pa for ASD Pr has a contribution from the PD effect and is given by

  35. Braced Frames a = 1 for LRFD = 1.6 for ASD

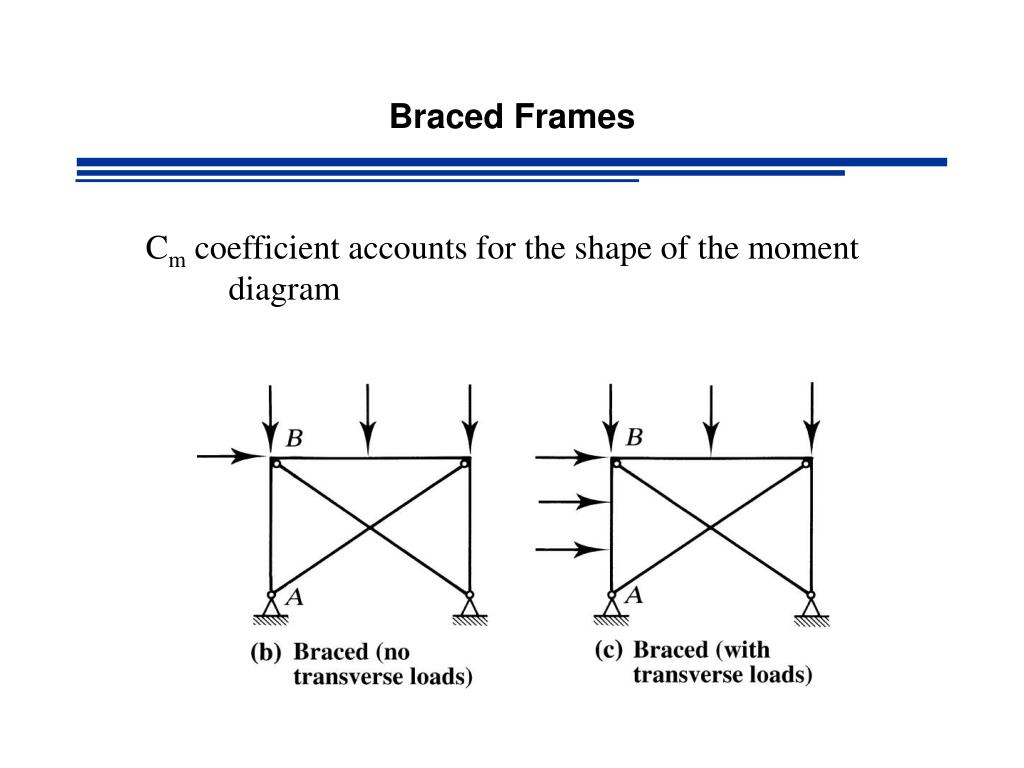

  36. Braced Frames Cm coefficient accounts for the shape of the moment diagram

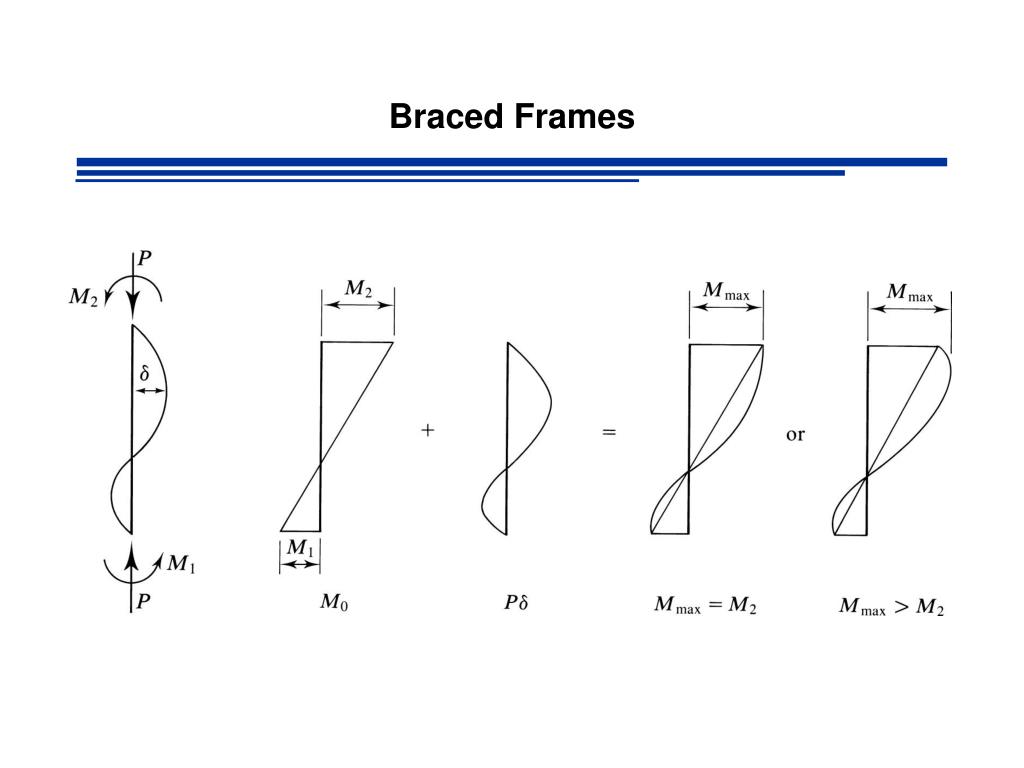

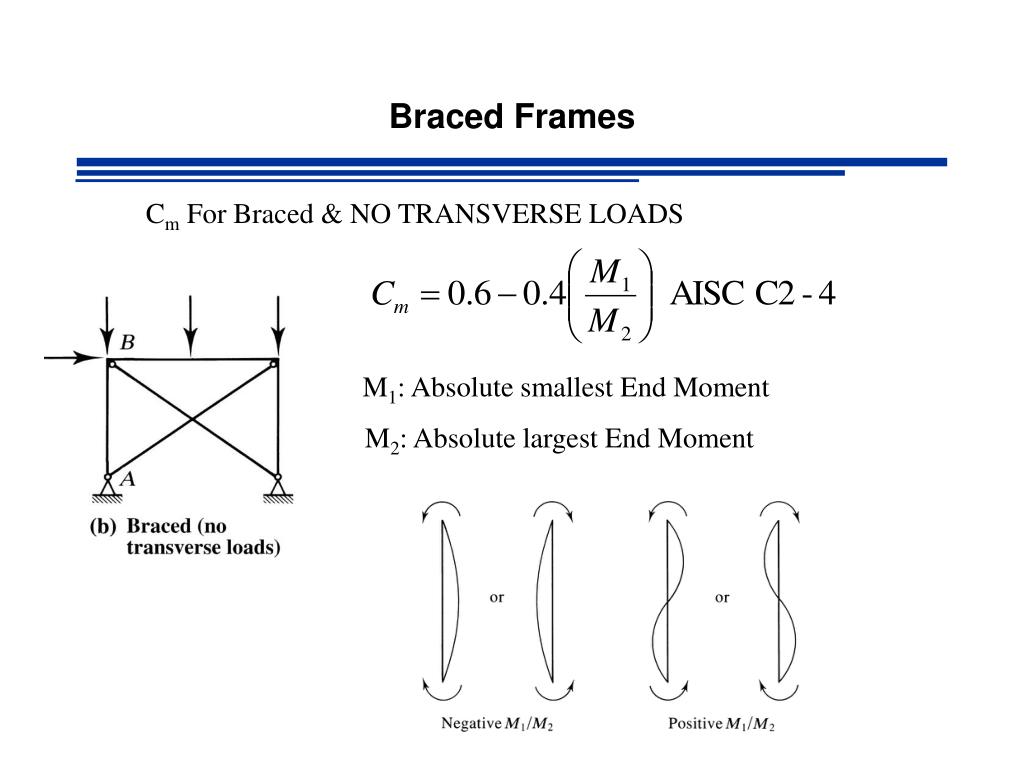

  37. Braced Frames Cm For Braced & NO TRANSVERSE LOADS M1: Absolute smallest End Moment M2: Absolute largest End Moment

  38. Braced Frames Cm For Braced & NO TRANSVERSE LOADS COSERVATIVELY Cm= 1

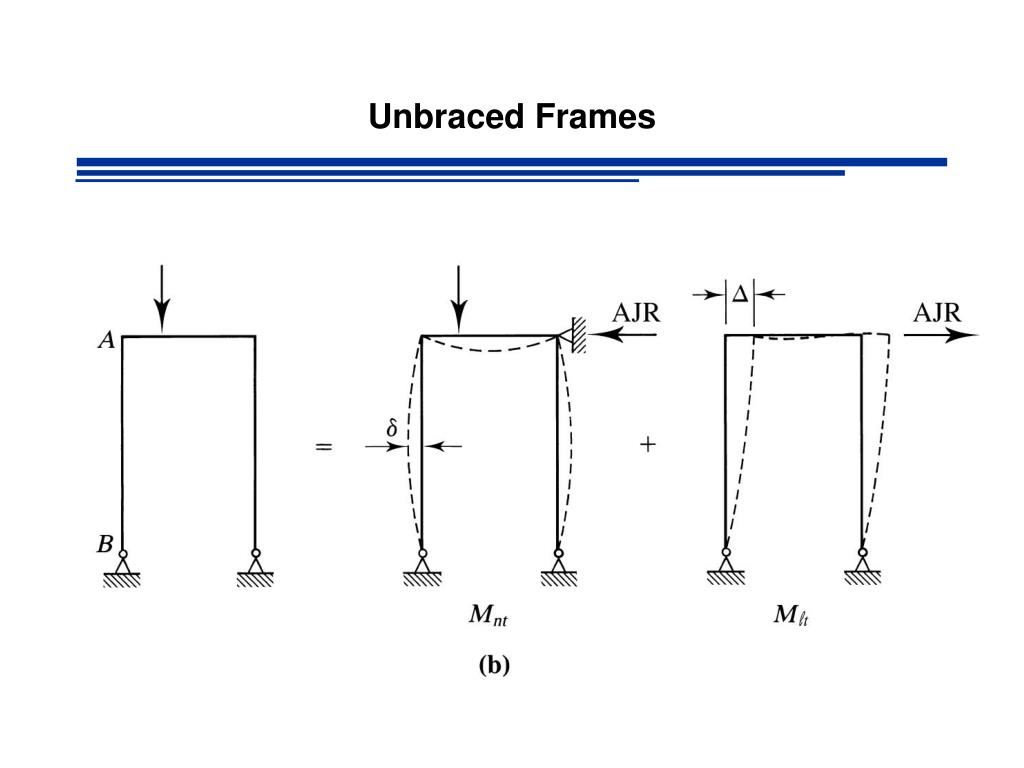

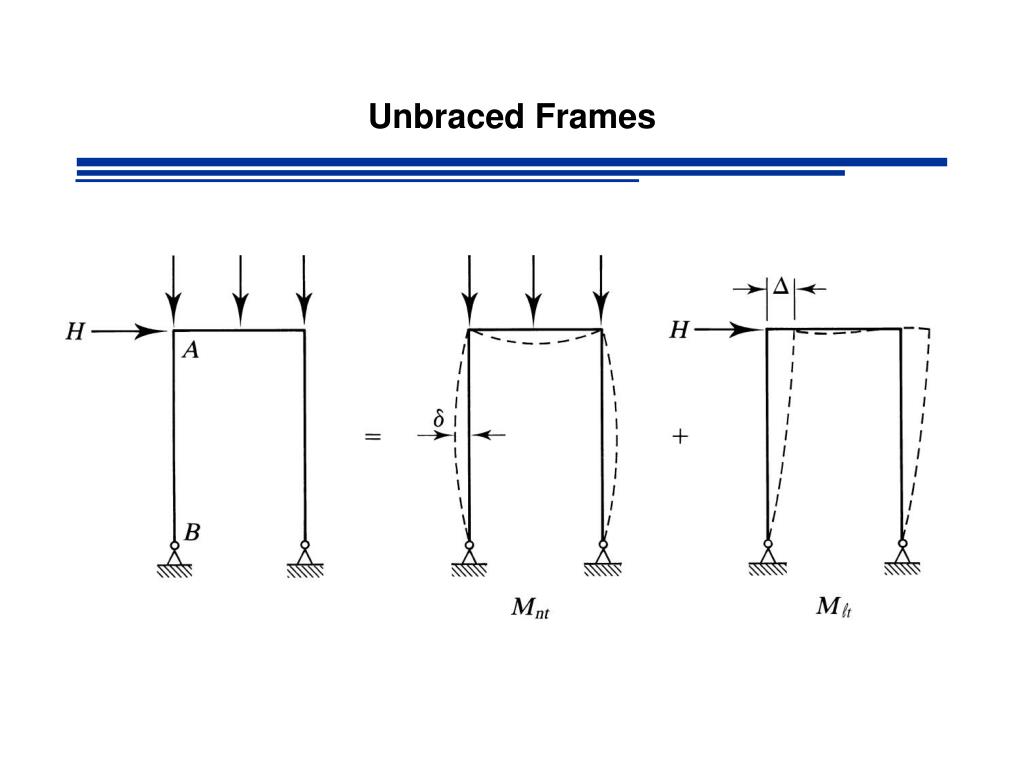

  39. Unbraced Frames Eq. C2-1a Mnt = Maximum 1st order moment assuming no sidesway occurs Mlt = Maximum 1st order moment caused by sidesway B1 = Amplification factor for moments in member with no sidesway B2 = Amplification factor for moments in member resulting from sidesway

  40. Unbraced Frames

  41. Unbraced Frames

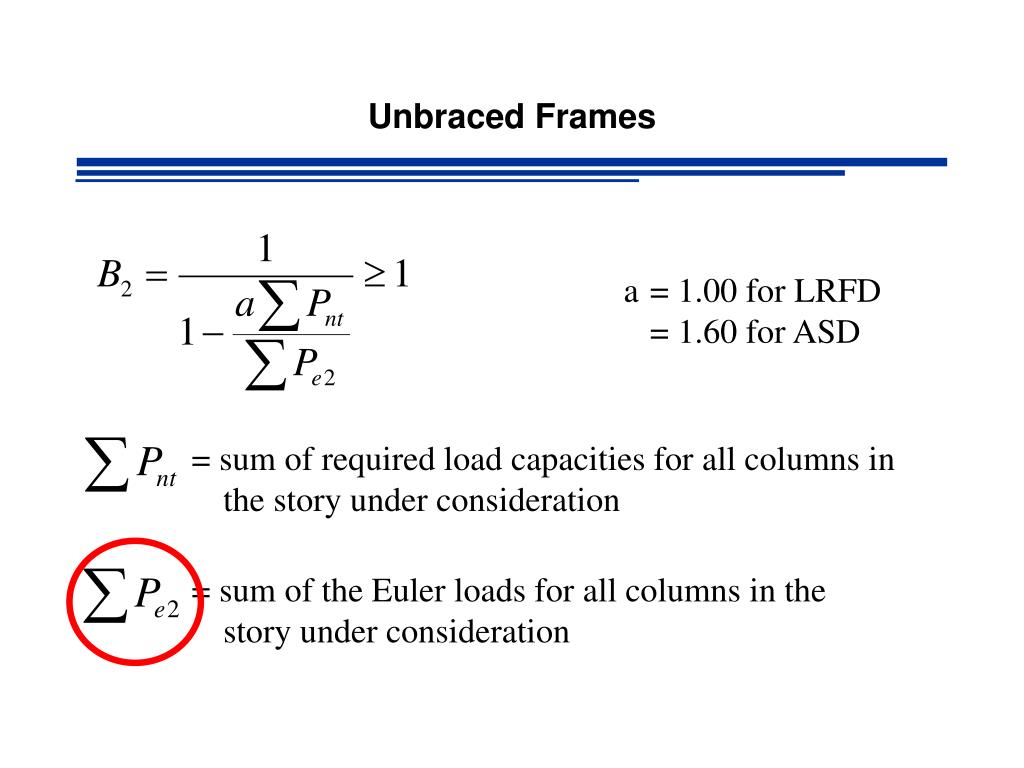

  42. Unbraced Frames a = 1.00 for LRFD = 1.60 for ASD = sum of required load capacities for all columns in the story under consideration = sum of the Euler loads for all columns in the story under consideration

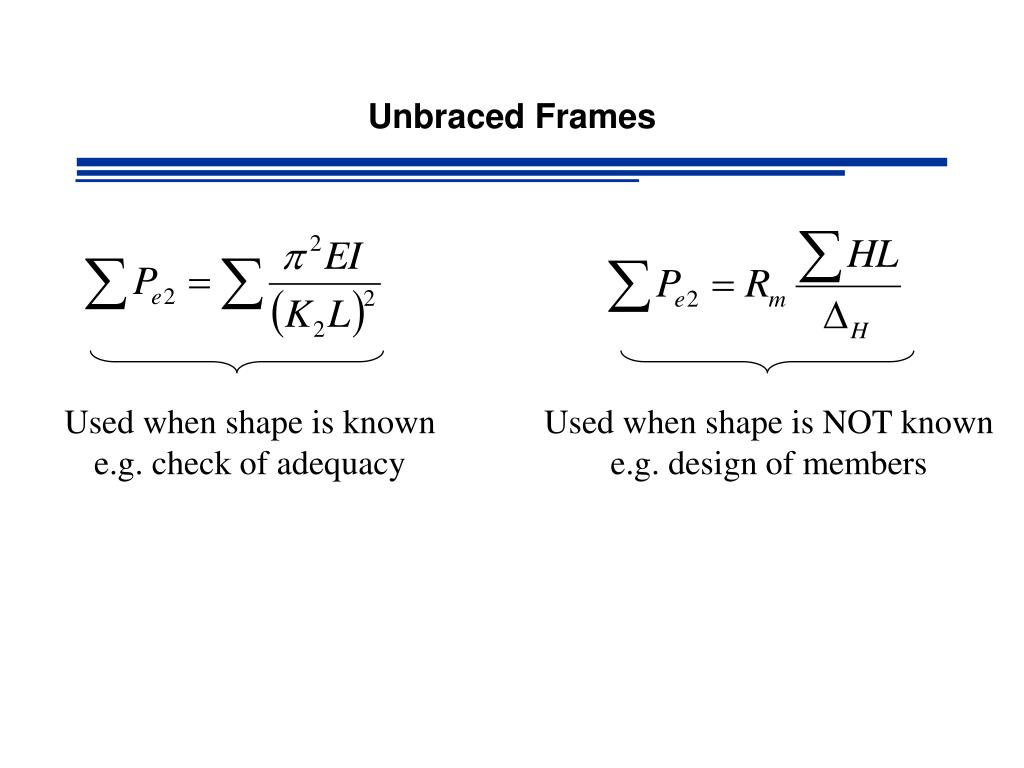

  43. Unbraced Frames Used when shape is known e.g. check of adequacy Used when shape is NOT known e.g. design of members

  44. Unbraced Frames I = Moment of inertia about axis of bending K2 = Unbraced length factor corresponding to the unbraced condition L = Story Height Rm = 0.85 for unbraced frames DH = drift of story under consideration SH = sum of all horizontal forces causing DH
