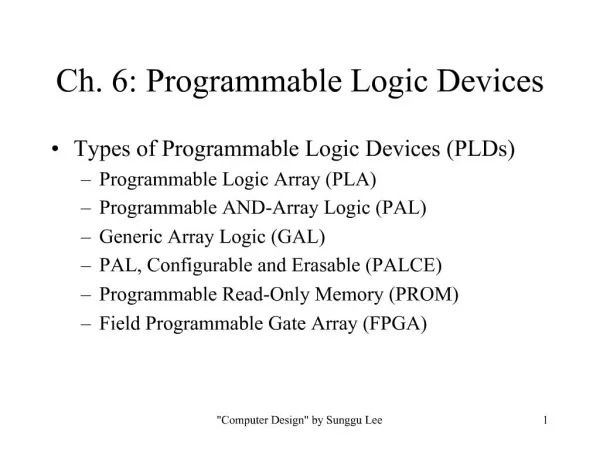

1. 2012-09-03 "Computer Design" by Sunggu Lee 1 Ch. 6: Programmable Logic Devices Types of Programmable Logic Devices (PLDs) Programmable Logic Array (PLA) Programmable AND-Array Logic (PAL) Generic Array Logic (GAL) PAL, Configurable and Erasable (PALCE) Programmable Read-Only Memory (PROM) Field Programmable Gate Array (FPGA)

2. 2012-09-03 "Computer Design" by Sunggu Lee 2 Logical Structure of a PLA

3. 2012-09-03 "Computer Design" by Sunggu Lee 3 Transistor-leveldesign for a PLA NOR-NOR-invertstructure isequivalent to an invert-AND-OR ? Why?

4. 2012-09-03 "Computer Design" by Sunggu Lee 4 Methods for Programming Connections Use PLD Programmer (Rom Writer) for Programming Determines where connections are to be made
