Presentation Transcript
Slide1 l.jpg

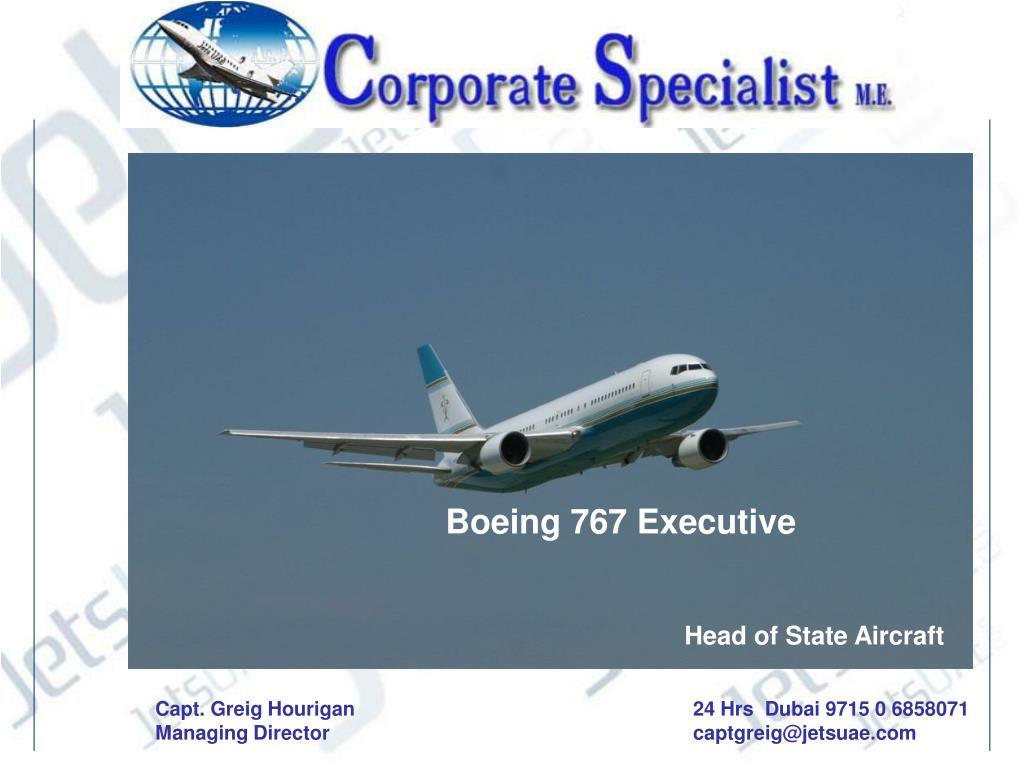

Boeing 767 Executive

Head of State Aircraft

Capt. Greig Hourigan

Managing Director

24 Hrs Dubai 9715 0 [email protected]


Slide2 l.jpg

We are proud to offer the following aircraft

Capt. Greig Hourigan

Managing Director

24 Hrs Dubai 9715 0 [email protected]

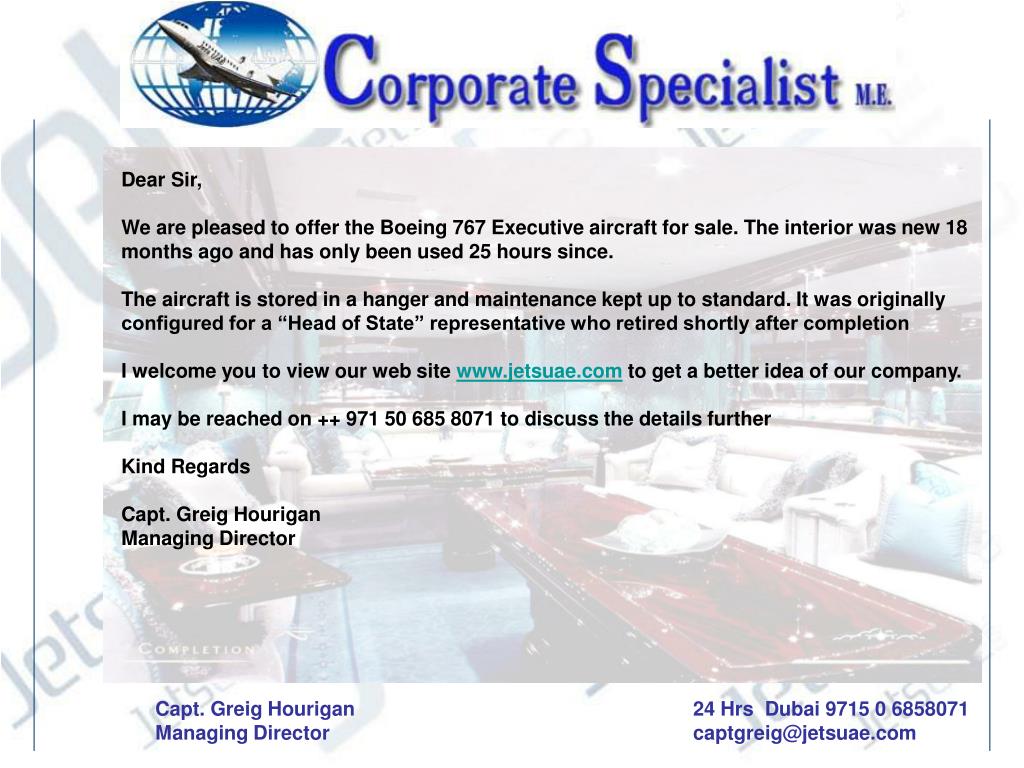

Slide3 l.jpg

Dear Sir,

We are pleased to offer the Boeing 767 Executive aircraft for sale. The interior was new 18

months ago and has only been used 25 hours since.

The aircraft is stored in a hanger and maintenance kept up to standard. It was originally

configured for a “Head of State” representative who retired shortly after completion

I welcome you to view our web site www.jetsuae.com to get a better idea of our company.

I may be reached on ++ 971 50 685 8071 to discuss the details further

Kind Regards

Capt. Greig Hourigan

Managing Director

Capt. Greig Hourigan

Managing Director

24 Hrs Dubai 9715 0 [email protected]


Slide4 l.jpg

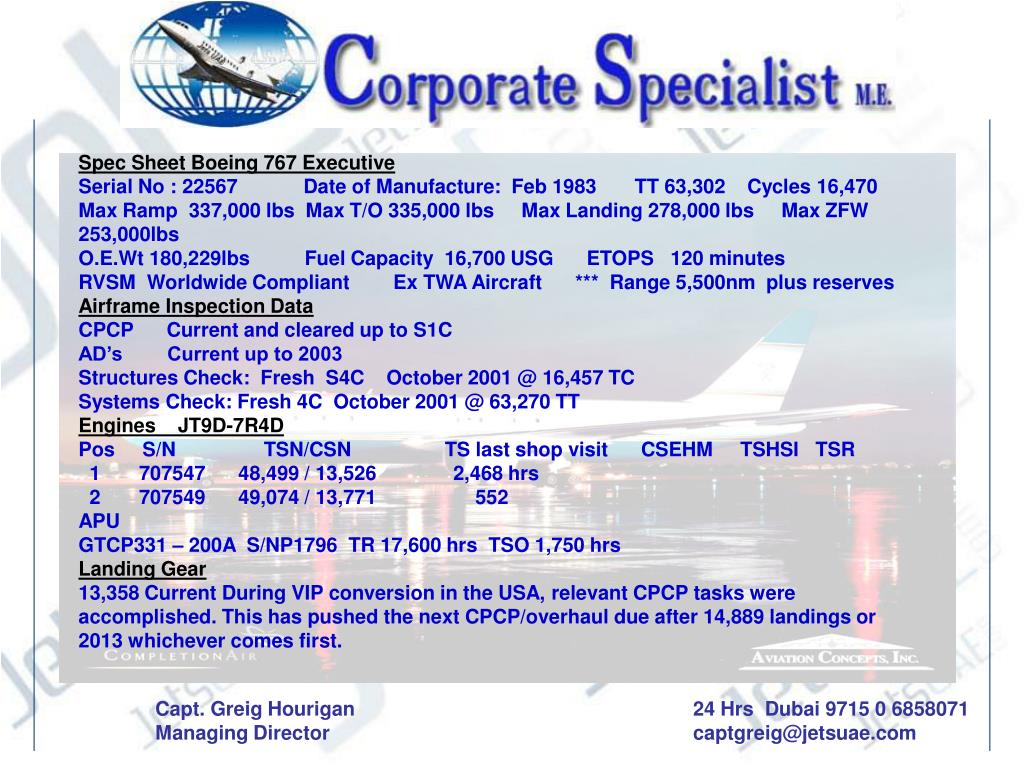

Spec Sheet Boeing 767 Executive

Serial No : 22567 Date of Manufacture: Feb 1983 TT 63,302 Cycles 16,470

Max Ramp 337,000 lbs Max T/O 335,000 lbs Max Landing 278,000 lbs Max ZFW 253,000lbs

O.E.Wt 180,229lbs Fuel Capacity 16,700 USG ETOPS 120 minutes

RVSM Worldwide Compliant Ex TWA Aircraft *** Range 5,500nm plus reserves

Airframe Inspection Data

CPCP Current and cleared up to S1C

AD’s Current up to 2003

Structures Check: Fresh S4C October 2001 @ 16,457 TC

Systems Check: Fresh 4C October 2001 @ 63,270 TT

Engines JT9D-7R4D

Pos S/N TSN/CSN TS last shop visit CSEHM TSHSI TSR

1 707547 48,499 / 13,526 2,468 hrs

2 707549 49,074 / 13,771 552

APU

GTCP331 – 200A S/NP1796 TR 17,600 hrs TSO 1,750 hrs

Landing Gear

13,358 Current During VIP conversion in the USA, relevant CPCP tasks were accomplished. This has pushed the next CPCP/overhaul due after 14,889 landings or 2013 whichever comes first.

Capt. Greig Hourigan

Managing Director

24 Hrs Dubai 9715 0 [email protected]


Slide5 l.jpg

Interior Configuration

* 24 VIP Cabin ( forward ) * 30 First Class ( middle ) * 34 Economy ( aft section )

5 Lavatories Total * 1 Forward * 1 VIP * 1 Mid * 2 Aft Galleys * 1 forward * 1 Aft

Entertainment System

VIP Lounge 1 X 42” Plasma Monitor Aircraft Cabin System ATH – 42PW3U

VIP Bedroom 1 X 21.3” LCD Monitor Aircraft Cabin System ALD – 2131A

Salon 2 x 21.3” LCD Monitor Aircraft Cabin System ALD – 2131A

First Class Area 1 X 42” Plasma Monitor Aircraft Cabin System ATH – 42PW3U

Capt. Greig Hourigan

Managing Director

24 Hrs Dubai 9715 0 [email protected]


Slide6 l.jpg

Avionics

3 x VHF Com Collins VHF – 700 2xHF Collins HFS-700

1xSelcal Motorola NA 138-714A 2x ATC Transponder Collins TPR 720

1x Public Address Collins 346 B-1 2x VOR Collins VOR-700A

3x GPS/ILS Honeywell RMA 55B 2x Marker Rec collins VOR- 700A

1x Acars Teledyne 2226721-3A 1x EGPWS Honeywell 965-0976-003-212

2x DME Collins DME700/DME900 3x Laser IRU HoneywelHG1050AE04/HG1050AD05

2x Weather Radar collins WXR-700X 2x FMC/Fans-1/RNPHoneywellPegasus 2002

2x TCAS/Mode-S Collins TPR-920 1x Sat/Com Honeywell MCS-7000 With CMA 2102 Ant

2x Flt Cont Comp Collins FCC-7012x Symb Gen Collins EFIC-701

2x Elcas Comp Collins EAP-701 2x Thrust Manag Comp G.E 937 E 202 G-2

1x DFDAU Teledyne 2227000-4-D-2 2x Air Data Comp Honeywell 4040800-906

1x Audio Accessory Unit Boeing 285T001-xxx 1x Flt Data Recorder Sundstrand 981-6009-001

1x Cockpit Voice Recorder Fairchild 93-A 100-80 1x Maint Recorder Collins MCDP -701

3x Radio Altimeter Collins LRA 700A 2x DFA- 75 Bendix DFA-75

Capt. Greig Hourigan

Managing Director

24 Hrs Dubai 9715 0 [email protected]


Slide7 l.jpg

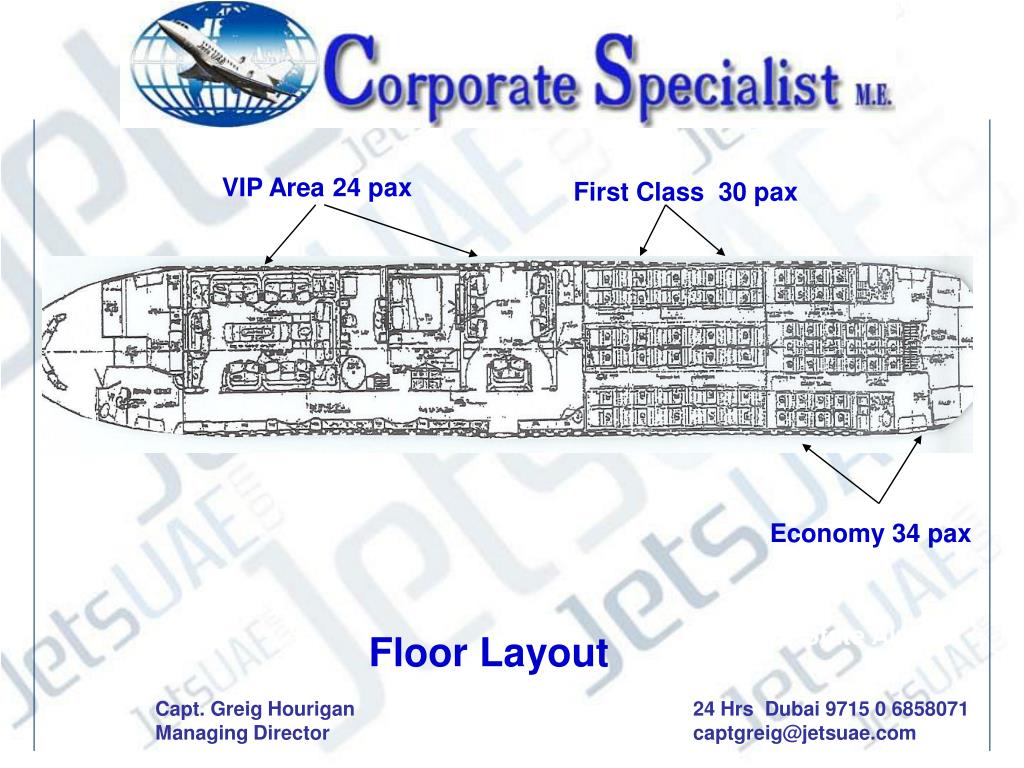

VIP Area 24 pax

First Class 30 pax

Economy 34 pax

Head of State Aircraft

Floor Layout

Capt. Greig Hourigan

Managing Director

24 Hrs Dubai 9715 0 [email protected]


Slide8 l.jpg

Capt. Greig Hourigan

Managing Director

24 Hrs Dubai 9715 0 [email protected]

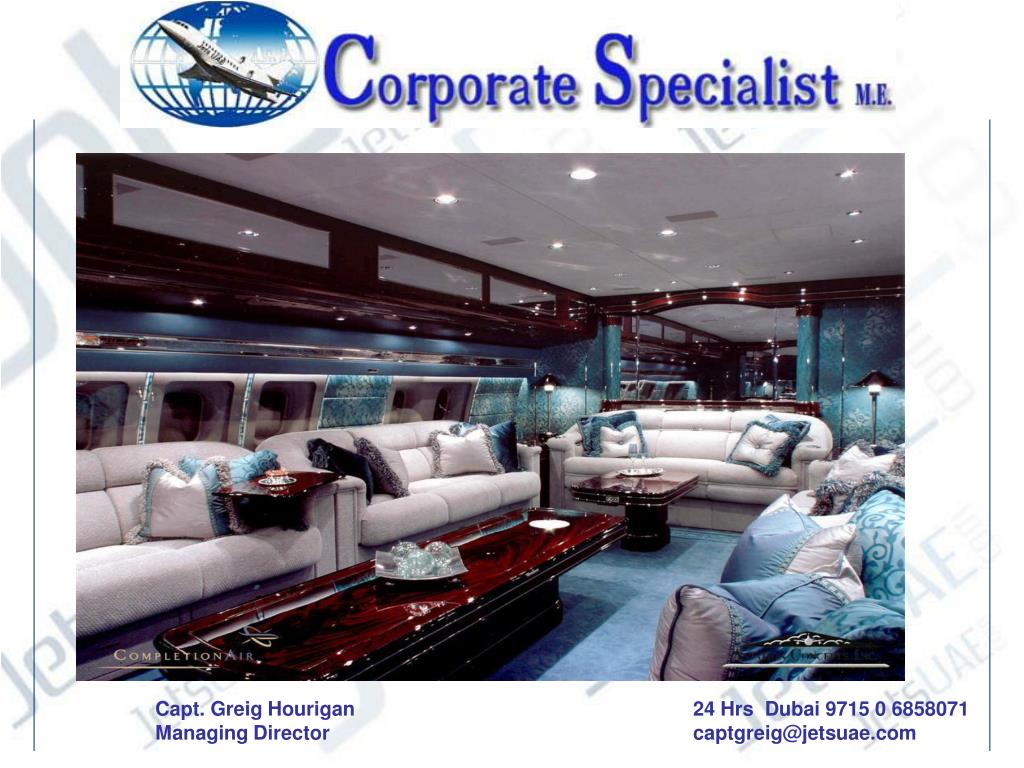

Slide9 l.jpg

Capt. Greig Hourigan

Managing Director

24 Hrs Dubai 9715 0 [email protected]


Slide10 l.jpg

Capt. Greig Hourigan

Managing Director

24 Hrs Dubai 9715 0 [email protected]


Slide11 l.jpg

Capt. Greig Hourigan

Managing Director

24 Hrs Dubai 9715 0 [email protected]


Slide12 l.jpg

Capt. Greig Hourigan

Managing Director

24 Hrs Dubai 9715 0 [email protected]


Slide13 l.jpg

Capt. Greig Hourigan

Managing Director

24 Hrs Dubai 9715 0 [email protected]

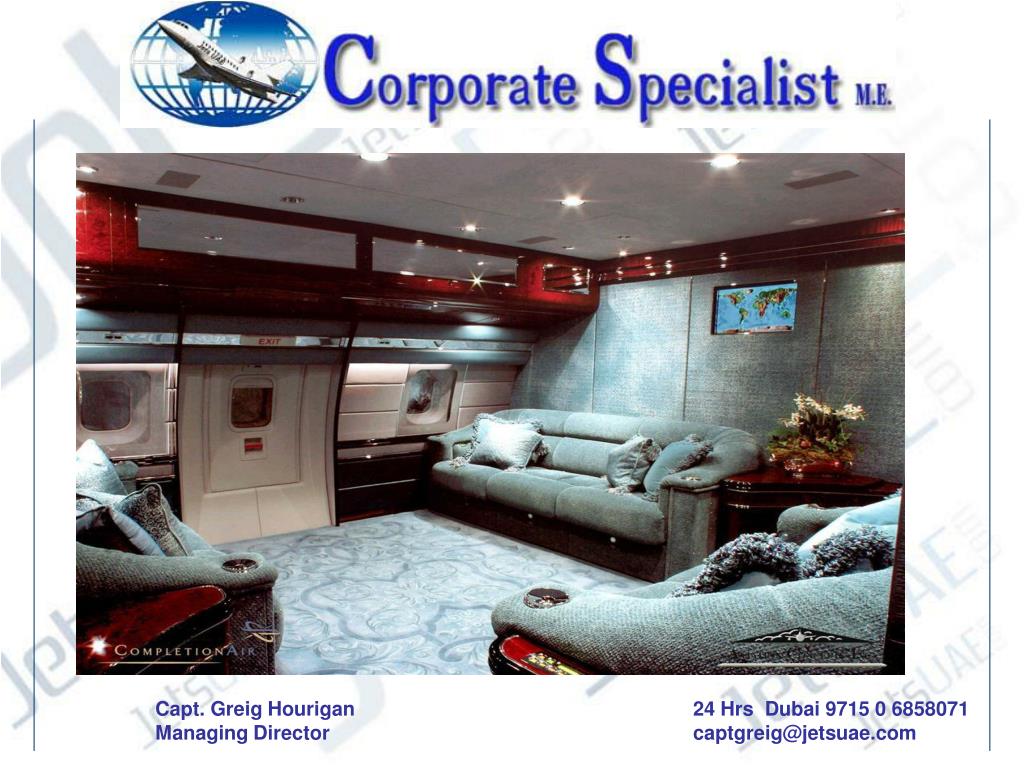

Slide14 l.jpg

Capt. Greig Hourigan

Managing Director

24 Hrs Dubai 9715 0 [email protected]


Slide15 l.jpg

Capt. Greig Hourigan

Managing Director

24 Hrs Dubai 9715 0 [email protected]

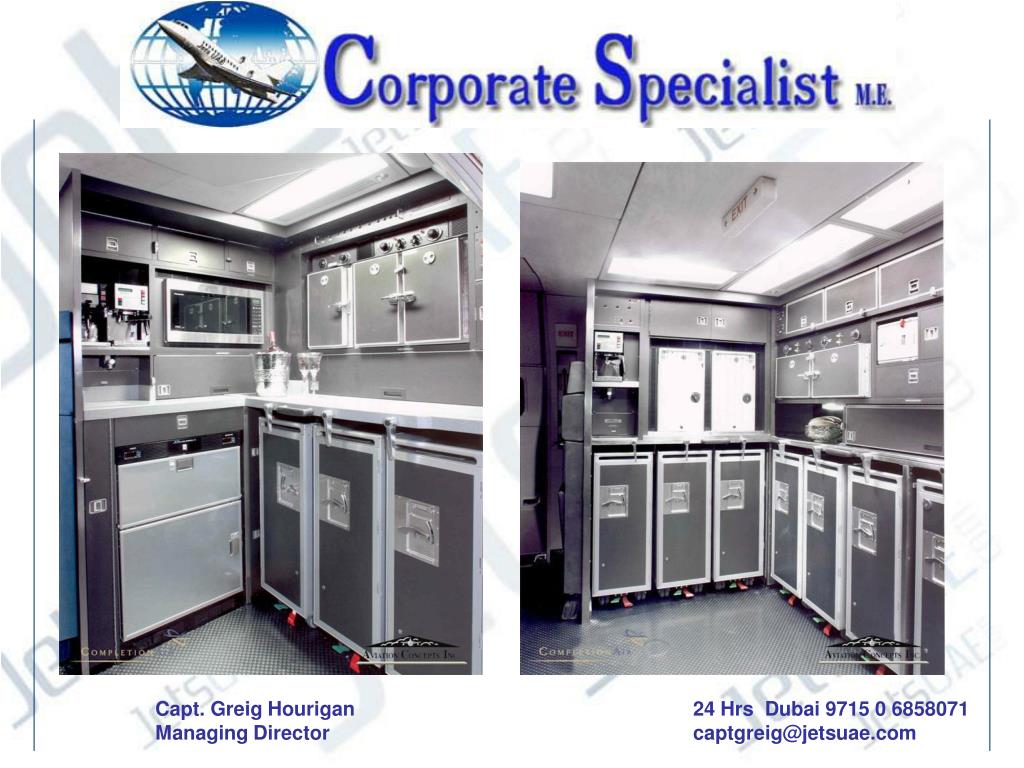

Slide16 l.jpg

Capt. Greig Hourigan

Managing Director

24 Hrs Dubai 9715 0 [email protected]


Slide17 l.jpg

Capt. Greig Hourigan

Managing Director

24 Hrs Dubai 9715 0 [email protected]
