Presentation Transcript
general approaches to polymer synthesis

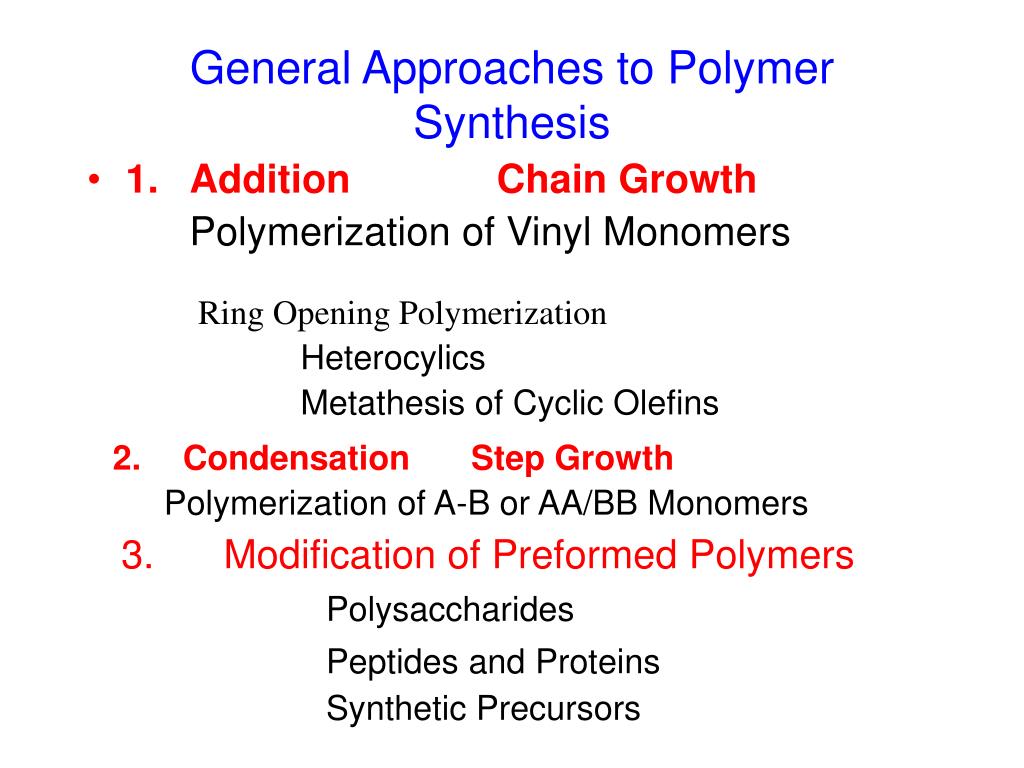

General Approaches to Polymer Synthesis
  • 1.Addition Chain Growth

Polymerization of Vinyl Monomers

  • Ring Opening Polymerization
    • Heterocylics
    • Metathesis of Cyclic Olefins
  • 2. Condensation Step Growth
  •   Polymerization of A-B or AA/BB Monomers

3. Modification of Preformed Polymers


Peptides and Proteins

  Synthetic Precursors

major developments in the 1950 60 s
Major Developments in the 1950-60's

Living Polymerization (Anionic)

  • Mw/Mn  1
  • Blocks, telechelics and stars available (Controlled molecular architecture)
  • Statistical Stereochemical Control
  • Statistical Compositions and Sequences
  • Severe functional group restrictions

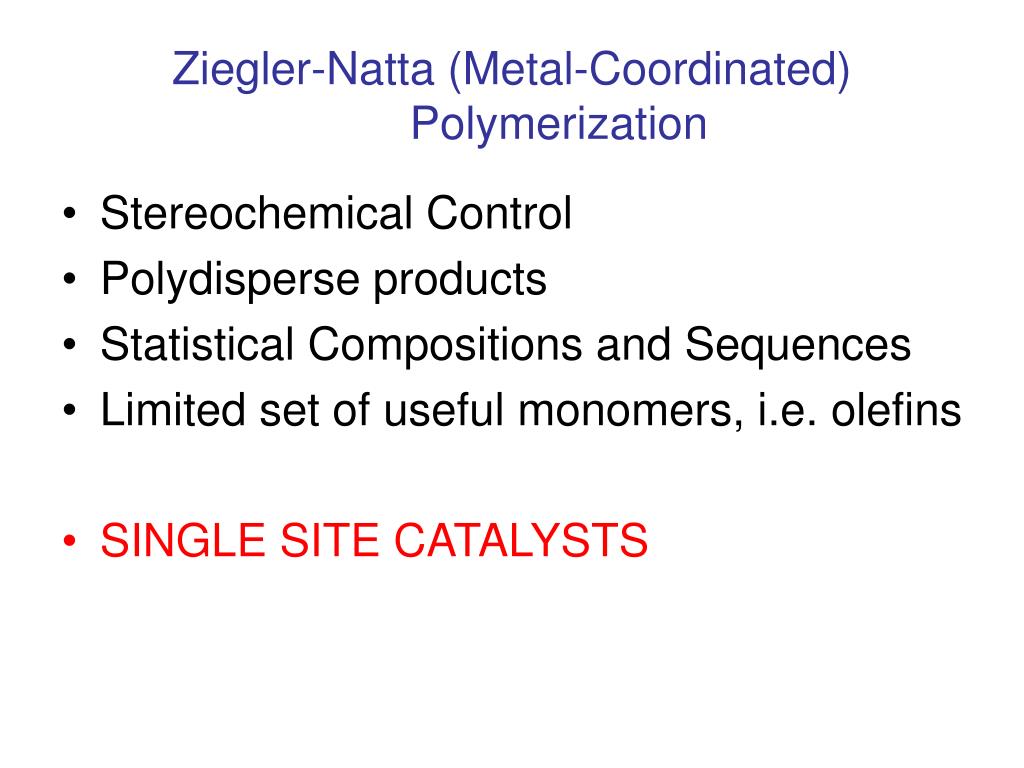

ziegler natta metal coordinated polymerization
Ziegler-Natta (Metal-Coordinated) Polymerization
  • Stereochemical Control
  • Polydisperse products
  • Statistical Compositions and Sequences
  • Limited set of useful monomers, i.e. olefins
additional developments in the 1980 s

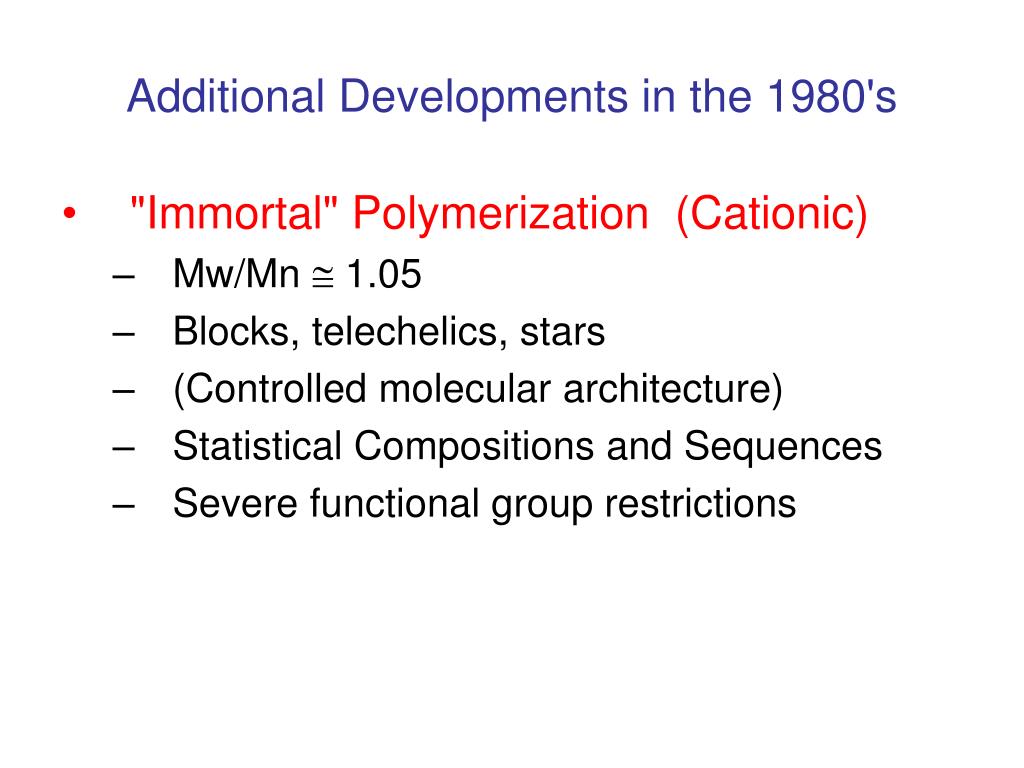

Additional Developments in the 1980's
  • "Immortal" Polymerization (Cationic)
    • Mw/Mn  1.05
    • Blocks, telechelics, stars
    • (Controlled molecular architecture)
    • Statistical Compositions and Sequences
    • Severe functional group restrictions
free radical initiated polymerization

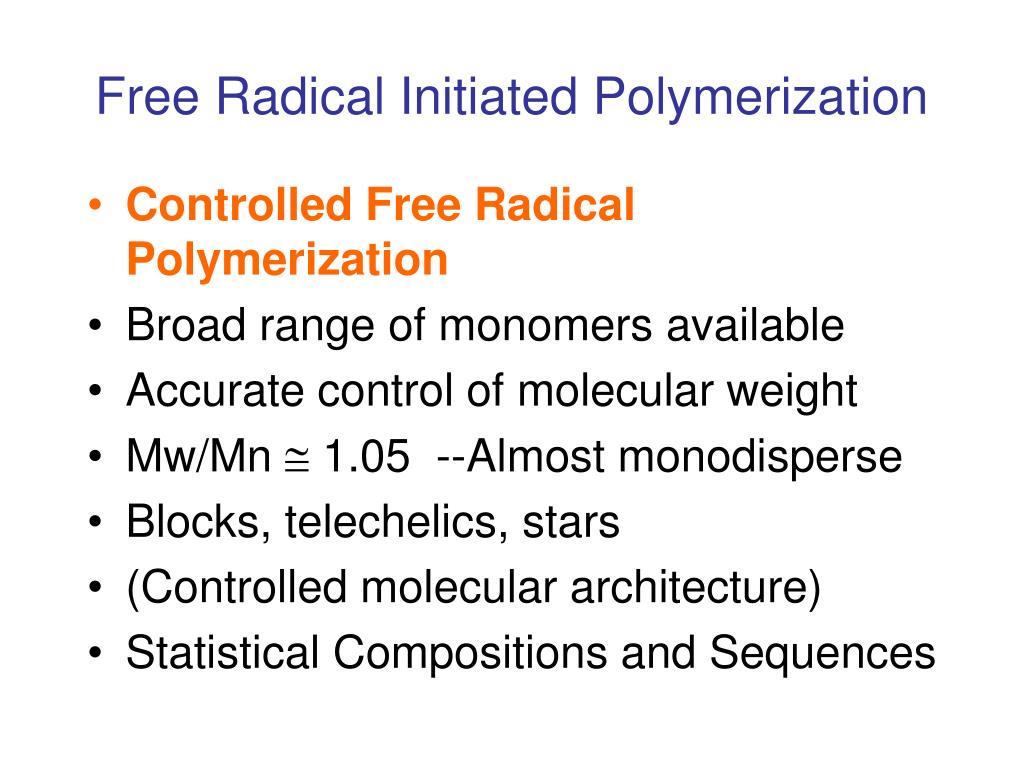

Free Radical Initiated Polymerization
  • Controlled Free Radical Polymerization
  • Broad range of monomers available
  • Accurate control of molecular weight
  • Mw/Mn  1.05 --Almost monodisperse
  • Blocks, telechelics, stars
  • (Controlled molecular architecture)
  • Statistical Compositions and Sequences

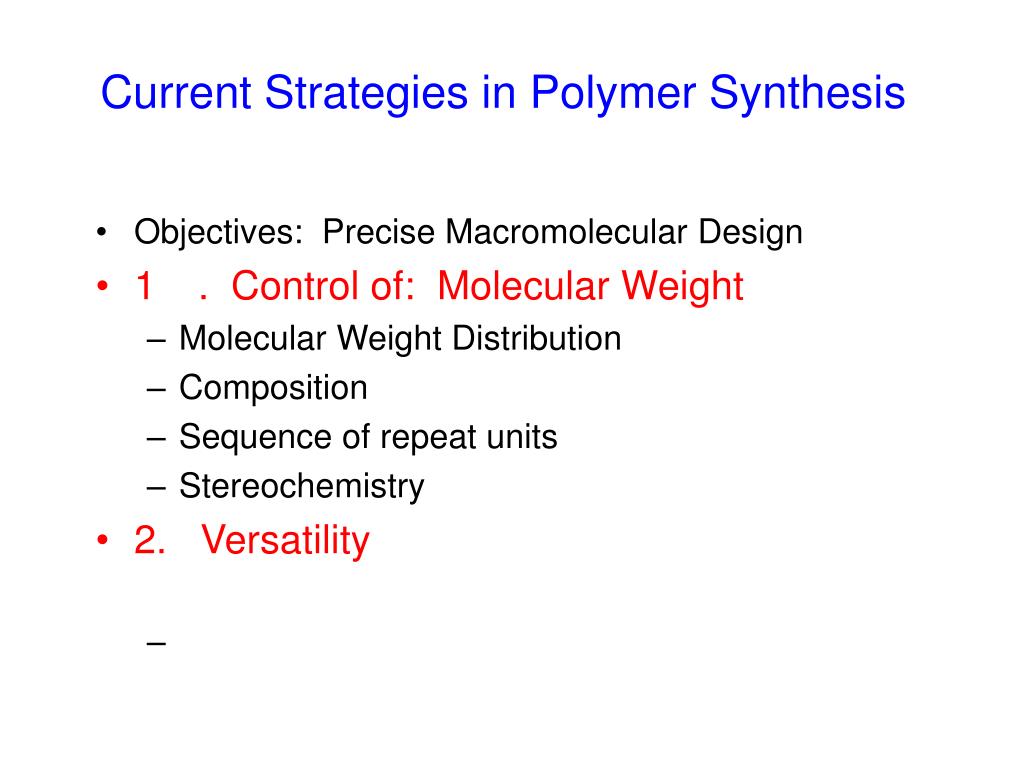

current strategies in polymer synthesis
Current Strategies in Polymer Synthesis
  • Objectives: Precise Macromolecular Design
  • 1 . Control of: Molecular Weight
    • Molecular Weight Distribution
    • Composition
    • Sequence of repeat units
    • Stereochemistry
  • 2.  Versatility
genetic approaches via modified microorganisms
Genetic Approaches via Modified Microorganisms
  • Monodisperse in MW
  • Monodisperse in Composition
  • Sequentially Uniform
  • Stereochemically Pure
  • Diverse set of functional groups possible through synthesis of novel amino acids
step growth or condensation polymerizations

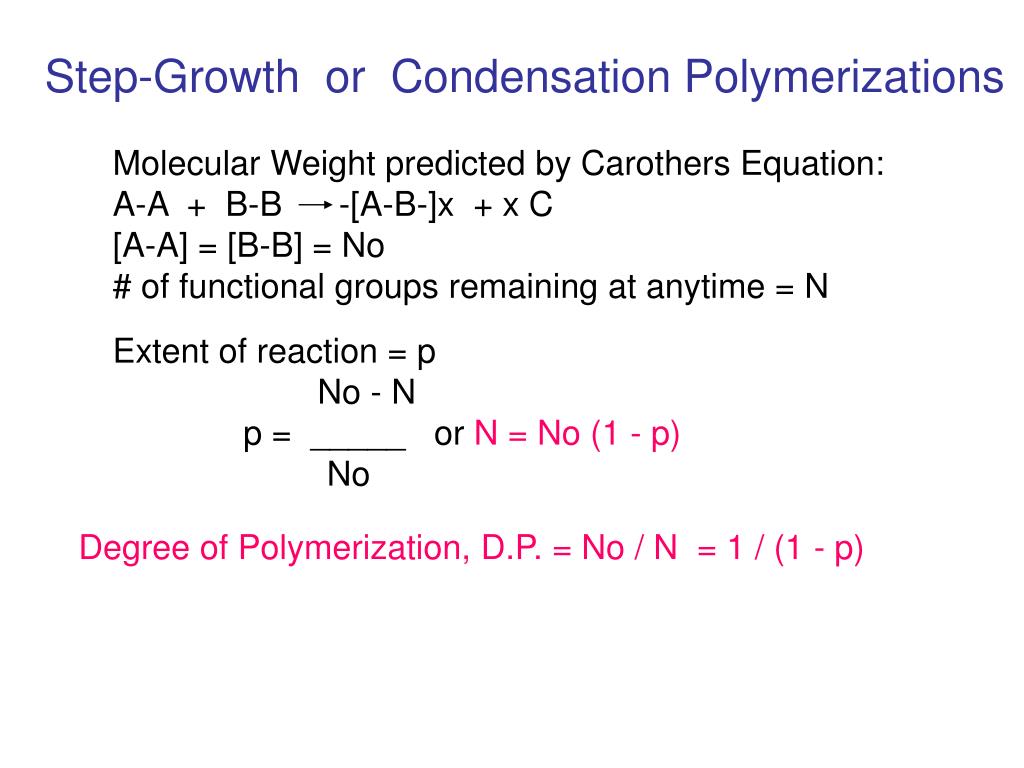

Step-Growth or Condensation Polymerizations

Molecular Weight predicted by Carothers Equation:

A-A + B-B -[A-B-]x + x C

[A-A] = [B-B] = No

# of functional groups remaining at anytime = N

Extent of reaction = p

No - N

p = _____ or N = No (1 - p)


Degree of Polymerization, D.P. = No / N = 1 / (1 - p)

problems in achieving high d p
Problems in Achieving High D. P.

1. Non-equivalence of functional groups

a. Monomer impurities

1. Inert impurities (adjust stoichiometry)

2. Monofunctional units terminate chain

b. Loss of end groups by degradation

c. Loss of end groups by side reactions with media

d. Physical losses

e. Non-equivalent reactivity

f. Cyclization

. Unfavorable Equilibrium Constant

impact of percent reaction p on dp

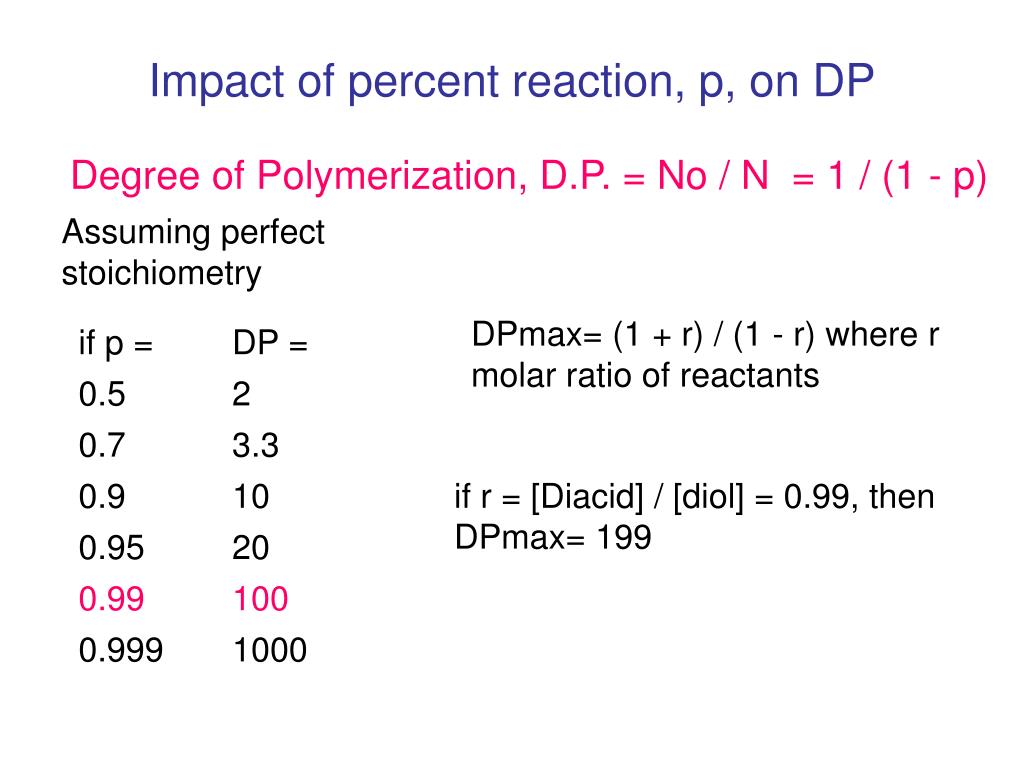

Impact of percent reaction, p, on DP

Degree of Polymerization, D.P. = No / N = 1 / (1 - p)

Assuming perfect stoichiometry

DPmax= (1 + r) / (1 - r) where r molar ratio of reactants

if r = [Diacid] / [diol] = 0.99, then DPmax= 199

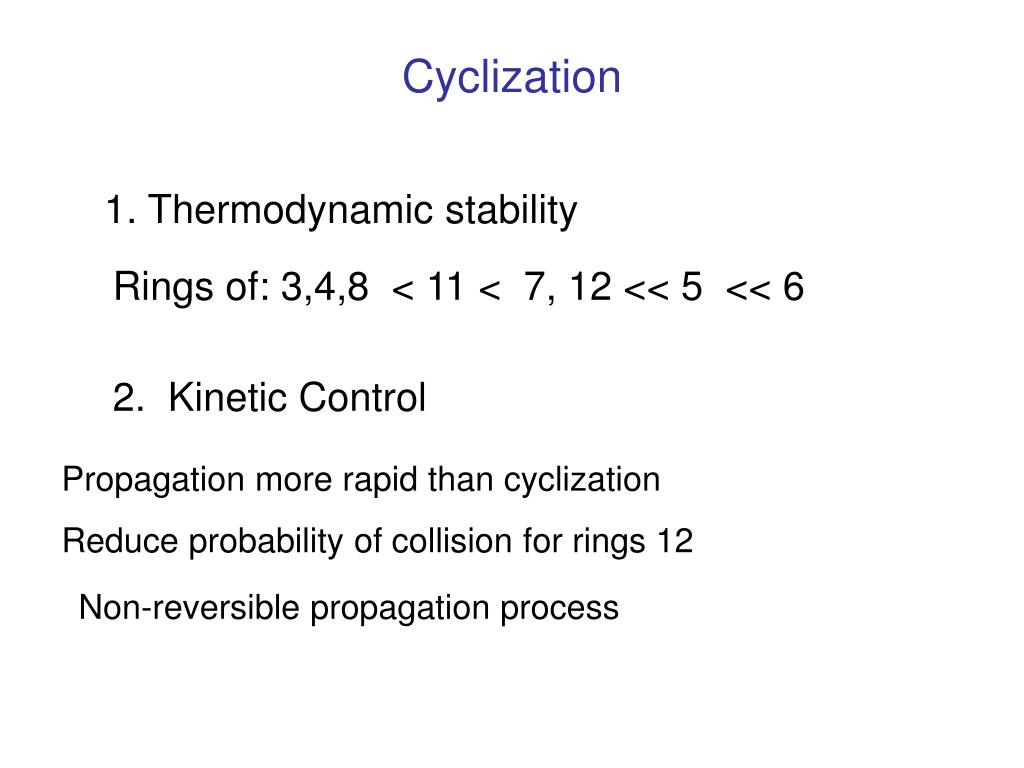

1. Thermodynamic stability

Rings of: 3,4,8 < 11 < 7, 12 << 5 << 6

2. Kinetic Control

Propagation more rapid than cyclization

Reduce probability of collision for rings 12

Non-reversible propagation process

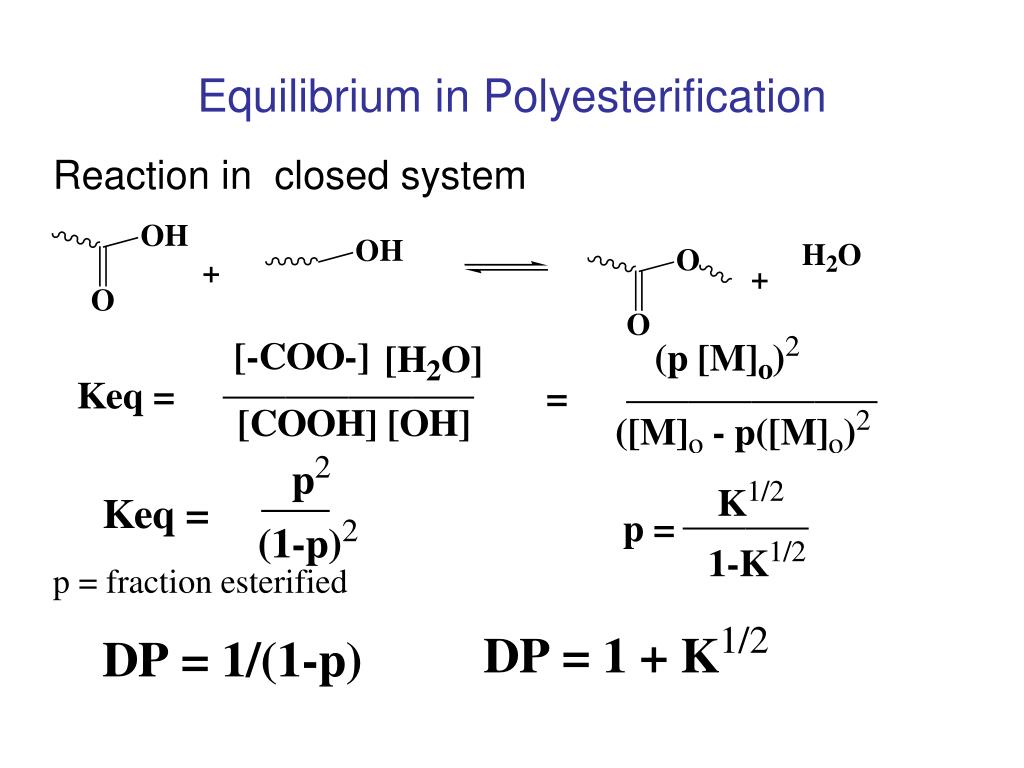

equilibrium in polyesterification
Equilibrium in Polyesterification

Reaction in closed system

p = fraction esterified

equilibrium in polyesterification1

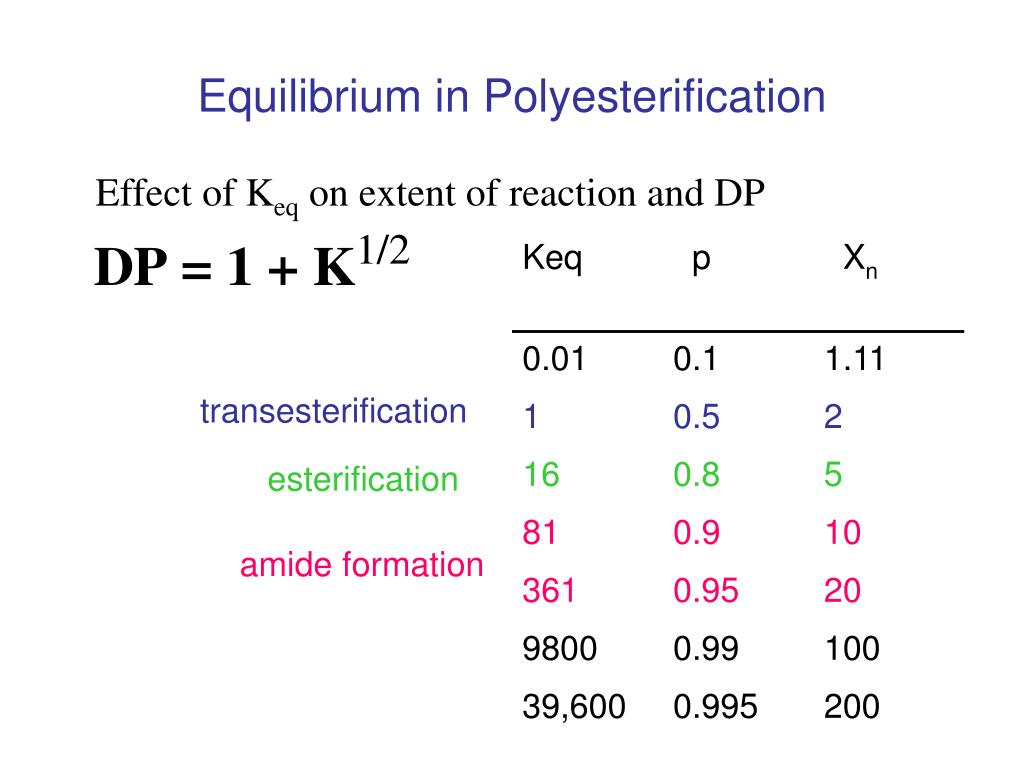

Equilibrium in Polyesterification

Effect of Keq on extent of reaction and DP

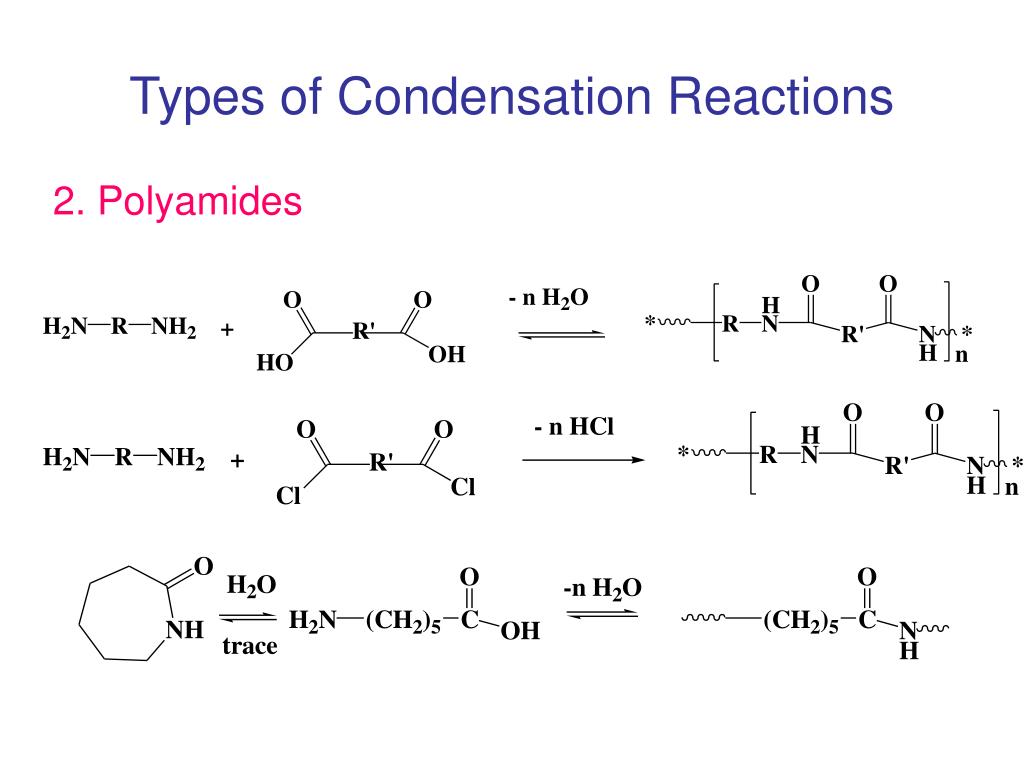

amide formation

preparation of aromatic polyesters

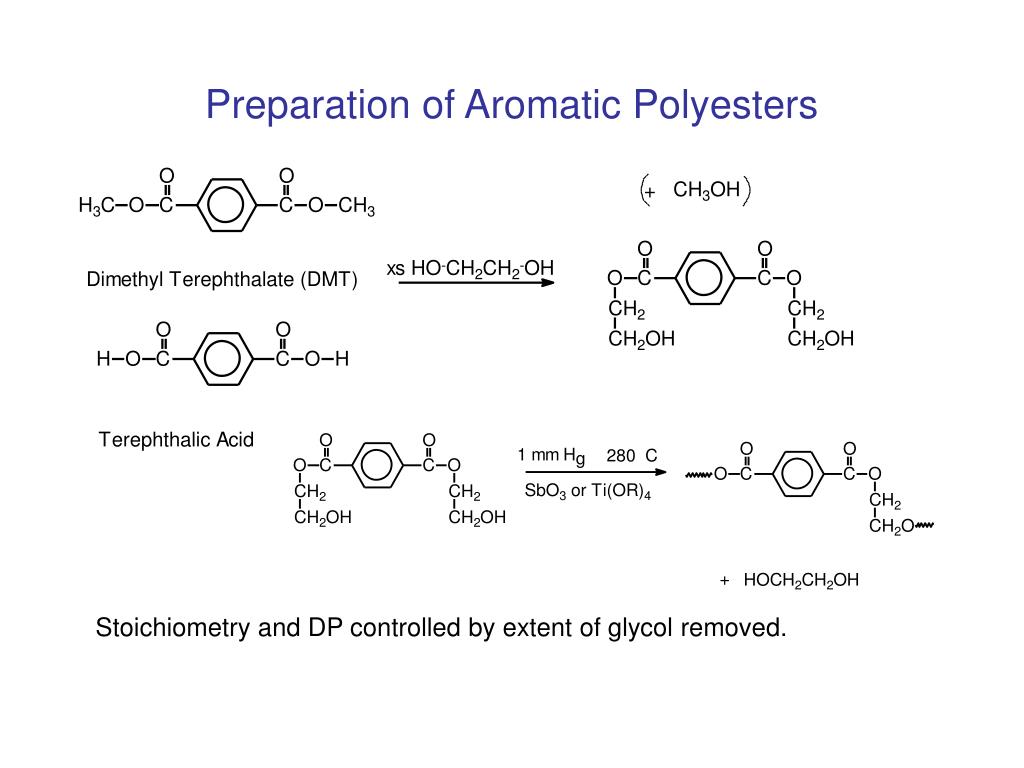

Preparation of Aromatic Polyesters

Stoichiometry and DP controlled by extent of glycol removed.

polyamides via condensation nylon 66

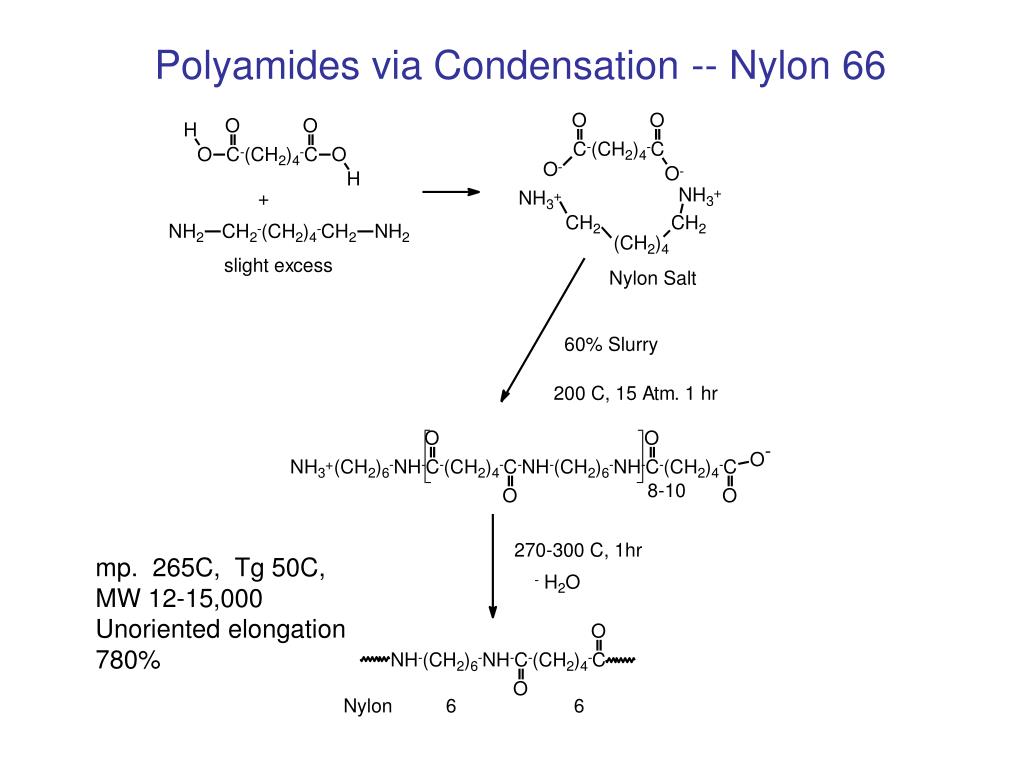

Polyamides via Condensation -- Nylon 66

mp. 265C, Tg 50C, MW 12-15,000

Unoriented elongation 780%

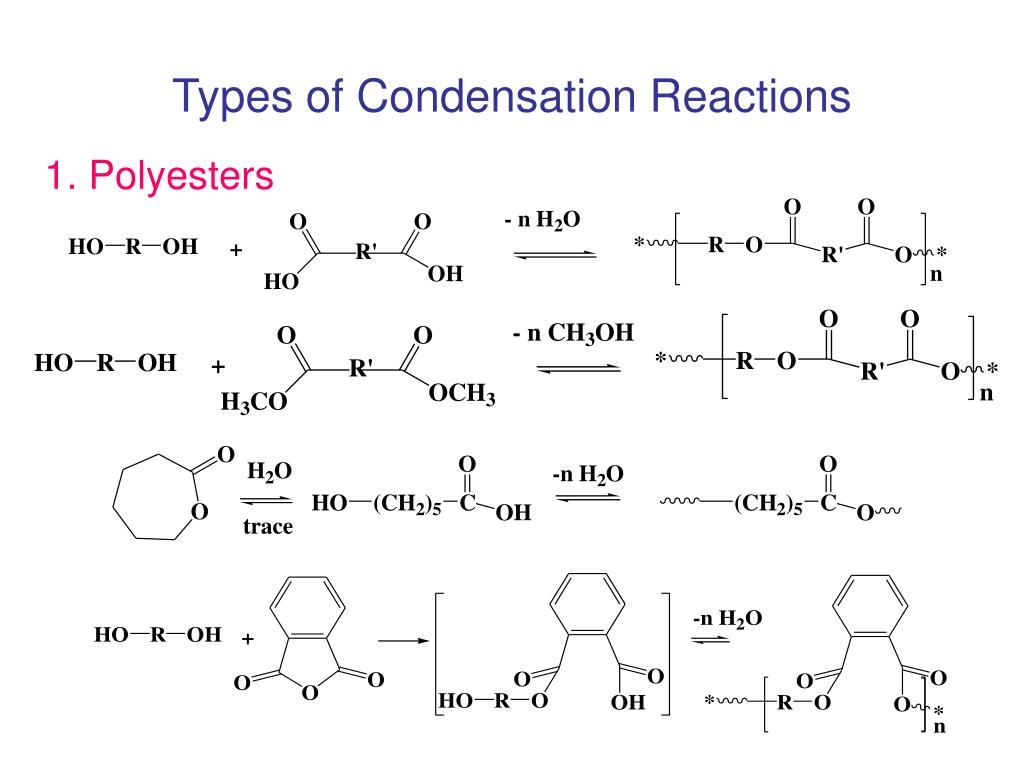

types of condensation polymers

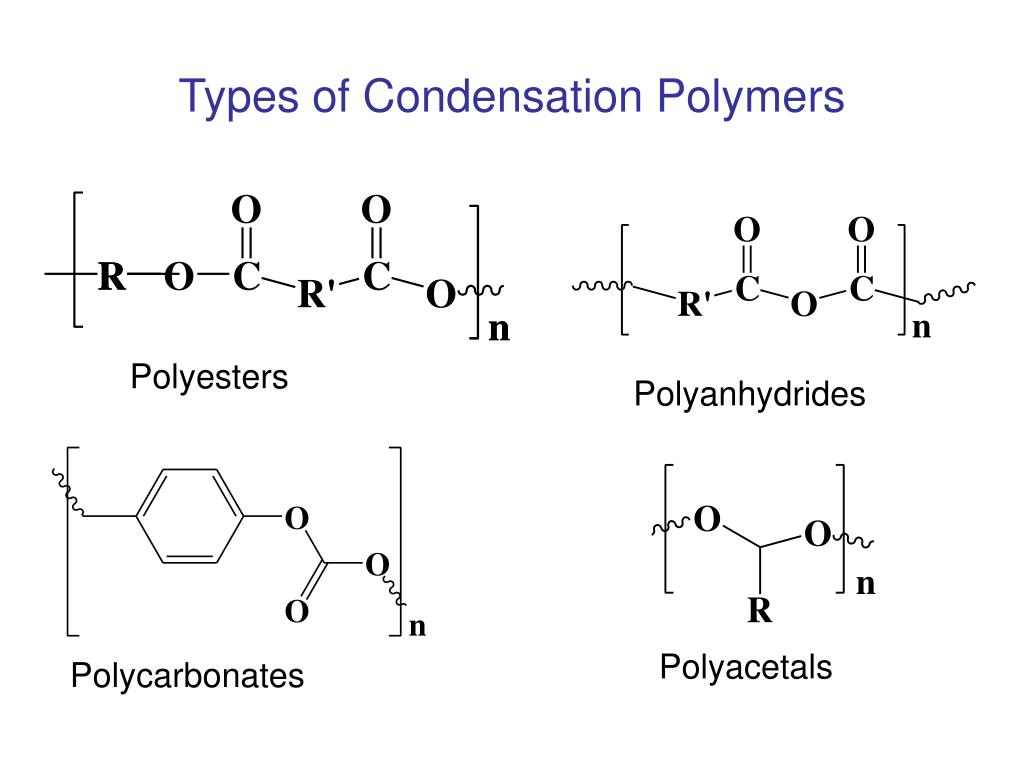

Types of Condensation Polymers





lexan polycarbonate

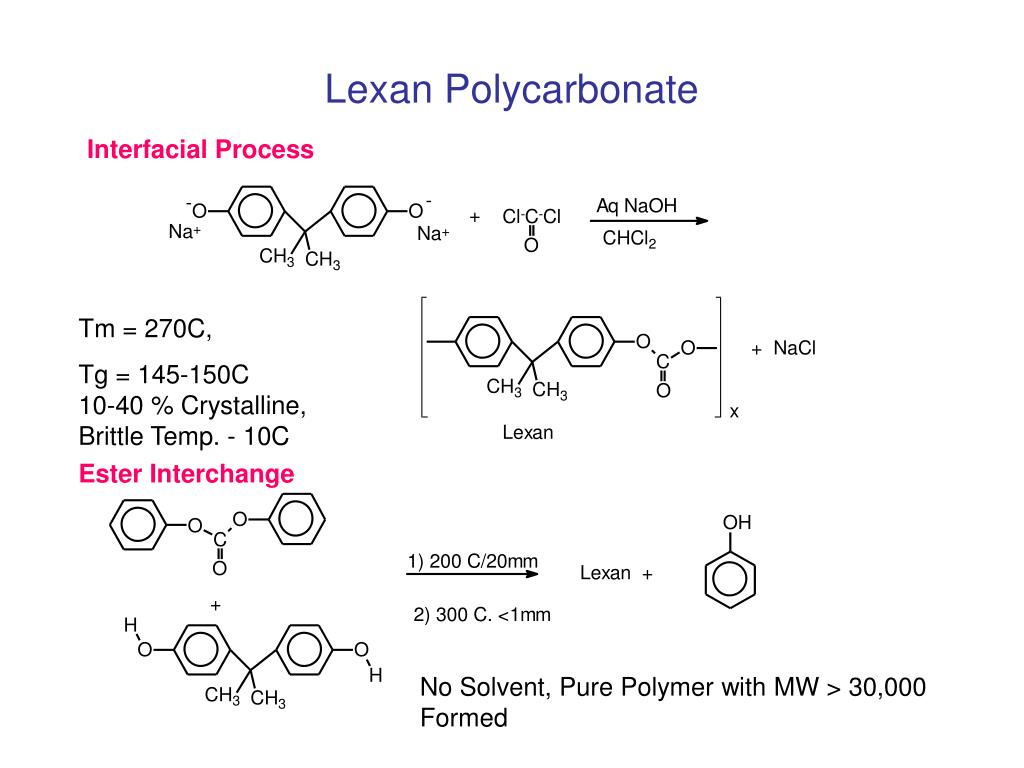

Lexan Polycarbonate

Interfacial Process

Tm = 270C,

Tg = 145-150C

10-40 % Crystalline,

Brittle Temp. - 10C

Ester Interchange

No Solvent, Pure Polymer with MW > 30,000 Formed

types of condensation polymers1

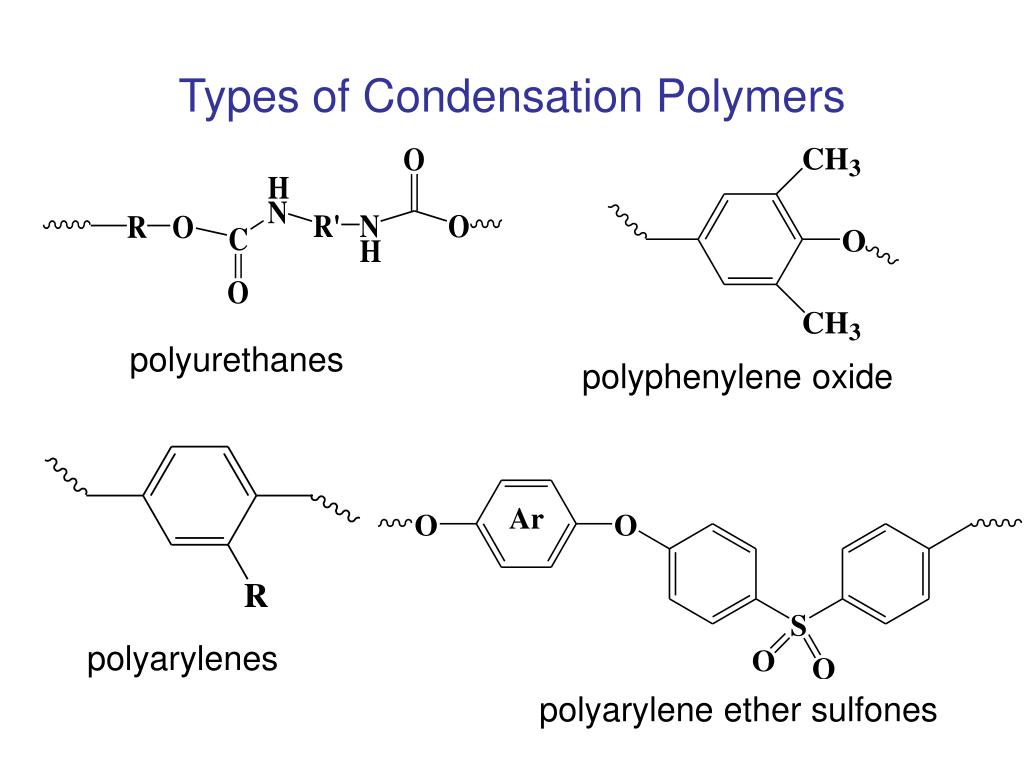

Types of Condensation Polymers


polyphenylene oxide

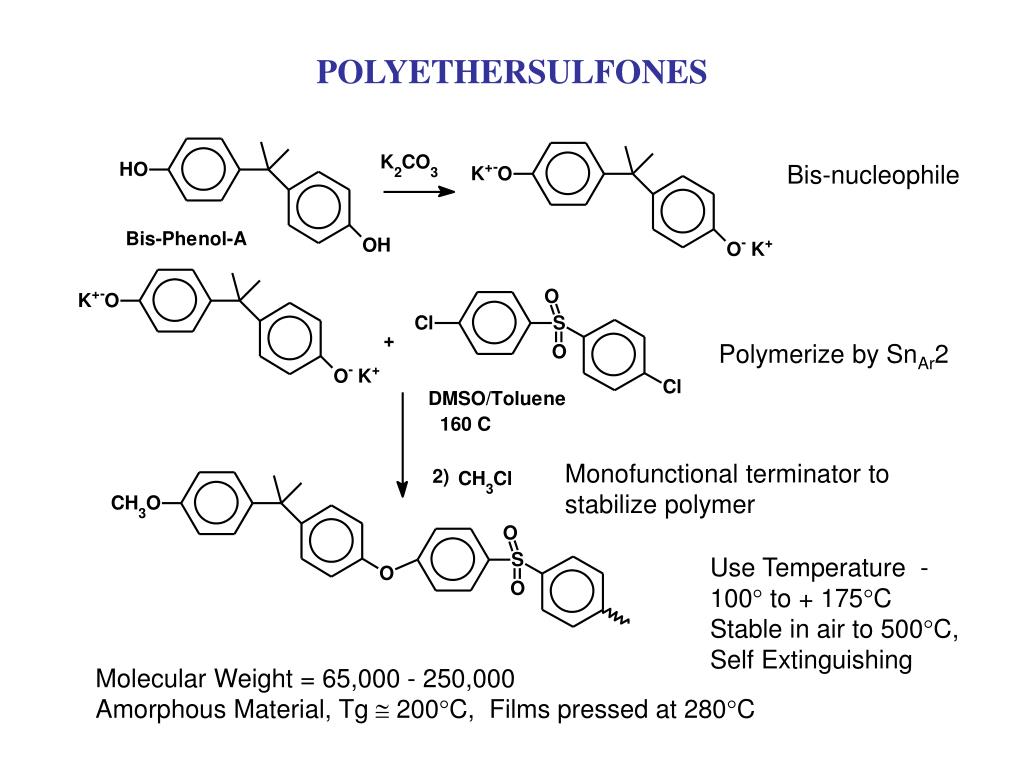

polyarylene ether sulfones

low temperature condensation polymerization

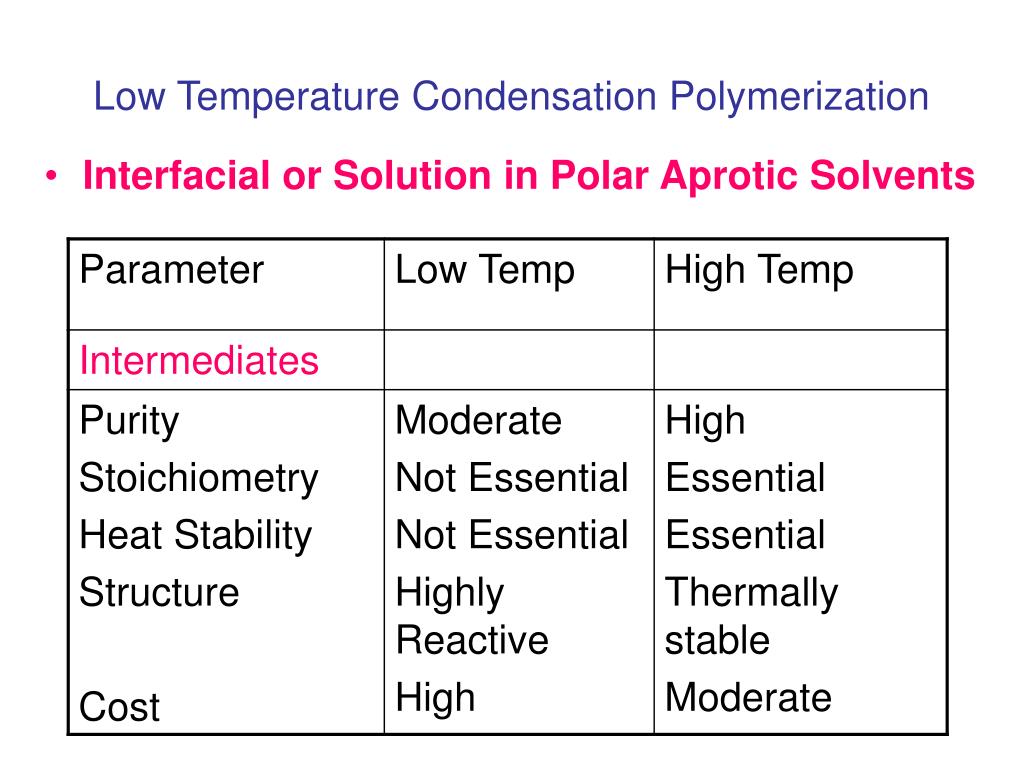

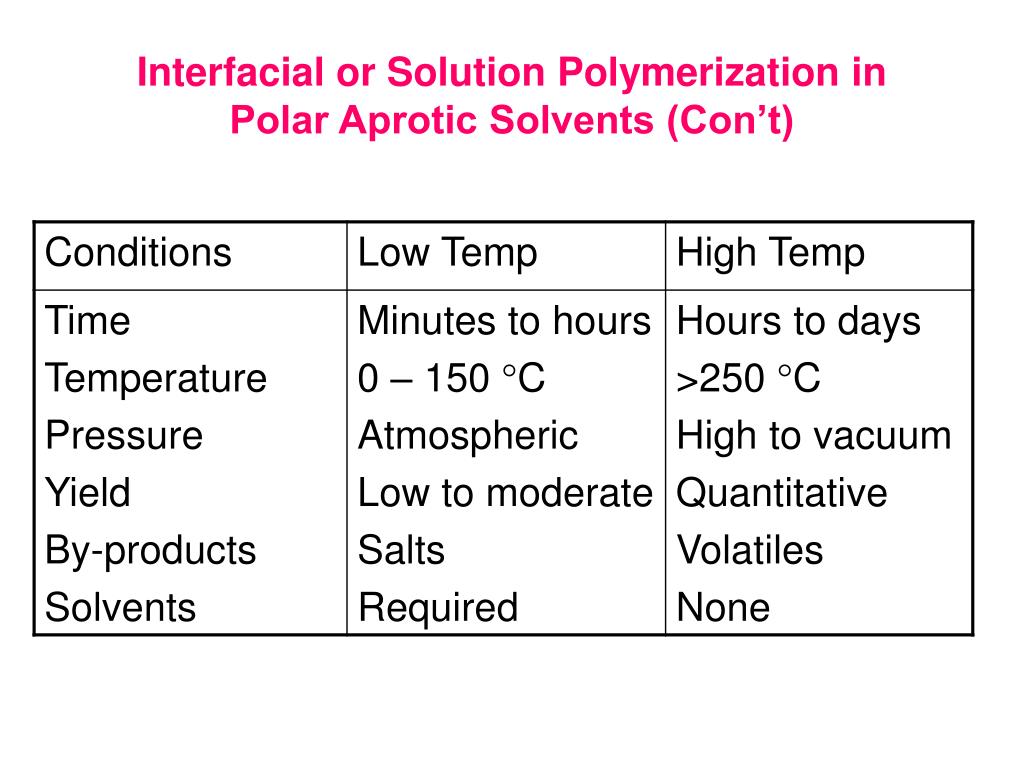

Low Temperature Condensation Polymerization
  • Interfacial or Solution in Polar Aprotic Solvents
applications of low temperature condensations

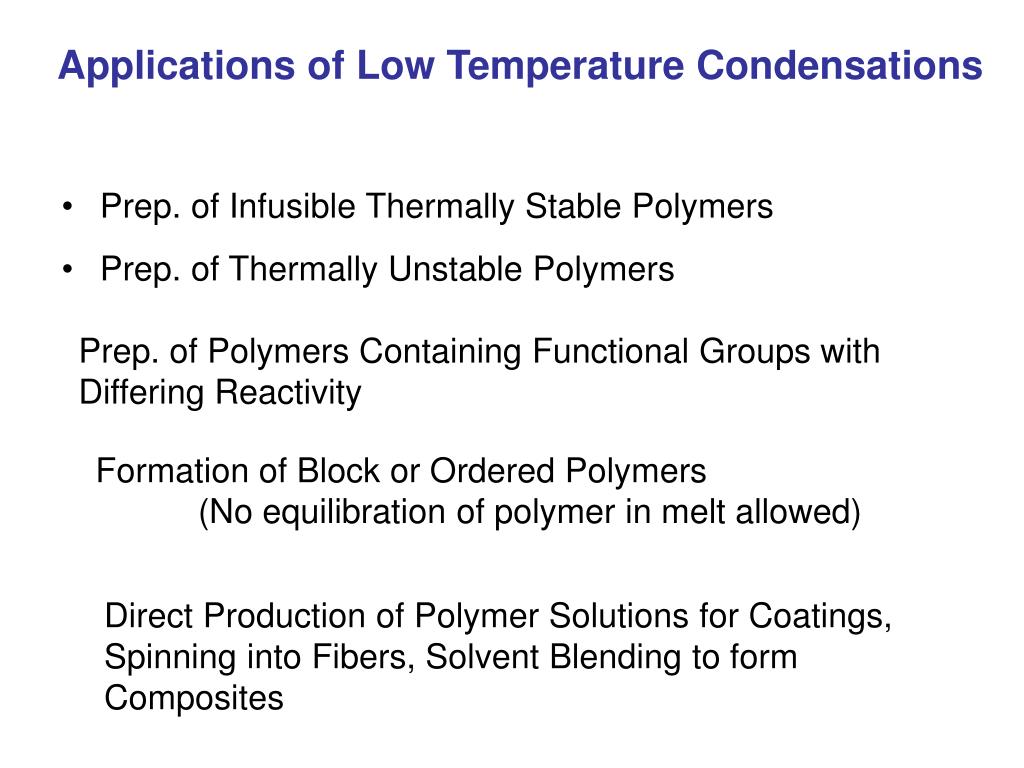

Applications of Low Temperature Condensations
  • Prep. of Infusible Thermally Stable Polymers
  • Prep. of Thermally Unstable Polymers

Prep. of Polymers Containing Functional Groups with Differing Reactivity

Formation of Block or Ordered Polymers

(No equilibration of polymer in melt allowed)

Direct Production of Polymer Solutions for Coatings, Spinning into Fibers, Solvent Blending to form Composites

types of condensation polymers2

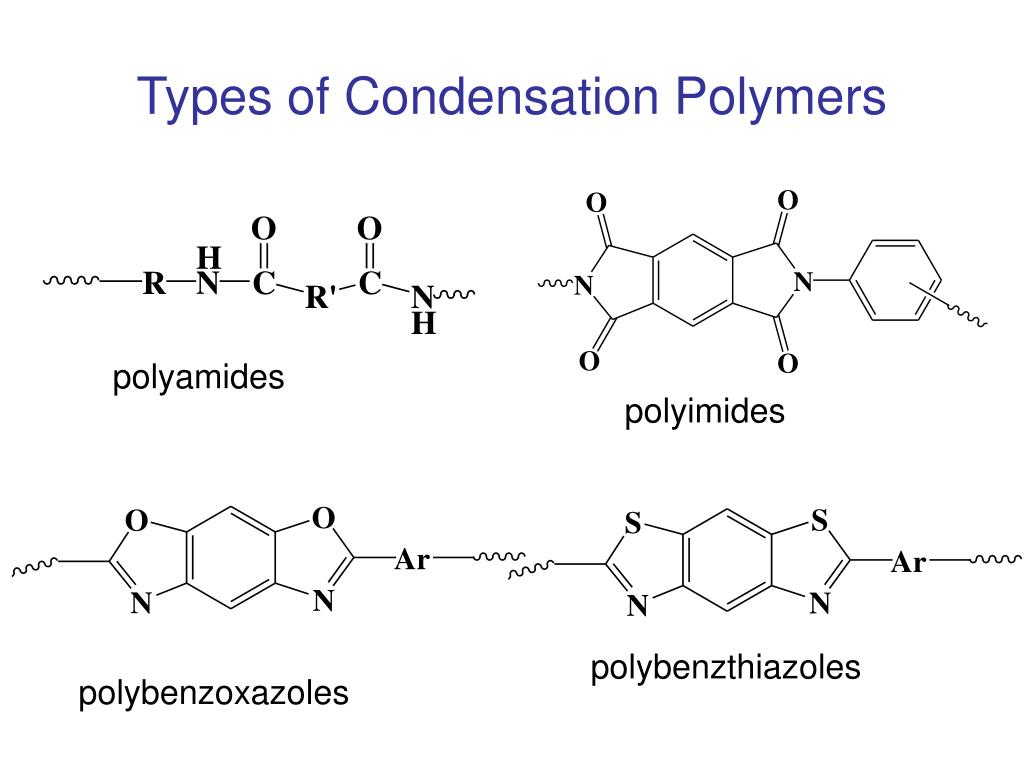

Types of Condensation Polymers





aromatic polyamides aramids

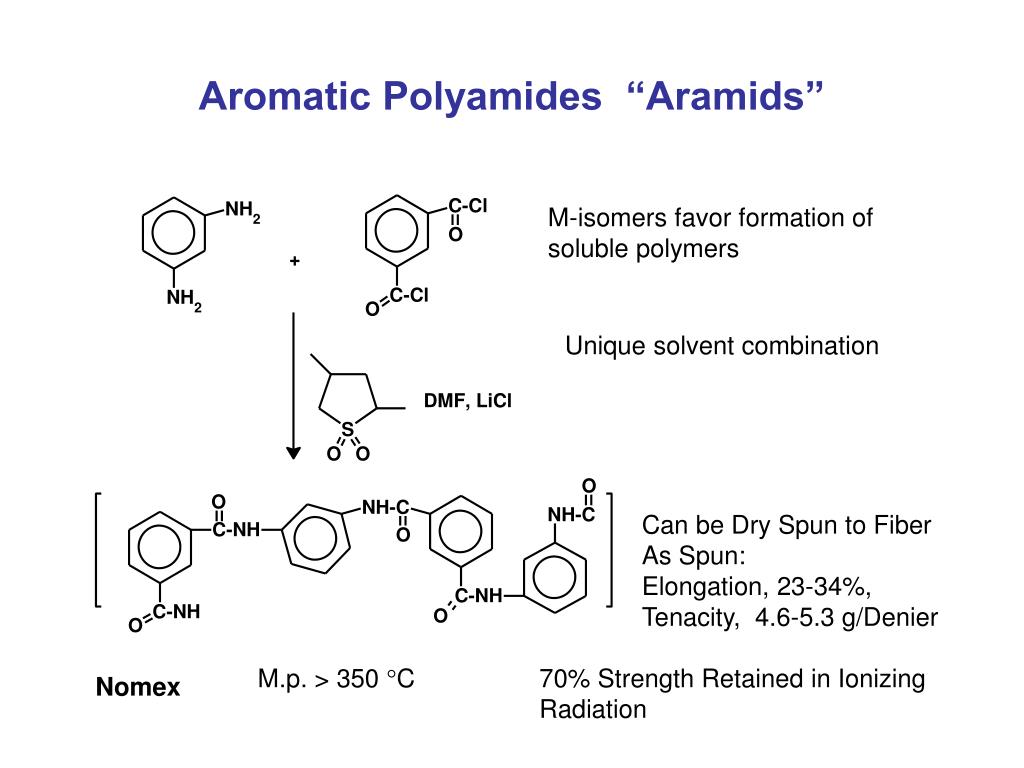

Aromatic Polyamides “Aramids”

M-isomers favor formation of soluble polymers

Unique solvent combination

Can be Dry Spun to Fiber

As Spun:

Elongation, 23-34%,

Tenacity, 4.6-5.3 g/Denier

M.p. > 350 C

70% Strength Retained in Ionizing Radiation


polyimides for electronic applications

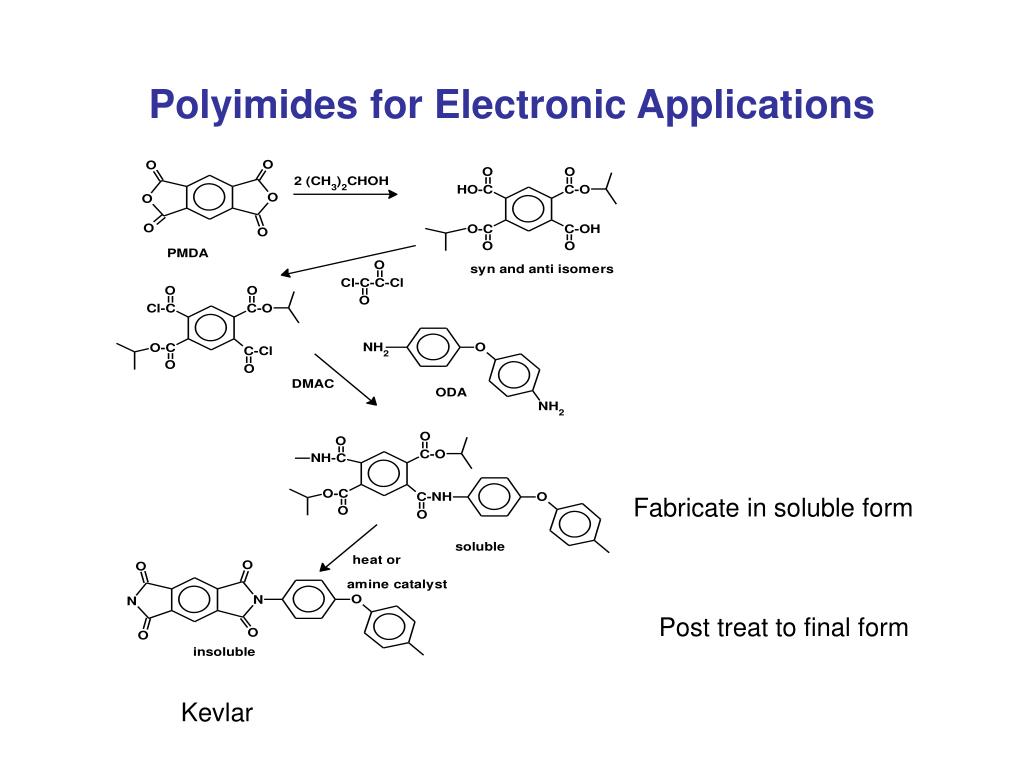

Polyimides for Electronic Applications

Fabricate in soluble form

Post treat to final form




Polymerize by SnAr2

Monofunctional terminator to stabilize polymer

Use Temperature -100 to + 175C

Stable in air to 500C, Self Extinguishing

Molecular Weight = 65,000 - 250,000

Amorphous Material, Tg  200C, Films pressed at 280C

polyphenylene oxide ppo

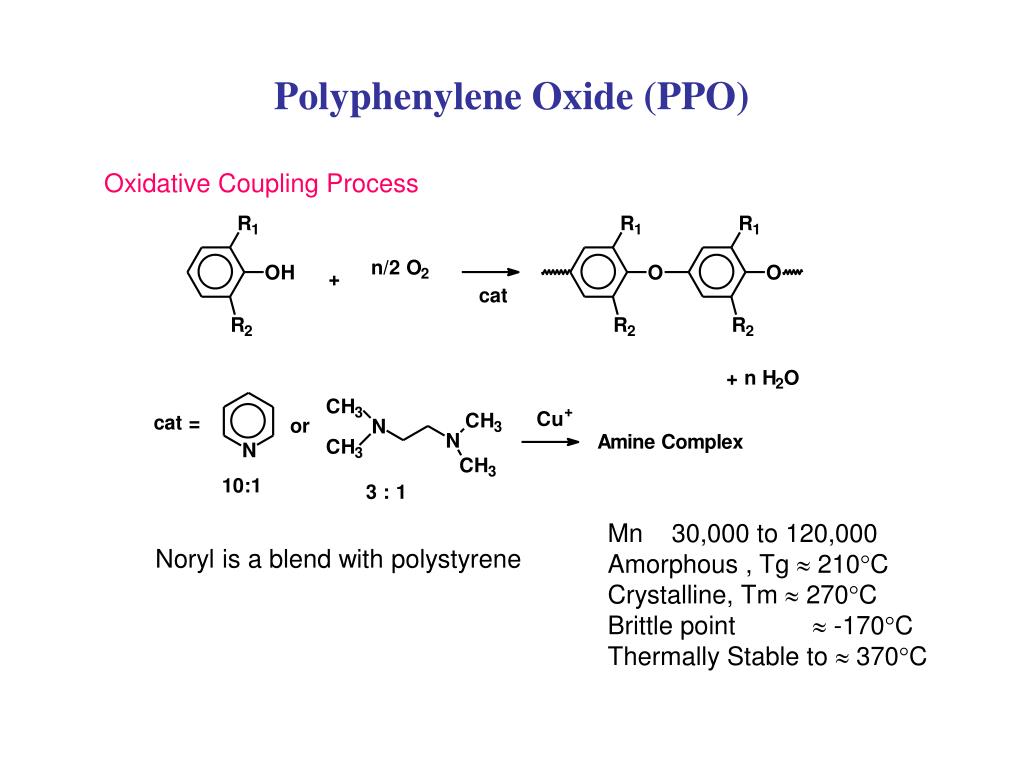

Polyphenylene Oxide (PPO)

Oxidative Coupling Process

Mn 30,000 to 120,000

Amorphous , Tg  210C Crystalline, Tm  270C

Brittle point  -170C

Thermally Stable to  370C

Noryl is a blend with polystyrene

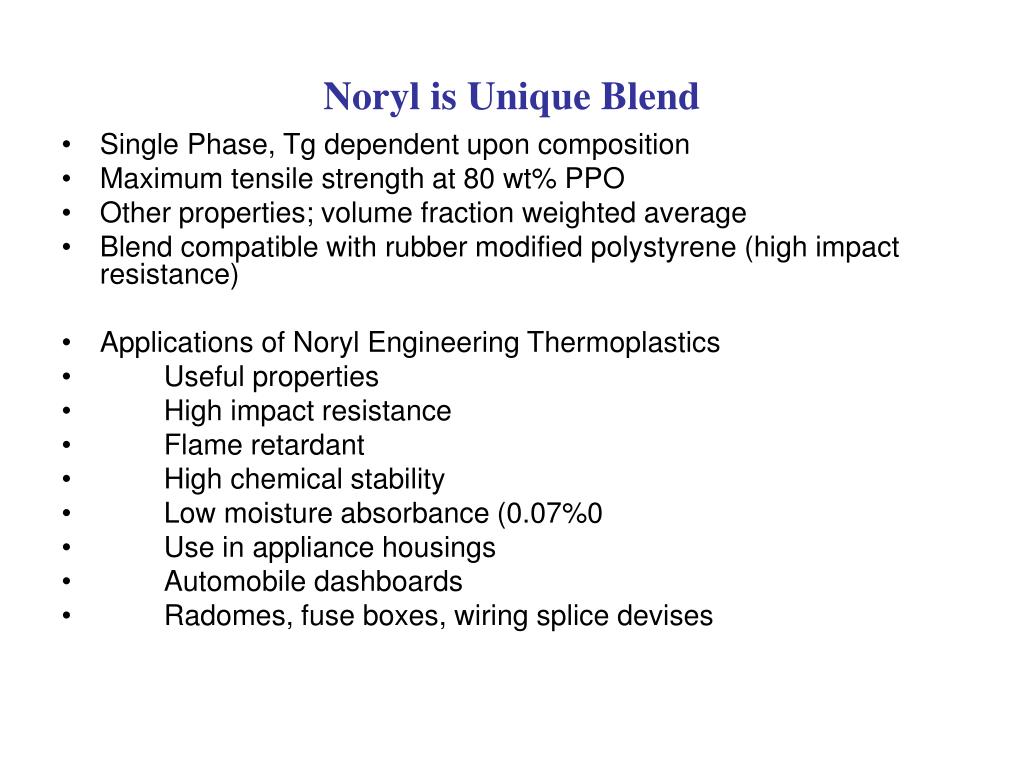

noryl is unique blend
Noryl is Unique Blend
  • Single Phase, Tg dependent upon composition
  • Maximum tensile strength at 80 wt% PPO
  • Other properties; volume fraction weighted average
  • Blend compatible with rubber modified polystyrene (high impact resistance)
  • Applications of Noryl Engineering Thermoplastics
  • Useful properties
  • High impact resistance
  • Flame retardant
  • High chemical stability
  • Low moisture absorbance (0.07%0
  • Use in appliance housings
  • Automobile dashboards
  • Radomes, fuse boxes, wiring splice devises
