Presentation Transcript
induction motor applications
Induction Motor Applications
  • Design B
    • Broadest field of applications
    • Centrifugal pumps, fans, blowers, machine tools
  • Design A
    • Same characteristics as Design B, but with higher breakdown torque
    • Higher starting current limits applications

ECE 441

induction motor applications continued
Induction Motor Applications continued
  • Design C
    • Higher locked-rotor torque but lower breakdown torque than Design B
    • Use to drive plunger pumps, vibrating screens, and compressors
  • Design D
    • Very high locked-rotor torque and high slip
    • Used for high-inertia loads such as elevators and hoists

ECE 441

induction motor applications continued5

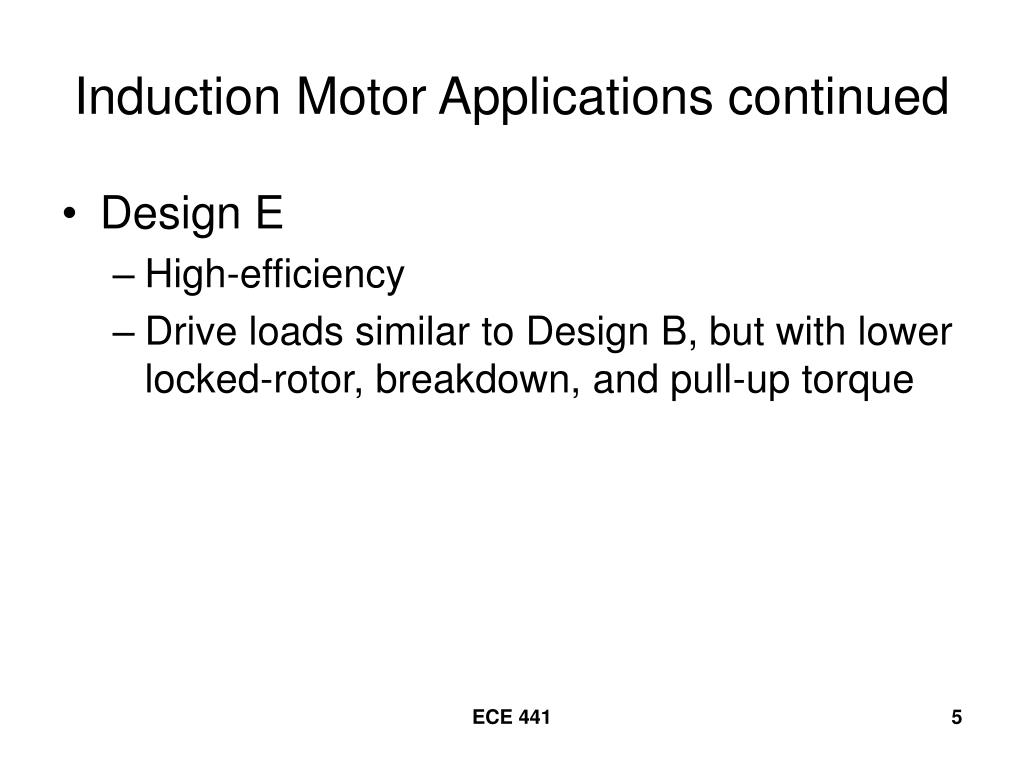

Induction Motor Applications continued
  • Design E
    • High-efficiency
    • Drive loads similar to Design B, but with lower locked-rotor, breakdown, and pull-up torque

ECE 441

nema tables

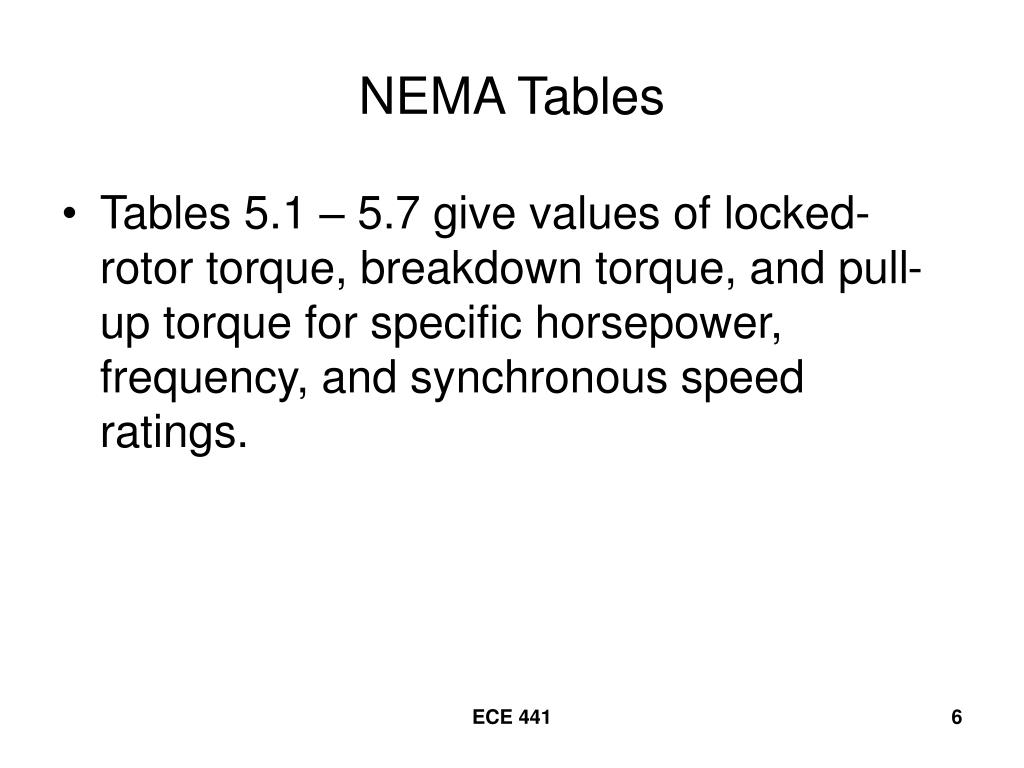

NEMA Tables
  • Tables 5.1 – 5.7 give values of locked-rotor torque, breakdown torque, and pull-up torque for specific horsepower, frequency, and synchronous speed ratings.

ECE 441

example 5 1

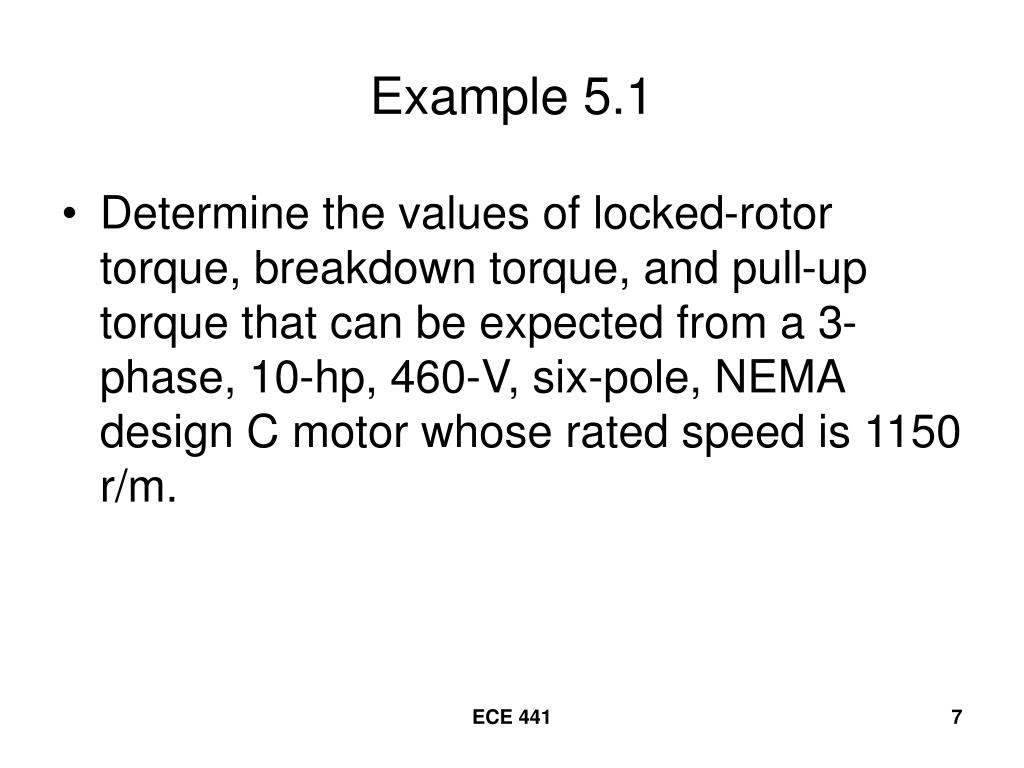

Example 5.1
  • Determine the values of locked-rotor torque, breakdown torque, and pull-up torque that can be expected from a 3-phase, 10-hp, 460-V, six-pole, NEMA design C motor whose rated speed is 1150 r/m.

ECE 441

solution
Solution

ECE 441

locked rotor torque
Locked-Rotor Torque
  • From Table 5.1, page 171 of the text, the minimum locked-rotor torque of a 10-hp design C motor with a synchronous speed of 1200 r/min should be 225% of full-load torque.

ECE 441

breakdown torque
Breakdown Torque
  • From Table 5-3

ECE 441

pull up torque

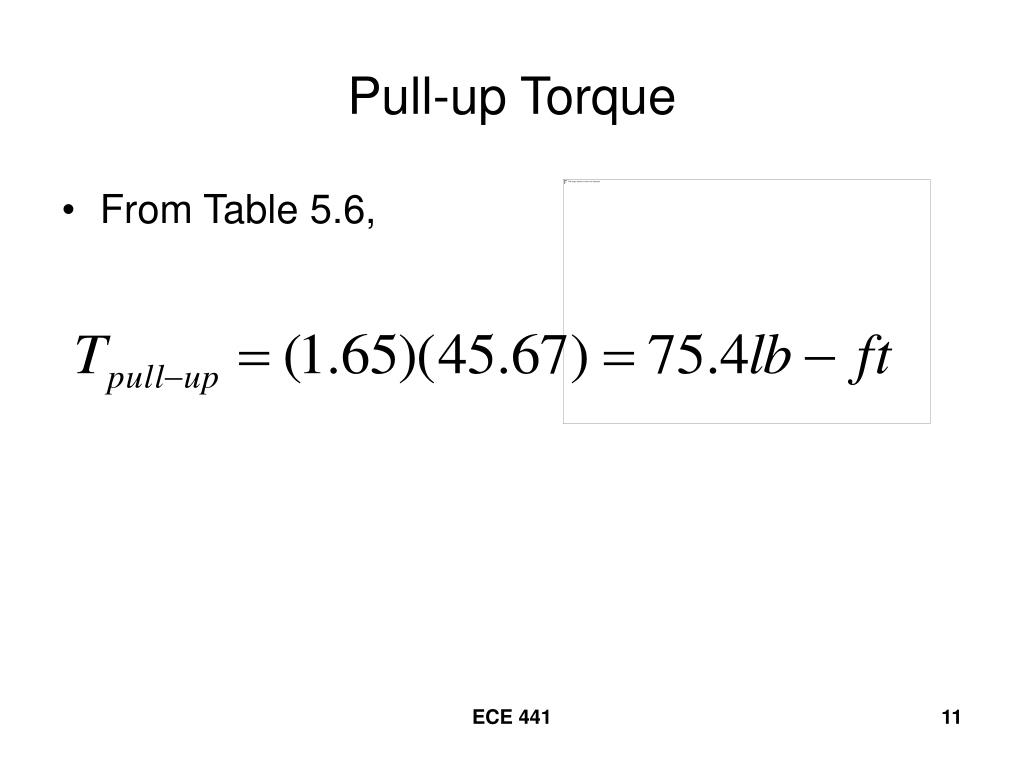

Pull-up Torque
  • From Table 5.6,

ECE 441

motor performance as a function of machine parameters slip and stator voltage
Motor Performance as a function of Machine Parameters, Slip, and Stator Voltage
  • Use the “complete” equivalent circuit model, including both the rotor and stator.

ECE 441

equivalent circuit for an induction motor with all parameters referenced to the stator

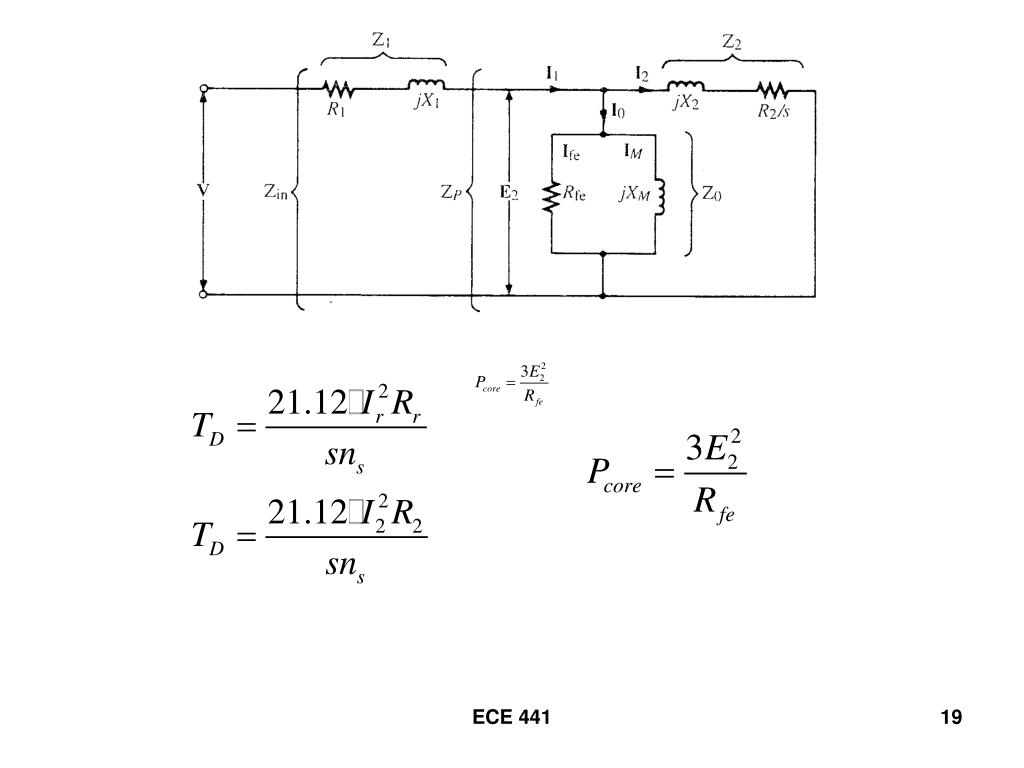

Equivalent Circuit for an Induction Motor with all parameters referenced to the stator

ECE 441

approximate equivalent circuit for an induction motor
Approximate Equivalent Circuit for an Induction Motor

Move the magnetizing branch to the left of resistor R1.

ECE 441

slip at which maximum torque occurs
Slip at Which Maximum Torque Occurs

Take the derivative of the expression for the developed torque

Solve for the value of slip that makes the derivative equal to zero.

Slip is directly proportional to the rotor resistance.

ECE 441

slip at which maximum torque occurs23
Slip at Which Maximum Torque Occurs
  • Applications which require a very high starting torque are designed with enough resistance so that the maximum torque occurs at blocked rotor (s = 1).

ECE 441

maximum torque
Maximum Torque

at maximum torque

Independent of Rotor Resistance!

ECE 441
