Mastering Linear Equations: Graphing Techniques and Practice Quiz

This presentation covers essential techniques for graphing linear equations, including the use of T-tables, x and y intercepts, and slope-intercept form (y = mx + b). You'll learn to identify intercepts, plot points, and construct lines through hands-on practice with various exercises. Additionally, a quiz at the end will test your understanding and reinforce key concepts. Ideal for students looking to strengthen their graphing skills and gain confidence in solving linear equations.

valentine-smith
Download Presentation

Mastering Linear Equations: Graphing Techniques and Practice Quiz

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Presentation Index Graphing Equations of Lines QUIZ: Graphing Equations of Lines

  2. SORRY, incorrect answer!Try Again!

  3. Chapter 3Graphing Linear Equations

  4. What is a Linear Equation? A linear equation in two variables is an equation that can be written in standard form as Ax + By = C where A, B, and C are real numbers and a and b are not both 0.

  5. Methods of Graphing • T-Table • 2)x & y intercepts 3) Slope intercept form (y=mx+b)

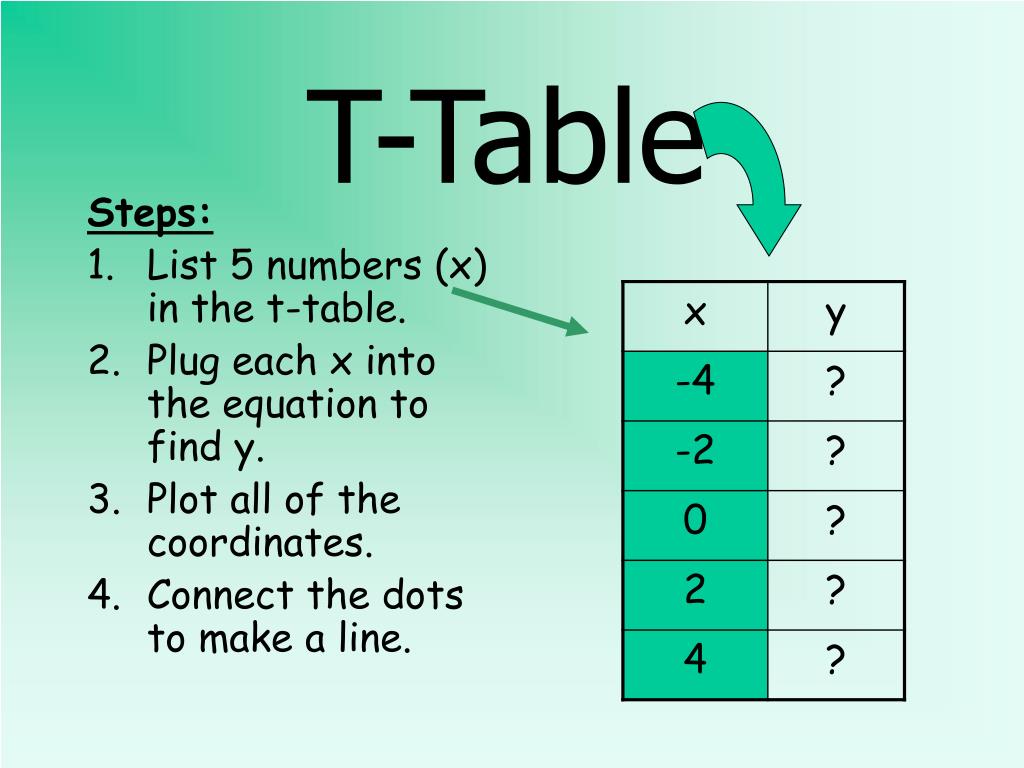

  6. Steps: List 5 numbers (x) in the t-table. Plug each x into the equation to find y. Plot all of the coordinates. Connect the dots to make a line. T-Table

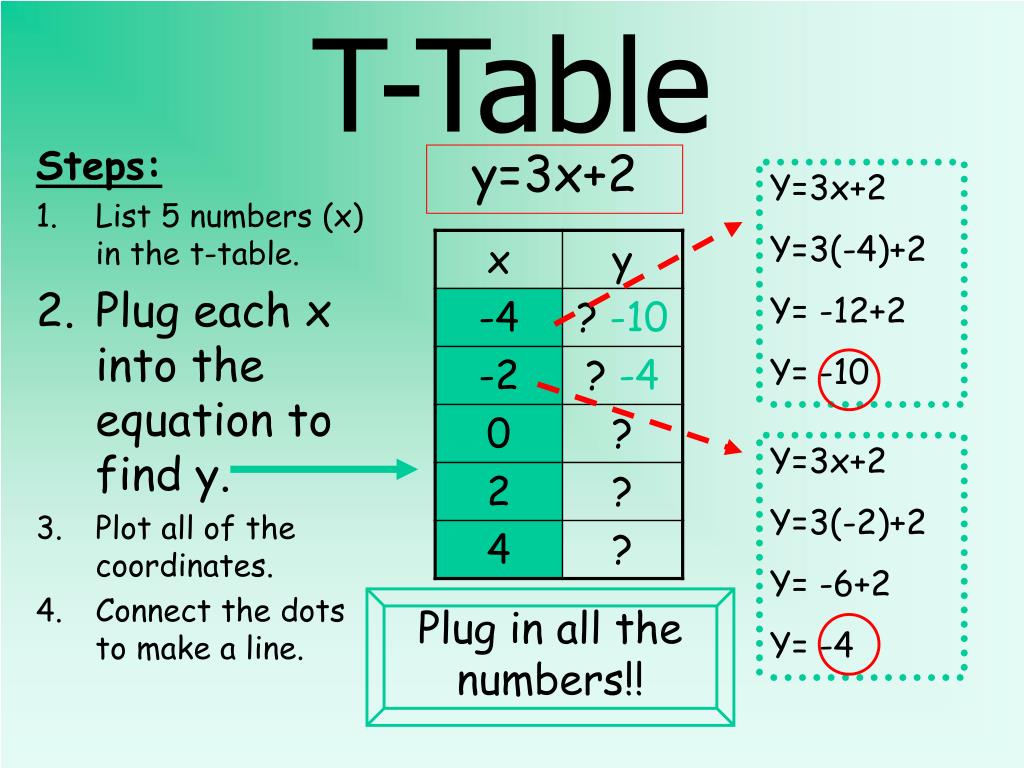

  7. y=3x+2 Steps: List 5 numbers (x) in the t-table. Plug each x into the equation to find y. Plot all of the coordinates. Connect the dots to make a line. Y=3x+2 Y=3(-4)+2 Y= -12+2 Y= -10 Y=3x+2 Y=3(-2)+2 Y= -6+2 Y= -4 Plug in all the numbers!! T-Table

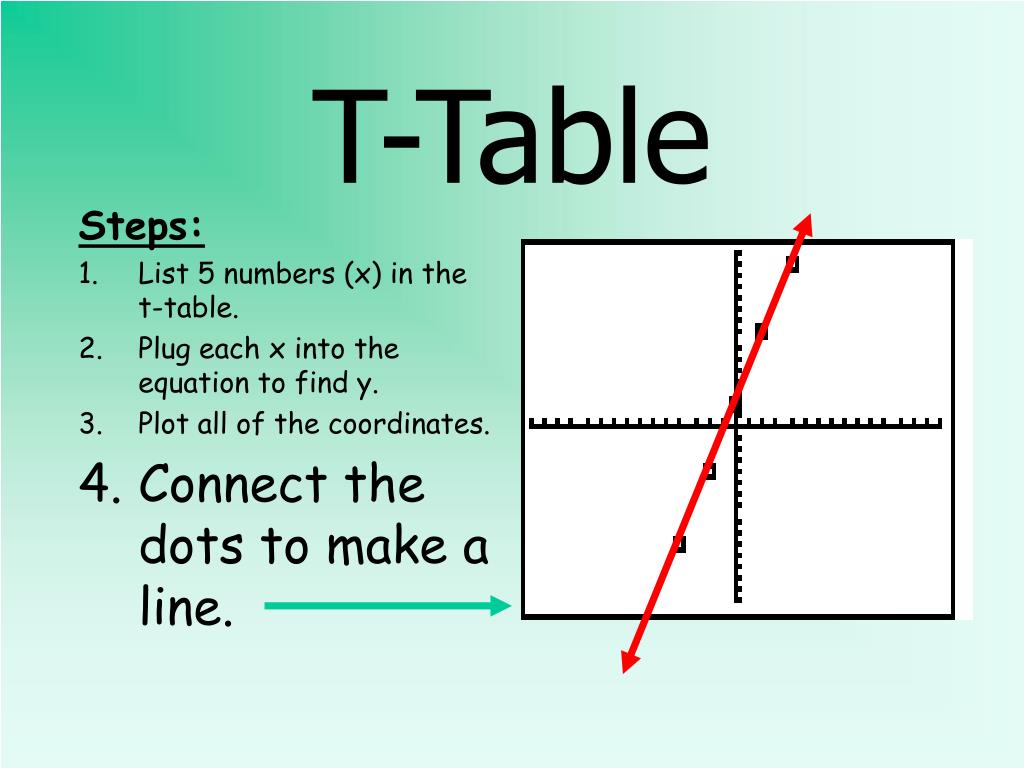

  8. Steps: List 5 numbers (x) in the t-table. Plug each x into the equation to find y. Plot all of the coordinates. Connect the dots to make a line. T-Table

  9. Steps: List 5 numbers (x) in the t-table. Plug each x into the equation to find y. Plot all of the coordinates. Connect the dots to make a line. T-Table

  10. STOP! Work on the “Try These” #1-2 on the Notesheet (You only need to do a table with three values)

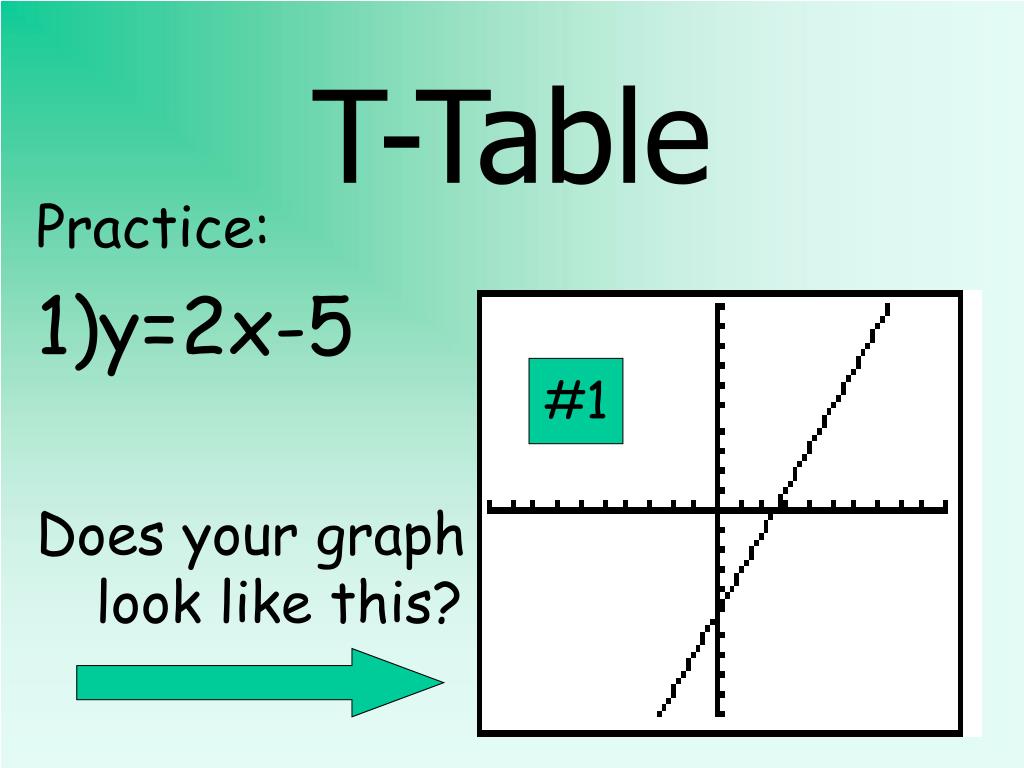

  11. Practice: y=2x-5 Does your graph look like this? #1 T-Table

  12. Practice: x+3y=6 Does your graph look like this? #2 T-Table

  13. X & Y InterceptsWhat are they? • x-intercept: The point where the line crosses the x-axis. • To find, let y = 0 and find the value of x. • Write as an ordered pair (x, 0) • y-intercept: The point where the line crosses the y-axis. • To find, let x = 0 and find the value of y. • Write as an ordered pair (0, y)

  14. Steps: 1) Find the x-intercept of the line (evaluate when y=0) 2) Find the y-intercept of the line (evaluate when x=0) 3) Plot the two ordered pairs (#,0) and (0,#) 4) Connect the dots to make a line. X-Intercept y=2x-6 0=2x-6 +6 +6 6=2x 2 3=x X-intercept: (3,0) X & Y Intercepts y=2x-6

  15. Steps: 1) Find the x-intercept of the line (evaluate when y=0) 2) Find the y-intercept of the line (evaluate when x=0) 3) Plot the two ordered pairs (#,0) and (0,#) 4) Connect the dots to make a line. y-Intercept y=2x-6 y=2(0)-6 y=0-6 y= -6 y-intercept: (0,-6) X & Y Intercepts y=2x-6

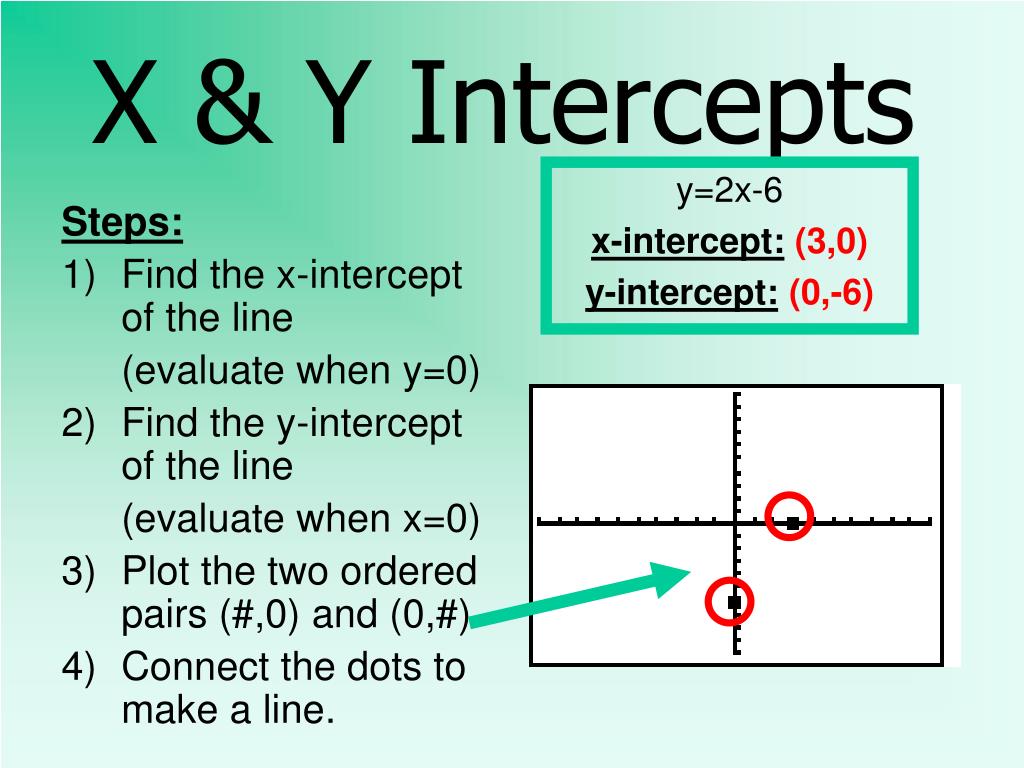

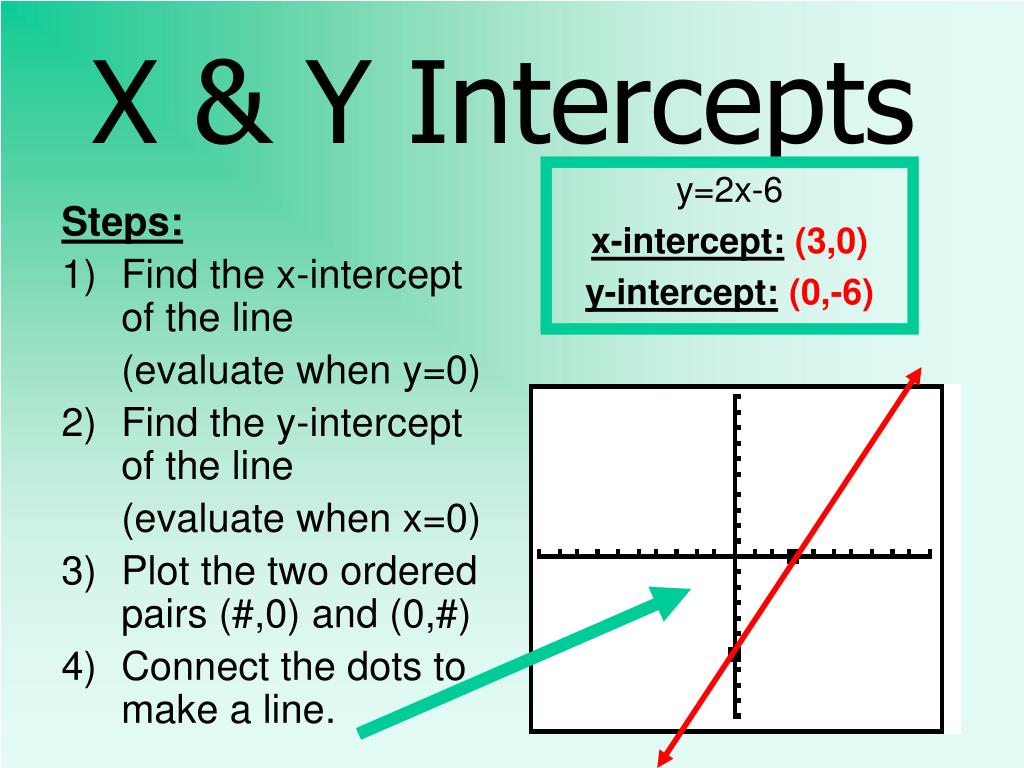

  16. Steps: 1) Find the x-intercept of the line (evaluate when y=0) 2) Find the y-intercept of the line (evaluate when x=0) 3) Plot the two ordered pairs (#,0) and (0,#) 4) Connect the dots to make a line. X & Y Intercepts y=2x-6 x-intercept:(3,0) y-intercept: (0,-6)

  17. Steps: 1) Find the x-intercept of the line (evaluate when y=0) 2) Find the y-intercept of the line (evaluate when x=0) 3) Plot the two ordered pairs (#,0) and (0,#) 4) Connect the dots to make a line. X & Y Intercepts y=2x-6 x-intercept:(3,0) y-intercept: (0,-6)

  18. STOP! Work on the “Try These” #3 – 4 on the Notesheet

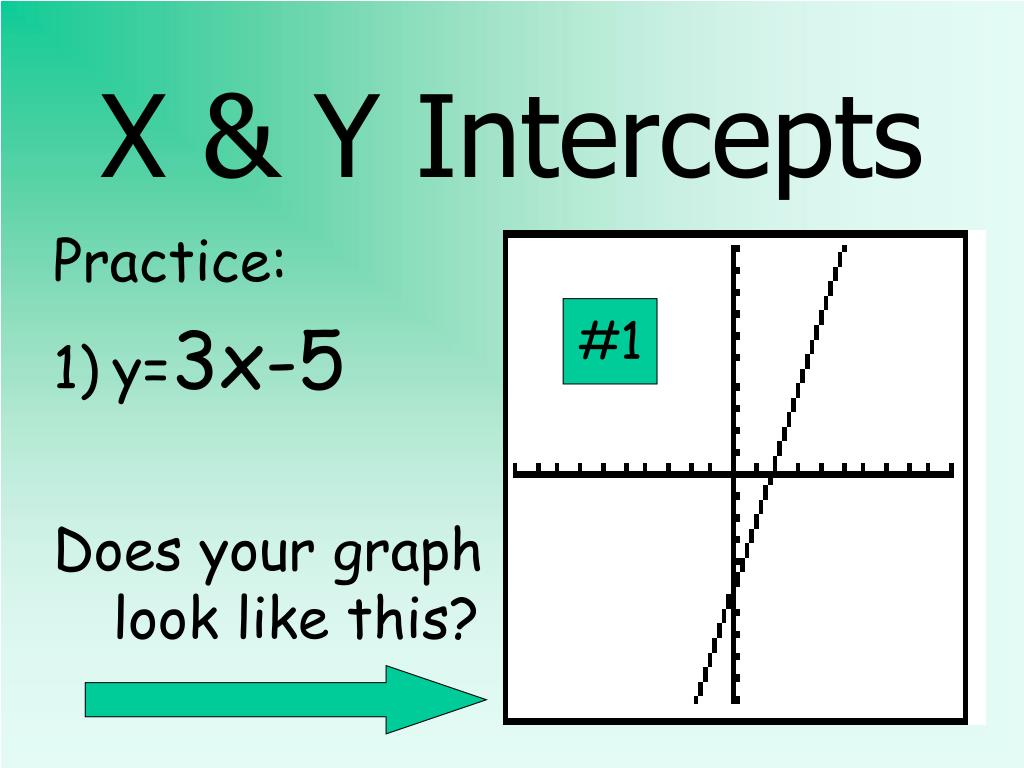

  19. Practice: y=3x-5 Does your graph look like this? #1 X & Y Intercepts

  20. Practice: x+2y=6 Does your graph look like this? #2 X & Y Intercepts

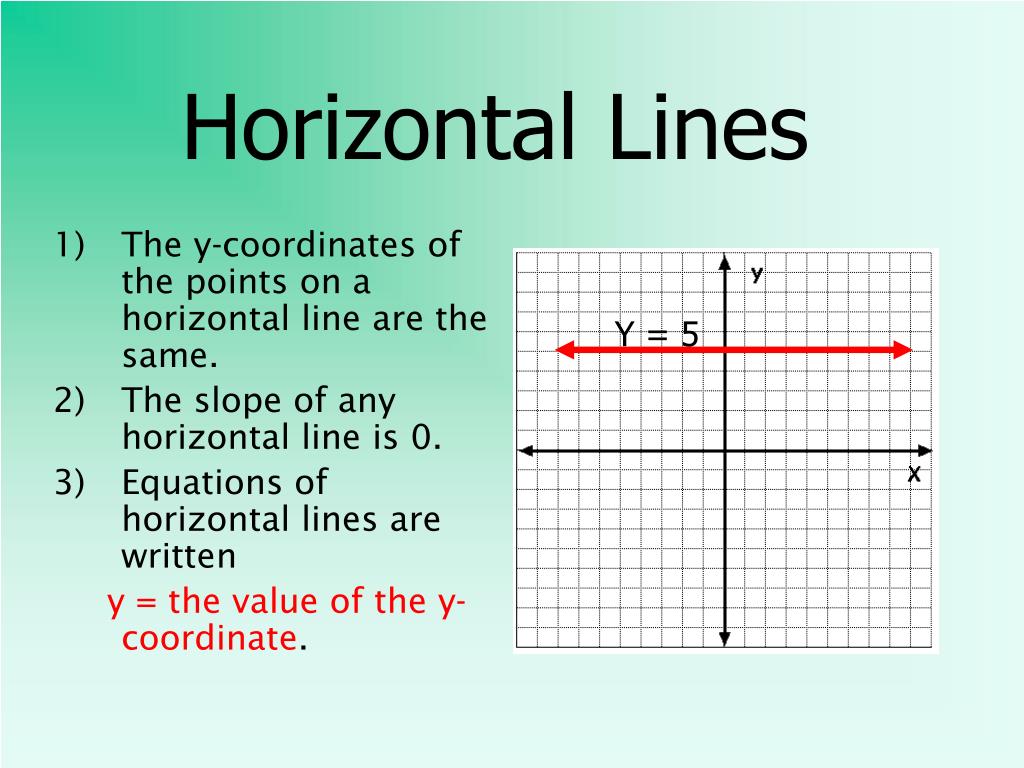

  21. Horizontal Lines • The y-coordinates of the points on a horizontal line are the same. • The slope of any horizontal line is 0. • Equations of horizontal lines are written y = the value of the y-coordinate. Y = 5

  22. Vertical Lines X = -3 • The x-coordinates of the points on a vertical line are the same. • The slope of any vertical line is undefined. • Equations of vertical lines are written x = the value of the x-coordinate.

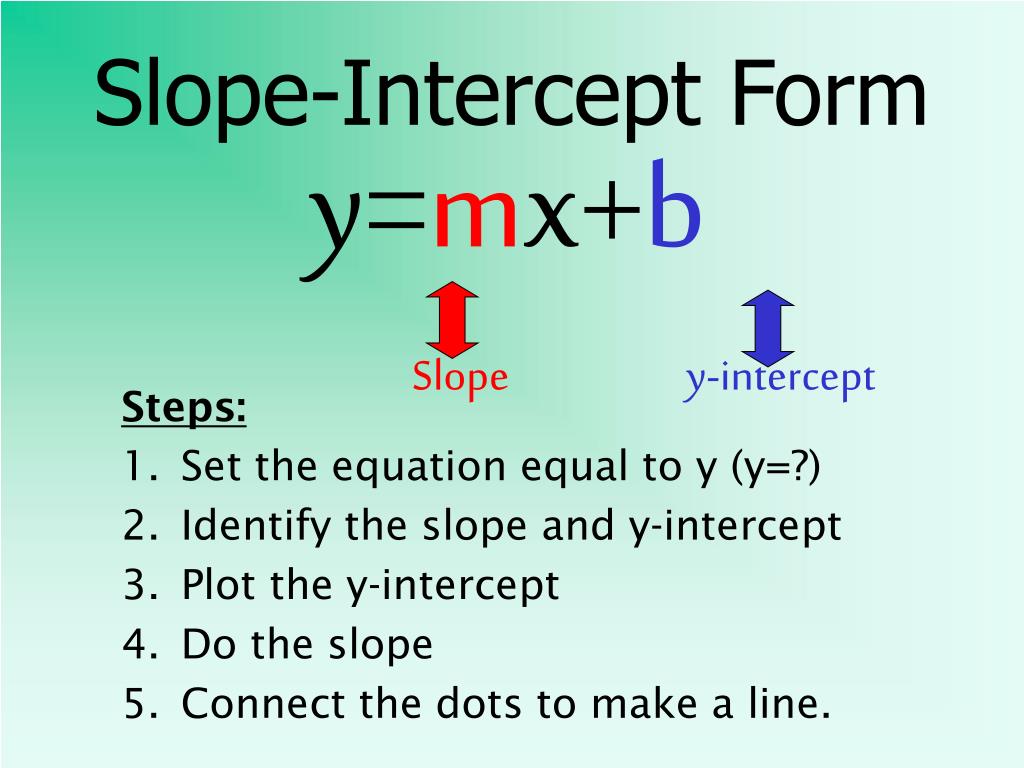

  23. y=mx+b Steps: Set the equation equal to y (y=?) Identify the slope and y-intercept Plot the y-intercept Do the slope Connect the dots to make a line. Slope-Intercept Form Slope y-intercept

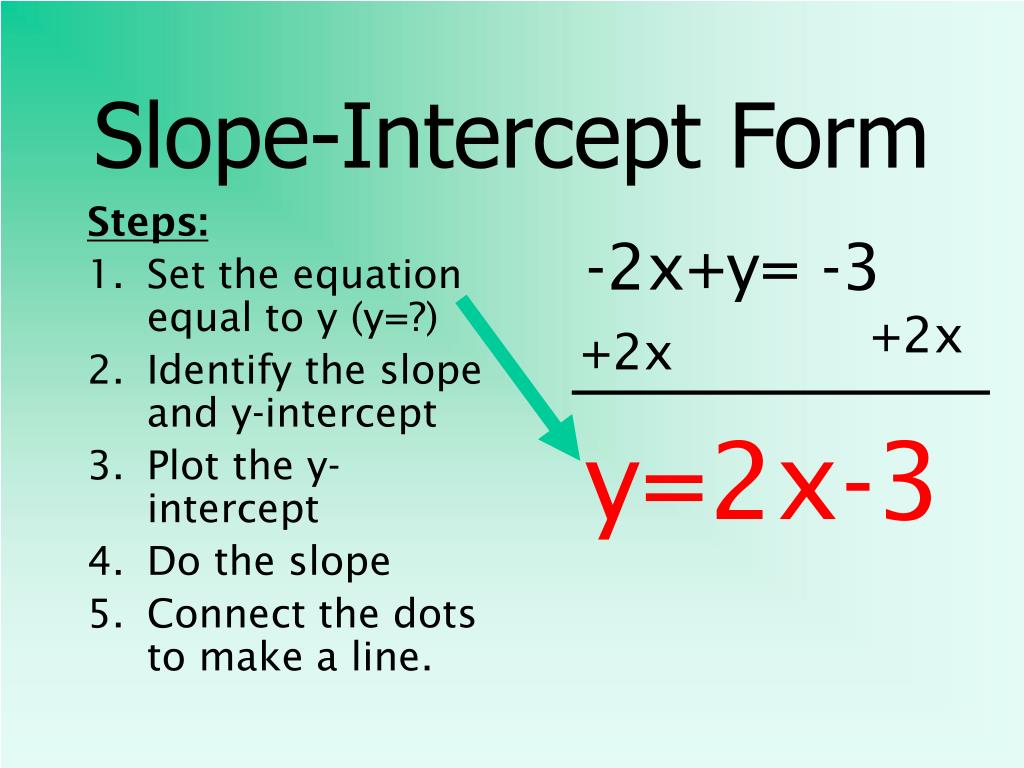

  24. -2x+y= -3 Steps: Set the equation equal to y (y=?) Identify the slope and y-intercept Plot the y-intercept Do the slope Connect the dots to make a line. Slope-Intercept Form +2x +2x y=2x-3

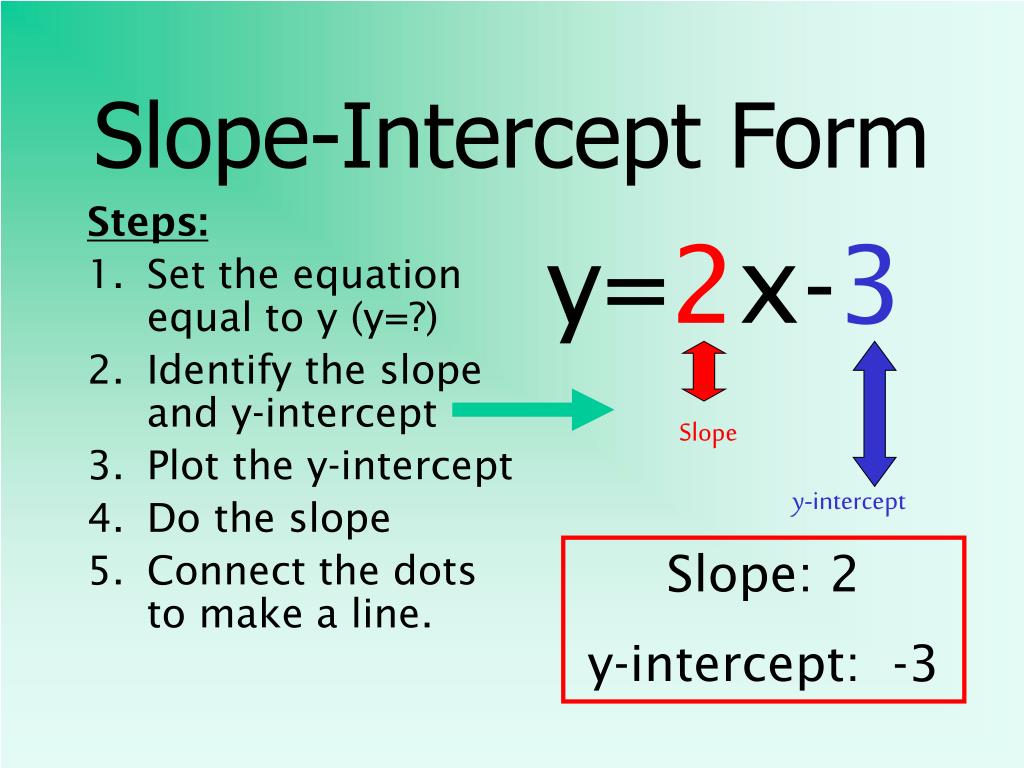

  25. Steps: Set the equation equal to y (y=?) Identify the slope and y-intercept Plot the y-intercept Do the slope Connect the dots to make a line. Slope-Intercept Form y=2x-3 Slope y-intercept Slope: 2 y-intercept: -3

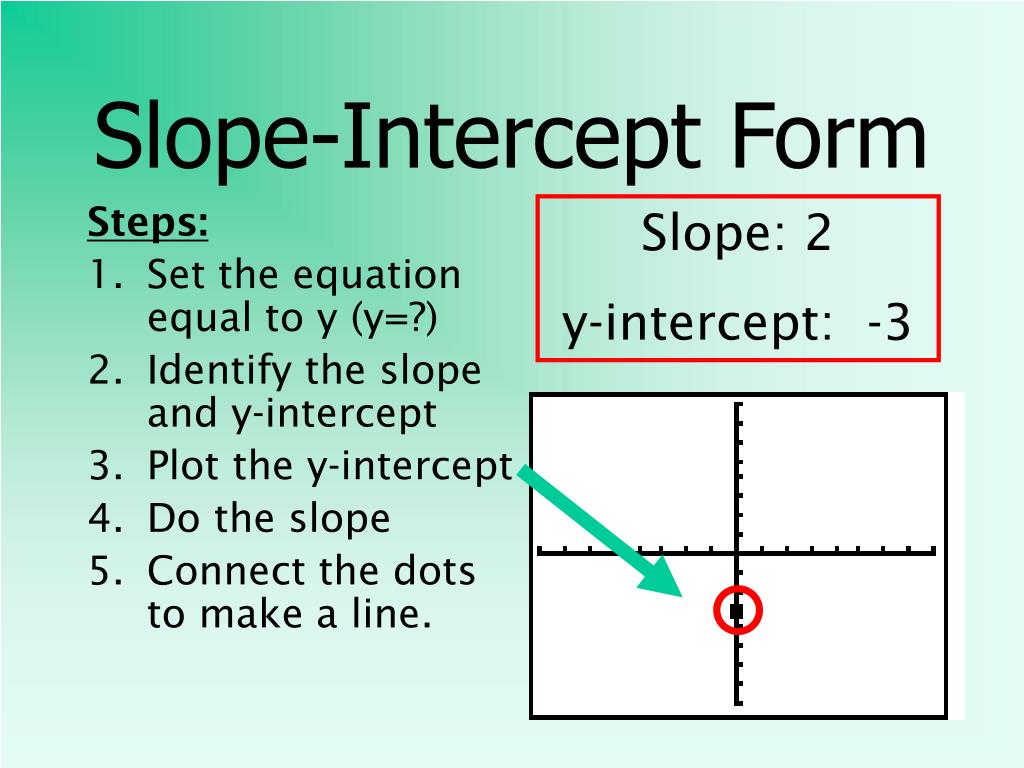

  26. Steps: Set the equation equal to y (y=?) Identify the slope and y-intercept Plot the y-intercept Do the slope Connect the dots to make a line. Slope-Intercept Form Slope: 2 y-intercept: -3

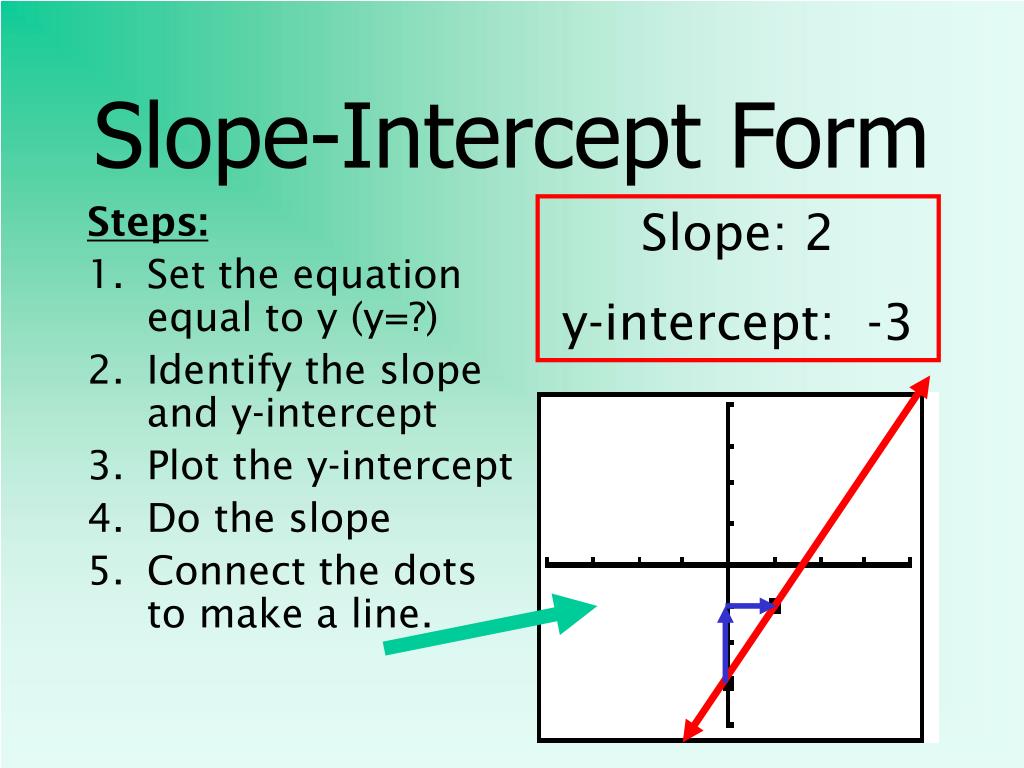

  27. Steps: Set the equation equal to y (y=?) Identify the slope and y-intercept Plot the y-intercept Do the slope Connect the dots to make a line. Slope-Intercept Form Slope: 2 y-intercept: -3 Rise Run

  28. Steps: Set the equation equal to y (y=?) Identify the slope and y-intercept Plot the y-intercept Do the slope Connect the dots to make a line. Slope-Intercept Form Slope: 2 y-intercept: -3

  29. STOP! Work on the “Try These” #5 – 6 on the Notesheet

  30. Practice: y=2/3x+1 Does your graph look like this? #1 Slope-Intercept Form

  31. Practice: 2) 2x+y=3 Does your graph look like this? #2 Slope-Intercept Form

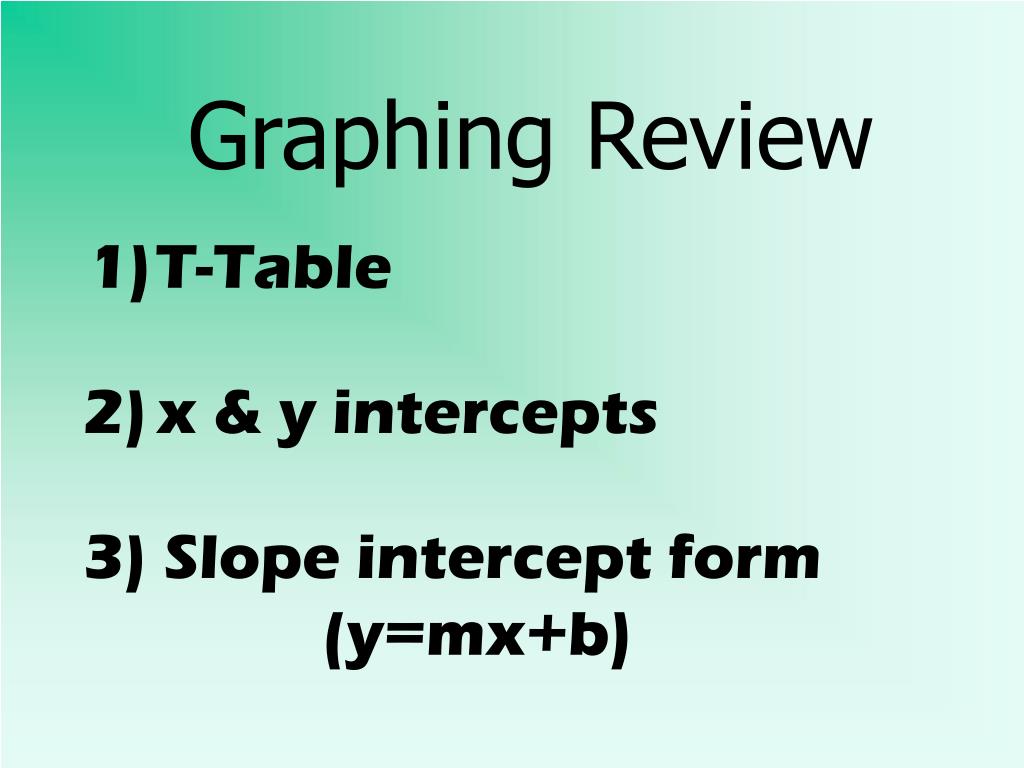

  32. Graphing Review • T-Table • 2)x & y intercepts 3) Slope intercept form (y=mx+b)

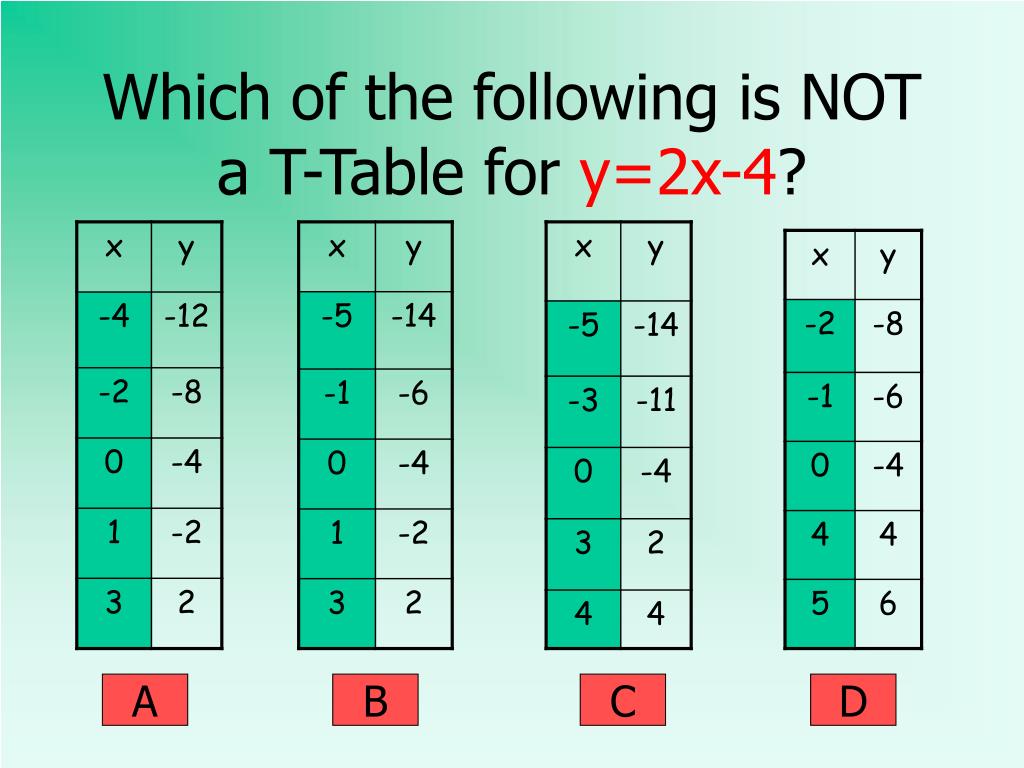

  33. Which of the following is NOT a T-Table for y=2x-4? A B C D

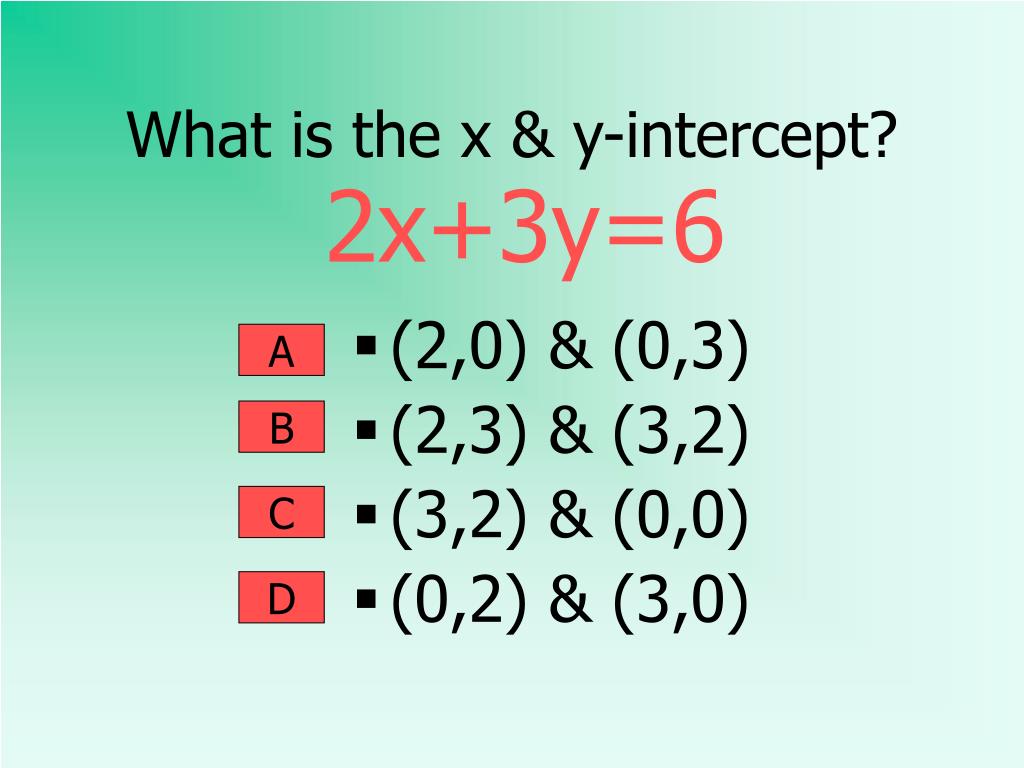

  34. 2x+3y=6 (2,0) & (0,3) (2,3) & (3,2) (3,2) & (0,0) (0,2) & (3,0) What is the x & y-intercept? A B C D

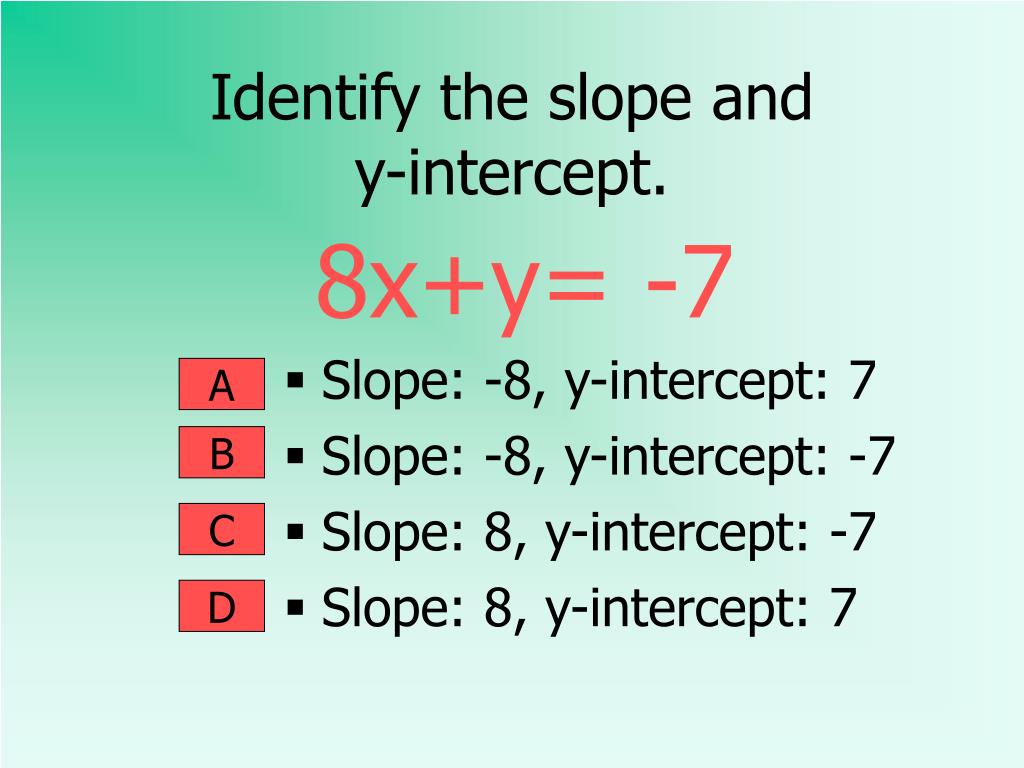

  35. Slope: -8, y-intercept: 7 Slope: -8, y-intercept: -7 Slope: 8, y-intercept: -7 Slope: 8, y-intercept: 7 8x+y= -7 Identify the slope and y-intercept. A B C D

  36. Identify the graph of y= x-3 A B C D

  37. Identify the graph of x+3y=9 D C B A A B C D

  38. Great Job!You have completed the quiz. You may now begin your homework assignment.
