  1. Figure 6-1: Transport Request DataEntities:CS: CustomerOM: Order managerOPM: Operational managerFM: Fleet ManagerMM: Maintenance managerOBT: On board terminal

  2. CS OM OPM* FM F-Man tool OBT Transport request including : - O/D, - loading, departure and delivery dates, - freights type and quantity or - wagon types and quantity Wagons request (O/D, loading, departure and delivery dates, wagons quantity and type) Wagons request in coded form (O/D, loading, departure and delivery dates, wagons quantity and type) 1 2 F-Man options: alternative sets of empty wagons (criteria: cost, wagons location, time availability…) A request for verification of the OPM availability to move wagons to the transportation origin 3 4 The OPM confirmation of availability (foreseen path and timetable) Information to release the other alternative 5 6 Wagons movement confirmation F-Man action perimeter Order for the sending of empty wagons Transport request 7 8 Transport confirmation 9 Order confirmation One Wagon Running Event messages (departure and arrival dates, delivery, restitution…) Delay detection Real time events 10 Wagons are empty and again available 11 time OPM*: Operational manager

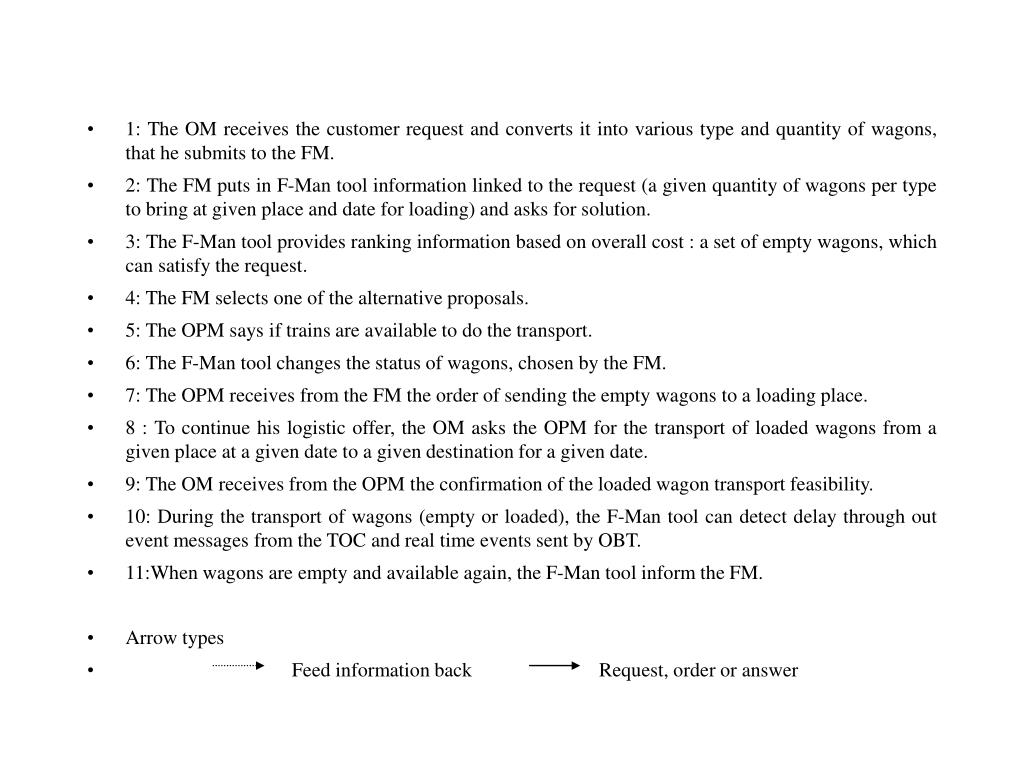

  3. 1: The OM receives the customer request and converts it into various type and quantity of wagons, that he submits to the FM. • 2: The FM puts in F-Man tool information linked to the request (a given quantity of wagons per type to bring at given place and date for loading) and asks for solution. • 3: The F-Man tool provides ranking information based on overall cost : a set of empty wagons, which can satisfy the request. • 4: The FM selects one of the alternative proposals. • 5: The OPM says if trains are available to do the transport. • 6: The F-Man tool changes the status of wagons, chosen by the FM. • 7: The OPM receives from the FM the order of sending the empty wagons to a loading place. • 8 : To continue his logistic offer, the OM asks the OPM for the transport of loaded wagons from a given place at a given date to a given destination for a given date. • 9: The OM receives from the OPM the confirmation of the loaded wagon transport feasibility. • 10: During the transport of wagons (empty or loaded), the F-Man tool can detect delay through out event messages from the TOC and real time events sent by OBT. • 11:When wagons are empty and available again, the F-Man tool inform the FM. • Arrow types • Feed information back Request, order or answer

  4. 3 Cases of Delay

  5. CS OM OPM FM F-Man tool OBT Transport request including : - O/D, - loading, departure and delivery dates, - freights type and quantity or - wagon types and quantity Wagons request (O/D, loading, departure and delivery dates, wagons quantity and type) Wagons request in coded form (O/D, loading, departure and delivery dates, wagons quantity and type) 1 2 F-Man 2nd best solutions: alternative sets of empty wagons (criteria: cost, wagons location, time availability…) A request for verification of the OPM availability to move wagons to the transportation origin If the first solution is not used for any reason, F-Man tool proposes a second best solution that also satisfy the request. 3 4 The OPM confirmation of availability ( foreseen path and timetable) 5 Information to release the other alternative 6 Wagons movement confirmation Order for the sending of empty wagons Transport request 7 8 Transport confirmation 9 Order confirmation One Wagon Running Event messages (departure and arrival dates, delivery, restitution…) Delay detection Real time events 10 Wagons are empty and again available 11 time

  6. CS OM OPM FM F-Man tool OBT Transport request including : - O/D, - loading, departure and delivery dates, - freights type and quantity or - wagon types and quantity Wagons request (O/D, loading, departure and delivery dates, wagons quantity and type) Wagons request in coded form (O/D, loading, departure and delivery dates, wagons quantity and type) 1 2 Because the OPM can not move the predicted empty wagons, the FM has to ask to the OPM for a new set of wagons, proposed by the F-Man tool as the 2nd best solution F-Man options: alternative sets of empty wagons (criteria: cost, wagons location, time availability…) A request for verification of the OPM availability to move wagons to the transportation origin 3 4 The OPM invalidation of availability ( foreseen path and timetable) 5 Information to release the alternative 6 Wagons movement confirmation Order for the sending of empty wagons Transport request 7 8 Transport confirmation 9 Order confirmation One Wagon Running Delay detection Event messages (departure and arrival dates, delivery, restitution…) Real time events 10 Wagons are empty and again available 11 time

  7. CS OM OPM FM F-Man tool OBT Transport request including : - O/D, - loading, departure and delivery dates, - freights type and quantity or - wagon types and quantity Wagons request (O/D, loading, departure and delivery dates, wagons quantity and type) Wagons request in coded form (O/D, loading, departure and delivery dates, wagons quantity7 and type) 1 2 F-Man options: alternative sets of empty wagons (criteria: cost, wagons location, time availability…) A request for verification of the OPM availability to move wagons to the transportation origin 3 4 The OPM confirmation of availability ( foreseen path and timetable) 5 Information to release the other alternative 6 Wagons movement confirmation Order for the sending of empty wagons The FM has to ask the OPM to move empty wagons of the 2nd best solution Transport request 7 8 Transport confirmation Order confirmation 9 One Wagon Running Event messages (departure and arrival dates, delivery, restitution…) Delay detection Real time events 10 Wagons are empty and again available 11 time

  8. Figure 6-3:2 Cases of Maintenance

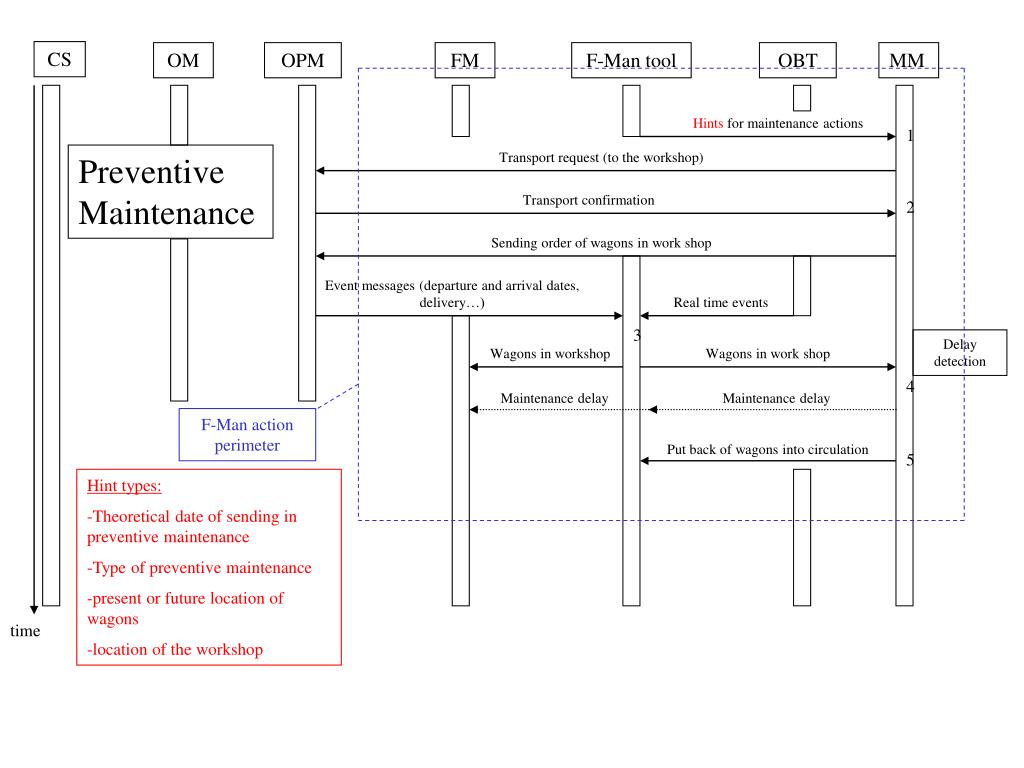

  9. CS OM OPM FM F-Man tool OBT MM Hints for maintenance actions 1 Transport request (to the workshop) Preventive Maintenance Transport confirmation 2 Sending order of wagons in work shop Event messages (departure and arrival dates, delivery…) Real time events 3 Delay detection Wagons in workshop Wagons in work shop 4 Maintenance delay Maintenance delay F-Man action perimeter Put back of wagons into circulation 5 Hint types: -Theoretical date of sending in preventive maintenance -Type of preventive maintenance -present or future location of wagons -location of the workshop time

  10. 1: The MM receives hints from the F-Man tool to organise the sending of wagons to the workshop, by a transport request to the OPM. • 2: After the OPM confirmation, the MM sends toward the OPM an order of empty wagons transport to the workshop. • 3:The F-Man tool receives event messages (from the OPM) and real time events (from the OBT) on the condition of transport and delivery of wagons and then dispatches the information towards the FM and the MM. • 4: The MM looks after the maintenance procedures and informs the F-Man tool and the FM in case of delay. • 5: The MM informs the F-Man tool when wagons are put back into circulation.

  11. CS OM OPM FM F-Man tool OBT MM 1 Event messages (departure and arrival dates, delivery,damage…) Delay detection 2 Delay information 3 Delay information if wagons are loaded Delay information if wagons are empty Transport request (to the workshop) Transport confirmation 4 Curative Maintenance Sending order of wagons in workshop 5 Delay detection Event messages Real time events Wagons in workshop Wagons in workshop 6 Delay detection 7 Maintenance delay Maintenance delay Put back of wagons into circulation 8 F-Man action perimeter time
