  1. THE ELBOW Sports Physiology

  2. Anatomy • Humerus (distal) • Medial epicondyle (5) • Lateral epicondyle (2) • Capitulum (3) • Trochlea (4) • Olecranon fossa (7) • Coronoid fossa (6)

  3. Anatomy • Radius (proximal) • Radial head • Neck of radius • Radial tuberosity • Ulna (proximal) • Olecranon process • Ulnar tuberosity • Radial notch

  4. Bone Anatomy • Radius • Proximal • Radial Head • Radial Tuberosity • Radial Neck • Distal • Ulnar Notch • Radial styloid process

  5. Bone Anatomy • Ulna • Proximal • Olecranon • Olecranon Process • Coronoid Process • Trochlear notch • Radial notch • Ulnar tuberosity • Distal • Ulnar Styloid Process

  6. Elbow Articulations • Humeroulnar Joint • Humeroradial Joint • Proximal Radioulnar Joint • Distal Radioulnar Joint

  7. Elbow Joints • Three distinct joints • One joint capsule • Humeroulnar joint • Trochlea • Trochlear notch • Uniaxial hinge joint • Flexion/extension

  8. Elbow Joints • Humeroradial joint • Capitulum • Radial head • Modified hinge joint • Flex/ext and int/ext rotation • Radioulnar joint • Proximal • Uniaxial pivot joint • Radius pivots about ulna • Pronation/supination

  9. Ligamentous Support • Medial (Ulnar) Collateral Ligament • Anterior • Posterior • Oblique

  10. Ligaments • Medial support • Prevent excessive valgus stress • Ulnar collateral ligament (MCL or UCL) • Fan shaped ligament • Anterior oblique • Medial epicondyle  medial coronoid process • Primary medial support structure of the elbow • Posterior oblique • Medial epicondyle  olecranon process

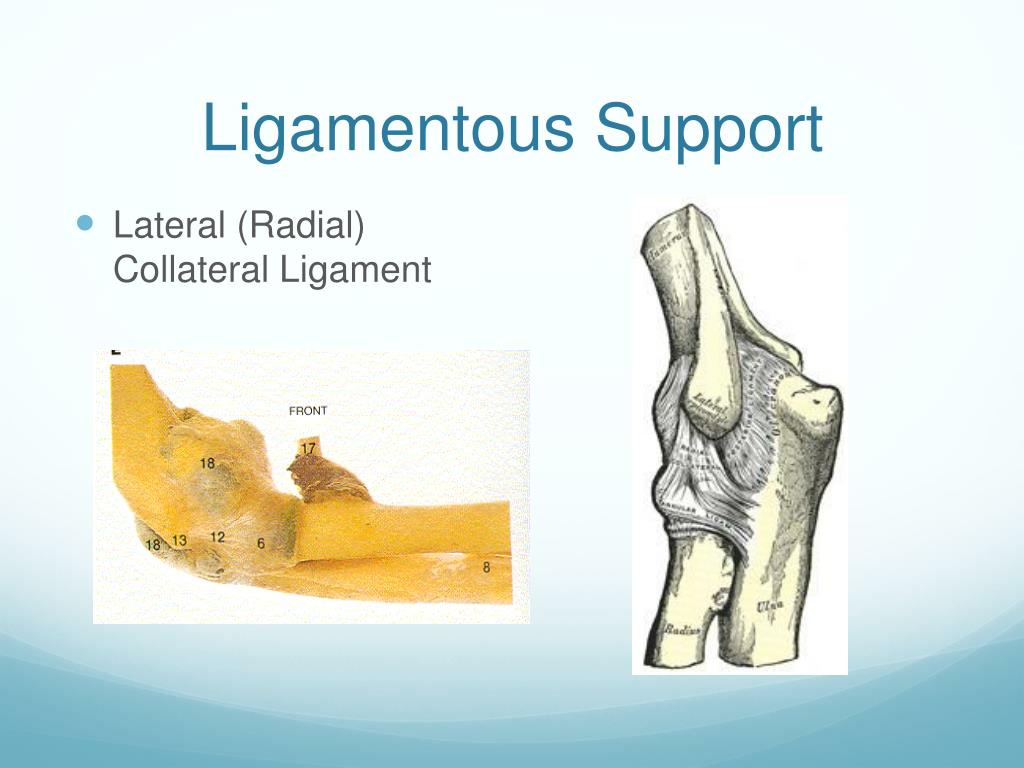

  11. Ligamentous Support • Lateral (Radial) Collateral Ligament

  12. Ligaments • Lateral support • Prevents excessive varus stress • Radial collateral ligament (LCL) • Thickened aspect of lateral capsule • Lateral epicondyle  annular ligament • Radioulnar support • Annular ligament • Coronoid process  coronoid process • Maintains position of radial head in radial notch

  13. Ligaments • Interosseous membrane • Tough fibrous connective tissue • Oblique between radius and ulna • Length of forearm • Role: site for muscle origins and support for joint

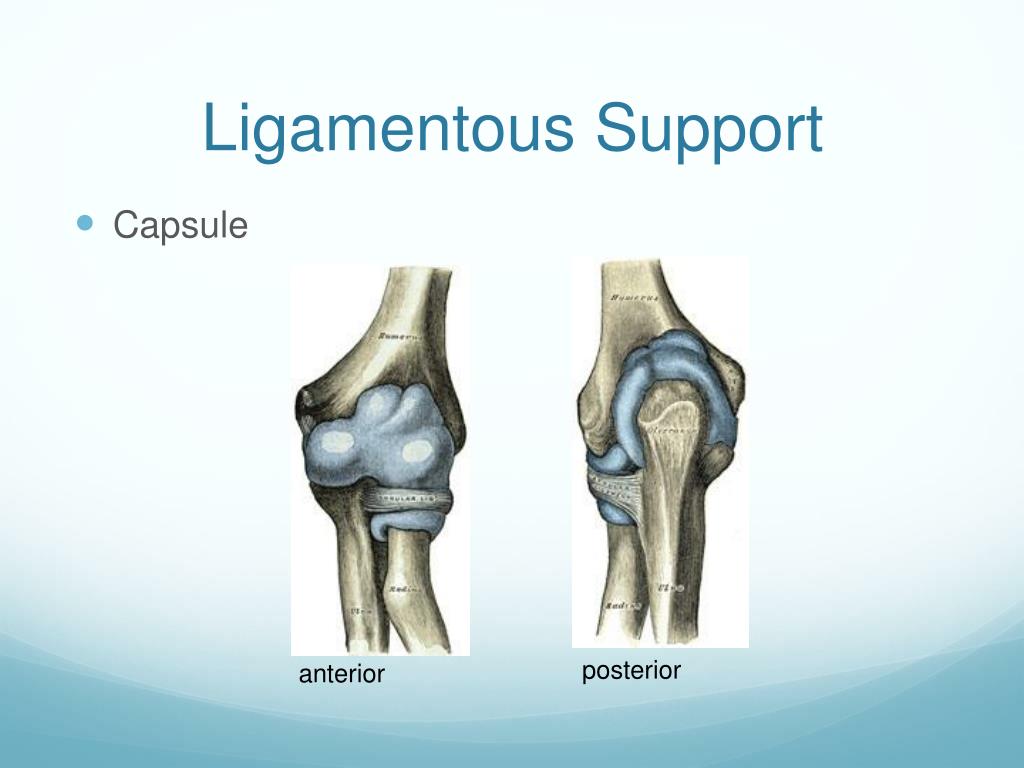

  14. Ligamentous Support • Capsule posterior anterior

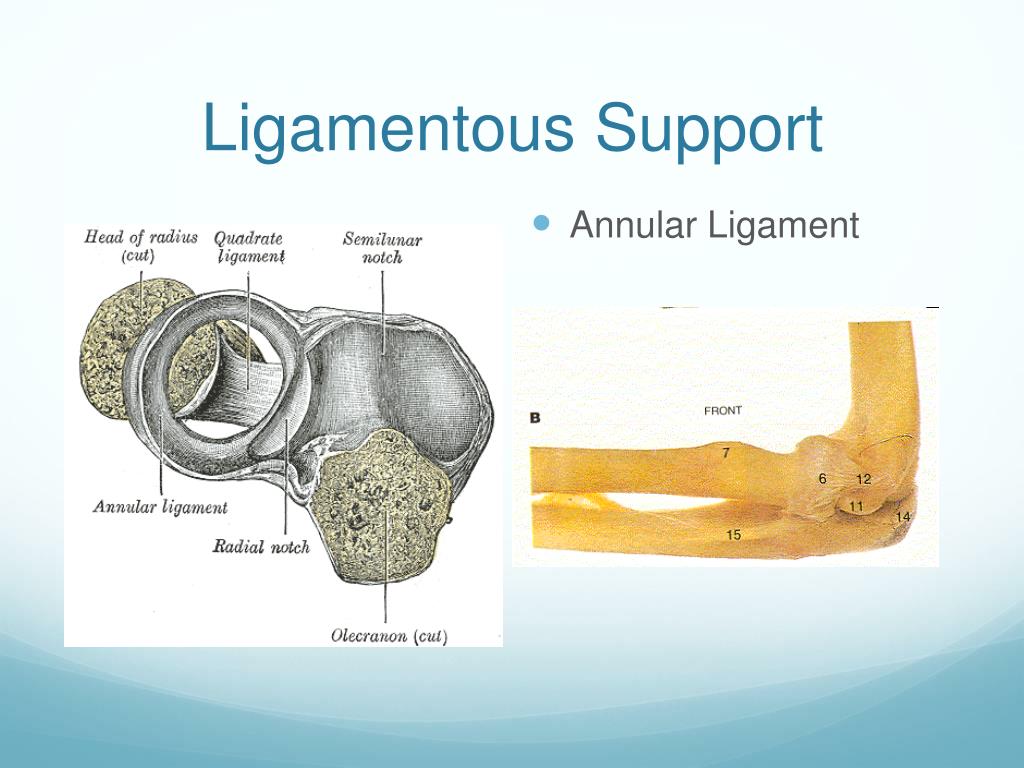

  15. Ligamentous Support • Annular Ligament

  16. Ligamentous Support • Quadrate Ligament

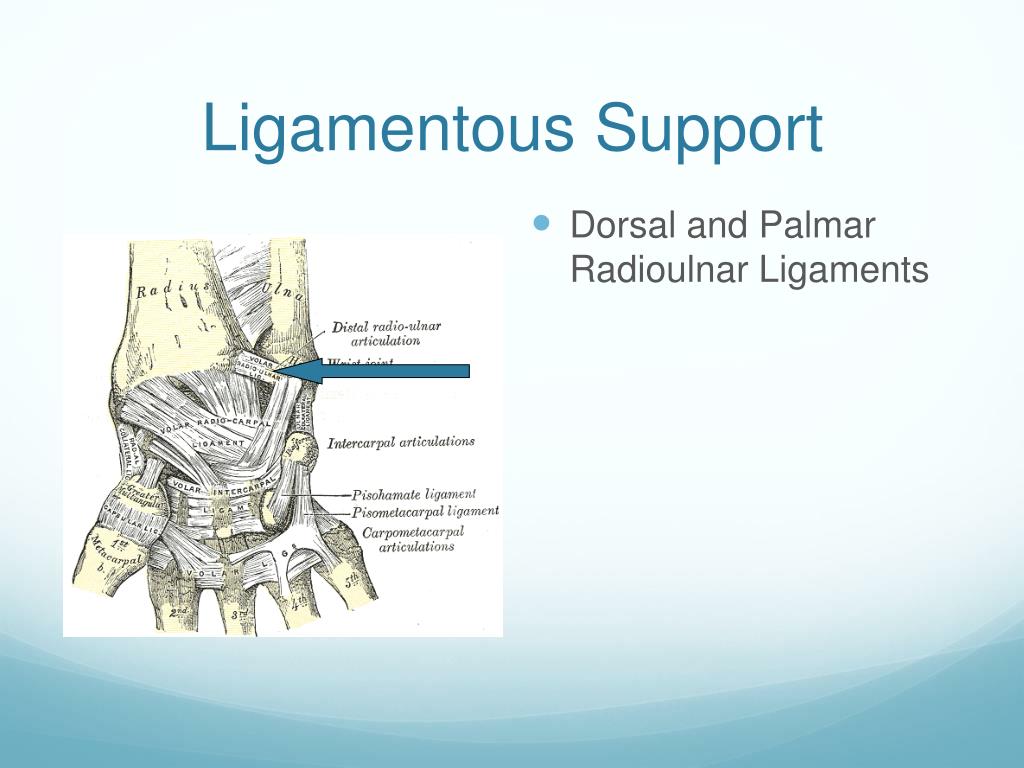

  17. Ligamentous Support • Dorsal and PalmarRadioulnar Ligaments

  18. Bursae • Subcutaneous olecranon bursa • Between olecranon and skin • Often acutely injured in sport • Subtendinous olecranon bursa • Between triceps brachii and olecranon • Often injured in repetitive microtrauma

  19. Muscular Anatomy • Motions • Flexion • Extension • Pronation • Supination • Muscles • Biceps • Triceps • Forearm

  20. Muscular Anatomy • Flexors • Biceps brachii • Insertion at radial tuberosity • Prime elbow flexor in supination • Brachioradialis • Origin at supercondylar ridge of humerus • Prime elbow flexor in neutral • Brachialis • Insertion at coronoid process of ulna • Prime elbow flexor in pronation

  21. Muscular Anatomy • Extensors • Triceps brachii • Insertion at olecranon process of ulna • Prime elbow extensor • Three heads • Long • Lateral • Medial

  22. Muscular Anatomy • Supinators • Supinator • Prime supinator of forearm • Biceps brachii • Pronators • Pronator quadratus • Pronator teres

  23. Biceps Brachii • O • Short head – coracoid process • Long head – supraglenoid tubercle of scapula • I – • Radial tuberosity • Biceps brachiiaponeurosis • N – Musculocutaneous • A– • Shoulder – flexion • Elbow – flexion, forearm supination

  24. Brachialis • O • Distal 2/3 anterior humerus • I • Ulna tuberosity • Coronoid process • N • Musculocutaneous • A • Elbow flexion

  25. Triceps Brachii • O – • Long Head – infraglenoid tubercle • Lateral Head – lateral and posterior surface of proximal ½ of body of humerus • Medial Head – distal 2/3 of medial and posterior surfaces of humerus below radial groove • I – • Posterior surface of olecranonproess • N – Radial • A– • Shoulder – long head – Ext and ADD • Elbow -- extension

  26. Anconeus • O – • Posterior lateral humeral epicondyle • I – • Lateral side of olecranon process • Upper ¼ posterior ulnar body • N – • Radial • A– • Assist with elbow extension

  27. Brachioradialis • O – • Upper 2/3 of lateral humeral supracondylar ridge • I – • Lateral radius just proximal to base of styloid process • N – • Radial • A– • Elbow flexion • Supination to midposition • Pronation to midposition

  28. Supinator • O – • Lateral humeral epicondyle • LCL • Annular ligament • I – • Lateral upper 2/3 of radius • N – • Radial • A– • Forearm supination

  29. Neurological Anatomy • Median nerve • Locale • At elbow in cubital fossa • Follows brachial artery • Middle of anterior forearm • Crosses wrist in carpal tunnel • Sensory • Palmar tip of index finger • Motor • Opposition and pronation

  30. Neurological Anatomy • Ulnar nerve • Locale • At elbow posterior to medial epicondyle (cubital tunnel) • Follows ulnar artery • Sensory • Palmar tip of little finger • Motor • 5th finger abduction

  31. Neurological Anatomy • Radial nerve • Locale • At lateral aspect of elbow • Follows radial artery • Sensory • 1st dorsal web space • Motor • Wrist extension
