paper report

Paper Report

A software-based self-test methodology for in-system testing of processor cache tag arrays

G. Theodorou, N. Kranitis, A. Paschalis

Department of Informatics & Telecommunications, University of Athens, Greece

D. Gizopoulos

Department of Informatics, University of Piraeus, Greece

On-Line Testing Symposium (IOLTS), 2010 IEEE 16th International

Presenter: Jyun-Yan Li

abstract

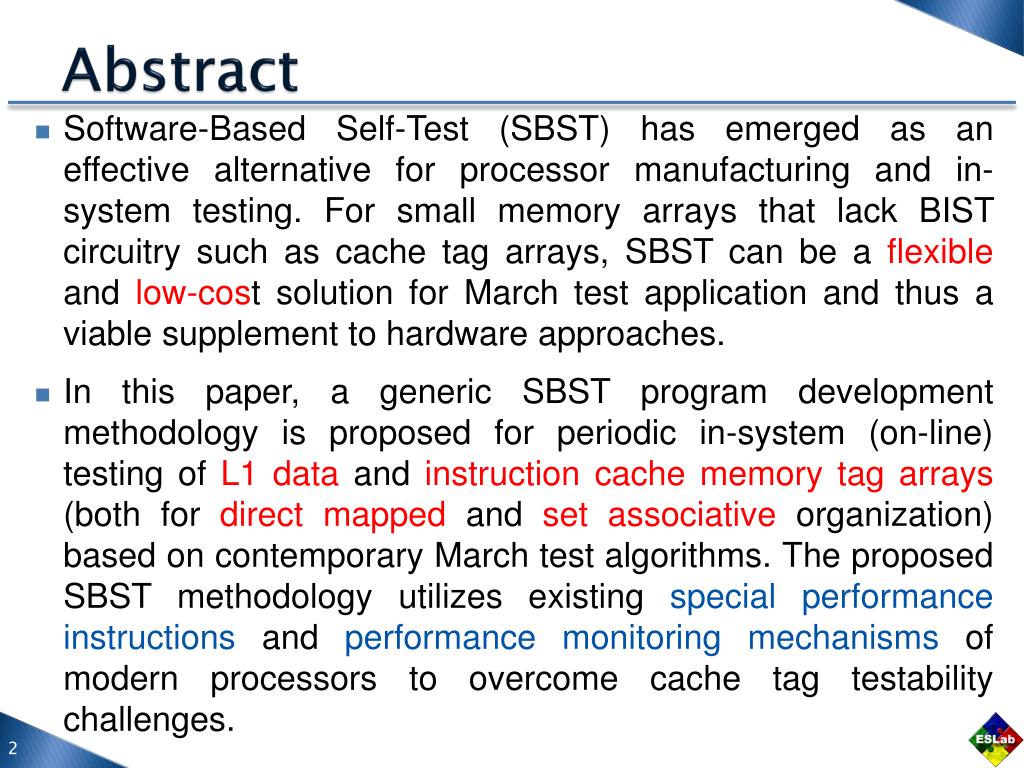

Abstract
  • Software-Based Self-Test (SBST) has emerged as an effective alternative for processor manufacturing and in-system testing. For small memory arrays that lack BIST circuitry such as cache tag arrays, SBST can be a flexible and low-cost solution for March test application and thus a viable supplement to hardware approaches.
  • In this paper, a generic SBST program development methodology is proposed for periodic in-system (on-line) testing of L1 dataand instructioncache memory tag arrays (both for direct mappedand set associative organization) based on contemporary March test algorithms. The proposed SBST methodology utilizes existing special performance instructions and performance monitoring mechanisms of modern processors to overcome cache tag testability challenges.
abstract cont
Abstract (cont.)
  • Experimental results on OpenRISC1200 processor core demonstrate that high test quality of contemporary March test algorithms is preserved while low-cost in-system testing in terms of test duration and test code size is achieved.
what is the problem
What is the Problem
  • Memory Built-In Self-Test(MBIST)
    • at-speed and several tests
    • Impact on chip area and performance
    • SBST has non-intrusive and flexibility
  • Defect tag arrays may cause erroneous cache miss
    • No MBIST circuit because size
related work
Related work

Performance

counter

[16]

Direct mapped

D$ SBST

[14]

March

compare

Detect erroneous cache miss

Traditional March

[1]

March Minimal SS

[3]

March SS

[2]

Implement SBST

MBIST

[5]

RAMSES

[19]

Impact on chip area & performance

SBST

Memory fault simulator

Simulation engine & fault descriptors

This paper

proposal method outline
Proposal method outline
  • March SS
  • Data cache algorithm
    • Create_address(DB:i:B)
  • Instruction cache algorithm
    • Create_address(DB:i:0)

TF

RDF

r0(1): read data (inverted data)

B: word offset

DB: N-bit word

Fetch first instruction in the cache line for alignment

data cache flow chart

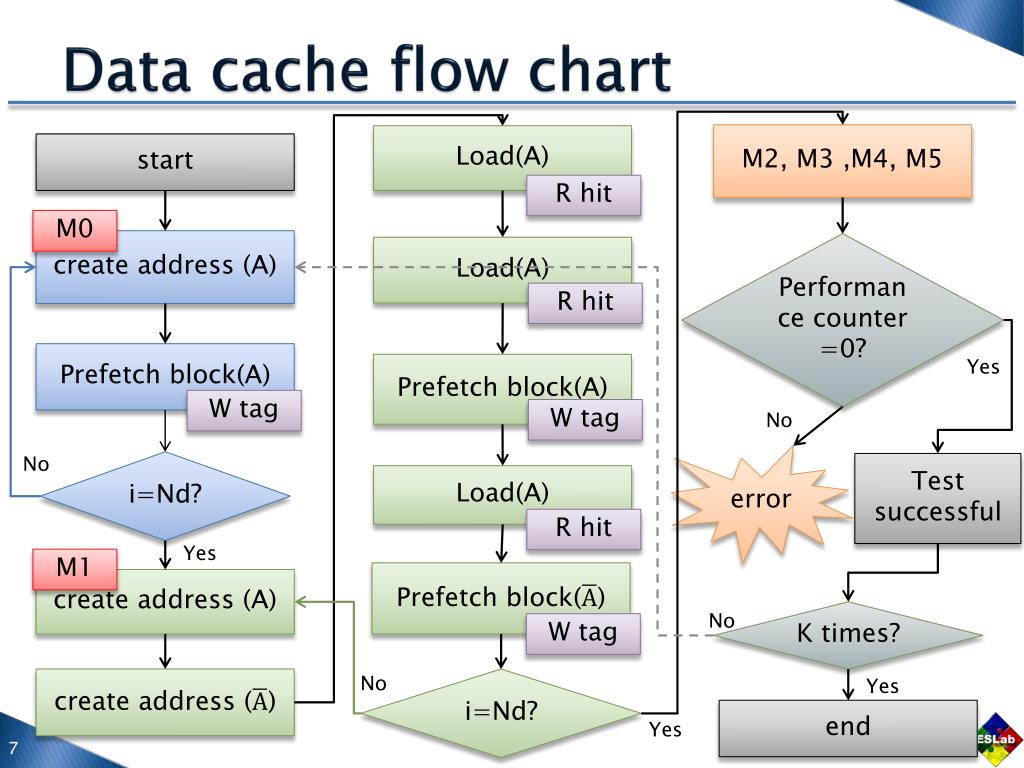

Data cache flow chart

M2, M3 ,M4, M5

Load(A)

start

R hit

M0

create address (A)

Performance counter =0?

Load(A)

R hit

Yes

Prefetch block(A)

Prefetch block(A)

W tag

No

W tag

No

error

i=Nd?

Test successful

Load(A)

R hit

Yes

M1

Prefetch block()

create address (A)

No

K times?

W tag

No

Yes

create address ()

i=Nd?

end

Yes

instruction cache flow chart
Instruction cache flow chart

No

i=Nd?

start

create address ()

Yes

M2, M3 ,M4, M5

Enable cache

Disable cache

Call (A)

M0

Performance counter =0?

R hit

create address (A)

Call (A)

R hit

Disable cache

Yes

Prefetch block(A)

No

Prefetch block(A)

W tag

error

Test successful

No

i=Nd?

Enable cache

Call (A)

Yes

No

M1

K times?

Disable cache

create address (A)

Yes

Prefetch block()

end

experimental result
Experimental result
  • OpenRISC 1200
  • Result:

[15]

n: total number of bits of the array

comparison
Comparison
  • Write operation
    • [14]: 6 instructions
    • This paper: 2 instructions
  • Read verification
    • [14]: 7 instructions
    • This paper: 2 instructions
  • March C- algorithm
conclusion
Conclusion
  • Using March SS algorithm and decreasing code size by performance counter and prefetch instruction
  • My comment
    • Assume cache hit to detect cache behaviors by prefetch operation
    • Some jargons not describe, ex: CF
    • Fault description’s definition
      • some March tests do not guarantee complete fault coverage in all fault models
