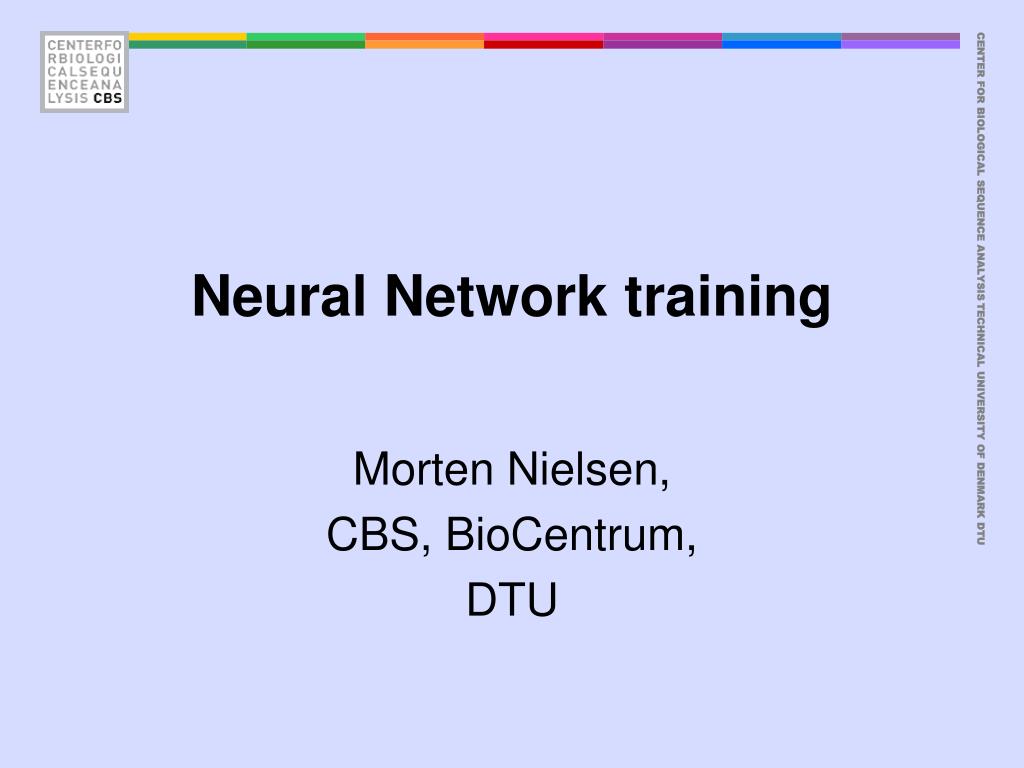

  1. Neural Network training Morten Nielsen, CBS, BioCentrum, DTU

  2. Neural network programs • How • Classification neural network • Howlin • Real value neural network • Nnlinplayer • Neural network player i.e. no training

  3. How2doit • How and howlin clumsy but very fast and efficient Fortran programs • Three important files • Parameter file; howlin.dat • Data file • Synaps (weight) file

  4. Output • Format of output file • Plotting training and test performance • howlinplot fileout

  5. Neural networks • Neural networks can learn higher order correlations! • What does this mean? 0 0 => 0 0 1 => 1 1 0 => 1 1 1 => 0 No linear function can learn this pattern

  6. Neural networks w21 w12 w11 w22 v1 v2 w11=1, w12=-1 w21=1 w22=-1 V1 = 0.5 v2= -0.5

  7. nnlinplayer • Use weight file(s) to generate neural network predictions • Format • nnlinplayer synapsfilelistinputfile • Makes consensus prediction over N neural networks • Input file must be generated separately • seq2inp data • Using pipes • seq2inp data | nnlinplayet synlist --

  8. how • Classification network • Generates input data directly from sequence • RIISSIEQKEENKGGEDKLKMIREYRQMVE • Input is how files

  9. Useful programs • fasta2pep • seq2inp • ranlines • splitfile • balanceset • xycorr • Examples fasta2pep ex.fsa | grep -v # | seq2inp -- | grep -v # | ranlines -- | grep -v # | splitfile -nc 4 -- seq2inp data | nnlinplayer synlist -- | grep -v # | args 1,3 | xycorr

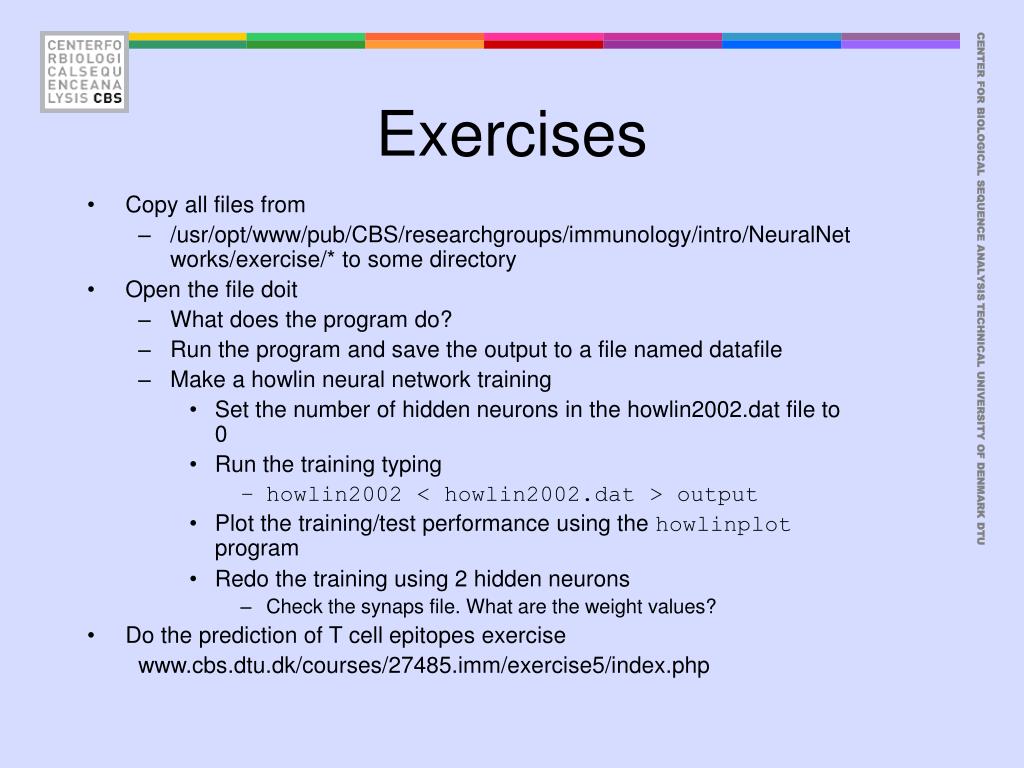

  10. Exercises • Copy all files from • /usr/opt/www/pub/CBS/researchgroups/immunology/intro/NeuralNetworks/exercise/* to some directory • Open the file doit • What does the program do? • Run the program and save the output to a file named datafile • Make a howlin neural network training • Set the number of hidden neurons in the howlin2002.dat file to 0 • Run the training typing • howlin2002 < howlin2002.dat > output • Plot the training/test performance using the howlinplot program • Redo the training using 2 hidden neurons • Check the synaps file. What are the weight values? • Do the prediction of T cell epitopes exercise www.cbs.dtu.dk/courses/27485.imm/exercise5/index.php
