An Evolution of Pattern Matching within Network Intrusion Detection Systems

1. An Evolution of Pattern Matching within Network Intrusion Detection Systems Erik Anderson 9 November 2006

2. Overview • Introduction and Background • Software Approaches • Soft Core Processors • Circuit Based Pattern Matching • Automatic Synthesis • Memory Based Pattern Matching • Comparisons of Techniques • Future Works

3. Introduction and Background • Network Intrusion Detection/Prevention Systems • Pattern Matching in Application Layer • Patterns/Network speed growing faster than CPU speeds • Reconfigurable Computing • Price, performance, power middle ground between CPUs and ASICs.

4. Software Approaches • Commercial NDIS • Snort • Hogwash • Algorithms • Brute Force • Knuth-Morris-Pratt • Aho-Corasick

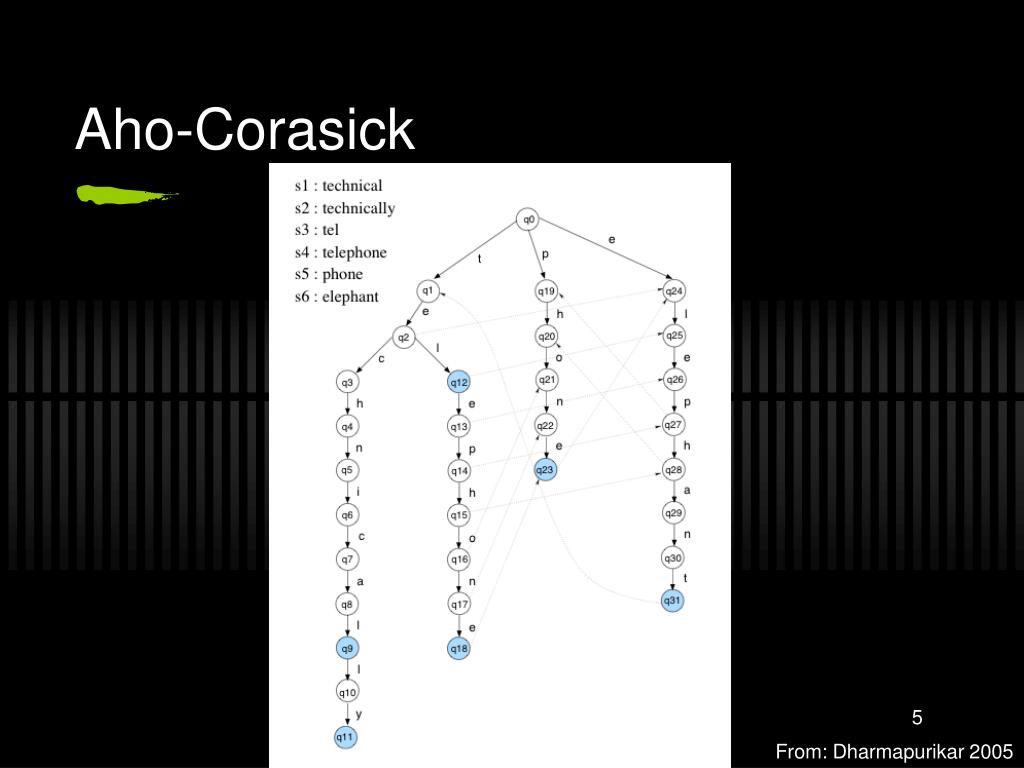

5. Aho-Corasick From: Dharmapurikar 2005

6. Soft Core Processors Lockwood, Washington University • Customize processors for an application. • Objective: find a “good” solution in linear time. • On board evaluation with SPARC V8. • 79 parameters … 3.6 trillion configurations

7. Soft Core Processors Lockwood, Washington University • Evaluation Technique • Assume parameter independence. • Start with “out of box” configuration. • Rebuild and evaluate processor, tweaking one parameter at a time. • Results (BLASTN) • 11.59% Runtime improvement • 0% change in slices • 39% increase in BRAMs

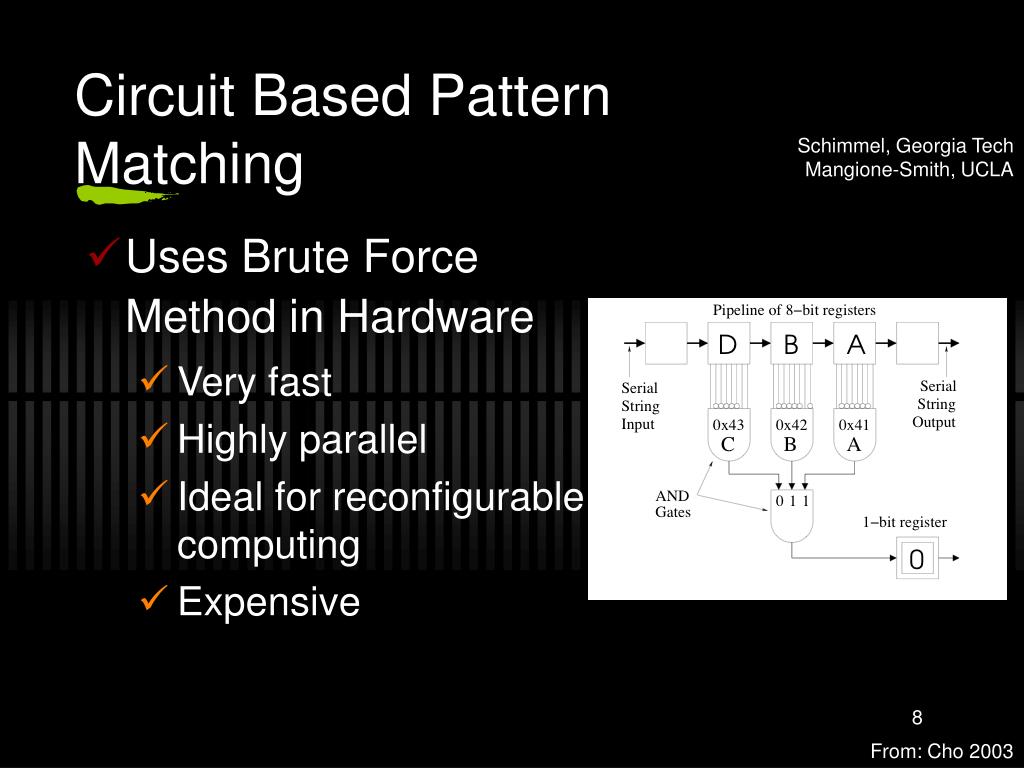

8. Circuit Based Pattern Matching Schimmel, Georgia TechMangione-Smith, UCLA • Uses Brute Force Method in Hardware • Very fast • Highly parallel • Ideal for reconfigurable computing • Expensive From: Cho 2003

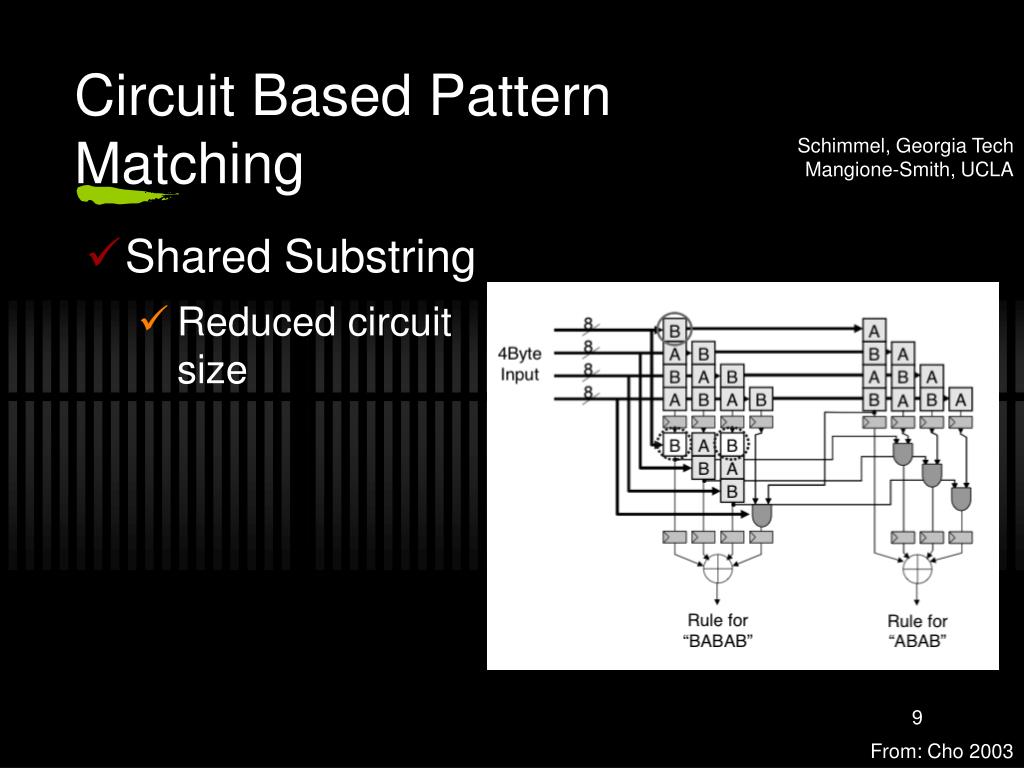

9. Circuit Based Pattern Matching Schimmel, Georgia TechMangione-Smith, UCLA • Shared Substring • Reduced circuit size From: Cho 2003

10. Circuit Based Pattern Matching Schimmel, Georgia TechMangione-Smith, UCLA • Character Decoding • Statefull comparison • Reduced circuit size From: Clark 2004

11. Automatic Synthesis Prasanna, USCJajjar, UC Riverside • Given a high-level description, automatically generate a circuit. • ROCCC • Translates C -> SUIF -> VHDL • Extensive loop analysis to find task level parallelism. • Generalized tool.

12. Automatic Synthesis Prasanna, USCJajjar, UC Riverside • Riverside • Input is a set of search strings. • Generates circuit based on: • Knuth-Morris-Pratt • Character Decoding method

13. Memory Based Pattern Matching Mangione-Smith, UCLALockwood, Washington University • Circuit based approaches are fast but not scalable. • Throughput depends on unrealistic bus model. • Resynthesize with new search strings. • Paradigm switch to using memory to hold strings, and circuits to manage control path.

14. Hybrid Model Mangione-Smith, UCLALockwood, Washington University • Divide search string into prefix and suffix. • Use circuit based design to match prefixes. • Use memory lookup to match suffix. From: Cho 2003

15. Jump-ahead Aho-Corasick Mangione-Smith, UCLALockwood, Washington University • Circuit implements Variation of Aho-Corasick state machine. • Treat k-characters as single symbol. From: Dharmapurikar 2005

16. Jump-ahead Aho-Corasick Mangione-Smith, UCLALockwood, Washington University • Search strings held in memory data structures. • 1 clock cycle Bloom filter to lookup state transition. • Multiple cores to improve performance. From: Dharmapurikar 2005

17. Comparisons of Techniques

18. Future Works • Runtime reconfiguration of circuit based systems. • Dealing with fragmented packets. • Applications towards bioinformatics.

19. Abstractions for NIDS Lockwood, Washington University • Motivation: Collapse of Moore’s Law, increased threats, & design complexity. • Paradigm shift from fast individual packet processing, to fast cumulative processing. • Long term goals: • HLL to describe network analysis. • Abstracting parallel techniques. • Automatic compilation/synthesis of circuits.

20. Questions?
