Network Intrusion Detection Systems

1. Network Intrusion Detection Systems Ali Shayan October 2008

2. Introduction • Intrusion – an attempt to compromise or misuse a computer system or network. • Network Intrusion Detection System (NIDS) monitors packets on the network wire and attempts to discover if hackers are attempting to break into a system or cause a DOS. • NIDS can run on the target or independent system. • Network NIDS monitor many machines. • System Integrity Verifiers (SIV) monitor system files to detect trojan versions of system binaries. It may log the attempt as it occurs.

3. Introduction • Log File Monitors (LFM) monitor log files generated by network services. • Deception Systems aka honeypots, fly-traps contain pseudo-services that emulate well-known holes in an attempt to trap hackers. • Intruders – outsiders or insiders

4. How do Intruders Get In? • Physical Intrusion – console passwords, disk removal, etc. • System Intrusion – hacker has a low privilege account on the system and uses a tool that exploits a weakness to gain system privilege. • Remote Intrusion – gains access via a remote service on the system.

5. Intrusion Detection • Process of identifying and responding to malicious activities targeted against networks and its resources • System that performs intrusion detection is called Intrusion Detection System (IDS) • complements prevention techniques (e.g. firewalls) • defense mechanism behind outer barrier • works against insiders • important market for security companies (ISS, Cisco)

6. Intrusion Detection • Type of IDSs • Material-based • HIDS (Host-based Intrusion Detection System) • NIDS (Network-based Intrusion Detection System) • Detection Techniques • Misuse based / Signature based • Anomaly based • Hybrid

7. Intrusion Detection Techniques • Misuse-based / Signature-based • observed behavior is compared against description of known, undesirable behavior (signatures) • intrusion assumed when signature spotted in input data • comparable to virus scanner • all commercial systems follow this approach • Advantages • accurate reports (low false positive rate) • Disadvantages • needs continous update of signatures (like virus scanner) • unable of detecting novel intrusions

8. Intrusion Detection Techniques • Anomaly based • behavior is compared against description of anticipated, legal behavior (profile) • intrusion assumed when deviation between input and profile significant • statistical methods, AI techniques (neural networks) • Advantages • capable of detecting novel attacks • Disadvantages • difficult to configure / train • high number of false alarms (incorrect detects)

9. Intrusion Detection Domains • Network based • input data is gathered from the network • packet sniffer, protocol analysis • Advantages – complete set of events – access to events related to multiple hosts from a single sampling point • Disadvantages – performance issues (reassembling , de-fragmenting) – switched architectures – encryption – discrepancies between sensor and target viewpoint (eg. encryption, TTL, ...)

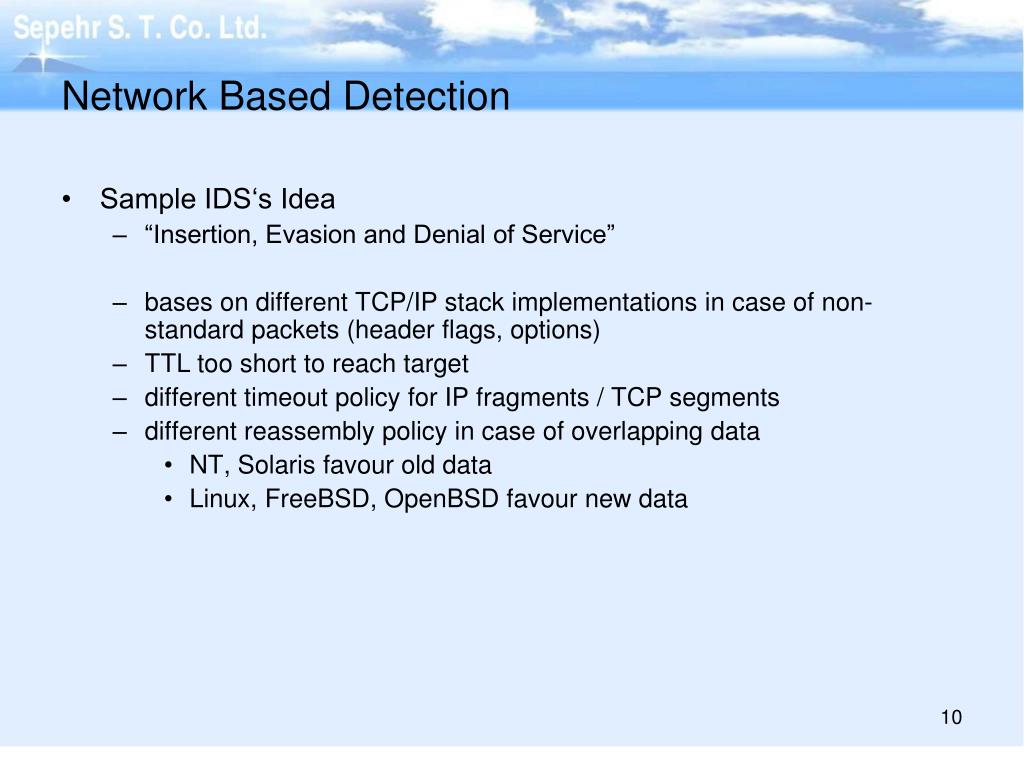

10. Network Based Detection • Sample IDS‘s Idea • “Insertion, Evasion and Denial of Service” • bases on different TCP/IP stack implementations in case of non-standard packets (header flags, options) • TTL too short to reach target • different timeout policy for IP fragments / TCP segments • different reassembly policy in case of overlapping data • NT, Solaris favour old data • Linux, FreeBSD, OpenBSD favour new data

11. Network Based Detection • Commercial systems • RealSecure (ISS) • Juniper (Juniper Networks Intrusion Prevention) • Cisco (Cisco IPS 4200 Series Sensors) • Academic systems • NFR (Marcus Ranum) • NetSTAT (UCSB) • Emerald (SRI) • Bro • Snort (http://www.snort.org) • designed to be lightweight and fast • based on libpcap (reads/writes tcpdump files) • simple rule-based analysis engine • simple pattern-matching functionalities

12. Intrusion Detection Domains • Host based • produce data related to host activity • two main sources • operating system • Syslog Daemon, klogd • Linux – LIDS • Solaris Auditing – Basic Security Model (BSM) • Windows NT Events • application level • Apache logs • ftpd logs

13. Intrusion Detection Domains • Syslog • Logging facility available in all UNIX system • accessible through syslog() that sends a log message to syslogd/klogd • Syslog message • Indentity - usually the program name • Facility - specifies the source of the message (kernel, user, mail, lpr, authpriv, daemon) • Level - determines the importance of the message (emerg, alert, crit, err, warning, notice, info, debug) • Text message

14. Intrusion Detection Challanges • Recognize malicious actions in the huge stream of events provided by network monitors and host auditing facilities • Detect intrusions in real-time • Correlate detection results within and across security domains • Integrate different systems so that all techniques (anomaly, misuse) and domains (host, network) are covered • Deploy ID systems in very different environments and take into account the characteristics of the protected computer networks

15. Where to locate IDS • Network hosts • Network Perimeter • WAN/LAN Backbone • Server farms • Need to be on low-bandwidth nets to keep up with traffic.

16. Fitting IDS with Security Framework • Put firewalls between networks with different security requirements. • Use scanners to check for exploits. • Set host policy to conform with standards. • Use NIDS to see what is actually happening. • Use Host based IDS to flag intrusions. • Create effective IRP.

17. Sample IDS Placement IDS #1 INTERNAL NETWORK INTERNET FIREWALL IDS #3 IDS #2 IDS #4 IDS #1 – FW don’t produce enough info to effectively detect hits. IDS #2 – detects attacks that penetrate the FW IDS #3 – detects attacks attempted against the FW IDS #4 – Insider attacks will be detected

18. Attacks Against the NIDS • Blind the sensor with high traffic rates. • Blind the event storage. Use decoy scans to fill up log space. • DOS • Packet Fragmentation • Slow Scan • Coordinated low-bandwidth attacks • Address spoofing • Pattern Change

19. Questions to ask IDS Vendors • How Much? • What do signature updates cost? • What traffic level blinds the IDS? • How easy to evade? • How scalable is it? • How many signatures does it support? • What IR features are included?
